PONTIAC BONNEVILLE 1996 Owners Manual

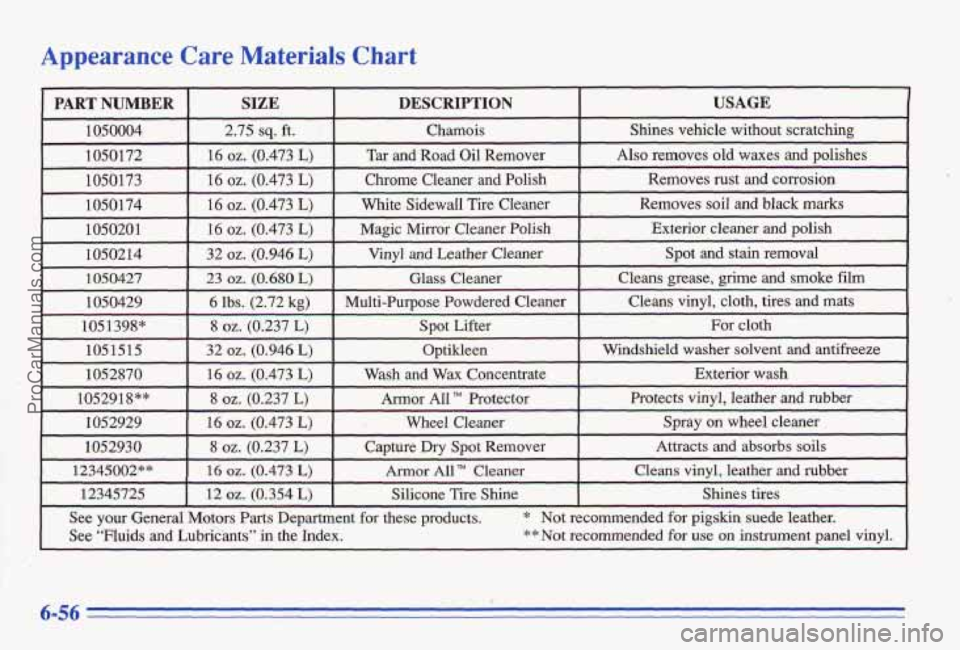

Appearance Care Materials Chart
12345725 I 12 oz. (0.354 L) I Silicone Tire Shine I Shines tires
I See your General Mators Parts Department for these products. * Not recornmended for pigskin suede leather.
See “Fluids and Lubric’ants” in the Index. **Not recommended for use on instrument panel vinyl.
6-56
ProCarManuals.com

. , . ,-;

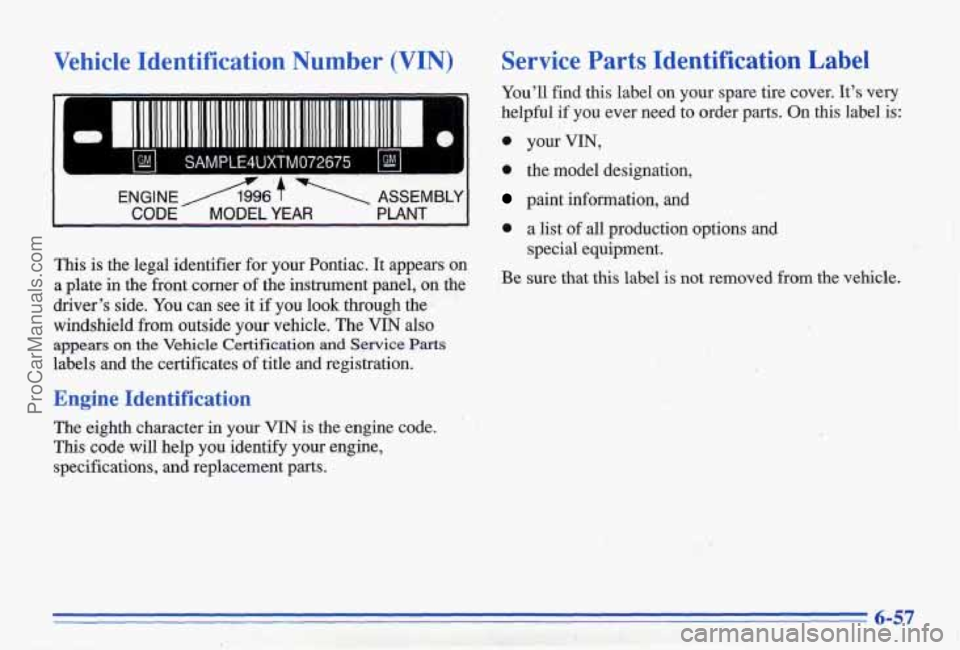

Vehicle Identification Number (VIN)
fi
1l111111111l1 11111111111111 11111111111111111111111111111111 I I II 11111.11 1.11 111 111111 II. lll~~lII1111111~1111111..1111II~ 0
bl SAMPLE4UXTM072675
ENGINEA96 7 ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your Pontiac. It appears on
a plate
in the front corner of the instrument panel, on the
driver’s side.
You can see it if you look through the I
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications,
and replacement parts.
1.
Service Parts Identification Label
You’ll find this label on your spare tire cover. It’s very
helpful if you ever need to order parts. On this label is:
0
0
e
your VIN,
the model designation,
paint information, and
a list of all production options and
special equipment.
Be sure that this label
is not removed from the vehicle.
6-57
ProCarManuals.com

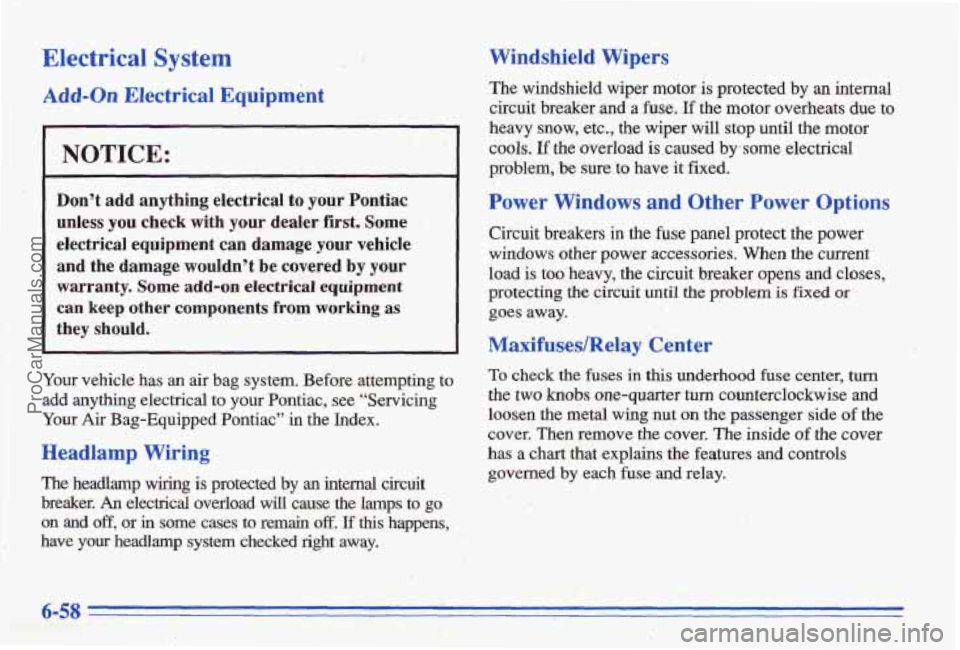

Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Pontiac
s; i; unless you check with your dealer first. Some
. +, and the damage wouldn’t be covered by your
warranty.
Some add-on electrical equipment
can keep other components from working as
they should.
...a . . % .-
.. b.., r -‘ ‘i ’-’ t electrical equipment can damage your vehicle
Youfvehicle has an air bag system. Before attempting to
add anything electrical to your Pontiac, see “Servicing
Ysur Air Bag-Equipped Pontiac” in the Index.
Headlamp Wiring
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to go
on
.and off, or in mrne cases to re& off. .If this happens,
have
your headlamp system checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker
and a fuse. If the motor overheats due to
heavy snow, etc., the wiper
will stop until the motor
cools. If tbe overload is .caused by some electrical
problem, be
sure to have it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows other power accessories. When the current
load is too’heavy, the circ,uit breaker opens and closes,
protecting
the circuit until the problem is fixed or
goes away.
MaxifusedRelay Center
To check the fuses in this underhood fuse center, turn
the two knobs one-quarter turn counterclockwise and
loosen the metal wing nut on the passenger side of the
cover. Then remov’e the cover. The inside of the cover
has
a chart that explahs the features and controls
governed
by each fuse and relay.
I -.: ~ _I = L i , -. . :. . ,
6-58
ProCarManuals.com

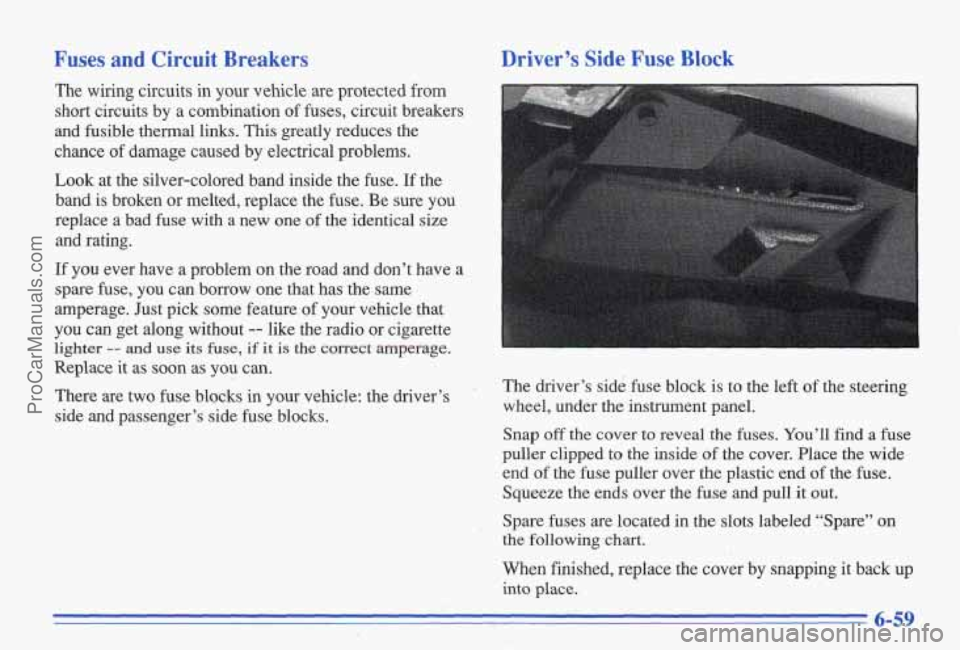

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of damage caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken
or melted, replace the fuse. Be sure you
replace a bad fuse with a new one
of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse,
you can borrow one that has the same
amperage. Just pick some feature of
your vehicle that
you can get along without -- like the radio or cigarette
lighter -- and use its fuse, if it is the eomect amperage.
Replace it as soon as you can.
There are two fuse blocks in your vehicle: the driver’s
side and passenger’s side fuse blocks.

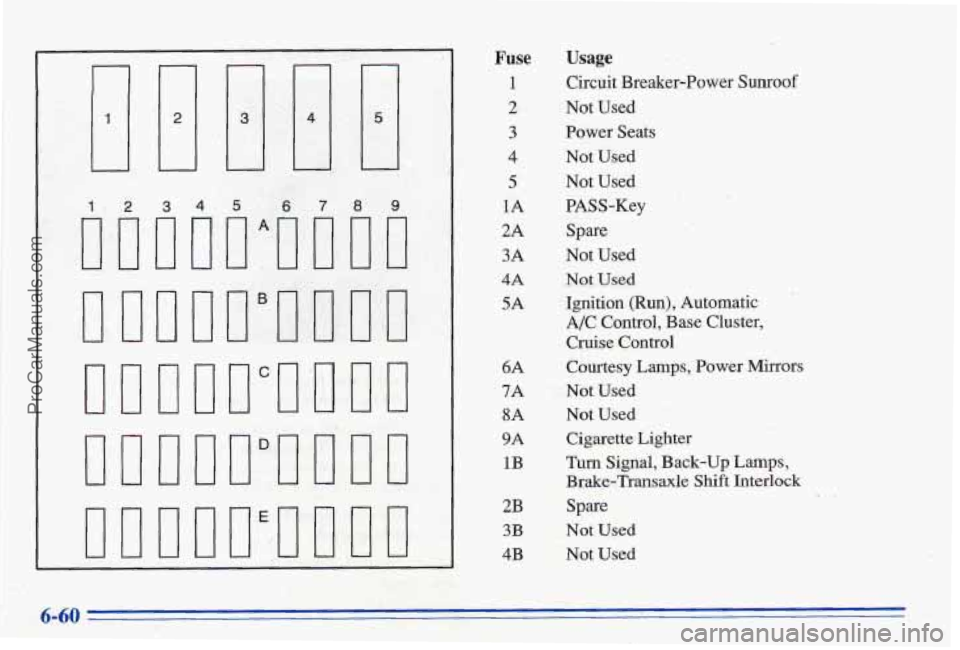

Driver’s Side Fuse Block
The driver’s side fuse block is to the left of the steering
wheel, under the instrument panel.
Snap off the cover to reveal the fuses. You’ll find a fuse
puller clipped to the inside of the cover. Place the wide
end of the fuse puller over the plastic end of the fuse.
Squeeze the ends over the fuse and pull it out.
Spare fuses are located in the slots labeled “Spare”
on
the following chart.
When finished, replace the cover by snapping it back
up
into place.
ProCarManuals.com

345 6
t
Fuse
1
2
3
4
5
1A
2A
3A
4A
5A
6A
7A
8A
9A
1B
2B
3B
4B
Usage
Circuit Breaker-Power Sunroof
Not Used Power Seats
Not Used
Not Used PASS-Key
Spare
Not Used
Not
Used
Ignition (Run), Automatic
AJC Control, Base Cluster,
Cruise Control
Courtesy Lamps, Power Mirrors
Not Used
Not Used Cigarette Lighter
Turn Signal, Back-up Lamps,
Brake-Transaxle Shift Interlock
Spare
Not Used
Not Used
6-60
ProCarManuals.com

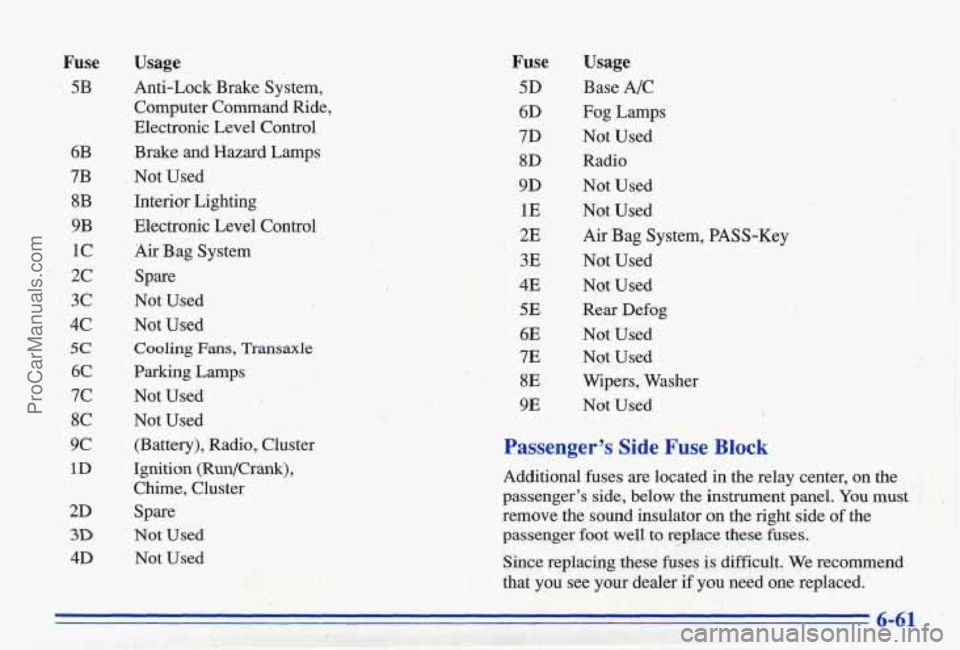

Fuse
5B
6B
7B 8B
9B
1c
2c
3c
4,c
5c
6C
7c
8C
9c
1D
2D
3D
4D
Usage
Anti-Lock Brake System, Computer Command Ride,
Electronic Level Control
Brake and Hazard Lamps
Not Used
Interior
I Lighting
Electronic Level Control
Air Bag System
Spare
Not Used
Not Used
Cooling Fans, Trmsmle
Parking Lamps
Not Used
Not Used (Battery), Radio, Cluster
Ignition (Run/Crank), Chime, Cluster
Spare
Not Used Not Used
Fuse
5D
6D
7D 8D
9D
1E
2E
3E
4E
5E
6E
7E
8E
9E
Usage
Base A/C
Fog Lamps
Not Used Radio
Not Used Not Used
Air Bag System, PASS-Key
Not Used
Not Used
Rear Defog
Not Used
Not Used
Wipers, Washer
Not Used
I

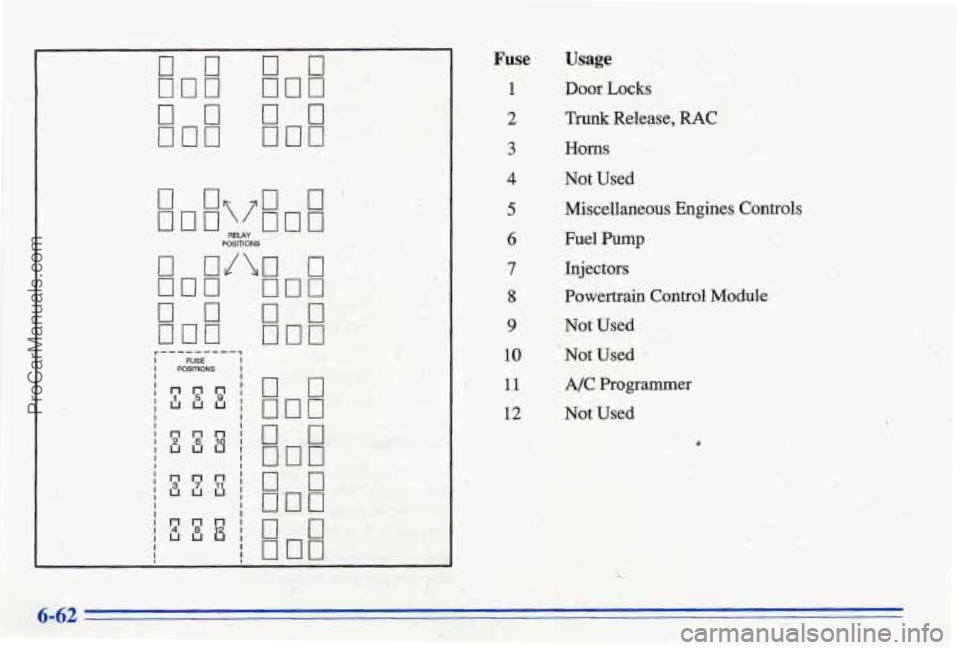

Passenger% Side Fuse Block
Additional fuses are located in the relay center, on the
passenger's side, below the instrument panel.
You must
.. : i',
.- . '! i . -." remove the sound insulator on the right side of the
>. passenger foot well to replace these fbses.
Since replacing these fuses is difficult. We recommend
that you see your dealer
if you need me replaced.
ProCarManuals.com

Fuse
1
2
3
4
5
6
7
8
9
10
11
12
Usage
Door Locks
Trunk Release, RAC
Horns
Not Used
Miscellaneous Engines Controls
Fuel
Pump
Injectors
Powertrain Control Module
Not Used
' Not Used
AJC Programmer
Not Used
4
ProCarManuals.com

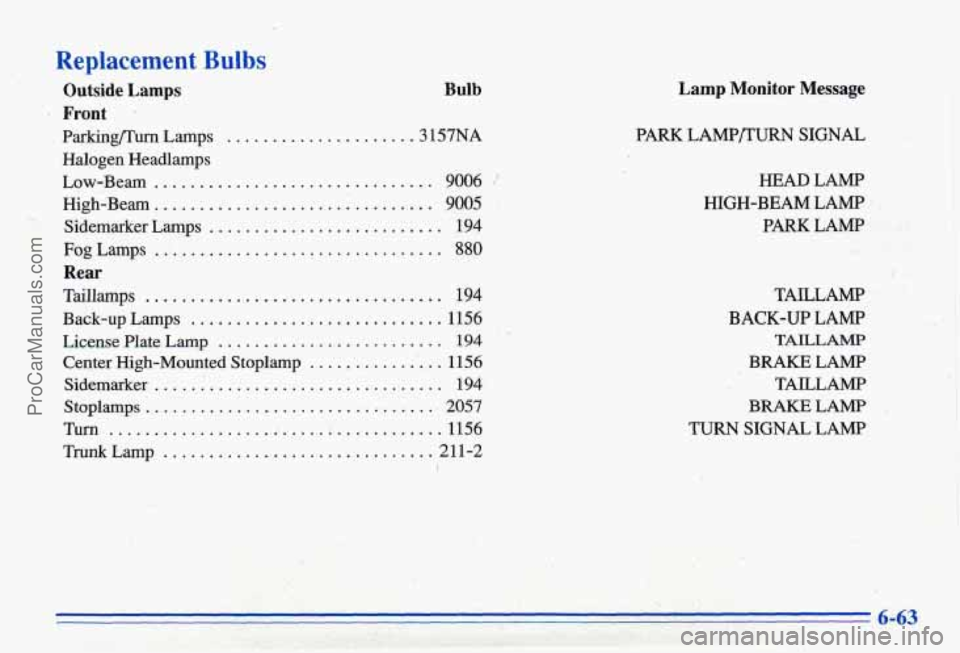

Bulb
Replacement Bulbs
Outside Lamps
Parking/Tum Lamps ....................... 3157NA
Halogen Headlamps Low-Beam
............................... 9006 ..
High-Beam ............................... 9005
Sidemarker Lamps ........................... 194
FogLamps ................................ 880
Rear
' Front .
Taillamps ................................. 194
Back-up Lamps
............................ 1156
License Plate
Lamp ......................... 194
Center High-Mounted S toplamp ................ 1 156
Sidemarker
................................ 194
Stoplamps ................................ 2057
T~rn ...................................... 1156
Trunk Lamp .............................. 21 1-2
Lamp Monitor Message
PARK LAMP/TURN SIGNAL
HEADLAMP
HIGH-BEAM LAMP PARKLAMP
TAILLAMP
BACK-UP LAMP
TAILLAMP
BRAKELAMP TAILLAMP
BRAKELA"
TURN SIGNAL LAMP
ProCarManuals.com

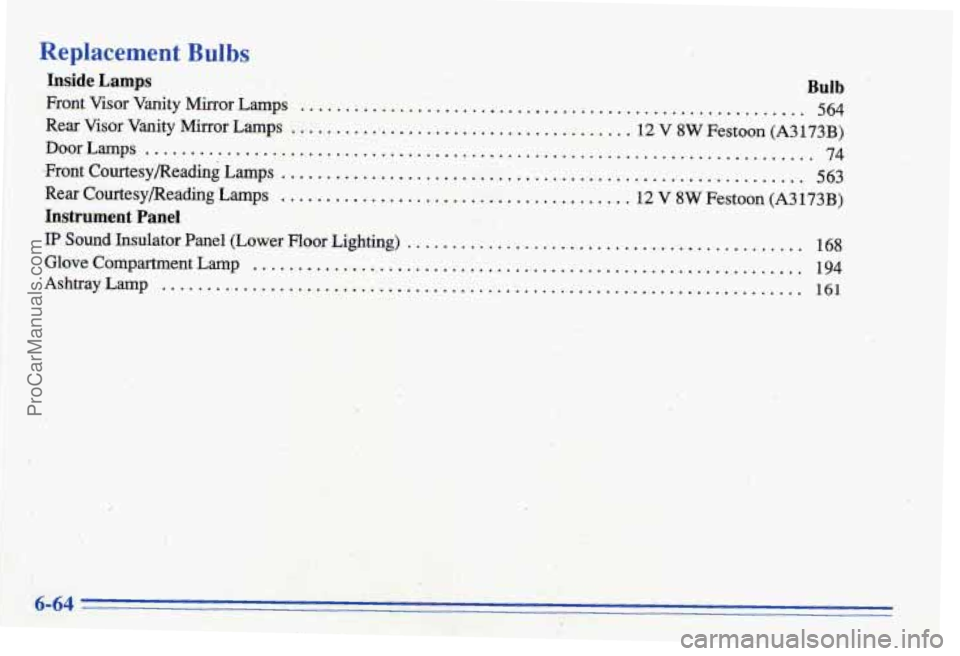

Redacement Bulbs 1
Inside Lamps Bulb
Front Visor Vanity Mirror Laps ......................................................... 564
Rear Visor Vanity Mirror Lamps ................................... ... 12 V 8W Festoon (A3 1733)
DoorLamps ........................................................................\
... 74
-Front Courtesy/Reading Lamps 563
Instrument Panel
IP Sound Insulator Panel (Lower Floor Lighting) 168
GloveCompartmentLamp
............................................................. 194
Ashtray Lamp .................... 161
..........................................................
Rear Courtesy/JXeading Lamps ....................................... 12 V 8W Festoon (A3173B)
............................................
...................................................
6-64 I
ProCarManuals.com

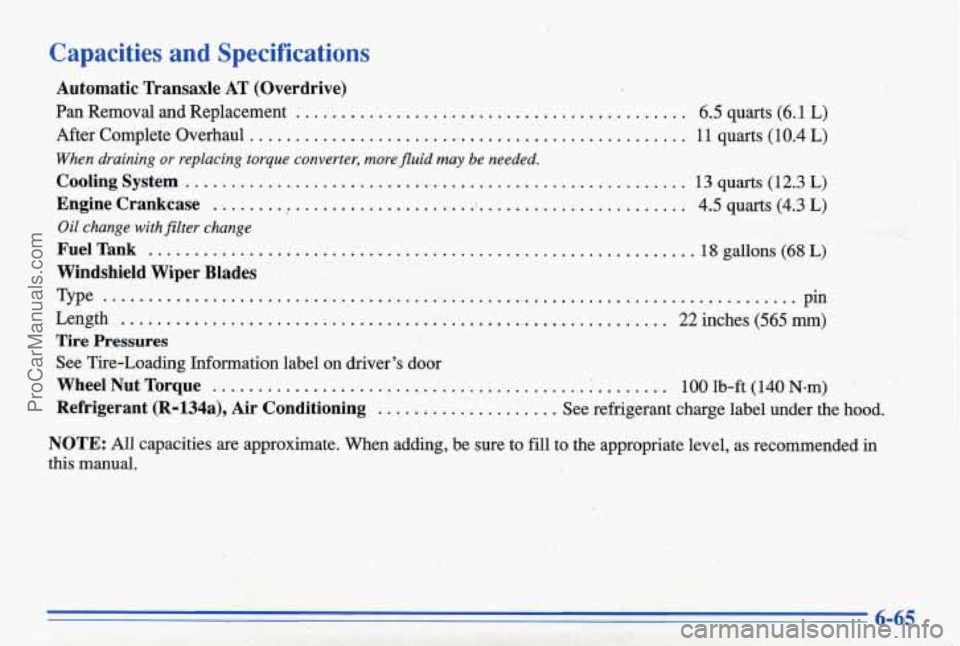

Capacities and Specifications
Automatic Transaxle AT (Overdrive)
Pan Removal and Replacement .... '. ......................................
After Complete Overhaul ................................................
When draining or replacing torque converter, more fluid may be needed.
CoolingSystem .......................................................
Enginecrankcase .....................................................
Oil change with filter change
FuelTank .........................................
Windshield Wiper Blades
Type ..............................................
..
..
...
...
6.5 quarts (6.1 L)
11 quarts (10.4 L)
13 quarts (12.3 L)
4.5 quarts (4.3 L)
..
..
............ 18 gallons (68 L)
....................... Pin
Length
............................................................ 22 inches (565 mm)
Tire Pressures
See Tire-Loading Information label on driver's door
WheelNutTorque ......................................... ;........ lOOlb-ft(140N~m)
Refrigerant (R=l34a), Air Conditioning .................... See refrigerant charge label under the hood.
