PONTIAC BONNEVILLE 1996 Owners Manual

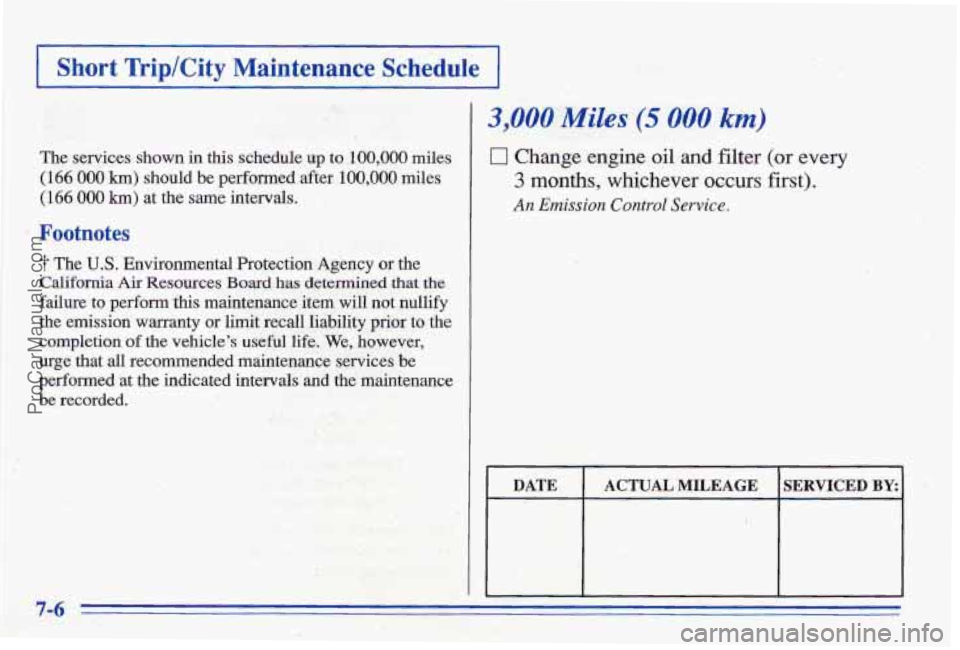

I Short Trip/City Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
(166
000 km) should be performed after. 100,000 miles
(166
000 h) at the sarne intervals.
Footnotes
The U.S. Environmental Protection Agency or the
California
Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion
of the vehidle's usehl life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance be recorded.
3,000 Miles (5 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Sewice.
7-6
ProCarManuals.com

I Short TriplCity Maintenance Schedule I

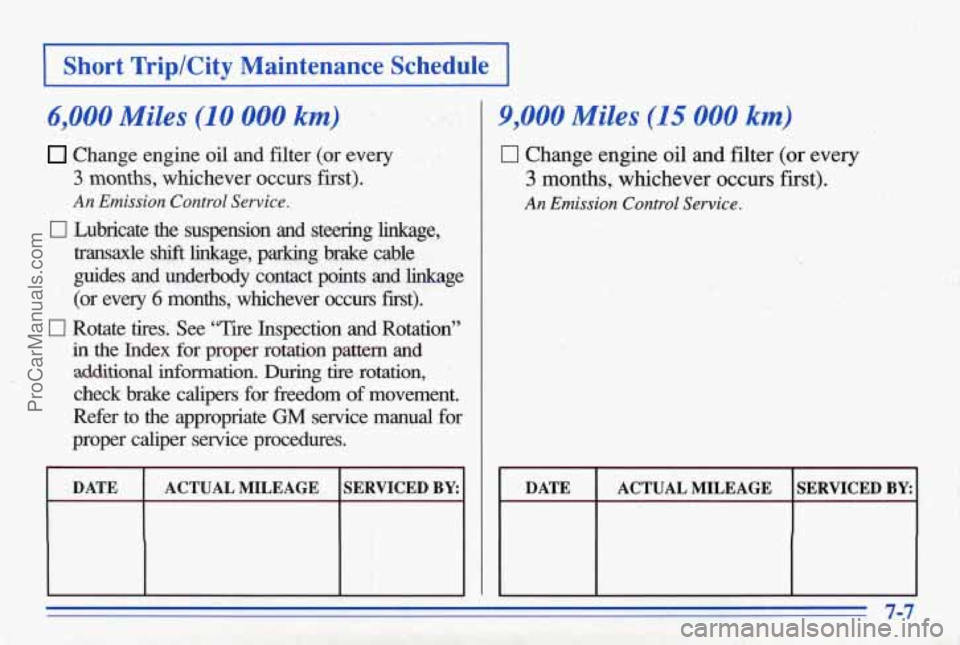

6,000 Miles (10 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering linkage,
transaxle
shift linkage, parking brake cable
guides and underbody contact
points and linkage
(or every 6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation”
in the Index for. proper rotation pattern and
additional information. During tire rotation,
check brake calipers for freedom of movement.
Refer to the appropriate
GM service manual for
proper caber service procedures.
t I I I
DATE ACTUAL MILEAGE SERVICED BY:
9,000 Miles (15 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
ProCarManuals.com

Short lkip/City Maintenance Schedule I

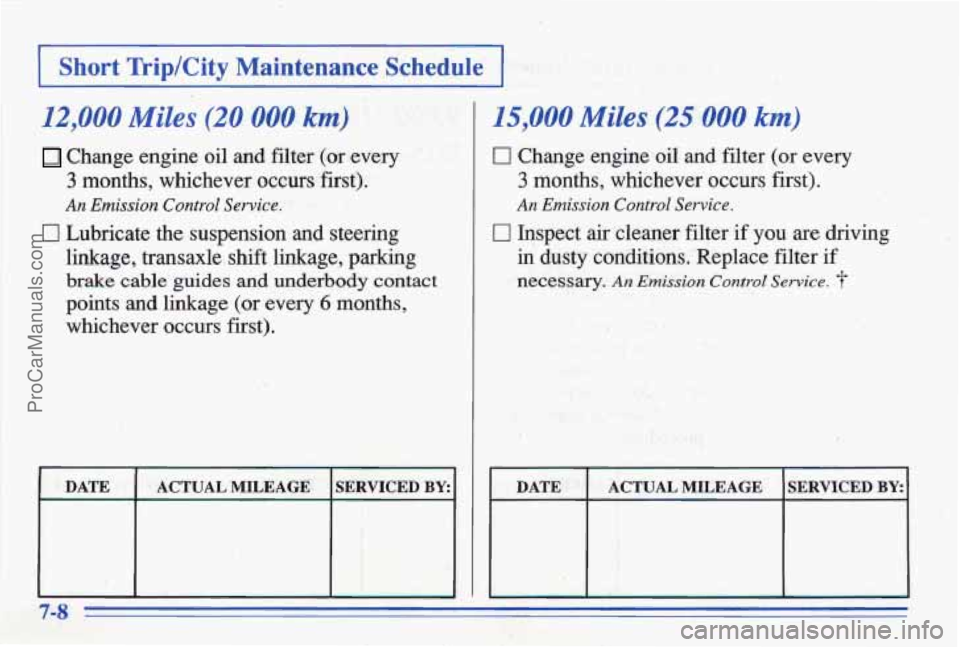

12,000 Miles (20 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points and linkage (or every 6 months,
whichever occurs first).
II ,.
1,
I. :
.. .- . . ..
,
DATE SERVICED BY: ACTUAL MILEAGE
~
~ ~~
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
& dusty conditions, Replace filter if
0 Inspect air cleaner filter if you mare driving
necessary. An Eniission Control Sewice. ?
DATE ACTUAL MILEAGE SEBVICED BY:
743 .-
ProCarManuals.com

I Short Trip/City Maintenance Schedule I I

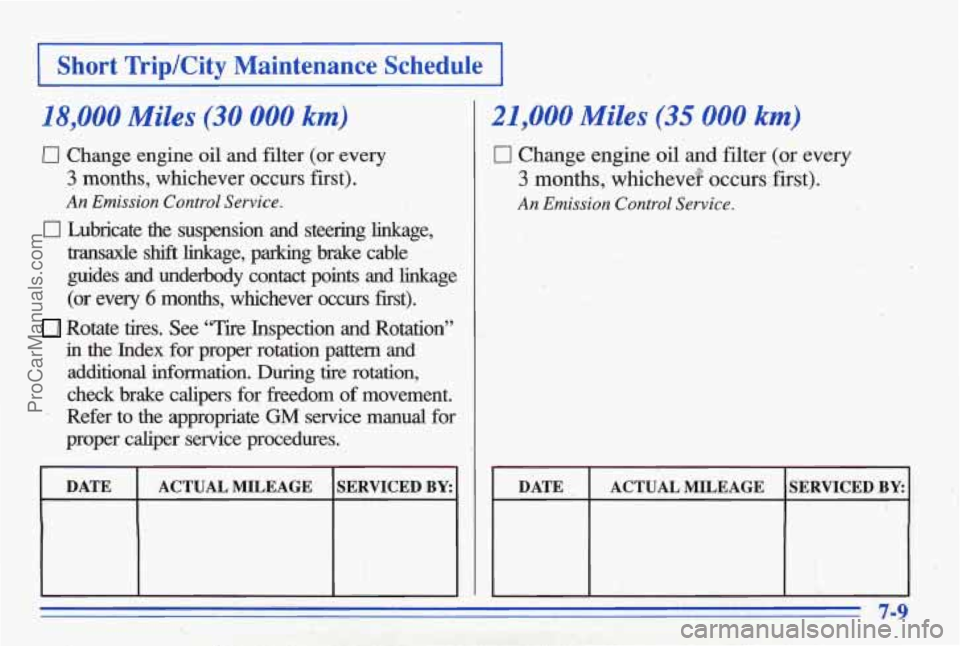

18,000 Miles.(30 000 km)
c1. Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Cl Lubricate the suspension and steering -linkage,
transaxle
shift linkage, parking brake cable
guides
.and underbody contact points and linkage
(or every 6 months, whichever occurs first).
Rotate tires. See "Tire Inspection and Rotation"
in the Index for proper rotation pattern and
additional
inf'ormation. During tire rotation,
check brake calipers
for Ereedom of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
21,000 Miles (35 000 km)
0 Change engine oil and filter (or every
3 months, whichevef occurs first).
An Emission Control Service.
DATE . ACTUAL MILEAGE SERVICED BY: I
ProCarManuals.com

I Short TriplCity Maintenance, Schedule I

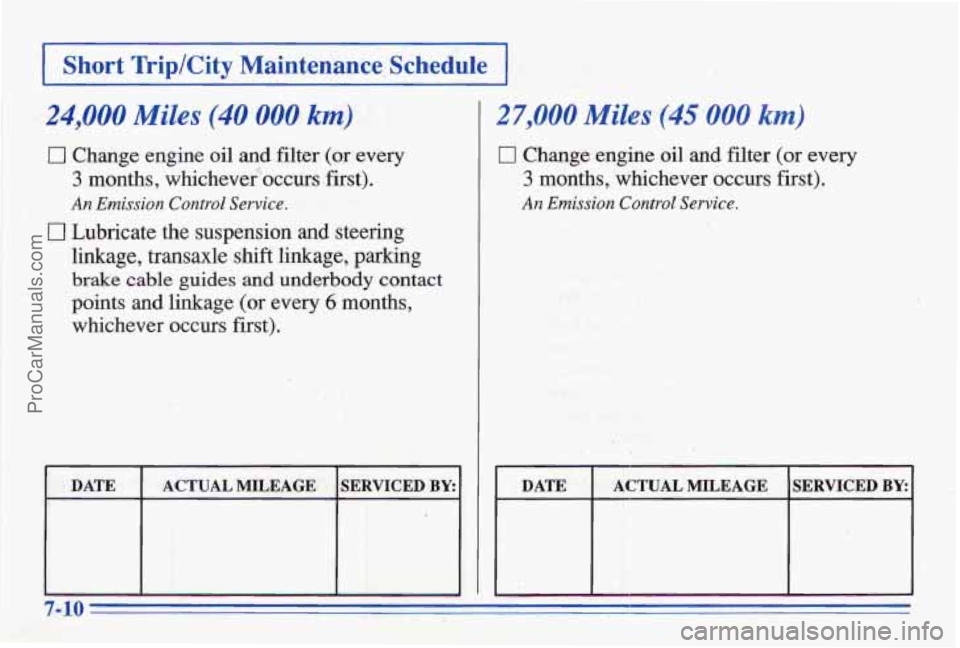

,-24,000 Miles (40 000 km)
0 Change engine oil and filter (or every
3 months, ',whichever occurs
first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points
and linkage (or every 6 months,
whichever occurs first).
DATE SERVICED BY: ACTUAL MILEAGE
27,000 Miles (45-000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE SERVICED BY: ACTUAL MILEAGE
7-10
ProCarManuals.com

1 Short TriplCity Maintenance Schedule I

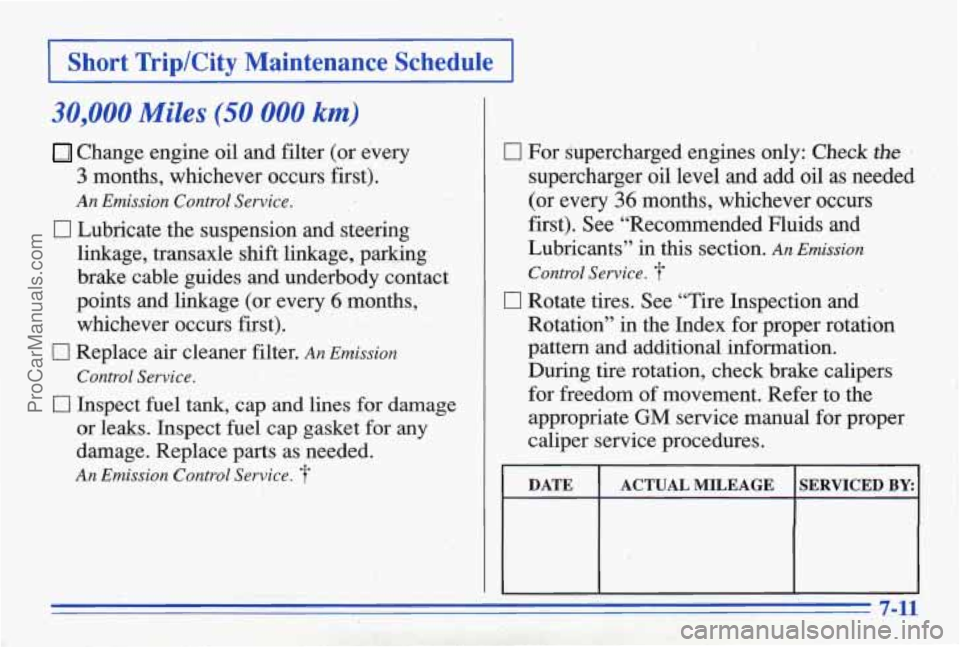

30,000 Miles (50,000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
CI Lubricate the suspension and steering
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points and linkage (or every 6 months,
whichever occurs first).
Control Service.
0 Replace air cleaner filter. An Emission
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service.
0 For dupercharged engines only: Check the .
supercharger oil level and add oil as needed
(or every
36 months, whichever occurs
first).
See “Recommended Fluids and
Lubricants” in this section. An Emission
Control Service.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern
and additional information.
During tire rotation, check brake calipers
for freedom of movement. Refer to the
appropriate
GM service manual for proper
caliper service procedures.
ProCarManuals.com

I Short TriplCity Maintenance Schedule ,I

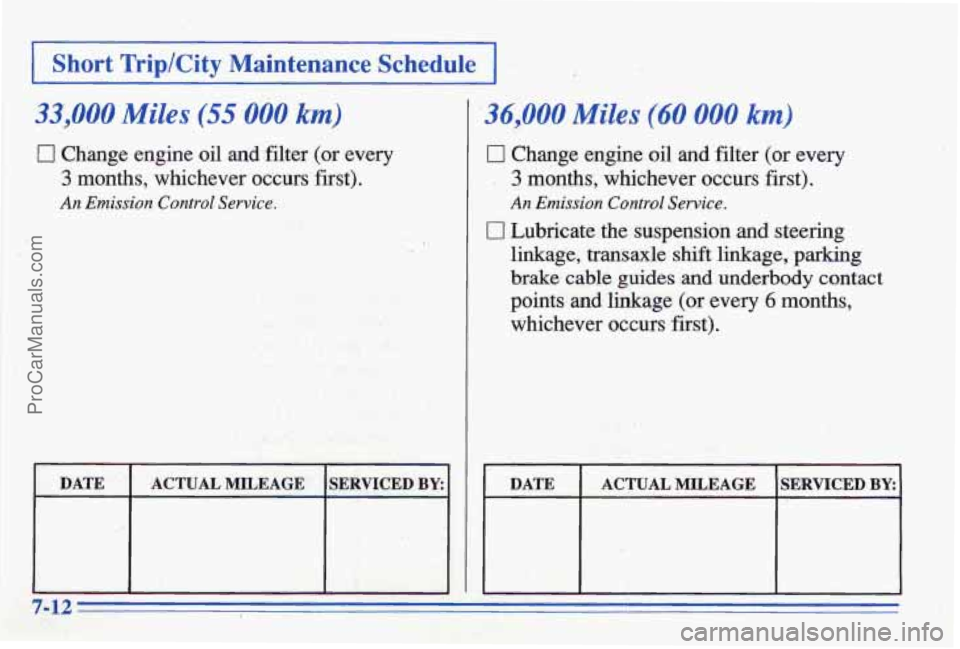

33,000 Miles (55 000 km)
0 Change engine oil ,and filter (or every
.I ' ,-
;36,000 Miles (40 000 km)
0 Change engine oil and filter (or every
. 3 months, whichever occurs first).
0 Lubricate the suspension and steering
An Emission Control Service.
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points md linkage (or every 6 months,
whichever
OGCUTS first).
-
DATE ACTUAL MILEAGE SERVlCED BY:
ProCarManuals.com

1 Short Trip/City Maintenance Schedule I

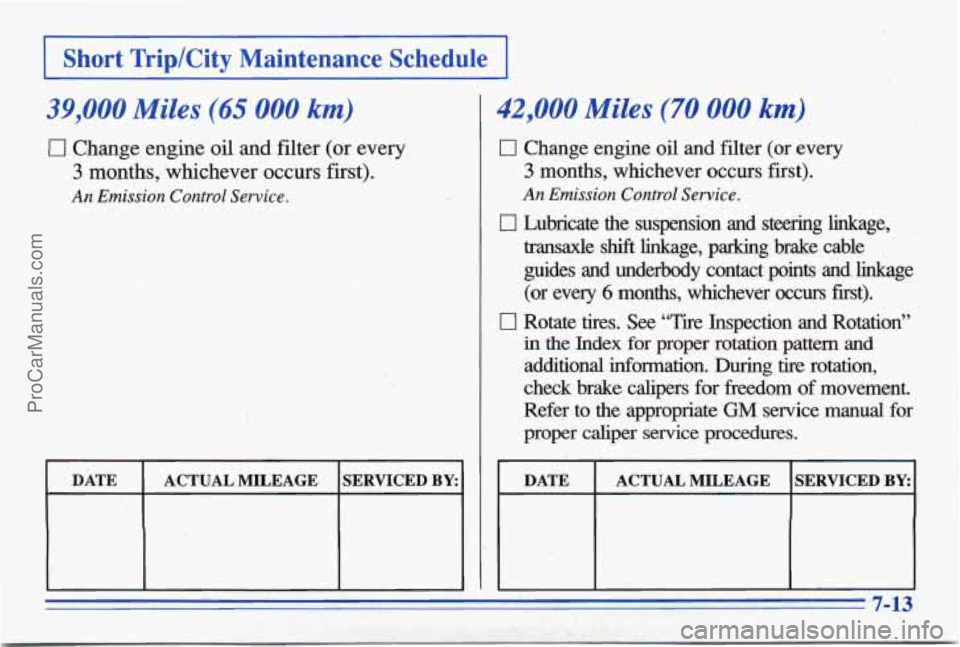

39,000 Miles (45 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service,
42,000 Miles (70 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An- Emission Control Service.
0 Lubricate the suspension and steering linkage,
transaxle
shift linkage, parking brake cable
guides and underbody
contact points and linkage
(or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation”
in the Index €or proper rotation pattern and
additional information. During tire rotation,
check brake calipers for freedom
of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
I DATE I ACTUAL MILEAGE ISERVICED BEI
ProCarManuals.com

0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
in dusty conditions. Replace filter if
0 Inspect air cleaner filter if you are driving
~~XXSS~XY. An Emission Control Service. ?
-
SERVICED BY:
0 Change engine oil and filter (or every
3 months, whichever occurs first).
0 Lubricate the suspension and steering
An Emission Control Service.
linkage, transaxle shift linkage, parking
brake cable guides
and underbody contact
points
and linkage (or every 6 months,
whichever occurs
first).
-
DATE ACTUAL MILEAGE' SERVICED BY:
ProCarManuals.com

I Short Trip/City Maintenance Schedule 1

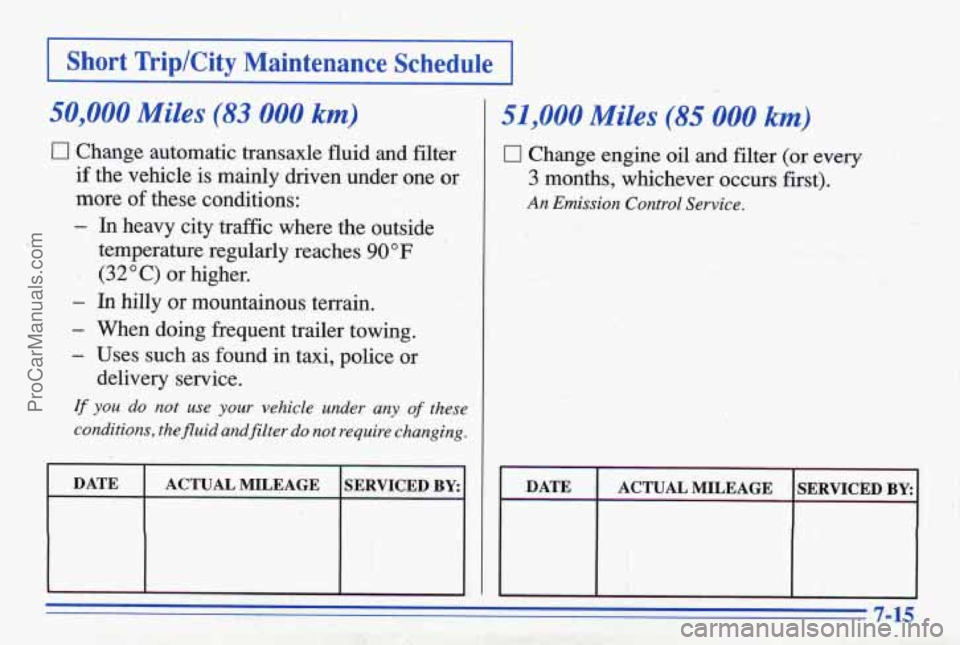

50,OOO;Miles (83 000 km) 1 51,000 Miles (85 000 km)
Change automatic transaxle fluid and filter
An Emission Control Sewi'ce. more of these conditions:
3 months, whichever occurs first).
if the vehicle
is mainly driven under one or
0 Change engine oil and filter (or, every
.. ,';I. .: - '-. - In heavy city traffic where the outside
.. , ' "-1;. . .' ?.- - . ' -. :- . temperature regularly reaches 90°F , .. . (32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of these
conditions, the fluid andfilter do not require changing.
DATE
SERVICED BY: ACTUAL MILEAGE
DATE
SERVICED BY: ACTUAL MILEAGE
~
745
