PONTIAC BONNEVILLE 1998 Owners Manual

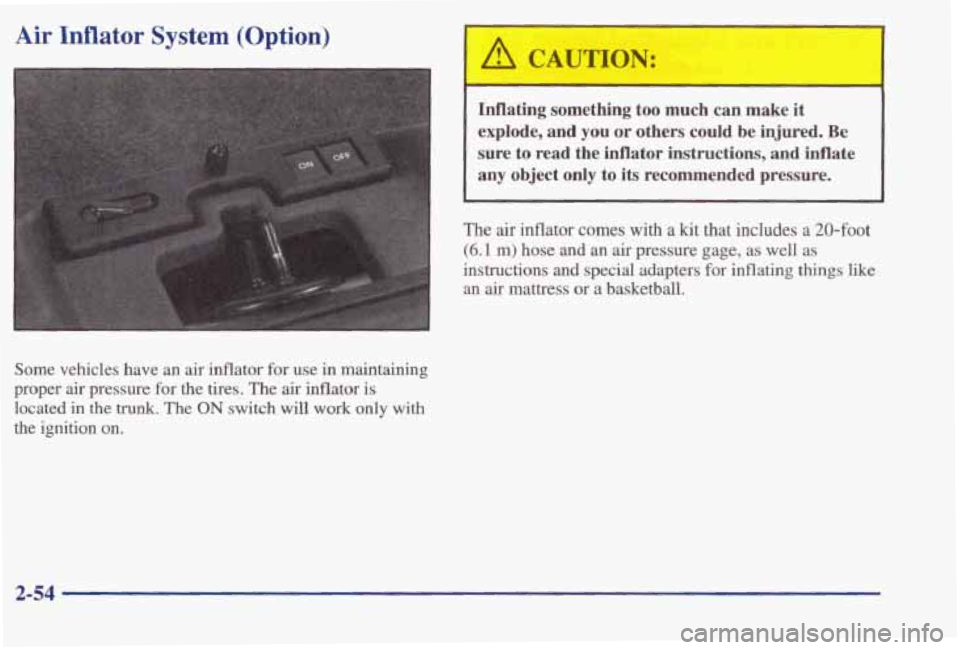

Air 'Inflator System (Option)
Some vehicles have an air inflator for use in maintaining
proper air pressure
for the tires. The air inflator is
located
in the trunk. The ON switch will work only with
the ignition on.
A CAUTION:
Inflating something too much can make it
explode,
and you or others could be injured. Be
sure to read the inflator instructions, and inflate
any object only to its recommended pressure.
The air inflator comes with a kit that includes a 20-foot
(6.1 m) hose and an air pressure gage, as well as
instructions and special adapters for inflating things like
an air mattress or a basketball.
2-54

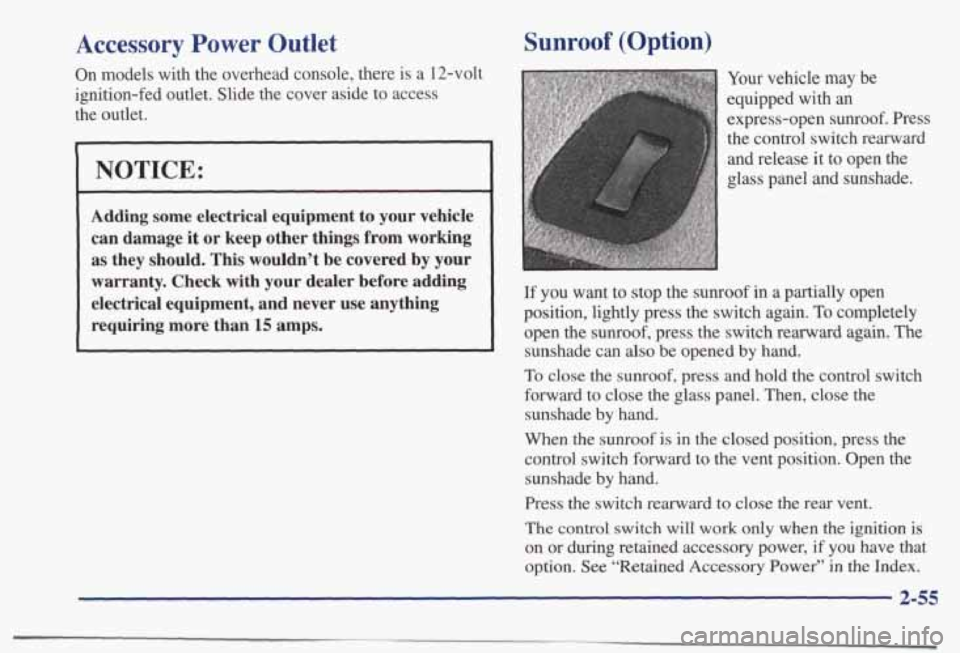

Accessory Power Outlet
On models with the overhead console, there is a 12-volt
ignition-fed outlet. Slide the cover aside to access
the outlet.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it
or keep other things from working
as they should, This wouldn’t be covered by your
warranty. Check with
your dealer before adding
electrical equipment, and never use anything
requiring more than 15 amps.
Sunroof (Option)
Your vehicle may be
equipped with an
express-open sunroof. Press
the control switch rearward
and release it to open the
glass panel and sunshade.
If you want to stop the sunroof in a partially open
position, lightly press the switch again.
To completely
open the
sunroof, press the switch rearward again. The
sunshade can
also be opened by hand.
To close the sunroof, press and hold the control switch
forward to close the glass panel. Then, close the sunshade
by hand.
When the sunroof is in the closed position, press the
control switch forward to the vent position. Open the
sunshade by hand.
Press the switch rearward to close the rear vent.
The control switch will work only when the ignition is
on or during retained accessory power,
if you have that
option. See “Retained Accessory Power” in
the Index.
2-55

x
2-56

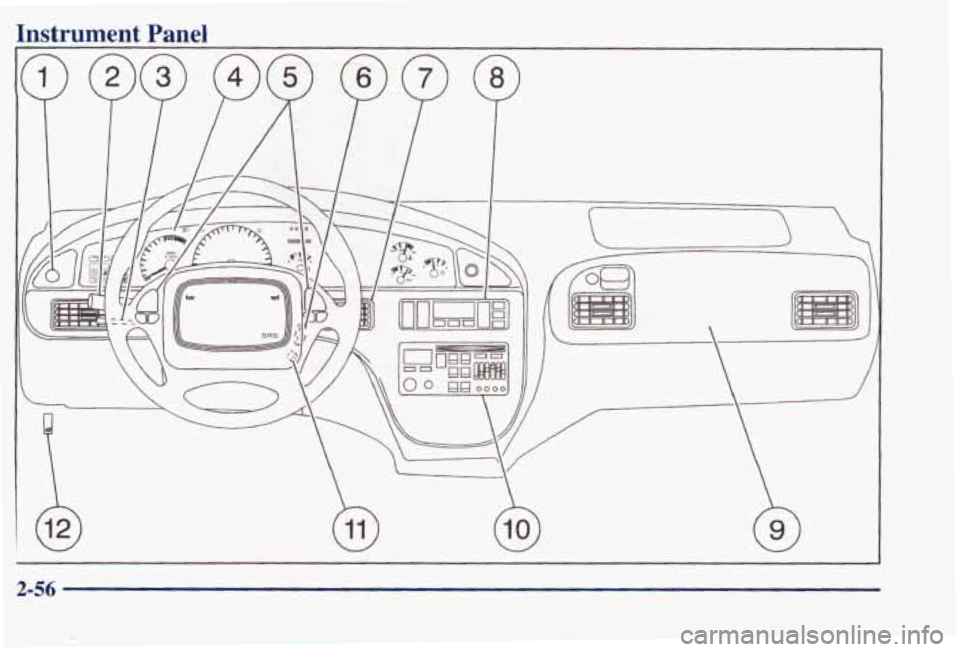

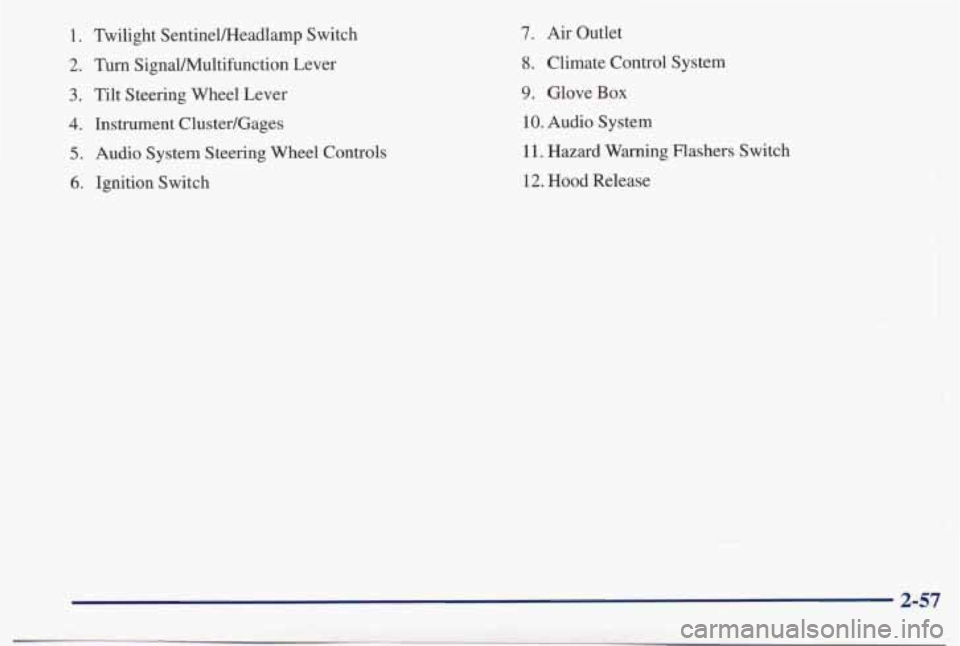

1. Tbilight SentineVHeadlamp Switch
2. Turn SignaVMultifunction Lever
3. Tilt Steering Wheel Lever
4. Instrument Cluster/Gages
5. Audio System Steering Wheel Controls
6. Ignition Switch
7. Air Outlet
8. Climate Control System
9. Glove Box
10. Audio System
1 1. Hazard Warning Flashers Switch
12. Hood Release

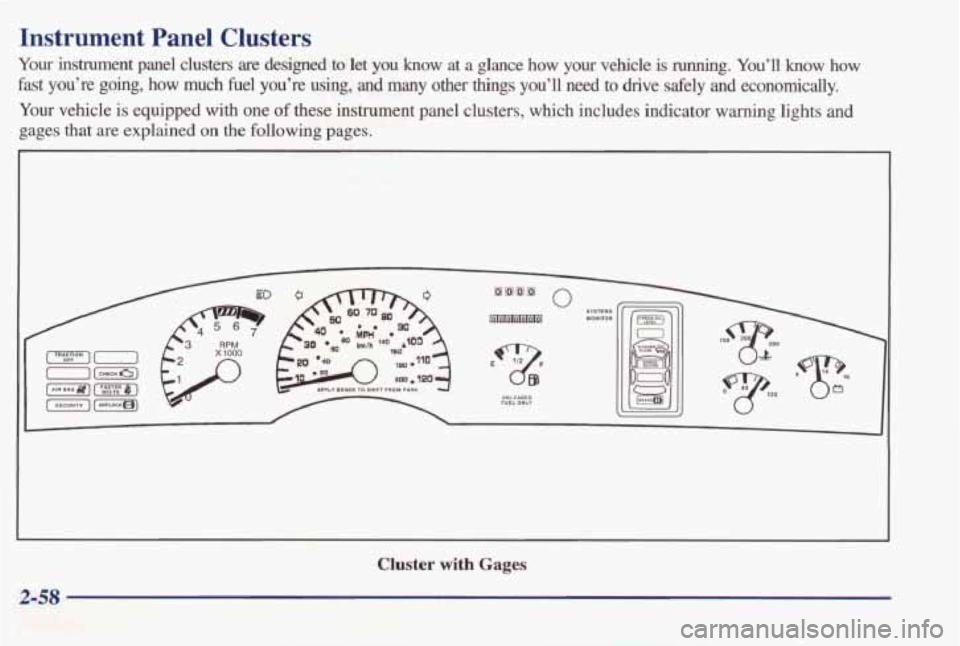

Instrument Panel Clusters
Your instrument panel clusters are designed to let you know at a glance how your vehicle is running. You’ll know how
fast you’re going, how much fuel you’re using, and many
other things you’ll need to drive safely and economically.
Your vehicle is equipped with one
of these instrument panel clusters, which includes indicator warning lights and
gages that are explained on the following pages.
Cluster with Gages
2-58

I

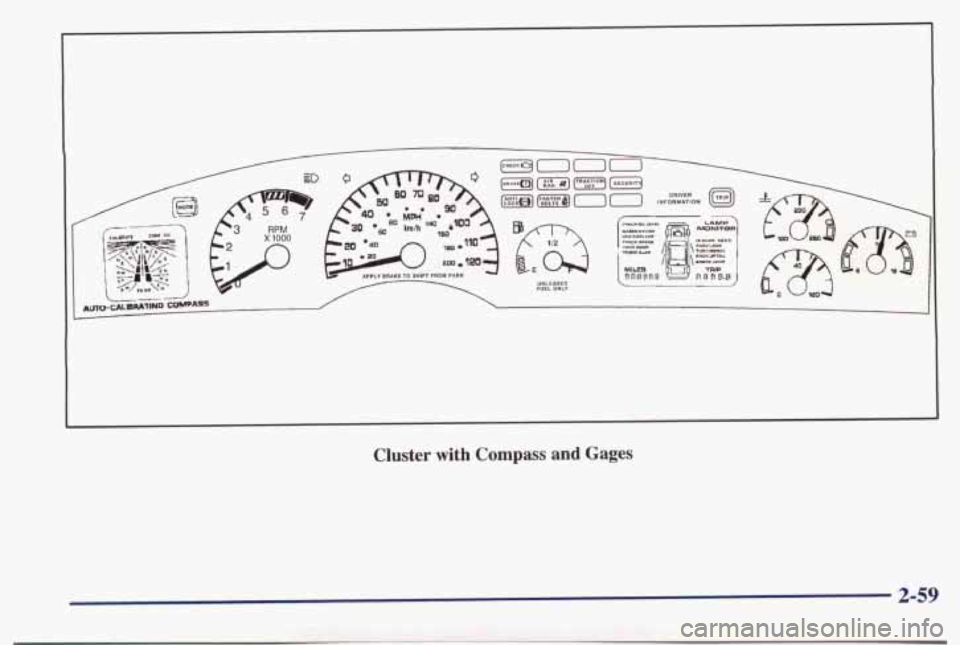

Cluster with Compass and Gages
2-59

~__ ~~~

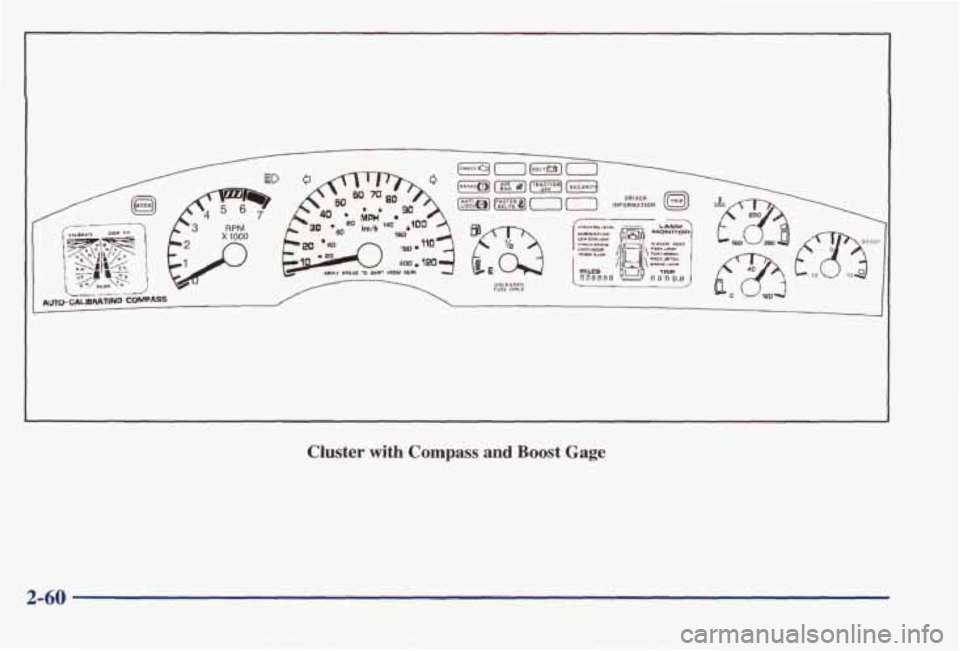

Cluster with Compass and Boost Gage
2-60

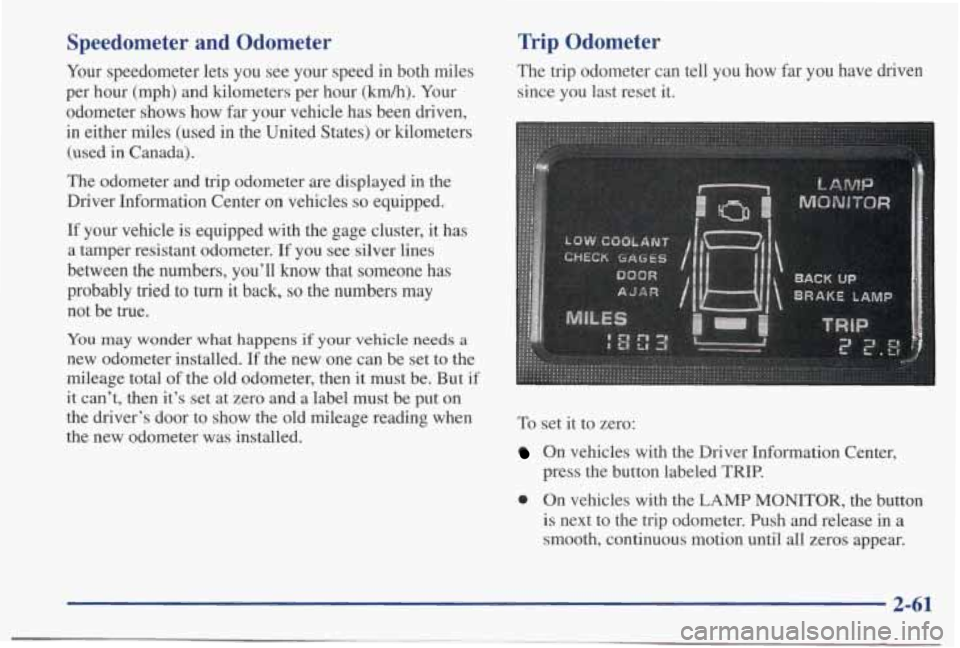

Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour
(km/h). Your
odometer shows how far your vehicle has been driven,
in either miles (used in the United States) or kilometers
(used in Canada).
The odometer and trip odometer are displayed in the
Driver Information Center
on vehicles so equipped.
If your vehicle is equipped with the gage cluster, it has
a tamper resistant odometer.
If you see silver lines
between the numbers, you’ll
know that someone has
probably
tried to turn it back, so the numbers may
not be true.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total
of the old odometer, then it must be. But if
it can’t, then it’s set at zero and a label must be put on
the driver’s door to show the old mileage reading when
the new odometer was installed.
Trip Odometer
The trip odometer can tell you how far you have driven
since you last reset it.
To set
it to zero:
On vehicles with the Driver Information Center,
press the button labeled
TRIP.
0 On vehicles with the LAMP MONITOR, the button
is next to the trip odometer. Push
and release in a
smooth, continuous motion until all zeros appear.
2-61

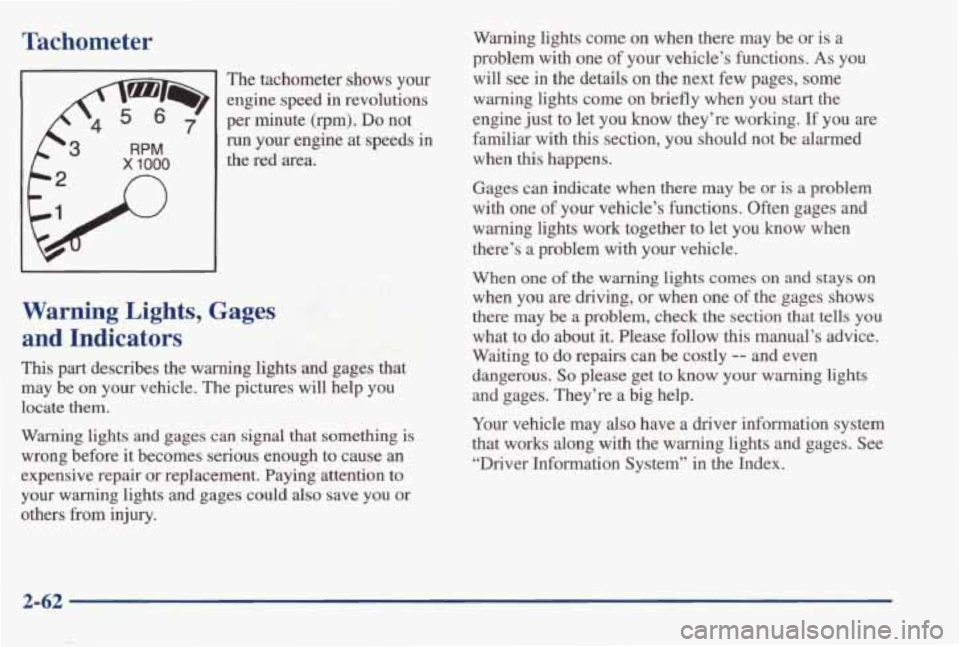

Tachometer
x 1000
n
’ The tachometer shows your
engine speed
in revolutions
per minute
(rpm). Do not
run your engine at speeds in
the red area.
Warning lights come on when there may be or is a
problem
with one of your vehicle’s functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when
you start the
engine just to let you know they’re working.
If you are
familiar with
this section, you should not be alarmed
when
this happens.
Gages can indicate when there may
be or is a problem
with one of your vehicle’s functions. Often gages and warning lights work together to let you know when
there’s a problem with your vehicle.
Warning Lights, Gages
and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention
to
your warning lights and gages could also save you or
others from injury.
When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may
be a problem, check the section that tells you
what to
do about it. Please follow this manual’s advice.
Waiting to
do repairs can be costly -- and even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
Your vehicle may
also have a driver information system
that works along with the warning lights and gages. See “Driver Information System’’
in the Index.
2-62

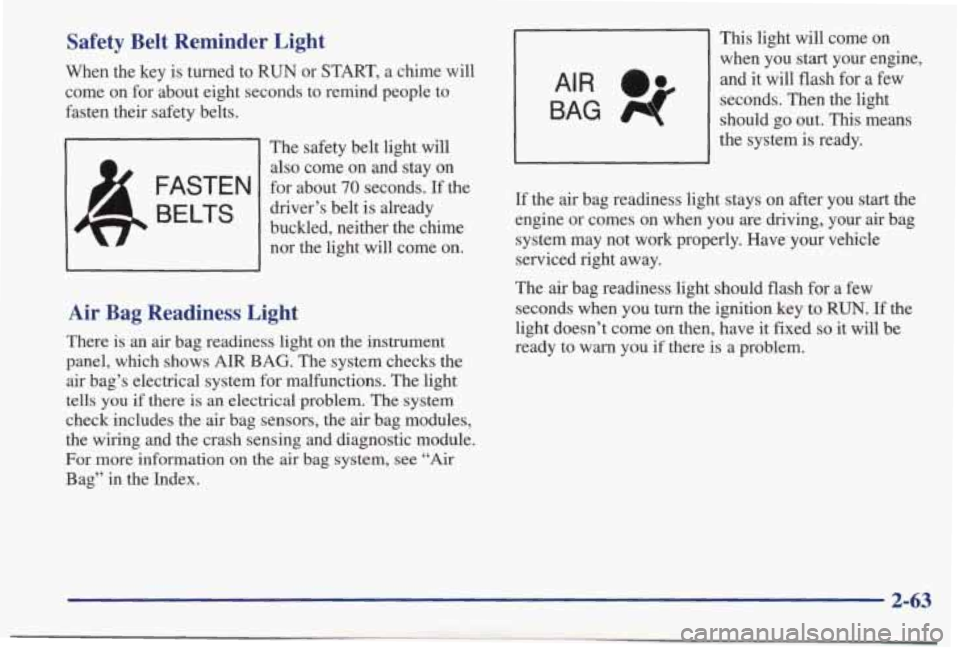

Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts.
The safety belt light
will
also come on and stay on
for about
70 seconds. If the
driver’s belt is already
buckled, neither the chime nor the light will come
on.
Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows
AIR BAG. The system checks the
air bag’s electrical system for malfunctions. The light
tells you if there
is an electrical problem. The system
check includes
the air bag sensors, the air bag modules,
the wiring and the crash sensing and diagnostic module.
For more information on
the air bag system, see “Air
Bag” in the Index.
BAG 4
AIR a*
This light will come on
when you start your engine,
and it will flash
for a few
seconds. Then the light
should go
out. This means
the system is ready.
If the air bag readiness light stays on after you start the
engine or comes on when you are driving, your
air bag
system may not work properly. Have your vehicle
serviced right away.
The
air bag readiness light should flash for a few
seconds when you
turn the ignition key to RUN. If the
light doesn’t come on then, have it fixed
so it will be
ready to
warn you if there is a problem.
2-63
