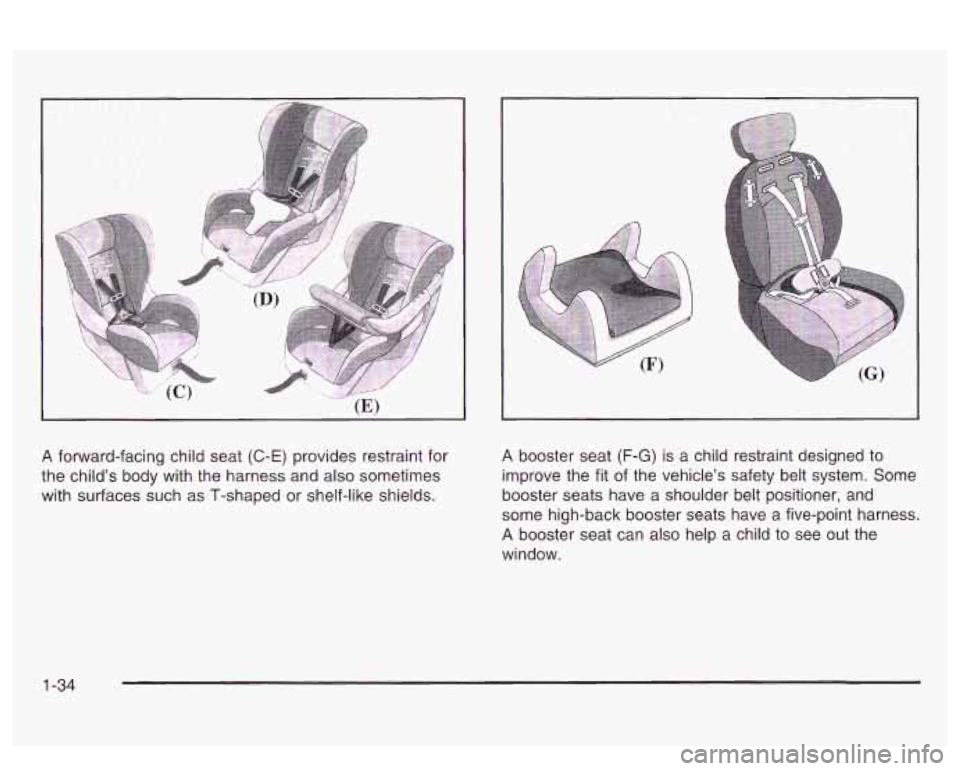

A forward-facing child seat (C-E) provides restraint for
the child's body with the harness and also sometimes
with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to
improve the fit
of the vehicle's safety belt system. Some
booster seats have a shoulder belt positioner, and
some high-back booster seats have a five-point harness.
A booster seat can also help a child to see out the
window.
1 -34

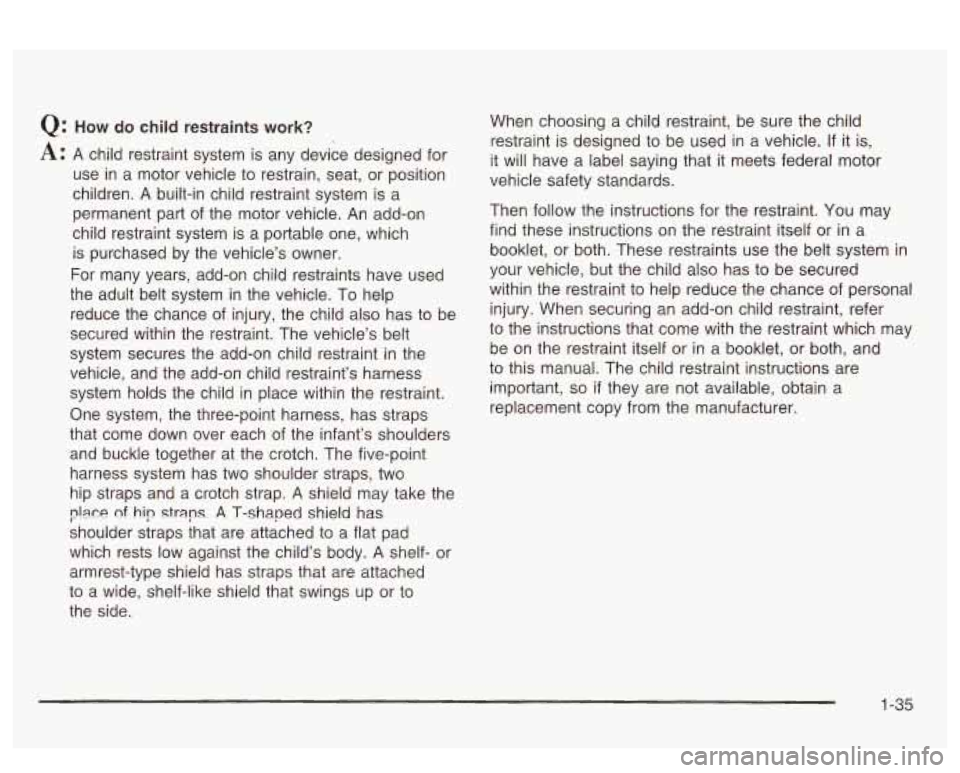

Q: How do child restraints work?
A: A child restraint system is any device designed for
use in a motor vehicle to restrain, seat, or position
children.
A built-in child restraint system is a
permanent part of the motor vehicle. An add-on
child restraint system is a portable one, which
is purchased by the vehicle’s owner.
For many years, add-on child restraints have used
the adult belt system in the vehicle. To help
reduce the chance of injury, the child also has to be
secured within the restraint. The vehicle’s belt
system secures the add-on child restraint in the
vehicle, and the add-on child restraint’s harness
system holds the child in place within the restraint.
One system, the three-point harness, has straps
that come down over each of the infant’s shoulders
and buckle together at the crotch. The five-point
harness system has two shoulder straps, two
hip straps and a crotch strap.
A shield may take the
p!aw of hi? straps. A T-shaped shield has
shoulder straps that are attached to a flat pad
which rests low against the child’s body.
A shelf- or
armrest-type shield has straps that are attached
to a wide, shelf-like shield that swings up or to
~ ~~~ ~ the side. ~~~~~~~~~~~~~~
~~~ ~ ~
When choosing a child restraint, be sure the child
restraint is designed to be used in a vehicle.
If it is,
it will have a label saying that it meets federal motor
vehicle safety standards.
Then follow the instructions for the restraint. You may
find these instructions on the restraint itself or in a
booklet, or both. These restraints use the belt system in
your vehicle, but the child also has to be secured
within the restraint to help reduce the chance of personal
injury. When securing an add-on child restraint, refer
to the instructions that come with the restraint which may
be on the restraint itself or in a booklet, or both, and
to this manual. The child restraint instructions are
important,
so if they are not available, obtain a
replacement copy from the manufacturer.
1-35

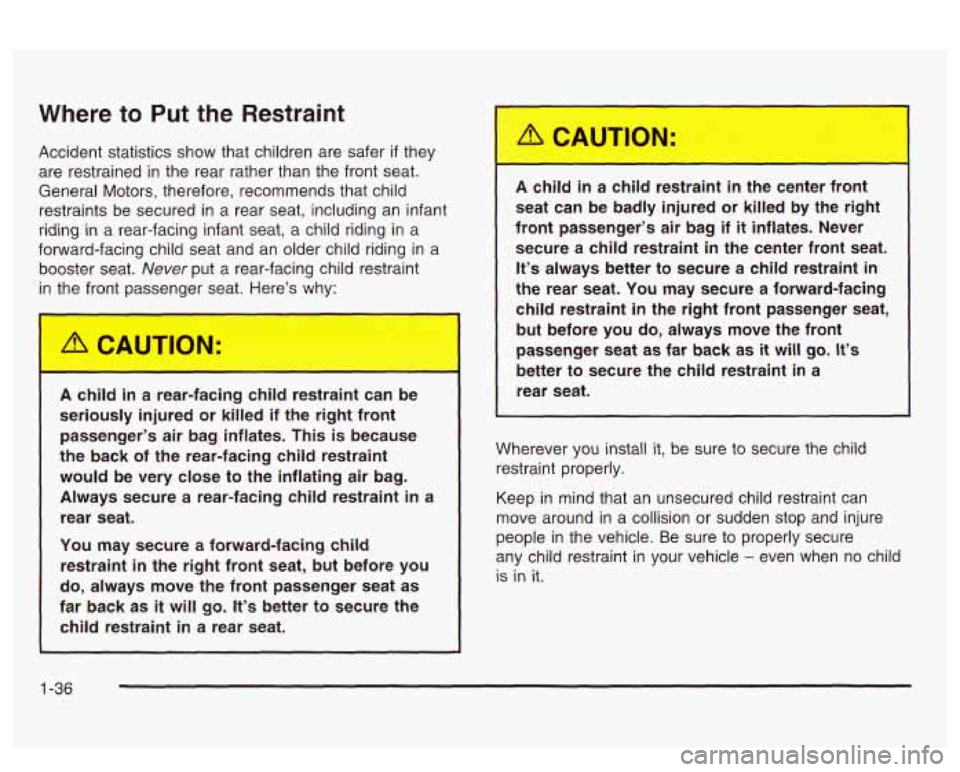

Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
General Motors, therefore, recommends that child
restraints be secured in
a rear seat, including an infant
riding in a rear-facing infant seat, a child riding in a
forward-facing child seat and an older child riding in a
booster seat.
Never put a rear-facing child restraint
in the front passenger seat. Here’s why:
CAUT’3N:
A child in a rear-facing child restraint can be
seriously injured or killed
if the right front
passenger’s air bag inflates. This
is because
the back of the rear-facing child restraint
would be very close to the inflating air bag.
Always secure a rear-facing child restraint
in a
rear seat.
You may secure a forward-facing child restraint
in the right front seat, but before you
do, always move the front passenger seat as
far back
as it will go. It’s better to secure the
child restraint
in a rear seat.
A child in a child restraint in the center front
seat can be badly injured or killed by the right
front passenger’s air bag if
it inflates. Never
secure a child restraint in the center front seat.
It’s always better to secure a child restraint in
the rear seat. You may secure a forward-facing
child restraint
in the right front passenger seat,
but before you do, always move the front
passenger seat as far back as
it will go. It’s
better to secure the child restraint in a
rear seat.
Wherever you install it, be sure to secure the child
restraint properly.
Keep in mind that an unsecured child restraint can
move around in a collision or sudden stop and injure
people in the vehicle. Be sure to properly secure
any child restraint in your vehicle
- even when no child
is in it.
1-36

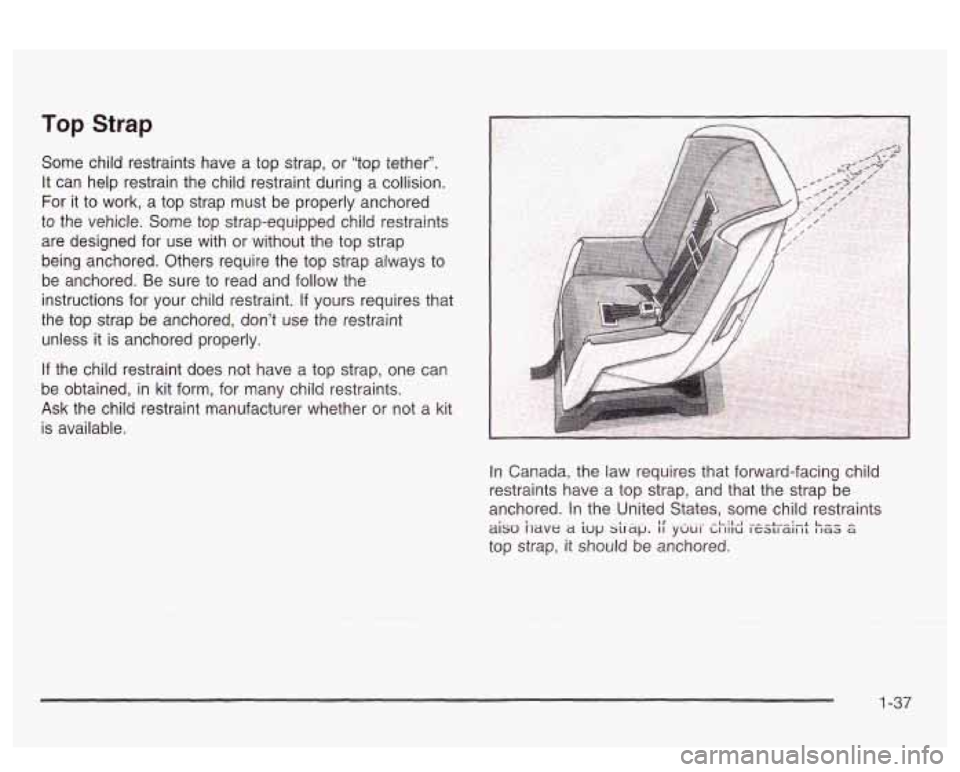

Top Strap
Some child restraints have a top strap, or “top tether”.
It can help restrain the child restraint during a collision.
For it to work, a top strap must be properly anchored
to the vehicle. Some top strap-equipped child restraints
are designed for use with or without the top strap
being anchored. Others require the top strap always to
be anchored. Be sure to read and follow the
instructions for your child restraint.
If yours requires that
the top strap be anchored, don’t use the restraint
unless it is anchored properly.
If the child restraint does not have a top strap, one can
be obtained, in kit form, for many child restraints.
Ask the child restraint manufacturer whether or not a kit
is available.
In Canada, the law requires that forward-facing child
restraints have a top strap, and that the strap be
anchored. In the United States,
some child restraints
top strap, it should be anchored.
aiso have a iup sji~ap. II yuu~ LI IIIU It;auaII 11 I laS G I1 ...- -1-:1-1 .---A,-:-+ LA
1 -37

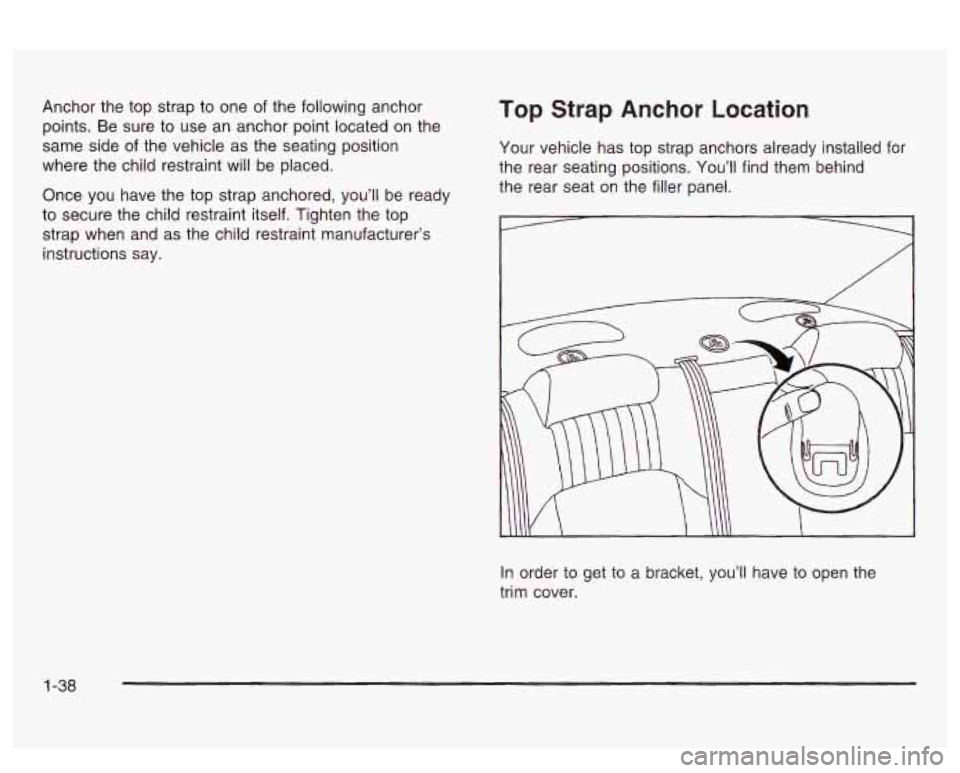

Anchor the top strap to one of the following anchor
points. Be sure to use an anchor point located on the
same side of the vehicle as the seating position
where the child restraint will be placed.
Once you have the top strap anchored, you’ll be ready
to secure the child restraint itself. Tighten the top
strap when and as the child restraint manufacturer’s
instructions say. Top Strap Anchor Location
Your vehicle has top strap anchors already installed for
the rear seating positions. You’ll find them behind
the rear seat on the filler panel.
In order to get to
a bracket, you’ll have to open the
trim cover.
1-38

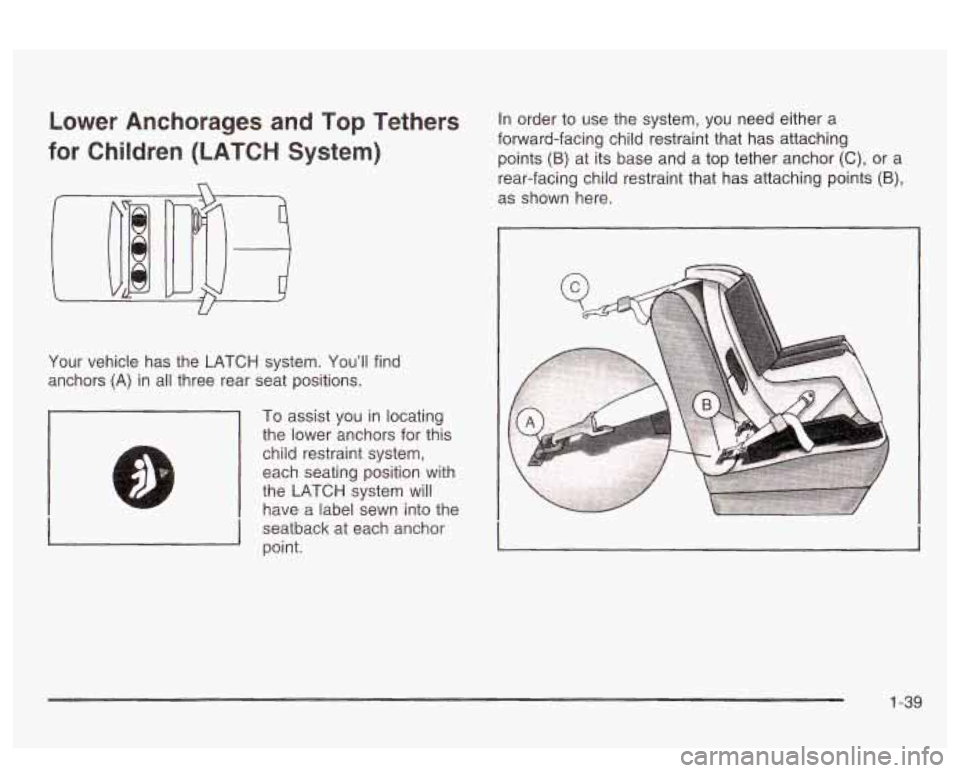

Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You’ll find
anchors
(A) in all three rear seat positions.
To assist you in locating
the lower anchors for this
child restraint system,
each seating position with
the LATCH system will
have a label sewn into the
seatback at each anchor
point. In
order to use the system, you need either a
forward-facing child restraint that has attaching
points
(B) at its base and a top tether anchor (C), or a
rear-facing child restraint that has attaching points
(B),
as shown here.
1 -39

If a LATCH-type lild restrair ‘t attached to
its anchorage points, the restraint won’t be
able to protect a child sitting there.
In a crash,
the child could be seriously injured or killed. Make sure that a LATCH-type child restraint
is
properly installed using the anchorage points,
or use the vehicle’s safety belts to secure the restraint. See “Securing a Child Restraint
Designed for the LATCH System’’ or “Securing
a Child Restraint in a Rear Seat Position”
in
the Index for information on how to secure a
child restraint
in your vehicle.

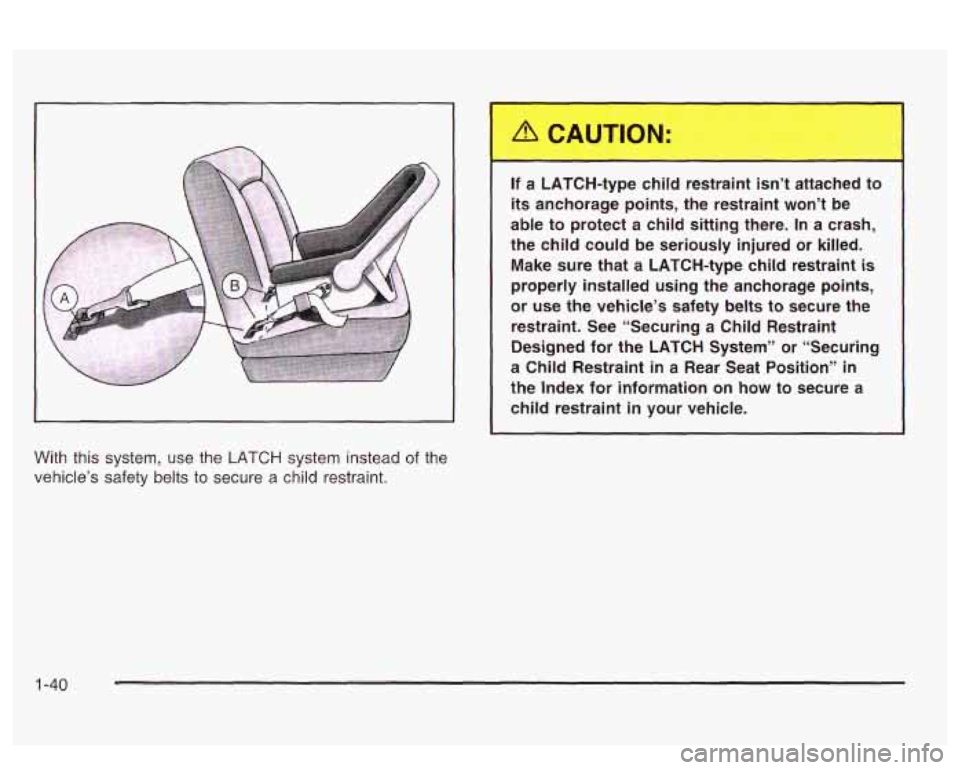

With this system, use the
LATCH system instead of the
vehicle’s safety belts to secure
a child restraint.
1-40

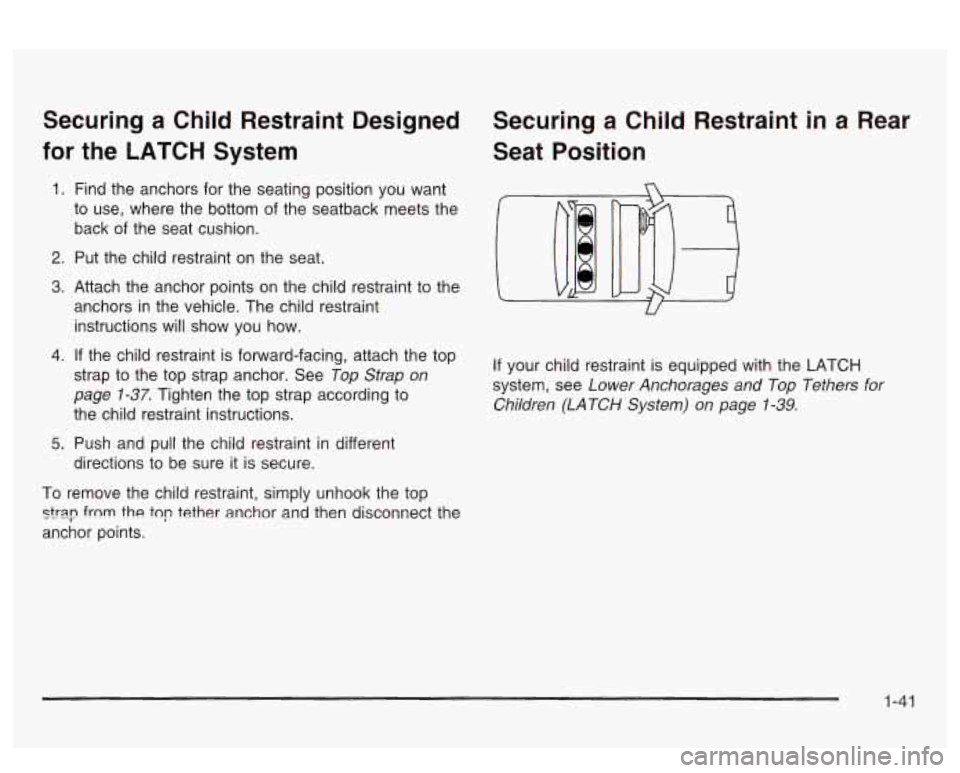

Securing a Child Restraint Designed
for the LATCH System
1. Find the anchors for the seating position you want
to use, where the bottom of the seatback meets the
back of the seat cushion.
2. Put the child restraint on the seat.
3. Attach the anchor points on the child restraint to the
anchors in the vehicle. The child restraint
instructions will show you how.
4. If the child restraint is forward-facing, attach the top
strap to the top strap anchor. See
Top Strap on
page 1-37.
Tighten the top strap according to
the child restraint instructions.
5. Push and pull the child restraint in different
directions to be sure it is secure.
Securing a Child Restraint in a Rear
Seat Position
If your child restraint is equipped with the LATCH
system, see
Lower Anchorages and Top Tethers for
Children (LATCH System) on page 1-39.
To remove the child restraint, simply unhook the top
strap frnm the top tether anchor and then disconnect the
anchor points.
1-41

A child in a child restraint in the center front
seat can be badly injured or killed by the right
front passenger’s air bag if
it inflates. Never
secure a child restraint
in the center front seat.
It’s always better to secure a child restraint in
the rear seat. You may secure a forward-facing
child restraint
in the right front passenger seat,
but before you do, always move the front
passenger seat as far back
as it will go. It’s
better to secure the child restraint in a rear
seat.

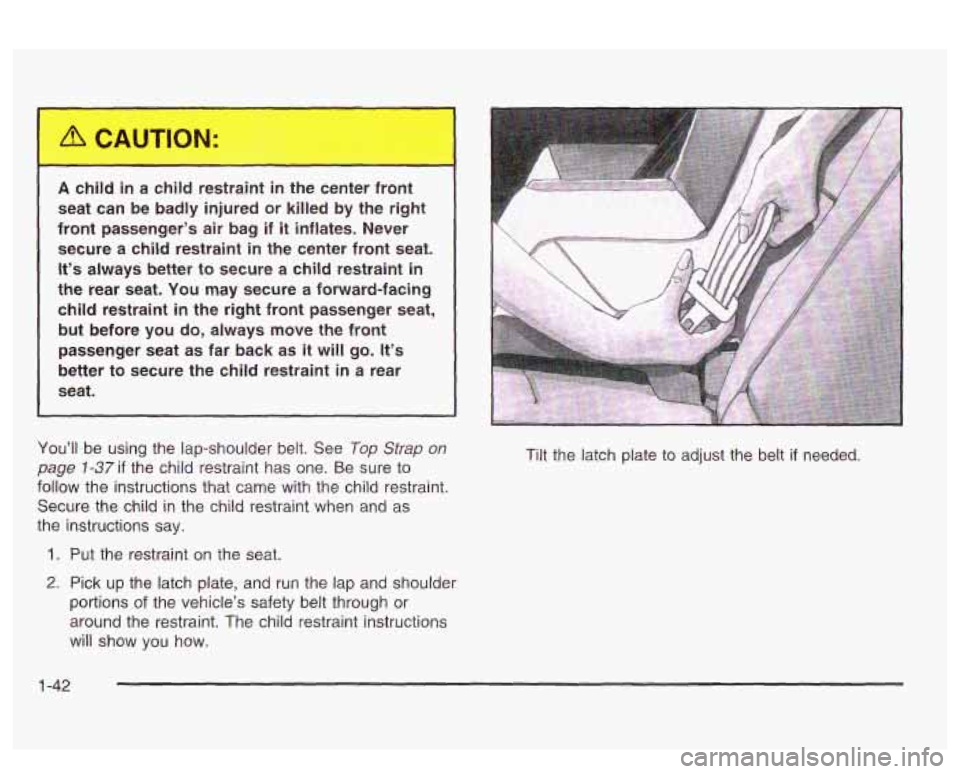

You’ll be using the lap-shoulder belt. See
Top Strap on
page 1-37 if the child restraint has one. Be sure to
follow the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how. Tilt the
latch plate to adjust the belt
if needed.
1-42

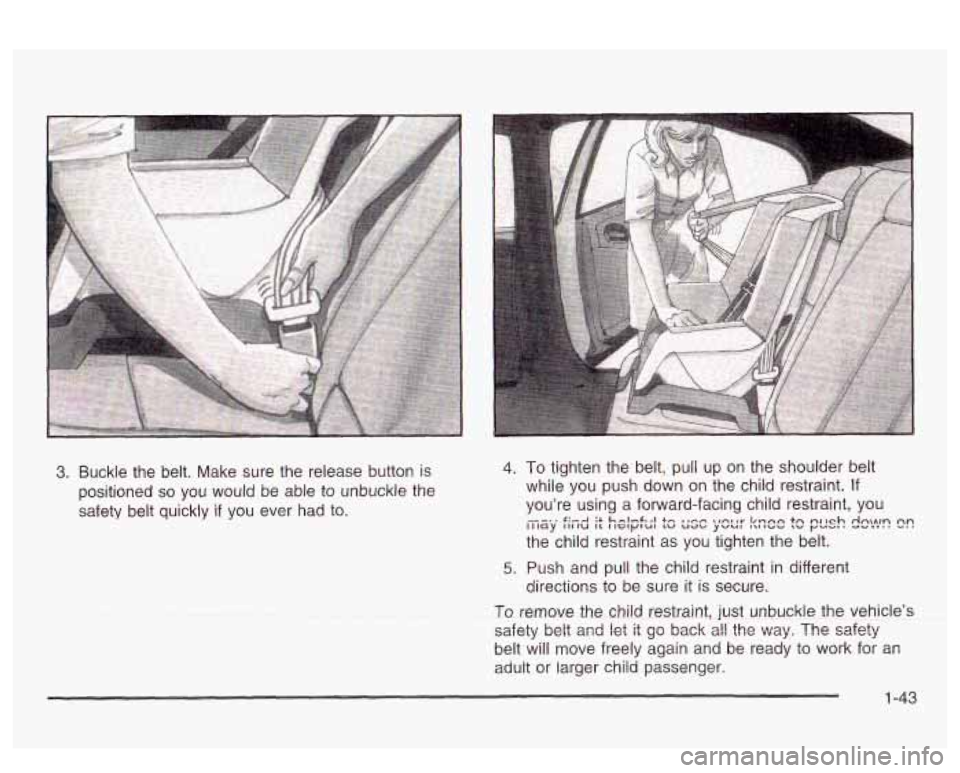

3. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
4. To tighten the belt, pull up on the shoulder belt
while you push down on the child restraint.
If
you’re using a forward-facing child restraint, you
the child restraint as you tighten the belt.
5. Push and pull the child restraint in different
directions to be sure
it is secure.
--=I E:-J :+ hmim$a #I tn r8-n IY Lnna tn nl ~ch rJn
rn nn 111ay IIIIU IL IIGI~IUI LU UGCI YUU, ~uI~~ I.- yuu.. -..
To remwethexhild restraint, just unbuckle the vehicle’s
safety
bel: and let it GG back all the wzy. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
