PONTIAC BONNEVILLE 2005 Owners Manual

30,000 Miles (50 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Inspect engine air cleaner lter. If necessary, replace
the lter. If vehicle is driven in dusty/dirty conditions,
inspect lter at every engine oil change. See
Engine Air Cleaner/Filter (3.8L V6 Engine) on
page 5-22orEngine Air Cleaner/Filter (4.6L V8
Engine) on page 5-23for more information.An
Emission Control Service. (See footnote †.)
❑V8 engine only: Inspect throttle body bore and valve
plates for deposits, open the throttle valve and
inspect all surfaces. Clean as required.An Emission
Control Service. (See footnote †.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
33,000 Miles (55 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
36,000 Miles (60 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
39,000 Miles (65 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
42,000 Miles (70 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
6-9

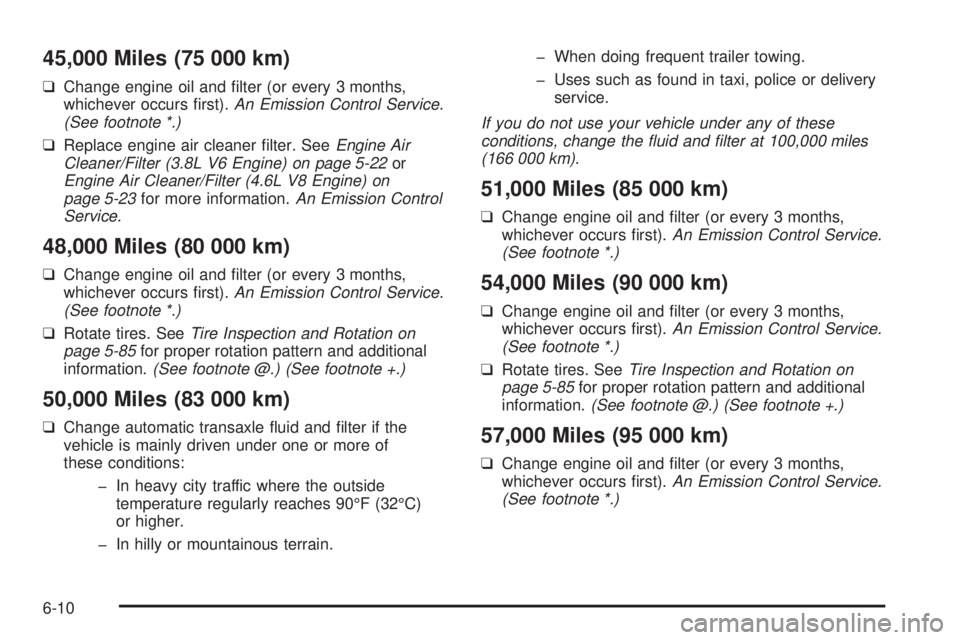

45,000 Miles (75 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Replace engine air cleaner lter. SeeEngine Air
Cleaner/Filter (3.8L V6 Engine) on page 5-22or
Engine Air Cleaner/Filter (4.6L V8 Engine) on
page 5-23for more information.An Emission Control
Service.
48,000 Miles (80 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
50,000 Miles (83 000 km)
❑Change automatic transaxle uid and lter if the
vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C)
or higher.
In hilly or mountainous terrain. When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
If you do not use your vehicle under any of these
conditions, change the uid and lter at 100,000 miles
(166 000 km).
51,000 Miles (85 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
54,000 Miles (90 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
57,000 Miles (95 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
6-10

60,000 Miles (100 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Inspect engine air cleaner lter. If necessary, replace
the lter. If vehicle is driven in dusty/dirty conditions,
inspect lter at every engine oil change. See
Engine Air Cleaner/Filter (3.8L V6 Engine) on
page 5-22orEngine Air Cleaner/Filter (4.6L V8
Engine) on page 5-23for more information.An
Emission Control Service. (See footnote †.)
❑V8 engine only: Inspect throttle body bore and valve
plates for deposits, open the throttle valve and
inspect all surfaces. Clean as required.An Emission
Control Service. (See footnote †.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
63,000 Miles (105 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
66,000 Miles (110 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
69,000 Miles (115 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
72,000 Miles (120 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
75,000 Miles (125 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Inspect engine air cleaner lter. If necessary, replace
the lter. If vehicle is driven in dusty/dirty conditions,
inspect lter at every engine oil change. See
Engine Air Cleaner/Filter (3.8L V6 Engine) on
page 5-22orEngine Air Cleaner/Filter (4.6L V8
Engine) on page 5-23for more information.An
Emission Control Service. (See footnote †.)
6-11

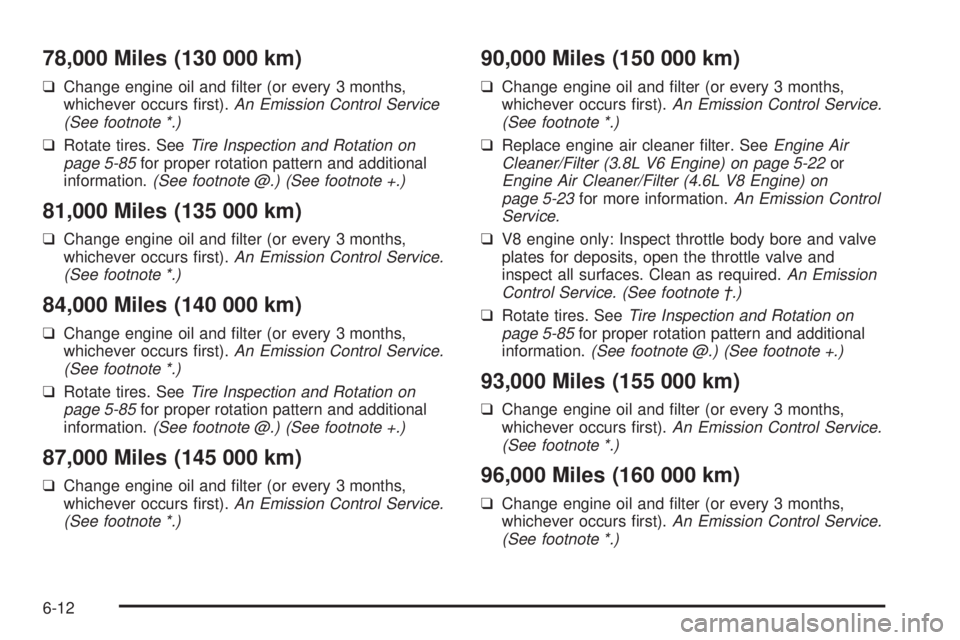

78,000 Miles (130 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service
(See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
81,000 Miles (135 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
84,000 Miles (140 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
87,000 Miles (145 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
90,000 Miles (150 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
❑Replace engine air cleaner lter. SeeEngine Air
Cleaner/Filter (3.8L V6 Engine) on page 5-22or
Engine Air Cleaner/Filter (4.6L V8 Engine) on
page 5-23for more information.An Emission Control
Service.
❑V8 engine only: Inspect throttle body bore and valve
plates for deposits, open the throttle valve and
inspect all surfaces. Clean as required.An Emission
Control Service. (See footnote †.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
93,000 Miles (155 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
96,000 Miles (160 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
6-12

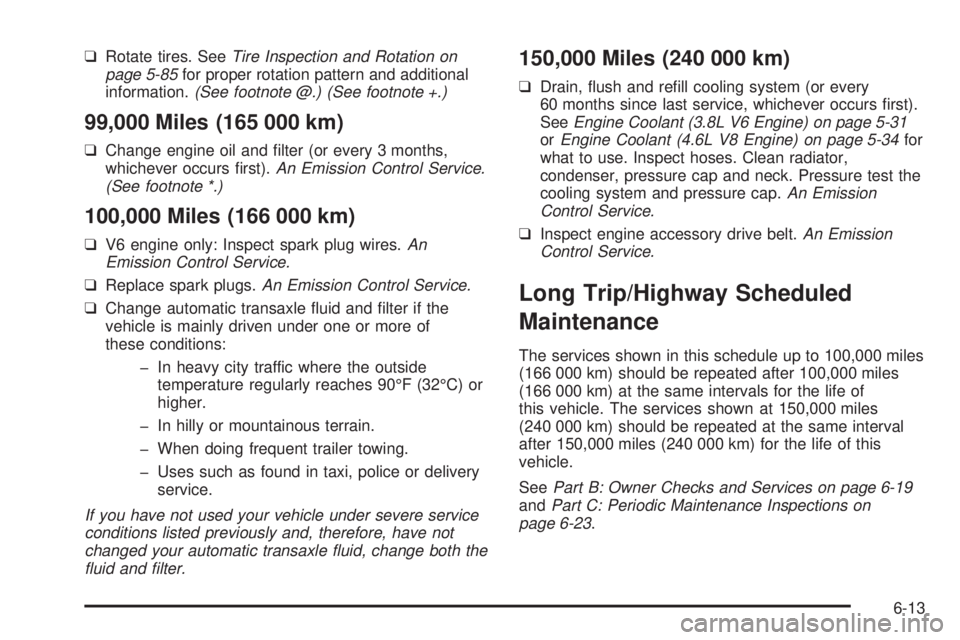

❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
99,000 Miles (165 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
(See footnote *.)
100,000 Miles (166 000 km)
❑V6 engine only: Inspect spark plug wires.An
Emission Control Service.
❑Replace spark plugs.An Emission Control Service.
❑Change automatic transaxle uid and lter if the
vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
If you have not used your vehicle under severe service
conditions listed previously and, therefore, have not
changed your automatic transaxle uid, change both the
uid and lter.
150,000 Miles (240 000 km)
❑Drain, ush and rell cooling system (or every
60 months since last service, whichever occurs rst).
SeeEngine Coolant (3.8L V6 Engine) on page 5-31
orEngine Coolant (4.6L V8 Engine) on page 5-34for
what to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure test the
cooling system and pressure cap.An Emission
Control Service.
❑Inspect engine accessory drive belt.An Emission
Control Service.
Long Trip/Highway Scheduled
Maintenance
The services shown in this schedule up to 100,000 miles
(166 000 km) should be repeated after 100,000 miles
(166 000 km) at the same intervals for the life of
this vehicle. The services shown at 150,000 miles
(240 000 km) should be repeated at the same interval
after 150,000 miles (240 000 km) for the life of this
vehicle.
SeePart B: Owner Checks and Services on page 6-19
andPart C: Periodic Maintenance Inspections on
page 6-23.
6-13

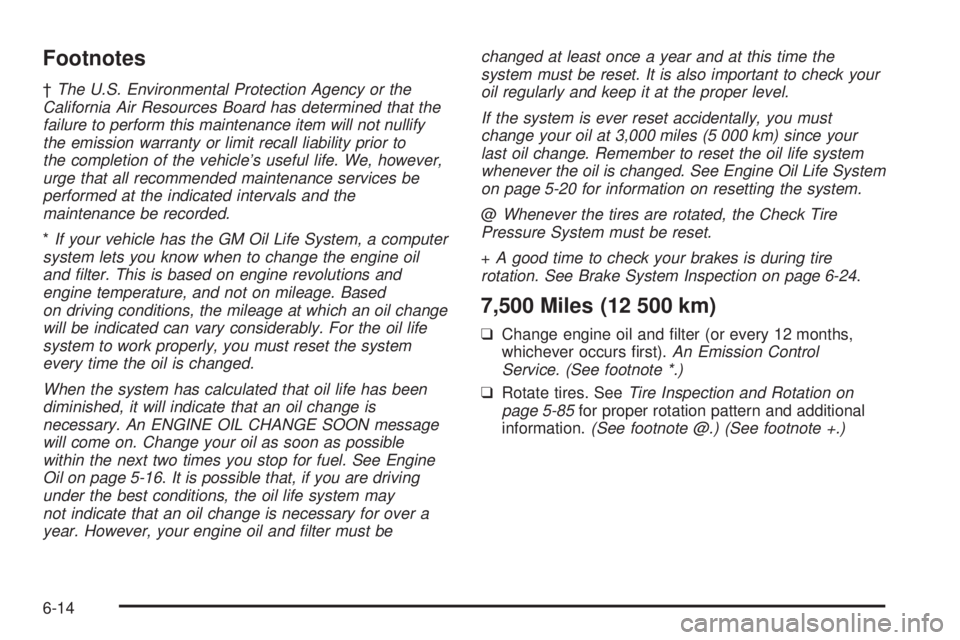

Footnotes
†The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
*If your vehicle has the GM Oil Life System, a computer
system lets you know when to change the engine oil
and lter. This is based on engine revolutions and
engine temperature, and not on mileage. Based
on driving conditions, the mileage at which an oil change
will be indicated can vary considerably. For the oil life
system to work properly, you must reset the system
every time the oil is changed.
When the system has calculated that oil life has been
diminished, it will indicate that an oil change is
necessary. An ENGINE OIL CHANGE SOON message
will come on. Change your oil as soon as possible
within the next two times you stop for fuel. See Engine
Oil on page 5-16.It is possible that, if you are driving
under the best conditions, the oil life system may
not indicate that an oil change is necessary for over a
year. However, your engine oil and lter must bechanged at least once a year and at this time the
system must be reset. It is also important to check your
oil regularly and keep it at the proper level.
If the system is ever reset accidentally, you must
change your oil at 3,000 miles (5 000 km) since your
last oil change. Remember to reset the oil life system
whenever the oil is changed. See Engine Oil Life System
on page 5-20 for information on resetting the system.
@Whenever the tires are rotated, the Check Tire
Pressure System must be reset.
+A good time to check your brakes is during tire
rotation. See Brake System Inspection on page 6-24.
7,500 Miles (12 500 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
6-14

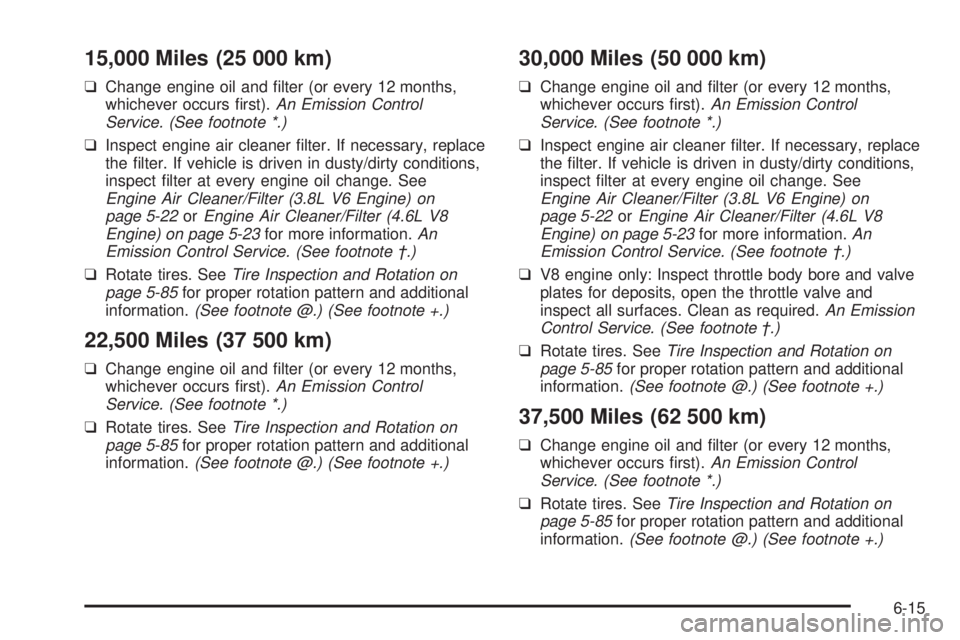

15,000 Miles (25 000 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Inspect engine air cleaner lter. If necessary, replace
the lter. If vehicle is driven in dusty/dirty conditions,
inspect lter at every engine oil change. See
Engine Air Cleaner/Filter (3.8L V6 Engine) on
page 5-22orEngine Air Cleaner/Filter (4.6L V8
Engine) on page 5-23for more information.An
Emission Control Service. (See footnote †.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
22,500 Miles (37 500 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
30,000 Miles (50 000 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Inspect engine air cleaner lter. If necessary, replace
the lter. If vehicle is driven in dusty/dirty conditions,
inspect lter at every engine oil change. See
Engine Air Cleaner/Filter (3.8L V6 Engine) on
page 5-22orEngine Air Cleaner/Filter (4.6L V8
Engine) on page 5-23for more information.An
Emission Control Service. (See footnote †.)
❑V8 engine only: Inspect throttle body bore and valve
plates for deposits, open the throttle valve and
inspect all surfaces. Clean as required.An Emission
Control Service. (See footnote †.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
37,500 Miles (62 500 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
6-15

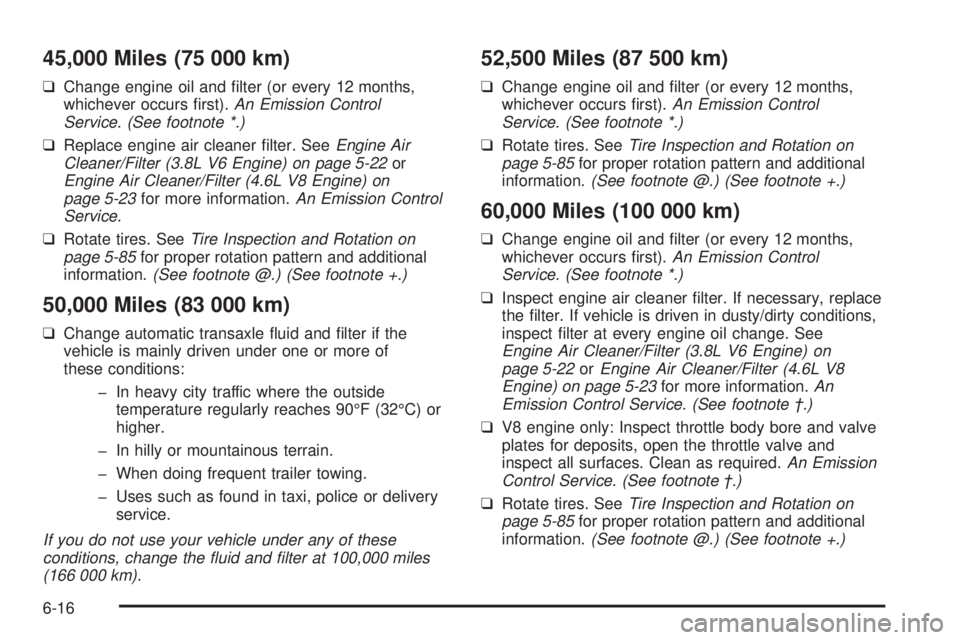

45,000 Miles (75 000 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Replace engine air cleaner lter. SeeEngine Air
Cleaner/Filter (3.8L V6 Engine) on page 5-22or
Engine Air Cleaner/Filter (4.6L V8 Engine) on
page 5-23for more information.An Emission Control
Service.
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
50,000 Miles (83 000 km)
❑Change automatic transaxle uid and lter if the
vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
If you do not use your vehicle under any of these
conditions, change the uid and lter at 100,000 miles
(166 000 km).
52,500 Miles (87 500 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
60,000 Miles (100 000 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Inspect engine air cleaner lter. If necessary, replace
the lter. If vehicle is driven in dusty/dirty conditions,
inspect lter at every engine oil change. See
Engine Air Cleaner/Filter (3.8L V6 Engine) on
page 5-22orEngine Air Cleaner/Filter (4.6L V8
Engine) on page 5-23for more information.An
Emission Control Service. (See footnote †.)
❑V8 engine only: Inspect throttle body bore and valve
plates for deposits, open the throttle valve and
inspect all surfaces. Clean as required.An Emission
Control Service. (See footnote †.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
6-16

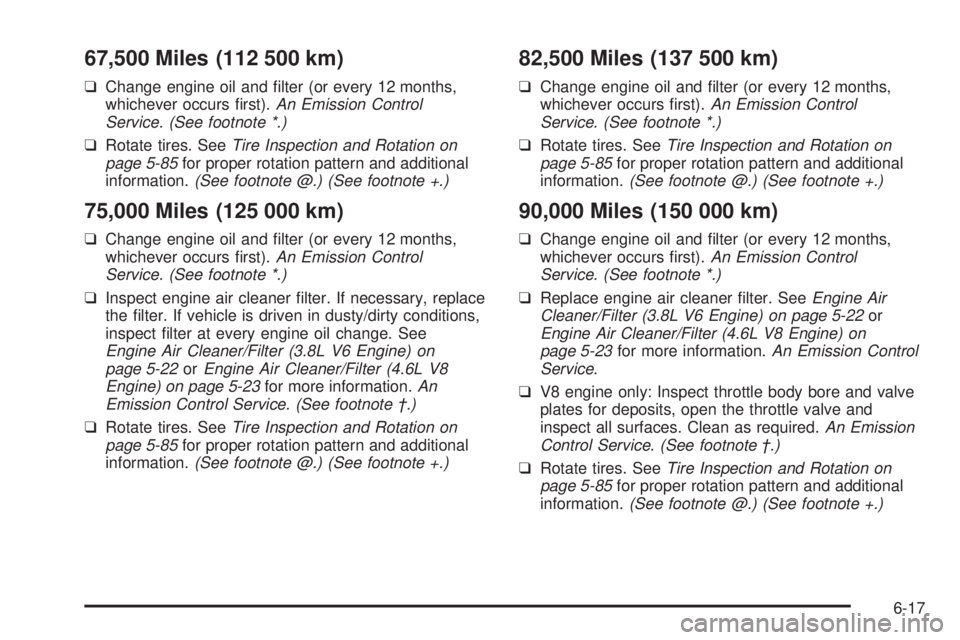

67,500 Miles (112 500 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
75,000 Miles (125 000 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Inspect engine air cleaner lter. If necessary, replace
the lter. If vehicle is driven in dusty/dirty conditions,
inspect lter at every engine oil change. See
Engine Air Cleaner/Filter (3.8L V6 Engine) on
page 5-22orEngine Air Cleaner/Filter (4.6L V8
Engine) on page 5-23for more information.An
Emission Control Service. (See footnote †.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
82,500 Miles (137 500 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
90,000 Miles (150 000 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Replace engine air cleaner lter. SeeEngine Air
Cleaner/Filter (3.8L V6 Engine) on page 5-22or
Engine Air Cleaner/Filter (4.6L V8 Engine) on
page 5-23for more information.An Emission Control
Service.
❑V8 engine only: Inspect throttle body bore and valve
plates for deposits, open the throttle valve and
inspect all surfaces. Clean as required.An Emission
Control Service. (See footnote †.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
6-17

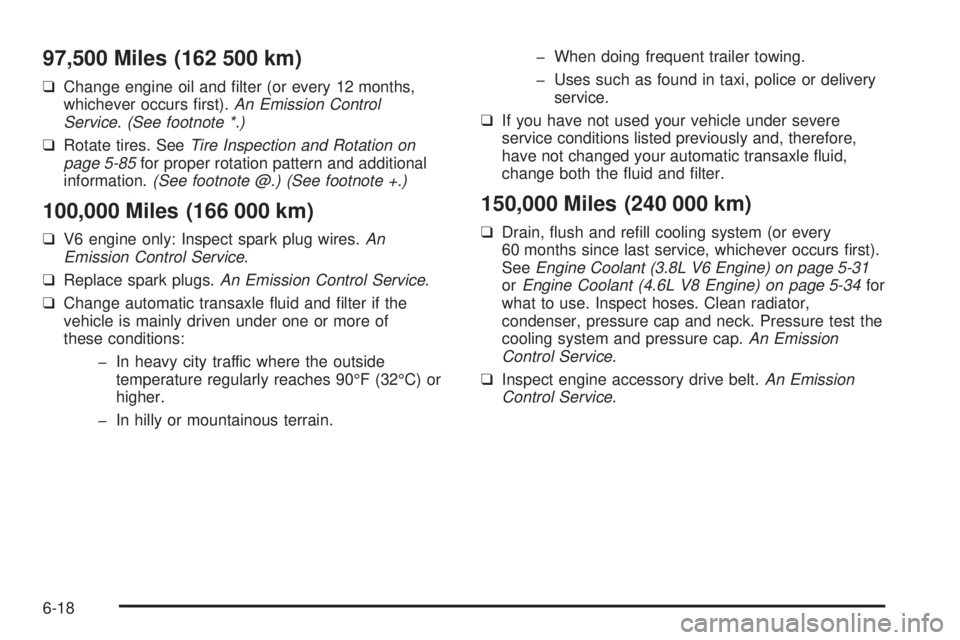

97,500 Miles (162 500 km)
❑Change engine oil and lter (or every 12 months,
whichever occurs rst).An Emission Control
Service. (See footnote *.)
❑Rotate tires. SeeTire Inspection and Rotation on
page 5-85for proper rotation pattern and additional
information.(See footnote @.) (See footnote +.)
100,000 Miles (166 000 km)
❑V6 engine only: Inspect spark plug wires.An
Emission Control Service.
❑Replace spark plugs.An Emission Control Service.
❑Change automatic transaxle uid and lter if the
vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain. When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
❑If you have not used your vehicle under severe
service conditions listed previously and, therefore,
have not changed your automatic transaxle uid,
change both the uid and lter.
150,000 Miles (240 000 km)
❑Drain, ush and rell cooling system (or every
60 months since last service, whichever occurs rst).
SeeEngine Coolant (3.8L V6 Engine) on page 5-31
orEngine Coolant (4.6L V8 Engine) on page 5-34for
what to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure test the
cooling system and pressure cap.An Emission
Control Service.
❑Inspect engine accessory drive belt.An Emission
Control Service.
6-18
