PONTIAC BONNEVILLE 2005 Owners Manual

Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your vehicle
unless you check with your dealer rst. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-56.
Headlamp Wiring
The headlamp wiring is protected by an internal circuit
breaker. An electrical overload will cause the lamps to
go on and off, or in some cases to remain off. If this
happens, have your headlamp system checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem, have it xed.
Power Windows and Other
Power Options
Circuit breakers in the rear fuse block protect the power
windows and other power accessories. When the
current load is too heavy, the circuit breaker opens and
closes, protecting the circuit until the problem is xed
or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of damage
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
The MaxiFuses are located in two fuse blocks, one in
the engine compartment and the other under the
rear seat. If a MaxiFuse should blow, have your vehicle
serviced by your dealer immediately.
Removing Fuses
You will nd a fuse puller attached in both of the fuse
blocks. Snap the wide end of the fuse puller on to
the fuse at the side indentations, then hold the puller
and pull the fuse out.
5-111

Engine Compartment Fuse Block
(3.8L V6 Engine)
The engine compartment
fuse block is located in the
front of the engine
compartment on the
passenger’s side of the
vehicle. SeeEngine
Compartment Overview on
page 5-12for more
information on location. Lift
the cover to gain access.
Fuses Usage
1 Not Used
2 Accessory
3 Windshield Wipers
4 Not Used
5 Headlamp Low-Beam Left
6 Headlamp Low-Beam Right
7 Spare
8 Powertrain Control Module Battery
9 Headlamp High-Beam Right
10 Headlamp High-Beam Left
11 Ignition 1
12 Not Used
13 Transaxle
5-112

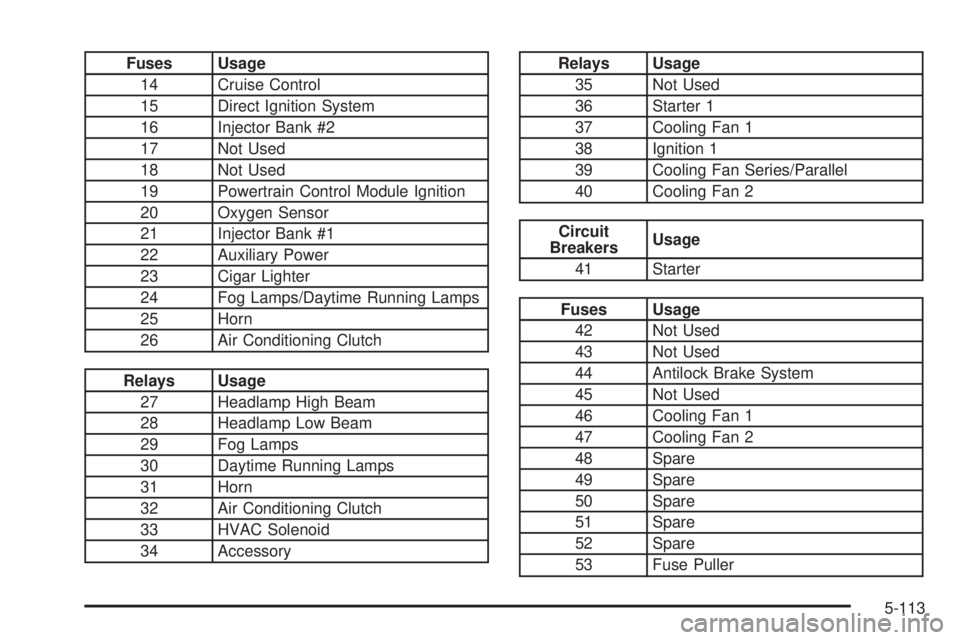

Fuses Usage
14 Cruise Control
15 Direct Ignition System
16 Injector Bank #2
17 Not Used
18 Not Used
19 Powertrain Control Module Ignition
20 Oxygen Sensor
21 Injector Bank #1
22 Auxiliary Power
23 Cigar Lighter
24 Fog Lamps/Daytime Running Lamps
25 Horn
26 Air Conditioning Clutch
Relays Usage
27 Headlamp High Beam
28 Headlamp Low Beam
29 Fog Lamps
30 Daytime Running Lamps
31 Horn
32 Air Conditioning Clutch
33 HVAC Solenoid
34 Accessory
Relays Usage
35 Not Used
36 Starter 1
37 Cooling Fan 1
38 Ignition 1
39 Cooling Fan Series/Parallel
40 Cooling Fan 2
Circuit
BreakersUsage
41 Starter
Fuses Usage
42 Not Used
43 Not Used
44 Antilock Brake System
45 Not Used
46 Cooling Fan 1
47 Cooling Fan 2
48 Spare
49 Spare
50 Spare
51 Spare
52 Spare
53 Fuse Puller
5-113

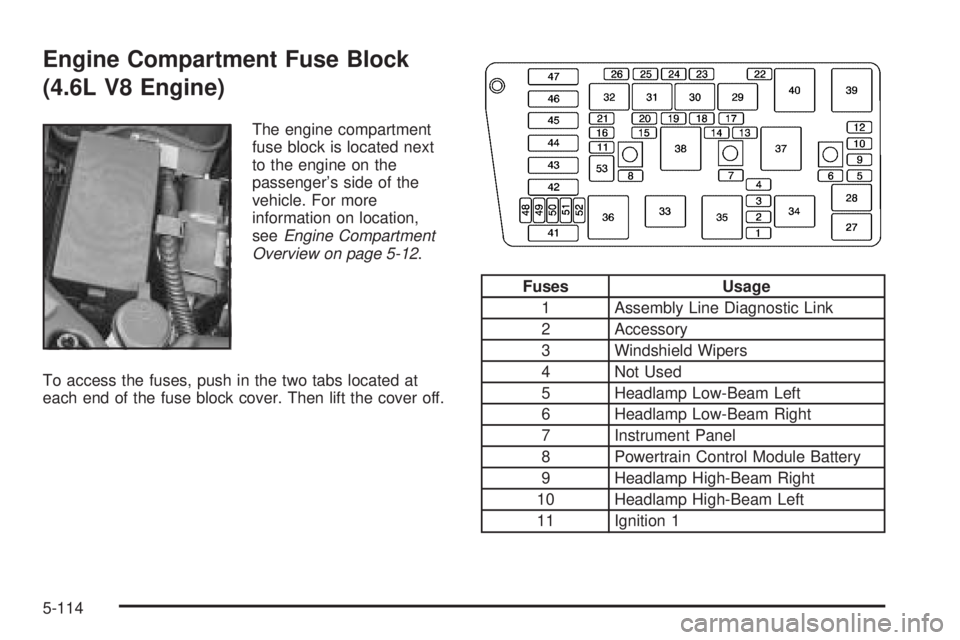

Engine Compartment Fuse Block
(4.6L V8 Engine)
The engine compartment
fuse block is located next
to the engine on the
passenger’s side of the
vehicle. For more
information on location,
seeEngine Compartment
Overview on page 5-12.
To access the fuses, push in the two tabs located at
each end of the fuse block cover. Then lift the cover off.
Fuses Usage
1 Assembly Line Diagnostic Link
2 Accessory
3 Windshield Wipers
4 Not Used
5 Headlamp Low-Beam Left
6 Headlamp Low-Beam Right
7 Instrument Panel
8 Powertrain Control Module Battery
9 Headlamp High-Beam Right
10 Headlamp High-Beam Left
11 Ignition 1
5-114

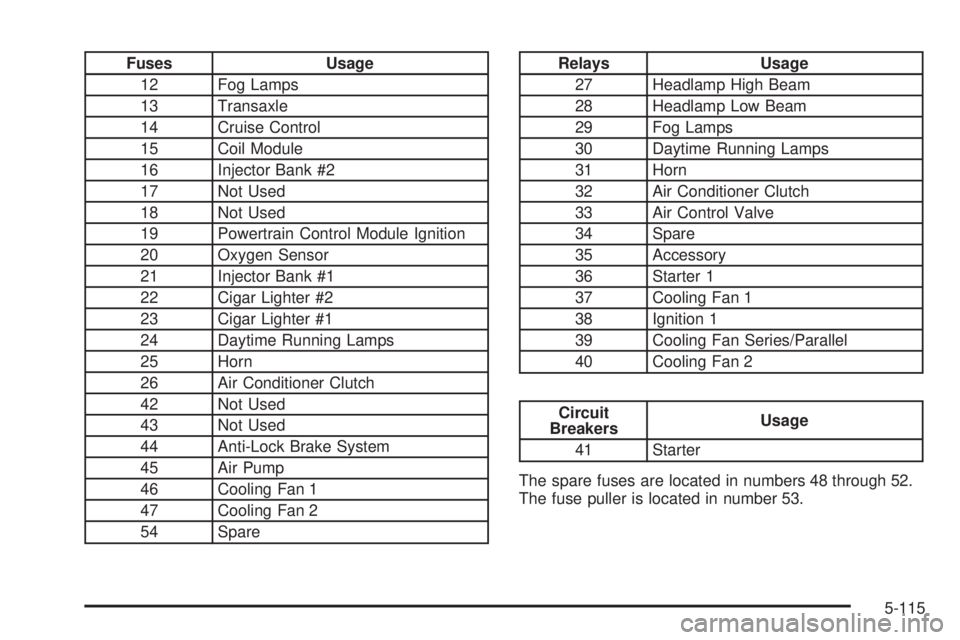

Fuses Usage
12 Fog Lamps
13 Transaxle
14 Cruise Control
15 Coil Module
16 Injector Bank #2
17 Not Used
18 Not Used
19 Powertrain Control Module Ignition
20 Oxygen Sensor
21 Injector Bank #1
22 Cigar Lighter #2
23 Cigar Lighter #1
24 Daytime Running Lamps
25 Horn
26 Air Conditioner Clutch
42 Not Used
43 Not Used
44 Anti-Lock Brake System
45 Air Pump
46 Cooling Fan 1
47 Cooling Fan 2
54 SpareRelays Usage
27 Headlamp High Beam
28 Headlamp Low Beam
29 Fog Lamps
30 Daytime Running Lamps
31 Horn
32 Air Conditioner Clutch
33 Air Control Valve
34 Spare
35 Accessory
36 Starter 1
37 Cooling Fan 1
38 Ignition 1
39 Cooling Fan Series/Parallel
40 Cooling Fan 2
Circuit
BreakersUsage
41 Starter
The spare fuses are located in numbers 48 through 52.
The fuse puller is located in number 53.
5-115

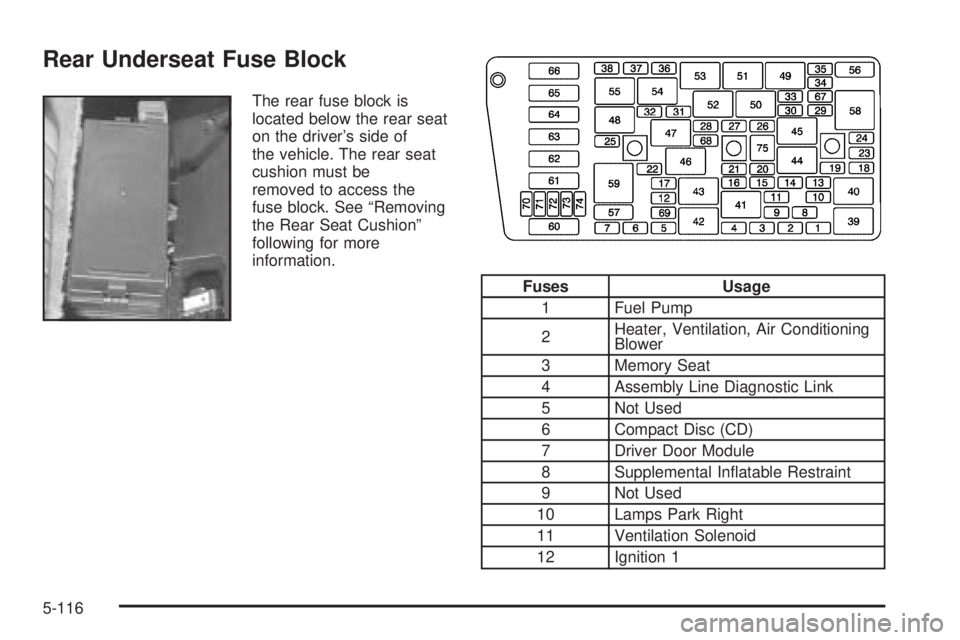

Rear Underseat Fuse Block
The rear fuse block is
located below the rear seat
on the driver’s side of
the vehicle. The rear seat
cushion must be
removed to access the
fuse block. See “Removing
the Rear Seat Cushion”
following for more
information.
Fuses Usage
1 Fuel Pump
2Heater, Ventilation, Air Conditioning
Blower
3 Memory Seat
4 Assembly Line Diagnostic Link
5 Not Used
6 Compact Disc (CD)
7 Driver Door Module
8 Supplemental Inatable Restraint
9 Not Used
10 Lamps Park Right
11 Ventilation Solenoid
12 Ignition 1
5-116

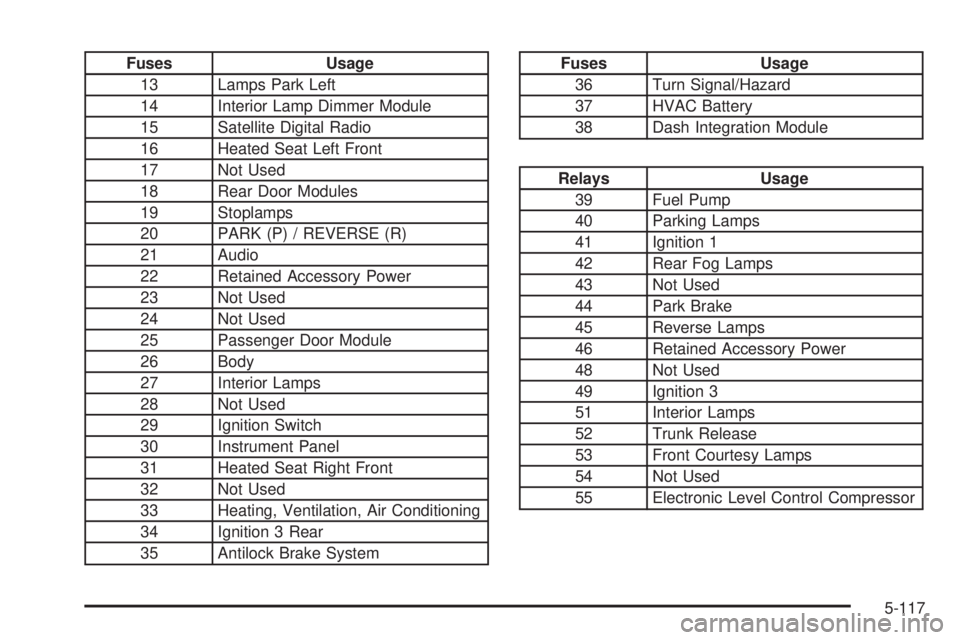

Fuses Usage
13 Lamps Park Left
14 Interior Lamp Dimmer Module
15 Satellite Digital Radio
16 Heated Seat Left Front
17 Not Used
18 Rear Door Modules
19 Stoplamps
20 PARK (P) / REVERSE (R)
21 Audio
22 Retained Accessory Power
23 Not Used
24 Not Used
25 Passenger Door Module
26 Body
27 Interior Lamps
28 Not Used
29 Ignition Switch
30 Instrument Panel
31 Heated Seat Right Front
32 Not Used
33 Heating, Ventilation, Air Conditioning
34 Ignition 3 Rear
35 Antilock Brake SystemFuses Usage
36 Turn Signal/Hazard
37 HVAC Battery
38 Dash Integration Module
Relays Usage
39 Fuel Pump
40 Parking Lamps
41 Ignition 1
42 Rear Fog Lamps
43 Not Used
44 Park Brake
45 Reverse Lamps
46 Retained Accessory Power
48 Not Used
49 Ignition 3
51 Interior Lamps
52 Trunk Release
53 Front Courtesy Lamps
54 Not Used
55 Electronic Level Control Compressor
5-117

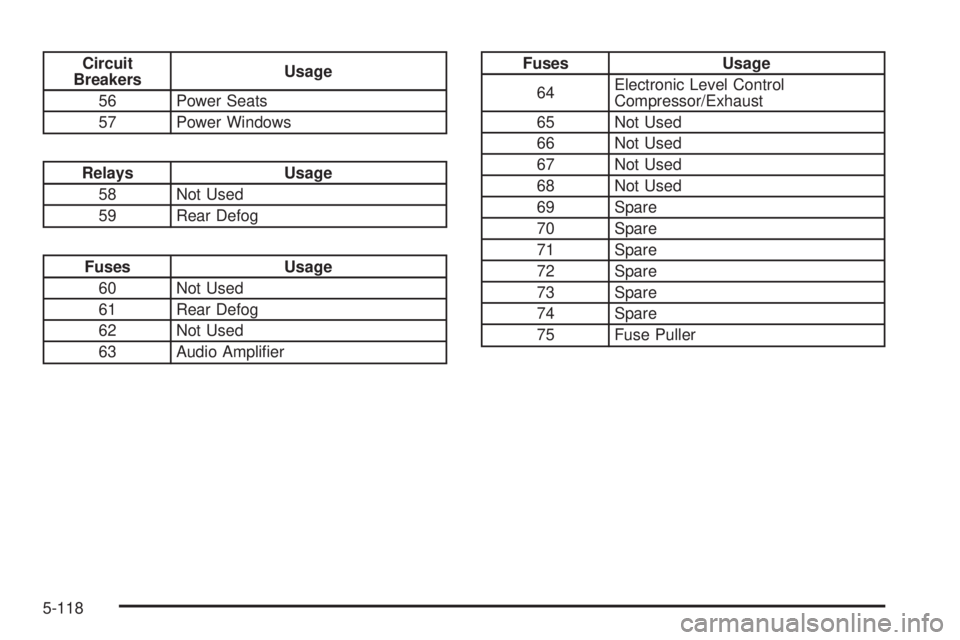

Circuit
BreakersUsage
56 Power Seats
57 Power Windows
Relays Usage
58 Not Used
59 Rear Defog
Fuses Usage
60 Not Used
61 Rear Defog
62 Not Used
63 Audio Amplier
Fuses Usage
64Electronic Level Control
Compressor/Exhaust
65 Not Used
66 Not Used
67 Not Used
68 Not Used
69 Spare
70 Spare
71 Spare
72 Spare
73 Spare
74 Spare
75 Fuse Puller
5-118

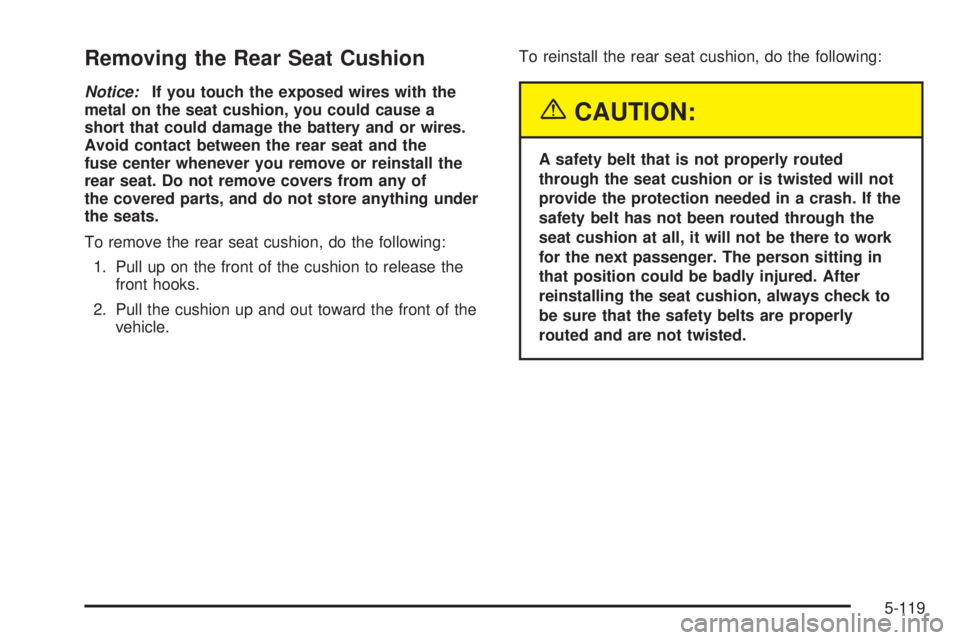

Removing the Rear Seat Cushion
Notice:If you touch the exposed wires with the
metal on the seat cushion, you could cause a
short that could damage the battery and or wires.
Avoid contact between the rear seat and the
fuse center whenever you remove or reinstall the
rear seat. Do not remove covers from any of
the covered parts, and do not store anything under
the seats.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front of the
vehicle.To reinstall the rear seat cushion, do the following:
{CAUTION:
A safety belt that is not properly routed
through the seat cushion or is twisted will not
provide the protection needed in a crash. If the
safety belt has not been routed through the
seat cushion at all, it will not be there to work
for the next passenger. The person sitting in
that position could be badly injured. After
reinstalling the seat cushion, always check to
be sure that the safety belts are properly
routed and are not twisted.
5-119

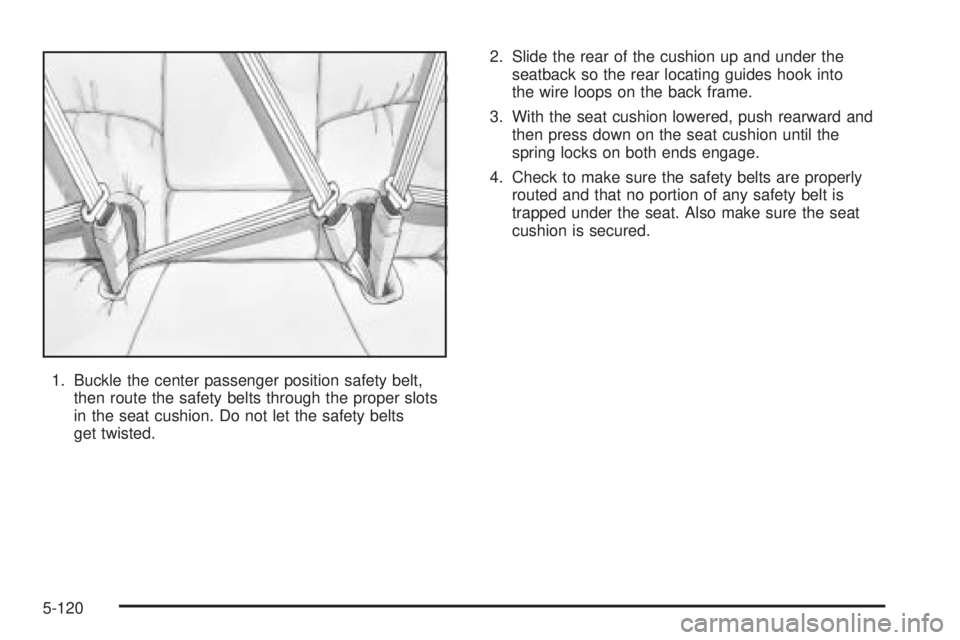

1. Buckle the center passenger position safety belt,
then route the safety belts through the proper slots
in the seat cushion. Do not let the safety belts
get twisted.2. Slide the rear of the cushion up and under the
seatback so the rear locating guides hook into
the wire loops on the back frame.
3. With the seat cushion lowered, push rearward and
then press down on the seat cushion until the
spring locks on both ends engage.
4. Check to make sure the safety belts are properly
routed and that no portion of any safety belt is
trapped under the seat. Also make sure the seat
cushion is secured.
5-120
