Hitches
It’s important to have the correct hitch
equipment. Crosswinds, large trucks
going by, and rough roads are a few
reasons why you’ll need the right hitch.
Here are some rules to follow:
0
0
Will you have to make any holes in
the body of your vehicle when you
install a trailer hitch? If you do, then
be sure to seal the holes later when
you remove the hitch. If you don’t
seal them, deadly carbon monoxide
(CO) from your exhaust can get into
your vehicle (see “Carbon Monoxide”
in the Index). Dirt and water can,
too.
The bumpers on your vehicle are not
intended for hitches.
Do not attach
rental hitches or other bumper-type
hitches to them. Use only a
frame-mounted hitch that does not
attach to the bumper.
Safety Chains
You should always attach chains between
your vehicle and your trailer. Cross the
safety chains under the tongue of the
trailer
so that the tongue will not drop to
the road if it becomes separated from the
hitch. Instructions about safety chains
may be provided by the hitch manufacturer or
by the trailer
, 1.
manufacturer. Follow the manufacturer’s
recommendation for attaching safety
chains. Always leave just enough slack
so
you can turn with your rig. And, never
allow safety chains to drag on the ground.
Trailer Brakes
If your trailer weighs more than 1,000
pounds (450 kg) loaded, then it needs its
own brakes
- and they must be adequate.
Be sure to read and follow the instructions
for the trailer brakes
so you’ll be able to
install, adjust and maintain them properly.
Because you have anti-lock brakes, do not
try to tap into your vehicle’s brake
system. If
YOU do, both brake systems
won’t work well, or at all.
Driving with a Trailer
Towing a trailer requires a certain amount
of experience. Before setting out for the
open road, you’ll want to get to know
your rig. Acquaint yourself with the feel
of handling and braking with the added
weight
of the trailer. And always keep in
mind that ’the vehicle you are driving is
now a good deal longer and not nearly as
responsive
as your vehicle is by itself. Before you
start, check the trailer hitch
and platform, safety chains, electrical
connector, lights, tires and mirror
adjustment. If
the trailer has electric
brakes,
start your vehicle and trailer
moving and then apply the trailer brake
controller by hand to be sure the brakes
are working. This lets you check your
electrical connection at the same time.
During your trip, check occasionally to
be sure that the load is secure,. and that
the lights and any trailer brakes are still
working.
Following Distance
Stay at least twice as far behind the
vehicle ahead as you would when driving
your vehicle without a trailer.,,This can
help
you avoid situations that’.require
heavy braking and sudden turns.
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer. And,
because you’re a good deal longer, you’ll
need to go much farther beyond the
passed vehicle before you can return to
your lane.
147 ...
ProCarManuals.com

Your Driving and the Road
Backing Up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, just move that hand to the left.
To move the trailer to the right, move
your hand to the right. Always back up
slowly and, if possible, have someone
guide you.
Making 7hms
When you’re turning with a trailer, make
wider turns than normal.
Do this so your
trailer won’t strike soft shoulders, curbs,
road signs, trees, or other objects. Avoid
jerky or sudden maneuvers. Signal well in
advance.
Thrn Signals When Towing a Trailer
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you signal a turn or lane change. Properly
hooked up, the trailer lights will also
flash, telling other drivers you’re about to
turn, change lanes or stop. When
towing a trailer, the green arrows
on your instrument panel will flash for
turns even
if the bulbs on the trailer are
burned out. Thus, you may think drivers
behind you are seeing your signal when
they are not. It’s important to check
occasionally to be sure the trailer bulbs
are still working.
Driving on Grades
Reduce speed and shift to a lower gear
before you start down a long or steep
downgrade. If you don’t shift down, you
might have to use your brakes
so much
that they would get hot and no longer
work well.
On a long uphill grade, shift down and
reduce your speed to around
45 mph
(70 km/h) to reduce the possibility of
engine and transmission overheating.
If you are towing a trailer and you
have an automatic transmission with
Overdrive, you may prefer to drive in
“D”
instead of Overdrive (or, as you need to, a
lower gear). Or,
if you have a manual
transmission with fifth (or sixth) gear and
you are towing a trailer, it’s better not to
use fifth (or sixth) gear. Just drive in
fourth gear (fifth gear if you have a six-speed manual transmission) or, as you
need to, a lower gear.
Parking on Hills
You really should not park your vehicle,
with a trailer attached, on a hill. If
-
something goes wrong, your rig could
start to move. People can be injured, and
both your vehicle and the trailer can be
damaged.
But if you ever have to park your rig on a
hill, here’s how to do it:
1. Apply your regular brakes, but don’t
shift into
“P” (Park) yet, or into gear
for a manual transmission.
2. Have someone place chxks under the
3. When the wheel chocks are in place,
release the regular brakes until the
chocks absorb the load. trailer wheels.
4. Reapply the regular brakes. Then
apply your parking brake, and then shift to
“P” (Park), or “R” (Reverse)
for a manual transmission.
5. Release the regular brakes.
. . .I48
ProCarManuals.com

When You Are Ready to Leave after
Parking on a
Hill
1. Apply your regular brakes and hold
the pedal down while you:
0 Start your engine;
0 Shift into a gear; and
0 Release the parking brake.
2. Let up on the brake pedal.
.
3. Drive slowly until the trailer is clear
4. Stop and have someone pick up and
of the chocks.
store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often
when you're pulling a trailer. See the
Maintenance Schedule for more on this.
Things that are especially important in
trailer operation are automatic
transmission fluid (don't overfill), engine
oil, axle lubricant, belts, cooling system,
and brake adjustment. Each of these
is
covered in this manual, and the Index will
help you find them quickly. If you're
trailering, it's a good idea to review these
sections before you start your trip.
Check periodically to see that all hitch
nuts and bolts .are tight.
I
I
149.. .
ProCarManuals.com

Problems on the Road
9.
IO.
Attach the cable at least 18 inches
(45 cm) away from the dead battery,
but not near engine parts that move.
The electrical connection is just as
good there, but the chance of sparks
getting back to the battery is much
less.
Now start the vehicle with the good
battery and run the engine for a
while.
11.
12.
Try to start the vehicle with the dead
battery.
If it won't start after a few tries, it
probably needs service.
Remove the cables in reverse order
to prevent electrical shorting. Take
care that they don't touch each other
or any other metal.
A. Heavy Metal Engine Part
B. Good Battery
C. Dead Battery
I I
T.
tc
U!
(1
tc
If
ac
ac
tl
nl
B
h,
n
1 Towing Your Vehicle
ry to have a GM dealer or a professional
,wing service tow your Pontiac. The
sua1 towing equipment is a sling-type
4) or a wheel-lift (B) or car carrier (C)
)w truck.
' your vehicle has been changed or
hodified since it was factory-new by
iding aftermarket items like fog lamps,
xo skirting, or special tires and wheels,
lese instructions and illustrations may
ot be correct.
'efore you do anything, turn on the
azard warning flashers.
. . .I56
ProCarManuals.com

When you call, tell the towing service:
That your vehicle cannot be towed
from the front or rear with
sling-type equipment.
drive.
That your vehicle has rear-wheel
The make, model, and year of your
Whether you can still move the shift
If there was an accident, what was
When the towing service arrives, let the
tow operator know that this manual
contains detailed towing instructions
and illustrations. The operator may
want to see them. vehicle.
lever.
damaged.
;.
157 I I.
I rl
ProCarManuals.com

Problems on the Road

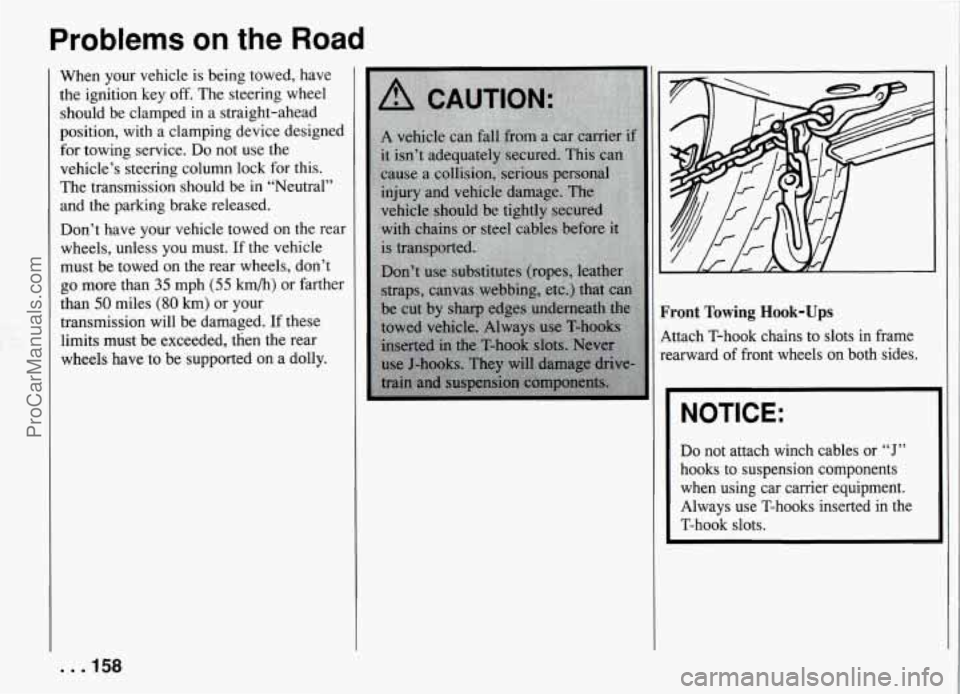

When your vehicle is being towed, have
the ignition key off. The steering wheel
should be clamped in a straight-ahead
position, with a clamping device designed
for towing service. Do not use the
vehicle’s steering column lock for this.
The transmission should be in “Neutral”
and the parking brake released.
Don’t have your vehicle towed on the rear
wheels, unless you must. If the vehicle
must be towed on the rear wheels, don’t
go more than 35 mph (55 km/h) or farther
than
50 miles (80 km) or your
transmission will be damaged. If these
limits must be exceeded, then the rear
wheels have to be supported on a dolly. Front Towing Hook-Ups
Attach T-hook chains to slots in frame
rearward
of front wheels on both sides.
NOTICE:
Do not attach winch cables or “J”
hooks to suspension components
when using car carrier equipment.
Always use T-hooks inserted in the
T-hook slots.
1
. . .158
ProCarManuals.com

I
I
NOTICE:
Do not tow with sling-type equiment
or fascia/fog light damage will occur.
Use wheel lift or car carrier equip-
ment. Additional ramping may be
required for car carrier equipment.
Use safety chains and wheel straps. Attach a
separate safety chain around
outboard end of each lower control arm.
~TICE:
I
Take care not to damage the brake
pipes and hoses or the
ABS sensor
and wiring.
NOTICE:
Towing a vehicle over rough surfaces
could damage a vehicle. Damage can
occur from vehicle-to-ground
or vehicle-to-wheel-lift-equipment
contact.
To help avoid damage,
install a towing dolly and raise
vehicle until adequate clearance is
obtained between the ground and/or
wheel-lift equipment.
4
159 ...
ProCarManuals.com

Problems on the Road
c
Rear Towing Hook-Ups
Attach T-hook chains in front of rear
wheels in bottom of frame
rail on both
sides.
NOTICE:
Do not attach winch cables or “J”
hooks to suspension components
when using car carrier equipment.
Always use T-hooks inserted in the
T-hook slgts.
b
NOTICE:
Do not tow with sling-type equip-
ment or rear bumper valance will be
damaged.
Use wheel lift or car carrier equip-
ment. Additional ramping may be
required for car carrier equipment.
Use safety chains and wheel straps. Attach a separate safety chain around
outboard end of the rear axle.
I NOTICE:
I
Take care not to damage the brake
pipes and cables.
c
1
. . .160
ProCarManuals.com

I NOTICE:
Towing a vehicle over rough surfaces
could damage a vehicle. Damage
can occur from vehicle-to-ground
or vehicle-to-wheel-lift-equipment
contact.
To help avoid damage, install
a towing dolly and raise vehicle until
adequate clearance is obtained between
the ground and/or wheel-lift equipment.
Engine Overheating
I
If Steam Is Coming from Your Engine:
You will find a coolant temperature gage
on your Pontiac’s instrument panel.
You may also find a low coolant warning
light
on your Pontiac instrument panel.
161 .
ProCarManuals.com

Problems on the Road
If your engine catches fire because
you keep driving with no coolant,
your vehicle can be badly darhaged.
The costly repairs would not be
covered by your warranty.
If No Steam Is Coming from Your
Engine:
If you get the overheat warning but see
or hear
no steam, the problem may not be
too serious. Sometimes the engine can gel
a little too hot when you:
Climb a long hill on a hot day.
Stop after high speed driving.
0 Idle for long periods in traffic.
0 Tow a trailer. If you
get the overheat warning with
no
sign of steam, try this for a minute or so:
1. If you have an air conditioner, turn it
2. Turn on your heater to full hot at the
off.
highest
fan speed and
open the
window as necessary.
3. Try to keep your engine under load
(in a drive gear where the engine runs
slower).
If you no longer have the overheat
warning, you can drive. Just to be safe,
drive slower for about
ten minutes. If the
warning doesn’t come back
on, you can
drive normally.
If the warning continues, pull over, stop,
and park your vehicle right away.
If there’s still no sign of steam,
you can
idle the engine for two or three minutes
while you’re parked, to see if the warning
stops. But then, if you still have the
warning, TURN
OFF THE ENGINE
AND GET EVERYONE OUT
OF THE
VEHICLE until it cools down.
You may decide not to lift the hood but to
get service help right away.
Cooling System
When you decide it’s safe to lift the hood,
here’s what you’ll see on the V6 engine:
1. Coolant recovery tank
2. Radiator pressure cap
3. Electric engine fan
. . .I62
ProCarManuals.com
