CD player PONTIAC FIREBIRD 1994 Owners Manual

Part 3
In this part you’ll find out how
o operate the comfort control
iystems and audio systems
Iffered with your Pontiac
. Be
ure to read about the particular
iystem supplied with your
lehicle
.
Comfort Controls & Audio
Systems
Comfort Controls ................................................ 104
Heater Controls
............................................... 104
Heating
...................................................... 104
Bi-Level Heating
.............................................. 105
Ventilation ................................................... 105
Defogging and Defrosting Windows
............................... 105
Air Conditioner Controls
........................................ 106
Cooling
...................................................... 106
Rear Window Defogger
......................................... 107 __
Flow-Through Ventilation System .................................
Audiosystems ..................................................
107
108
Settingtheclock
.............................................. 109
AMPM Stereo with Cassette Tape Player
........................... 109
AM/FM Stereo with Cassette Tape Player and Graphic Equalizer
........ 112
AM/FM Stereo with Compact Disc Player and Graphic Equalizer
........ 118
AM/FM
Stereo with Compact Disc Player
.......................... 115
Understanding Radio Reception
.................................. 121 .
Care of Your Cassette Tape Player .................................
Care of Your Compact Discs .....................................
FixedMastAntenna ............................................
122
123
123
103 ...
ProCarManuals.com

Comfort Controls and Audio Systems
/I
Ventilation Tips
Keep the hood and front air inlet free
of ice, snow, or any other obstruction
(such as leaves). The heater and
defroster will work far better, reducin
the chance of fogging the inside of
your windows.
When you enter a vehicle
in cold
weather, turn the fan control knob to
the right for a few moments before
driving off. This helps clear the intak
ducts of snow and moisture, and
reduces the chance of fogging the
inside
of your windows.
Keep the air path under the front seat
clear of objects. This helps air to
circulate throughout your vehicle.
Audio Systems
7
i
(
1:
1
1
i
1
1
I
I’
four Delco@ audio system has been
lesigned to operate easily and give years
>f listening pleasure. But you will get the
nost enjoyment out of it if you acquaint
yourself with it first..Find out what your
Delco’ system can do and how to operate
111 its controls, to be sure you’re getting
he most out of the advanced engineering
:hat went into it.
[f you have power door locks, your
vehicle has a feature called Retained
Accessory Power
(RAP). With RAP you
:an play your audio system even after the
ignition is
off. See the Index under
“Retained Accessory Power.”
NOTICE:
Before you add any sound equipment
to your vehicle
- like a tape player,
CB radio, mobile telephone or
two-way radio
- be sure you can
add what you want. If you
can, it’s
very important to do it properly.
Added sound equipment may inter-
fere with the operation of your
vehicle’s engine, Delco@ radio or
other systems, and even damage them. And, your vehicle’s systems
may interfere with the operation of
sound equipment that has been added
improperly
So, before adding sound equipment,
check with your dealer and be sure to
check Federal rules covering mobile radio and telephone units.
. . .IO8
ProCarManuals.com

Setting the Clock
The clock may be set with the ignition
on or off.
1. Press and hold “HR” until the correct
hour appears.
correct minute appears.
2. Press and hold “MIN” until the
NOTE: There will be
a two second delay
before the clock goes into the time-set
mode.
I
AM/FM Stereo with Cassette
Tape Player
To Play the Radio
Push “POWER” to turn the system on
or off.
Volume
Turn the “VOLUME” knob to adjust
the sound.
AM-FM
Press “AMEM” to get AM, FM1 or
FM2. The lighted display shows your
selection.
%ne
Press “TUNE” to release the knob.
Turn the knob
to choose radio stations.
Push “TUNE’ back
in to store it when
not tuning.
Recall
Press “RECALL” to recall the station
being played or the clock display.
You
can also press “RECALL” to display
the time when
the ignition is off.
Seek
Press “SEEK or A ” and the radio
will tune to
the next lower or higher
station and stay there.
109 ...
ProCarManuals.com

Comfort Controls and Audio Systems
Pushbuttons
The six pushbuttons let you return to
your favorite stations. You can preset
up to 18 stations
(6 AM, 6 FMl and
6 FM2).
1. Press “AM/FM’ to choose AM,
2. Tune in the station.
FM1 or
FM2.
3. Press and hold one of the six
pushbuttons until the display shows
“SET.” Whenever you press that
button, the preset station will
return.
Repeat these steps for each pushbutton.
Steering Wheel Controls
Your vehicle may be equipped with
steering wheel controls for this audio
system. With steering wheel controls,
you can use the buttons
on your
steering wheel to:
Turn the audio system on or off.
Adjust the volume.
Choose AM, FM1 or FM2.
Use the seek and recall functions.
Choose one of the preset stations
on your pushbuttons.
Setting the Tone
Bass:
Slide the “BASS” lever to the
5ght to hear more bass.
I’reble: Slide the “TREBLE’ lever to
:he right to hear more treble.
[f a station is weak and noisy, slide
‘TREBLE’ to the left to reduce the
noise.
Adjusting the Speakers
Balance:
Press “BAL” to release the
knob. Turn the knob to move the sound
between the right and left speakers.
Push “BAL” back in to store
it when
not adjusting.
Fade: Press “FADE” to release the
knob. Turn the knob to move the sound
between the front and rear speakers.
Push “FADE’ back in to store it when
not adjusting.
To Play a Cassette Tape
Your tape player is built to work best
with tapes that are
30 to 45 minutes
long on each side. Tapes longer than
that are
so thin they may not work well
in this player. A cassette symbol will
appear in the upper left corner of the
display whenever a tape is inserted.
The longer side with the tape visible
goes in first. If you hear nothing or
hear just a garbled sound, it may not be
in squarely. Press “EJECT” to remove
the tape and start over.
Once the tape is playing, use “VOLUME,” “FADE,” “TREBLE’
and “BASS” just as you do for the
radio. The arrows show which side of
the tape is playing.
Forward
Press “FWD” to rapidly advance to
another part of the tape. Press “PROG”
or “FWD” again to stop it. The radio will play during this operation.
. . .I10
ProCarManuals.com

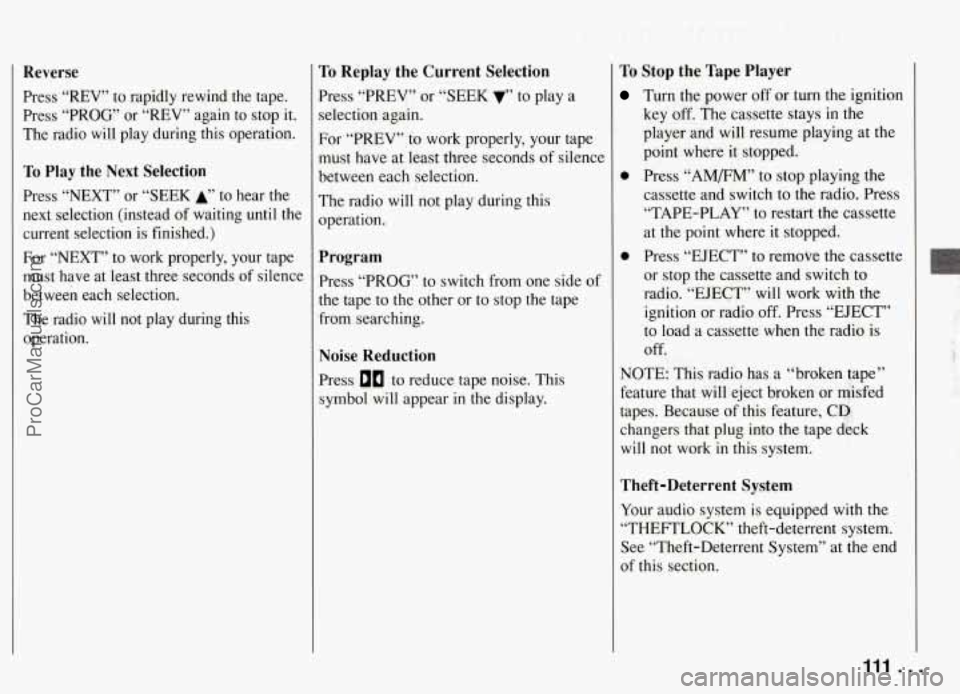

Reverse
Press “REV” to rapidly rewind the tape.
Press “PROG’ or “REV” again to stop it.
The radio will play during this operation.
To Play the Next Selection
Press “NEXT” or “SEEK A’’ to hear the
next selection (instead of waiting until the
current selection is finished.)
For “NEXT” to work properly, your tape
must have at least three seconds of silence
between each selection.
The radio will not play during this
operation.
To Replay the Current Selection
Press “PREV” or “SEEK V” to play a
selection again.
For “PREV” to work properly, your tape
must have at least three seconds of silence
between each selection.
The radio will not play during this
operation.
Program
Press “PROG’ to switch from one side of
the tape to the other or to stop the tape
from searching.
Noise Reduction
Press 00 to reduce tape noise. This
symbol will appear in the display.
To Stop the Tape Player
Turn the power off or turn the ignition
key off. The cassette stays in
the
player and will resume playing at the
point where it stopped.
cassette and switch to the radio. Press
“TAPE-PLAY’’ to restart
the cassette
at
the point where it stopped.
e Press “EJECT” to remove the cassette
or stop the cassette and switch to
radio. “EJECT” will work with the
ignition or radio off. Press “EJECT”
to load a cassette when the radio is
off.
0 Press “AMEM” to stop playing the
NOTE: This radio has a “broken tape”
feature that will eject broken or misfed
tapes. Because of this feature, CD:
changers that plug into
the tape deck
will not work in this system.
Theft-Deterrent System
Your audio system is equipped with the
“THEFTLOCK’ theft-deterrent system.
See “Theft-Deterrent System” at the end
of this section.
111 . . .
ProCarManuals.com

Comfort Controls and Audio Systems

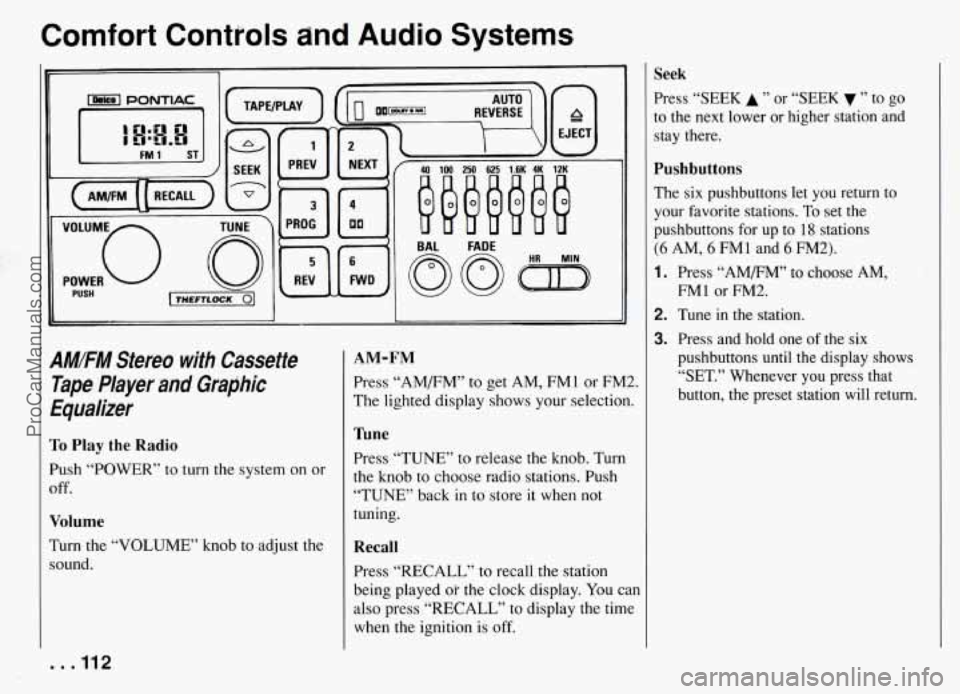

AM/FM Stereo with Cassette
Tape Player and Graphic
Equalizer
To Play the Radio
Push “POWER” to turn the system on or
off.
Volume
Turn the “VOLUME’ knob to adjust the
sound.
AM-FM
Press “AMEM’ to get AM, FM1 or FM2.
The lighted display shows your selection.
Tune
Press “TUNE’ to release the knob. Turn
the knob to choose radio stations. Push
“TUNE” back in to store it when not
tuning.
Recall
Press “RECALL” to recall the station
being played
of- the clock display. You can
also press “RECALL,” to display the time
when the ignition is
off.
Seek
Press “SEEK A ” or “SEEK ” to go
to the next lower or higher station and
stay there.
Pushbuttons
The six pushbuttons let you return to
your favorite stations.
To set the
pushbuttons for up to
18 stations
(6 AM, 6 FMl and 6 FM2).
1. Press “AMEM’ to choose AM,
2. Tune in the station.
3. Press and hold one of the six
FM1
or FM2.
pushbuttons until the display
shows
“SET.” Whenever you press that
button, the preset station will return.
. . .112
ProCarManuals.com

Steering Wheel Controls
Your vehicle may be equipped with
steering wheel controls for this audio
system. With steering wheel controls, you
can use the buttons
on your steering
wheel to:
0 Turn the audio system on or off.
Adjust the volume.
Choose AM, FM1 or FM2.
Use the seek and recall functions.
Choose one of the preset stations on
your pushbuttons.
Setting the Tone
Use the levers to set the bass, midrange
and treble until you get the sound you
want. The
“40,” “100,” “250” and
“625” levers adjust the bass.
“1.6K’ is
midrange, and “4K’ and
“l2K’ control
the treble. We suggest setting the “1.6K’
lever in the middle position and then
moving the other levers up or down until
you get the amount of bass and treble you
like.
Adjusting the Speakers
Balance:
Press “BAL” to release the
knob. Turn the knob to move the sound
between the right and left speakers. Push
“BAL” back in to store it when not
adjusting.
Fade: Press “FADE” to release the knob.
Turn the knob to move the sound between
the front and rear speakers. Push “FADE”
back in to store it
when not adjusting.
To Play a Cassette Tape
Your tape player is built to work best with
tapes that are
30 to 45 minutes long on
each side. Tapes longer than that are
so
thin they may not work well in this player.
A cassette symbol will appear in the
upper left corner of the display whenever
a tape is inserted.
The longer side with the tape visible goes
in first. If you hear nothing or hear just a
garbled sound, it may not be in squarely.
Press “EJECT.” to remove the tape and
start over.
Once the tape is playing, use
“VOLUME,” “BAL” and “FADE” just as
you do for the radio. The arrows show
which side
of the tape is playing.
Forward
Press “FWD” to rapidly advance to
another part of the tape. Press “PROG’ or
“FWD’ again to stop it. The radio will
play during this operation.
Reverse
Press “REV” to rapidly rewind the tape.
Press “PROG’ or
“REV” again to stop it.
The radio will play during this operation.
To Play the Next Selection
Press “NEXT” or “SEEK A” to hear the
next selection (instead
of waiting until the
current selection is finished.)
For
“NEXT” to work properly, your tape
must have at least three seconds
of silence
between each selection.
The radio will not play during this
operation.
To Replay the Current Selection
Press “PREV” or “SEEK v” to play a
selection again.
113 ...
ProCarManuals.com

Comfort Controls and Audio Systems
For “PREV” to work properly, your tape
must have at least three seconds of silence
between each selection.
The radio will not play during this
operation.
Program
Press “PROG” to switch from one side of
the tape to the other or to stop the tape
from searching.
Noise Reduction
Press 00 to reduce tape noise. This
symbol will appear in the display.
To Stop the Tape Player
0 Turn the power off or turn the ignition
key
off. The cassette stays in the
player and will resume playing at the
point where it stopped.
Press “AM/FM’ to stop playing the
cassette and switch to the radio. Press
“TAPE-PLAY” to restart the cassette
at
the point where it stopped.
Press “EJECT” to remove the cassette
or stop the cassette and switch to
radio. “EJECT” will work with the
ignition or radio
off. Press “EJECT”
to load a cassette when the radio
is
Off.
NOTE: This radio has a “broken tape”
feature that will eject broken or misfed
tapes. Because of this feature, CD
changers that plug into
the tape deck
will not work
in this system.
Theft-Deterrent System
Your audio system is equipped with the
“THEFTLOCK” theft-deterrent system.
See “Theft-Deterrent System” at the end
of this section.
. . .I14
ProCarManuals.com

AM/FM Stereo with Compact
Disc
Player
To Play the Radio
Push “POWER’ to turn the system on or
Off.
Volume
Turn the “VOLUME’ knob to adjust the
sound.
AM-FM
Press “AM/FM” to get AM, FMl or FM2.
The lighted display shows your selection.
lime
Press “TUNE” to release the knob. Turn
the knob to choose radio stations. Push
“TUNE” back in to store it when not
tuning.
Recall
Press “RECALL” to recall the station
being played or the clock display.
You can
also press “RECALL” to display the time
when the ignition is
off.
Seek
Press “SEEK A ” or “SEEK ” to go to
the next lower or higher station
and stay
there.
Pushbuttons
The six pushbuttons let you return to your
favorite stations. To set the pushbuttons
for
up to 18 stations (6 AM, 6 FM 1 and
6 FM2):
1. Press “A”” to choose AM, FMl
2. Tune in the station.
3. Press and hold one of the six
or FM2.
pushbuttons until the display shows
“SET.” Whenever you press that
button, the preset station will return.
115..
ProCarManuals.com

Reverse
Press and hold “REV” to rapidly return to
a favorite passage. Release
it to play the
passage. The radio will play during this
operation.
Forward
Press and hold “FWD’ to quickly
advance within a track. Release
it to
resume playing. The radio will play
during this operation.
Random
Press “RDM” to hear a random selection
of tracks.
0
0
0
To Stop the Disc Player
Turn the power off or turn the ignition
key off. The disc stays
in the player
and
will resume playing at the point
where it stopped.
Press
‘‘AMFM’’ to stop playing the
disc and switch to radio. Press
“CDPLAY” to restart
the disc at the
point where it stopped.
Press “EJECT” to eject the disc or
stop the disc and switch to radio.
“EJECT” will work with the ignition
or radio off. Press “EJECT” to load a
disc when the audio system is
off.
Theft-Deterrent System
Your audio system is equipped with the
“THEFTLOCK’ theft-deterrent system.
See “Theft-Deterrent System” at the end
of this
section.
117.. .
ProCarManuals.com
