tow PONTIAC FIREBIRD 1995 User Guide

2. Move the shift lever into PARK (P) position like
this:
Hold in the button on the lever, and push the
lever all the way toward the front of your car.
3. Move the ignition key to LOCK.
4. Remove the key and take it with you. If you can
walk away from your car with the ignition key in
your hand, your car
is in PARK (P).
Leaving Your Vehicle With the Engine
Running (Automatic Transmission Models
Only)
If you have to leave your vehicle with the engine
running, be sure your vehicle is in PARK (P) and your
parking brake is firmly set before you leave it. After
you’ve moved the shift lever into the PARK (P)
position, hold the regular brake pedal down. Then, see if
you can move the shift lever away from PARK (P)
without first pushing the button. If you can, it means
that the shift lever wasn’t fully locked into PARK
(P).
Torque Lock (Automatic Transmission)
If you are parking on a hill and you don’t shift your
transmission into PARK (P) properly, the weight of the
vehicle may put too much force on the parking pawl in
the transmission. You may find it difficult to pull the
shift lever out of PARK (P). This is called “torque lock.”
To prevent torque lock, set the parking brake and then
shift into PARK
(P) properly before you leave the
driver’s seat. To find out how, see “Shifting Into
PARK
(P)” in the Index.
When you are ready to drive, move the shift lever out of
PARK (P)
before you release the parking brake.
If “torque lock” does occur, you may need to have
another vehicle push
yours a little uphill to take some of
the pressure from the transmission,
so you can pull the
shift lever out of PARK (P).
2-35
ProCarManuals.com

Shiftiqg out of PARK (P)
(Authmatic .. .. Transmission)
Parking Your Vehicle
(Manual Transmission)
Your Pontic has a brake-transmission shift interlock. Before you get out of your vehicle, put your manual
You hqve to hlly apply your regular brake before you transmission in REVERSE (R) and firmly apply the
ca~ shjft from PARK (P) when the ignition is in the parking brake.
RUN position. See “Automatic Transmission” in the
Index.
If yov cmot shift out of PARK (P), ease pressure on
the shift lever - push the shift lever all the way into
PARK (P) and release the shift lever button as you
maintain brake application. Then press the shift lever
button
and move the shift lever into the gear you wish.
If you per hold the brake pedal down but still can’t
shift out
of PARK (P), try this:
1. Turn @e key to OFF.
If your vehicle is equipped to tow a trailer, see “Towing
a Trailer” in the Index.
2, Apply and hold the brake.
3. Shift to NEUTRAL (N).
4. St& the vehicle and then shift to the drive gear you
5. Have the vehicle fixed as soon as you can,
ww!.
ProCarManuals.com

Running Your Engine While You’re
Parked (Automatic Transmission)
It’s better not to park with the engine running. But if you
ever have to, here are some things to know.
Follow the proper steps to be sure your vehicle won’t
move. See “Shifting Into
PARK (P)” in the Index.
If you are parking on a hill and if you’re pulling a
trailer, also see “Towing a Trailer” in the Index.
2-38
ProCarManuals.com

A green arrow on the instrument panel will flash in the
direction of the turn or lane change.
To signal a lane change, just raise or lower the lever
until the green arrow starts to flash. Hold it there until
you complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay on, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the green arrows don’t go on at all when you
signal a turn, check the fuse (see“Fuses” in the Index).
Headlamp High/Low Beam
To change the headlamps from low beam to high or high
to low,
pull the turn signal lever all the way toward you.
Then release
it. When the high beams are on, this blue
light on the instrument panel also
will be on.
2-42
ProCarManuals.com

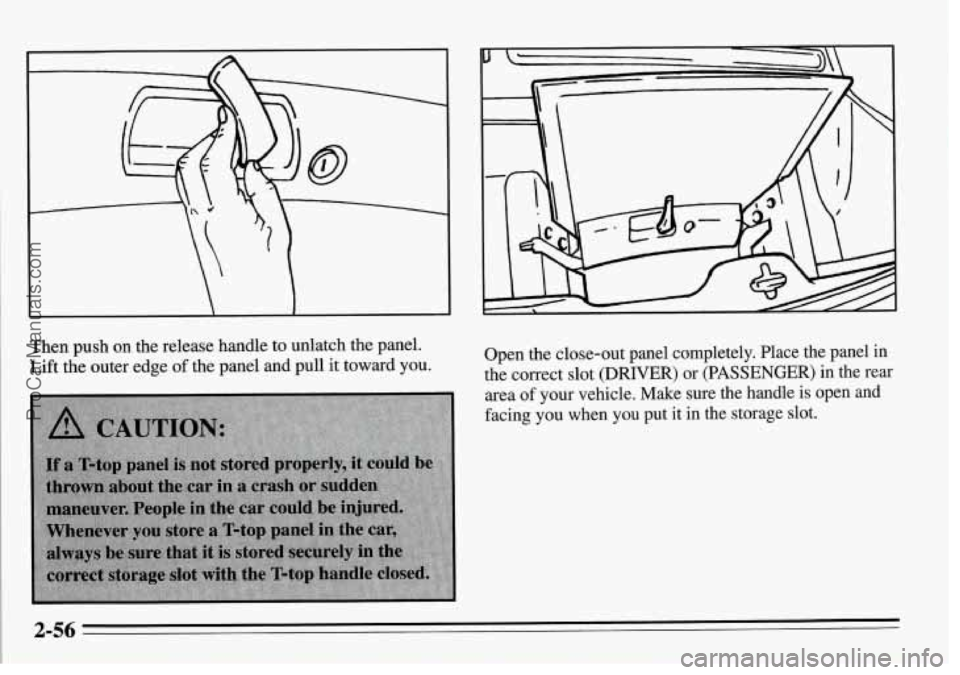

Then push on the release handle to unlatch the panel.
Lift the outer edge
of the panel and pull it toward you. Open the close-out panel completely. Place the panel in
the correct slot
(DRIVER) or (PASSENGER) in the rear
area
of your vehicle. Make sure the handle is open and
facing you when you put it
in the storage slot.
ProCarManuals.com

To remove the close-out panel:
1. Close the panel. If the close-out panel is not closed
and resting on the trim panel, it cannot be removed.
2. Pull the panel toward you to unsnap it. Then slide the
close-out panel along the groove in the trim panel.
Reverse the steps to install the panel.
When carrying large or heavy items, it is a good idea to
open the panel and place the items in the rear area.
2-61
ProCarManuals.com

Brake System Warning Light
Your Pontiac’s hydraulic
B RAKE two parts. If one part isn’t
brake system is divided into
working, the other part can
still work and stop you. For
good braking, though, you
need both parts working
If the warning light comes on, there could be a brake
problem. Have your brake system inspected right away.
This light should come on briefly as you start the
vehicle. If it doesn’t come
on then, have it fixed so it
will be ready to warn you if there’s a problem.
If the light comes on while you are driving, pull off the
road and stop carefully. You may notice that the pedal is
harder to push. Or, the pedal may
go closer to the floor.
It may take longer to stop. If the light is still on, or if the
anti-lock brake system warning light is flashing, have
the vehicle towed for service. (See “Anti-Lock Brake
System Warning Light” and “Towing Your Car” in the
Index.)
The brake system warning light will also come on when
you set your parking brake, and it will stay on if your
parking brake doesn’t release fully. If it stays on after
your parking brake is fully released, it means you have a
brake problem.
2-69
ProCarManuals.com

Anti-Lock Brake System Warning Light
ABS
INOP
With the anti-lock brake system, this light will come on when
you
start your engine and it will stay on for three seconds.
That’s normal.
If the light doesn’t come on, have it fixed so it
will be ready
to warn you if there is a problem.
If the light flashes when you’re driving, you don’t have
anti-lock brakes and there could be a problem with your
regular brakes. Pull
off the road and stop carefully. You
may notice that the pedal is harder to push. Or, the pedal
may go closer to the floor. It may take longer to stop.
Have the vehicle towed for service. (See “Towing Your
Car” in the Index.)
If the anti-lock brake system warning light stays on
longer than normal after you’ve started your engine, turn
the ignition off. Or, if the light comes on and stays on
when you’re driving, stop as soon as possible and
tum
the ignition off. Then start the engine again to reset the
system.
If the light still stays on, or comes on again
while you’re driving, your Pontiac needs service.
If the
light
is on but not flashing and the regular brake system
warning light isn’t
on, you still have brakes, but you
don’t have anti-lock brakes.
2-70
ProCarManuals.com

d HEATER: This setting directs most of the air
through the heater ducts and some of the air through the
windshield defroster vents.
z2 BLEND: Air is directed through the windshield
defroster vents and the heater ducts.
9 DEFROST: This setting directs most of the air
through the windshield defkoster vents and some of the
air through the heater ducts.
Heating
The heater works best if you keep your windows closed
while using it.
1. Turn the air control knob to HEATER.
2. Turn the fan control knob to the desired speed.
3. Turn the temperature control knob to a comfortable
During initial start-up only, if your vehicle is equipped
with an optional engine coolant heater, you can use it in
cold weather (around
+20 O F/-8 O C or lower) to improve
heater performance on
start up. Because an engine
coolant heater warms the engine coolant, your vehicle’s
setting.
heating system can more efficiently provide heat for the
passenger area of
your vehicle. See “Engine Coolant
Heater” in the Index.
Bi-Level Heating
You may want to use bi-level heating on cool, but sunny
days. This setting directs cool air toward your body and
warmer air toward your feet.
1. Turn the air control knob to BI-LEVEL.
2. Turn the temperature control knob to a comfortable
3. Turn the fan control knob to the desired speed.
Ventilation
For mild outside temperatures when little heating or
cooling
is needed, you can still direct outside air through
your vehicle.
1. Turn the air control knob to VENT.
2. Turn the temperature control knob to a comfortable
3. Turn the fan control knob to the desired speed.
setting.
setting.
3-2
ProCarManuals.com

Towing a Trailer
I NOTICE:
Pulling a trailer improperly can damage your
vehicle and result in costly repairs not covered by
your warranty.
To pull a trailer correctly, follow
the advice in this part, and see your Pontiac
dealer for important information about towing
a
trailer with your vehicle.
4-31
