PONTIAC FIREBIRD 1995 Owners Manual

Hydraulic Clutch
The hydraulic clutch linkage in your vehicle is
self-adjusting. The clutch master cylinder reservoir is
filled with hydraulic clutch fluid.
It isn’t a good idea to “top off’ your clutch fluid. Adding
fluid won’t correct a leak.
A fluid loss in this system could indicate a problem.
Have the system inspected and repaired.
When to Check and What to Use
Refer to the Maintenance Schedule to determine how
often you should check the fluid level in your clutch
master cylinder reservoir and for the proper fluid. See
“Owner Checks and Services’’ and “Recommended
Fluids and Lubricants’’ in the Index.
6-28
ProCarManuals.com

How to Check What to Use
The proper fluid should be added if the level is below
the
“STEP” mark on the reservoir. See the instructions Standard Differential
on the reservoir cap.
Rear Axle
When to Check and Change Lubricant
Use Axle Lubricant (GM Part No. 1052271) or
SAE 8OW-90 GL-5 gear lubricant.
Limited-Slir, Differential 1
To add lubricant when the level is low, use Axle
Refer to the Maintenance Schedule to determine how Lubricant (GM Part No. 1052271) or SAE SOW-90
often to check the lubricant and when to change it. See GL-5 gear lubricant.
To completely refill after draining,
“Periodic Maintenance Inspections” in the Index. add
4 ounces (1 18 ml) of Limited-Slip Differential
Lubricant Additive (GM Part No. 1052358). Then fill to
How to Check Lubricant the bottom of the filler plug hole with Axle Lubricant
If the level is below the bottom of the filler plug hole, (GM Part No. 12345977) or SAE SOW-90 GL-5 gear
you’ll need to add some lubricant. Add enough lubricant lubr\
icant.
to raise the level to the bottom of the filler plug hole.
6-29
ProCarManuals.com

Engine Coolant
The following explains your cooling system and how to
add coolant when it is low. If you have a problem with
engine overheating or if you need to add coolant to your
radiator, see “Engine Overheating” in the Index.
The proper coolant for your Pontiac will:
Give freezing protection down to -34°F (-37 O C).
Give boiling protection up to 262 “F ( 128 ” C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights work as they should.
What to Use
Use a mixture of one-half clean water (preferably
distilled) and one-half antifreeze that meets “GM
Specification
1825-M,” which won’t damage aluminum
parts.
You can also use a recycled coolant conforming to
GM Specification 1825-M with a complete coolant flush
and refill. If you use this mixture, you don’t need to add
anything else.
NOTICE:
If you use an improper coolant mix, your engine
could overheat and be badly damaged. The
repair cost wouldn’t be covered by your warranty.
Too much water in the mix can freeze
and crack the engine, radiator, heater core and
other parts.
I 6-30
ProCarManuals.com

Adding Coolant 5.7L LTl Engine Only
r ----
If this light comes on, it means you’re low on engine
coolant.
To Check Coolant
When your engine is cold, check the dipstick on the cap
of the coolant recovery tank. The coolant level should
be at
COLD, or a little higher. When your engine is
warm, the level on the dipstick should be up to the HOT,
or a little higher.
To Add Coolant to the Recovery Tank
If you need more coolant, add the proper mix at the
coolant
recovery tank, but only when your engine is
cool. If the tank is very low or empty, also add coolant
to the radiator, see “Engine Overheating” in the Index
for information.
6-31
ProCarManuals.com

Radiator Pressure Cap (All Engines)
NOTICE:
Your radiator cap is a 18 psi (124 Ea)
pressure-type cap and must be tightly installed to
prevent coolant loss and possible engine damage
from overheating. Be sure the arrows on the cap
'line up with the overflow tube on the radiator
filler neck.
When you replace your radiator pressure cap, an AC@
cap is recommended.
Thermostat
Engine coolant temperature is controlled by a thermostat
in the engine coolant system. The thermostat stops the
flow of coolant through the radiator until the coolant
reaches a preset temperature.
When you replace your thermostat, an AC@ thermostat
is recommended.
6-32
ProCarManuals.com

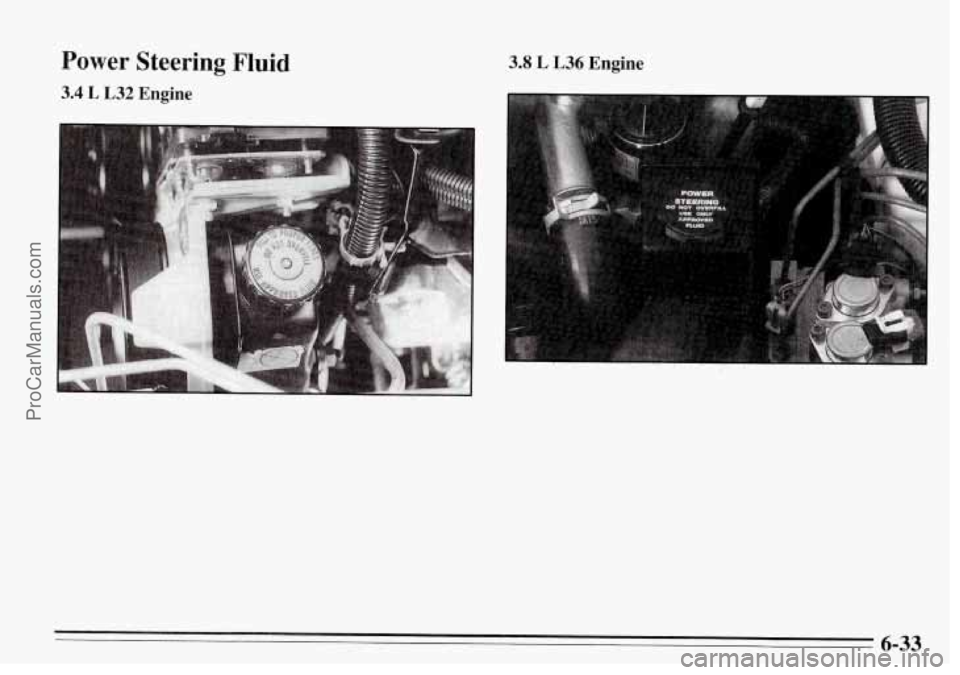

Power Steering
3.4 L L32 Engine
Fluid 3.8 L L36 Engine
6-33
ProCarManuals.com

5.7 L LT1 Engine How To Check Power Steering Fluid
When the engine compartment is cool, unscrew the cap
and wipe the dipstick with a clean rag. Replace the cap
and completely tighten it. Then remove the cap again
and look at the fluid level on the dipstick.
The level should be at the FULL COLD mark. Add
enough fluid to bring the
level up to the mark.
A fluid loss in this system could indicate a problem.
Have the system inspected and repaired.
6-34
ProCarManuals.com

When the engine Compartment is hot, the level
should be at the H or HOT mark.
0 When the engine compartment is cool, the level
should be at C or FULL COLD mark.
What to Add
Refer to the Maintenance Schedule to determine what
kind
of fluid to use. See “Recommended Fluids and
Lubricants” in the Index.
I NOTICE:
When adding power steering fluid or making a
complete fluid change, always use the proper
fluid. Failure to use the proper fluid can cause
leaks and damage hoses and seals.
Windshield Washer Fluid
To Add
6-35
ProCarManuals.com

Open the cap labeled WASHER FLUID ONLY. Add
washer fluid until the tank is full.
NOTICE:
When using concentrated washer fluid,
follow the manufacturer’s instructions for
adding water.
0 Don’t mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn’t clean as well as washer fluid.
0 Fill your washer fluid tank only 3/4 full
when it’s very cold. This allows for
expansion, which could damage the tank
if
it is completely full.
windshield washer. It can damage your
washer system and paint.
0 Don’t use radiator antifreeze in your
Brake Master Cylinder
Your brake master cylinder is here. It is filled with
DOT-3 brake fluid.
There are only two reasons why the brake fluid level in
your master cylinder might go down. The first is that the
brake fluid goes down to an acceptable level during
normal brake lining wear. When new linings are put in,
the fluid level goes back up. The other reason is that
fluid is leaking out
of the brake system. If it is, you
should have your brake system fixed, since a leak means
that sooner or later your brakes won’t work well, or
6-36
ProCarManuals.com

I
won’t work at all. So, it isn’t a good idea to “top off’
your brake fluid. Adding brake fluid won’t correct a
leak. If
you add fluid when your linings are worn, then
you’ll have too much fluid when you get new brake
linings.
You should add (or remove) brake fluid, as
necessary, only when work is done
on the brake
hydraulic system.
Refer to the Maintenance Schedule to determine when to
check your brake fluid. See “Periodic Maintenance
Inspections”
in the Index.
To Check Brake Fluid
You can check the brake fluid without taking off the cap.
Just look at the brake fluid reservoir. The fluid
level
should be above the plastic seam in the reservoir. If it
isn’t, have your brake system checked to see if there is a
leak.
After work is done on the brake hydraulic system, make
sure the level
is above the plastic seam, near the base of
the filler neck.
6-37
