child restraint PONTIAC FIREBIRD 1995 Owners Manual

How to Wear Safety Belts Properly
Adults
This part is only for people of adult size.
Be aware that there are special things to know about safety belts and children. And there are different rules
for smaller children and babies.
If a child will be riding
in your Pontiac, see the part of this manual called
“Children.” Follow those rules for everyone’s
protection.
First, you’ll want to know which restraint systems your
vehicle has.
We’ll start with the driver position.
Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to wear it
properly.
1. Close and lock the door.
2. Adjust the seat (to see how, see “Seats” in the Index)
so you can sit up straight.
3. Pick up the latch plate and pull the belt across you,
Don’t let it. get twisted.
On convertible models, the shoulder belt may lock if
you pull the belt across YOU very quickly, If this
happas, kt the belt go back slightly to unlock it.
Then pull the belt across you more slowly.
4. Push the latch plate into the buckle until it clicks.
1-13
ProCarManuals.com

Child Restraints
Be sure to follow the instructions for the restraiDt. You
may find these instructions on the restraint itself or hi a
booklet, or both. These restraints use the belt system in
your vehicle, but the child also has to be secured within
the restraint to help reduce the chance
of personal injury.
The instructions that come with the infant or child
restraint
will show you how to do that.
., , .-
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained
in the rear rather than the fi-ont seat. We at
General Motors therefore recommend that
you put your
child restraint in the rear seat.
Never put a rear-facing
child restraint in tie front passenger seat. Here's why:
. .. .i .. '. Wherever you install it, be sure to secure the 63;lild
restraint properly.
Keep in mind that an unsecured child restraint ;can move
around in a collision or sudden stop and injurepeople in
the vehicle. Be sure to properly secure any child
restraint in your vehicle -- even when no childis in it.
1-31
ProCarManuals.com

'Top Strap If you have a convertible, don't use a restraint that has a
top strap in your vehicle because the top strap anchor
cannot be installed properly.
If your child restraint has a top strap, it should be
anchored.
If you need to have an anchor installed, you can ask
your Pontiac dealer to put it in for you. If you want to
install an anchor yourself, your dealer can tell you how
to
do it.
For cars first sold in Canada, child restraints with a top
strap must be anchored according to Canadian Law.
Your dealer can obtain the hardware kit and install it for
you, or you may install it yourself using the instructions
provided in the kit.
Use the tether hardware kit available from the dealer.
The hardware and installation instructions were
specifically designed for this vehicle.
ProCarManuals.com

Securing a Child Restraint in a Rear Seat
Position
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap
if the chld restraint has one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions say.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how. Tilt the latch plate to adjust the
belt if needed.
If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-33
ProCarManuals.com

5. To tighten the belt, pull up on the shoulder belt while
you push down on the child restraint.
6. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
directions to be sure it is secure.
Securing a Child Restraint in the Right
Front Seat Position
Your vehicle has a right front passenger air bag. Never
put a rear-facing child restraint in this seat. Here’s why:
1-34
- ProCarManuals.com

You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
You’ll need a safety locking clip to properly secure a
child restraint in this position.
You can get a locking clip
where child restraints are sold, or from you Pontiac
dealer
(GM Part No. 94844571). The locking clip must
be the same as the one shown here.
Until you have this clip, secure a child restraint only in
the rear seat. See the earlier part about securing a child
restraint in the rear seat. Once you have the clip, follow
these instructions:
1. Because your vehicle has a right front passenger air
bag, always move the seat as far back as it will go
before securing a forward-facing child restraint. (See
“Seats’’ in the Index.)
2. Put the restraint on the seat. Follow the instructions
for the child restraint.
3.
4.
Secure the child in the child restraint as the
instructions say.
Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt
through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.
5. Buckle the belt.
1-35
ProCarManuals.com

Make sure the release button is positioned so you
would be able to unbuckle the safety belt quickly if
you ever had to.
through the locking clip.
6. Then thread both lap and shoulder belt portions
A. Lap Belt portion
B. Latch Plate
C. Buckle
D. Shoulder Belt portion
E. Locking Clip
7. Push and pull the child restraint in different
directions to be sure it is secure.
I
I
ProCarManuals.com

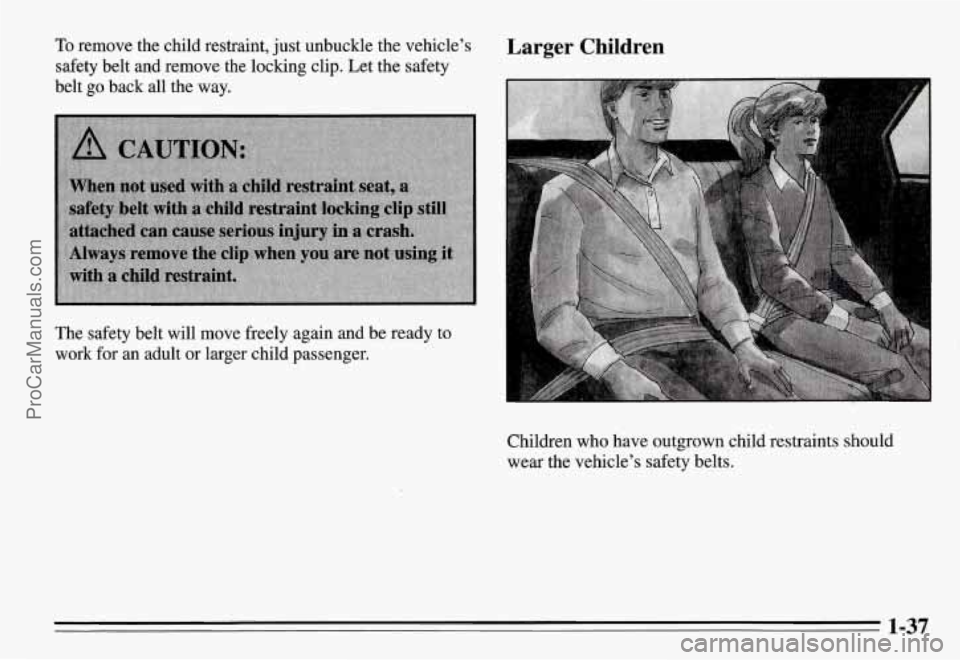

To remove the child restraint, just unbuckle the vehicle’s
safety belt and remove the locking clip. Let the safety
belt go back all the way.
The safety belt will move freely again and be ready
to
work for an adult or larger child passenger.
Larger Children
Children who have outgrown child restraints should
wear the vehicle’s safety belts.
1-37
ProCarManuals.com

Accident statistics show that children are safer if they
are restrained in the rear seat. But they need to use the
safety belts properly.
Children who aren’t buckled up can be thrown out in
a crash.
a Children who aren’t buckled up can strike other
people who are.
@ What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt is
very close to the child’s face or neck?
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide.
ProCarManuals.com
