lights PONTIAC FIREBIRD 1996 Owners Manual

I
Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols
are used on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHlELDlNG
CAUSTIC
ACID COULD BATTERY
CAUSE
BURNS
AVOID
SPARKS
OR
FLAMES
SPARK
OR ,\I/,
COULD FLAME
EXPLODE BAllERY
These symbols are important
for you and
your passengers
whenever your
vehicle
is
driven:
n
FASTEN
SEAT
BELTS
POWER
1
WINDOW
a?
AIR BAG p
These symbols
have to
do with
your lights:
PARKING pf
LAMPS
FOG LAMPS $0
These symbols
are on some
of
your controls:
WINDSHIELD
WIPER
WINDSHIELD DEFROSTER
WINDOW
DEFOGGER
These symbols are used on
warning and
indicator lights:
ENGINE Fd
COOLANT
TEMP
-
CHARGING I-1
BATTERY
SYSTEM
BRAKE
(0)
COOLANT a
ENGINE OIL e,
PRESSURE
ANTI-LOCK
(e)
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
m
HORN )cr
SPEAKER
b
FUEL p3
J
V
ProCarManuals.com

LOCK (B): The only position in which you can remove
the key.
This locks your steering wheel, ignition and
automatic transmission.
If you have an automatic transmission, the ignition
switch can't be turned to
LOCK unless the shift lever is
in the PARK (P) position.
OFF (C): Unlocks the steering wheel, ignition and
automatic transmission, but does not
send electrical
power
to any accessories. Use this position if your
vehicle must be plashed or towed. A warning tone will
sound
if you open the driver's door when the ignition is
OFF and the key is in the ignition.
RUN (D): Position to which the switch returns after
you start your engine and release. the switch. The
switch stays in
the RUN position when the engine is
running. But even when the engine is not running, you
can use RUN to operate your electrical power
accessories and to display some instrument panel
START (E): Starts the engine. When the engine starts,
release the key. The ignition switch will return to RUN
for normal driving.
Note that even if the engine is not running,
ACC and
RUN allow you to operate your electrical accessories,
such as the radio .and ventilation fan.
I warning and indicator lights.
Key Release Button
If you have a manual
transmission, your
ignition lock has
a key
release button. You
must
press the button before
you can take your key out
of the ignition lock.
On manual transmission vehicles, turning the key
to
LOCK will lock the steering column and result
in a loss of ability to steer the vehicle. This could
cause a
collision. If you need to turn the engine
off while the vehicle is moving, turn the key only
to OFF. Don't press the key release button while
the vehicle
is moving.
ProCarManuals.com

Lamps The main lamp control is a knob that works these lamps:
0 Headlamps
Taillamps
Parking Lamps
0 License Lamps
Sidemarker Lamps
0 Instrument Panel Lights
-'Q- , This setting turns on your headlamps and other
operating lamps.
Pg This setting turns on your parking lamps without
your headlamps.
Turn the hob to OFF to turn off the lamps.
Headlamps On Reminder
If you turn the ignition OFF and leave the lamps on, you
will hear a chime lasting up to 5 seconds. If the laws
are still on when you open the driver's door, the chime
will sound again.
ProCarManuals.com

Interior Lamps
Instrument Panel Brightness Control
This switch controls the brightness of your
instrument panel lights. Turn the switch to brighten
or
dim the lights. If you turn the switch all the way up your
courtesy lamps will come on.
Courtesy Lamps
When any door is opened, several interior lamps go on.
These lamps are courtesy lamps. They make it easier for
you to enter and leave your vehicle.
Courtesy lamps include the dome lamp and other
lamps
throughout the interior of your vehicle.
To prevent battery rundown, your interior lamps will be
disabled about
10 minutes after the ignition is turned to
OFFm The 10 minute timer will be restarted if you do any
of the following:
1. Turn the ignition on.
2. Open either door.
3.
4.
5.
Press any button on your Remote Lock
Control transmitter.
Turn the interior lamp switch from off to on.
Open the hatch.
Delayed Illumination (Option)
With delayed illumination, when you open a door, your
courtesy lamps will come
on and stay on for 25 seconds
after the doors
are closed. The 25 seconds is shortened
if the ignition is turned to
the RUN position or if the
power locks
are activated. To turn this feature on or off,
see “Feature Customization” in the Index.
Exit Lighting (Option)
With exit lighting, the interior lamps will come on when
you remove the key from the ignition to help you see
while exiting the vehicle. To turn
this feature on or off,
see “Feature Customization” in the Index.
..
ProCarManuals.com

Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per how (mph) and kilometers per hour
(krnh). Your
odometer shows how far your vehicle has been driven,
in either
miles (used in the United States) or kilometers
(used in Canada).
Your Pontiac's odometer is tamper-resistant. If you can
see.silver lines between the numbers, probably someone
has tried to turn
it back. The numbers may not be true.
You may wonder what happens if your Pontiac needs
a new odometer installed. If possible, the new one has
to be set to the same rkading the old one had.
If it can't
be, then it's set at zero, but a label on the driver's door
must show the old reading and when the new one
was installed.
Trip Odometer
The trip odometer can tell you how far your vehicle has
been driven since you last set the trip odometer to zero.
To set the trip odometer to zero, press the knob.
Tachometer
The tachometer displays the engine speed in thousands
of revolutions per minute (rpm).
I NOTICE: 1
Do not operate the engine with the tachometer in
the red area, or engine damage may occur.
Warning Lights, Gages
and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something
is
wrong before it becomes serious enough to cause an {":::$)
expensive repair or replacement. Ptiying attention to
your warning lights and gages could also save you or
others from injury.
., '/-.
2-75
ProCarManuals.com

Warning lights come on when there my be or is a
problem with one of your vehicle’s functions. As YQU
will see in the details on the next fay pages, some
warning lights come on briefly when you start the
engine
just to let you know they’re working. If you are
familiar with this section, you should not be alarmed
when
this happens.
Gages can indicate when there may be
or is a problem
with one
of your vehicle’s functions. Often gages md
warning lights work together to let you know when
there’s a problem with your vehicle.
When one of the warning lights comes on and stays on
when you are driving, or when one o’f the gages shows
there may be a problem, check the section that tells you
what to
do about it. Please follow this manual’s advice.
Waiting to
do repairs can be costly -- and even
dangerous. So please get to know your warning lights
and gages. They’re
a big help.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on
for about eight seconds to remind people t~
fasten their safety belts.
The safety
belt light will
also come on and 2tay.m
for about 70 seconds. If the
driver’s belt is already
buckled, neither
the chime
nor the light will come on.
2-76
ProCarManuals.com

Here are some tips on night driving.
0 Drive defensively.
Don’t drink and drive.
Adjust your inside rearview mirror to reduce the
glare from headlamps behind
you.
Since you can’t see as well, you may need to
slow down and keep more space between you and
other vehicles.
0 Slow down, especially on higher speed roads. Your
headlamps can light up only
so much road ahead.
In remote areas, watch for animals.
If you’re tired, pull off the road in a safe place
and rest.
Night Vision
No one can see as well at night as in the daytime. But as
we get older these differences increase.
A 50-year-old
driver may require at least twice as much light to see the same
thing at night as a 20-year-old.
What you do in the daytime can also affect your,night
vision. For example,
if you spend the day in bright
sunshine
you are wise to wear sunglasses. Your eyes will
have less trouble adjusting to night. But
if you’re driving, don’t wear sunglasses at night. They may
cut
down on glare from headlamps, but they also make
a lot
of things invisible.
You can be temporarily blinded by approaching
headlamps.
It can take a second or two, or even several
seconds, for your eyes
to readjust to the dark. When you
are faced with severe glare (as from
a driver who
doesn’t lower the high beams, or
a vehicle with
misaimed headlamps), slow down a little. Avoid staring
directly into the approaching headlamps.
Keep
your windshield and all the glass on your vehicle
clean
-- inside and out. Glare at night is made much
‘worse by dirt on the glass. Eventhe inside of the glass
can build up a film caused by dust. Dirty glass makes
lights dazzle and flash more than clean glass would,
making the pupils of your eyes contract repeatedly.
Remember that your headlamps light up far less of a
roadway when you are in a
turn or curve. Keep your
eyes moving; that way, it’s easier
to pick out dimly
lighted objects. Just as your headlamps should be
checked regularly for proper aim,
so should your eyes
be examined regularly. Some drivers suffer from night
blind,ness
-- the inability to see in dim light -- and aren’t
even aware
of it.
4-16
ProCarManuals.com

Rear Axle
When to Check and Change Lubricant
Refer to the Maintenance’ Schedule to determine how
often to check the lubricant and when to change it. See
“Periodic Maintenance Inspections” in the Index.
How to Check Lubricant
If the level is below the bottom of the filler plug hole,
you’ll need to add some lubricant.. Add enough lubricant
to raise the level to the bottom of the filler plug hole.
What to Use
Standard Differential
Use Axle Lubricant (GM Part No. 12345977) or
SAE 8OW-90 GL-5 gear lubricant. -
Limited-Slip Differential
To add lubricant when the level is low, use Axle
Lubricant
(GM Part No. 12345977). To completely refill
after draining, add
2 ounces (59 ml) of Limited-Slip
Differential Lubricant Additive
(GM Part No. 1052358).
Then fill to the bottom of the filler plug hole with Axle
Lubricant (GM,Part No. 12345977).
/
Engine Coolant
The cooling system in your vehicle is filled with new
DEX-COOL TM (orange-colored, silicate-free) engine
coolant. This coolant is designed to remain in your
vehicle
for 5 years or 100,000 miles (166 000 km),
whichever occurs first.
The following explains your cooling system and how to
add coolant when it is
low. If you have a problem with
engine overheating or if you need to add coolant to your
radiator, see “Engine Overheating” in the Index.
A 50/50 mixture of water and the proper coolant for
your Pontiac will:
0
0
0
a
a
Give freezing protection down to -34 OF (-3 7 O C).
Give boiling protection up to 265 OF ( 129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as they should.
,. .:
. .( , <.
6-26
ProCarManuals.com

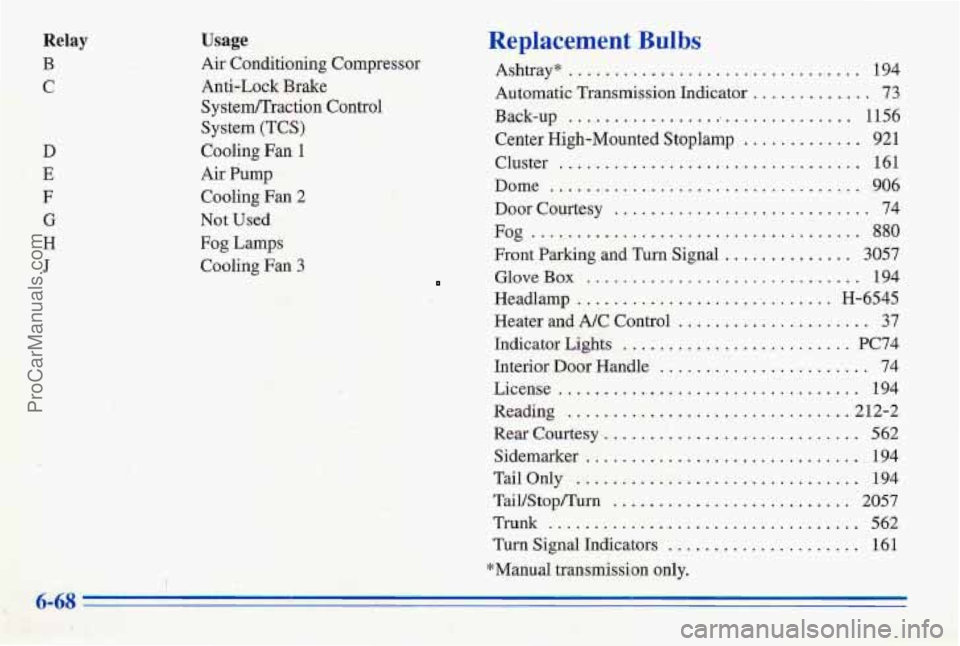

Relay
B . L 1 ... ..
C
D
E
F
G
H
J
r .. '
Usage
Air Conditioning Compressor
Anti-Lock Brake Systedraction
Control
System (TCS)
Cooling Fan 1
Air Pump
Cooling Fan 2
Not Used
Fog Lamps
Cooling Fan 3 .... .... ... ...._ . . € ~ : ". .. L .. ....
.. !
Replacement Bulbs
Ashtray* ................................ 194
Automatic Transmission Indicator
............. 73
Back-up ................................ 1156
Center High-Mounted
Stoplamp ............. 921
Cluster
.................................. 161
Dome
.................................. 906
Do'or Courtesy ............................ 74
Fog ..................................... 880
Front Parking and Turn Signal .............. 3057
GloveBox .............................. 194
..... Headlamp .................. ......... H-6545
Heater and
A/C Control ..................... 37
Indicator Lights
......................... PC74
Interior
Door Handle ....................... 74
License
................................. 194
Reading
.............................. .21 2-2
Rea Courtesy ............................ 562
Sidemarker
.............................. 194
Tail
Only ................................ 194
TaiVStop/Turn .......................... 2057
Trunk ................................... 562
Turn Signal Indicators ..................... 161
*Manual transmission only
.
ProCarManuals.com

Labels Certification
................................. 4-30
Service
Parts Identification ..................... 6-62
Tire-Loading Information
....................... 4-29
Vehicle Identification Number
................... 6-62
Lamps
........................................ 2-50
Courtesy
.................................... 2-53
Interior
..................................... 2-53
On Reminder
................................ 2-50
Last Door Closed Locking Feature
............. 2.4. 2.17
Last Door Closed LoclungLockout Prevention
....... 2-17
Latches. Front Seatback
........................... 1-6
Leaving Your Vehicle .............................. 2-5
Leaving Your Vehicle with the Engine Running ....... 2-38
Lighter
....................................... 2-59
Lights
Air Bag Readiness ....................... 1-2 1. 2-77
Anti-Lock Brake System Warning
............ 2.78. 4.6
Brake System Warning
......................... 2-78
CheckGauges
............................... 2-87
Interior
..................................... 2-53
LowCoolant
................................. 2-82
LowOil
.................................... 2-86
Low Traction
............................ 2-81, 4-8
Safety Belt Reminder
...................... 1-7. 2-76
Service Engine Soon
.......................... 2-83
Traction Control System Warning
............ 2-80. 4-9
Limited-Slip Differential. Rear Axle
................ 6-26
Loading
Your Vehicle ........................... 4-29
Lockout Prevention
......................... 2-4, 2-17
Cylinders
................................... 7-40
Door
........................................ 2-3
Locks
......................................... 2-3
Key Lock
Cylinder Service ..................... 7-40
PowerDoor
.................................. 2-4
Steering Column Lock Check
................... 7-42
Low Coolant Light ............................... 2-82
LowOilLight
................................. 2-86
Low Traction Light
......................... 2-81, 4-8
Lubricants and Fluids
............................ 7-44
Lubrication Service, Body
........................ 7-40
Lumbar Controls
................................ 1-3
Main Fuse Block .................... ..... 6-65
Maintenance. Normal Replacement
Parts .......... 6-71
Maintenance Record .................. ..... 7-46
Maintenance Schedule
............................ 7-1
Long TripMighway Definition ................... 7-5
Long Tripmighway Intervals .................... 7-28
Owner Checks and Services ..................... 7-39
Periodic Maintenance Inspections
................ 7-43
Recommended Fluids and Lubricants
............. 7-44
Scheduled Maintenance Services
.................. 7-1
Short Trip/City Definition ....................... 7-4
Short Trip/City Intervals
........................ 7-6
Maintenance When Trailer Towing
................. 4-38
Manual Front Seat
............................... 1-1
Manual Mirror
................................. 2-55
Manual Transmission ............................ 2-31
Check
...................................... 7-40
Fluid
....................................... 6-24
Shifting
..................................... 2-32
MapPocket ................................... 2-57
Maintenance. Underbody
......................... 6-60
Malfunction Indicator Lamp
...................... 2-83
9-6
ProCarManuals.com
