AlarmRanic Mode Operation
The driver’s door will unlock automatically when
UNLOCK is pressed.
If UNLOCK is pressed again
within five seconds, the passenger door will also unlock.
All doors will lock when
LOCK is pressed.
The hatch will unlock when the button with the trunk
symbol is pressed twice within five seconds, as long as
the ignition is turned to the
OFF position. If the ignition
is on, the trunk symbol button will only work if the
transmission is in
PARK (P) for an automatic
transmission, or if the parking brake is set on a manual
transmission.
The system will turn on the interior lamps for about
40
seconds (or until the ignition switch is turned to the
RUN position), when you unlock the doors or hatch.
The interior lamps will go
off when you lock the doors.
Operating the key chain transmitter may interact with
the Vehicle and Content Theft-Deterrent System
(if you
have this option). See “Vehicle and Content
Theft-Deterrent System” in the Index.
If your vehicle is equipped with the Vehicle and Content
Theft-Deterrent System, you will have a fourth button
on your key chain transmitter. This button
is the panic
button. If you are involved in a panic situation, press
this button and your vehicle’s horn will sound and the
parking lamps will flash. This will draw needed
attention to you and your vehicle. To turn this feature
off, either push the panic button again or turn the
ignition to on. Note: This feature will not work if your
ignition is on
or if the key fob is 30 feet (9 m) or more
away from your vehicle.
Transmitter Range
The range of your Remote Keyless Entry system should
be about 3 feet (1 m) up to 30 feet (9 m). At times you
may notice a decrease in the range. This is normal for
any Remote Keyless Entry system. If the transmitter
does not work, or you have to stand closer to your
vehicle than normal for the transmitter to work:
0 You may have to replace the battery in
your transmitter. See
the instructions for
battery replacement.
You may be too far from your vehicle. Check your
distance,
You may have to stand closer to your
vehicle in rain or snow.
2-7

Passive Arming
If the ignition was just turned off and a door was
opened, the system will arm
six seconds after all doors
are closed, whether or not you lock them. In all other
cases, the system will wait 30 seconds after all doors are
closed before arming, allowing you time
to get into the
vehicle and put the key in the ignition. The parking
lamps will flash when the system arms. Passive arming
is not enabled from the factory.
Turning Off the Alarm
Disarming the System
There are two ways to disarm the system:
1. Press the UNLOCK button on the key chain
transmitter. If the horn chirps two or three times
when you unlock the car, the alarm sounded in your
absence. Two chirps means that the shock sensor was
set off and three chirps means that a door or hatch
was opened.
proper key.
2. Turn the ignition to the RUN position with the
For more information on customizing the features
mentioned here, see “Feature Customization” in
the Index.
If you started the alarm by pressing the panic button on
the key chain transmitter, you must either push that
button again or turn the ignition switch to the RUN
position to stop the alarm.
If the alarm is sounding due to the shock sensor or a
door or hatch opening, it can be turned
off by either
turning the ignition switch with a proper key inserted or
by pressing any button on the key chain transmitter. If
you
use your key chain transmitter to silence the alarm,
additional things will happen depending upon which
button you press.
Pressing the UNLOCK button will turn the alarm
off, unlock the driver’s door and disarm the system.
0 Pressing the LOCK button will turn the alarm off,
keep the doors locked and keep the system armed.
Pressing the trunk symbol button twice within five
seconds will turn the alarm off, unlock and disarm
the hatch only.
keep the doors locked and keep the system armed.
Pressing the panic button will turn the alarm off,
If the alarm is sounding because an incorrect ign“’ >n
key was used, press any button on the key chain
transmitter to turn the alarm off.
The alarm will stop by itself after two minutes.
2-15

Installing the Boot Cover
After lowering the convertible top, you may want to
install the boot cover, The three-piece boot cover is
stored in
a bag in the trunk.
3. Install the middle section of the cover by sliding the
tabs into the slots on the right side cover. Lower the
cover and engage the latch.
4. Close the trunk.
1. Open the trunk and remove the two side covers from
the storage bag.
2. Install the two side covers by engaging the tab into
the front seatbelt cover. Lower
the covers onto
the vehicle.
2-70

Raising Your Convertible Top
1. Park on a level surface. Set the parking brake firrnly.
If you have an automatic transmission, shift into
PARK
(P). If you have a manual transmission, shift
into REVERSE (R). The ignition must be in the ACC
or RUN position or RAP must be on. Lower both sun
visors. Lower both windows at least
3 inches (8 cm). If
the boot cover is in place, it must be removed first.
3. Remove the two side pieces of the boot cover
by lifting the rear cover and sliding them out
of
their slots.
2. Open the trunk. Remove the middle piece of the
cover by pushing in on the latch and lifting up on
the cover.

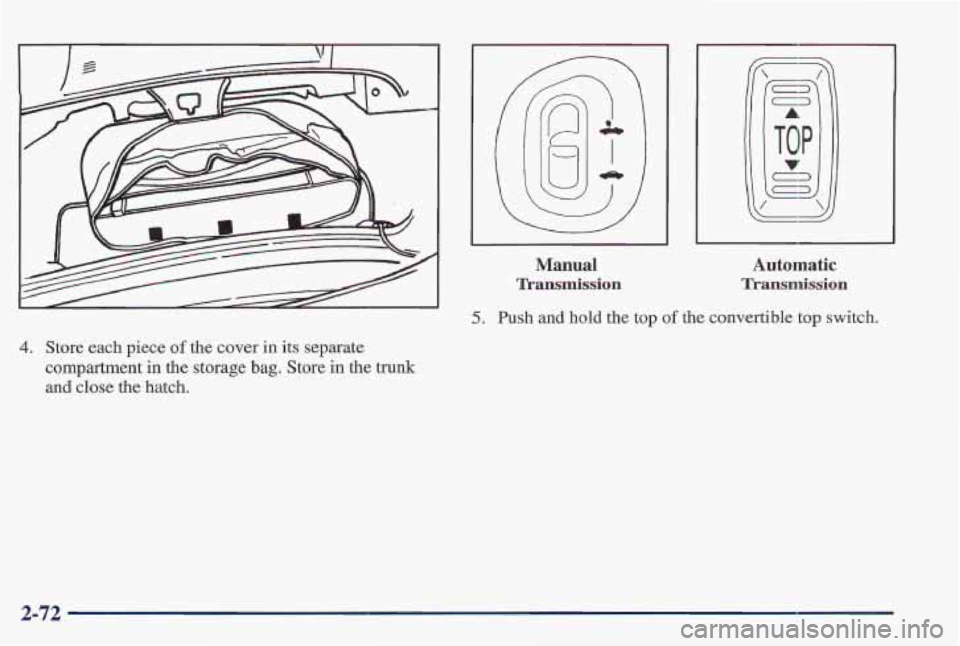

4. Store each piece of the cover in its separate
compartment
in the storage bag. Store in the trunk
and close the hatch.
Manual
7lkansmission
~~~ ~
Automatic
Transmission
5, Push and hold the top of the convertible top switch.
2-72

6. Pull down on the center opening and align the hooks
with the holes.
Push forward on the larger part of the
latch until it clicks.
Do not force the latch. If it is
hard to lock, the top is not properly aligned.
If your vehicle suffers a power loss, such as a dead
battery, you can still raise
or lower the top manually by
rotating the valve in the left side
of the trunk. Open
the trunk and find the tab along the left side trim
panel.
Lift up the tab and turn the valve clockwise to
release the hydraulic pressure. Turn the ignition key to
the
LOCK position. You can now raise or lower your top
manually. Be sure to close the valve after installing your
top
so you can raise or lower it electrically later.
2-73

Section 3 Comfort Controls and Audio Systems
In this section, you’ll find out how to operate the comfort control and audio systems offered with your Pontiac.
Be sure to read about the particular systems supplied with your vehicle.
3-2
3-3
3-3
3-4
3-4
3-4
3
-4
3-5
3-5
3-6
3 -6
3-7
Comfort Controls
Air Conditioning
Cooling
Heating
Bi-Level Heating
Ventilation
Defogging and Defrosting
Rear Window Defogger
Ventilation System
Audio Systems Setting the Clock
for All Systems
AM-FM Stereo with Cassette Tape Player
3-10
3- 14
3-16
3-19
3-2
1
3-22
3-22
3-23
3-23
3-24 AM-FM Stereo with Cassette
Tape Player
and Equalizer
AM-FM Stereo with Compact Disc Player
and Equalizer
Trunk Mounted
CD Changer
Theft-Deterrent Feature
Steering Wheel Controls
Understanding Radio Reception
Tips About Your Audio System
Care
of Your Cassette Tape Player
Care
of Your Compact Discs
Power Antenna Mast Care
3-1

RDM (3): Press this button to hear the tracks in random,
rather than sequential, order. The display will show
RDM. Pres,s RDM again to turn off random play.
REV (5): Press and hold this button to quickly reverse
within a track. Release it to play the passage.
You will
hear sound at a reduced volume. The display will show
elapsed time.
FWD (6): Press and hold this button to quickly advance
within a track.
You will hear sound at a reduced volume.
The display will show elapsed time.
RECALL: Press this button to see what track is
currently playing. Press RECALL again within five
seconds to
see how long the track has been playing.
When
a new track starts to play, the track number will
also appear. Press RECALL a third time and the time of
day will be displayed.
AM-FM: Press this button to play the radio when a disc
is playing. The disc will stop but remain in the player.
CDPLAY: Press this button to change to the disc
Function when the radio is on.
EJECT: Press this button to remove the dis'c or stop the
disc and switch to the radio. EJECT will work with the
radio
off. If you leave a compact disc in the player while
listening
to the radio, it may become warm.
Trunk Mounted CD Changer (If Equipped)
With the optional compact disc changer, you can play up
to 12 discs continuously. Normal size discs may be
played using the trays supplied in the magazine.
The small discs
(8 cm) can be played only with specially
designed trays.
You must first load the magazine with discs before you
can play a compact disc. Each of the
12 trays holds one
disc. Press the button
on the back of the magazine and
pull gently on one
of the trays. Load the trays from
bottom to top, placing a disc on the tray label side down.
If you. load a disc label side up, the disc will not play
and an error will occur, Gently push the tray
back into
the magazine slot. Repeat this procedure
for loading up
to 12 discs in the magazine.
Once you have loaded the
discs in the magazine, slide
open the door
of th'e compact disc (CD) changer. Push
the magazine into the changer in the direction of the
arrow marked on top of the magazine.
Close the door
by sliding it all the way to the left. If the
door is left partially open, the changer will not operate
and an error will occur. When the
door is closed, the
changer will begin checking for discs in the magazine,
This will continue for up to two minutes depending on
the number of discs loaded.

........................................................................\
....... ........................................................................\
....... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... .....................
..........................................................
............
..........
On convertible models, you must also remove the
convertible top protection panel. It’s
at the upper back of
the trunk. Turn the two screw knobs under the trunk
edge
a quarter turn left (counterclockwise) to remove
the panel.
The following steps will tell you
how to use the jack and
change a tire.
Removing the Spare Tire and Tools
The equipment you’ll need is in the right (passenger)
rear area behind the trim panel.
First you must remove the close-out panel. See
“Close-Out Panel” in the Index. Find the plastic screw
heads in the trim panel over
the
spare tire. (See “Compact Spare Tire” later in this
section for more information about the compact spare.)
Use a coin or a key to turn the screw heads until the
slots point front and back. Gently
Iift the trim panel and
move
it out of the way.
5-27

Main Fuse Block
The other is in the engine compartment. Open the cover
on either of the boxes to expose the €uses.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse.
Be sure you
replace a bad fuse with a new one of the correct size.
If
you ever have a problem on the road and don’t have a
spare €use, you can “borrow”
one. Just pick some
feature
of your car that you can get along without -- like
the radio or cigarette lighter -- and use its fuse, if it is
the size you need. Replace it as soon as you
can.
FUSE USAGE CHART
In 211 3~ 4~3
511 6~ 7n en
9m 100 1111 12)l
STOP/#AZARD TURN 6-U PCM BATT RADIO ACCY
TAIL LTS
HVAC PWR ACCY COURTESY
GAGES AIR BAG ClGARiACCY DEFOG/SEATS
Q IGN 13n 14)) PGM IGN WlPERiWASH BATT WINDOWS
160 I7 170 IP DIMMER ACCY RADIO
SEE OWNER’S MANUAL FOR MORE INFORMATION PRINTED IN U.S.A 10281550
Fuse Usage
STOP/HAZARB Hazard,Flasher, Brake
Switch Assembly
PCM BATT
RADIO ACCY
TURN B-U Traction ControlJ2nd Gear Start
Switch, Back-up Lamp Switch,
Turn Flasher, Daytime Running
Lamps (DRL) Module
Powertrain Control Module
(PCM), Fuel Pump Relay
Delco Audyssey
Radio Amplifier,
Power Antenna, Remote CD
Player (trunk)
6-70
