radio PONTIAC FIREBIRD 1998 Owner's Manual

Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their cases away from contaminants, direct sunlight and
extreme heat. If they aren’t, they may not operate
properly or may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN to indicate
that
you have used your tape player for 50 hours without
resetting the tape clean timer.
If this message appears on
the display, your cassette tape player needs to be
cleaned. It will still play tapes, but you should clean it as
soon as possible to prevent damage to your tapes and
player.
If you notice a reduction in sound quality, try a
known good cassette to see if it is the tape or the tape
player at fault. If this other cassette has
no improvement
in sound quality, clean the tape player.
The recommended cleaning method for your cassette
tape player is to use a scrubbing action, non abrasive
cleaning cassette with pads which scrub the tape head as
the hubs of the cleaner cassette turn. The recommended
cleaning cassette is available through your dealership
(GM Part No. 12344789).
When using a scrubbing action, non-abrasive cleaning
cassette, it
is normal for the cassette to eject because
your unit
is equipped with a cut tape detection feature
and a cleaning cassette may appear as a broken tape.
To
prevent the cleaning cassette from being ejected:
1. Turn the ignition to RUN or ACC.
2. Turn the radio off.
3. Press and hold TAPEPLAY button for three
seconds. The tape symbol
on the display will flash
for two seconds.
4. Insert the scrubbing action cleaning cassette while
the tape symbol is flashing.
5. Eject the cleaning cassette.
When the cleaning cassette
has been ejected, the cut tape
detection feature
is active again.
After you clean the player, press and hold EJECT for
five seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
Cassettes are subject to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is in good condition before you have your tape
player serviced.
3-21

Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust.
If the surface of a disc is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution and
clean it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick
up discs by grasping the outer edges or the
edge
of the hole and the outer edge.
Care of Your Compact Disc Player
The use of CD lens cleaner discs is not advised, due to
the risk of contaminating the lens of the CD optics with
lubricants internal to the
CD mechanism.
Power Antenna Mast Care
Your power antenna will look its best and work
well
if it’s cleaned from time to time. To clean the
antenna mast:
1. Turn on the ignition and radio to raise the antenna.
2. Dampen a clean cloth with mineral spirits or
3. Wipe the cloth over the mast sections, removing
4. Wipe dry with a clean cloth.
5. Make the antenna go up and down by turning the
radio or ignition off and on.
6. Repeat if necessary.
equivalent solvent.
any
dirt.
3-22

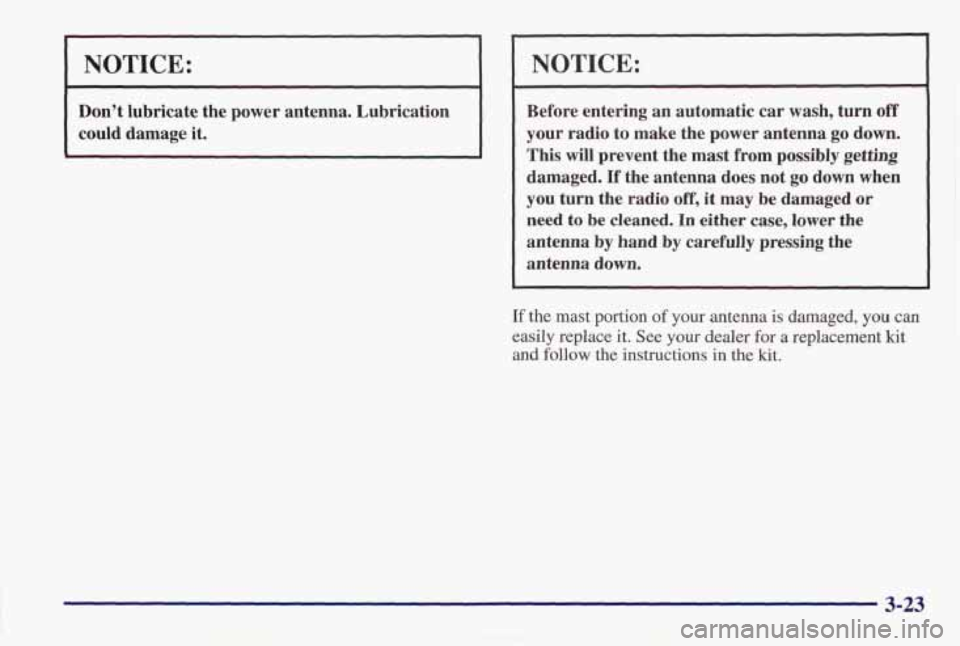

I NOTICE:
Don’t lubricate the power antenna. Lubrication
could damage
it.
NOTICE:
Before entering an automatic car wash, turn off
your radio to make the power antenna go down.
This will prevent the mast from possibly getting
damaged.
If the antenna does not go down when
you turn the radio
off, it may be damaged or
need
to be cleaned. In either case, lower the
antenna by hand by carefully pressing the
antenna down.
If the mast portion
of your antenna is damaged, you can
easily replace
it. See your dealer for a replacement kit
and
follow the instructions in the kit.
3-23

1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
I NOTICE:
I
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
2.
3.
Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
unnecessary accessories plugged into the cigarette
lighter.
Turn off all lamps that aren’t needed as well
as radios.
This will avoid sparks and help save both
batteries. In addition, it could save your radio!
I Turn off the ignition on both vehicles. Unplug
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered
by
your warranty.
I
4. Open the hoods and locate the batteries.
A CAUTION:
An electric fan can start up even when the engine
is not
running and can injure you. Keep hands,
clothing and tools
away from any underhood
electric fan.
Find the positive (+) and negative (-) terminals on
each battery.
5-4

The other two are in the engine compartment. Open the
cover on either
of the boxes to expose the fuses.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace
the fuse. Be sure you
replace a bad fuse with a new one of the correct size.
If you ever have a problem on the road and don't have a
spare fuse, you can borrow one. Just pick some feature
of your car that you
can get along without -- like the
radio or cigarette lighter
-- and use its fuse, if it is the
size
you need. Replace it as soon as you can.
Main Fuse Block
III 20 30 40
FUSE USAGE CHART
STOPIHAZARD TURN BIU STG WHL CNTRL RADIO ACCY
--
5u 4--l 7u 8U TAIL LPS HVAC PWR ACCY COURTESY
9-1 lin 121-1
GAUGES AIR BAG CIGIACCY DEFOGISEATS
IP DIMMER ACCY RADIO
SEE OWNER'S MANUAL FOR MORE INFORMATION PRINTED IN U.S.A
Fuse Usage
STOP/HAZARD Hazard Flasher, Brake
Switch Assembly
TURN B/U Traction ControVSecond Gear
Start Switch, Back/Up Lamp
Switch, Turn Flasher, Daytime
Running Lamps
(DRL) Module
Steering Wheel Controls
STG WHEEL
CNTFU
6-64

TAIL LPS HVAC
PWR ACCY
COURTESY
GAUGES
Fuse Usage
RADIO ACCY Delco Monsoon Radio Amplifier, Power Antenna, Remote CD
Player (trunk)
Daytime Running Lamps (DRL)
Module, Headlamp Switch
HVAC Selector Switch, Rear
Defogger Switch/Timer
Park Lamp Relay, Hatch
Release Relay, Power Mirror Switch, Radio,
Shock Sensor,
Instrument Cluster
Body Control Module (BCM)
Body Control Module (BCM),
Brake Switch Assembly
(BTSI),
Instrument Cluster, Daytime
Running Lamps (DRL) Module
AIR BAG Air Bag, Dual Pole Arming Sensor
CIGAFUACCY Cigar Lighter, Data Link
Connector (DLC), Auxiliary
Accessory Wire
Defogger Timermelay, Power Seats
DEFOGBEATS Rear Defogger Switch/Timer, Rear WINDOWS
I/p DIMMER
RADIO
Usage
Steering Wheel Controls
Fuse
STG WHEEL
CNTRL
WIPEWASH Wiper Motor Assembly,
Wiper/Washer Switch
Power Windows Switch
(RH, LH),
Express-Down Module, Coolant
Level Latching Module, Convertible Top Switch
Door Illumination Lamp
(RH,
LH), Headlamp Switch, Fog Lamp
Switch, Instrument Cluster,
HVAC
Control Assembly, PRNDL
Illumination Lamp, Ashtray Lamp,
Radio, Steering Wheel
Controls-Radio, Rear Window
Defogger Switch/Timer, Traction
Control Switch
(TCS) and 2nd
Gear Start Switch
Body Control Module (BCM),
Radio, Amplifier, Steering
Wheel
Controls-Radio
6-65

Section 9 Index
Accessory Plug ............................... 2-62
Adding Equipment to the Outside of Your Vehicle ...... 6-3
Air Bag ....................................... 1-22
How Does it Restrain .......................... 1-26
How it Works ................................ 1-24
Location .................................... 1-24
Readiness Light ......................... 1.23. 2.81
Servicing ................................... 1-27
What Makes it Inflate .......................... 1-25
What Will You See After it Inflates ............... 1-26
When Should it Inflate ......................... 1-25
Aircleaner .................................... 6-18
Air Conditioning ................................ 3-3
Air Conditioning Refrigerants ..................... 6-70
Aircontrol ..................................... 3-2
Air Filter Replacement ........................... 6- 19
Alarm. Content Theft-Deterrent System ............. 2- 14
AlarmPanicMode ............................... 2-8
Alignment and Balance. Tire ...................... 6-51
Aluminum Wheels. Cleaning ...................... 6-59
Antenna. Power ................................ 3-22
Antifreeze ..................................... 6-27
Anti-Lock
Brake System Warning Light
................ 2.82. 4.7
Anti-Theft, Radio .............................. 3-17
Appearance Care ............................... 6-53
Appearance Care Materials Chart .................. 6-61
Arbitration Program .............. ............ 8-9
Ashtray and Lighter ........................... 2-60
Audio Equipment, Adding ........................ 3-20
Audio Steering Wheel Controls .................... 3-19
Audio Systems .................................. 3-7
Auto-Down Window ............................ 2-45
Automatic Overdrive ............................ 2-32
Automatic Transmission
Check
...................................... 7-33
Fluid ....................................... 6-20
Operation ................................... 2-30
Park Mechanism Check ........................ 7-35
Shifting ..................................... 2-30
StartingYourEngine .......................... 2-26
Brakes ...................................... 4-7
Axle, Limited-Slip Rear ......................... 2-44
Axle, Rear .................................... 6-27
9-1

Oil. Engine .................................... 6- 12
Oil Pressure Gage .............................. 2-88
Overdrive. Automatic Transmission ................ 2-32
Overheating Engine ............................. 5- 15
Owner Checks and Services ....................... 7-32
Owner Publications. Ordering ..................... 8- 12
paint Spotting. Chemical ........................ 6-60
PARK (P)
Automatic Transmission ....................... 2-30
Shifting Into ................................. 2-39
Shifting Out of ............................... 2-41
AtNight .................................... 2-13
Brake ...................................... 2-44
Brake Mechanism Check ....................... 7-35
Lots ....................................... 2-13
OverThingsThatBurn ........................ 2-42
With a Trailer ................................ 4-38
Parking Your Vehicle. Manual Transmission .......... 2-41
Passenger Position ......................... 1-22. 1-28
PASS-Key (8, II ................................. 2-17
Periodic Maintenance Inspections .................. 7-36
Pontiac Cares Information ......................... 8-2
Power
Antenna
Mast Care ............................ 3-22
DoorLocks ................................... 2-5
Option Fuses ................................ 6-63
Remote Control Mirror ........................ 2-57
Parking
Passing
....................................... 4-13
Retained Accessory ........................... 2-56
Six-WaySeat ................................. l-3
Steering .................................... 4-10
SteeringFluid ................................ 6-31
Windows ................................... 2-45
Pregnancy, Use of Safety Belts .................... 1-21
Problems on the Road ............................ 5-1
Publications, Service and Owner ................... 8-12
Radiator ................................ 5.21. 5.24
Radiator Pressure Cap ........................... 6-31
Radio Reception ................................ 3-20
Radios .......................... 3.7.3.8.3.11. 3.12
Rain. DrivingIn ................................ 4-17
Rear
RAP ......................................... 2-56
Axle ....................................... 6-27
Lamp Bulb Replacement ....................... 6-41
Seat Passengers .............................. 1-28
Sidemarker Bulb Replacement ................... 6-42
Towing ..................................... 5-13
Window Defogger ............................. 3-5
Rearview Mirror, Inside Daymight ................. 2-57
Reclining Front Seatbacks ......................... 1-5
Recommended Fluids and Lubricants ............... 7-38
Recovery Tank. Coolant .......................... 5-19
Refrigerants, Air Conditioning .................... 6-70
