PONTIAC G3 2010 Owners Manual

Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
Fuses of the same amperage can be temporarily
borrowed from another fuse location, if a fuse goes out.
Replace the fuse as soon as you can.
Instrument Panel Fuse Block
The instrument panel fuse block is located on the end of
the instrument panel on the driver side of the vehicle.
To access the fuses, open the fuse panel door by
pulling the door out.
To reinstall the door, first insert the rear edge of the fuse
panel door, then push the front of the door into the end
of the instrument panel to secure it.
6-87

FusesUsage
AUDIO Audio, Clock, Immobilizer
AUDIO/RKE A/C Switch, Clock, Power Mirror
Unit, Audio, Anti-Theft
Module, TPMS Fuses
Usage
B/UP LAMP PNP Switch, Reverse Lamp Switch BLANK Not Used
BLANK Not Used
BLANK Not Used
BLANK Not Used
CIGAR Cigar Lighter
CLUSTER Brake Switch, TPMS, Anti‐Theft
Module
DEFOG
MIRROR Power Mirror Unit, A/C Switch
RR DEFOG Rear Defog
DOOR LOCK Door Lock NA DRL NA DRL Circuit
MIRROR/
SUNROOF Mirror Control Switch, Room Lamp,
A/C Switch
EMS 1 Engine Room Fuse Block, TCM,
VSS, Fuel Pump
EMS 2 Stoplamp Switch
HORN Horn
6-88

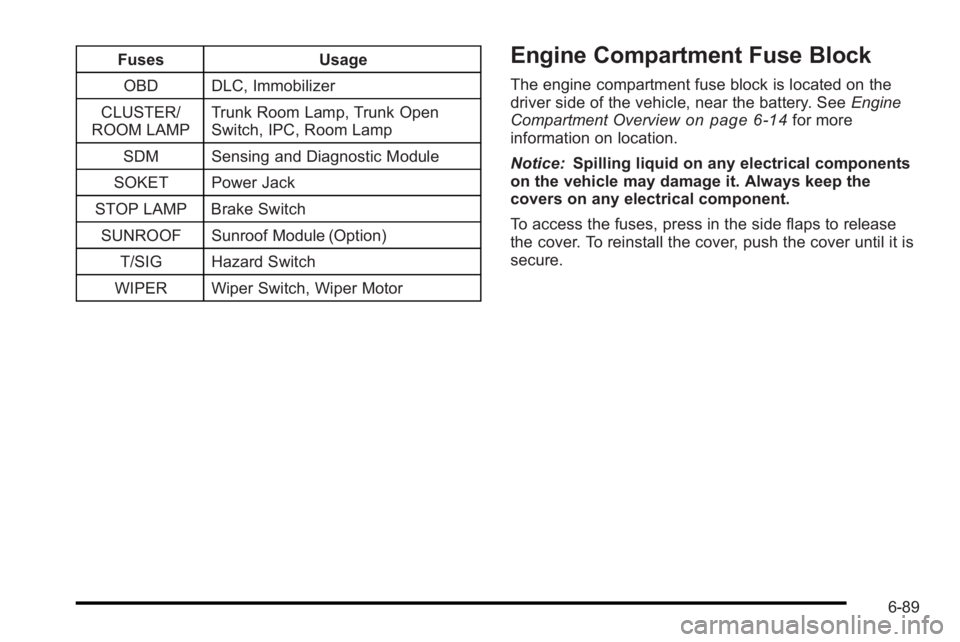

FusesUsage
OBD DLC, Immobilizer
CLUSTER/
ROOM LAMP Trunk Room Lamp, Trunk Open
Switch, IPC, Room Lamp
SDM Sensing and Diagnostic Module
SOKET Power Jack
STOP LAMP Brake Switch SUNROOF Sunroof Module (Option) T/SIG Hazard Switch
WIPER Wiper Switch, Wiper MotorEngine Compartment Fuse Block
The engine compartment fuse block is located on the
driver side of the vehicle, near the battery. See Engine
Compartment Overview
on page 6‑14for more
information on location.
Notice: Spilling liquid on any electrical components
on the vehicle may damage it. Always keep the
covers on any electrical component.
To access the fuses, press in the side flaps to release
the cover. To reinstall the cover, push the cover until it is
secure.
6-89

FusesUsage
FAN HI Cooling Fan HI Relay ABS‐1 EBCM
ABS‐2 EBCM Fuses
Usage
SJB BATT Instrument Panel Fuse Block ACC/IG1 IGN1 Relay IG2/ST IGN2 Relay, Starter Relay
6-90

FusesUsage
ACC/RAP Instrument Panel Fuse Block
P/WINDOW‐2 Power Window Switch
P/W
WINDOW‐1 Power Window Switch
FAN LOW Cooling Fan LOW Relay A/CON A/C Compressor Relay
PKLP LH Tail Lamp (LH), Side Marker (LH),
Turn Signal & Parking Lamp (LH),
License Lamp
PKLP RH Tail Lamp (RH), Side Marker (RH),
Turn Signal & Parking Lamp (RH),
License Lamp, I/P Fuse Block
ECU ECM, TCM
FRT FOG Front Fog Lamp Relay F/PUMP Fuel Pump Relay
HAZARD Hazard Switch, Hood Contact
Switch
HDLP HI LH Head Lamp (LH), IPC Fuses
Usage
HDLP HI RH Head Lamp (RH) IPC IPC
HDLP LO LH Head Lamp (LH), I/P Fuse Block
HDLP LO RH Head Lamp (RH) EMS‐1 ECM, Injector
DLIS Ignition Switch
EMS‐2 EVAP Canister Purge Solenoid,
Thermostat Heater, HO2S, MAF
Sensor
SPARE Not Used
Relays Usage
F/PUMP RELAY Fuel Pump
STARTER RELAY Starter
PARK LAMP RELAY Park Lamp
6-91

RelaysUsage
FRONT FOG RELAY Fog Lamp
HDLP HIGH RELAY Head Lamp High
HDLP LOW RELAY Head Lamp Low
FAN HIGH RELAY Cooling Fan High
FAN LOW RELAY Cooling Fan Low Relays
Usage
A/CON RELAY Air Conditioner ENGINE MAIN RELAY Main Power
ACC/RAP RELAY I/P Fuse Block
IGN‐2 RELAY Ignition
Misc. Usage
FUSE PULLER Fuse Puller
6-92

Capacities and Specifications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids and
Lubricantson page 7‑12for more information.
Application Capacities
English Metric
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more
information.
Cooling System 6.7 qt6.3 L
Engine Oil with Filter 4.8 qt4.5 L
Fuel Tank 11.9 gal45.0 L
Transmission, Automatic 6.2 qt5.87 L
Transmission, Manual 1.9 qt1.8 L
Wheel Nut Torque 81 lb ft110Y
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
6-93

Engine Specifications
EngineVIN Code Transmission Spark Plug Gap
1.6L L4 6Automatic and
Manual 0.039-0.043 inch (1.0-1.1 mm)
6-94

Section 7 Maintenance Schedule
Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Scheduled Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Owner Checks and Services . . . . . . . . . . . . . . . . . . . . 7-9 Recommended Fluids and Lubricants . . . . . . . . . . 7-12
Maintenance Replacement Parts . . . . . . . . . . . . . . 7-14
Engine Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 7-15
Maintenance Record . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
7-1

Maintenance Schedule
Introduction
Notice:Maintenance intervals, checks, inspections,
recommended fluids, and lubricants are necessary
to keep this vehicle in good working condition.
Damage caused by failure to follow scheduled
maintenance might not be covered by the vehicle
warranty.
Proper vehicle maintenance helps to keep the vehicle in
good working condition, improves fuel economy, and
reduces vehicle emissions for better air quality.
Because of all the different ways people use vehicles,
maintenance needs vary. The vehicle might need more
frequent checks and services. Please read the
information under Scheduled Maintenance. To keep the
vehicle in good condition, see your dealer/retailer. The maintenance schedule is for vehicles that:
.carry passengers and cargo within recommended
limits on the Tire and Loading Information label.
See
Loading the Vehicle on page 5‑14.
.are driven on reasonable road surfaces within legal
driving limits.
.use the recommended fuel. See Gasoline Octaneon page 6‑6.
{WARNING:
Performing maintenance work on a vehicle can be
dangerous. In trying to do some jobs, you can be
seriously injured. Do your own maintenance work
only if you have the required know-how and the
proper tools and equipment for the job. If you
have any doubt, see your dealer/retailer to have a
qualified technician do the work. See Doing Your
Own Service Work on page 6‑4.
At your General Motors dealer/retailer, you can be
certain that you will receive the highest level of service
available. Your dealer /retailer has specially trained
service technicians, uses genuine GM replacement
parts, as well as, up to date tools and equipment to
ensure fast and accurate diagnostics.
