PONTIAC G6 2005 Owners Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-7
Safety Belts
.............................................. 1-8
Child Restraints
.......................................1-28
Airbag System
.........................................1-47
Restraint System Check
............................1-58
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-9
Windows
.................................................2-14
Theft-Deterrent Systems
............................2-16
Starting and Operating Your Vehicle
...........2-20
Mirrors
....................................................2-33
OnStar
®System
......................................2-36
HomeLink®Transmitter
.............................2-37
Storage Areas
.........................................2-41
Sunroof
..................................................2-42
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-19
Warning Lights, Gages, and Indicators
........3-24
Driver Information Center (DIC)
..................3-36
Audio System(s)
.......................................3-44Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-36
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
Bulb Replacement
....................................5-38
Windshield Wiper Blade Replacement
.........5-41
Tires
......................................................5-42
Appearance Care
.....................................5-66
Vehicle Identication
.................................5-74
Electrical System
......................................5-75
Capacities and Specications
.....................5-82
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-10
Index................................................................ 1
2005 Pontiac G6 Owner ManualM

GENERAL MOTORS, GM, the GM Emblem, PONTIAC,
and the PONTIAC Emblem, are registered trademarks;
and the name G6 is a trademark of General Motors
Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes
after that time without further notice. For vehicles rst
sold in Canada, substitute the name “General Motors of
Canada Limited” for Pontiac Division whenever it
appears in this manual.
Keep this manual in the vehicle, so it will be there if it is
needed while you are on the road. If the vehicle is
sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
How to Use This Manual
Many people read the owner manual from beginning to
end when they rst receive their new vehicle. If this
is done, it can help you learn about the features
and controls for the vehicle. Pictures and words work
together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is an
alphabetical list of what is in the manual and the
page number where it can be found.
Litho in U.S.A.
Part No. 05G6 A First Edition
©2004 General Motors Corporation. All Rights Reserved.
ii

Safety Warnings and Symbols
There are a number of safety cautions in this book. We
use a box and the word CAUTION to tell about things
that could hurt you if you were to ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce the
hazard. Please read these cautions. If you do not,
you or others could be hurt.You will also nd a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or “Do Not
let this happen.”
iii

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But
the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle. They use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
If you need help guring out a specic name of a
component, gage, or indicator, reference the
following topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
iv

These are some examples of symbols that may be found on the vehicle:
v

✍NOTES
vi

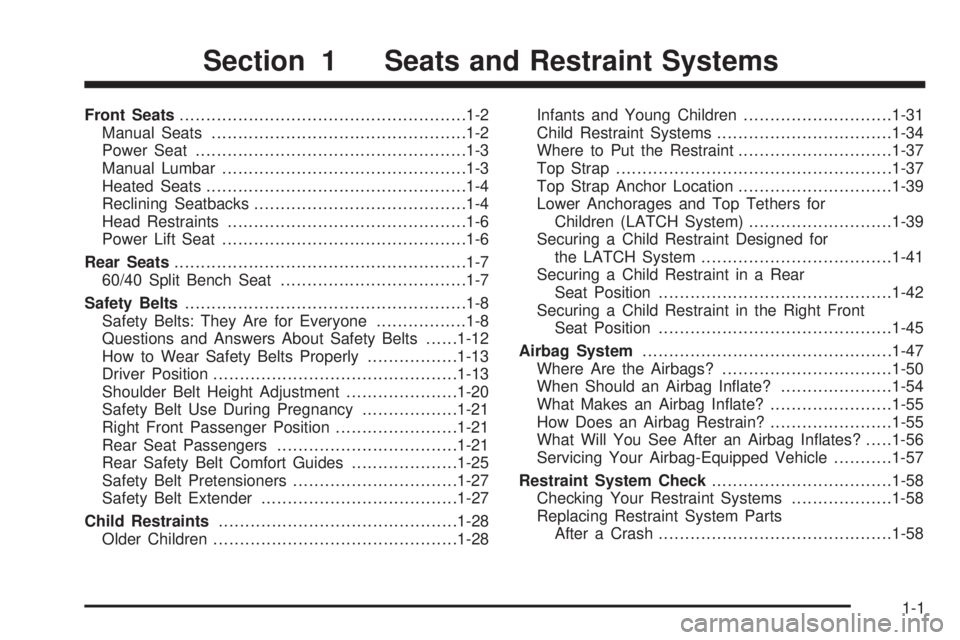

Front Seats......................................................1-2
Manual Seats................................................1-2
Power Seat...................................................1-3
Manual Lumbar..............................................1-3
Heated Seats.................................................1-4
Reclining Seatbacks........................................1-4
Head Restraints.............................................1-6
Power Lift Seat..............................................1-6
Rear Seats.......................................................1-7
60/40 Split Bench Seat...................................1-7
Safety Belts.....................................................1-8
Safety Belts: They Are for Everyone.................1-8
Questions and Answers About Safety Belts......1-12
How to Wear Safety Belts Properly.................1-13
Driver Position..............................................1-13
Shoulder Belt Height Adjustment.....................1-20
Safety Belt Use During Pregnancy..................1-21
Right Front Passenger Position.......................1-21
Rear Seat Passengers..................................1-21
Rear Safety Belt Comfort Guides....................1-25
Safety Belt Pretensioners...............................1-27
Safety Belt Extender.....................................1-27
Child Restraints.............................................1-28
Older Children..............................................1-28Infants and Young Children............................1-31
Child Restraint Systems.................................1-34
Where to Put the Restraint.............................1-37
Top Strap....................................................1-37
Top Strap Anchor Location.............................1-39
Lower Anchorages and Top Tethers for
Children (LATCH System)...........................1-39
Securing a Child Restraint Designed for
the LATCH System....................................1-41
Securing a Child Restraint in a Rear
Seat Position............................................1-42
Securing a Child Restraint in the Right Front
Seat Position............................................1-45
Airbag System...............................................1-47
Where Are the Airbags?................................1-50
When Should an Airbag Inate?.....................1-54
What Makes an Airbag Inate?.......................1-55
How Does an Airbag Restrain?.......................1-55
What Will You See After an Airbag Inates?.....1-56
Servicing Your Airbag-Equipped Vehicle...........1-57
Restraint System Check..................................1-58
Checking Your Restraint Systems...................1-58
Replacing Restraint System Parts
After a Crash............................................1-58
Section 1 Seats and Restraint Systems
1-1

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.If your vehicle has manual
seat adjustment, lift the bar
located under the front
of the seat to unlock it.
Slide the seat to where you want it and release the bar.
Try to move the seat back and forth to be sure the
seat is locked in place.
1-2

Power Seat
If your vehicle has this feature, the control is located on
the outboard side of the driver’s seat.
To adjust the seat, do the following:
Move the seat forward or rearward by pushing the
control toward the front or back of the vehicle.
Raise or lower the front of the seat cushion by
holding the front of the control up or down.
Raise or lower the rear of the seat cushion by
holding the rear of the control up or down.
Manual Lumbar
If your vehicle has this feature, the handle is located on
the outboard side of the driver’s seat. Your vehicle
may also have manual lumbar on the front passenger’s
seat. Moving the handle up or down repetitively will
decrease or increase lumbar support.
1-3

Heated Seats
Your vehicle may have heated front seats.
The buttons are located
on the outboard corner of
the driver and front
passenger seat.
Press the top of the switch to turn the feature on. The
seat will heat to the high setting. The indicator light
above the switch will be lit next to the number 2.
Press the top of the switch again to go to the low heat
setting. The indicator light will be lit next to the
number 1.
Press the bottom of the switch to turn the feature off.
Reclining Seatbacks
To adjust the seatback, lift the lever located on the
outboard side of the seat and move the seatback to the
desired position. Release the lever to lock the
seatback. Pull up on the lever without pushing on
the seatback, and the seatback will return to the
upright position.
1-4
