PONTIAC G6 2008 Manual Online

Keys...............................................................2-3
Remote Keyless Entry (RKE) System................2-4
Remote Keyless Entry (RKE) System
Operation...................................................2-4
Remote Vehicle Start......................................2-7
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-10
Door Ajar Reminder......................................2-11
Delayed Locking...........................................2-11
Automatic Door Lock.....................................2-11
Programmable Automatic Door Unlock.............2-12
Rear Door Security Locks..............................2-12
Lockout Protection........................................2-13
Trunk..........................................................2-13
Windows........................................................2-15
Power Windows............................................2-16
Sun Visors...................................................2-18
Theft-Deterrent Systems..................................2-18
Content Theft-Deterrent.................................2-18
PASS-Key
®III+............................................2-19
PASS-Key®III+ Operation..............................2-20Starting and Operating Your Vehicle................2-21
New Vehicle Break-In....................................2-21
Ignition Positions..........................................2-22
Retained Accessory Power (RAP)...................2-23
Starting the Engine.......................................2-23
Adjustable Throttle and Brake Pedal................2-25
Engine Coolant Heater..................................2-25
Automatic Transmission Operation...................2-27
Parking Brake..............................................2-31
Shifting Into PARK (P) (Automatic
Transmission)...........................................2-32
Shifting Out of PARK (P)...............................2-34
Parking Over Things That Burn.......................2-35
Engine Exhaust............................................2-35
Running the Engine While Parked...................2-36
Mirrors...........................................................2-37
Manual Rearview Mirror.................................2-37
Manual Rearview Mirror with OnStar
®..............2-37
Automatic Dimming Rearview Mirror with
OnStar
®and Compass...............................2-37
Automatic Dimming Rearview Mirror with
Compass.................................................2-39
Outside Power Mirrors...................................2-40
Outside Convex Mirror...................................2-41
Section 2 Features and Controls
2-1

OnStar®System.............................................2-41
Storage Areas................................................2-44
Glove Box...................................................2-44
Cupholder(s)................................................2-44
Center Console Storage.................................2-44
Convenience Net..........................................2-44Sunroof.........................................................2-45
Retractable Hardtop........................................2-45
Lowering the Retractable Hardtop...................2-46
Raising the Retractable Hardtop......................2-49
Section 2 Features and Controls
2-2

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons, children
or others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function with the keys in the
ignition and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave the keys in a vehicle
with children.
The key can be used for the ignition and all locks.
The key has a bar-coded key tag that the dealer/retailer
or qualied locksmith can use to make new keys.
Store this information in a safe place, not in your vehicle.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of your vehicle, contact Roadside
Assistance. SeeRoadside Assistance Program on
page 7-6.
2-3

Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules
and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.At times you may notice a decrease in range. This is
normal for any RKE system. If the transmitter does not
work or if you have to stand closer to your vehicle
for the transmitter to work, try this:Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement” later in this
section.
If you are still having trouble, see your dealer/retailer
or a qualied technician for service.
Remote Keyless Entry (RKE)
System Operation
The vehicle’s doors may be locked and unlocked, and
the trunk can be opened from approximately 3 feet (1 m)
up to 197 feet (60 m) away with the Remote Keyless
Entry (RKE) transmitter. If your vehicle has the remote
vehicle start feature, you can also start the vehicle’s
engine with the RKE transmitter.
2-4

There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-4.
/(Remote Vehicle Start):If your vehicle has this
feature, press
/to start the engine from outside the
vehicle using the RKE transmitter. SeeRemote
Vehicle Start on page 2-7for additional information.
Q(Lock):PressQto lock all the doors. The interior
lamps will turn off after all of the doors are closed. If
enabled through the Driver Information Center (DIC), theremote lock feedback can be programmed to have the
horn chirp and/or the turn signals ash when the
RKE transmitter is used to lock the vehicle’s doors. See
“LOCK HORN” and “LIGHT FLASH” underDIC
Vehicle Personalization on page 3-50for more
information.
Pressing
Qmay also arm the content theft-deterrent
system. SeeContent Theft-Deterrent on page 2-18.
K(Unlock):PressKto unlock the driver’s door. IfK
is pressed again within ve seconds, all remaining
doors will unlock. The interior lamps will turn on and stay
on for 20 seconds or until the ignition is turned on. If
enabled through the DIC, the remote unlock feedback
can be programmed to have the horn chirp and/or
the turn signals ash when the RKE transmitter is used
to unlock the vehicle’s doors. See “UNLOCK HORN”
and “LIGHT FLASH” underDIC Vehicle Personalization
on page 3-50for more information.
If enabled through the DIC, and it is dark enough
outside, the vehicle’s high-beam headlamps, parking
lamps, and back-up lamps will turn on each time
Kon
the transmitter is pressed. These exterior lamps will
stay on for 20 seconds, or until a door is opened. See
“EXT (Exterior) LIGHTS” underDIC Vehicle
Personalization on page 3-50for additional information. With Remote Start
Shown, Without Remote
Start Similar
2-5

PressingKon the RKE transmitter will disarm the
content theft-deterrent system. SeeContent
Theft-Deterrent on page 2-18.
V(Remote Trunk Release):Press and holdV
for approximately one second to open the trunk.
The trunk will open using the transmitter when the
vehicle speed is less than 2 mph (3 km/h), when the
ignition is off, or when the vehicle shift lever is in
PARK (P), if your vehicle has an automatic transmission.
L(Vehicle Locator/Panic Alarm):PressLto
locate your vehicle. The horn will sound three times and
the headlamps and turn signals will ash three times.
Press and hold
Lfor approximately three seconds to
sound the panic alarm. The horn will sound and the
headlamps and turn signals will ash for 30 seconds.
Press
Lagain to cancel the panic alarm.
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased
through your dealer/retailer. All transmitters need to be
re-coded to match the new transmitter. The lost
transmitter will no longer work after the new transmitters
are re-coded. Each vehicle can have up to four
transmitters matched to it.
Battery Replacement
Replace the battery if the KEY FOB BATT LOW
message displays in the DIC. See “KEY FOB BATT
LOW” underDIC Warnings and Messages on page 3-46
for additional information.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
2-6

To replace the battery in the RKE transmitter:
1. Separate the halves of the transmitter with a at,
thin object inserted into the notch on the side.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery, positive side facing up.
Replace with a CR2032 or equivalent battery.
4. Put the transmitter back together tightly.
Remote Vehicle Start
Your vehicle may have a remote starting feature. This
feature allows you to start the engine from outside
the vehicle. It may also start the vehicle’s heating or air
conditioning systems and rear window defogger.
When the remote start system is active and the vehicle
has an automatic climate control system, it will
automatically regulate the inside temperature. Normal
operation of the system will return after the ignition
key is turned to ON/RUN.
Laws in some communities may restrict the use of
remote starters. For example, some laws may require a
person using remote start to have the vehicle in view
when doing so. Check local regulations for any
requirements on remote starting of vehicles.
Do not use the remote start feature if your vehicle is low
on fuel. Your vehicle may run out of fuel.
The remote start feature provides two separate starts
per ignition cycle, each with 10 minutes of engine
running time.
The remote start feature needs to be reset after your
vehicle’s engine is started two times using the
transmitter’s remote start button. To reset the remote
start feature, insert the vehicle’s key into the ignition
switch and turn it to ON/RUN. SeeIgnition Positions on
page 2-22for information regarding the ignition
positions on your vehicle.
2-7

You can start your vehicle’s engine from approximately
197 feet (60 m) away. However, the range may be
less while the vehicle is running, and as a result you
may need to be closer to your vehicle to turn it off than
you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-4for additional
information.
/(Remote Start):This button will be on the RKE
transmitter if you have remote start.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button,
then immediately press and hold the transmitter’s
remote start button until the vehicle’s turn signal
lamps ash.
When the vehicle starts, the parking lamps will turn
on and remain on while the engine is running.
3. If it is the rst remote start since the vehicle has
been driven, repeat these steps, while the engine
is still running, to extend the engine running time
by 10 minutes. Remote start can be extended
one time.
After entering the vehicle during a remote start, insert
and turn the key to ON/RUN to drive the vehicle.The engine will shut off automatically after 10 minutes,
unless a time extension has been done or the
vehicle’s key is inserted into the ignition switch and
turned to ON/RUN.
To manually shut off a remote start:
Aim the RKE transmitter at the vehicle and press
and release the remote start button.
Turn on the hazard warning ashers.
Turn the ignition switch ON/RUN and then
LOCK/OFF.
The parking lamps will turn off to indicate the
engine is off.
Your vehicle’s engine can be started two times, per
ignition cycle, using the transmitter’s remote start
feature.
If the remote start procedure is used again before
the rst 10 minute time frame has ended, the rst
10 minutes will immediately expire and the second
10 minute time frame will start.
The remote vehicle start feature will not operate if any
of the follow occur:
The remote start system is disabled through the DIC.
The vehicle’s key is in the ignition.
The vehicle’s hood is open.
2-8

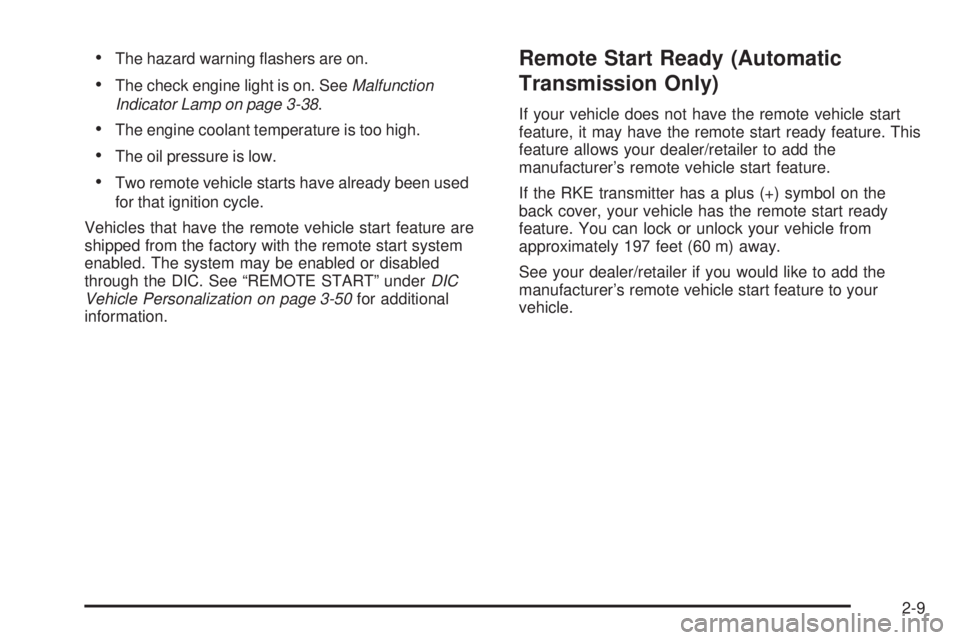

The hazard warning ashers are on.
The check engine light is on. SeeMalfunction
Indicator Lamp on page 3-38.
The engine coolant temperature is too high.
The oil pressure is low.
Two remote vehicle starts have already been used
for that ignition cycle.
Vehicles that have the remote vehicle start feature are
shipped from the factory with the remote start system
enabled. The system may be enabled or disabled
through the DIC. See “REMOTE START” underDIC
Vehicle Personalization on page 3-50for additional
information.
Remote Start Ready (Automatic
Transmission Only)
If your vehicle does not have the remote vehicle start
feature, it may have the remote start ready feature. This
feature allows your dealer/retailer to add the
manufacturer’s remote vehicle start feature.
If the RKE transmitter has a plus (+) symbol on the
back cover, your vehicle has the remote start ready
feature. You can lock or unlock your vehicle from
approximately 197 feet (60 m) away.
See your dealer/retailer if you would like to add the
manufacturer’s remote vehicle start feature to your
vehicle.
2-9

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can easily
open the doors and fall out of a moving
vehicle. When a door is locked, the handle
will not open it. You increase the chance
of being thrown out of the vehicle in a
crash if the doors are not locked. So, wear
safety belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock your vehicle.
From the outside, use your key or, if your vehicle has
one, the Remote Keyless Entry (RKE) transmitter.
Turn the key counterclockwise to unlock the door. Turn
the key clockwise to lock the door.
From the inside, use the manual lock knobs or the
power lock switches.
Power Door Locks
The power door lock switches are located on the
driver’s and front passenger’s door.
Press the outboard side of the switch to unlock all
doors. Press the inboard side of the switch to lock
all doors.
The rear doors do not have power door lock switches.
Rear seat passengers must use the manual lock
knob on their doors.
2-10
