PONTIAC G6 2008 Owners Manual

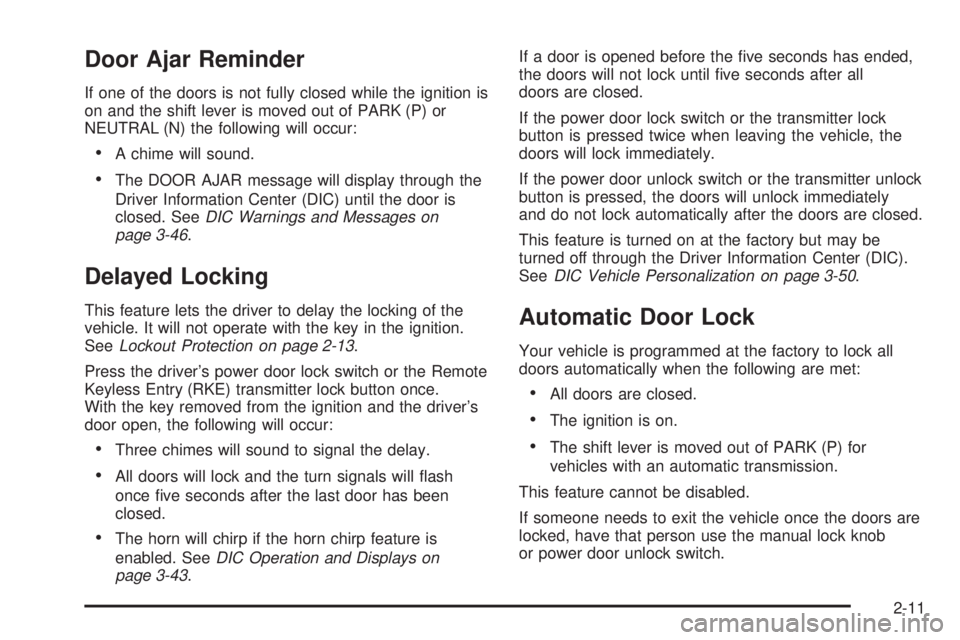

Door Ajar Reminder
If one of the doors is not fully closed while the ignition is
on and the shift lever is moved out of PARK (P) or
NEUTRAL (N) the following will occur:
A chime will sound.
The DOOR AJAR message will display through the
Driver Information Center (DIC) until the door is
closed. SeeDIC Warnings and Messages on
page 3-46.
Delayed Locking
This feature lets the driver to delay the locking of the
vehicle. It will not operate with the key in the ignition.
SeeLockout Protection on page 2-13.
Press the driver’s power door lock switch or the Remote
Keyless Entry (RKE) transmitter lock button once.
With the key removed from the ignition and the driver’s
door open, the following will occur:
Three chimes will sound to signal the delay.
All doors will lock and the turn signals will ash
once ve seconds after the last door has been
closed.
The horn will chirp if the horn chirp feature is
enabled. SeeDIC Operation and Displays on
page 3-43.If a door is opened before the ve seconds has ended,
the doors will not lock until ve seconds after all
doors are closed.
If the power door lock switch or the transmitter lock
button is pressed twice when leaving the vehicle, the
doors will lock immediately.
If the power door unlock switch or the transmitter unlock
button is pressed, the doors will unlock immediately
and do not lock automatically after the doors are closed.
This feature is turned on at the factory but may be
turned off through the Driver Information Center (DIC).
SeeDIC Vehicle Personalization on page 3-50.
Automatic Door Lock
Your vehicle is programmed at the factory to lock all
doors automatically when the following are met:
All doors are closed.
The ignition is on.
The shift lever is moved out of PARK (P) for
vehicles with an automatic transmission.
This feature cannot be disabled.
If someone needs to exit the vehicle once the doors are
locked, have that person use the manual lock knob
or power door unlock switch.
2-11

Programmable Automatic Door
Unlock
Your vehicle was programmed at the factory to unlock
when the shift lever is moved to PARK (P).
You can change the settings of the programmable
automatic door unlock feature through the Driver
Information Center (DIC). SeeDIC Vehicle
Personalization on page 3-50.
Rear Door Security Locks
Your vehicle has rear door security locks, that prevent
passengers from opening the rear doors from the inside.
The rear door security locks are located on the inside
edge of each rear door. You must open the rear doors to
access them.To assist you in nding the lock, your vehicle will have
one of the following:
To use these locks, do the following:
1. Insert the key into the security lock slot and turn it
so the slot is in the horizontal position.
2. Close the door.
3. Do the same for the other rear door.
When you want to open a rear door when the security
lock is on, do the following:
1. Unlock the door using the remote keyless entry
transmitter, if the vehicle has one, the power door
lock switch, or by lifting the rear door manual lock.
2. Open the door from the outside.
2-12

To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot and turn it
so the slot is in the vertical position.
3. Do the same for the other rear door.
Lockout Protection
This feature prevents the driver’s door from being
locked using the power door locks, if the key is left in
the ignition and a door is open.
Press the power door lock switch to lock all the doors
and then unlock the driver’s door.
Press and hold the power door lock switch for more
than three seconds to override this feature.
If the key is removed from the ignition, or if the manual
door lock or the Remote Keyless Entry (RKE)
transmitter is used, the key could still be locked inside
the vehicle. Always remember to take the key with you.
Trunk
To open the trunk from the outside, press and hold the
trunk release button on the Remote Keyless Entry
(RKE) transmitter. You can also use the key in the trunk
lock, except on retractable hardtop models.Use the pull cup to aid in closing the trunk.
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-35.
2-13

Remote Trunk Release
Press this button located
on the driver’s door near
the map pocket to open
the trunk.
You can open the trunk when the gear selector is
in PARK (P).
Emergency Trunk Release Handle
Notice:Do not use the emergency trunk release
handle as a tie-down or anchor point when securing
items in the trunk as it could damage the handle.
The emergency trunk release handle is only
intended to aid a person trapped in a latched trunk,
enabling them to open the trunk from the inside.
There is a glow-in-the-dark emergency trunk release
handle located inside the trunk on the trunk latch. This
handle will glow following exposure to light. Pull the
release handle up to open the trunk from the inside.
2-14

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-15

Power Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome from extreme heat in
warm or hot weather and suffer permanent
injuries or even death from heat stroke.
Leaving children in a vehicle with the ignition
key is dangerous for many reasons, children
or others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function with the keys in the
ignition and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave keys in a vehicle with
children.
When there are children in the rear seat use
the window lockout button to prevent
unintentional operation of the windows.The power window switches for all the windows are
located on the driver’s door armrest. Each passenger
door also has a power window switch for its own
window. Press the front of the switch to the rst position
to lower the window to the desired level. Pull the
switch up to raise the window.
Window Indexing (Coupe and
Retractable Hardtop)
This feature automatically lowers the window a small
amount when the door is opened. Then, when the door
is closed, the window will automatically raise fully.Sedan Switches
Coupe Switches
2-16

If the vehicle loses power or the window freezes, this
feature may not work. From outside the vehicle,
close the door and push the window inward so that the
glass goes under the molding.
Power Window Initialize (Coupe and
Retractable Hardtop)
After a power reconnect, such as battery replacement,
the indexing feature will not function until the system
is initialized. This procedure needs to be done for each
individual window. Once power is restored, do the
following:
1. Close the door.
2. Raise the window by pulling the power window
switch up.
3. Hold the window switch up for two seconds after
the window is closed. Release the switch. Then
hold the switch up again for two seconds.
4. Lower the window all the way down. Hold the
switch down for two seconds.
5. Repeat the procedure for each window, including
the rear quarter windows on retractable hardtop
models, until all windows are initialized.
Express-Down Window
The express-down feature lowers the window all the
way without continuously pressing the switch. The
switch(es) is labeled AUTO.
On sedan and retractable hardtop models, the driver’s
window has the express-down feature. On coupe
models, both the driver’s and front passenger’s window
have the express-down feature. The front passenger’s
express-down is activated by the driver’s side switch
only. Press the front of the switch all the way down and
release it to express open the window.
To stop the window while it is lowering, pull the front of
the switch up briey.
Window Lockout (Sedan Only)
o
(Window Lockout):This button prevents the rear
passengers from using their window switches.
The window lockout button is located near the driver’s
power window switches. The driver can still operate
all the windows and the front passenger can operate
their own window with the lockout on. Press the
right side of the switch to turn the lockout feature on.
Press the left side to turn it off. The red part of the switch
is visible when you have returned to normal window
operation.
2-17

Sun Visors
Swing down the visors to block glare. The visors can be
removed from the center mount and swung to the
side. The visors also have extenders that can be pulled
out for additional blockage.
Your vehicle may have lighted vanity mirrors on the
driver’s and passenger’s visors. When you lift the cover,
the light will turn on.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Content Theft-Deterrent
Your vehicle may have a
content theft-deterrent
alarm system.
Arming the System
With the ignition off, you can arm the system by
pressing the Remote Keyless Entry (RKE) transmitter
lock button.
The system will arm 30 seconds after all the doors are
closed, or 60 seconds with any door open.
If you press the lock button on the transmitter a second
time while all the doors are closed, the system will
arm immediately. The system will still arm in 60 seconds
if a door is open. When the open door is closed, the
system will arm.
The security light, located on the instrument panel
cluster, comes on to indicate that arming has been
initiated. Once the system is armed, the security light will
ash once every three seconds.
If the security light is ashing twice per second, this
means that a door is open.
If the system is armed and the key is used to unlock the
vehicle, the alarm will be activated.
If you do not want to arm the content theft system, lock
the vehicle with the manual lock knob on the doors
or with the inside power door lock switches.
The alarm will sound and the exterior lights will ash if
any door is opened while armed.
2-18

Disarming the System
To disarm the system, do one of the following:
Press the RKE transmitter unlock button.
Turn the ignition to ON/RUN.
If you want to lock the vehicle without arming the
content theft system, lock the vehicle with the manual
lock knob on the doors or with the inside power
door lock switches.
Once the system is disarmed, the security light will stop
ashing.
How the System Alarm is Activated
To activate the system if it is armed:
Open the driver’s door or trunk. A ten second
pre-alarm chirp will sound followed by a
thirty second full alarm of horn and lights.
Open any other door. A full alarm of horn and lights
will immediately sound for thirty seconds.
Open the hood. If the vehicle has the remote start
feature, it will activate the full alarm.
When an alarm event has nished, the system will
re-arm itself automatically.
How to Turn Off the System Alarm
To turn off the system alarm:
Press the lock button on the RKE transmitter.
The system will then re-arm itself.
Press the unlock button on the RKE transmitter.
This will also disarm the system.
Insert the key in the ignition and turn it on. This will
also disarm the system.
How to Detect a Tamper Condition
If you hear three chirps when the unlock or lock button
is pressed on the RKE transmitter, it means that the
content theft security system alarm was previously
triggered.
PASS-Key®III+
The PASS-Key®III+ system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
2-19

This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
PASS-Key
®III+ uses a radio frequency transponder in
the key that matches a decoder in your vehicle.
PASS-Key®III+ Operation
Your vehicle has the PASS-Key®III+ (Personalized
Automotive Security System) theft-deterrent system.
PASS-Key
®III+ is a passive theft-deterrent system.
The system is automatically armed when the key
is removed from the ignition.
You do not have to manually arm or disarm the system.
The security light will come on if there is a problem
with arming or disarming the theft-deterrent system.When the PASS-Key
®III+ system senses that someone
is using the wrong key, it prevents the vehicle from
starting. Anyone using a trial-and-error method to start
the vehicle will be discouraged because of the high
number of electrical key codes.
When trying to start the vehicle if the engine does not
start and the security light comes on, the key may have a
damaged transponder. Turn the ignition off and try again.
If the engine still does not start, and the key appears to
be undamaged, try another ignition key. Also, check
the fuse. SeeFuses on page 5-110. If the engine
still does not start with the other key, your vehicle needs
service. If your vehicle does start, the rst key may be
faulty. See your dealer/retailer who can service the
PASS-Key
®III+ and have a new key made. In an
emergency, contact Roadside Assistance.
It is possible for the PASS-Key
®III+ decoder to “learn”
the transponder value of a new or replacement key.
Up to 10 additional keys may be programmed for
the vehicle. The following procedure is for programming
additional keys only. If all the currently programmed
keys are lost or do not operate, you must see your
dealer/retailer or a locksmith who can service
PASS-Key
®III+ to have keys made and programmed to
the system.
See your dealer/retailer or a locksmith who can service
PASS-Key
®III+ to get a new key blank that is cut
exactly as the ignition key that operates the system.
2-20
