The main components of the
instrument panel are the following:
A.Turn Signal/Multifunction
Lever on page 4-4.
B.Audio Steering Wheel Controls
on page 6-36andDIC Operation
and Displays on page 4-22.
C.Instrument Panel Cluster on
page 4-11.
D.Audio Steering Wheel Controls
on page 6-36.
E.Windshield Wipers on page 4-8.
F.Hazard Warning Flashers on
page 4-4.
G. Voltmeter, Oil Gage.Voltmeter
Gage on page 4-15.
H.Outlet Adjustment on page 7-9.I.Exterior Lamps Controls on
page 5-1.Instrument Panel
Brightness on page 5-3.Fog
Lamps on page 5-3(If Equipped).
J.Hood Release on page 9-5.
K.Tilt Wheel on page 4-4.
L.Horn on page 4-4.
M.Ignition Positions on page 8-2.
N.Climate Control System on
page 7-1.Automatic Climate
Control System on page 7-4
(If Equipped).
O. Shift Lever.Automatic
Transmission Operation on
page 8-6.
P.Power Door Locks on page 2-9.Q.Outside Power Mirror(s) on
page 2-17.
R.Power Windows on page 2-15.
S. Traction Control System (TCS)
Disable Button.Electronic
Stability Program on page 8-19.
T.Heated Seats on page 1-5
(If Equipped).
U.Accessory Power Outlet(s) on
page 4-9.
V.Audio System(s) on page 6-1.
W.Glove Box on page 3-1.
Instruments and Controls 4-3

Vehicle Service
and Care
Service
Service...............................9-2
Accessories and
Modications.....................9-3
California Proposition 65
Warning............................9-3
California Perchlorate
Materials Requirements.....9-3
Doing Your Own
Service Work....................9-4
Adding Equipment to the
Outside of the Vehicle......9-4
Owner Checks
Owner Checks....................9-5
Hood Release.....................9-5
Engine Compartment
Overview...........................9-6
Engine Oil..........................9-8
Engine Oil Life System.....9-10
Engine Air Cleaner/Filter. . . .9-11
Cooling System.................9-13
Engine Coolant.................9-15
Pressure Cap....................9-19
Engine Overheating...........9-20
Power Steering Fluid.........9-21
Windshield Washer Fluid. . . .9-23
Windshield Wiper Blade
Replacement...................9-24
Brakes..............................9-25
Battery..............................9-28
Headlamp Aiming
Headlamp Aiming..............9-28
Bulb Replacement
Bulb Replacement.............9-31
Halogen Bulbs..................9-31
Headlamps and Parking
Lamps.............................9-31
Front Turn Signal Lamps. . .9-33
Taillamps..........................9-34
License Plate Lamp..........9-35
Replacement Bulbs...........9-35
Electrical System
Add-On Electrical
Equipment.......................9-36
Headlamp Wiring..............9-36
Windshield Wiper Fuses. . . .9-36
Power Windows and
Other Power Options.......9-36
Instrument Panel
Fuse Block......................9-36
Engine Compartment
Fuse Block......................9-38
Rear Compartment
Fuse Block......................9-41
Tires
Tires.................................9-42
Tire Sidewall Labeling.......9-42
Tire Terminology and
Denitions.......................9-46
Ination - Tire Pressure. . . .9-49
High-Speed Operation.......9-51
Tire Pressure Monitor
System............................9-52
Tire Pressure Monitor
Operation........................9-54
Tire Inspection and
Rotation..........................9-57
When It Is Time for
New Tires.......................9-59
Buying New Tires.............9-59
Different Size Tires
and Wheels.....................9-61
Vehicle Service and Care 9-1

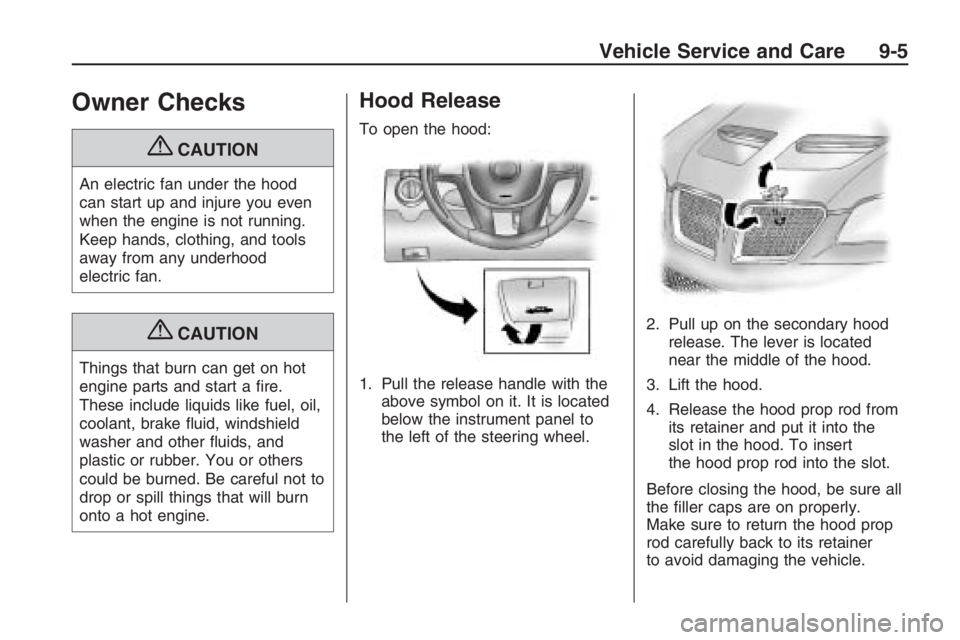

Owner Checks
{CAUTION
An electric fan under the hood
can start up and injure you even
when the engine is not running.
Keep hands, clothing, and tools
away from any underhood
electric fan.
{CAUTION
Things that burn can get on hot
engine parts and start a re.
These include liquids like fuel, oil,
coolant, brake uid, windshield
washer and other uids, and
plastic or rubber. You or others
could be burned. Be careful not to
drop or spill things that will burn
onto a hot engine.
Hood Release
To open the hood:
1. Pull the release handle with the
above symbol on it. It is located
below the instrument panel to
the left of the steering wheel.2. Pull up on the secondary hood
release. The lever is located
near the middle of the hood.
3. Lift the hood.
4. Release the hood prop rod from
its retainer and put it into the
slot in the hood. To insert
the hood prop rod into the slot.
Before closing the hood, be sure all
the ller caps are on properly.
Make sure to return the hood prop
rod carefully back to its retainer
to avoid damaging the vehicle.
Vehicle Service and Care 9-5

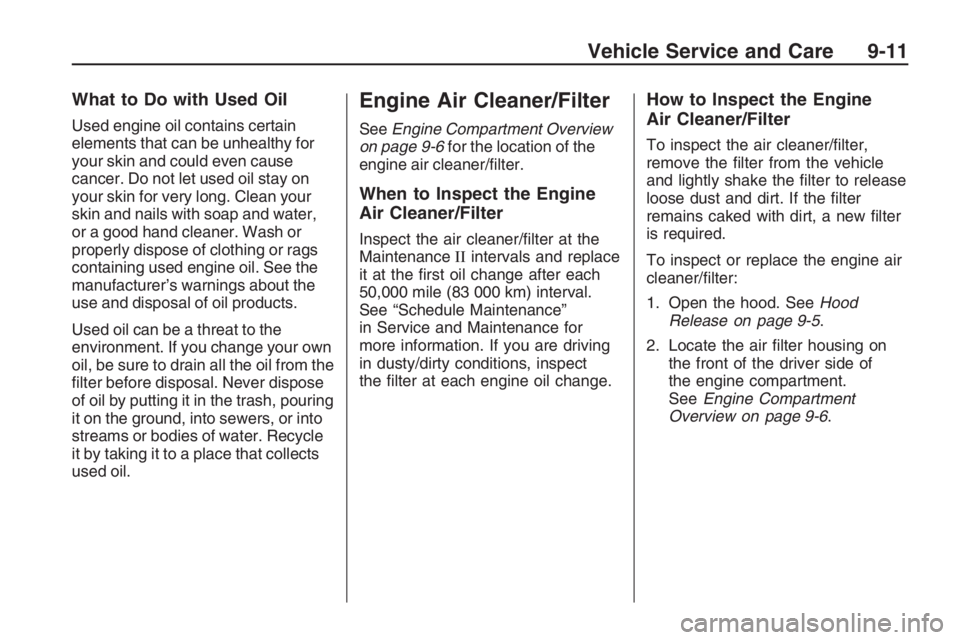

What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer’s warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your own
oil, be sure to drain all the oil from the
lter before disposal. Never dispose
of oil by putting it in the trash, pouring
it on the ground, into sewers, or into
streams or bodies of water. Recycle
it by taking it to a place that collects
used oil.
Engine Air Cleaner/Filter
SeeEngine Compartment Overview
on page 9-6for the location of the
engine air cleaner/lter.
When to Inspect the Engine
Air Cleaner/Filter
Inspect the air cleaner/lter at the
MaintenanceIIintervals and replace
it at the rst oil change after each
50,000 mile (83 000 km) interval.
See “Schedule Maintenance”
in Service and Maintenance for
more information. If you are driving
in dusty/dirty conditions, inspect
the lter at each engine oil change.
How to Inspect the Engine
Air Cleaner/Filter
To inspect the air cleaner/lter,
remove the lter from the vehicle
and lightly shake the lter to release
loose dust and dirt. If the lter
remains caked with dirt, a new lter
is required.
To inspect or replace the engine air
cleaner/lter:
1. Open the hood. SeeHood
Release on page 9-5.
2. Locate the air lter housing on
the front of the driver side of
the engine compartment.
SeeEngine Compartment
Overview on page 9-6.
Vehicle Service and Care 9-11

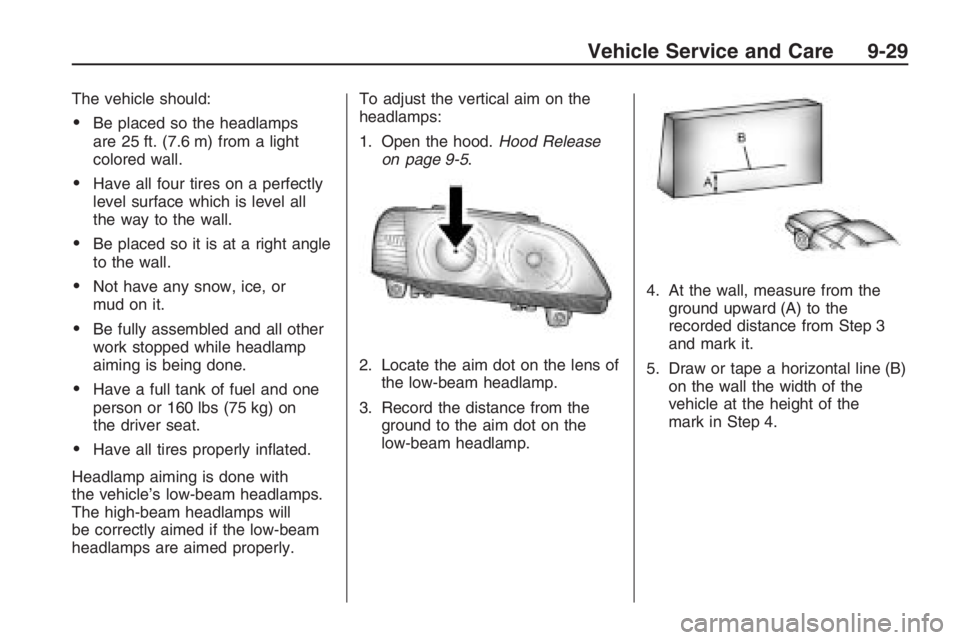

The vehicle should:
Be placed so the headlamps
are 25 ft. (7.6 m) from a light
colored wall.
Have all four tires on a perfectly
level surface which is level all
the way to the wall.
Be placed so it is at a right angle
to the wall.
Not have any snow, ice, or
mudonit.
Be fully assembled and all other
work stopped while headlamp
aiming is being done.
Have a full tank of fuel and one
person or 160 lbs (75 kg) on
the driver seat.
Have all tires properly inated.
Headlamp aiming is done with
the vehicle’s low-beam headlamps.
The high-beam headlamps will
be correctly aimed if the low-beam
headlamps are aimed properly.To adjust the vertical aim on the
headlamps:
1. Open the hood.Hood Release
on page 9-5.
2. Locate the aim dot on the lens of
the low-beam headlamp.
3. Record the distance from the
ground to the aim dot on the
low-beam headlamp.4. At the wall, measure from the
ground upward (A) to the
recorded distance from Step 3
and mark it.
5. Draw or tape a horizontal line (B)
on the wall the width of the
vehicle at the height of the
mark in Step 4.
Vehicle Service and Care 9-29

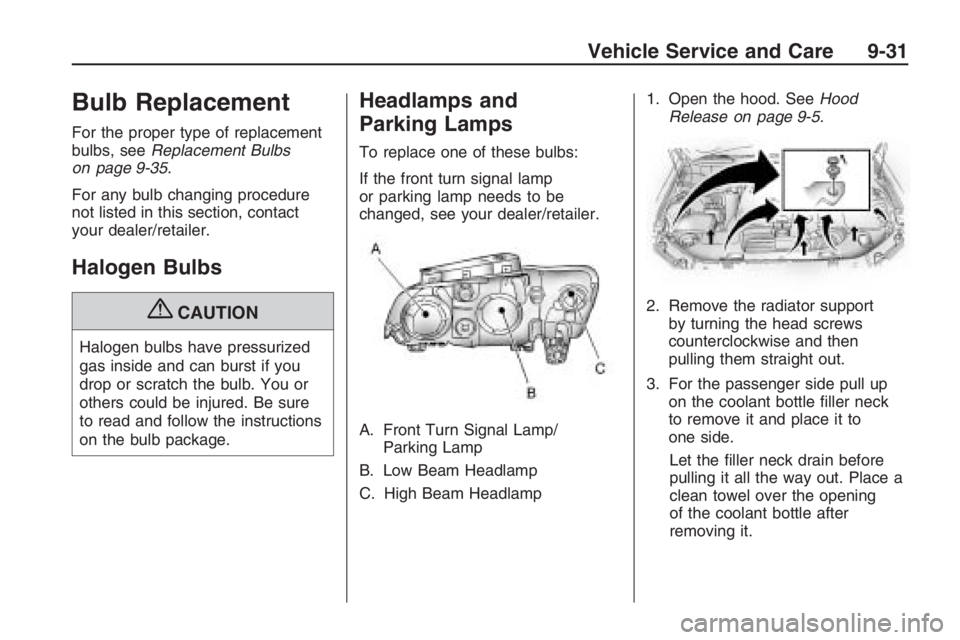

Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs
on page 9-35.
For any bulb changing procedure
not listed in this section, contact
your dealer/retailer.
Halogen Bulbs
{CAUTION
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
Headlamps and
Parking Lamps
To replace one of these bulbs:
If the front turn signal lamp
or parking lamp needs to be
changed, see your dealer/retailer.
A. Front Turn Signal Lamp/
Parking Lamp
B. Low Beam Headlamp
C. High Beam Headlamp1. Open the hood. SeeHood
Release on page 9-5.
2. Remove the radiator support
by turning the head screws
counterclockwise and then
pulling them straight out.
3. For the passenger side pull up
on the coolant bottle ller neck
to remove it and place it to
one side.
Let the ller neck drain before
pulling it all the way out. Place a
clean towel over the opening
of the coolant bottle after
removing it.
Vehicle Service and Care 9-31

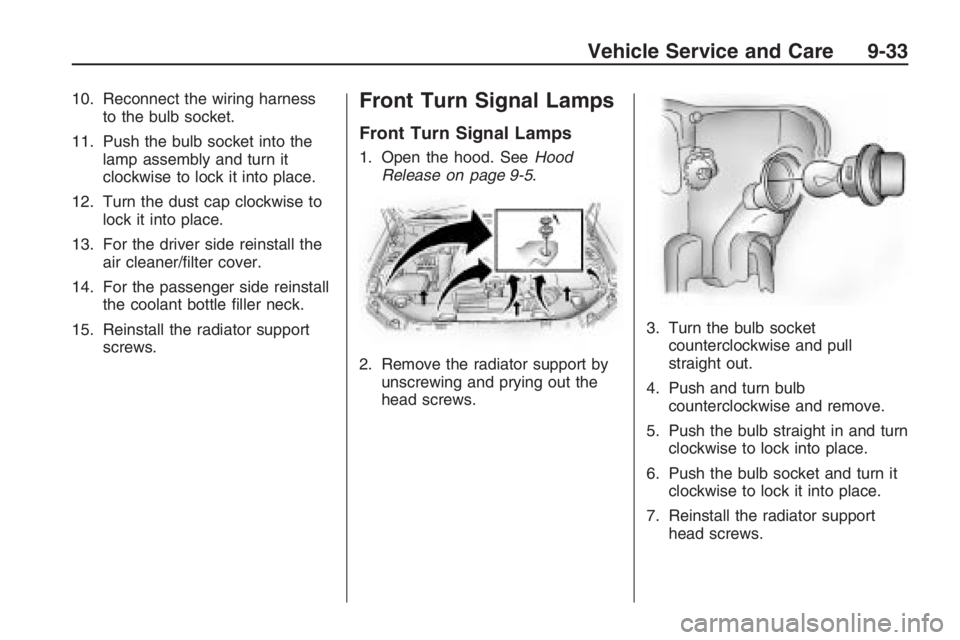

10. Reconnect the wiring harness
to the bulb socket.
11. Push the bulb socket into the
lamp assembly and turn it
clockwise to lock it into place.
12. Turn the dust cap clockwise to
lock it into place.
13. For the driver side reinstall the
air cleaner/lter cover.
14. For the passenger side reinstall
the coolant bottle ller neck.
15. Reinstall the radiator support
screws.Front Turn Signal Lamps
Front Turn Signal Lamps
1. Open the hood. SeeHood
Release on page 9-5.
2. Remove the radiator support by
unscrewing and prying out the
head screws.3. Turn the bulb socket
counterclockwise and pull
straight out.
4. Push and turn bulb
counterclockwise and remove.
5. Push the bulb straight in and turn
clockwise to lock into place.
6. Push the bulb socket and turn it
clockwise to lock it into place.
7. Reinstall the radiator support
head screws.
Vehicle Service and Care 9-33

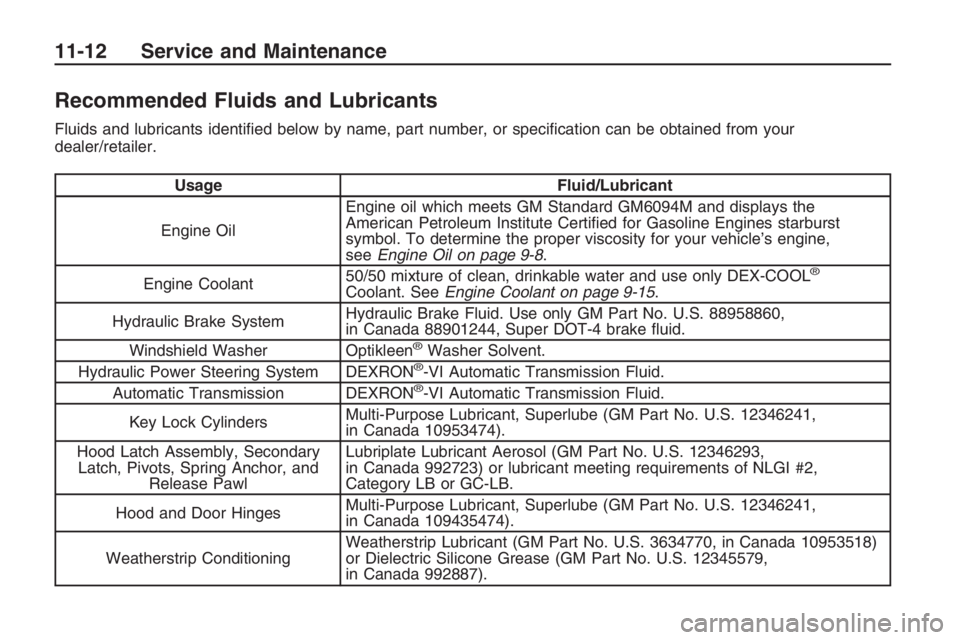

Recommended Fluids and Lubricants
Fluids and lubricants identied below by name, part number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine Oil Engine oil which meets GM Standard GM6094M and displays the
American Petroleum Institute Certied for Gasoline Engines starburst
symbol. To determine the proper viscosity for your vehicle’s engine,
see
Engine Oil on page 9-8 .
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®
Coolant. See
Engine Coolant on page 9-15 .
Hydraulic Brake System Hydraulic Brake Fluid. Use only GM Part No. U.S. 88958860,
in Canada 88901244, Super DOT-4 brake uid.
Windshield Washer Optikleen
®Washer Solvent.
Hydraulic Power Steering System DEXRON®-VI Automatic Transmission Fluid.
Automatic Transmission DEXRON®-VI Automatic Transmission Fluid.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293,
in Canada 992723) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 109435474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease (GM Part No. U.S. 12345579,
in Canada 992887).
11-12 Service and Maintenance

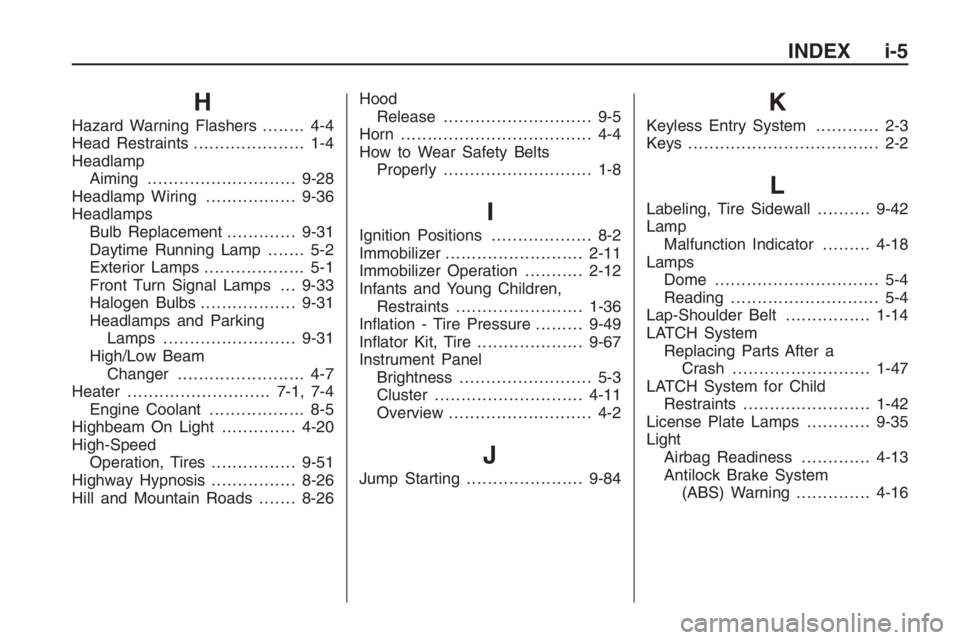

H
Hazard Warning Flashers........ 4-4
Head Restraints..................... 1-4
Headlamp
Aiming ............................9-28
Headlamp Wiring.................9-36
Headlamps
Bulb Replacement.............9-31
Daytime Running Lamp....... 5-2
Exterior Lamps................... 5-1
Front Turn Signal Lamps . . . 9-33
Halogen Bulbs..................9-31
Headlamps and Parking
Lamps .........................9-31
High/Low Beam
Changer........................ 4-7
Heater...........................7-1, 7-4
Engine Coolant.................. 8-5
Highbeam On Light..............4-20
High-Speed
Operation, Tires................9-51
Highway Hypnosis................8-26
Hill and Mountain Roads.......8-26Hood
Release............................ 9-5
Horn .................................... 4-4
How to Wear Safety Belts
Properly............................ 1-8
I
Ignition Positions................... 8-2
Immobilizer..........................2-11
Immobilizer Operation...........2-12
Infants and Young Children,
Restraints........................1-36
Ination - Tire Pressure.........9-49
Inator Kit, Tire....................9-67
Instrument Panel
Brightness......................... 5-3
Cluster............................4-11
Overview........................... 4-2
J
Jump Starting......................9-84
K
Keyless Entry System............ 2-3
Keys.................................... 2-2
L
Labeling, Tire Sidewall..........9-42
Lamp
Malfunction Indicator.........4-18
Lamps
Dome ............................... 5-4
Reading............................ 5-4
Lap-Shoulder Belt................1-14
LATCH System
Replacing Parts After a
Crash..........................1-47
LATCH System for Child
Restraints........................1-42
License Plate Lamps............9-35
Light
Airbag Readiness.............4-13
Antilock Brake System
(ABS) Warning..............4-16
INDEX i-5
