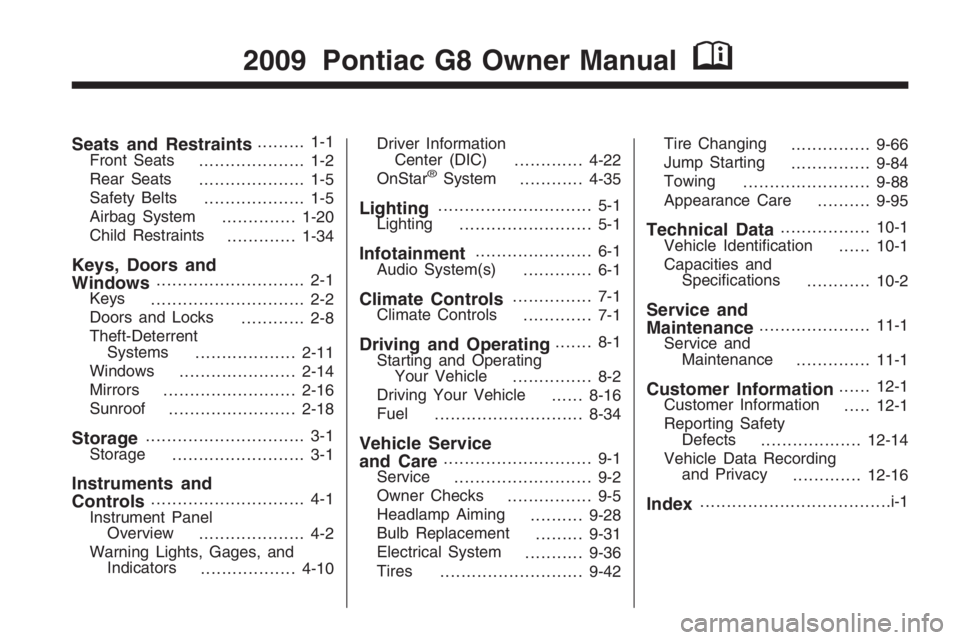

PONTIAC G8 2009 Owners Manual
Manufacturer: PONTIAC, Model Year: 2009, Model line: G8, Model: PONTIAC G8 2009Pages: 356, PDF Size: 1.83 MB
Page 1 of 356
Seats and Restraints......... 1-1
Front Seats
.................... 1-2
Rear Seats
.................... 1-5
Safety Belts
................... 1-5
Airbag System
..............1-20
Child Restraints
.............1-34
Keys, Doors and
Windows............................ 2-1
Keys
............................. 2-2
Doors and Locks
............ 2-8
Theft-Deterrent
Systems
...................2-11
Windows
......................2-14
Mirrors
.........................2-16
Sunroof
........................2-18
Storage.............................. 3-1
Storage
......................... 3-1
Instruments and
Controls............................. 4-1
Instrument Panel
Overview
.................... 4-2
Warning Lights, Gages, and
Indicators
..................4-10Driver Information
Center (DIC)
.............4-22
OnStar
®System
............4-35
Lighting............................. 5-1
Lighting
......................... 5-1
Infotainment...................... 6-1
Audio System(s)
............. 6-1
Climate Controls............... 7-1
Climate Controls
............. 7-1
Driving and Operating....... 8-1
Starting and Operating
Your Vehicle
............... 8-2
Driving Your Vehicle
......8-16
Fuel
............................8-34
Vehicle Service
and Care............................ 9-1
Service
.......................... 9-2
Owner Checks
................ 9-5
Headlamp Aiming
..........9-28
Bulb Replacement
.........9-31
Electrical System
...........9-36
Tires
...........................9-42Tire Changing
...............9-66
Jump Starting
...............9-84
Towing
........................9-88
Appearance Care
..........9-95
Technical Data.................10-1
Vehicle Identi cation
......10-1
Capacities and
Speci cations
............10-2
Service and
Maintenance.....................11-1
Service and
Maintenance
..............11-1
Customer Information......12-1
Customer Information
.....12-1
Reporting Safety
Defects
...................12-14
Vehicle Data Recording
and Privacy
.............12-16
Index....................................i-1
2009 Pontiac G8 Owner ManualM
Page 2 of 356

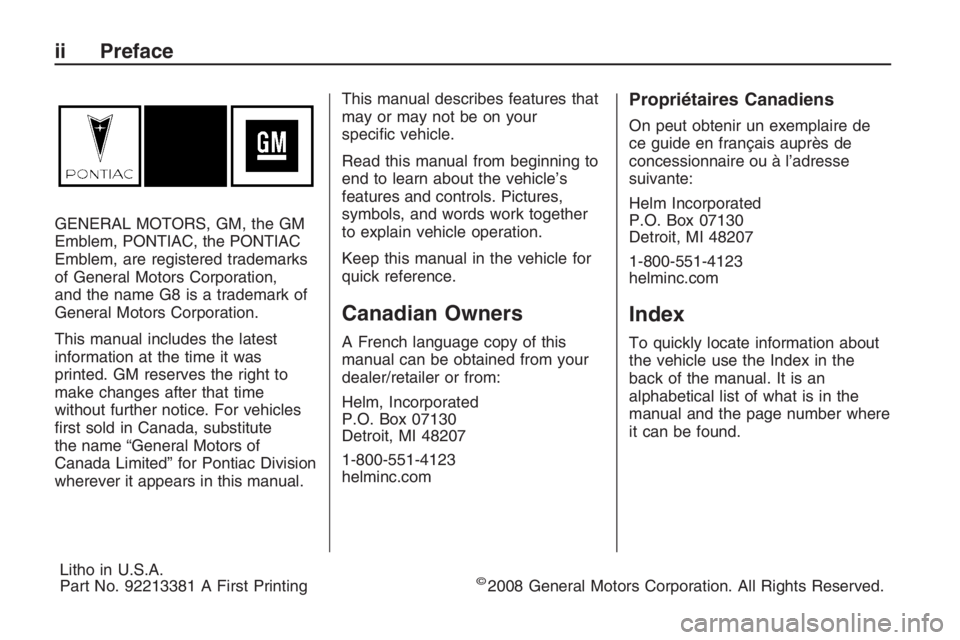

GENERAL MOTORS, GM, the GM
Emblem, PONTIAC, the PONTIAC
Emblem, are registered trademarks
of General Motors Corporation,
and the name G8 is a trademark of
General Motors Corporation.
This manual includes the latest
information at the time it was
printed. GM reserves the right to
make changes after that time
without further notice. For vehicles
rst sold in Canada, substitute
the name “General Motors of
Canada Limited” for Pontiac Division
wherever it appears in this manual.This manual describes features that
may or may not be on your
speci c vehicle.
Read this manual from beginning to
end to learn about the vehicle’s
features and controls. Pictures,
symbols, and words work together
to explain vehicle operation.
Keep this manual in the vehicle for
quick reference.
Canadian Owners
A French language copy of this
manual can be obtained from your
dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de
ce guide en français auprès de
concessionnaire ou à l’adresse
suivante:
Helm Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
helminc.com
Index
To quickly locate information about
the vehicle use the Index in the
back of the manual. It is an
alphabetical list of what is in the
manual and the page number where
it can be found.
ii Preface
Litho in U.S.A.
Part No. 92213381 A First Printing©2008 General Motors Corporation. All Rights Reserved.
Page 3 of 356

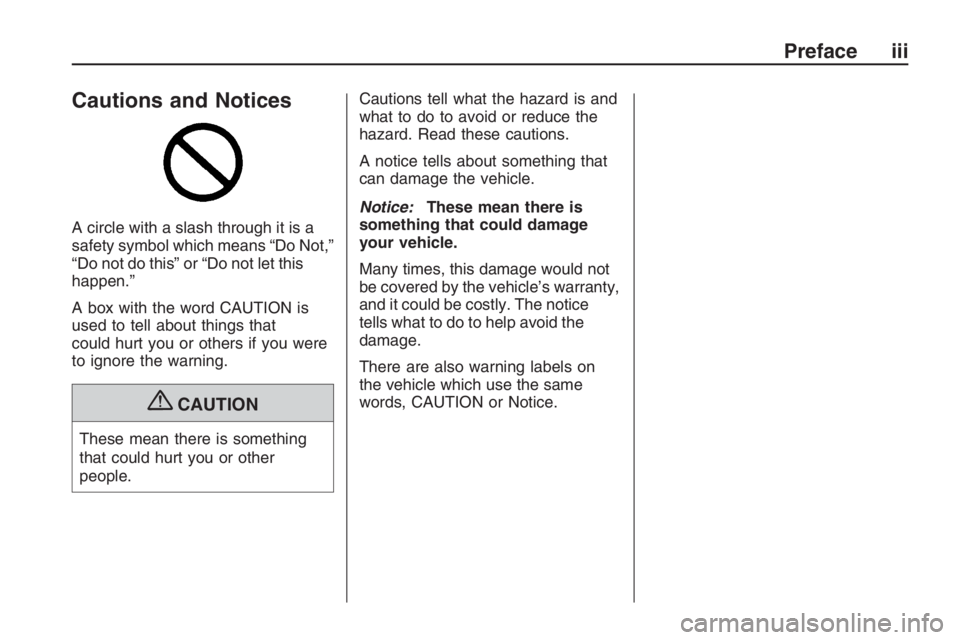

Cautions and Notices
A circle with a slash through it is a
safety symbol which means “Do Not,”
“Do not do this” or “Do not let this
happen.”
A box with the word CAUTION is
used to tell about things that
could hurt you or others if you were
to ignore the warning.
{CAUTION
These mean there is something
that could hurt you or other
people.Cautions tell what the hazard is and
what to do to avoid or reduce the
hazard. Read these cautions.
A notice tells about something that
can damage the vehicle.
Notice:These mean there is
something that could damage
your vehicle.
Many times, this damage would not
be covered by the vehicle’s warranty,
and it could be costly. The notice
tells what to do to help avoid the
damage.
There are also warning labels on
the vehicle which use the same
words, CAUTION or Notice.
Preface iii
Page 4 of 356

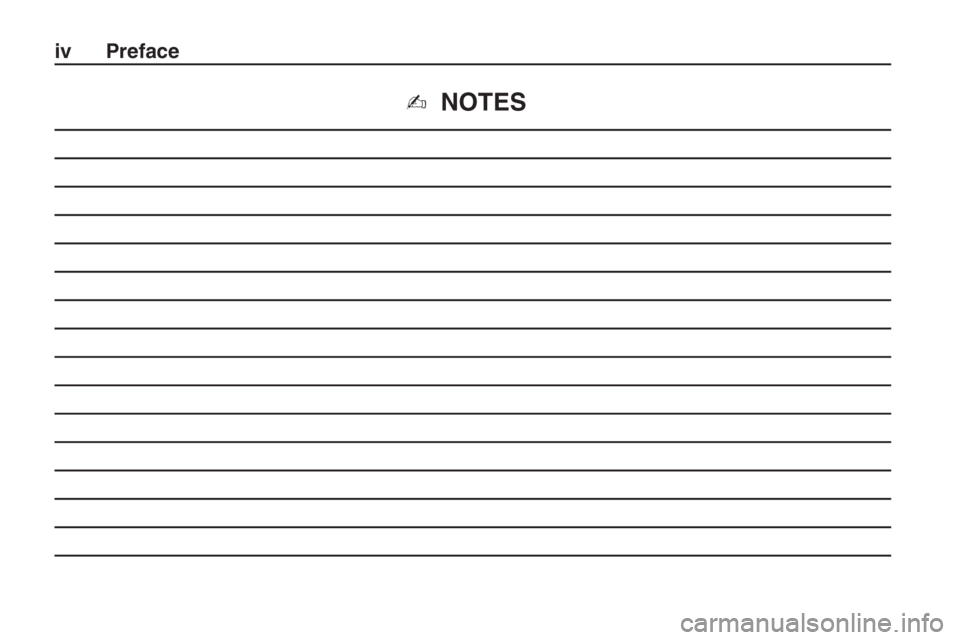

✍NOTES
iv Preface
Page 5 of 356

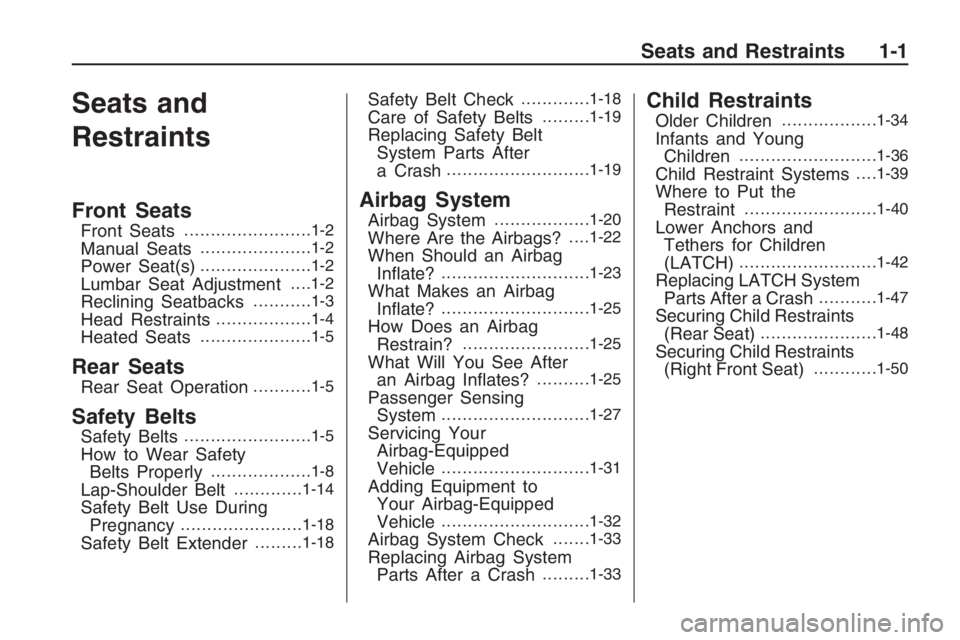

Seats and
Restraints
Front Seats
Front Seats........................1-2
Manual Seats.....................1-2
Power Seat(s).....................1-2
Lumbar Seat Adjustment. . . .1-2
Reclining Seatbacks...........1-3
Head Restraints..................1-4
Heated Seats.....................1-5
Rear Seats
Rear Seat Operation...........1-5
Safety Belts
Safety Belts........................1-5
How to Wear Safety
Belts Properly...................1-8
Lap-Shoulder Belt.............1-14
Safety Belt Use During
Pregnancy.......................1-18
Safety Belt Extender.........1-18
Safety Belt Check.............1-18
Care of Safety Belts.........1-19
Replacing Safety Belt
System Parts After
a Crash
...........................1-19
Airbag System
Airbag System..................1-20
Where Are the Airbags?. . . .1-22
When Should an Airbag
In ate?............................1-23
What Makes an Airbag
In ate?............................1-25
How Does an Airbag
Restrain?........................1-25
What Will You See After
an Airbag In ates?..........1-25
Passenger Sensing
System............................1-27
Servicing Your
Airbag-Equipped
Vehicle
............................1-31
Adding Equipment to
Your Airbag-Equipped
Vehicle
............................1-32
Airbag System Check.......1-33
Replacing Airbag System
Parts After a Crash.........1-33
Child Restraints
Older Children..................1-34
Infants and Young
Children..........................1-36
Child Restraint Systems. . . .1-39
Where to Put the
Restraint.........................1-40
Lower Anchors and
Tethers for Children
(LATCH)
..........................1-42
Replacing LATCH System
Parts After a Crash...........1-47
Securing Child Restraints
(Rear Seat)......................1-48
Securing Child Restraints
(Right Front Seat)............1-50
Seats and Restraints 1-1
Page 6 of 356

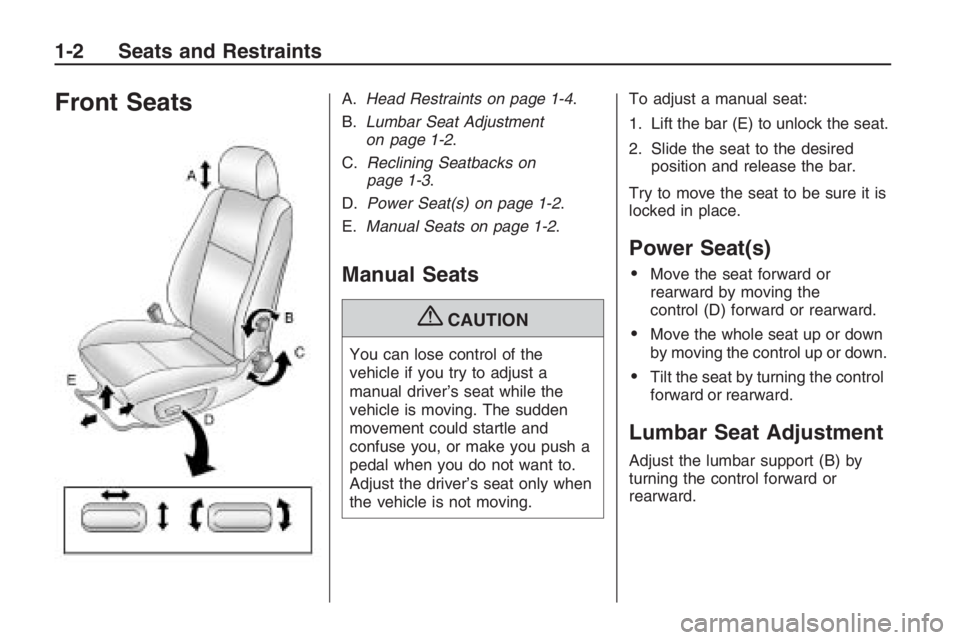

Front SeatsA.Head Restraints on page 1-4.
B.Lumbar Seat Adjustment
on page 1-2.
C.Reclining Seatbacks on
page 1-3.
D.Power Seat(s) on page 1-2.
E.Manual Seats on page 1-2.
Manual Seats
{CAUTION
You can lose control of the
vehicle if you try to adjust a
manual driver’s seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver’s seat only when
the vehicle is not moving.To adjust a manual seat:
1. Lift the bar (E) to unlock the seat.
2. Slide the seat to the desired
position and release the bar.
Try to move the seat to be sure it is
locked in place.
Power Seat(s)
Move the seat forward or
rearward by moving the
control (D) forward or rearward.
Move the whole seat up or down
by moving the control up or down.
Tilt the seat by turning the control
forward or rearward.
Lumbar Seat Adjustment
Adjust the lumbar support (B) by
turning the control forward or
rearward.
1-2 Seats and Restraints
Page 7 of 356

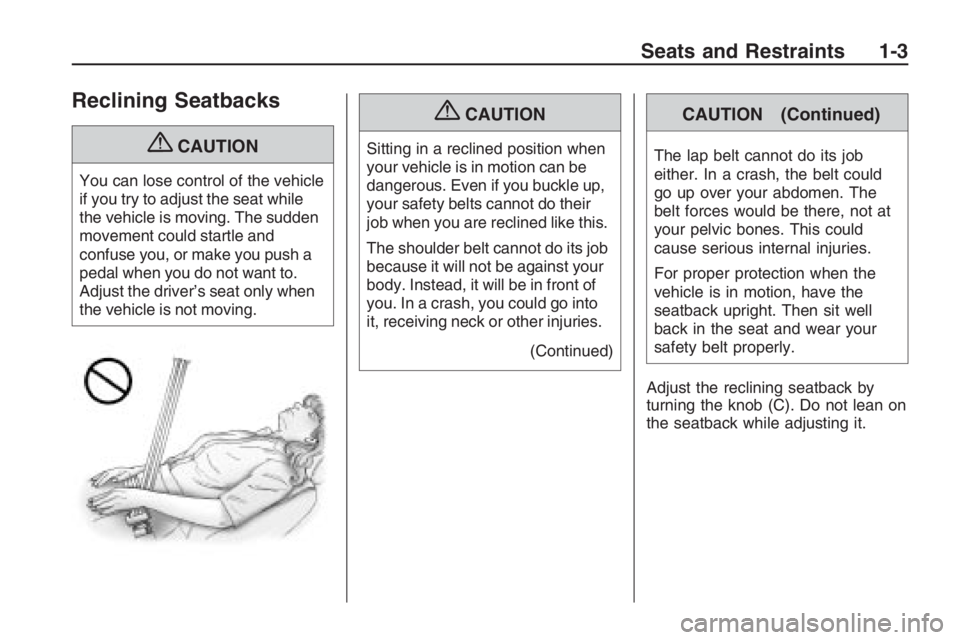

Reclining Seatbacks
{CAUTION
You can lose control of the vehicle
if you try to adjust the seat while
the vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver’s seat only when
the vehicle is not moving.
{CAUTION
Sitting in a reclined position when
your vehicle is in motion can be
dangerous. Even if you buckle up,
your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job
because it will not be against your
body. Instead, it will be in front of
you. In a crash, you could go into
it, receiving neck or other injuries.
(Continued)
CAUTION (Continued)
The lap belt cannot do its job
either. In a crash, the belt could
go up over your abdomen. The
belt forces would be there, not at
your pelvic bones. This could
cause serious internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear your
safety belt properly.
Adjust the reclining seatback by
turning the knob (C). Do not lean on
the seatback while adjusting it.
Seats and Restraints 1-3
Page 8 of 356

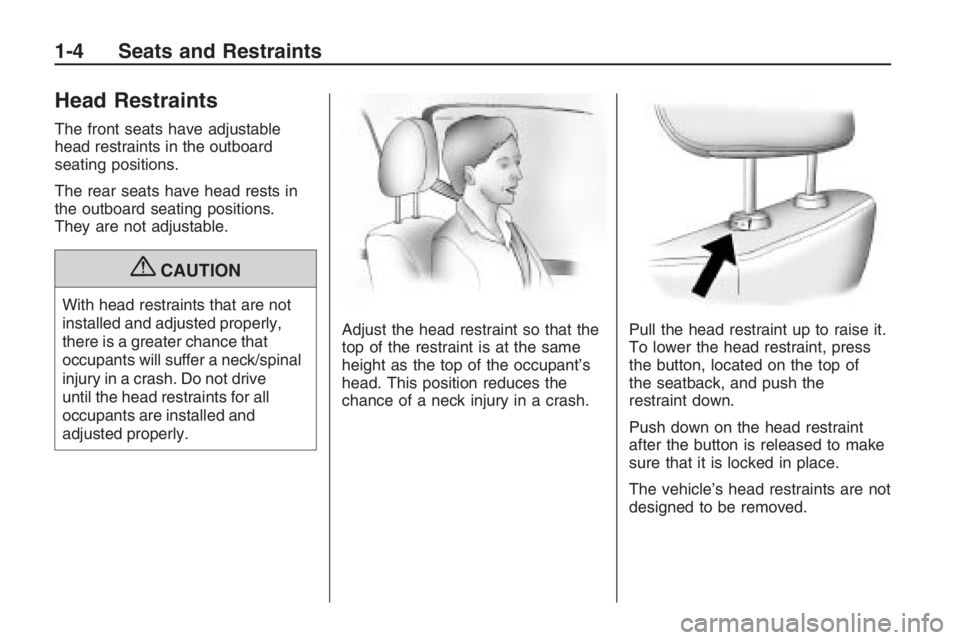

Head Restraints
The front seats have adjustable
head restraints in the outboard
seating positions.
The rear seats have head rests in
the outboard seating positions.
They are not adjustable.
{CAUTION
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/spinal
injury in a crash. Do not drive
until the head restraints for all
occupants are installed and
adjusted properly.Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant’s
head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint up to raise it.
To lower the head restraint, press
the button, located on the top of
the seatback, and push the
restraint down.
Push down on the head restraint
after the button is released to make
sure that it is locked in place.
The vehicle’s head restraints are not
designed to be removed.
1-4 Seats and Restraints
Page 9 of 356

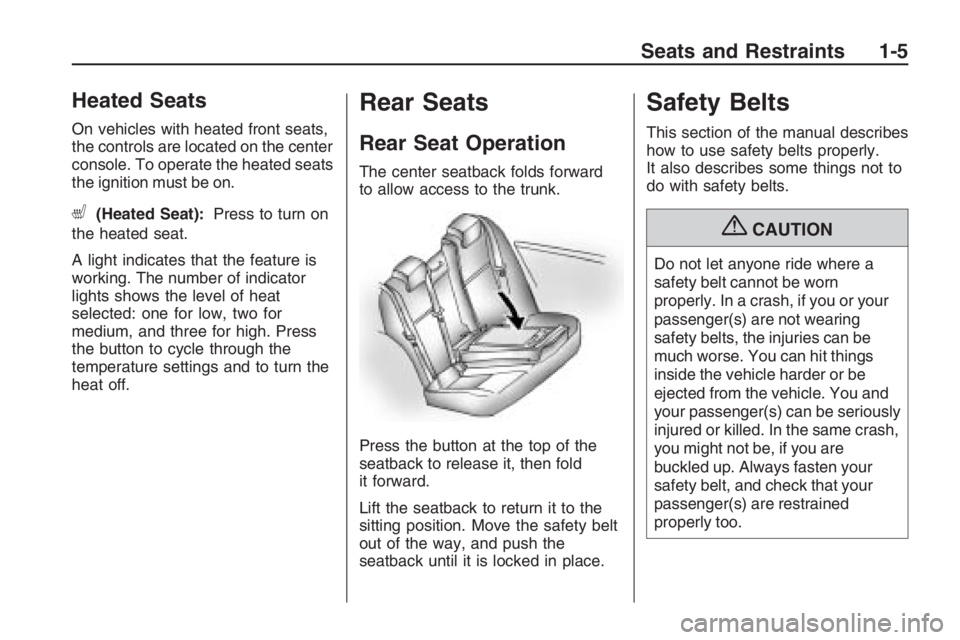

Heated Seats
On vehicles with heated front seats,
the controls are located on the center
console. To operate the heated seats
the ignition must be on.
L(Heated Seat):Press to turn on
the heated seat.
A light indicates that the feature is
working. The number of indicator
lights shows the level of heat
selected: one for low, two for
medium, and three for high. Press
the button to cycle through the
temperature settings and to turn the
heat off.
Rear Seats
Rear Seat Operation
The center seatback folds forward
to allow access to the trunk.
Press the button at the top of the
seatback to release it, then fold
it forward.
Lift the seatback to return it to the
sitting position. Move the safety belt
out of the way, and push the
seatback until it is locked in place.
Safety Belts
This section of the manual describes
how to use safety belts properly.
It also describes some things not to
do with safety belts.
{CAUTION
Do not let anyone ride where a
safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, the injuries can be
much worse. You can hit things
inside the vehicle harder or be
ejected from the vehicle. You and
your passenger(s) can be seriously
injured or killed. In the same crash,
you might not be, if you are
buckled up. Always fasten your
safety belt, and check that your
passenger(s) are restrained
properly too.
Seats and Restraints 1-5
Page 10 of 356

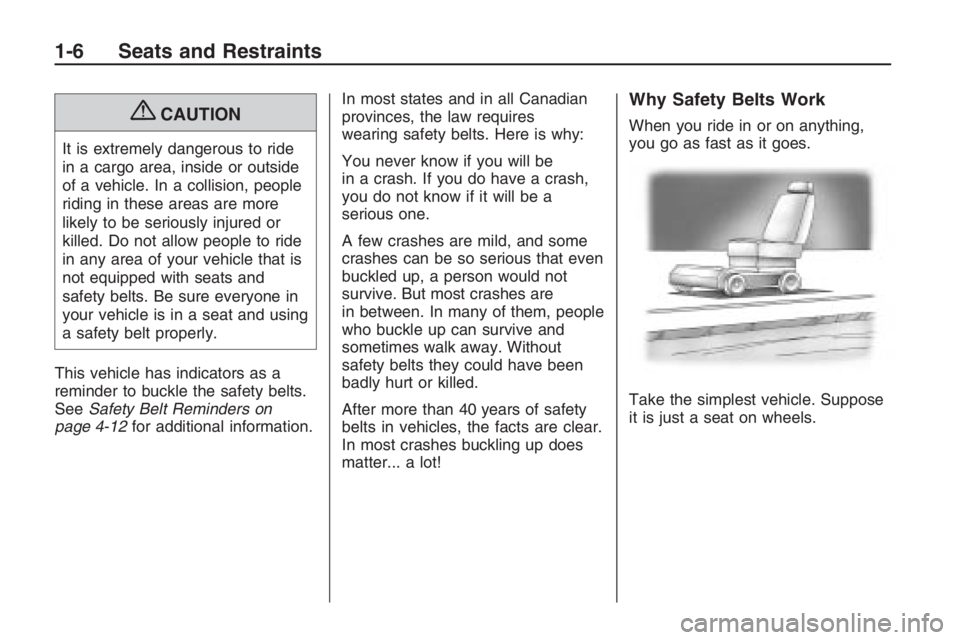

{CAUTION
It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed. Do not allow people to ride
in any area of your vehicle that is
not equipped with seats and
safety belts. Be sure everyone in
your vehicle is in a seat and using
a safety belt properly.
This vehicle has indicators as a
reminder to buckle the safety belts.
SeeSafety Belt Reminders on
page 4-12for additional information.In most states and in all Canadian
provinces, the law requires
wearing safety belts. Here is why:
You never know if you will be
in a crash. If you do have a crash,
you do not know if it will be a
serious one.
A few crashes are mild, and some
crashes can be so serious that even
buckled up, a person would not
survive. But most crashes are
in between. In many of them, people
who buckle up can survive and
sometimes walk away. Without
safety belts they could have been
badly hurt or killed.
After more than 40 years of safety
belts in vehicles, the facts are clear.
In most crashes buckling up does
matter... a lot!
Why Safety Belts Work
When you ride in or on anything,
you go as fast as it goes.
Take the simplest vehicle. Suppose
it is just a seat on wheels.
1-6 Seats and Restraints
