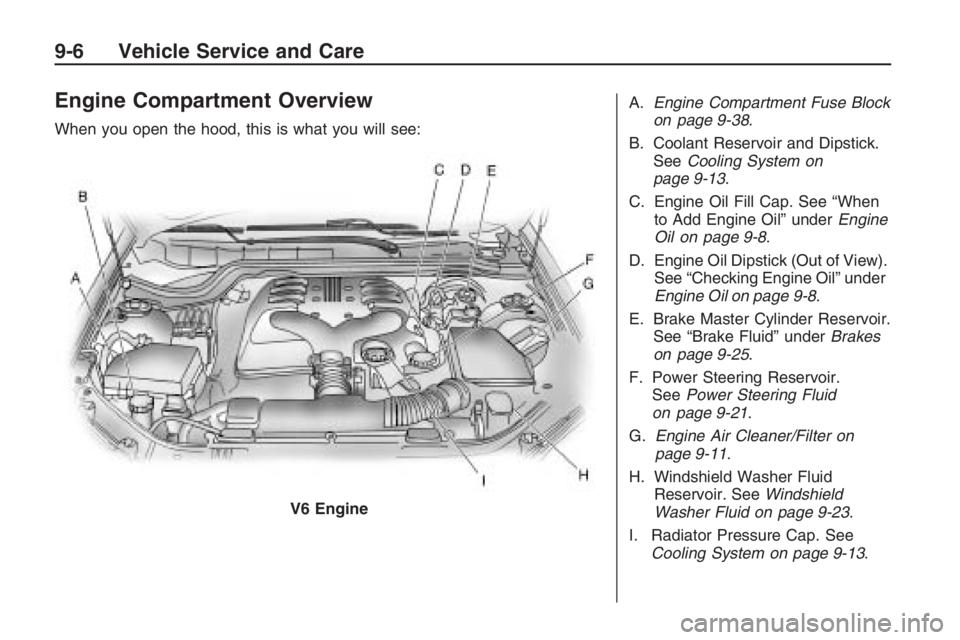

Engine Compartment Overview
When you open the hood, this is what you will see:A.
Engine Compartment Fuse Block
on page 9-38 .
B. Coolant Reservoir and Dipstick. See Cooling System on
page 9-13 .
C. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine
Oil on page 9-8 .
D. Engine Oil Dipstick (Out of View). See “Checking Engine Oil” under
Engine Oil on page 9-8 .
E. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes
on page 9-25 .
F. Power Steering Reservoir. See Power Steering Fluid
on page 9-21 .
G. Engine Air Cleaner/Filter on
page 9-11 .
H. Windshield Washer Fluid Reservoir. See Windshield
Washer Fluid on page 9-23 .
I. Radiator Pressure Cap. See Cooling System on page 9-13 .
V6 Engine
9-6 Vehicle Service and Care

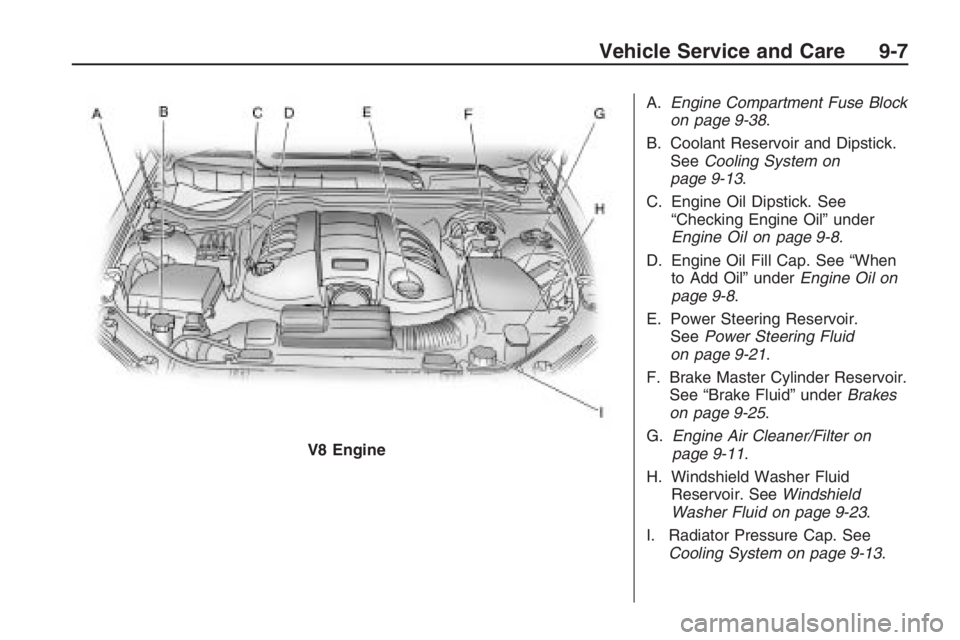

A.Engine Compartment Fuse Block
on page 9-38 .
B. Coolant Reservoir and Dipstick. See Cooling System on
page 9-13 .
C. Engine Oil Dipstick. See “Checking Engine Oil” under
Engine Oil on page 9-8 .
D. Engine Oil Fill Cap. See “When to Add Oil” under Engine Oil on
page 9-8 .
E. Power Steering Reservoir. See Power Steering Fluid
on page 9-21 .
F. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes
on page 9-25 .
G. Engine Air Cleaner/Filter on
page 9-11 .
H. Windshield Washer Fluid Reservoir. See Windshield
Washer Fluid on page 9-23 .
I. Radiator Pressure Cap. See Cooling System on page 9-13 .
V8 Engine
Vehicle Service and Care 9-7

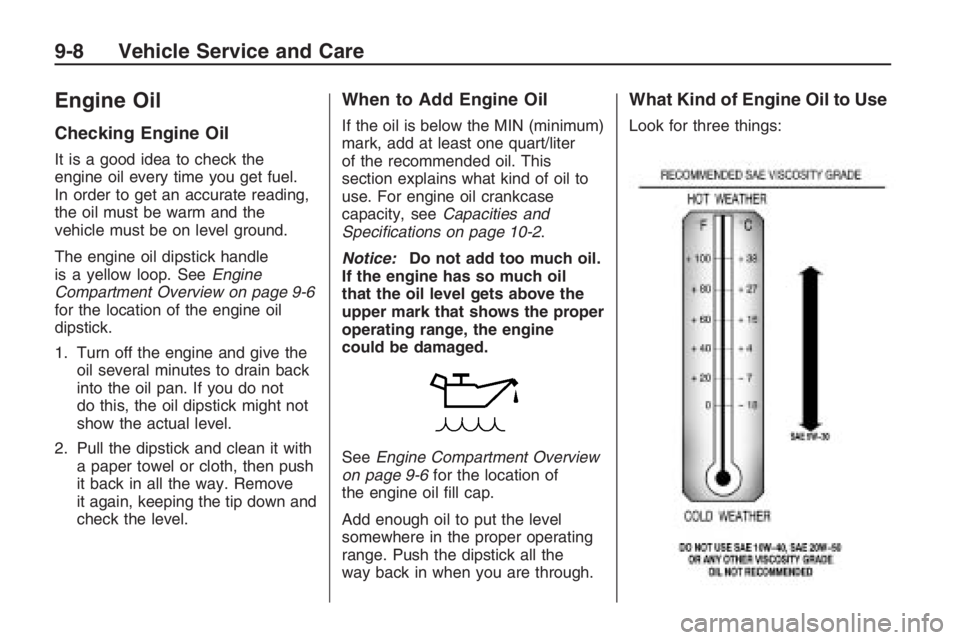

Engine Oil
Checking Engine Oil
It is a good idea to check the
engine oil every time you get fuel.
In order to get an accurate reading,
the oil must be warm and the
vehicle must be on level ground.
The engine oil dipstick handle
is a yellow loop. SeeEngine
Compartment Overview on page 9-6
for the location of the engine oil
dipstick.
1. Turn off the engine and give the
oil several minutes to drain back
into the oil pan. If you do not
do this, the oil dipstick might not
show the actual level.
2. Pull the dipstick and clean it with
a paper towel or cloth, then push
it back in all the way. Remove
it again, keeping the tip down and
check the level.
When to Add Engine Oil
If the oil is below the MIN (minimum)
mark, add at least one quart/liter
of the recommended oil. This
section explains what kind of oil to
use. For engine oil crankcase
capacity, seeCapacities and
Specifications on page 10-2.
Notice:Do not add too much oil.
If the engine has so much oil
that the oil level gets above the
upper mark that shows the proper
operating range, the engine
could be damaged.
SeeEngine Compartment Overview
on page 9-6for the location of
the engine oil ll cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the
way back in when you are through.
What Kind of Engine Oil to Use
Look for three things:
9-8 Vehicle Service and Care

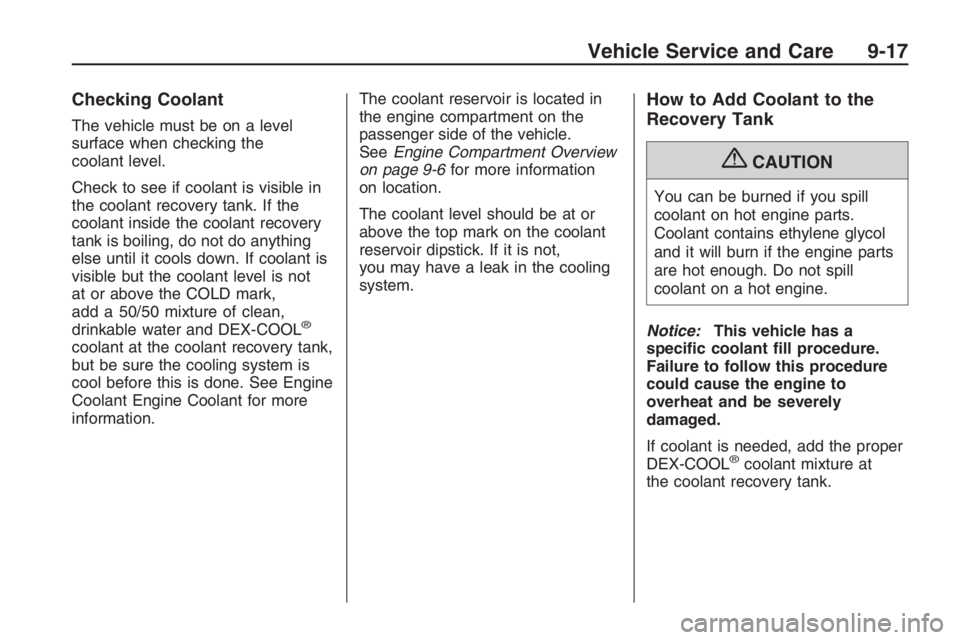

Checking Coolant
The vehicle must be on a level
surface when checking the
coolant level.
Check to see if coolant is visible in
the coolant recovery tank. If the
coolant inside the coolant recovery
tank is boiling, do not do anything
else until it cools down. If coolant is
visible but the coolant level is not
at or above the COLD mark,
add a 50/50 mixture of clean,
drinkable water and DEX-COOL
®
coolant at the coolant recovery tank,
but be sure the cooling system is
cool before this is done. See Engine
Coolant Engine Coolant for more
information.The coolant reservoir is located in
the engine compartment on the
passenger side of the vehicle.
SeeEngine Compartment Overview
on page 9-6for more information
on location.
The coolant level should be at or
above the top mark on the coolant
reservoir dipstick. If it is not,
you may have a leak in the cooling
system.
How to Add Coolant to the
Recovery Tank
{CAUTION
You can be burned if you spill
coolant on hot engine parts.
Coolant contains ethylene glycol
and it will burn if the engine parts
are hot enough. Do not spill
coolant on a hot engine.
Notice:This vehicle has a
specic coolant ll procedure.
Failure to follow this procedure
could cause the engine to
overheat and be severely
damaged.
If coolant is needed, add the proper
DEX-COOL
®coolant mixture at
the coolant recovery tank.
Vehicle Service and Care 9-17
