Voltmeter Gage
The voltmeter shows the voltage
output of your battery.
It is located in the center of the
instrument panel.
Charging System Light
This light will come on briey when
you turn on the ignition, and the
engine is not running, as a check to
show it is working. Then it should
go out when the engine is started.If the light comes on and an
Alternator message on the Driver
Information Center (DIC) stays
on, you may have a problem with
the electrical charging system.
Have it checked by your
dealer/retailer.
Driving while this light is on could
drain your battery.
If you must drive a short distance
with the light on, be sure to turn off
all accessories, such as the radio
and air conditioner.
The Alternator message will remain
until
3(Trip/Fuel) or8(Enter)
are pressed, but the light will remain
until the problem is xed. SeeDIC
Warnings and Messages on
page 4-26for more information.
Brake System Warning
Light
Your vehicle’s hydraulic brake
system is divided into two parts.
If one part is not working, the other
part can still work and stop you.
For good braking, though, you need
both parts working well.
If the warning light comes on, there
is a brake problem. Have your
brake system inspected right away.
If your vehicle has anti-lock brakes,
this light should come on when
you turn the key to START. If it does
not come on, have it xed so it
will be ready to warn you if there is
a problem.
United StatesCanada
Instruments and Controls 4-15

When the ignition is on, the brake
system warning light will also
come on when you set your parking
brake. The light will stay on if
your parking brake does not release
fully. If it stays on after your
parking brake is fully released, it
means you have a brake problem.
If the light comes on and Brake
message comes on the Driver
Information Center (DIC), while you
are driving, pull off the road and
stop carefully. You may notice that
the pedal is harder to push or
the pedal may go closer to the oor.
It may take longer to stop. If the
light is still on, have the vehicle
towed for service. SeeAntilock
Brake System (ABS) Warning Light
on page 4-16andTowing Your
Vehicle on page 9-88.{CAUTION
The brake system might not be
working properly if the brake
system warning light is on.
Driving with the brake system
warning light on can lead to a
crash. If the light is still on after the
vehicle has been pulled off the
road and carefully stopped, have
the vehicle towed for service.
The Brake message will remain until
3(Trip/Fuel) or8(Enter) are
pressed, but the brake light will
remain until the problem is xed.
SeeDIC Warnings and Messages
on page 4-26for more information.
Antilock Brake System
(ABS) Warning Light
For vehicles with the Antilock Brake
System (ABS), this light will come on
briey, as a check, when you start
your vehicle.
If it does not, have your vehicle
serviced so that the light works
properly when it needs to.
If the light and a message in the DIC
stays on longer than a few seconds
after you start your engine, or comes
on and stays on while you are
driving, try resetting the system.
To reset the system:
1. If you are driving, pull over when
it is safe to do so.
2. Place the vehicle in P (Park).
3. Turn off the ignition.
4. Then restart the engine.
4-16 Instruments and Controls

If the light remains on after resetting
the system or comes on again
while driving, your vehicle needs
service. If the ABS light is on,
but the regular brake system
warning light is not on, the antilock
brakes are not working properly,
but the regular brakes are still
functioning. Have your vehicle
serviced right away. If both brake
lights are on, you do not have
antilock brakes, and there’s a
problem with your regular brakes as
well. Have your vehicle towed for
service. SeeTowing Your Vehicle
on page 9-88.
The ABS Fault message will remain
until
3(Trip/Fuel) or8(Enter)
are pressed, but the warning
light will remain until the problem is
xed. SeeDIC Warnings and
Messages on page 4-26for more
information.
Engine Coolant
Temperature Gage
This gage shows the engine coolant
temperature. If the gage pointer
moves into the red area, the engine
is too hot. It means that the engine
has overheated. Pull off the road,
stop the vehicle, and turn off the
engine as soon as possible. See
Engine Overheating on page 9-20.
Tire Pressure Light
TPMS Light
This light comes on briey when the
engine is started and provides
information about tire pressures and
the Tire Pressure Monitoring System.When the Light is On Steady
This light will also come on when
one or more of your tires are
signicantly underinated. A CHECK
TIRE PRESSURE DIC message
will accompany the light.
SeeDIC Warnings and Messages
on page 4-26for more information.
Stop and check your tires as soon
as it is safe to do so. If underinated,
inate to the proper pressure.
SeeTires on page 9-42for more
information.
When the Light Flashes First and
Then is On Steady
This indicates that there may be a
problem with the Tire Pressure
Monitor System.
The light ashes for about a minute
and stays on on steady for the
remainder of the ignition cycle.
This sequence will repeat with every
ignition cycle. SeeTire Pressure
Monitor System on page 9-52
andTire Pressure Monitor Operation
on page 9-54for more information.
Instruments and Controls 4-17

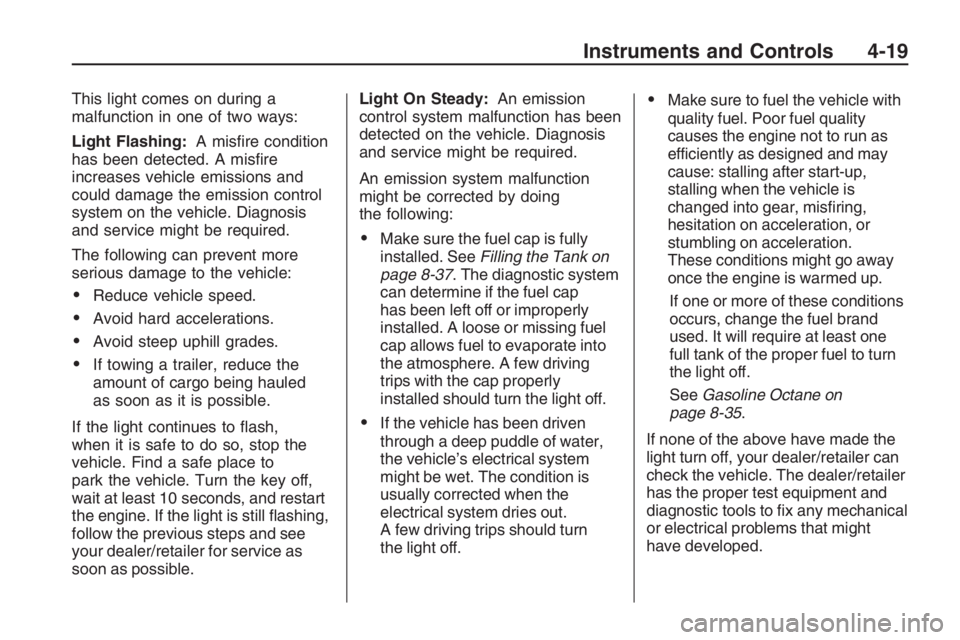

This light comes on during a
malfunction in one of two ways:
Light Flashing:A misre condition
has been detected. A misre
increases vehicle emissions and
could damage the emission control
system on the vehicle. Diagnosis
and service might be required.
The following can prevent more
serious damage to the vehicle:
Reduce vehicle speed.
Avoid hard accelerations.
Avoid steep uphill grades.
If towing a trailer, reduce the
amount of cargo being hauled
as soon as it is possible.
If the light continues to ash,
when it is safe to do so, stop the
vehicle. Find a safe place to
park the vehicle. Turn the key off,
wait at least 10 seconds, and restart
the engine. If the light is still ashing,
follow the previous steps and see
your dealer/retailer for service as
soon as possible.Light On Steady:An emission
control system malfunction has been
detected on the vehicle. Diagnosis
and service might be required.
An emission system malfunction
might be corrected by doing
the following:
Make sure the fuel cap is fully
installed. SeeFilling the Tank on
page 8-37. The diagnostic system
can determine if the fuel cap
has been left off or improperly
installed. A loose or missing fuel
cap allows fuel to evaporate into
the atmosphere. A few driving
trips with the cap properly
installed should turn the light off.
If the vehicle has been driven
through a deep puddle of water,
the vehicle’s electrical system
might be wet. The condition is
usually corrected when the
electrical system dries out.
A few driving trips should turn
the light off.
Make sure to fuel the vehicle with
quality fuel. Poor fuel quality
causes the engine not to run as
efficiently as designed and may
cause: stalling after start-up,
stalling when the vehicle is
changed into gear, misring,
hesitation on acceleration, or
stumbling on acceleration.
These conditions might go away
once the engine is warmed up.
If one or more of these conditions
occurs, change the fuel brand
used. It will require at least one
full tank of the proper fuel to turn
the light off.
SeeGasoline Octane on
page 8-35.
If none of the above have made the
light turn off, your dealer/retailer can
check the vehicle. The dealer/retailer
has the proper test equipment and
diagnostic tools to x any mechanical
or electrical problems that might
have developed.
Instruments and Controls 4-19

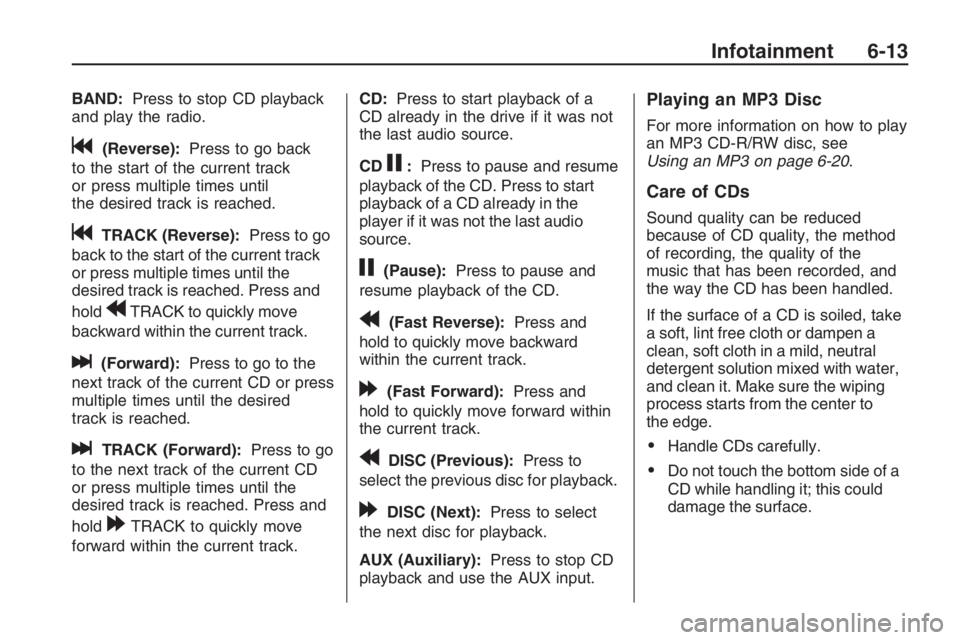

BAND:Press to stop CD playback
and play the radio.
g(Reverse):Press to go back
to the start of the current track
or press multiple times until
the desired track is reached.
gTRACK (Reverse):Press to go
back to the start of the current track
or press multiple times until the
desired track is reached. Press and
hold
rTRACK to quickly move
backward within the current track.
l(Forward):Press to go to the
next track of the current CD or press
multiple times until the desired
track is reached.
lTRACK (Forward):Press to go
to the next track of the current CD
or press multiple times until the
desired track is reached. Press and
hold
[TRACK to quickly move
forward within the current track.CD:Press to start playback of a
CD already in the drive if it was not
the last audio source.
CD
j:Press to pause and resume
playback of the CD. Press to start
playback of a CD already in the
player if it was not the last audio
source.
j(Pause):Press to pause and
resume playback of the CD.
r(Fast Reverse):Press and
hold to quickly move backward
within the current track.
[(Fast Forward):Press and
hold to quickly move forward within
the current track.
rDISC (Previous):Press to
select the previous disc for playback.
[DISC (Next):Press to select
the next disc for playback.
AUX (Auxiliary):Press to stop CD
playback and use the AUX input.
Playing an MP3 Disc
For more information on how to play
an MP3 CD-R/RW disc, see
Using an MP3 on page 6-20.
Care of CDs
Sound quality can be reduced
because of CD quality, the method
of recording, the quality of the
music that has been recorded, and
the way the CD has been handled.
If the surface of a CD is soiled, take
a soft, lint free cloth or dampen a
clean, soft cloth in a mild, neutral
detergent solution mixed with water,
and clean it. Make sure the wiping
process starts from the center to
the edge.
Handle CDs carefully.
Do not touch the bottom side of a
CD while handling it; this could
damage the surface.
Infotainment 6-13

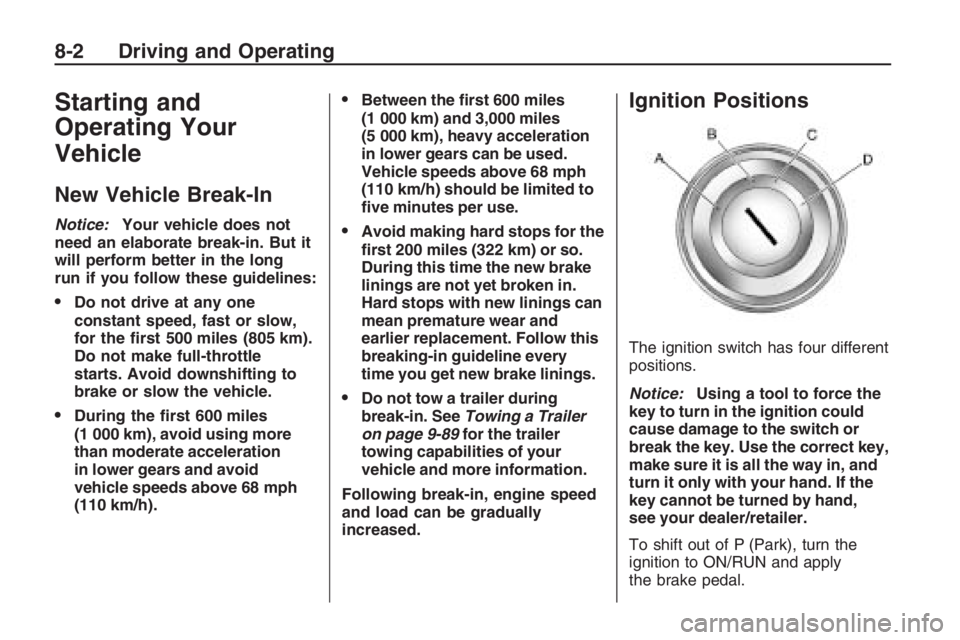

Starting and
Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not
need an elaborate break-in. But it
will perform better in the long
run if you follow these guidelines:
Do not drive at any one
constant speed, fast or slow,
for the rst 500 miles (805 km).
Do not make full-throttle
starts. Avoid downshifting to
brake or slow the vehicle.
During the rst 600 miles
(1 000 km), avoid using more
than moderate acceleration
in lower gears and avoid
vehicle speeds above 68 mph
(110 km/h).
Between the rst 600 miles
(1 000 km) and 3,000 miles
(5 000 km), heavy acceleration
in lower gears can be used.
Vehicle speeds above 68 mph
(110 km/h) should be limited to
ve minutes per use.
Avoid making hard stops for the
rst 200 miles (322 km) or so.
During this time the new brake
linings are not yet broken in.
Hard stops with new linings can
mean premature wear and
earlier replacement. Follow this
breaking-in guideline every
time you get new brake linings.
Do not tow a trailer during
break-in. SeeTowing a Trailer
on page 9-89for the trailer
towing capabilities of your
vehicle and more information.
Following break-in, engine speed
and load can be gradually
increased.
Ignition Positions
The ignition switch has four different
positions.
Notice:Using a tool to force the
key to turn in the ignition could
cause damage to the switch or
break the key. Use the correct key,
make sure it is all the way in, and
turn it only with your hand. If the
key cannot be turned by hand,
see your dealer/retailer.
To shift out of P (Park), turn the
ignition to ON/RUN and apply
the brake pedal.
8-2 Driving and Operating

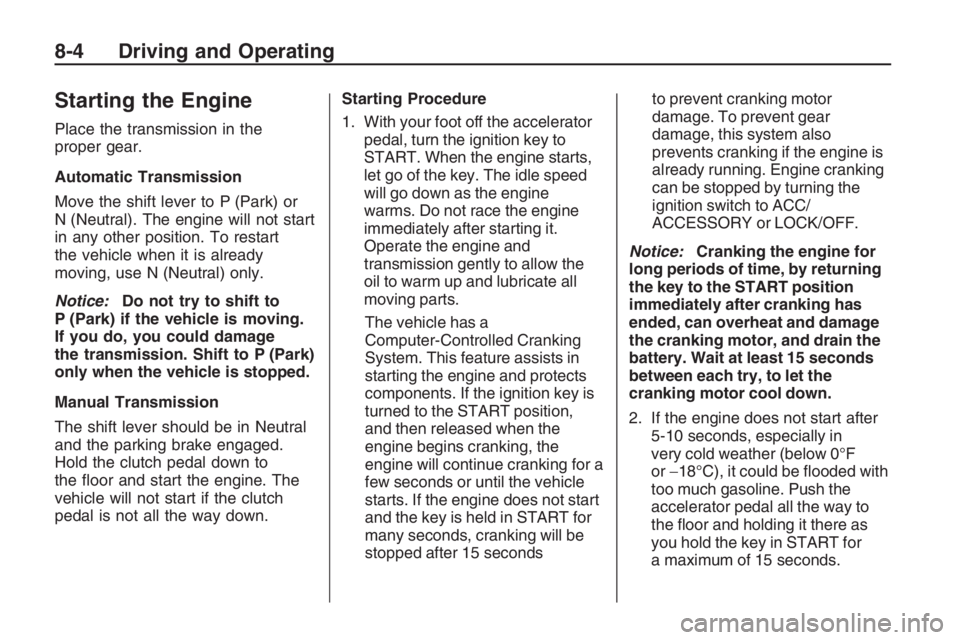

Starting the Engine
Place the transmission in the
proper gear.
Automatic Transmission
Move the shift lever to P (Park) or
N (Neutral). The engine will not start
in any other position. To restart
the vehicle when it is already
moving, use N (Neutral) only.
Notice:Do not try to shift to
P (Park) if the vehicle is moving.
If you do, you could damage
the transmission. Shift to P (Park)
only when the vehicle is stopped.
Manual Transmission
The shift lever should be in Neutral
and the parking brake engaged.
Hold the clutch pedal down to
the oor and start the engine. The
vehicle will not start if the clutch
pedal is not all the way down.Starting Procedure
1. With your foot off the accelerator
pedal, turn the ignition key to
START. When the engine starts,
let go of the key. The idle speed
will go down as the engine
warms. Do not race the engine
immediately after starting it.
Operate the engine and
transmission gently to allow the
oil to warm up and lubricate all
moving parts.
The vehicle has a
Computer-Controlled Cranking
System. This feature assists in
starting the engine and protects
components. If the ignition key is
turned to the START position,
and then released when the
engine begins cranking, the
engine will continue cranking for a
few seconds or until the vehicle
starts. If the engine does not start
and the key is held in START for
many seconds, cranking will be
stopped after 15 secondsto prevent cranking motor
damage. To prevent gear
damage, this system also
prevents cranking if the engine is
already running. Engine cranking
can be stopped by turning the
ignition switch to ACC/
ACCESSORY or LOCK/OFF.
Notice:Cranking the engine for
long periods of time, by returning
the key to the START position
immediately after cranking has
ended, can overheat and damage
the cranking motor, and drain the
battery. Wait at least 15 seconds
between each try, to let the
cranking motor cool down.
2. If the engine does not start after
5-10 seconds, especially in
very cold weather (below 0°F
or−18°C), it could be ooded with
too much gasoline. Push the
accelerator pedal all the way to
the oor and holding it there as
you hold the key in START for
a maximum of 15 seconds.
8-4 Driving and Operating

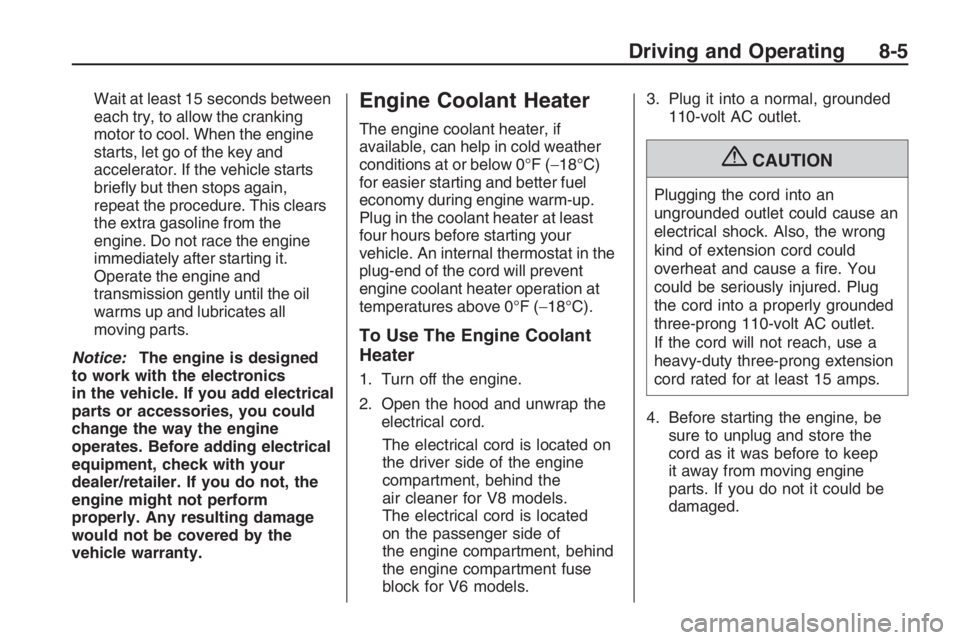

Wait at least 15 seconds between
each try, to allow the cranking
motor to cool. When the engine
starts, let go of the key and
accelerator. If the vehicle starts
briey but then stops again,
repeat the procedure. This clears
the extra gasoline from the
engine. Do not race the engine
immediately after starting it.
Operate the engine and
transmission gently until the oil
warms up and lubricates all
moving parts.
Notice:The engine is designed
to work with the electronics
in the vehicle. If you add electrical
parts or accessories, you could
change the way the engine
operates. Before adding electrical
equipment, check with your
dealer/retailer. If you do not, the
engine might not perform
properly. Any resulting damage
would not be covered by the
vehicle warranty.Engine Coolant Heater
The engine coolant heater, if
available, can help in cold weather
conditions at or below 0°F (−18°C)
for easier starting and better fuel
economy during engine warm-up.
Plug in the coolant heater at least
four hours before starting your
vehicle. An internal thermostat in the
plug-end of the cord will prevent
engine coolant heater operation at
temperatures above 0°F (−18°C).
To Use The Engine Coolant
Heater
1. Turn off the engine.
2. Open the hood and unwrap the
electrical cord.
The electrical cord is located on
the driver side of the engine
compartment, behind the
air cleaner for V8 models.
The electrical cord is located
on the passenger side of
the engine compartment, behind
the engine compartment fuse
block for V6 models.3. Plug it into a normal, grounded
110-volt AC outlet.
{CAUTION
Plugging the cord into an
ungrounded outlet could cause an
electrical shock. Also, the wrong
kind of extension cord could
overheat and cause a re. You
could be seriously injured. Plug
the cord into a properly grounded
three-prong 110-volt AC outlet.
If the cord will not reach, use a
heavy-duty three-prong extension
cord rated for at least 15 amps.
4. Before starting the engine, be
sure to unplug and store the
cord as it was before to keep
it away from moving engine
parts. If you do not it could be
damaged.
Driving and Operating 8-5

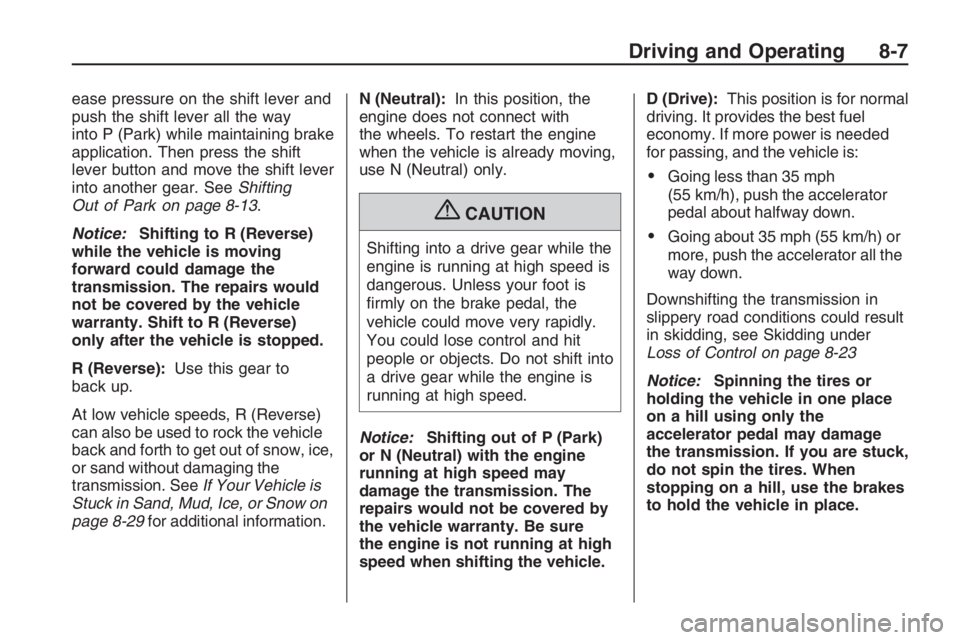

ease pressure on the shift lever and
push the shift lever all the way
into P (Park) while maintaining brake
application. Then press the shift
lever button and move the shift lever
into another gear. SeeShifting
Out of Park on page 8-13.
Notice:Shifting to R (Reverse)
while the vehicle is moving
forward could damage the
transmission. The repairs would
not be covered by the vehicle
warranty. Shift to R (Reverse)
only after the vehicle is stopped.
R (Reverse):Use this gear to
back up.
At low vehicle speeds, R (Reverse)
can also be used to rock the vehicle
back and forth to get out of snow, ice,
or sand without damaging the
transmission. SeeIf Your Vehicle is
Stuck in Sand, Mud, Ice, or Snow on
page 8-29for additional information.N (Neutral):In this position, the
engine does not connect with
the wheels. To restart the engine
when the vehicle is already moving,
use N (Neutral) only.
{CAUTION
Shifting into a drive gear while the
engine is running at high speed is
dangerous. Unless your foot is
rmly on the brake pedal, the
vehicle could move very rapidly.
You could lose control and hit
people or objects. Do not shift into
a drive gear while the engine is
running at high speed.
Notice:Shifting out of P (Park)
or N (Neutral) with the engine
running at high speed may
damage the transmission. The
repairs would not be covered by
the vehicle warranty. Be sure
the engine is not running at high
speed when shifting the vehicle.D (Drive):This position is for normal
driving. It provides the best fuel
economy. If more power is needed
for passing, and the vehicle is:
Going less than 35 mph
(55 km/h), push the accelerator
pedal about halfway down.
Going about 35 mph (55 km/h) or
more, push the accelerator all the
way down.
Downshifting the transmission in
slippery road conditions could result
in skidding, see Skidding under
Loss of Control on page 8-23
Notice:Spinning the tires or
holding the vehicle in one place
on a hill using only the
accelerator pedal may damage
the transmission. If you are stuck,
do not spin the tires. When
stopping on a hill, use the brakes
to hold the vehicle in place.
Driving and Operating 8-7

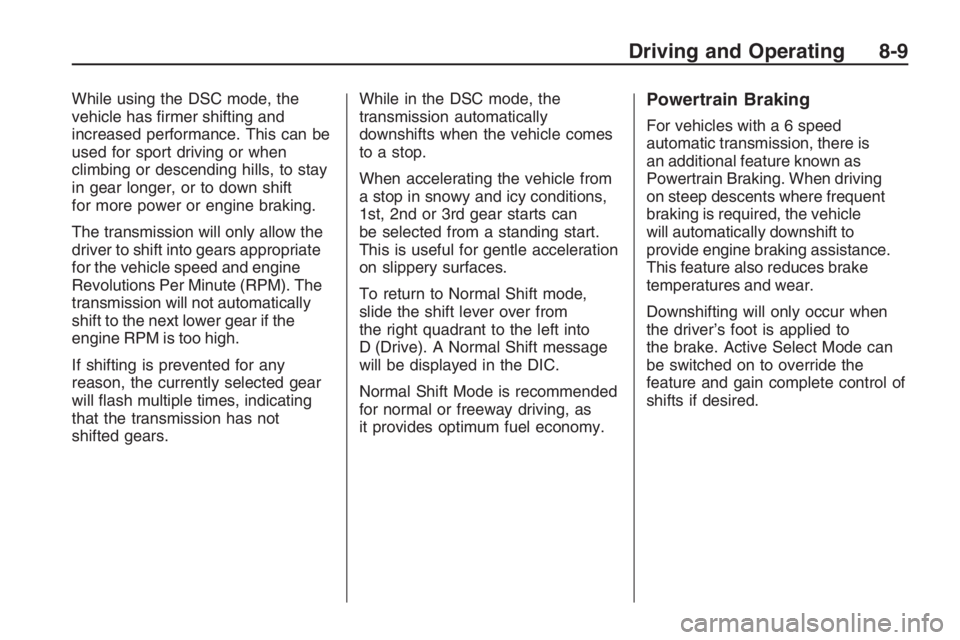

While using the DSC mode, the
vehicle has rmer shifting and
increased performance. This can be
used for sport driving or when
climbing or descending hills, to stay
in gear longer, or to down shift
for more power or engine braking.
The transmission will only allow the
driver to shift into gears appropriate
for the vehicle speed and engine
Revolutions Per Minute (RPM). The
transmission will not automatically
shift to the next lower gear if the
engine RPM is too high.
If shifting is prevented for any
reason, the currently selected gear
will ash multiple times, indicating
that the transmission has not
shifted gears.While in the DSC mode, the
transmission automatically
downshifts when the vehicle comes
to a stop.
When accelerating the vehicle from
a stop in snowy and icy conditions,
1st, 2nd or 3rd gear starts can
be selected from a standing start.
This is useful for gentle acceleration
on slippery surfaces.
To return to Normal Shift mode,
slide the shift lever over from
the right quadrant to the left into
D (Drive). A Normal Shift message
will be displayed in the DIC.
Normal Shift Mode is recommended
for normal or freeway driving, as
it provides optimum fuel economy.Powertrain Braking
For vehicles with a 6 speed
automatic transmission, there is
an additional feature known as
Powertrain Braking. When driving
on steep descents where frequent
braking is required, the vehicle
will automatically downshift to
provide engine braking assistance.
This feature also reduces brake
temperatures and wear.
Downshifting will only occur when
the driver’s foot is applied to
the brake. Active Select Mode can
be switched on to override the
feature and gain complete control of
shifts if desired.
Driving and Operating 8-9
