wheel size PONTIAC G8 2009 Owners Manual

Vehicle Service
and Care
Service
Service...............................9-2
Accessories and
Modications.....................9-3
California Proposition 65
Warning............................9-3
California Perchlorate
Materials Requirements.....9-3
Doing Your Own
Service Work....................9-4
Adding Equipment to the
Outside of the Vehicle......9-4
Owner Checks
Owner Checks....................9-5
Hood Release.....................9-5
Engine Compartment
Overview...........................9-6
Engine Oil..........................9-8
Engine Oil Life System.....9-10
Engine Air Cleaner/Filter. . . .9-11
Cooling System.................9-13
Engine Coolant.................9-15
Pressure Cap....................9-19
Engine Overheating...........9-20
Power Steering Fluid.........9-21
Windshield Washer Fluid. . . .9-23
Windshield Wiper Blade
Replacement...................9-24
Brakes..............................9-25
Battery..............................9-28
Headlamp Aiming
Headlamp Aiming..............9-28
Bulb Replacement
Bulb Replacement.............9-31
Halogen Bulbs..................9-31
Headlamps and Parking
Lamps.............................9-31
Front Turn Signal Lamps. . .9-33
Taillamps..........................9-34
License Plate Lamp..........9-35
Replacement Bulbs...........9-35
Electrical System
Add-On Electrical
Equipment.......................9-36
Headlamp Wiring..............9-36
Windshield Wiper Fuses. . . .9-36
Power Windows and
Other Power Options.......9-36
Instrument Panel
Fuse Block......................9-36
Engine Compartment
Fuse Block......................9-38
Rear Compartment
Fuse Block......................9-41
Tires
Tires.................................9-42
Tire Sidewall Labeling.......9-42
Tire Terminology and
Denitions.......................9-46
Ination - Tire Pressure. . . .9-49
High-Speed Operation.......9-51
Tire Pressure Monitor
System............................9-52
Tire Pressure Monitor
Operation........................9-54
Tire Inspection and
Rotation..........................9-57
When It Is Time for
New Tires.......................9-59
Buying New Tires.............9-59
Different Size Tires
and Wheels.....................9-61
Vehicle Service and Care 9-1

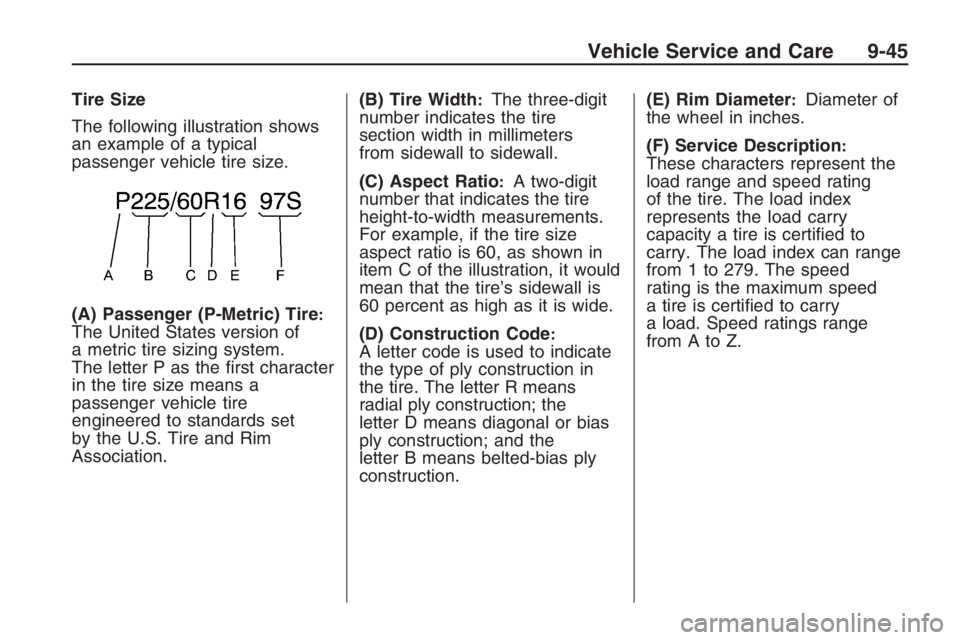

Tire Size
The following illustration shows
an example of a typical
passenger vehicle tire size.
(A) Passenger (P-Metric) Tire
:The United States version of
a metric tire sizing system.
The letter P as the rst character
in the tire size means a
passenger vehicle tire
engineered to standards set
by the U.S. Tire and Rim
Association.(B) Tire Width
:The three-digit
number indicates the tire
section width in millimeters
from sidewall to sidewall.
(C) Aspect Ratio
:A two-digit
number that indicates the tire
height-to-width measurements.
For example, if the tire size
aspect ratio is 60, as shown in
item C of the illustration, it would
mean that the tire’s sidewall is
60 percent as high as it is wide.
(D) Construction Code
:A letter code is used to indicate
the type of ply construction in
the tire. The letter R means
radial ply construction; the
letter D means diagonal or bias
ply construction; and the
letter B means belted-bias ply
construction.(E) Rim Diameter
:Diameter of
the wheel in inches.
(F) Service Description
:These characters represent the
load range and speed rating
of the tire. The load index
represents the load carry
capacity a tire is certied to
carry. The load index can range
from 1 to 279. The speed
rating is the maximum speed
a tire is certied to carry
a load. Speed ratings range
fromAtoZ.
Vehicle Service and Care 9-45

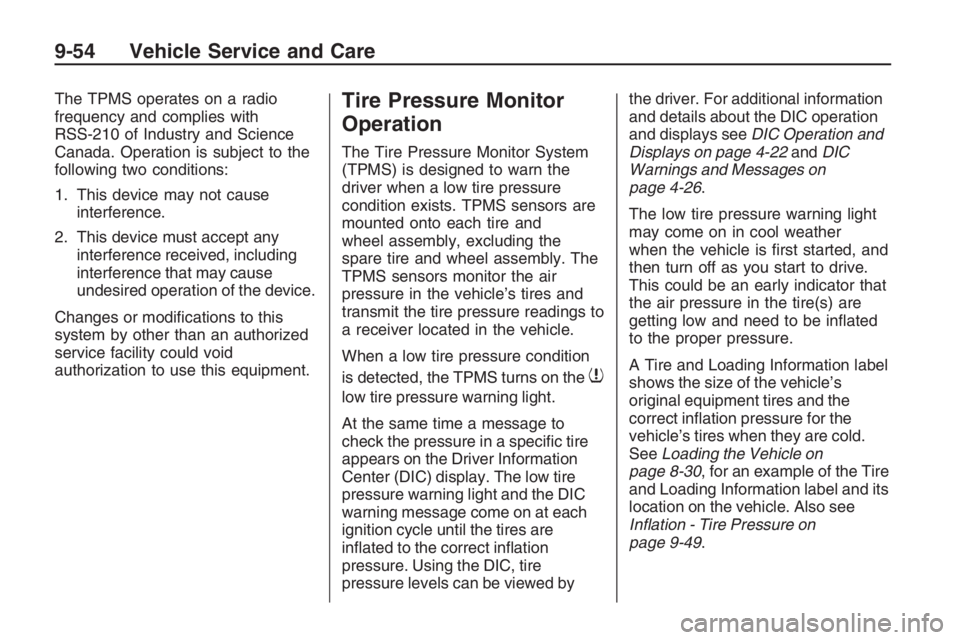

The TPMS operates on a radio
frequency and complies with
RSS-210 of Industry and Science
Canada. Operation is subject to the
following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the device.
Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.Tire Pressure Monitor
Operation
The Tire Pressure Monitor System
(TPMS) is designed to warn the
driver when a low tire pressure
condition exists. TPMS sensors are
mounted onto each tire and
wheel assembly, excluding the
spare tire and wheel assembly. The
TPMS sensors monitor the air
pressure in the vehicle’s tires and
transmit the tire pressure readings to
a receiver located in the vehicle.
When a low tire pressure condition
is detected, the TPMS turns on the
7
low tire pressure warning light.
At the same time a message to
check the pressure in a specic tire
appears on the Driver Information
Center (DIC) display. The low tire
pressure warning light and the DIC
warning message come on at each
ignition cycle until the tires are
inated to the correct ination
pressure. Using the DIC, tire
pressure levels can be viewed bythe driver. For additional information
and details about the DIC operation
and displays seeDIC Operation and
Displays on page 4-22andDIC
Warnings and Messages on
page 4-26.
The low tire pressure warning light
may come on in cool weather
when the vehicle is rst started, and
then turn off as you start to drive.
This could be an early indicator that
the air pressure in the tire(s) are
getting low and need to be inated
to the proper pressure.
A Tire and Loading Information label
shows the size of the vehicle’s
original equipment tires and the
correct ination pressure for the
vehicle’s tires when they are cold.
SeeLoading the Vehicle on
page 8-30, for an example of the Tire
and Loading Information label and its
location on the vehicle. Also see
Inflation - Tire Pressure on
page 9-49.
9-54 Vehicle Service and Care

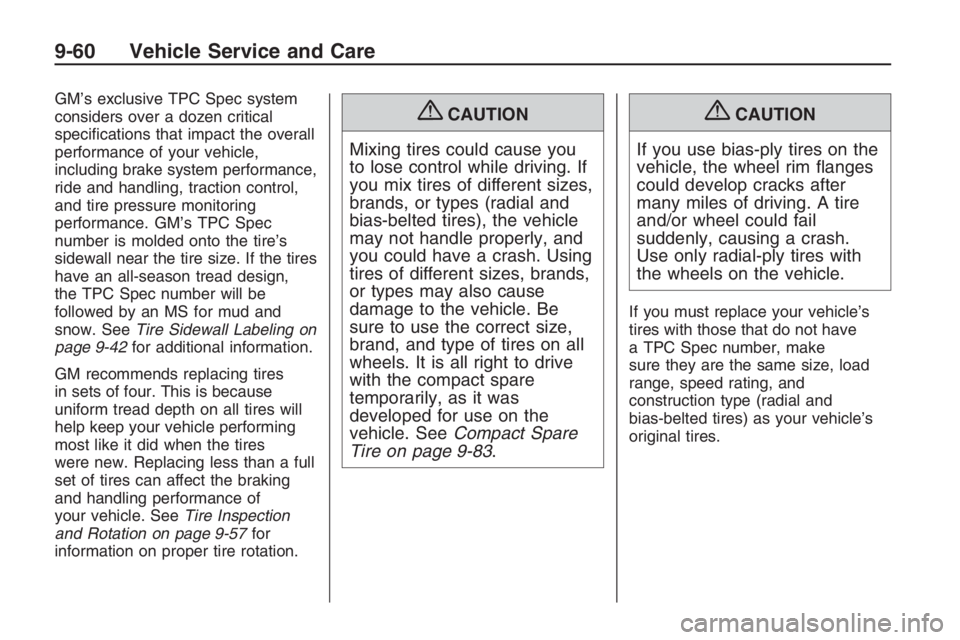

GM’s exclusive TPC Spec system
considers over a dozen critical
specications that impact the overall
performance of your vehicle,
including brake system performance,
ride and handling, traction control,
and tire pressure monitoring
performance. GM’s TPC Spec
number is molded onto the tire’s
sidewall near the tire size. If the tires
have an all-season tread design,
the TPC Spec number will be
followed by an MS for mud and
snow. SeeTire Sidewall Labeling on
page 9-42for additional information.
GM recommends replacing tires
in sets of four. This is because
uniform tread depth on all tires will
help keep your vehicle performing
most like it did when the tires
were new. Replacing less than a full
set of tires can affect the braking
and handling performance of
your vehicle. SeeTire Inspection
and Rotation on page 9-57for
information on proper tire rotation.{CAUTION
Mixing tires could cause you
to lose control while driving. If
you mix tires of different sizes,
brands, or types (radial and
bias-belted tires), the vehicle
may not handle properly, and
you could have a crash. Using
tires of different sizes, brands,
or types may also cause
damage to the vehicle. Be
sure to use the correct size,
brand, and type of tires on all
wheels. It is all right to drive
with the compact spare
temporarily, as it was
developed for use on the
vehicle. SeeCompact Spare
Tire on page 9-83.{CAUTION
If you use bias-ply tires on the
vehicle, the wheel rim anges
could develop cracks after
many miles of driving. A tire
and/or wheel could fail
suddenly, causing a crash.
Use only radial-ply tires with
the wheels on the vehicle.
If you must replace your vehicle’s
tires with those that do not have
a TPC Spec number, make
sure they are the same size, load
range, speed rating, and
construction type (radial and
bias-belted tires) as your vehicle’s
original tires.
9-60 Vehicle Service and Care

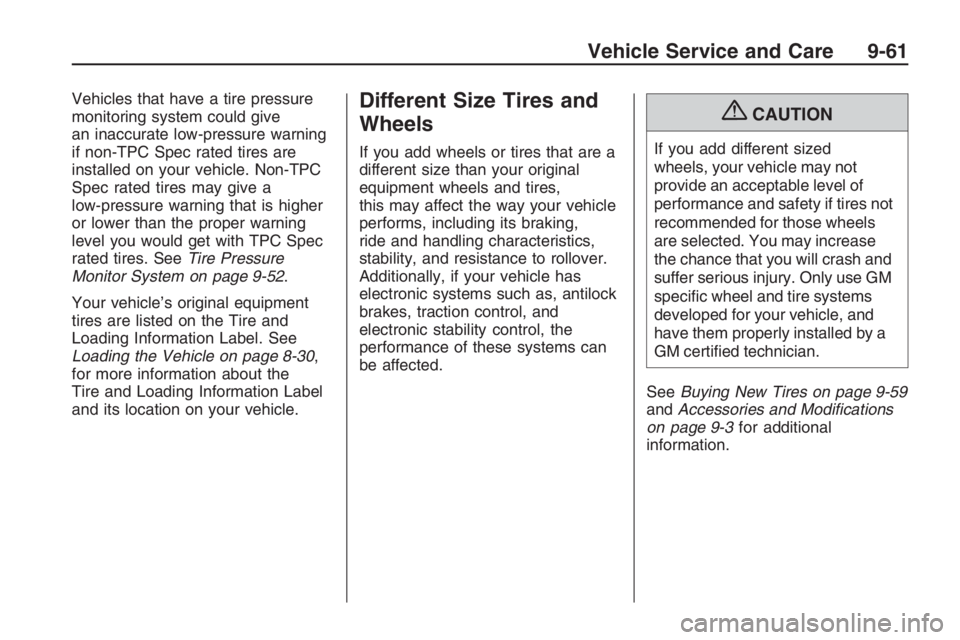

Vehicles that have a tire pressure
monitoring system could give
an inaccurate low-pressure warning
if non-TPC Spec rated tires are
installed on your vehicle. Non-TPC
Spec rated tires may give a
low-pressure warning that is higher
or lower than the proper warning
level you would get with TPC Spec
rated tires. SeeTire Pressure
Monitor System on page 9-52.
Your vehicle’s original equipment
tires are listed on the Tire and
Loading Information Label. See
Loading the Vehicle on page 8-30,
for more information about the
Tire and Loading Information Label
and its location on your vehicle.Different Size Tires and
Wheels
If you add wheels or tires that are a
different size than your original
equipment wheels and tires,
this may affect the way your vehicle
performs, including its braking,
ride and handling characteristics,
stability, and resistance to rollover.
Additionally, if your vehicle has
electronic systems such as, antilock
brakes, traction control, and
electronic stability control, the
performance of these systems can
be affected.
{CAUTION
If you add different sized
wheels, your vehicle may not
provide an acceptable level of
performance and safety if tires not
recommended for those wheels
are selected. You may increase
the chance that you will crash and
suffer serious injury. Only use GM
specic wheel and tire systems
developed for your vehicle, and
have them properly installed by a
GM certied technician.
SeeBuying New Tires on page 9-59
andAccessories and Modifications
on page 9-3for additional
information.
Vehicle Service and Care 9-61

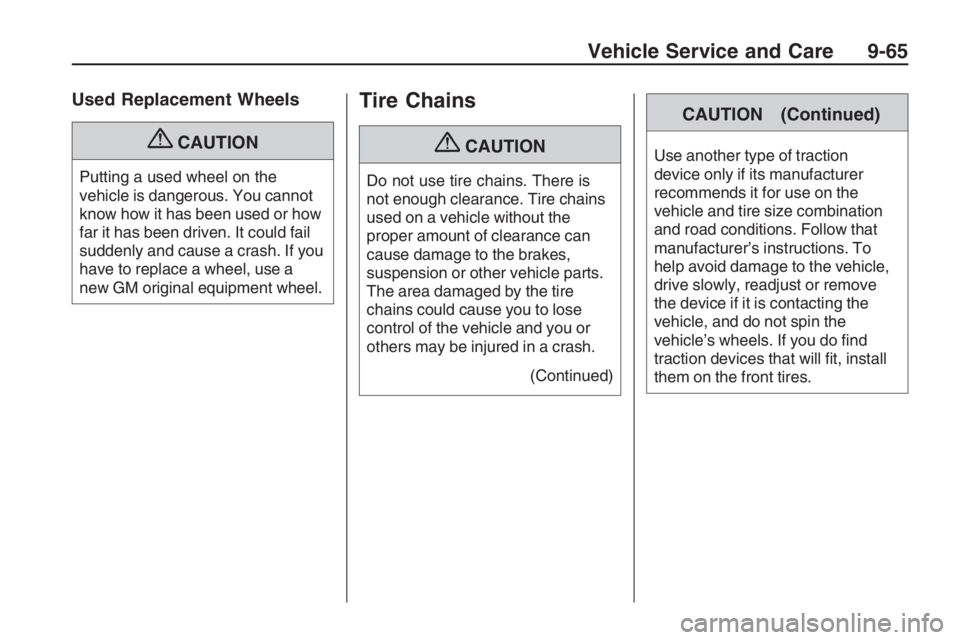

Used Replacement Wheels
{CAUTION
Putting a used wheel on the
vehicle is dangerous. You cannot
know how it has been used or how
far it has been driven. It could fail
suddenly and cause a crash. If you
have to replace a wheel, use a
new GM original equipment wheel.
Tire Chains
{CAUTION
Do not use tire chains. There is
not enough clearance. Tire chains
used on a vehicle without the
proper amount of clearance can
cause damage to the brakes,
suspension or other vehicle parts.
The area damaged by the tire
chains could cause you to lose
control of the vehicle and you or
others may be injured in a crash.
(Continued)
CAUTION (Continued)
Use another type of traction
device only if its manufacturer
recommends it for use on the
vehicle and tire size combination
and road conditions. Follow that
manufacturer’s instructions. To
help avoid damage to the vehicle,
drive slowly, readjust or remove
the device if it is contacting the
vehicle, and do not spin the
vehicle’s wheels. If you do nd
traction devices that will t, install
them on the front tires.
Vehicle Service and Care 9-65

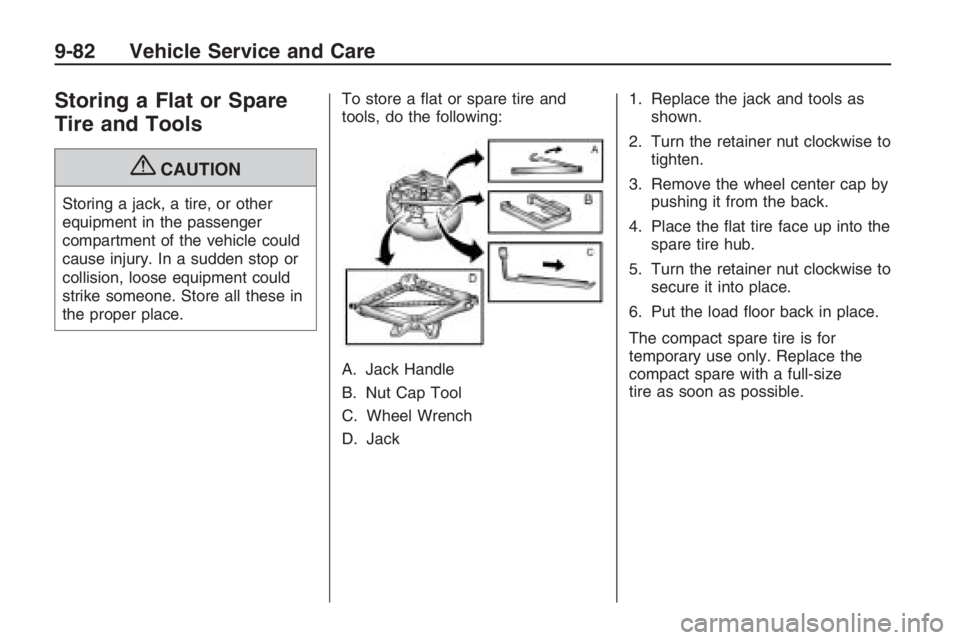

Storing a Flat or Spare
Tire and Tools
{CAUTION
Storing a jack, a tire, or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store all these in
the proper place.To store a at or spare tire and
tools, do the following:
A. Jack Handle
B. Nut Cap Tool
C. Wheel Wrench
D. Jack1. Replace the jack and tools as
shown.
2. Turn the retainer nut clockwise to
tighten.
3. Remove the wheel center cap by
pushing it from the back.
4. Place the at tire face up into the
spare tire hub.
5. Turn the retainer nut clockwise to
secure it into place.
6. Put the load oor back in place.
The compact spare tire is for
temporary use only. Replace the
compact spare with a full-size
tire as soon as possible.
9-82 Vehicle Service and Care

Compact Spare Tire

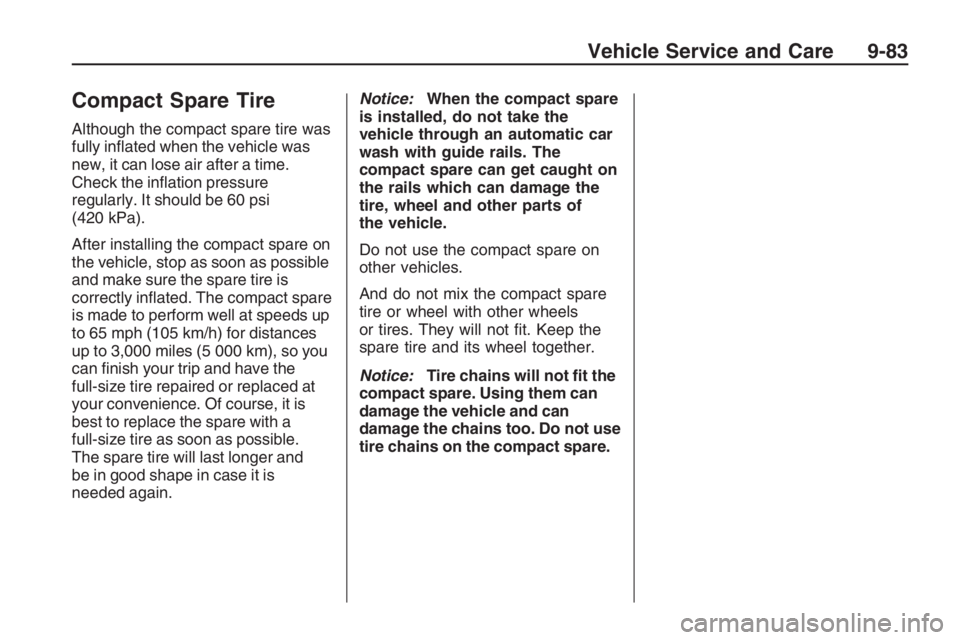

Although the compact spare tire was
fully inated when the vehicle was
new, it can lose air after a time.
Check the ination pressure
regularly. It should be 60 psi
(420 kPa).
After installing the compact spare on
the vehicle, stop as soon as possible
and make sure the spare tire is
correctly inated. The compact spare
is made to perform well at speeds up
to 65 mph (105 km/h) for distances
up to 3,000 miles (5 000 km), so you
can nish your trip and have the
full-size tire repaired or replaced at
your convenience. Of course, it is
best to replace the spare with a
full-size tire as soon as possible.
The spare tire will last longer and
be in good shape in case it is
needed again.Notice:When the compact spare
is installed, do not take the
vehicle through an automatic car
wash with guide rails. The
compact spare can get caught on
the rails which can damage the
tire, wheel and other parts of
the vehicle.
Do not use the compact spare on
other vehicles.
And do not mix the compact spare
tire or wheel with other wheels
or tires. They will not t. Keep the
spare tire and its wheel together.
Notice:Tire chains will not t the
compact spare. Using them can
damage the vehicle and can
damage the chains too. Do not use
tire chains on the compact spare.
Vehicle Service and Care 9-83

Spare Tire
Compact.........................9-83
Installing..........................9-77
Removing........................9-76
Storing............................9-82
Specications, Capacities......10-2
Speedometer.......................4-12
Start Vehicle, Remote............. 2-6
Starting the Engine................ 8-4
Steering..............................8-22
Steering Wheel Controls,
Audio..............................6-36
Steering Wheel, Tilt Wheel...... 4-4
Storage Areas
Center Console Storage
Area ............................. 3-1
Convenience Net................ 3-2
Cupholders........................ 3-1
Glove Box......................... 3-1
Stuck in Sand, Mud, Ice, or
Snow ..............................8-29
Sun Visors..........................2-15
Sunroof..............................2-18T
Tachometer.........................4-12
Taillamps............................9-34
Theft-Deterrent, Radio...........6-35
Theft-Deterrent Systems........2-11
Content Theft-Deterrent.....2-13
Immobilizer......................2-11
Immobilizer Operation........2-12
Tilt Wheel............................. 4-4
Time, Setting......................... 6-2
Tire
Pressure Light..................4-17
Tires..................................9-42
Buying New Tires.............9-59
Chains............................9-65
Changing a Flat Tire.........9-75
Compact Spare Tire..........9-83
Different Size...................9-61
High-Speed Operation.......9-51
If a Tire Goes Flat............9-66
Ination - Tire Pressure.....9-49
Inspection and Rotation.....9-57
Installing the Spare Tire.....9-77Tires (cont.)
Pressure Monitor
Operation.....................9-54
Pressure Monitor
System........................9-52
Removing the Flat Tire......9-77
Removing the Spare
Tire and Tools...............9-76
Storing a Flat or Spare
Tire and Tools...............9-82
Tire Sealant and
Compressor Kit.............9-67
Tire Sidewall Labeling.......9-42
Tire Terminology and
Denitions....................9-46
Uniform Tire Quality
Grading.......................9-62
Wheel Alignment and
Tire Balance.................9-64
Wheel Replacement..........9-64
When It Is Time for
New Tires....................9-59
INDEX i-9

Towing
Recreational Vehicle..........9-89
Towing a Trailer................9-89
Your Vehicle.....................9-88
Transmission Operation,
Automatic.......................... 8-6
Transmission Operation,
Manual............................8-10
Trunk.................................2-10
Turn and Lane-Change
Signals............................. 4-7
Turn Signal/Multifunction
Lever................................ 4-4
U
Uniform Tire Quality
Grading...........................9-62
V
Vehicle
Control............................8-17
Loading...........................8-30
Parking Your....................8-14
Running While Parked.......8-15Vehicle Data Recording
and Privacy....................12-16
Vehicle Identication
Number (VIN)...................10-1
Service Parts Identication
Label...........................10-1
Vehicle, Remote Start............. 2-6
Ventilation Adjustment............. 7-9
Visors.................................2-15
Voltmeter Gage....................4-15
W
Warning Lights, Gages and
Indicators........................4-10
Warnings
DIC Warnings and
Messages....................4-26
Hazard Warning Flashers.... 4-4
Wheels
Alignment and Tire
Balance.......................9-64
Different Size...................9-61
Replacement....................9-64
Where to Put the Restraint....1-40Windows.............................2-14
Power.............................2-15
Windshield
Washer............................. 4-8
Washer Fluid....................9-23
Wiper Blade
Replacement................9-24
Wiper Fuses....................9-36
Wipers.............................. 4-8
Winter Driving......................8-27
X
XM Radio Messages............6-24
XM™ Satellite Radio
Antenna System...............6-37
Y
Your Vehicle and the
Environment.....................11-2
i-10 INDEX
