Page 77 of 356

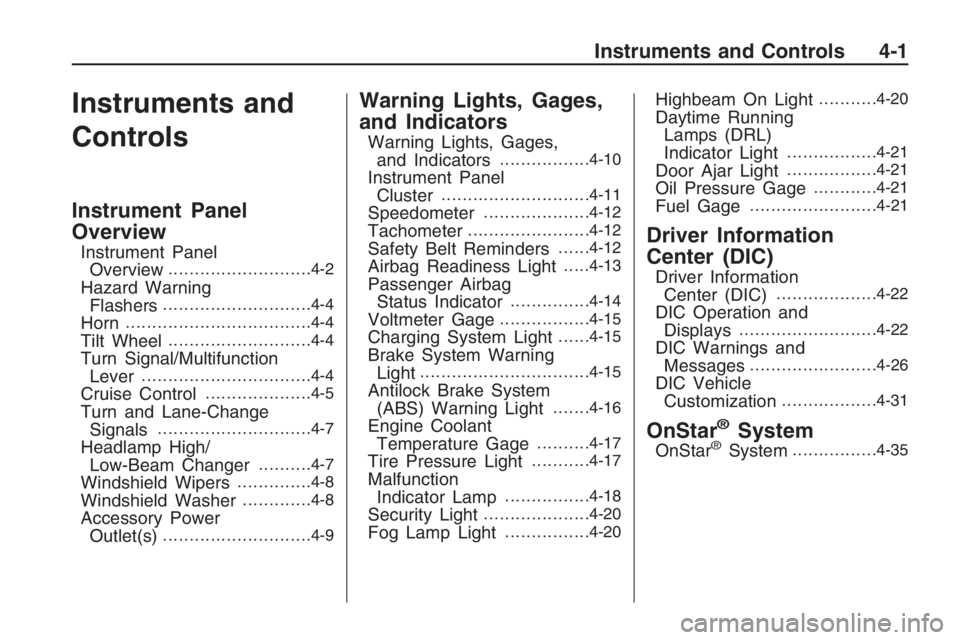

Instruments and
Controls
Instrument Panel
Overview
Instrument Panel
Overview...........................4-2
Hazard Warning
Flashers............................4-4
Horn...................................4-4
Tilt Wheel...........................4-4
Turn Signal/Multifunction
Lever................................4-4
Cruise Control....................4-5
Turn and Lane-Change
Signals.............................4-7
Headlamp High/
Low-Beam Changer..........4-7
Windshield Wipers..............4-8
Windshield Washer.............4-8
Accessory Power
Outlet(s)............................4-9
Warning Lights, Gages,
and Indicators
Warning Lights, Gages,
and Indicators.................4-10
Instrument Panel
Cluster............................4-11
Speedometer....................4-12
Tachometer.......................4-12
Safety Belt Reminders......4-12
Airbag Readiness Light.....4-13
Passenger Airbag
Status Indicator...............4-14
Voltmeter Gage.................4-15
Charging System Light......4-15
Brake System Warning
Light................................4-15
Antilock Brake System
(ABS) Warning Light.......4-16
Engine Coolant
Temperature Gage..........4-17
Tire Pressure Light...........4-17
Malfunction
Indicator Lamp................4-18
Security Light....................4-20
Fog Lamp Light................4-20
Highbeam On Light...........4-20
Daytime Running
Lamps (DRL)
Indicator Light
.................4-21
Door Ajar Light.................4-21
Oil Pressure Gage............4-21
Fuel Gage........................4-21
Driver Information
Center (DIC)
Driver Information
Center (DIC)...................4-22
DIC Operation and
Displays..........................4-22
DIC Warnings and
Messages........................4-26
DIC Vehicle
Customization..................4-31
OnStar®System
OnStar®System................4-35
Instruments and Controls 4-1
Page 79 of 356

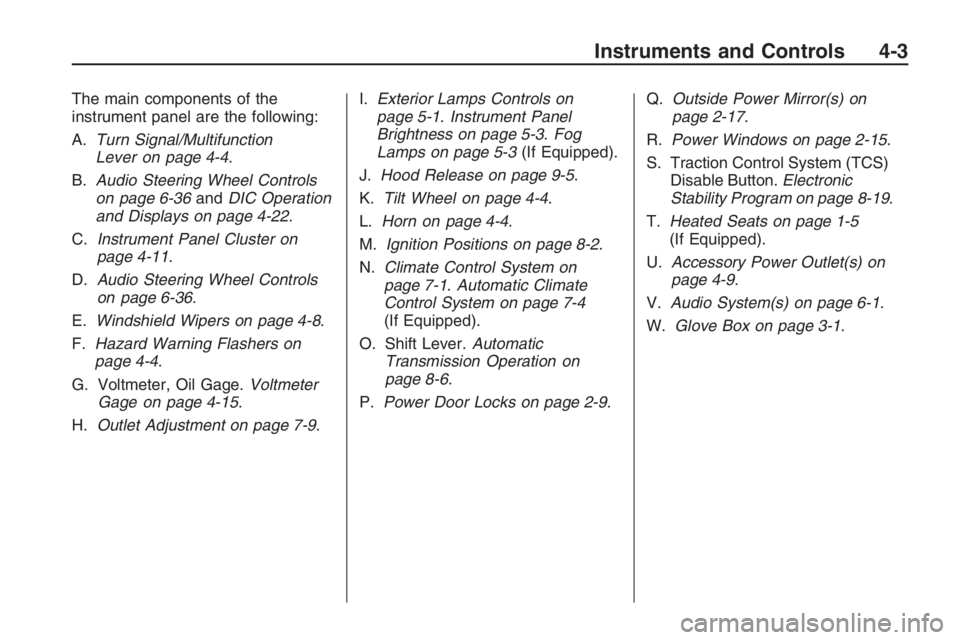

The main components of the
instrument panel are the following:
A.Turn Signal/Multifunction
Lever on page 4-4.
B.Audio Steering Wheel Controls
on page 6-36andDIC Operation
and Displays on page 4-22.
C.Instrument Panel Cluster on
page 4-11.
D.Audio Steering Wheel Controls
on page 6-36.
E.Windshield Wipers on page 4-8.
F.Hazard Warning Flashers on
page 4-4.
G. Voltmeter, Oil Gage.Voltmeter
Gage on page 4-15.
H.Outlet Adjustment on page 7-9.I.Exterior Lamps Controls on
page 5-1.Instrument Panel
Brightness on page 5-3.Fog
Lamps on page 5-3(If Equipped).
J.Hood Release on page 9-5.
K.Tilt Wheel on page 4-4.
L.Horn on page 4-4.
M.Ignition Positions on page 8-2.
N.Climate Control System on
page 7-1.Automatic Climate
Control System on page 7-4
(If Equipped).
O. Shift Lever.Automatic
Transmission Operation on
page 8-6.
P.Power Door Locks on page 2-9.Q.Outside Power Mirror(s) on
page 2-17.
R.Power Windows on page 2-15.
S. Traction Control System (TCS)
Disable Button.Electronic
Stability Program on page 8-19.
T.Heated Seats on page 1-5
(If Equipped).
U.Accessory Power Outlet(s) on
page 4-9.
V.Audio System(s) on page 6-1.
W.Glove Box on page 3-1.
Instruments and Controls 4-3
Page 84 of 356

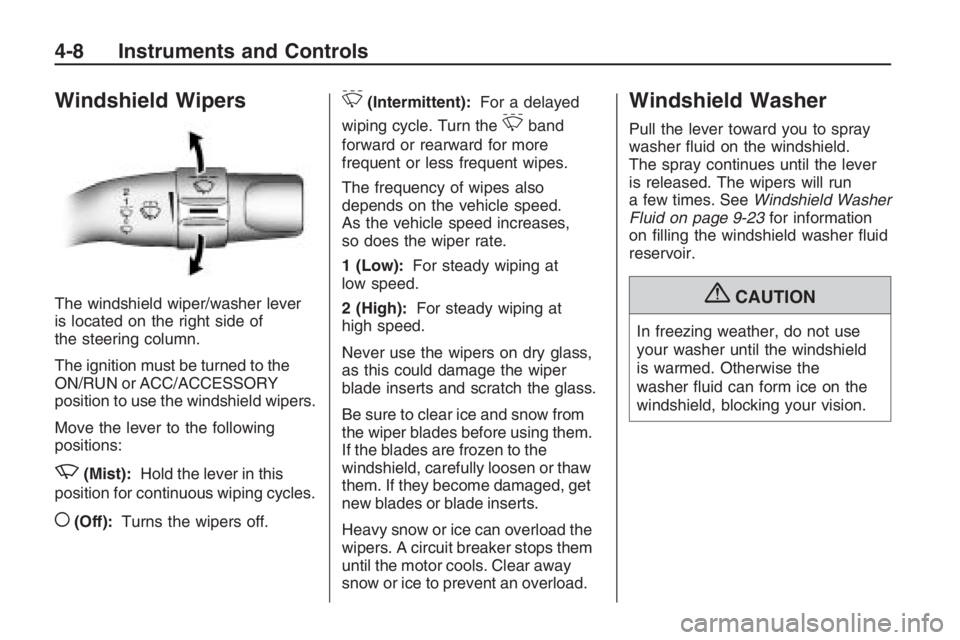

Windshield Wipers
The windshield wiper/washer lever
is located on the right side of
the steering column.
The ignition must be turned to the
ON/RUN or ACC/ACCESSORY
position to use the windshield wipers.
Move the lever to the following
positions:
z(Mist):Hold the lever in this
position for continuous wiping cycles.
((Off):Turns the wipers off.
&(Intermittent):For a delayed
wiping cycle. Turn the
&band
forward or rearward for more
frequent or less frequent wipes.
The frequency of wipes also
depends on the vehicle speed.
As the vehicle speed increases,
so does the wiper rate.
1 (Low):For steady wiping at
low speed.
2 (High):For steady wiping at
high speed.
Never use the wipers on dry glass,
as this could damage the wiper
blade inserts and scratch the glass.
Be sure to clear ice and snow from
the wiper blades before using them.
If the blades are frozen to the
windshield, carefully loosen or thaw
them. If they become damaged, get
new blades or blade inserts.
Heavy snow or ice can overload the
wipers. A circuit breaker stops them
until the motor cools. Clear away
snow or ice to prevent an overload.
Windshield Washer
Pull the lever toward you to spray
washer uid on the windshield.
The spray continues until the lever
is released. The wipers will run
a few times. SeeWindshield Washer
Fluid on page 9-23for information
on lling the windshield washer uid
reservoir.
{CAUTION
In freezing weather, do not use
your washer until the windshield
is warmed. Otherwise the
washer uid can form ice on the
windshield, blocking your vision.
4-8 Instruments and Controls
Page 228 of 356

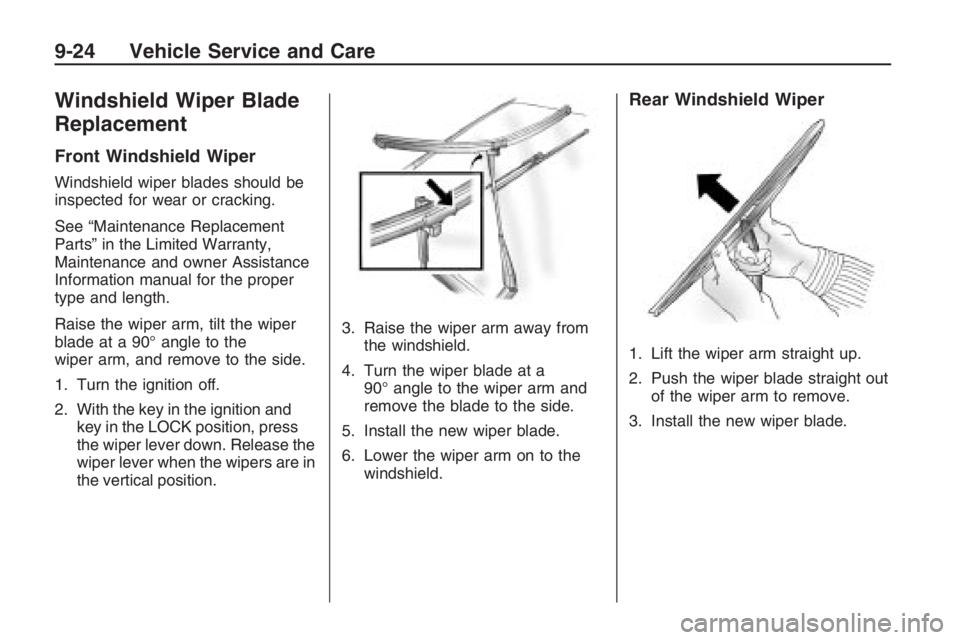

Windshield Wiper Blade
Replacement
Front Windshield Wiper
Windshield wiper blades should be
inspected for wear or cracking.
See “Maintenance Replacement
Parts” in the Limited Warranty,
Maintenance and owner Assistance
Information manual for the proper
type and length.
Raise the wiper arm, tilt the wiper
blade at a 90° angle to the
wiper arm, and remove to the side.
1. Turn the ignition off.
2. With the key in the ignition and
key in the LOCK position, press
the wiper lever down. Release the
wiper lever when the wipers are in
the vertical position.3. Raise the wiper arm away from
the windshield.
4. Turn the wiper blade at a
90° angle to the wiper arm and
remove the blade to the side.
5. Install the new wiper blade.
6. Lower the wiper arm on to the
windshield.
Rear Windshield Wiper
1. Lift the wiper arm straight up.
2. Push the wiper blade straight out
of the wiper arm to remove.
3. Install the new wiper blade.
9-24 Vehicle Service and Care
Page 305 of 356

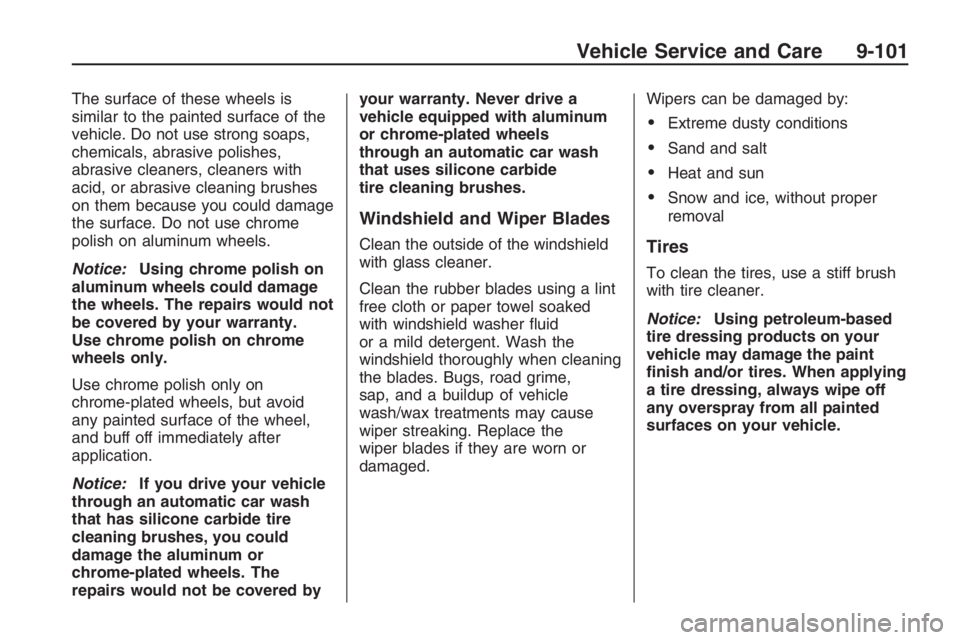

The surface of these wheels is
similar to the painted surface of the
vehicle. Do not use strong soaps,
chemicals, abrasive polishes,
abrasive cleaners, cleaners with
acid, or abrasive cleaning brushes
on them because you could damage
the surface. Do not use chrome
polish on aluminum wheels.
Notice:Using chrome polish on
aluminum wheels could damage
the wheels. The repairs would not
be covered by your warranty.
Use chrome polish on chrome
wheels only.
Use chrome polish only on
chrome-plated wheels, but avoid
any painted surface of the wheel,
and buff off immediately after
application.
Notice:If you drive your vehicle
through an automatic car wash
that has silicone carbide tire
cleaning brushes, you could
damage the aluminum or
chrome-plated wheels. The
repairs would not be covered byyour warranty. Never drive a
vehicle equipped with aluminum
or chrome-plated wheels
through an automatic car wash
that uses silicone carbide
tire cleaning brushes.
Windshield and Wiper Blades
Clean the outside of the windshield
with glass cleaner.
Clean the rubber blades using a lint
free cloth or paper towel soaked
with windshield washer uid
or a mild detergent. Wash the
windshield thoroughly when cleaning
the blades. Bugs, road grime,
sap, and a buildup of vehicle
wash/wax treatments may cause
wiper streaking. Replace the
wiper blades if they are worn or
damaged.Wipers can be damaged by:
Extreme dusty conditions
Sand and salt
Heat and sun
Snow and ice, without proper
removal
Tires
To clean the tires, use a stiff brush
with tire cleaner.
Notice:Using petroleum-based
tire dressing products on your
vehicle may damage the paint
nish and/or tires. When applying
a tire dressing, always wipe off
any overspray from all painted
surfaces on your vehicle.
Vehicle Service and Care 9-101
Page 356 of 356

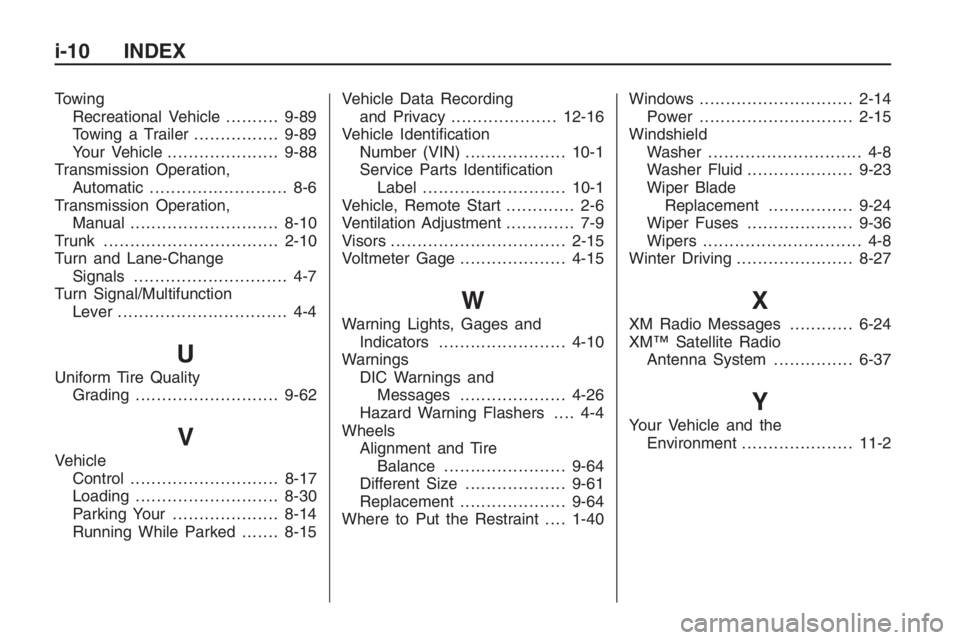

Towing
Recreational Vehicle..........9-89
Towing a Trailer................9-89
Your Vehicle.....................9-88
Transmission Operation,
Automatic.......................... 8-6
Transmission Operation,
Manual............................8-10
Trunk.................................2-10
Turn and Lane-Change
Signals............................. 4-7
Turn Signal/Multifunction
Lever................................ 4-4
U
Uniform Tire Quality
Grading...........................9-62
V
Vehicle
Control............................8-17
Loading...........................8-30
Parking Your....................8-14
Running While Parked.......8-15Vehicle Data Recording
and Privacy....................12-16
Vehicle Identi cation
Number (VIN)...................10-1
Service Parts Identi cation
Label...........................10-1
Vehicle, Remote Start............. 2-6
Ventilation Adjustment............. 7-9
Visors.................................2-15
Voltmeter Gage....................4-15
W
Warning Lights, Gages and
Indicators........................4-10
Warnings
DIC Warnings and
Messages....................4-26
Hazard Warning Flashers.... 4-4
Wheels
Alignment and Tire
Balance.......................9-64
Different Size...................9-61
Replacement....................9-64
Where to Put the Restraint....1-40Windows.............................2-14
Power.............................2-15
Windshield
Washer............................. 4-8
Washer Fluid....................9-23
Wiper Blade
Replacement................9-24
Wiper Fuses....................9-36
Wipers.............................. 4-8
Winter Driving......................8-27
X
XM Radio Messages............6-24
XM™ Satellite Radio
Antenna System...............6-37
Y
Your Vehicle and the
Environment.....................11-2
i-10 INDEX
