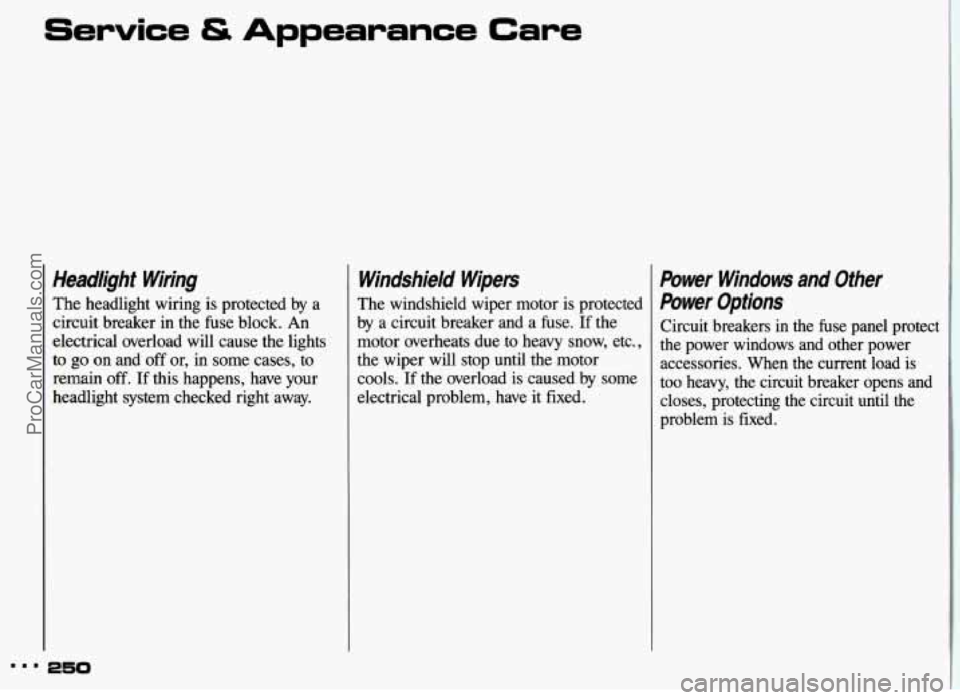

Headlight Wiring
The headlight wiring is protected by a
circuit breaker in the fuse block. An
electrical overload will cause the lights
to go on and off or, in some cases, to
remain
off. If this happens, have your
headlight system checked right away.
Windshield Wipers
The windshield wiper motor is protected
by a circuit breaker and a fuse.
If the
motor overheats due to heavy snow, etc.,
the wiper will stop until the motor cools.
If the overload is caused by some
electrical problem, have it fixed.
Power Windows and Other
Power Options
Circuit breakers in the fuse panel protect
the power windows and other power accessories. When the current load is
too heavy, the circuit breaker opens and
closes, protecting the circuit until the
problem is
fixed.
mm. 250
ProCarManuals.com

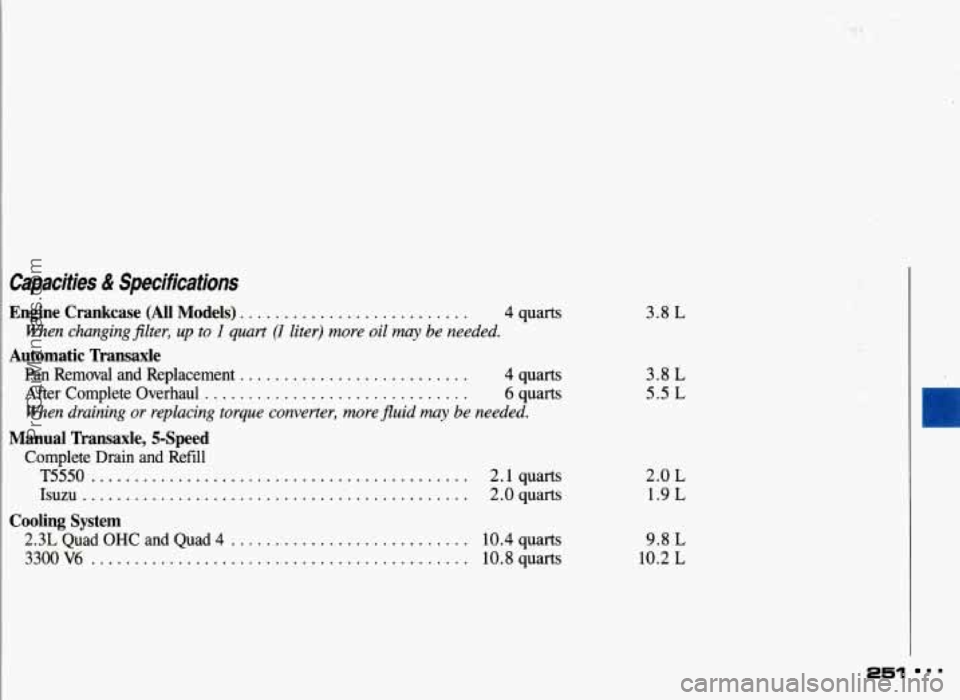

Capacities & Specifications
Engine Crankcase (All Models) .......................... 4 quarts
Automatic Transaxle
Men changing Jilter, up to I quart (I liter) more oil may be needed.
Pan Removal and Replacement .......................... 4 quarts
After Complete Overhaul
.............................. 6 quarts
When draining or replacing torque converter, more fluid may be needed.
Manual Transaxle, 5-Speed
Complete Drain and Refdl
T5550 ........................................... 2.1quarts
Isuzu
............................................. 2.0 quarts
2.3L Quad OHC and Quad 4 ........................... 10.4 quarts
3300V6 ........................................... 10.8quarts
Cooling System
3.8 L
3.8 L
5.5 L
2.0 L
1.9 L
9.8 L
10.2 L
I
251
ProCarManuals.com

Service & Appearance Care

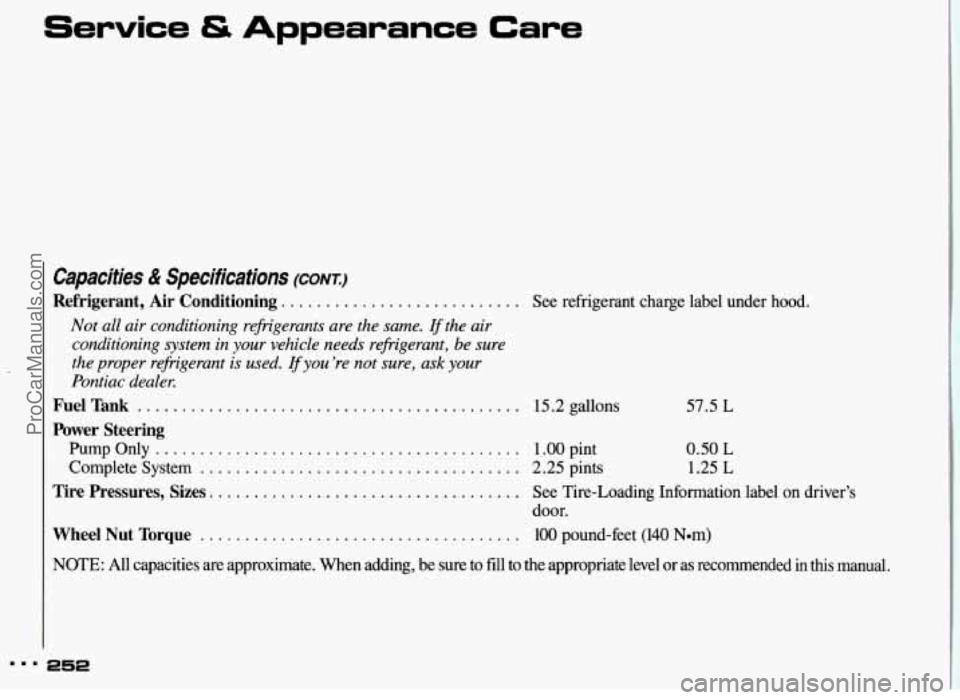

Capacities & Specifications (CONT.:)
Refrigerant, Air Conditioning. .......................... See refrigerant charge label under hood.
Not all air conditioning refrigerants are the same. If the air
conditioning system in
your vehicle needs refngerant, be sure
the proper refrigerant is used.
If you’re not sure, ask your
Pontiac dealer.
Fuel Tank ......................................... 15.2 gallons 57.5 L
Power Steering
Pump Only ......................................... 1 .OO pint 0.50 L
Complete System .................................... 2.25 pints 1.25 L
Tire Pressures, Sizes. .................................. See Tire-Loading Information label on driver’s
Wheel Nut Torque .................................... 100 pound-feet (140 Nom)
door.
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate l\
evel or as recommended in
this manual.
... 252
ProCarManuals.com

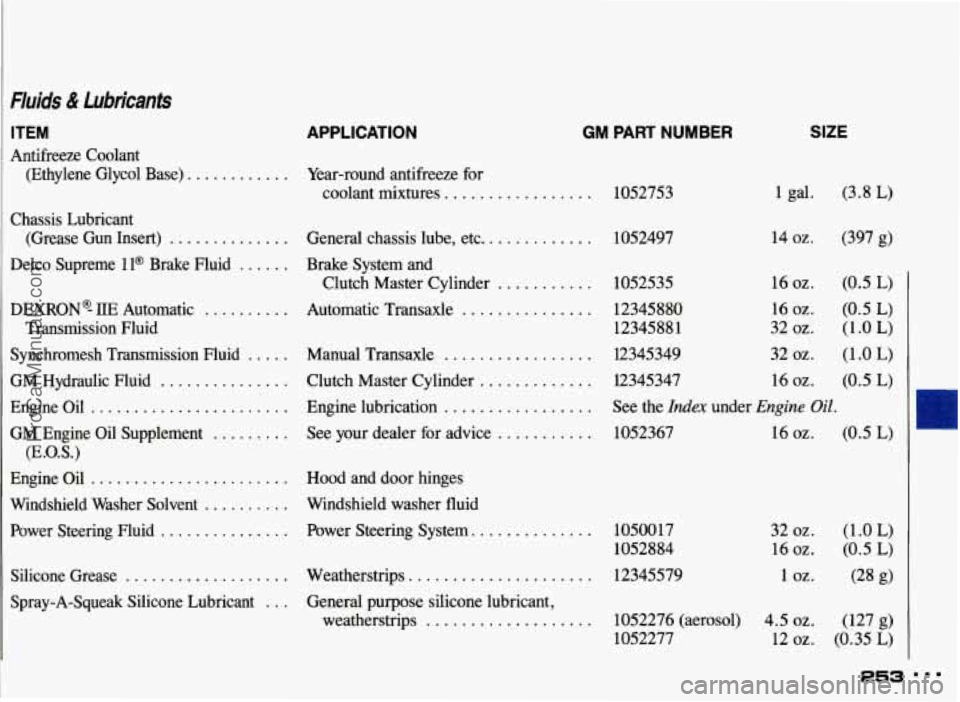

Ftuids & Lubricants
ITEM
Antifreeze Coolant (Ethylene Glycol Base)
............
Chassis Lubricant
Delco Supreme
ll@ Brake Fluid ......
DEXRONE IIE Automatic ..........
Synchromesh Transmission Fluid .....
(Grease Gun Insert) ..............
Transmission Fluid
GM Hydraulic Fluid
...............
Engine Oil .......................
GM Engine Oil Supplement .........
Engine Oil .......................
Windshield Washer Solvent ..........
Power Steering Fluid ...............
(E.O.S.)
Silicone Grease
...................
Spray-A-Squeak Silicone Lubricant ...
APPLICATION GM PART NUMBER
Year-round antifreeze for
coolant mixtures
................. 1052753
General chassis lube, etc. ..... . . 1052497
Brake System and Clutch Master Cylinder
........... 1052535
Automatic Transaxle ............... 12345880
12345881
SIZE
1 gal. (3.8 L)
14 oz. (397 g)
16 oz. (0.5 L) I
16 oz.
32 oz. (OS5 (1.0 L, L) I
Manual Transaxle ................. 12345349 32 oz. (1 .O L)
Clutch Master Cylinder ............. 12345347 16 OZ. (0.5 L)
Engine lubrication ................. See the Index under Engine Oil.
See your dealer for advice ........... 1052367 16 oz. (0.5 L) I
Hood and door hinges
Windshield washer fluid Power Steering System.
............. 1050017
1052884
Weatherstrips. .................... 12345579 32
oz.
16 oz.
1 oz.
(1.0 L)
(0.5 L)
(28 g)
General purpose silicone
lubricant,
weatherstrips
................. 1052276 (aerosol) 4.5 oz. (127 g)
1052277 12 oz. (0.35 L)
ProCarManuals.com

Service & Appearance Care

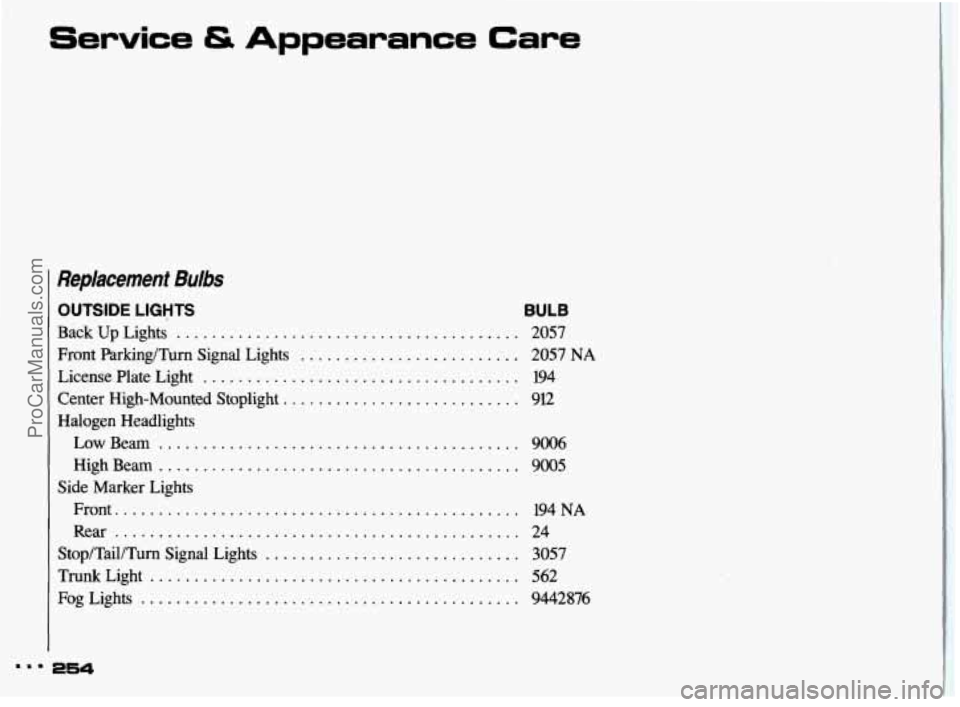

Replacement Bulbs
OUTSIDE LIGHTS
Back Up Lights .......................................
Front Parking/Turn Signal Lights .........................
License Plate Light ....................................
Center High-Mounted Stoplight ...........................
Halogen Headlights Low Beam
..... ................ .........
HighBe am .........................................
Front ..............................................
Rear ..............................................
TrunkLight ..........................................
FogLights ...........................................
Side Marker Lights
Stop/Tail/Turn Signal Lights
.............................
BULB
2057
2057
NA
194
912
9006
9005
194 NA
24
3057
562
9442876
mmm 254
ProCarManuals.com

INSIDE LIGHTS BULB
Ashtray .............................................. 194
Front Reading Light.
................................... 168
Rear Reading Light .................................... 168
Underdash Light ...................................... 194
Heater
& A/C Control .................................. 161
High-Beam Indicator
.................................. 161
Indicator Lights Charge, Oil, Fasten Safety Belts,
ABS, Upshift, Low Coolant. . 74
Brake,
Turn Signals, Malfunction Indicator Lamp (Service
Engine Soon), Check Gages
............................ 161
E
255
ProCarManuals.com

Service & Appearance Care

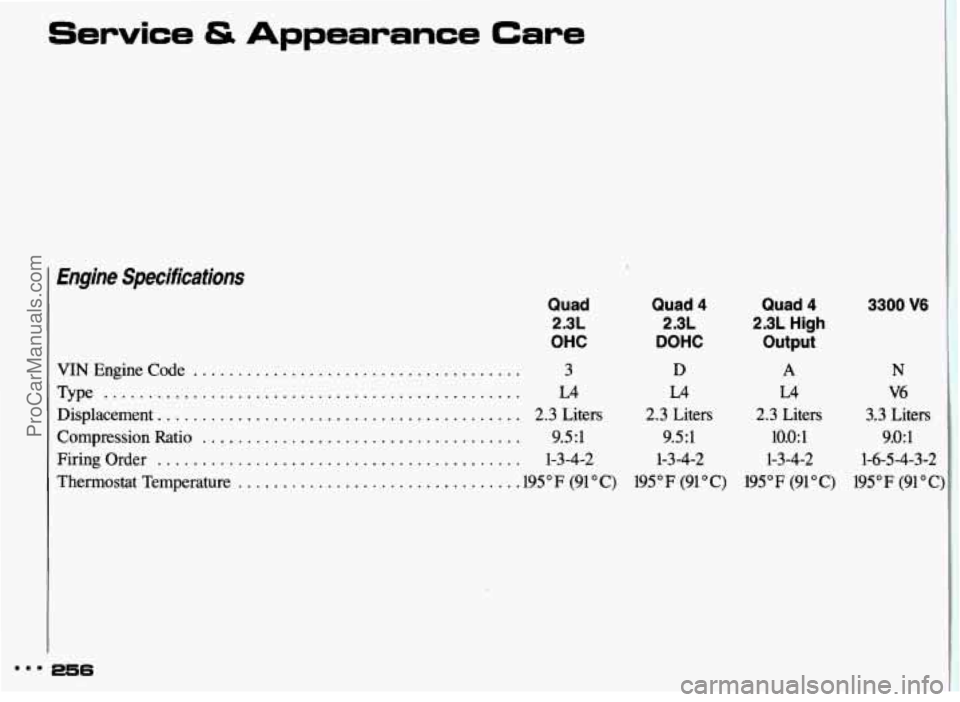

Engine Specifications
VIN Engine Code . . .................................
Quad 2.3L
OHC
3
Type ............................................... L4
Displacement ......................................... 2.3 Liters
Compression
Ratio .................................... 9.5 : 1
Firing Order ......................................... 1-3-4-2
Thermostat Temperature
............................... .195" F (91 " C)
Quad 4
2.3L
DOHC
D
L4
2.3 Liters
9.5:l
1-3-4-2
195
" F (91 " C)
3300 V6 Quad 4
2.3L High
output
A N
LA V6
2.3 Liters 3.3 Liters
10.0: 1 9.0: 1
1-3-4-2
1-6-5-4-3-2
195°F (91°C) 195°F (91°C
256
ProCarManuals.com

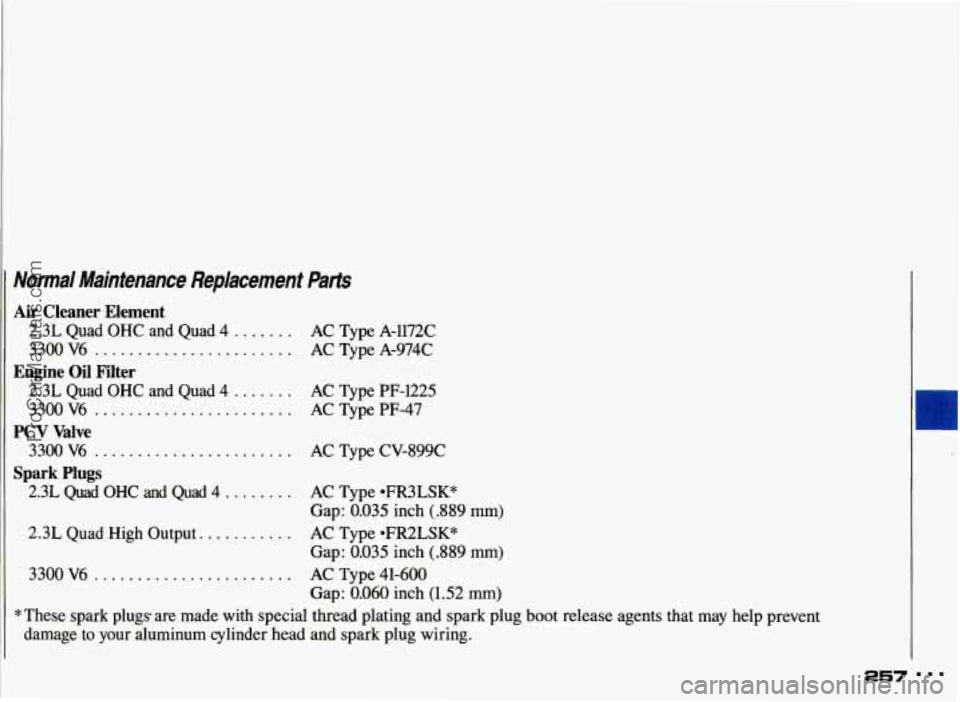

Normal Maintenance Replacement ?bts
Air Cleaner Element
2.3L Quad OHC and Quad 4 ....... AC Type A-ll72C
3300 V6
....................... AC Type A-974C
Engine Oil Filter
2.3L Quad OHC and Quad 4 ....... AC Type PF-1225
3300 V6
....................... AC Type PF-47
3300 V6
..................... AC Type CV-899C
PCV Valve
Spark Plugs
2.3L Quad OHC and Quad 4 ........ AC Type .FR3LSK*
Gap: 0.035 inch (389
mm)
Gap: 0.035 inch (A89 mm)
Gap: 0.060 inch (1.52 mm)
2.3L Quad High Output. .......... AC Type *FR2LSK*
3300 V6 ....................... AC Type 41-600
*These spark plugs are made with special thread plating and spark plug boot release agents that may help prevent
damage to your aluminum cylinder head and spark plug wiring.
257 . .
ProCarManuals.com

Notes
It
ProCarManuals.com

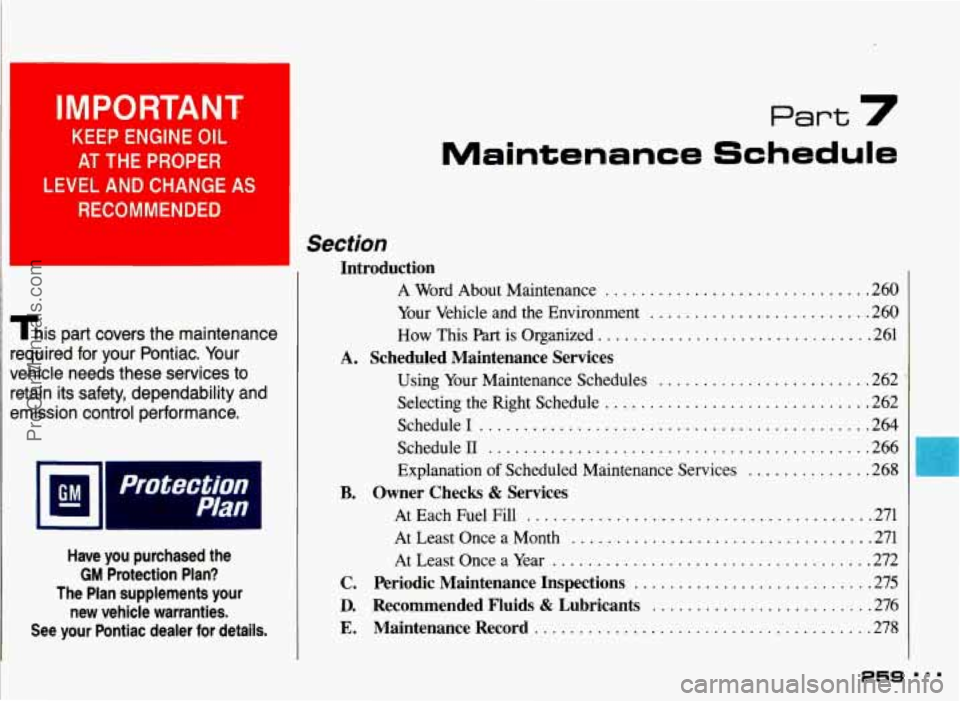

3 IMPORTANT
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
This part covers the maintenance
required for your Pontiac
. Your
vehicle needs these services to
retain its safety. dependability and
emission control performance
.
Section
Part 7
Maintenance Schedule
Have you purchased the
GM Protection Plan?
The Plan supplements your new vehicle warranties
.
See your Pontiac dealer for details .
Introduction
A Word About Maintenance ............................ 260
Your Vehicle and the Environment
......................... 260
How This Part is Organized ............................... 261
Using Your Maintenance Schedules
........................ 262
Selecting the Right Schedule
.............................. 262
Schedule1
............................................ 264
ScheduleII
......................................... 266
Explanation
of Scheduled Maintenance Services . . ... 268
A . Scheduled Maintenance Services
B . Owner Checks & Services
AtEachFuelFill ....................................... 271
At Least Once a Month
.................................. 271
At Least Once a Year
.................................... 272
C . Periodic Maintenance Inspections ........................... 275
D . Recommended Fluids & Lubricants ......................... 276
E . MaintenanceRecord ...................................... 278
259
