PONTIAC GRAND-AM 1993 Owners Manual

Maintenance Schedule
Section A: Scheduled Maintenance Services [cant.]
ITEM
NO. SERVICE
10 Air Cleaner Filter Replacement*-Replace every
30,000 miles (50 000 km) or more often under
dusty conditions. Ask your dealer for the proper
replacement intervals for your driving conditions.
ITEM
NO. SERVICE
11 Fuel Tank, Cap and Lines Inspection* b-
Inspect fuel tank, cap and lines (including fuel rails
and injection assembly) for damage or leaks.
Inspect fuel cap gasket for an even filler neck
imprint or any damage. Replace parts as needed.
Periodic replacement of the fuel filter is not
required.
*An Emission Control Service,
-& ne US. Environmental Protection Agency has determined that the failure to pe$orrn this maintenance item will not nullify the emission warranty or\

limit recall liability prior to the completion
of vehicle useful life. General Motors, however, urges that all re\
commended maintenance services be
perjiormed at the indicated intervals and the maintenance be recorded in Section E: Maintenance Record.
270
ProCarManuals.com

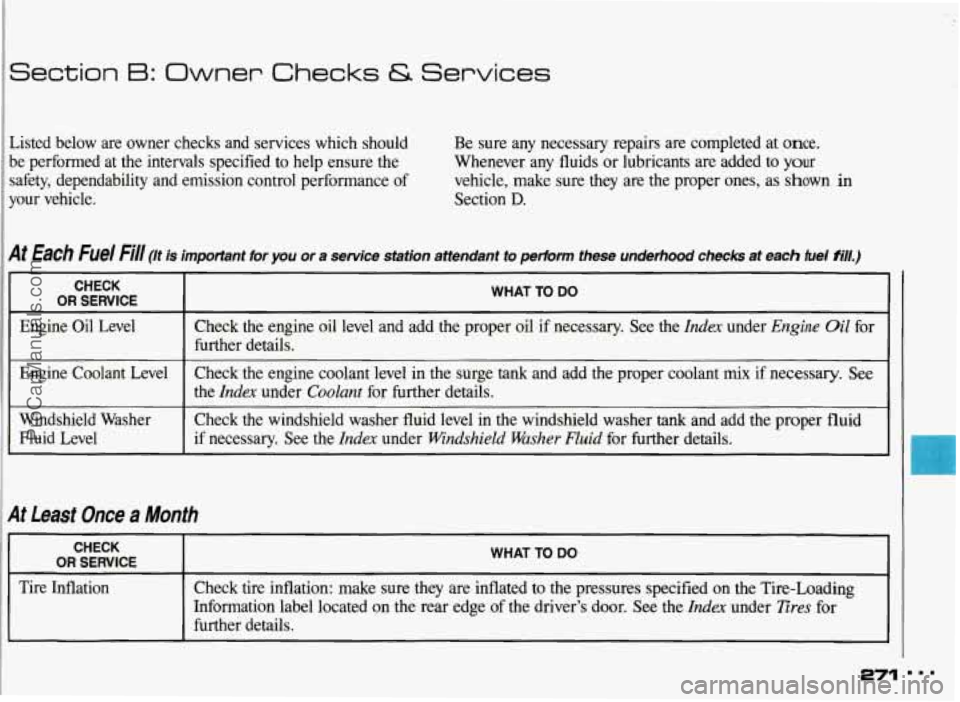

Section B: Owner Checks 6 Services
Listed below are owner checks and services which should
be performed at the intervals specified to help ensure the
safety, dependability and emission control performance of
your vehicle. Be
sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in
Section
D.
At Each Fuel Fill (It is important for you or a service station attendant to perhrm these underhood checks at each fuel fill.)
CHECK
I OR SERVICE I WHAT TO DO
Engine Oil Level
I Engine Coolant Level
I
I
Windshield Washer
Fluid Level Check the
engine oil level and add the proper oil if necessary. See the
Index under Engine Oil for
further details.
Check the engine coolant level in the surge
tank and add the proper coolant mix if necessary. See
the Index under Coolant for further details.
Check the windshield washer fluid level in the windshield washer
tank and add the proper fluid
if necessary. See the
Index under Windshield Washer Fluid for further details.
At Least Once a Month
CHECK
WHAT TO DO OR SERVICE
Tire Inflation Check tire inflation: make sure they are inflated to the pressures specified on the Tire-Loading
Information label located on the rear edge of the driver's door. See the
IndRx under Eres for
further details.
ProCarManuals.com

Maintenance Schedule

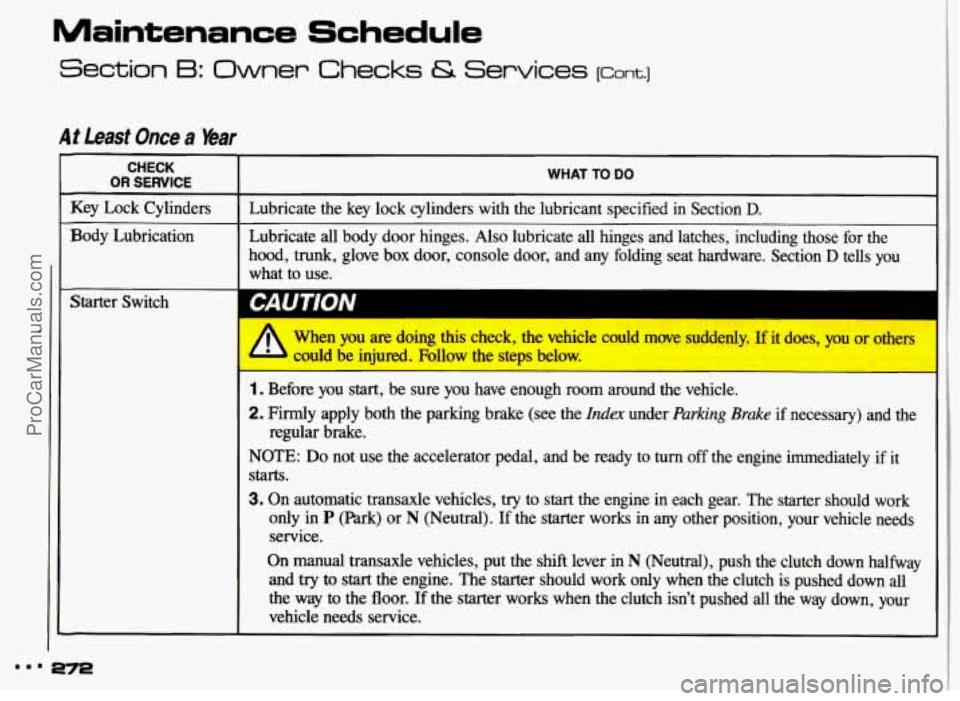

Section 6: Owner Checks & Services [corn.]
At Least Once a %ar
CHECK
OR SERVICE WHAT TO DO
Key Lock Cylinders Lubricate the key lock cylinders with the lubricant specified in Section D.
Body Lubrication Lubricate all body door hinges. Also lubricate all hinges and latches, including those \
for the
hood, trunk, glove box door, console door, and any folding seat hardware. S\
ection
D tells you
I
t
what to use.
CAUTION I
When you are doing this check, the vehicle could move suddenly. If it does, you or others
a could be injured. Follow the steps below.
1. Before you start, be sure you have enough room around the vehicle.
2. Firmly apply both the parking brake (see the Ida under Parking Brake if necessary) and the
NOTE:
Do not use the accelerator pedal, and be ready to turn off the engine immediately if it
Starts.
3. On automatic transaxle vehicles, try to start the engine in ea\
ch gear. The starter should work
only
in P (Park) or N (Neutral). If the starter works in any other position, your vehicle needs
service.
On manual transaxle vehicles, put the
shift lever in N (Neutral), push the clutch down halfway
and try to start the engine. The starter should work only when the clutch is pushed down all
the way
to the floor. If the starter works when the clutch isn't pushed all the way down, your
vehicle needs service. regular brake.
ProCarManuals.com

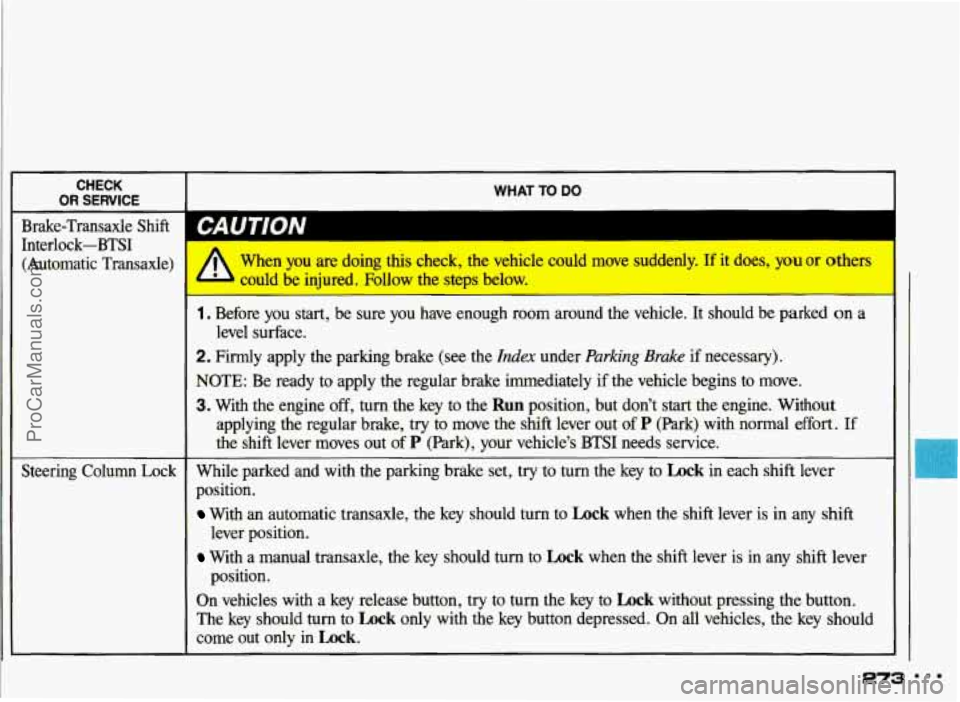

Interlock-BTSI (Automatic Transaxle)
Steering Column Lock When you
are doing this check, the vehicle could move suddenly.
If it does, you or others
could be injured. Foll
- -teps below.
. Before you start, be sure yo^ --we enough room around the vehicle. It snould be parKea on a
level surface.
2. Firmly apply the parking brake (see the Index under Parking Brake if necessary).
NOTE: Be ready to apply the regular brake immediately if the vehicle be\
gins to move.
3. With the engine off, turn the key to the Run position, but don’t start the engine. Without
applying the regular brake, try to move the shift lever out of
P (Park) with normal effort. If
the shift lever moves out of P (Park), your vehicle’s BTSI needs service.
While parked and with the parking brake set, try to turn the key to Lock in each shift lever I
position.
With an automatic transaxle, the key should turn to Lock when the shift lever is in any shift
lever position.
With a manual transaxle, the key should turn to Lock when the shift lever is in any shift lever
On vehicles with a key release button, try to turn the key to
Lock without pressing the button.
The key should turn to
Lock only with the key button depressed. On all vehicles, the key should
come out
only in Lock.
position.
E73
ProCarManuals.com

Maintenance Schedule

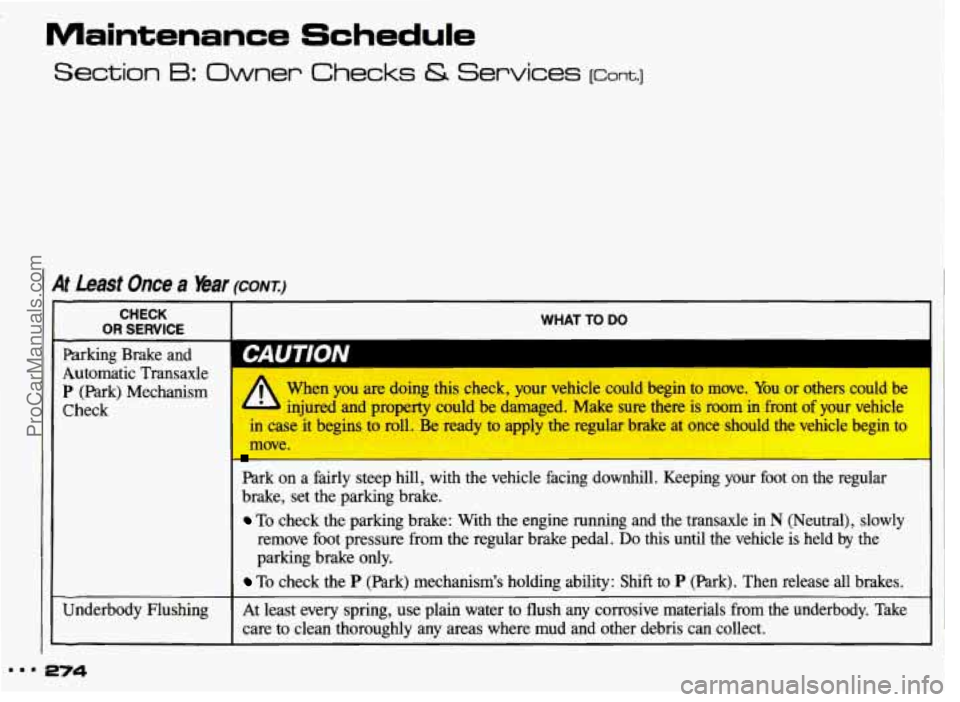

Section 6: Owner Checks & Services [cant.]
I At Least Once a bar (conr~.)
CHECK
OR SERVICE WHAT TO DO
rarmg Brae
and
Automatic Transaxle
P (Park) Mechanism
Check
I
Underbody Flushing
m.. 274
When you are doing this check, your vehicle could begin to move. You or others could be
- b injured and property could be damaged. Make sure there is room in front of your vehicle
in case it begins to roll. Be ready to apply the regular brake at once should the vehicle begin to
move.
Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake: With the engine running and the transaxle in N (Neutral), slowly
remove foot pressure from the regular brake pedal.
Do this until the vehicle is held by the
parking brake only.
To check the P (Park) mechanism’s holding ability: Shift to P (Park). Then release all brakes.
At least every spring, use plain water to flush
any corrosive materials from the underbody. Take
care to clean thoroughly any areas where mud
and other debris can collect.
ProCarManuals.com

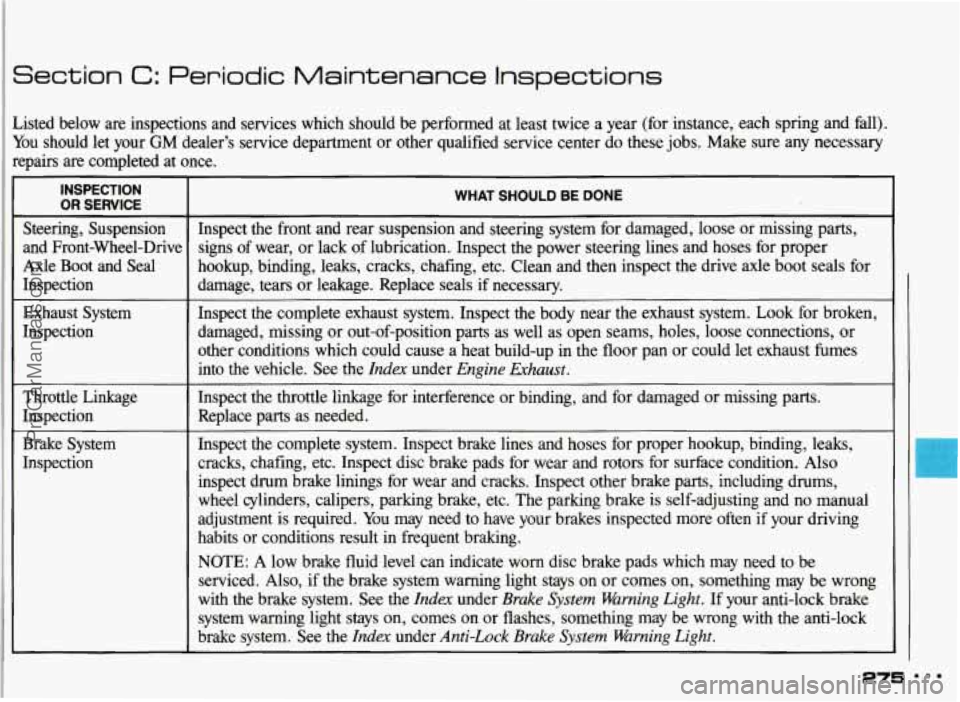

Section C: Periodic Maintenance Inspections
Listed below are inspections and services which should be perfo\
rmed at least twice a year (for instance, each spring and fall).
You should let your GM dealer’s service department or other qualified service center do these jobs: Make sure any necessary
repairs are completed at once.
L
INSPECTION
OR SERVICE
Steering, Suspension
and Front-Wheel-Drive
Axle Boot and Seal
Inspection
Exhaust System
Inspection
Throttle Linkage
Inspection
Brake System
Inspection
WHAT SHOULD BE DONE I
Inspect the front and rear suspension and steering system for \
damaged, loose or missing parts,
signs
of wear, or lack of lubrication. Inspect the power steering lines and hoses for proper
hookup, binding, leaks, cracks, chafing, etc. Clean and then in\
spect the drive axle boot seals for damage, tears or leakage. Replace seals if necessary.
Inspect the complete exhaust system. Inspect the body near the \
exhaust system. Look for broken,
damaged, missing or out-of-position parts
as well as open seams, holes, loose connections, or
other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes
into the vehicle. See the
Idex under EnRine Exhaust.
Inspect the throttle linkage for interference or binding, and for damaged or missing parts.
Replace parts as needed.
Inspect the complete system. Inspect brake lines and hoses for \
proper hookup, binding, leaks,
cracks, chafing, etc. Inspect disc brake pads for wear and rot\
ors for surface condition. Also
inspect drum brake linings for wear and cracks. Inspect other brake parts, including drums,
wheel cylinders, calipers, parking brake, etc. The parking brake is self-adjusting and no manual
adjustment is required,
You may need to have your brakes inspected more often if your driving
habits or conditions result in frequent braking.
NOTE:
A low brake fluid level can indicate worn disc brake pads which \
may need to be
serviced. Also, if the brake system warning light stays on or comes on, something may be wrong
with the brake system. See the
Index under Brake System Warning Light. If your anti-lock brake
system warning light stays on, comes on or flashes, something may be wrong with the anti-lock
brake system. See the
Index under Anti-Lock Brake System Warning Light.
275
ProCarManuals.com

Maintenance Schedule

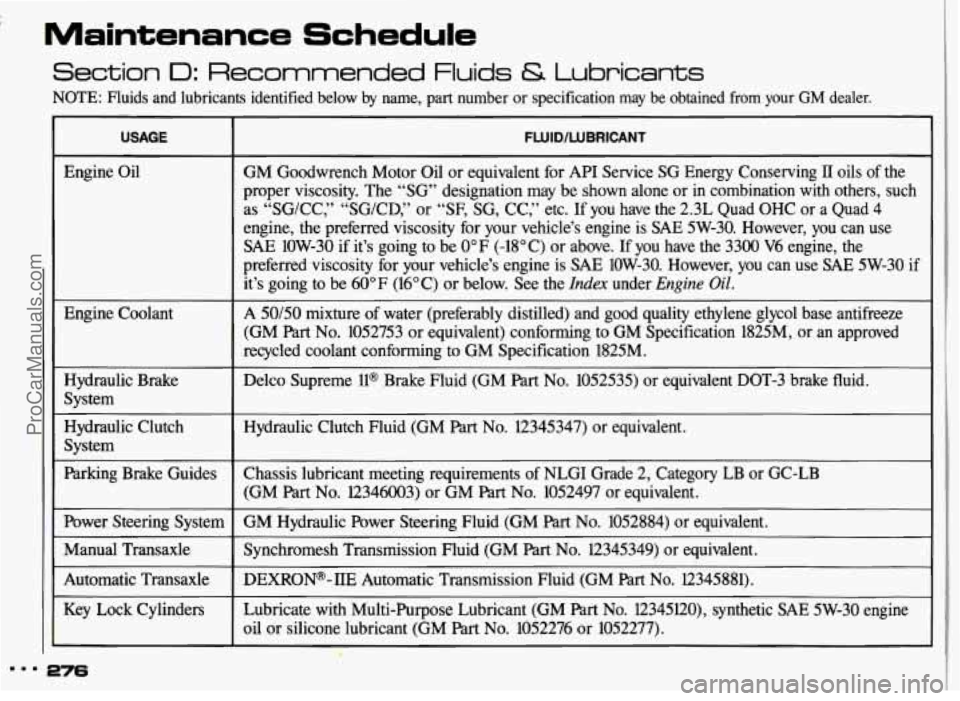

Section I: Recommended Fluids & Lubricants
NOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM dealer.
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake
System
Hydraulic Clutch System
Parking Brake Guides
Power Steering System
Manual Transaxle
Automatic Transaxle
Key Lock Cylinders
I
GM Goodwrench Motor Oil or equivalent for API Service SG Energy Conserving II oils of the
proper viscosity. The “SG” designation may be shown alone or
in combination with others, such
as “SG/CC,” “SG/CD,” or “SF, SG, CC,” etc.
If you have the 2.3L Quad OHC or a Quad 4
engine, the preferred viscosity for your vehicle’s engine is \
SAE 5W-30. However, you can use
SAE 1OW-30 if it’s going to be
0” F (-18” C) or above. If you have the 3300 V6 engine, the
preferred viscosity for your vehicle’s engine is
SAE 1OW-30. However, you can use SAE 5W-30 if
it’s going to be 60°F (16°C) or below. See the Index under Engine Oil.
A 50/50 mixture of water (preferably distilled) and good quality ethylene glycol base antifreeze
(GM Part
No. 1052753 or equivalent) conforming to GM Specification 1825M, or an approved
recycled coolant conforming
to GM Specification 1825M.
Delco Supreme
ll@ Brake Fluid (GM Part No. 1052535) or equivalent DOT-3 brake fluid.
Hydraulic Clutch Fluid (GM Part No. 12345347) or equivalent.
Chassis lubricant meeting requirements of NLGI Grade 2, Category LB or GC-LB
(GM Part
No. 12346003) or GM Part No. 1052497 or equivalent.
GM Hydraulic Power Steering Fluid (GM Part
No. 1052884) or equivalent.
Synchromesh Transmission Fluid (GM
Part No. 12345349) or equivalent.
DEXRON@-IIE Automatic Transmission Fluid (GM Part
No. 12345881).
Lubricate with Multi-Purpose Lubricant (GM Part
No. 12345120), synthetic SAE 5W-30 engine
oil or silicone lubricant (GM Part No. 1052276 or 1052277).
... 276
ProCarManuals.com

USAGE
Manual Transaxle Shift
Linkage
Automatic Transaxle Shift Linkage
Clutch Linkage Pivot
Points
Chassis Lubrication
and Fuel Filler Door
and Striker Plunger.
Windshield Washer Solvent
Hood Latch Assembly
a. Pivots and Spring
b. Release Pawl Anchor
Hood and Door
Hinges, Rear Folding Seat
Weatherstrips
FLUIDLUBRICANT
Chassis lubricant meeting requirements of NLGI Grade 2, Category LB or GC-LB (GM Part No.
12346003) or GM Part No. 1052497 or equivalent.
Engine
oil.
Engine oil.
Chassis lubricant meeting requirements of NLGI Grade 2, Category LB or GC-LB
(GM
Part No. 12346003) or GM Part No. 1052497 or equivalent.
Washer Solvent (GM
Part No. 1051515) or equivalent.
a. Engine
oil.
b. Chassis lubricant meeting requirements of NLGI Grade 2, Category LB or GC-LB
(GM Part No. 12346003) or GM Part No. 1052497 or equivalent.
Engine oil, or Lubriplate Lubricant (GM
Part No. 1050109).
11 See the Index under Replacement Parts for recommended replacement fdters, valves and spark plugs.
Dielectric Silicone Grease (GM
Part No. 12345579 or
equivalent).
~
e77 . . .
ProCarManuals.com

Maintenance Schedule

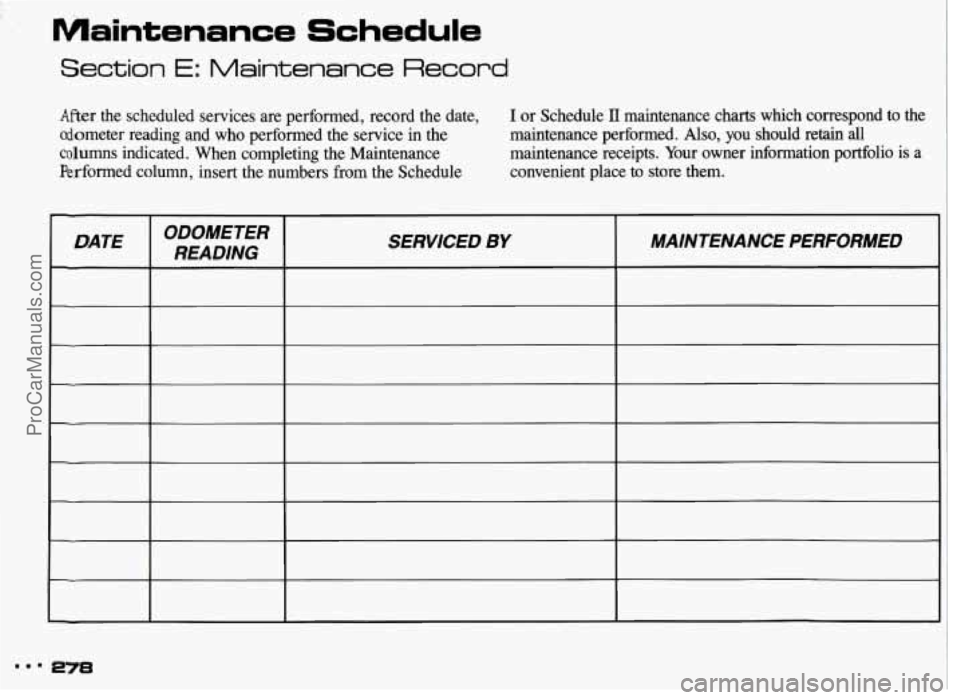

Section E: M-aintenance Record
After the scheduled services are performed, record the date, I or Schedule II maintenance charts which correspond to the
odometer reading and who performed the service in the maintenance performed. Also,
you should retain all
columns indicated. When completing the Maintenance maintenance receipts.
Your owner information portfolio is a
Performed column, insert the numbers from the Schedule convenient place to store
them.
ProCarManuals.com

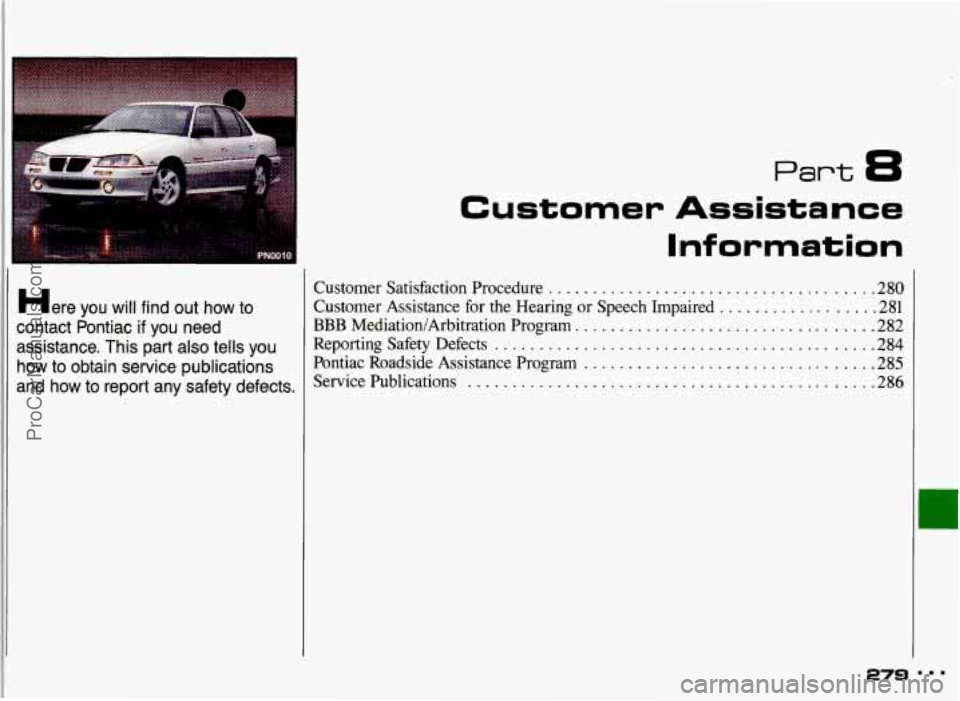

Here you will find out how to
contact Pontiac
if you need
assistance
. This part also tells you
how to obtain service publications
and how to report any safety defects
.
Customer Assistance
Information
Customer Satisfaction Procedure ............................... .... 280
Customer Assistance for the Hearing or Speech Impaired .................. 281
BBB MediatiodArbitration Program .................................. 282
Reporting Safety Defects ........................................... 284
Pontiac Roadside Assistance Program ................................. 285
Service Publications .............................................. 286
279
ProCarManuals.com
