PONTIAC GRAND-AM 1994 Owners Manual

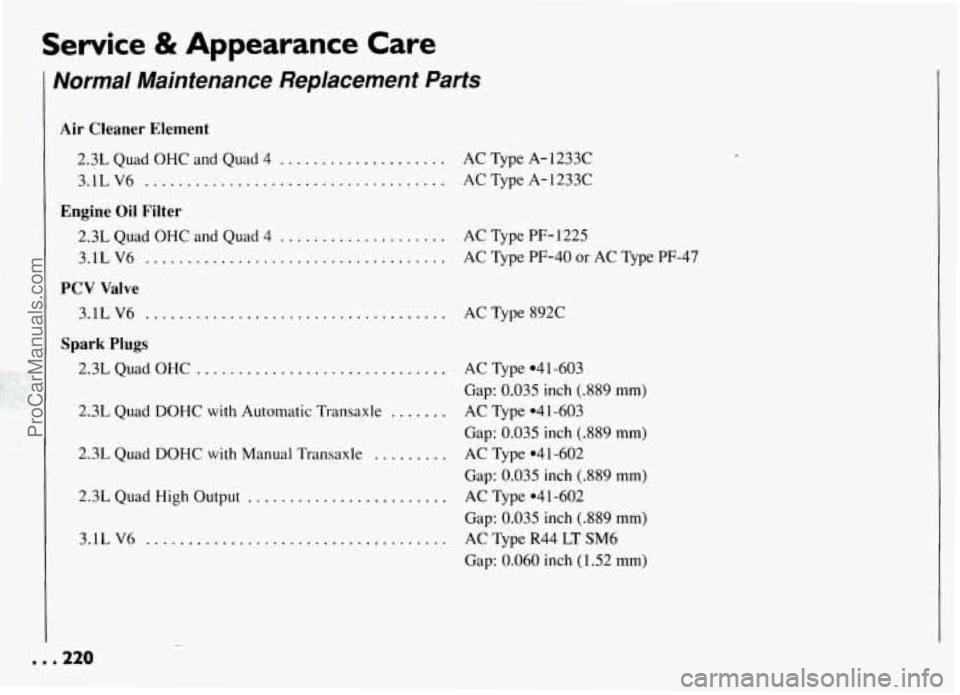

Service & Appearance Care
Normal Maintenance Replacement Parts
Air Cleaner Element
2.3L Quad OHC and Quad 4 ....................
3.lLV6 ....................................
Engine Oil Filter
2.3L Quad OHC and Quad 4 ....................
3.1LV6 ....................................
PCV Valve
3.1LV6 ....................................
Spark Plugs
2.3L Quad OHC ..............................
2.3L Quad DOHC with Automatic Transaxle .......
2.3L Quad DOHC with Manual Transaxle .........
2.3L Quad High Output ........................
3.1LV6 ....................................
AC Type A- 1233C
AC Type A-1233C
AC Type PF- 1225
AC Type PF-40
or AC Type PF-47
AC Type 892C
AC Type 041-603
Gap: 0.035 inch (.889 mm)
AC Type 04 1-603
Gap: 0.035 inch (.889
mm)
AC Type 041-602
Gap: 0.035 inch (389 mm)
AC Type 04 1-602
Gap: 0.035 inch
(.889 mm)
AC Type R44 LT SM6
Gap: 0.060 inch (1.52 mm)
... 220
ProCarManuals.com

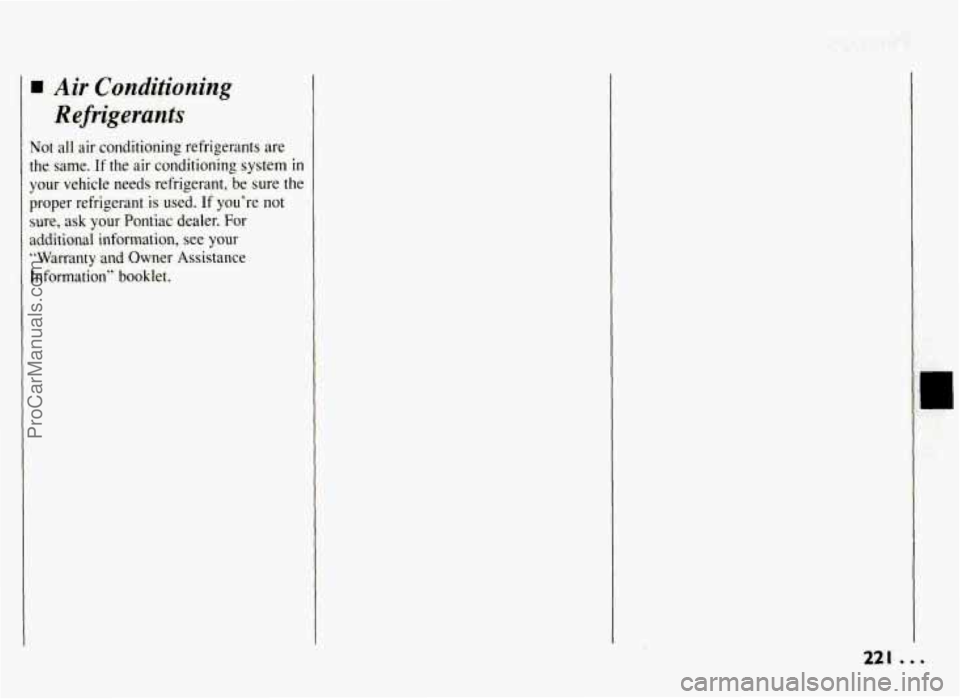

Air Conditioning
Refrigerants
Not all air conditioning refrigerants are
the same.
If the air conditioning system in
your vehicle needs refrigerant, be sure the
proper refrigerant
is used. If you’re not
sure,
ask your Pontiac dealer. For
additional information, see your
“Warranty and Owner Assistance
Information” booklet.
221 ...
ProCarManuals.com

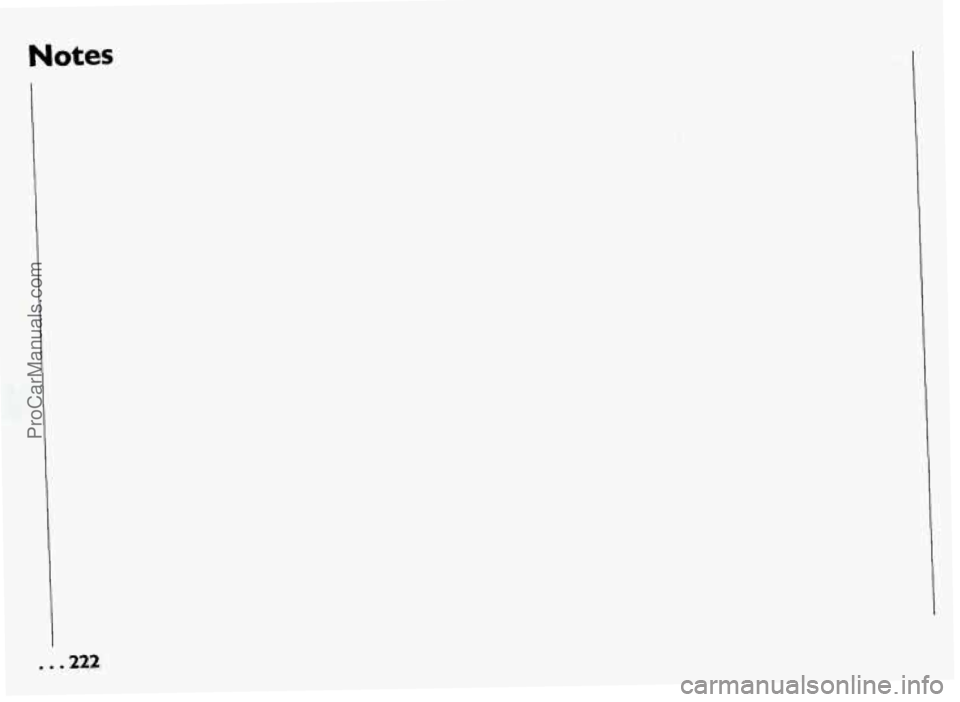

Notes
... 222
ProCarManuals.com

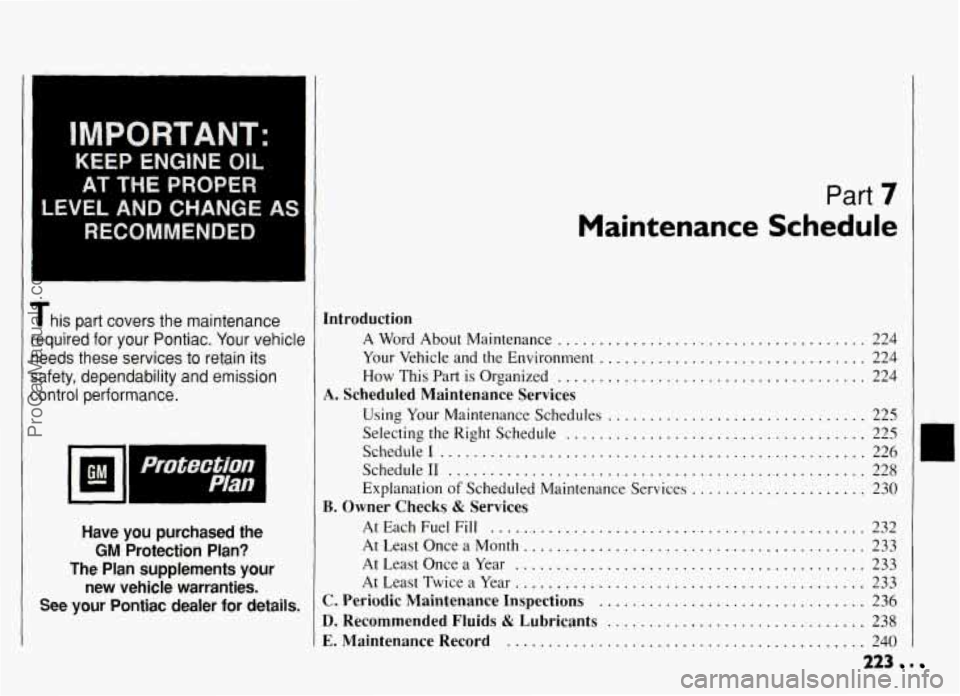

IMPORTANT:
KEEP ENGlNE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
1 This part covers the maintenance
I required for your Pontiac . Your vehick
needs these services to retain its
1 safety. dependability and emission
control performance
.
.... - .,. ....... ..
Have you purchased the
GM Protection Plan?
The Plan supplements your new vehicle warranties
.
See your Pontiac dealer for details .
Part 7
Maintenance Schedule
Introduction
A Word About Maintenance ..................................... 224
Your Vehicle and the Environment
................................ 224
How This Part
is Organized ..................................... 224
Using Your Maintenance Schedules . . ...................... 225
Selecting the Right Schedule
.................................... 225
Schedule1
................................................... 226
Schedule11
.................................................. 228
Explanation
of Scheduled Maintenance Services ................... 230
At Each Fuel Fill ............................................. 232
At Least Once a Month ......................................... 233
At Least Once a Year
.......................................... 233
AtLeastTwiceaYear
.......................................... 233
C . Periodic Maintenance Inspections ................................ 236
D . Recommended Fluids & Lubricants ................... ~ ......... 238
E . Maintenance Record .............................
~ ...... 240
A . Scheduled Maintenance Services
B . Owner
Checks & Services
223
ProCarManuals.com

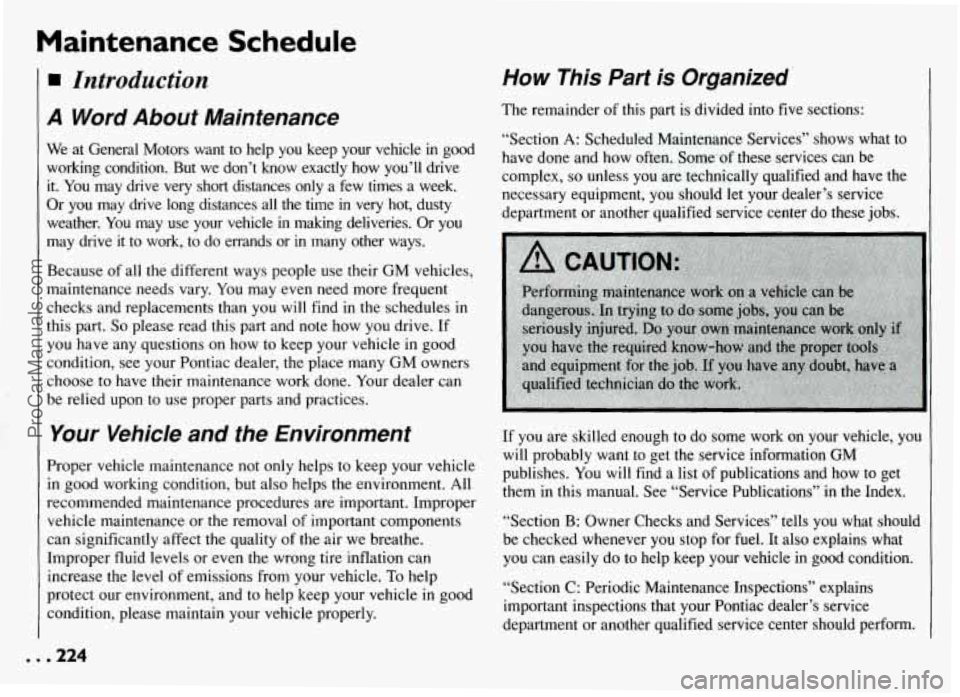

Maintenance Schedule
Introduction
A Word About Maintenance
We at General Motors want to help you keep your vehicle in good
working condition. But we don’t know exactly how you’ll d\
rive it. You may drive very short distances only a
few times a week.
Or you may drive long distances all the time in very hot, dusty
weather. You may use your vehicle
in making deliveries. Or you
may drive
it to work, to do errands or in many other ways.
Because of all the different ways people use their GM vehicles,
maintenance needs vary. You may even need more frequent
checks and replacements than you will find in the schedules
in
this part. So please read this part and note how you drive. If
you have any questions on how to keep your vehicle in good
condition, see your Pontiac dealer, the place many GM owners
choose to have their maintenance work done. Your dealer can
be relied upon to use proper parts and practices.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your vehicle
in good working condition, but also helps the environment. All
recommended maintenance procedures are important. Improper
vehicle maintenance or the removal of important components
can significantly affect the quality of the air we breathe.
Improper fluid levels or even the wrong tire inflation can
increase the level of emissions from your vehicle.
To help
protect our environment, and to help keep your vehicle in good
condition, please maintain your vehicle properly.
How This Part is Organized’
The remainder of this part is divided into five sections:
“Section A: Scheduled Maintenance Services” shows what to
have done and how often. Some--of these services can be
complex,
so unless you are technically qualified and have the
necessary equipment, you should let your dealer’s service
department or another qualified service center do these jobs.
If you are skilled enough to do some work on your vehicle, you
will probably want to get the service information
GM
publishes. You will find a list of publications and how to get
them in this manual. See “Service Publications” in the In\
dex.
“Section B: Owner Checks and Services” tells you what should
be checked whenever you stop for fuel. It also explains what
you can easily do to help keep your vehicle in good condition.
“Section C: Periodic Maintenance Inspections” explains
important inspections that your Pontiac dealer’s service
department or another qualified service center should perform.
ProCarManuals.com

“Section D: Recommended Fluids and Lubricants” lists some
products
GM recommends to help keep your vehicle properly
maintained. These products,
or their equivalents, should be
used whether you do the work yourself or have it done.
‘Section E: Maintenance Record” provides a place for you to
record the maintenance performed on your vehicle. Whenever
any maintenance is performed,
be sure to write it down in this
section. This will help you determine when your next
maintenance should be done. In addition, it
is a good idea to
keep your maintenance receipts. They may be needed to
qualify your vehicle for warranty repairs.
Section A: Scheduled Maintenance
Sewices
Using Your Maintenance Schedule
This section tells you the maintenance services you should
have done and when you should schedule them.
Your Pontiac
dealer knows your vehicle best and wants you to be happy with
it. If you
go to your dealer for your service needs, you’ll know
that GM-trained and supported service people will perform the
work using genuine
GM parts.
These schedules are for vehicles that:
carry passengers and cargo within recommended limits.
You will find these limits on your vehicle’s Tire-Loading
Information Label. S’ee “Loading Your Vehicle” in the
Index.
are driven on reasonable road surfaces within legal driving
limits.
use the recommended unleaded fuel. See “Fuel” in the
Index.
Selecting the Right Schedule
First you’ll need to decide which of the two schedules is right
for your vehicle. Here’s how to decide which schedule to
follow:
Schedule I
Is any one of these true for your vehicle?
Most trips are less than 4 miles (6 km).
Most trips are less than 10 miles (16 km) when outside
temperatures are below freezing.
The engine is at low speed most of the time (as in
door-to-door delivery, or in stop-and-go traffic).
You operate your vehicle in dusty areas.
You tow a trailer. (With some models, you shouldn’t ever
tow a trailer. See “Towing a Trailer” in the Index.)
If any one (or more) of these is true for your driving, follow
Schedule I.
Schedule I1
Follow Schedule I1 only if none of the above conditions is true.
225
ProCarManuals.com

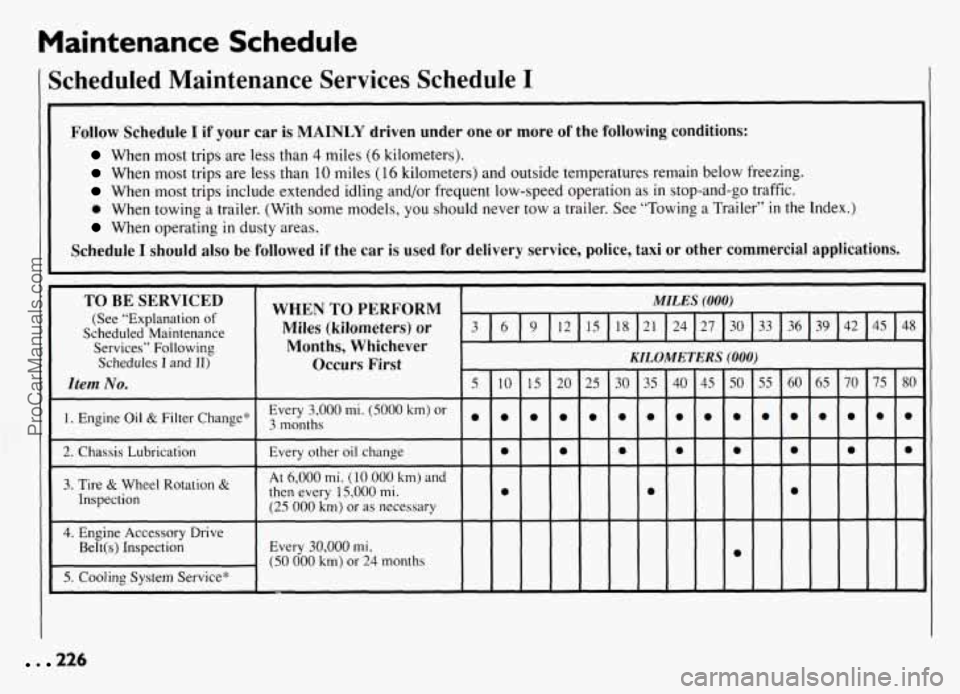

Maintenance Schedule
Scheduled Maintenance Services Schedule I
Follow Schedule I if your car is MAINLY driven under one or more of the following conditions:
When most trips are less than 4 miles (6 kilometers).
When most trips are less than 10 miles (16 kilometers) and outside temperatures remain below freezing.
When most trips include extended idling and/or frequent low-speed operation as in stop-and-go traffic.
i When towing a trailer. (With some models, you should never tow a trailer. See “Towing a Trailer” in the Index.)
When operating in dusty areas.
Schedule I should also be followed if the car is used for delivery service, police, taxi or other commercial applications.
. 226
ProCarManuals.com

Ib i

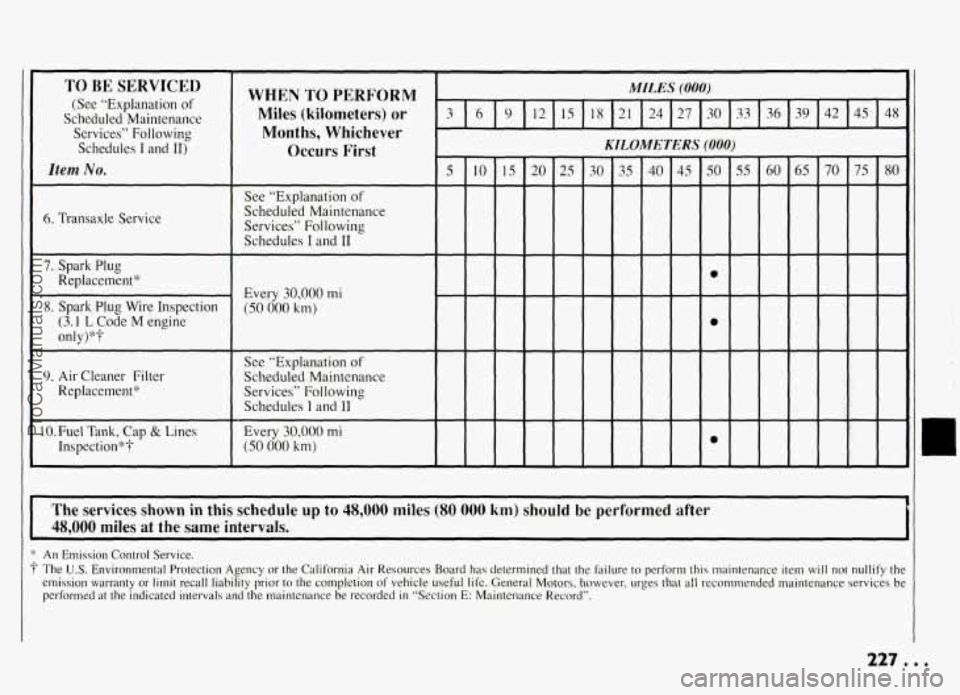

The services shown in this schedule up to 48,000 miles (80 000 km) should be performed after
48,000 miles at the same intervals.
!‘ * An Emission Control Service.
The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure lo perform this maintenance item will not nullify the
emission warranty or limit recall liability prior to the completion of vehicle useful life. General Motors, however. urges that a!l recommended maintenance services be
performed
at the indicated intervals and the maintenance be recorded in “Section E: Maintenance Record”.
227. . .
ProCarManuals.com

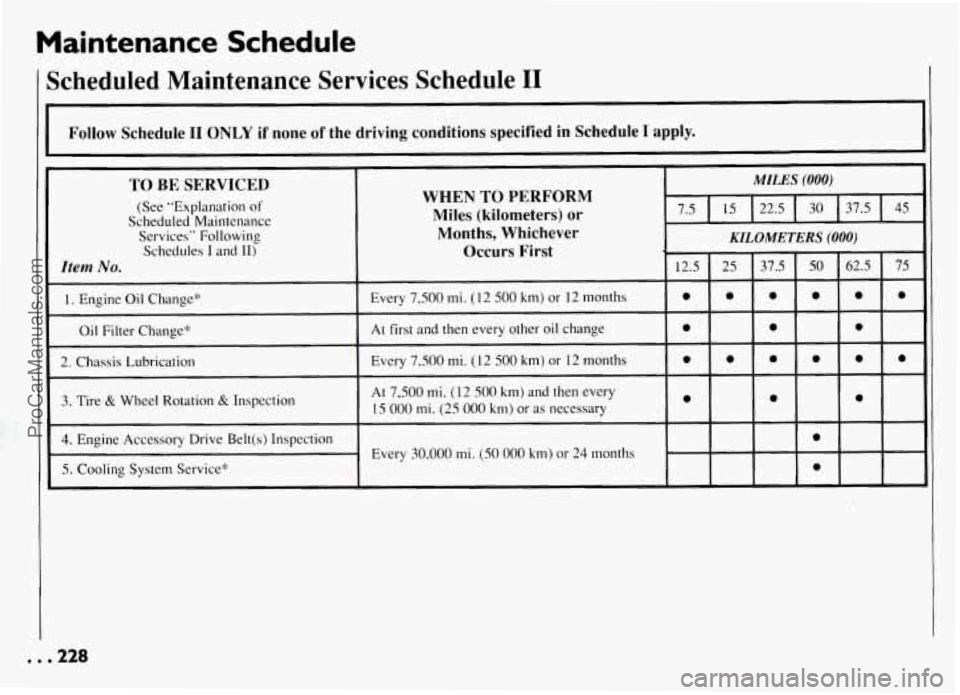

Maintenance Schedule
Scheduled Maintenance Services Schedule I1
Follow Schedule I1 ONLY if none of the driving conditions specified in Schedule I apply.
I
TO BE SERVICED
(See "Explanation of
Scheduled Maintenance Services" Following Miles (kilometers) or
Months, Whichever
KILOMETERS (000)
MILES (000)
WHEN TO PERFORM
Schedules I and 11,- Occurs First
Item No. 37.5 25
12.5
1. Engine Oil Change" Every
7,500 mi. ( 12 500 km) or 12 months
0,il Filter Change"
2. Chassis Lubrication At
first and then every other oil change
Every 7,500 mi. (12
500 km) or 12 months
0 0 0
0 0
0 0
0
3. Tire & Wheel Rotation & Inspection
4. Engine Accessory Drive Belt(s) Inspection
5. Cooling System Service*
At 7,500 mi. ( 12 500 km) and then every
15
000 mi. (25 000 km) or as necessary 0 0
Every 30.000 mi. (50 000 km) or 24 months
!
+
50 62.5
1
I
I.
t
. . .22a
ProCarManuals.com

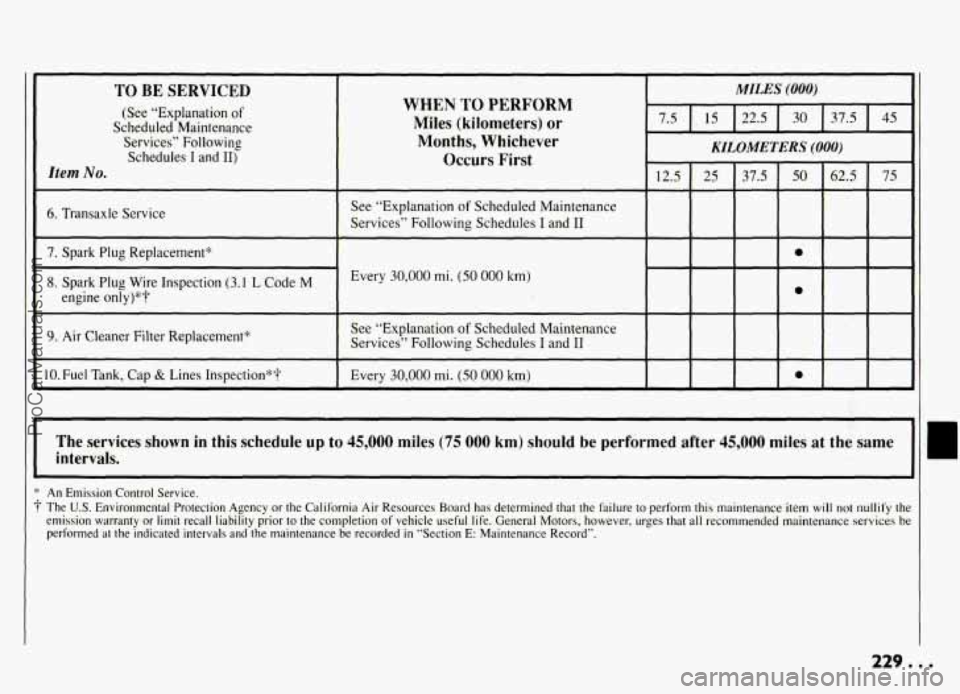

TO BE SERVICED
(See “Explanation of
Scheduled Maintenance
Services” Following
Schedules I and 11)
Item No.
6. Transaxle Service
7. Spark Plug Replacement*
8. Spark Plug Wire Inspection (3.1 L Code M
engine only)*?
9. Air Cleaner Filter Replacement”
10.Fuel Tank, Cap
& Lines Inspection*?’
WHEN TO PERFORM
Miles (kilometers) or
Months, Whichever
Occurs First
See “Explanation of Scheduled Maintenance
Services” Following Schedules
I and I1
Every 30,000 mi. (50 000 km)
See “Explanation of Scheduled Maintenance
Services” Following Schedules I and I1
Every
30,000 mi. (50 000 km)
MILES (000)
KILOMETERS (000)
The services shown in this schedule up to 45,000 miles (75 000 km) should be performed after 45,000 miles at the same
intervals.
I
* An Emission Control Service.
? The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the
emission warranty or limit recall liability prior to the completion of vehicle useful life. General Motors, however, urges that all recommended maintenance services be
performed at the indicated intervals and the maintenance be recorded in “Section E: Maintenance Record”.
