Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the bottom of your spare tire
cover. It's very helpful if you ever need to order parts.
On this label is:

your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.

6-51
Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle unless
you check with your dealer first. Some electrical
equipment can damage your vehicle and the
damage wouldn't be covered by your warranty.
Some add
-on electrical equipment can keep other
components from working as they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem, have
it fixed.
Power Windows
A circuit breaker in the fuse panel protects the power
windows. When the current load is too heavy, the circuit
breaker opens and closes, protecting the circuit until the
problem is fixed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible links. This greatly reduces the chance of
damage caused by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure to
replace a bad fuse with a new one of the identical
size and rating.
There are three fuse blocks in your vehicle: two
instrument panel fuse blocks and the engine
compartment fuse block.
There are four spare fuses located in the left instrument
panel end cap for your use.

6-52
Instrument Panel Fuse Blocks
There are two fuse panels for your vehicle. One is
located on the driver's side of the instrument panel and
the other is located on the passenger's side.
Driver's SideFuse Usage
RADIO SW Steering Wheel Radio Switches
RADIO ACC Radio
WIPER Windshield Wiper Motor,
Washer Pump
TRUNK
REL/RFA/RADI
O AMPTrunk Release Relay/Motor,
RKE, Audio Amplifier
TURN LPS Turn Signal Lamps
PWR MIRROR Power Mirrors
AIR BAG Air Bags
BFC BATT Body Computer (BFC)
PCM ACC PCM
DR LOCK Door Lock Motors
IPC/BFC ACC Cluster, Body Computer (BFC)
STOP LPS Stoplamps
HAZARD LPS Hazard Lamps
IPC/HVAC
BATTHVAC Head, Cluster,
Data Link Connector
Circuit Breaker Usage
PWR SEAT Power Seats

6-53
Passenger's SideFuse Usage
INST LPS Interior Lamp Dimming
CRUISE
SW LPSSteering Wheel Cruise Control
Switch Lamps
CRUISE SW Steering Wheel Cruise
Control Switches
HVAC
BLOWERHVAC Blower Motor
CRUISE Cruise Control
FOG LPS Fog Lamps
INT LPS Interior Courtesy Lamps
RADIO BATT Radio
SUNROOF Power Sunroof
Circuit Breaker Usage
PWR WNDW Power Windows

6-54

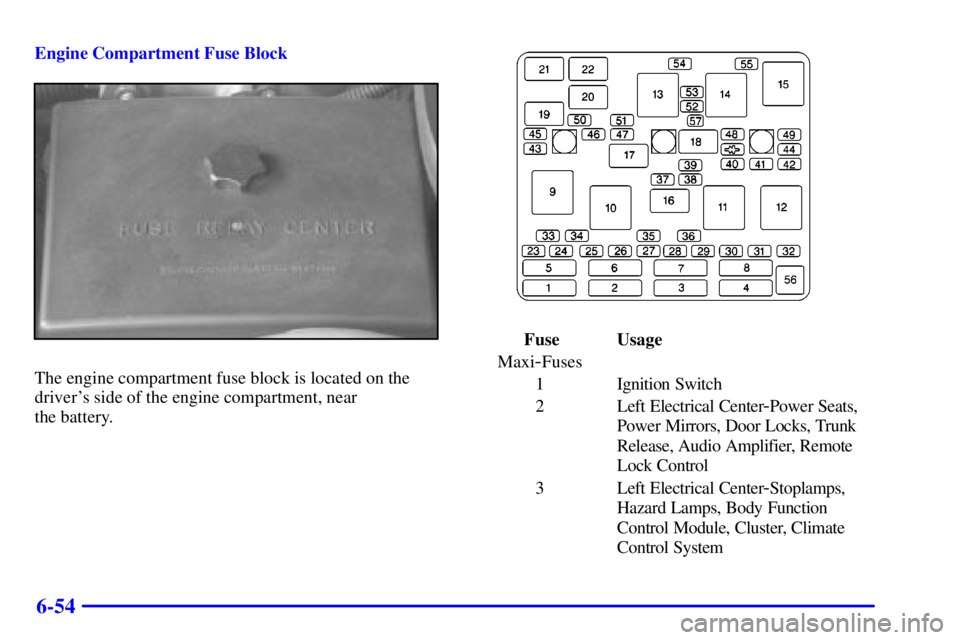

Engine Compartment Fuse Block
The engine compartment fuse block is located on the
driver's side of the engine compartment, near
the battery.
Fuse Usage
Maxi
-Fuses
1 Ignition Switch
2 Left Electrical Center
-Power Seats,
Power Mirrors, Door Locks, Trunk
Release, Audio Amplifier, Remote
Lock Control
3 Left Electrical Center
-Stoplamps,
Hazard Lamps, Body Function
Control Module, Cluster, Climate
Control System

6-55
Fuse Usage
4 Right Electrical Center
-Fog Lamps,
Radio, Body Function Control
Module, Interior Lamps
5 Ignition Switch
6 A.I.R.
7Anti
-Lock Brakes
8 Cooling Fan # 1
Mini
-Relays
9 Rear Defog
10 A.I.R.
11 Anti
-Lock Brakes
12 Cooling Fan # 1
13 HVAC Blower (Climate Control)
14 Cooling Fan # 2
15 Cooling Fan
Micro
-Relays
16 Air Conditioning Compressor
17 Not Used
18 Fuel Pump
19 Automatic Light Control
20 Automatic Light Control
21 Horn
22 Daytime Running Lamps Fuse Usage
Mini
-Fuses
23
- 32 Spare Fuse Holder
33 Rear Defog
34 Accessory Power Outlets,
Cigar Lighter
35 Anti
-Lock Brakes
36 Anti
-Lock Brakes, Variable
Effort Steering
37 Air Conditioning Compressor,
Body Function Control Module
38 Automatic Transaxle
39 Powertrain Control Module
40 Anti
-Lock Brakes
41 Ignition System
42 Back
-Up Lamps, Brake Transaxle
Shift Interlock
43 Horn
44 Powertrain Control Module
45 Parking Lamps
46 Climate Control System,
Air Conditioning
(Continued)

6-56
Fuse Usage
Mini
-Fuses
47 Canister Vent Valve, Exhaust
Oxygen Sensors
48 Fuel Pump Injectors
49 Generator
50 Right Headlamp
51 Left Headlamp
52 Cooling Fan # 2
53 HVAC Blower (Climate Control )
54 Not Used
55 Cooling Fan #2 Ground
56 Fuse Puller for Mini Fuses
57 Not Used
Replacement Bulbs
Exterior Lamps (Rear) Bulb
Back
-Up Lamps 3156. . . . . . . . . . . . . . . . . . . . . . .
Center High
-Mounted Stoplamp 912. . . . . . . . . . . .
Fascia Rear Cornering Lamps 912. . . . . . . . . . . . . .
Turn Signal lamps 3156. . . . . . . . . . . . . . . . . . . . . .
Stop/Taillamps 3157. . . . . . . . . . . . . . . . . . . . . . . .
Exterior Lamps (Front) Bulb
Halogen Headlamps 9007. . . . . . . . . . . . . . . . . . . .
Parking/Turn Signal Lamps 3157NA. . . . . . . . . . . .
Side Marker Lamps 194NA. . . . . . . . . . . . . . . . . . . .
Fog Lamps 880X *. . . . . . . . . . . . . . . . . . . . . . . . .
Interior Lamps Bulb
Dome (Base) 561 *. . . . . . . . . . . . . . . . . . . . . . . . . .
Dome (Uplevel) 212
-2 * . . . . . . . . . . . . . . . . . . . . .
Glovebox 194 *. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
* For information on these bulbs, contact your Pontiac
dealer service department.

6-57
Capacities and Specifications
Engine Crankcase
2.4L L4 Engine 4.0 quarts (3.8 L). . . . . . . . . . . . . .
3400 V6 Engine 4.5 quarts (4.3 L). . . . . . . . . . . . .
Cooling System
2.4L L4 Engine 11.3 quarts (10.7 L). . . . . . . . . . . . .
3400 V6 Engine 13.6 quarts (12.9 L). . . . . . . . . . .
Refrigerant, Air ConditioningSee refrigerant . . . . .
charge label under the hood.
Fuel Tank14.3 gallons (54.1 L) . . . . . . . . . . . . . . . . .
Tire Pressures, SizesSee Tire
-Loading . . . . . . . . . . .
Information label on the rear driver's
side passenger door.
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
All capacities are approximate. When adding, be sure to
fill to the appropriate level or as recommended in
this manual.
See ªRecommended Fluids and Lubricantsº in the Index.
2.4L L4 Engine Specifications
VIN Engine Code T. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type L4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 2.4 Liters. . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-3-4-2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Horsepower 150. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3400 V6 Engine Specifications
VIN Engine Code E. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type V6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 3.4 Liters. . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-2-3-4-5-6 . . . . . . . . . . . . . . . . . . . . . .
Horsepower
-SE model 170. . . . . . . . . . . . . . . . . . . . .
Horsepower
-GT model 175. . . . . . . . . . . . . . . . . . . .

6-58
Normal Maintenance
Replacement Parts
Air Cleaner Element
2.4L L4 AC Type A
-1279C . . . . . . . . . . . . . . . . . . .
3400 V6 AC Type A
-1279C . . . . . . . . . . . . . . . . . . .
Engine Oil Filter
2.4L L4 AC Type PF
-44 . . . . . . . . . . . . . . . . . . . . . .
3400 V6 AC Type PF
-47 . . . . . . . . . . . . . . . . . . . . . .
Spark Plugs
2.4L L4 AC Type
41
-963 . . . . . . . . . . . . . . . . . . . .
(Platinum Plug) Gap: 0.050 inch (1.27 mm)
3400 V6 AC Type
41
-940 . . . . . . . . . . . . . . . . . . . .
(Platinum Plug) Gap: 0.060 inch (1.52 mm)
Windshield Wiper Blades (Shepherd's Hook Type)
Passenger's Side 17 inches (43 cm). . . . . . . . . . . . .
Driver's Side 22 inches (56 cm). . . . . . . . . . . . . . . .
Vehicle Dimensions
Length 186.5 inches (474.2 cm). . . . . . . . . . . . . . . . .
Width 70.4 inches (178.7 cm). . . . . . . . . . . . . . . . . . .
Height 54.5 inches (138.4 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 107.1 inches (271.9 cm). . . . . . . . . . . . . .
Front Tread 59.1 inches (150.0 cm). . . . . . . . . . . . . . .
Rear Tread 59.4 inches (150.7 cm). . . . . . . . . . . . . . .
