wipers PONTIAC GRAND AM 2003 Owners Manual

A warning chime will sound if you open the driver’s door
when the ignition is
off and the key is in the ignition.
Notice: If your key seems stuck in OFF and
you can’t turn it, be sure you are using the correct
key; if
so, is it all the way in? Turn the key only
with your hand. Using
a tool to force it could break
the key or the ignition switch.
If none of this
works, then your vehicle needs service.
B (ACCESSORY): This position unlocks the transaxle.
It also lets you use things like the radio and windshield
wipers when the engine is not running. To use
ACCESSORY, turn the key clockwise to the first
position. Use this position
if your vehicle must be pushed
or towed, but never try to push-start your vehicle.
C (ON): This position is where the key returns to after
you start your engine and release the key. The
ignition switch stays in ON when the engine is running.
But even when the engine is not running, you can
use ON to operate your electrical accessories and to
display some instrument panel warning lights.
Retained Accessory Power (RAP)
Your vehicle is equipped with a Retained Accessory
Power (RAP) feature which will allow the radio to
continue to work up to
10 minutes after the ignition is
turned to
OFF.
Your radio will work when the ignition key is in ON or
ACCESSORY. Once the key is turned from ON to
OFF,
the radio will continue to work up to 10 minutes or
until the driver’s door is opened.
Starting Your Engine
Automatic Transaxle
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position
- that’s a
safety feature. To restart when you’re already moving,
use NEUTRAL (N) only.
Notice: Don’t try to shift to PARK (P) if your
vehicle
is moving. If you do, you could damage the
transaxie.
shift to PARK (Pj oniy when your
vehicle
is stopped.
D (START): This position starts the engine. When the
engine starts, release the key. The ignition switch
will return to ON for normal driving.
2-1 9

Flash-to-Pass
This feature lets you use your high-beam headlamps to
signal
a driver in front of you that you want to pass.
To use it, pull the turn signaVmultifunction lever toward
you until the high-beam headlamps come on, then
release the lever to turn them
off.
Windshield Wipers
You control the windshield wipers by moving the lever
with the wiper symbol on it up or down. For a single wiper cycle,
push the lever down
to MIST,
then release it. For more cycles, hold the lever down
longer.
For steady wiping at low speed, move the lever up
to
the LO position. For high-speed wiping, move the lever
up further, to
HI. To stop the wipers, move the lever
to OFF.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain
or snow.
Move the lever
to INT (Intermittent), then turn the inner
band, labeled INT
ADJ (Intermittent Adjustment),
and choose the delay you want. Turn the inner band up
for shorter delay times between wiper cycles. Turn
the band down for a longer delay time between wiper
cycles.
Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely.
To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them. If they’re frozen to the
windshield, carefully loosen or thaw them. If your blades
do become damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wiper motor.
A circuit breaker will stop the motor until it cools. Clear
away snow or ice
to prevent an overload.
3-8

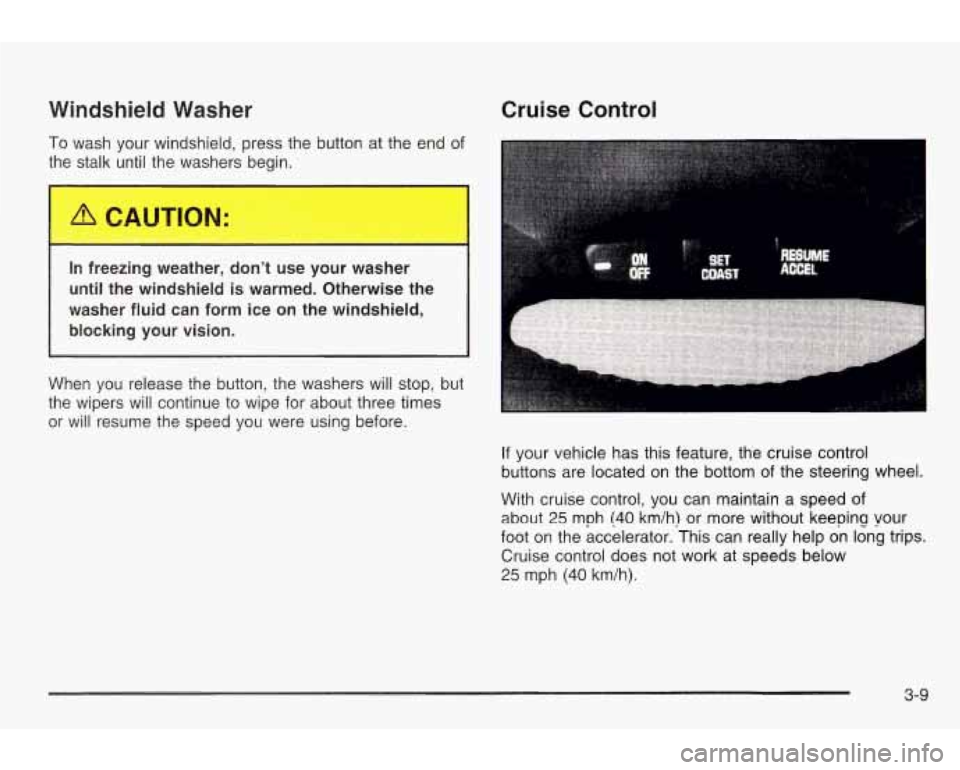

Windshield Washer
To wash your windshield, press the button at the end of
the stalk until the washers begin.
In freezing weather, don't use your washer
until the windshield
is warmed. Otherwise the
washer fluid can form ice on the windshield,
blocking your vision.
Cruise Control
When you release the button, the washers will stop, but
the wipers will continue to wipe for about three times
or will resume the speed you were using before.
If your vehicle has this feature, the cruise control
buttons are located on the bottom of the steering wheel.
With cruise control, you can maintain a speed of
about
25 mph (40 km/h) or more without keeping your
foot on the accelerator. This can really help
on long trips.
Cruise control does not work at speeds below
25 mph (40 km/h).
3-9

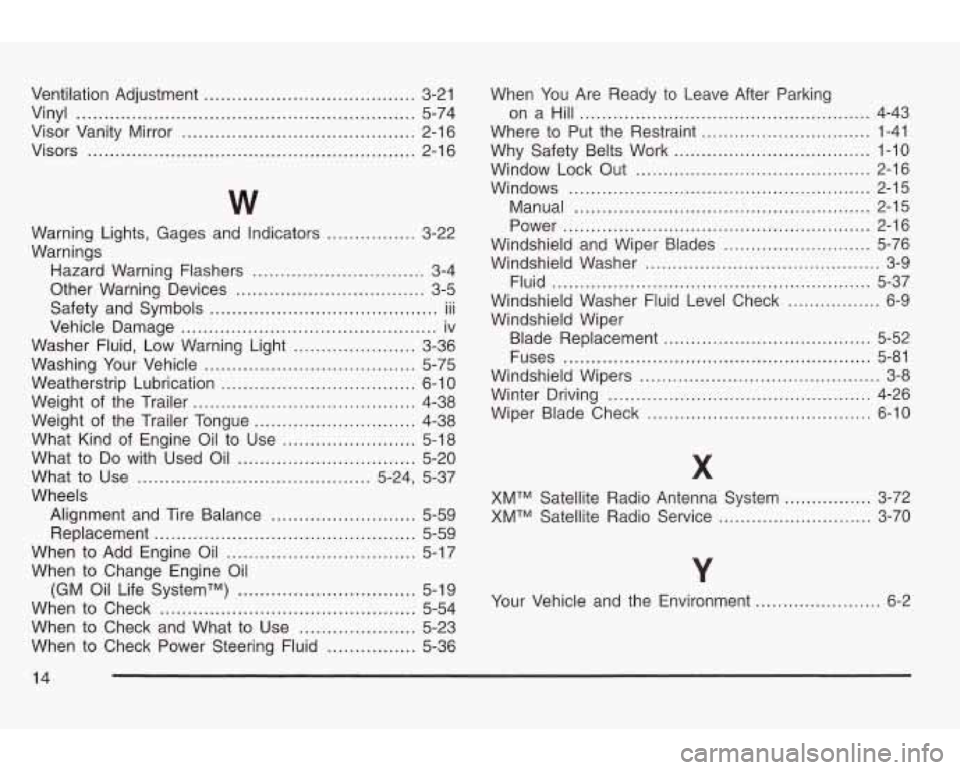

Ventilation Adjustment ...................................... 3-21 When You Are Ready to Leave After Parking
Vinyl
............................................................. 5-74 on a Hill ..................................................... 4-43
Visor Vanity Mirror
.......................................... 2-16 Where to Put the Restraint ............................... 1-41
Visors
........................................................... 2-16 Why Safety Belts Work .................................... 1-10
Window Lock Out ........................................... 2-16
Windows 2-15
Manual
...................................................... 2-15
.......................................................
W
Warning Lights. Gages and Indicators ................ 3-22
Warnings Hazard Warning Flashers
............................... 3-4
Other Warning Devices
.................................. 3-5
Safety and Symbols
......................................... iii
Vehicle Damage .............................................. iv
Washer Fluid, Low Warning Light
...................... 3-36
Washing Your Vehicle
...................................... 5-75
Weatherstrip Lubrication
................................... 6-1 0
Weight of the Trailer ........................................ 4-38
Weight of the Trailer Tongue
............................. 4-38
What Kind of Engine Oil to Use
........................ 5-18
What
to Do with Used Oil ................................ 5-20
What to Use
.......................................... 5-24, 5-37
Wheels
Alignment and Tire Balance
.......................... 5-59
Replacement
............................................... 5-59
When to Add Engine Oil
.................................. 5-17
When to Change Engine Oil
(GM Oil Life SystemTM)
................................ 5-19
When to Check
.............................................. 5-54 Power
........................................................ 2-16
Windshield and Wiper Blades
........................... 5-76
Windshield Washer
........................................... 3-9
Fluid
.......................................................... 5-37
Windshield Washer Fluid Level Check
................. 6-9
Windshield Wiper
Blade Replacement
...................................... 5-52
Fuses
........................................................ 5-81
Windshield Wipers
............................................ 3-8
Wiper Blade Check
......................................... 6-10
Winter Driving
................................................ 4-26
XMTM Satellite Radio Antenna System
................ 3-72
XMTM Satellite Radio Service
............................ 3-70
Your Vehicle and the Environment
. ......... 6-2
When
to Check and What to Use ..................... 5-23
When to Check Power Steering Fluid
................ 5-36
14
