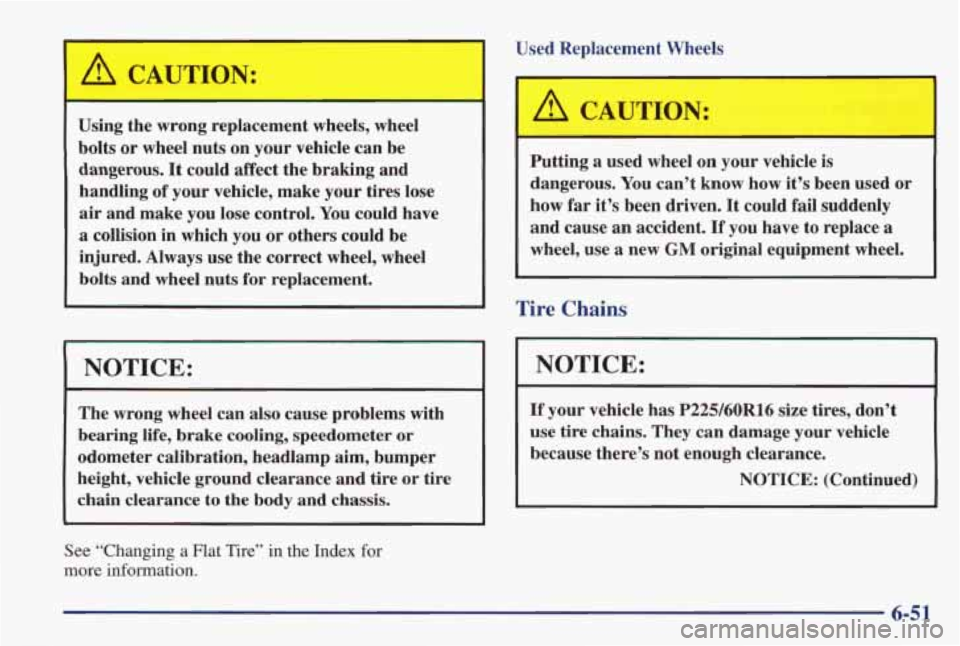

A CAUTION:
Used Replacement Wheels
Using the wrong replacement wheels, wheel
bolts
or wheel nuts on your vehicle can be
dangerous.
It could affect the braking and
handling
of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you
or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See “Changing a Flat Tire” in the Index for
more information.
‘ A CAUTION:
+
Putting a used wheel on your vehicle is
dangerous. You can’t know how it’s been used or
how far it’s been driven.
It could fail suddenly
and cause an accident.
If you have to replace a
wheel, use a new GM original equipment wheel.
Tire Chains
NOTICE:
If your vehicle has P225160R16 size tires, don’t
use tire chains. They can damage your vehicle
because there’s not enough clearance.
NOTICE: (Continued)

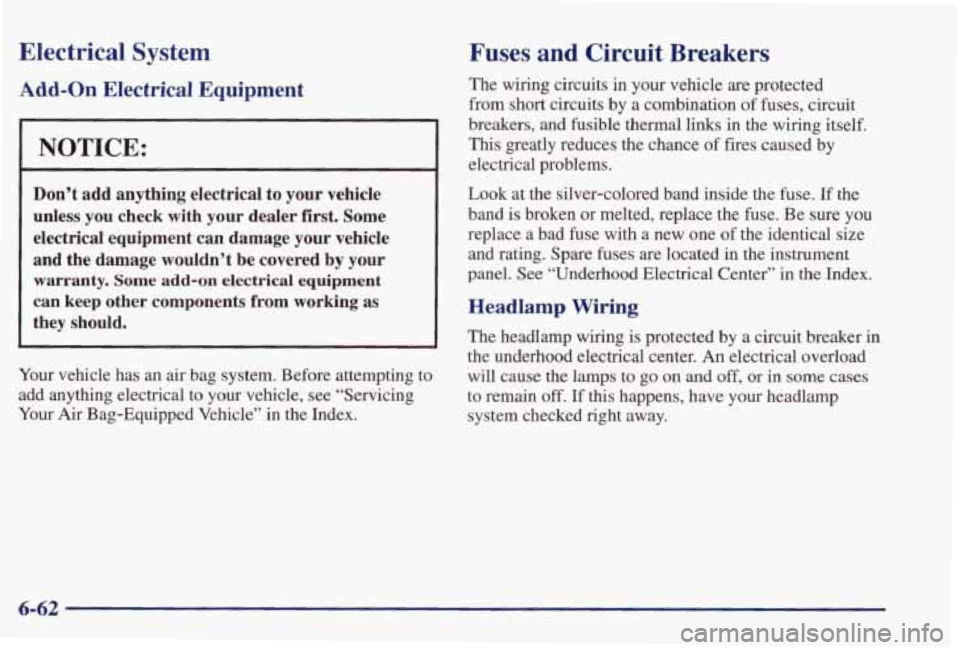

Electrical System
kdd-On Electrical Equipment
NOTICE:
Don’t add anything electrical to your vehicle
unless you check with your dealer
first. Some
electrical equipment can damage your vehicle
and
the damage wouldn’t be covered by your
warranty.
Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see “Servicing
Your
Air Bag-Equipped Vehicle” in the Index.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses, circuit
breakers, and fusible thermal links in the wiring itself.
This greatly reduces the chance of fires caused by
electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one
of the identical size
and rating. Spare fuses are located
in the instrument
panel. See “Underhood Electrical Center” in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center. An electrical overload will cause the lamps
to go on and off, or in some cases
to remain off. If
this happens, have your headlamp
system checked right away.
6-62

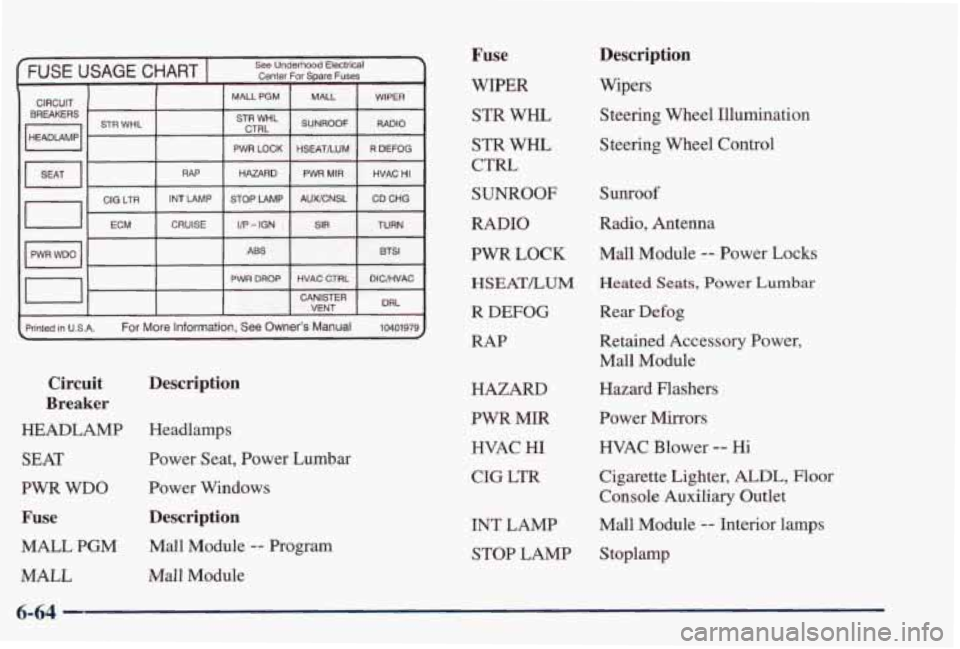

FUSE USAGE CHART I See Underhood Electrical
Center For Spare Fuses I I I I
CIRCUIT BREAKERS
I HEADLAMP I
I I MAUPGM
STR WHL STR WHL
CTRL
I
I I PWR LOCK I I
RAP HAZARD ~
GIG LTR
I/P - IGN
CRUISE
ECM STOP LAMP
INT LAMP
ABS
PWR DROP MALL
WIPER
SUNROOF
CD CHG
AUWCNSL HVAC
HI PWR MIR
R DEFOG
HSEATILUM
RADIO
SIR TURN
BTSl
HVAC CTRL DlCRlVAC
I I I I CANISTER DRL VENT
rinted in USA.
For More Information, See Owner’s Manual 10401979)
Description
Circuit
Breaker
HEADLAMP
Headlamps
SEAT Power Seat, Power Lumbar
PWR WDO Power Windows
Fuse Description
MALL PGM Mall Module -- Program
MALL Mall Module
Fuse
WIPER
STR WHL
STR WHL
CTRL
SUNROOF
RADIO
PWR LOCK
HSEATLUM
R DEFOG
RAP
HAZARD
PWR MIR HVAC
HI
CIG LTR
INT LAMP STOP LAMP
Description
Wipers
Steering Wheel Illumination
Steering Wheel Control
Sunroof
Radio, Antenna
Mall Module
-- Power Locks
Heated Seats, Power Lumbar
Rear Defog
Retained Accessory Power, Mall Module
Hazard Flashers
Power Mirrors
HVAC Blower -- Hi
Cigarette Lighter,
ALDL, Floor
Console Auxiliary Outlet
Mall Module
-- Interior lamps
S toplamp
6-64

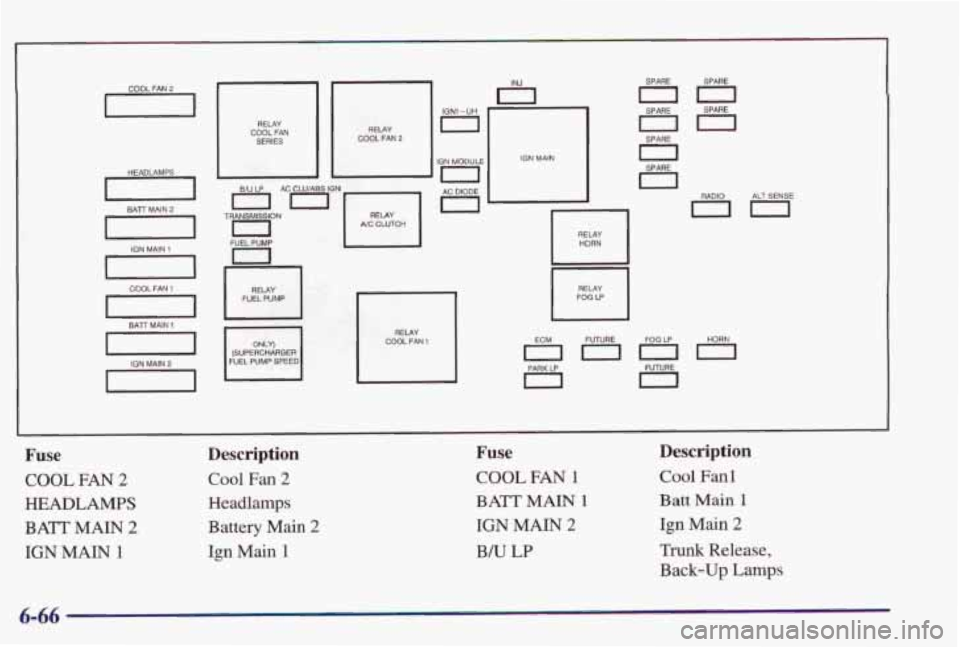

0
BAll MAIN 2
0
IQN MAIN 1
0 BAT MAIN 1
IQN MAIN 2
0
COOL FAN RELAY
SERIES r"- COOL FAN 2
LZJ
FUEL PUMP
(SUPERCHARGER
NEL PUMP SPEED
0
ION MODULE
0
0
ION MAIN
0
0
0
0
0
0
Fuse Description Fuse Description
COOL FAN 2 Cool Fan 2 COOL FAN 1 Cool Fan1
BAm MAIN 2 Battery Main 2 IGN MAIN 2 Ign Main 2
IGNMAIN 1 Ign Main 1 B/U LP Trunk Release,
HEADLAMPS Headlamps BATT MAIN 1 Ban Main 1
Back-up Lamps
6-66

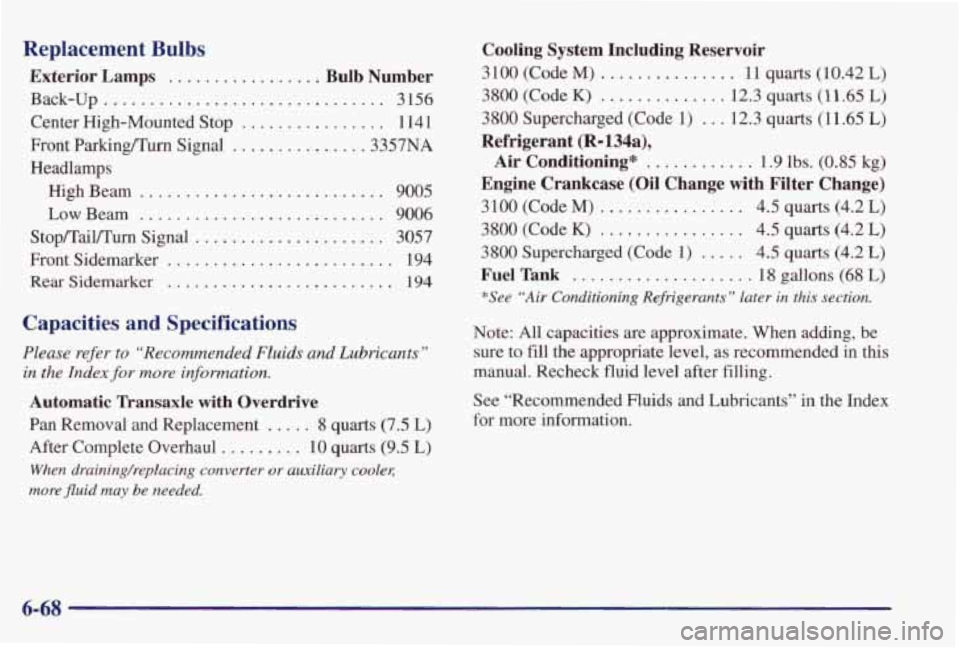

Replacement Bulbs
Exterior Lamps ............... Bulb Number
Back-up ............................... 3 156
Front Parking/Turn Signal
.............. .3357NA
Center High-Mounted Stop
................ 1141
Headlamps HighBeam
........................... 9005
Low Beam ........................... 9006
Front Sidemarker
......................... 194
Rear Sidemarker ......................... 194
Stop/Tail/Turn Signal ..................... 3057
Capacities and Specifications
Please refer to “Recommended Fluids and Lubricants”
in the Index for more information.
Automatic Transaxle with Overdrive
Pan Removal and Replacement ..... 8 quarts (7.5 L)
After Complete Overhaul ......... 10 quarts (9.5 L)
When drainingheplacing converter or auxiliary coolel;
more fluid
my be needed.
Cooling System Including Reservoir
3100 (CodeM) ............... 11 quarts (10.42 L)
3800 (Code K) .............. 12.3 quarts (11.65 L)
3800 Supercharged (Code 1) ... 12.3 quarts (11.65 L)
Refrigerant (R-l34a),
Engine Crankcase (Oil Change with Filter Change)
Air Conditioning*
............ 1.9 lbs. (0.85 kg)
3100 (Code M)
................ 4.5 quarts (4.2 L)
3800 (Code K) ................ 4.5 quarts (4.2 L)
Fuel Tank .................... 18 gallons (68 L)
3800 Supercharged (Code 1) ..... 4.5 quarts (4.2 L)
*See “Air Conditioning Refrigerants ” later in this section.
Note: All capacities are approximate. When adding, be
sure to fill the appropriate level, as recommended
in this
manual. Recheck fluid level after filling.
See “Recommended Fluids and Lubricants” in
the Index
for more information.
6-68

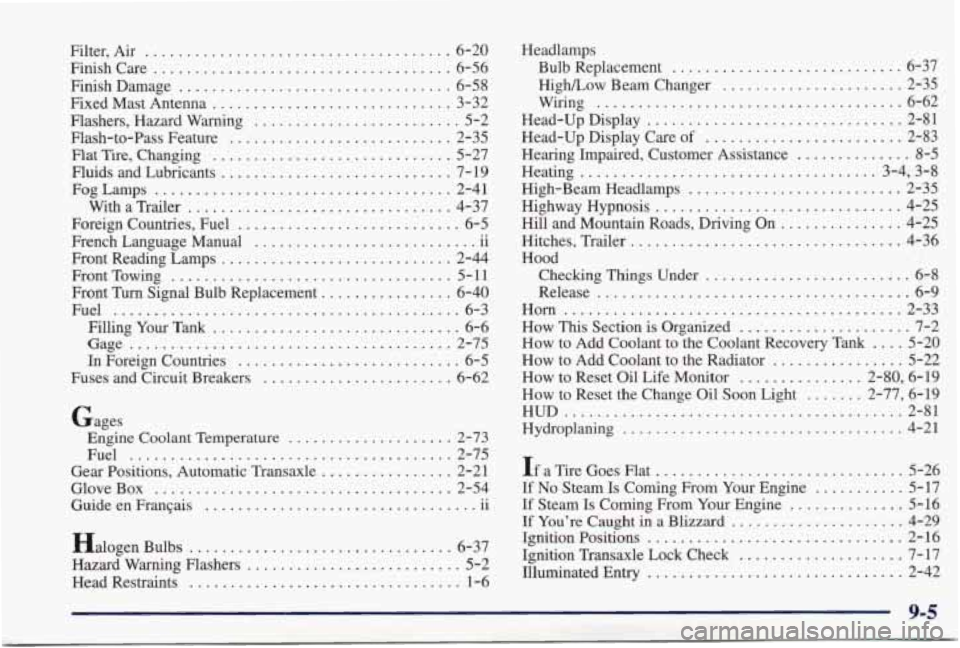

Filter. Air . . ............ ............. 6-20
Finish Care .................. ............. 6-56
Finish Damage ............................... 6-58
Fixed Mast Antenna ............................. 3-32
Flashers. Hazard Warning ......................... 5-2
Flash-to-PassFeature ........................... 2-35
Flat Tire. Changing ............................. 5-27
Fluids and Lubricants ............................ 7-19
FogLamps .................................... 2-41
With a Trailer ................................ 4-37
Foreign Countries, Fuel ........................... 6-5
French Language Manual ........................... ii
Front Reading Lamps ............................ 2-44
FrontTowing .................................. 5-11
Front Turn Signal Bulb Replacement ................ 6-40
Fuel .......................................... 6-3
Filling Your Tank .............................. 6-6
Gage ....................................... 2-75
In Foreign Countries ........................... 6-5
Fuses and Circuit Breakers ....................... 6-62
Gages Engine Coolant Temperature
.................... 2-73
Fuel ....................................... 2-75
Gear Positions. Automatic Transaxle ................ 2-21
GloveBox .................................... 2-54
Guide en Frangais ................................. ii
Halogen Bulbs ................................ 6-37
Hazard Warning Flashers .......................... 5-2
HeadRestraints ................................ .l-6
Headlamps
Bulb Replacement
............................ 6-37
High/Low Beam Changer ...................... 2-35
Wiring ..................................... 6-62
Head-Up Display ............................... 2-81
Head-Up Display Care of ........................ 2-83
Hearing Impaired. Customer Assistance .............. 8-5
Heating .................................... 3.4. 3.8
High-BeamHeadlamps .......................... 2-35
Highway Hypnosis .............................. 4-25
Hill and Mountain Roads. Driving On ............... 4-25
Hitches. Trailer ................................. 4-36
Hood Checking Things Under
......................... 6-8
Release ...................................... 6-9
How This Section is Organized ..................... 7-2
How to Add Coolant to the Coolant Recovery Tank .... 5-20
How to Add Coolant to the Radiator ................ 5-22
How to Reset Oil Life Monitor ............... 2-80. 6-19
How to Reset the Change Oil Soon Light ....... 2-77. 6-19
Hydroplaning .................................. 4-21
If a Tire Goes Flat ............................ 5-26
If No Steam Is Coming From Your Engine ........... 5-17
If Steam Is Coming From Your Engine .............. 5-16
If You’re Caught in a Blizzard ..................... 4-29
Ignition Positions ............................... 2-16
Ignition Transaxle Lock Check .................... 7-17
Illuminated Entry ............................... 2-42
Horn ......................................... 2-33
HUD ......................................... 2-81
9-5

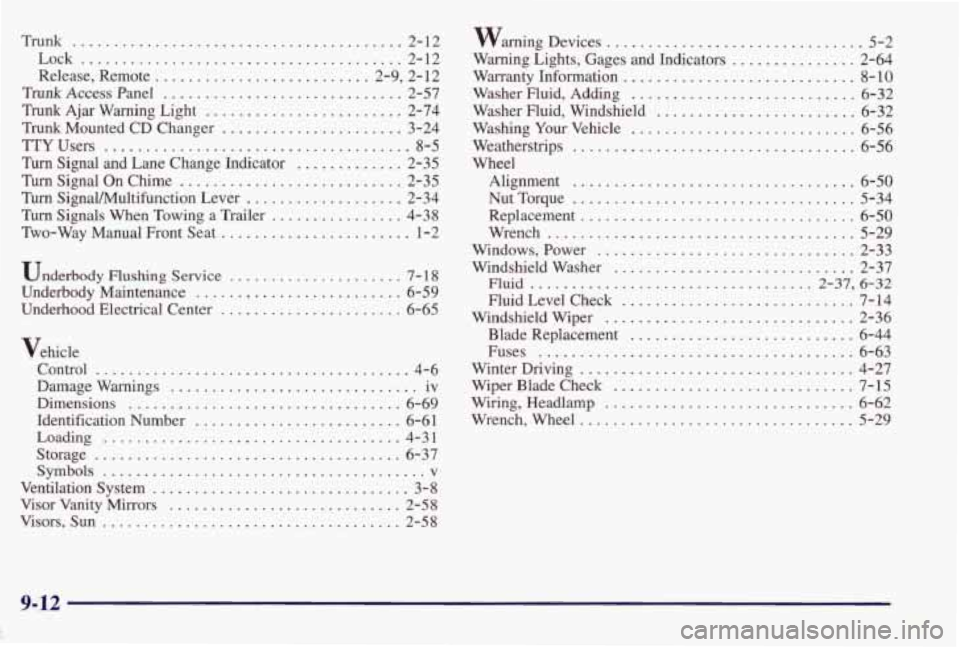

Tr~nk ...................................... 2-12
Lock
....................................... 2-12
Release. Remote .......................... 2.9. 2. 12
Trunk Access Panel ............................. 2-57
Trunk Ajar Warning Light ........................ 2-74
Trunk Mounted CD Changer ...................... 3-24
"Y Users ..................................... 8-5
Turn Signal and Lane Change Indicator ............. 2-35
Turn Signal On Chime ........................... 2-35
Turn SignaVMultifunction Lever ................... 2-34
Turn Signals When Towing a Trailer ................ 4-38
Two-way Manual Front Seat ....................... 1-2
Underbody Flushing Service ..................... 7- 18
Underbody Maintenance ......................... 6-59
Underhood Electrical Center ...................... 6-65
Vehicle
Control
............. .................... 4-6
Damagewarnings .............................. iv
Dimensions ................................. 6-69
Identification Number ......................... 6-61
Loading .................................... 4-31
Storage ..................................... 6-37
Symbols ....................................... v
Ventilation System ............................... 3-8
Visor Vanity Mirrors ............................ 2-58
Visors. Sun .................................... 2-58
warning Devices ............................... 5-2
Warning Lights. Gages and Indicators ............... 2-64
WarrantyInformation ............................ 8-10
Washer Fluid. Adding ........................... 6-32
Weatherstrips .................................. 6-56
Alignment .................................. 6-50
Nut Torque .................................. 5-34
Replacement ................................. 6-50
Wrench ..................................... 5-29
Windows. Power ............................... 2-33
Windshield Washer ............................. 2-37
Fluid Level Check ............................ 7-14
Windshield Wiper .............................. 2-36
Blade Replacement ........................... 6-44
Winter Driving ............................... 4-27
WiperBladeCheck ............................. 7-15
Wiring. Headlamp .............................. 6-62
Wrench. Wheel ................................. 5-29
Washer Fluid. Windshield ........................ 6-32
Washing Your Vehicle ........................... 6-56
Wheel
Fluid .................................. 2-37. 6-32
Fuses ........... .................... 6-63
9-12
