PONTIAC GRAND PRIX 1998 Owners Manual

0
BAll MAIN 2
0
IQN MAIN 1
0 BAT MAIN 1
IQN MAIN 2
0
COOL FAN RELAY
SERIES r"- COOL FAN 2
LZJ
FUEL PUMP
(SUPERCHARGER
NEL PUMP SPEED
0
ION MODULE
0
0
ION MAIN
0
0
0
0
0
0
Fuse Description Fuse Description
COOL FAN 2 Cool Fan 2 COOL FAN 1 Cool Fan1
BAm MAIN 2 Battery Main 2 IGN MAIN 2 Ign Main 2
IGNMAIN 1 Ign Main 1 B/U LP Trunk Release,
HEADLAMPS Headlamps BATT MAIN 1 Ban Main 1
Back-up Lamps
6-66

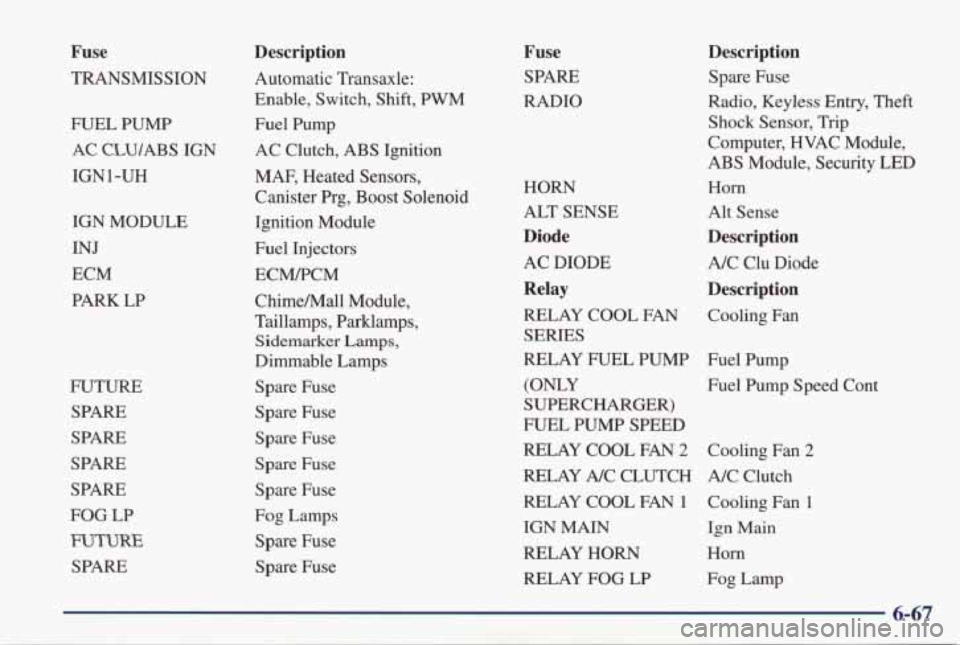

Fuse
TRANSMISSION
mJEL PUMP
AC CLU/ABS IGN
IGN1-UH
IGN MODULE
INJ
ECM
PARK LP
FUTURE
SPARE
SPARE
SPARE
SPARE
FOG LP
mTUm
SPARE
Description
Automatic Transaxle:
Enable, Switch, Shift,
PWM
Fuel Pump
AC Clutch, ABS Ignition
MAF, Heated Sensors,
Canister Prg, Boost Solenoid
Ignition Module
Fuel Injectors
ECM/PCM
ChimeMall Module,
Taillamps, Parklamps,
Sidemarker Lamps,
Dimmable Lamps
Spare Fuse
Spare Fuse
Spare Fuse
Spare Fuse
Spare Fuse
Fog Lamps Spare Fuse
Spare Fuse
Fuse
SPARE
RADIO
HORN
ALT SENSE
Diode
AC DIODE
Relay
RELAY COOL FAN
SERIES
RELAY FUEL PUMP
(ONLY
SUPERCHARGER)
FUEL PUMP SPEED
RELAY COOL FAN
2
RELAY A/C CLUTCH
RELAY COOL FAN
1
IGN MAIN
RELAY HORN
RELAY FOG LP
Description
Spare Fuse
Radio, Keyless Entry,
Theft
Shock Sensor, Trip
Computer, HVAC Module,
ABS Module, Security LED
Horn
Alt Sense
Description
A/C Clu Diode
Description
Cooling Fan
Fuel Pump
Fuel Pump Speed Cont
Cooling Fan
2
A/C Clutch Cooling Fan
1
Ign Main
Horn
Fog Lamp

Replacement Bulbs
Exterior Lamps ............... Bulb Number
Back-up ............................... 3 156
Front Parking/Turn Signal
.............. .3357NA
Center High-Mounted Stop
................ 1141
Headlamps HighBeam
........................... 9005
Low Beam ........................... 9006
Front Sidemarker
......................... 194
Rear Sidemarker ......................... 194
Stop/Tail/Turn Signal ..................... 3057
Capacities and Specifications
Please refer to “Recommended Fluids and Lubricants”
in the Index for more information.
Automatic Transaxle with Overdrive
Pan Removal and Replacement ..... 8 quarts (7.5 L)
After Complete Overhaul ......... 10 quarts (9.5 L)
When drainingheplacing converter or auxiliary coolel;
more fluid
my be needed.
Cooling System Including Reservoir
3100 (CodeM) ............... 11 quarts (10.42 L)
3800 (Code K) .............. 12.3 quarts (11.65 L)
3800 Supercharged (Code 1) ... 12.3 quarts (11.65 L)
Refrigerant (R-l34a),
Engine Crankcase (Oil Change with Filter Change)
Air Conditioning*
............ 1.9 lbs. (0.85 kg)
3100 (Code M)
................ 4.5 quarts (4.2 L)
3800 (Code K) ................ 4.5 quarts (4.2 L)
Fuel Tank .................... 18 gallons (68 L)
3800 Supercharged (Code 1) ..... 4.5 quarts (4.2 L)
*See “Air Conditioning Refrigerants ” later in this section.
Note: All capacities are approximate. When adding, be
sure to fill the appropriate level, as recommended
in this
manual. Recheck fluid level after filling.
See “Recommended Fluids and Lubricants” in
the Index
for more information.
6-68

3100 (Code M) Engine Specifications
Type .................................... V6
Displacement
....... . . 191 CID (3.1LL82)
Firing Order
...................... 1-2-3-4-5-6
Thermostat Temperature
........... 195 OF (9 1 O C)
Horsepower
................. ........ 160
3800 (Code K) Engine Specifications
Type .................................... V6
Displacement
............... 231 CID (3.8L L36)
Firing Order
...................... 1-6-5-4-3-2
Thermostat Temperature
........... 195 OF (9 1 O C)
Horsepower ............................. 195
3800 Supercharged (Code 1)
Engine Specifications
Type .................................. V6
Displacement
. . ......... 23 1 CID (3.8L L67)
Firing Order
.................... 1-6-5-4-3-2
Thermostat Temperature
. . ..... 195"F(9l0C)
Horsepower
......... ........... 240
Vehicle Dimensions
Wheelbase .............. 110.5 inches (280.7 cm)
Tread Width
................................
Front .................. 61.7 inches (156.8 cm)
Rear ................... 61.1 inches (155.2 cm)
Overall Length ........... 196.5 inches (499.1 cm)
Overall Height
............ 54.7 inches (1 39 cm)
Overall Width
.... ..... 72.7 inches (1 84.5 cm)

Normal Maintenance
Replacement Parts
......... A1208C
Air Cleaner Filter
Battery
All Engines ..............
3100 (Code M) ......... ........ 600CCA
3800
(Code K) ...................... 690 CCA
3800 Supercharged (Code 1) ........... 770 CCA
All Engines ................. AC PF47
All Engines ...................... CV892C
Engine Oil Filter
PCV
Valve
Radiator Cap
All Engines ... .............. AC RC27
Spark Plugs
3100 (Code M) . . ......... AC Vpe 41-940
Gap: 0.060 inches (1.52 cm)
3800 (Code K) ................ AC Type 41-921
Gap: 0.060 inches (1.52 cm)
3800 Supercharged (Code 1) . . AC Qpe 41-921 or
NGK 5pe PTR4B- 15
Gap: 0.060 inches (1.52 cm)
Wiper Blades
vpe ................................. Hook
Length ................... .20 inches (50.8 cm) -
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If
the air conditioning system in your vehicle needs
refrigerant, be
sure the proper refrigerant is used. If
you’re not sure, ask your dealer.
6-70

Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2
7-2
7-2
7-4
7-5
Introduction
Your Vehicle and the Environment
How
this Section is Organized
Part
A: Scheduled Maintenance Services
Maintenance Schedule
7- 14 Part B: Owner Checks and Services
7- 18 Part C: Periodic Maintenance Inspections
7- I9 Part D: Recommended Fluids and Lubricants
7-20 Part E: Maintenance Record
7-1

I
tMPORTANT-
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED I
I
Wl
I Protection 1
Plan
Have you purchased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your
Pontiac dealer for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment.
All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect
the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation
can increase the level
of emissions from your vehicle.
To help protect our
environment, and
to keep your vehicle in good
condition, please maindn your vehicle properly.
How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what to have done and how often. Some
of these
services
can be complex, so unless you are technically
qualified
and have the necessary equipment, you should
let your dealer’s service department
or another qualified
service center
do these jobs.
7-2

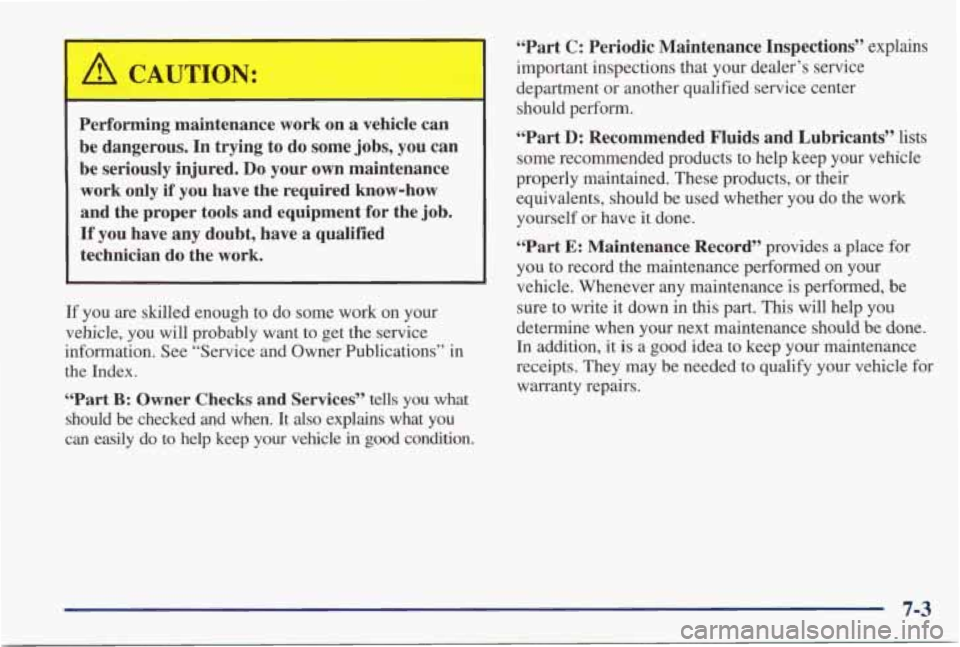

A CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you can
be seriously injured.
Do your own maintenance
work only
if you have the required know-how
and the proper tools and equipment for the job.
If you have any doubt, have
a qualified
technician
do the work.
If you are skilled enough to do some work on your
vehicle, you will probably want to get the service
information. See “Service and Owner Publications” in
the Index.
“Part B: Owner Checks and Services’’ tells you what
should be checked and when. It
also explains what you
can easily
do to help keep your vehicle in good condition. “Part
C: Periodic Maintenance Inspections”
explains
important inspections that your dealer’s service department or another qualified service center should perform.
“Part D: Recommended Fluids and Lubricants” lists
some recommended products to help keep your vehicle
properly maintained. These products, or their
equivalents, should be used whether
you do the work
yourself or have it done.
“Part E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed,
be
sure to write it down in this part. This will help you
determine when your next maintenance should be done.
In addition,
it is a good idea to keep your maintenance
receipts. They may be needed
to qualify your vehicle for
warranty repairs.

Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t know
exactly how you’ll drive it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in
very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may
drive it to work, to do errands or in many
other ways.
Because
of all the different ways people use their
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you’ll find
in the schedules in this section. So please read this
section and note how you
drive. If you have any
questions
on how to keep your vehicle in good
condition, see your dealer.
This part tells you the maintenance services you should
have done and when you should schedule them. If
you
go to your dealer for your service needs, you’ll know
that GM-trained and supported service people will
perform
the work using genuine GM parts.
The proper fluids and lubricants
to use are listed in
Part D. Make sure whoever services your vehicle uses
these. All parts should be replaced and all necessary
repairs done before you or anyone else drives
the vehicle.
This schedule
is for vehicles that:
0
0
0
carry passengers and cargo within recommended
limits. You will find these limits on your vehicle’s
Tire-Loading Information label. See “Loading Your
Vehicle”
in the Index.
are driven on reasonable road surfaces within legal
driving limits.
use the recommended fuel. See “Fuel” in the Index.
7-4

Maintenance Schedule
The services shown in this schedule up to 100,000 miles
(166
OOO km) should be performed after 100,000 miles
(166
000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after 150,000 miles
(240 000 km).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
? The US. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform
this maintenance item will not nullify
the emission warranty or limit recall liability prior
to the
completion
of the vehicle’s useful life. We, however,
urge that
all recommended maintenance services be
performed at the indicated intervals and the maintenance be recorded.
* Your vehicle has an Engine Oil Life Monitor. This
monitor will show you when to change the engine oil
and filter
-- usually between 3,000 miles (5 OOO km) and
7,500 miles (12 500 km) since your last oil change.
Under severe conditions, the indicator may come
on
before 3,000 miles (5 000 km). Never drive your vehicle
more than
7,500 miles (12 500 km) or 12 months
without
an oil and filter change.
The system won’t detect dust
in the oil. So if you drive
in
a dusty area, be sure to change your oil and filter
every 3,000 miles (5 000 km) or sooner if the CHANGE
OIL SOON light comes on. Remember to reset the
Oil Life Monitor when the oil has been changed. For
more information, see “CHANGE
OIL SOON light”
in the Index.
+ A good time to check your brakes is during tire
rotation. See “Brake System Inspection” under “Periodic
Maintenance Inspections”
in Part C of this schedule.
