PONTIAC GRAND PRIX 2000 Owners Manual

2-53 Daytime Running Lamps / Automatic
Headlamp Control
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work, so be sure it isn't covered.
The DRL system will make your low
-beam headlamps
come on at a reduced brightness when:

The ignition is on,

the headlamp switch is off,

the transaxle is not in PARK (P) and

the parking brake is released.When the DRL are on, only your low
-beam headlamps,
at a reduced brightness, will be on. The taillamps,
sidemarker and other lamps won't be on. Your
instrument panel won't be lit up either.
When it's dark enough outside, your headlamps will
change to full brightness. The other lamps that come on
with your headlamps will also come on.
When it's bright enough outside, the regular lamps will
go out, and your low
-beam headlamps change to the
reduced brightness of DRL.
To idle your vehicle with the DRL off, set the parking
brake while the ignition is in OFF or LOCK. Then start
your vehicle. The DRL will stay off until you shift out
of PARK (P) and release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.

2-54 Fog Lamps
The fog lamp switch is located in the upper corner of
the instrument panel, to the left of the instrument
panel cluster.
To turn the fog lamps on, press the right side of the fog
lamp switch. A light will glow on the switch to let you
know that they are on. (The parking lamps must be on,
or the fog lamps won't come on.) Press the left side of
the switch to turn the fog lamps off.The fog lamps will go off whenever you change to
high
-beam headlamps. When you return to low beams,
the fog lamps will come on again.
Interior Lamps
Instrument Panel Intensity Control
You can brighten or dim
the instrument panel lights
by turning the interior
lamps thumbwheel.
Turn the thumbwheel to the right to increase the
brightness of the instrument panel lights and to the left
to decrease the brightness. Turn the thumbwheel
completely to the left to turn them off.

2-55 Courtesy Lamps
When any door is opened, several lamps come on.
These lamps are courtesy lamps. They make it easy for
you to enter and leave the vehicle at night. You can also
turn these lamps on by turning the interior lamps
thumbwheel completely to the right.
Illuminated Entry
The illuminated entry feature will light the interior of
the vehicle so that you can see the inside of the vehicle
before you enter at night. The interior lamps will come
on for 40 seconds when you unlock the doors using the
remote keyless entry transmitter (if equipped) and the
ignition is in LOCK or OFF. After 40 seconds have
elapsed, the interior lamps will slowly fade out.
The lamps will fade out before 40 seconds have
elapsed if you:

Lock all doors using the remote keyless entry
transmitter (if equipped).

Lock the doors using the power door lock switch.When any door is opened, illuminated entry is canceled.
The interior lamps will stay on while any door is opened
and slowly fade out when all doors are closed. The
interior lamps may stay on for up to 25 seconds after all
doors have been closed if they have not been locked.
See ªDelayed Illuminationº later in this section.
Delayed Illumination
The delayed illumination feature will continue to light
the interior of the vehicle for 25 seconds after all the
doors have been closed so that you can find the ignition
and buckle the seat belt at night. Delayed illumination
will not occur while the ignition is in RUN or
ACCESSORY. After 25 seconds have elapsed, the
interior lamps will slowly fade out. The lamps will fade
out before the 25 seconds have elapsed if you:

Turn the ignition to RUN or ACCESSORY.

Lock all doors using the remote keyless entry
transmitter (if equipped).

Lock the doors using the power door lock switch.
To turn delayed illumination feature off or on, see
ªLocks and Lighting Choicesº in the Index.

2-56 Exit Lighting
For exiting the vehicle at night, the vehicle is equipped
with the exit lighting feature. The interior lamps will
illuminate for up to 25 seconds when you remove the
key from the ignition. After 25 seconds have elapsed,
the interior lamps will slowly fade out. The lamps will
fade out before the 25 seconds have elapsed if you:

Insert the key and turn the ignition to RUN or
ACCESSORY.

Lock all doors using the remote keyless entry
transmitter (if equipped).

Lock the doors using the power door lock switch.
When any door is opened, exit lighting is canceled. The
interior lamps will stay on while any door is opened and
will slowly fade out when all the doors are closed. The
interior lamps may stay on for up to 25 seconds after all
the doors have been closed if they have not been locked.
See ªDelayed Illuminationº earlier in this section.
To turn the exit lighting feature off or on, see ªLocks
and Lighting Choicesºin the Index.
Front Reading Lamps
If the vehicle has the optional sunroof, you will have
reading lamps in front of the sunroof switch. Press the
button behind each reading lamp to turn them on
and off.
Rear Assist Handle Reading Lamps
There is a reading lamp provided in each rear assist
handle. Use the button next to each lamp to turn it on
and off.
Overhead Console Reading Lamps
These lamps are part of the overhead console. They will
go on when you open the doors. When the doors are
closed, push the button next to each lamp to turn them
on and off. The console also contains an open
storage bin.

2-57 Battery Saver
The vehicle has a feature to help prevent you from
draining the battery in case you accidentally leave the
interior, trunk or underhood lamps on. If you leave any
of these lamps on while the ignition is in LOCK or OFF,
they will automatically turn off after 10 minutes.
The lamps won't come back on again until you do
one of the following:

Turn the ignition to RUN or ACCESSORY.

Turn the interior lamp thumbwheel completely to the
right, then back slightly to the left.

Open (or close and reopen) a door that is closed.
If the vehicle has less than 15 miles (25 km) on the
odometer, the battery saver will turn off the lamps after
only three minutes.
Mirrors
Adjust all the mirrors so you can see clearly when you
are sitting in a comfortable driving position.
Inside Day/Night Rearview Mirror
To reduce glare from lamps behind you, pull the lever
located in the center of the bottom of the mirror toward
you to the night position. To return the mirror back to
the day position, push the lever away from you.

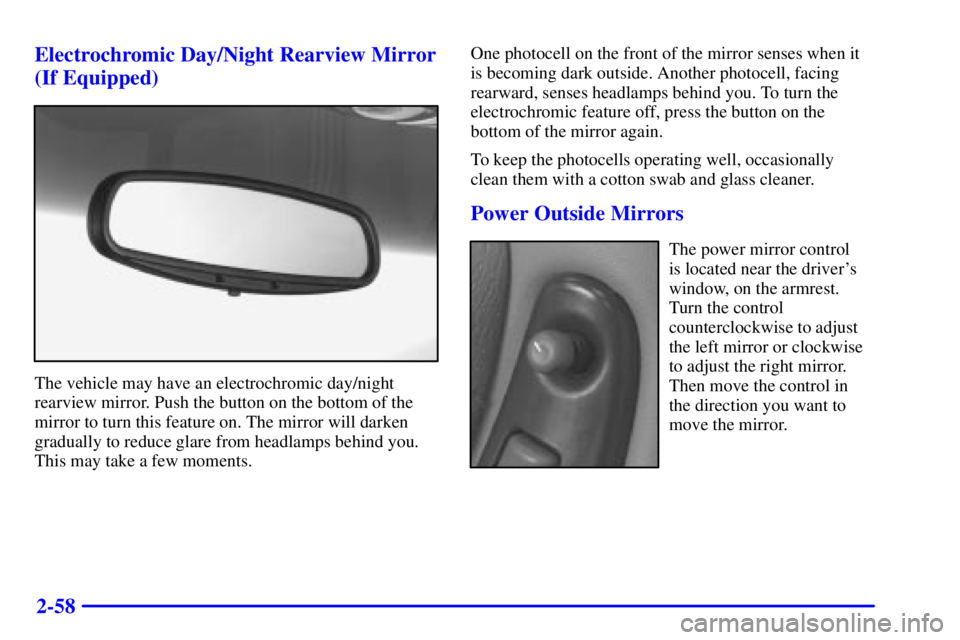

2-58 Electrochromic Day/Night Rearview Mirror
(If Equipped)
The vehicle may have an electrochromic day/night
rearview mirror. Push the button on the bottom of the
mirror to turn this feature on. The mirror will darken
gradually to reduce glare from headlamps behind you.
This may take a few moments.One photocell on the front of the mirror senses when it
is becoming dark outside. Another photocell, facing
rearward, senses headlamps behind you. To turn the
electrochromic feature off, press the button on the
bottom of the mirror again.
To keep the photocells operating well, occasionally
clean them with a cotton swab and glass cleaner.
Power Outside Mirrors
The power mirror control
is located near the driver's
window, on the armrest.
Turn the control
counterclockwise to adjust
the left mirror or clockwise
to adjust the right mirror.
Then move the control in
the direction you want to
move the mirror.

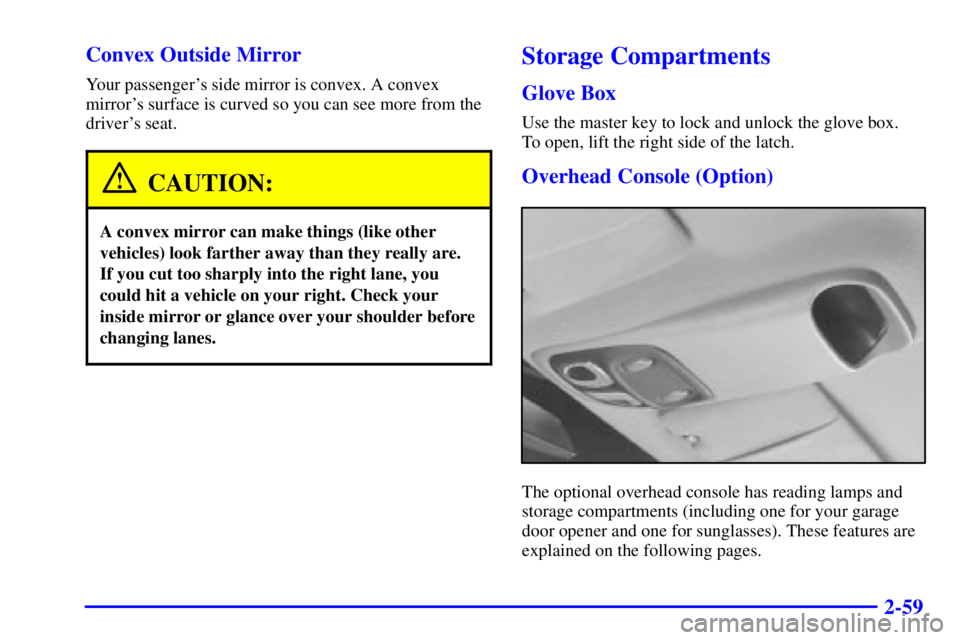

2-59 Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
Use the master key to lock and unlock the glove box.
To open, lift the right side of the latch.
Overhead Console (Option)
The optional overhead console has reading lamps and
storage compartments (including one for your garage
door opener and one for sunglasses). These features are
explained on the following pages.

2-60

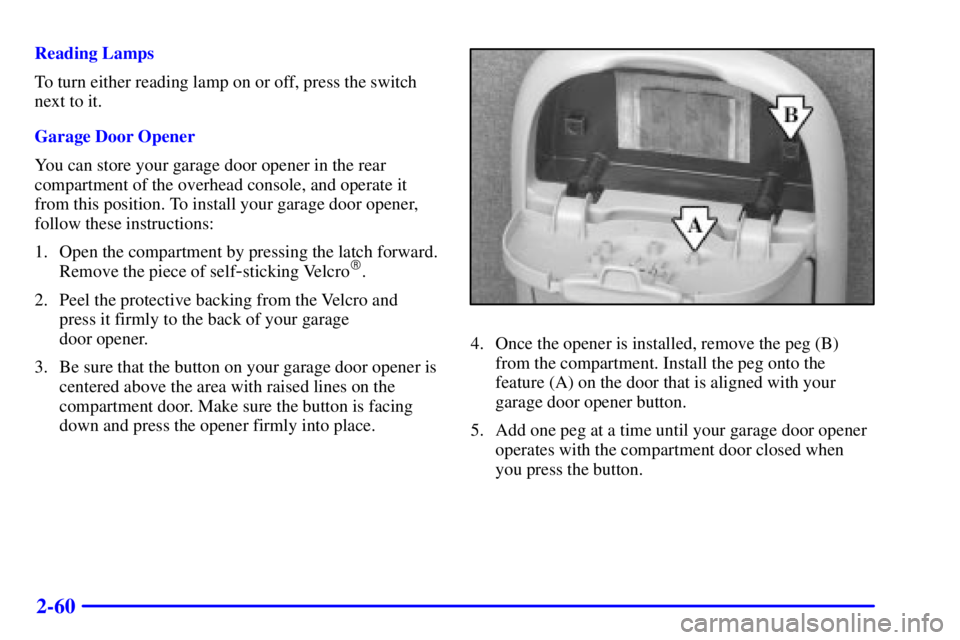

Reading Lamps
To turn either reading lamp on or off, press the switch
next to it.
Garage Door Opener
You can store your garage door opener in the rear
compartment of the overhead console, and operate it
from this position. To install your garage door opener,
follow these instructions:
1. Open the compartment by pressing the latch forward.
Remove the piece of self
-sticking Velcro
.
2. Peel the protective backing from the Velcro and
press it firmly to the back of your garage
door opener.
3. Be sure that the button on your garage door opener is
centered above the area with raised lines on the
compartment door. Make sure the button is facing
down and press the opener firmly into place.
4. Once the opener is installed, remove the peg (B)
from the compartment. Install the peg onto the
feature (A) on the door that is aligned with your
garage door opener button.
5. Add one peg at a time until your garage door opener
operates with the compartment door closed when
you press the button.

2-61
Sunglasses Storage Compartment
The sunglasses storage compartment is the second
compartment from the rear on the overhead console.
To open the sunglasses storage compartment, press the
release latch forward and pull the compartment down to
the full open position.
Center Console Storage
To open the armrest storage area, pull up on the
front edge of the latch. The console has cassette and
CD storage and a coinholder.The center console also contains two cupholders. To
access the cupholders, pull the cupholder door, located
behind the console shift lever. The two cupholders will
pop up into an upright position.
Below the center ashtray is an open storage
compartment. In front of this, you may have a smaller
compartment for storing smaller items.Rear Armrest Storage (If Equipped)
If you have a trunk access panel, you will also have a
pull down armrest that contains an open storage bin and
two cupholders.

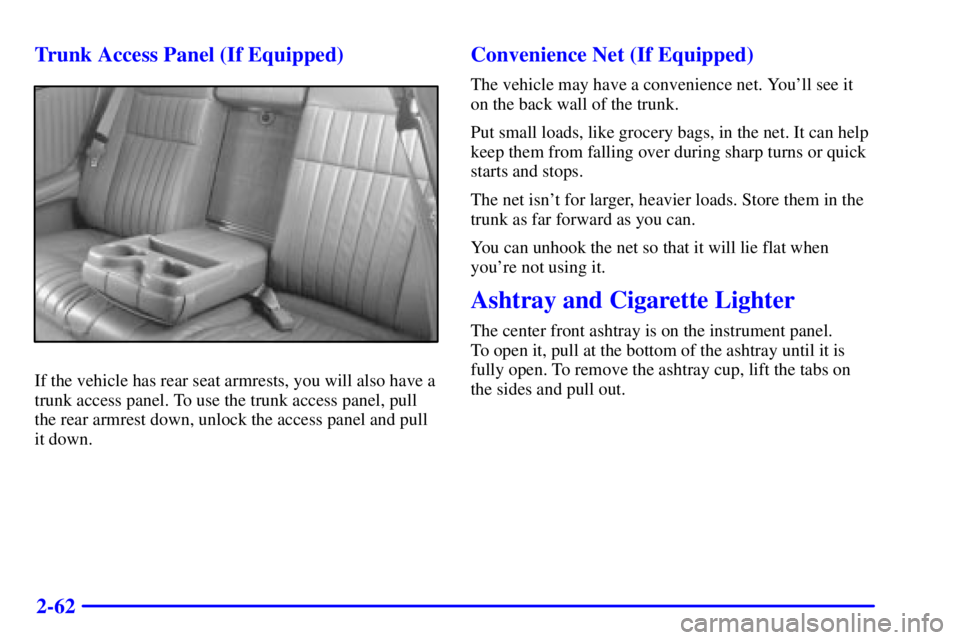

2-62 Trunk Access Panel (If Equipped)
If the vehicle has rear seat armrests, you will also have a
trunk access panel. To use the trunk access panel, pull
the rear armrest down, unlock the access panel and pull
it down.
Convenience Net (If Equipped)
The vehicle may have a convenience net. You'll see it
on the back wall of the trunk.
Put small loads, like grocery bags, in the net. It can help
keep them from falling over during sharp turns or quick
starts and stops.
The net isn't for larger, heavier loads. Store them in the
trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you're not using it.
Ashtray and Cigarette Lighter
The center front ashtray is on the instrument panel.
To open it, pull at the bottom of the ashtray until it is
fully open. To remove the ashtray cup, lift the tabs on
the sides and pull out.
