PONTIAC GRAND PRIX 2000 Owners Manual

2-83
Here are four things owners usually ask about the fuel
gage. All these situations are normal and do not indicate
a problem with the fuel gage:

At the gas station, the pump shuts off before the gage
reads full.

It takes more (or less) fuel to fill up than the gage
indicates. For example, the gage reads half full, but it
took more (or less) than half the tank's capacity
to fill it.

The gage pointer may move while cornering, braking
or speeding up.

The gage may not indicate full when the ignition
is turned off.Low Fuel Light
If your fuel is low, the
warning light near the fuel
gage will go on.
It will also come on for a few seconds when you first
turn on the ignition as a check to show you it's working
properly. If it doesn't come on then, see your dealer
for service.

2-84
Head-Up Display (Option)
CAUTION:
If the HUD image is too bright, or too high in
your field of view, it may take you more time to
see things you need to see when it's dark outside.
Be sure to keep the HUD image dim and placed
low in your field of view.
If you have the Head-Up
Display (HUD), you can see
the speedometer reading
(in English or metric units)
and a brief display of the
current radio station or CD
track, displayed ªthroughº
the windshield.The HUD also shows these lights when they are lit on
the instrument panel cluster:

Turn Signal Indicators

High
-Beam Indicator Symbol

Low Fuel Symbol
The HUD will display ªCHECK GAGEº when the
following items are lit on the instrument panel cluster:

Oil Warning Symbol

Coolant Temperature Symbol

Charging System Symbol
When you sit straight in your seat, the HUD image will
appear straight ahead near the front bumper.
When the ignition key is turned to RUN, the HUD
image will come on. Then the Head
-Up Display will
operate normally.

2-85

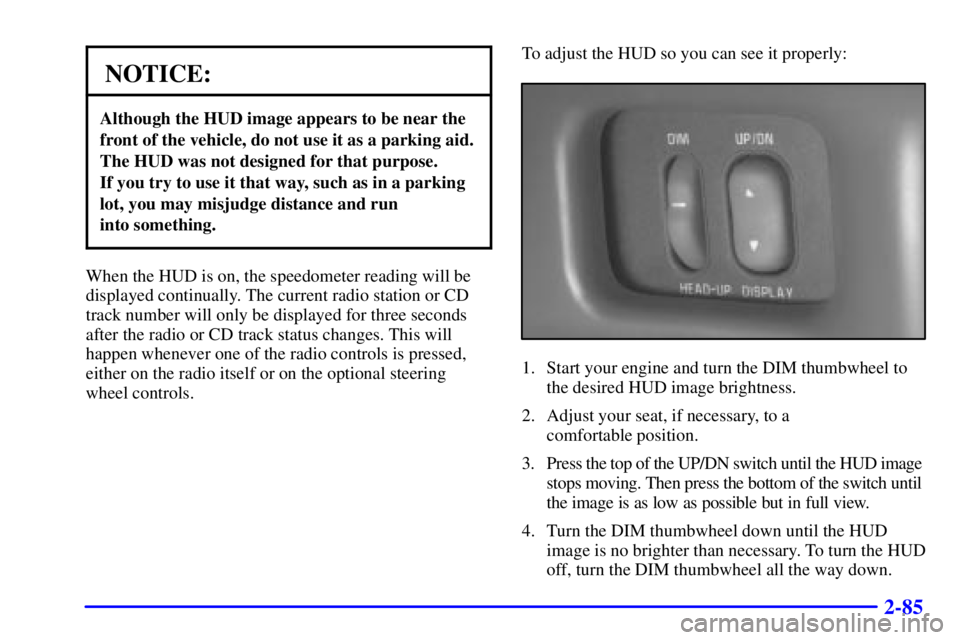

NOTICE:
Although the HUD image appears to be near the
front of the vehicle, do not use it as a parking aid.
The HUD was not designed for that purpose.
If you try to use it that way, such as in a parking
lot, you may misjudge distance and run
into something.
When the HUD is on, the speedometer reading will be
displayed continually. The current radio station or CD
track number will only be displayed for three seconds
after the radio or CD track status changes. This will
happen whenever one of the radio controls is pressed,
either on the radio itself or on the optional steering
wheel controls.To adjust the HUD so you can see it properly:
1. Start your engine and turn the DIM thumbwheel to
the desired HUD image brightness.
2. Adjust your seat, if necessary, to a
comfortable position.
3. Press the top of the UP/DN switch until the HUD image
stops moving. Then press the bottom of the switch until
the image is as low as possible but in full view.
4. Turn the DIM thumbwheel down until the HUD
image is no brighter than necessary. To turn the HUD
off, turn the DIM thumbwheel all the way down.

2-86
If the sun comes out, it becomes cloudy, or if you turn
on your headlamps, you may need to adjust the HUD
brightness again. Polarized sunglasses could make the
HUD image harder to see.
Push the ENG/MET button
on the trip calculator,
located above the audio
controls on the trip
computer (if equipped) on
the instrument panel, to
switch the HUD display
from English to metric or
metric to English.
If your vehicle is not equipped with the trip calculator,
you cannot change the display.
Care of the Head-Up Display
Clean the inside of the windshield as needed to remove
any dirt or film that reduces the sharpness or clarity of
the HUD image.
To clean the HUD, spray household glass cleaner on a
soft, clean cloth. Wipe the HUD lens gently, then dry it.
Do not spray cleaner directly on the lens because the
cleaner could leak into the unit.

2-87
If You Can't See the HUD Image When the Ignition
Is On

Is anything covering the HUD unit?

Is the HUD dimmer setting bright enough?

Is the HUD image adjusted to the proper height?

Still no HUD image? Check the fuse in the
instrument panel fuse block. See ªFuses and Circuit
Breakersº in the Index.If the HUD Image Is Not Clear

Is the HUD image too bright?

Are the windshield and HUD lens clean?
The windshield is part of the HUD system. If you ever
have to have a new windshield, be sure to get one
designed for HUD. If you don't, the HUD image may
look blurred and out of focus.

2-88
Driver Information Center (DIC) (If Equipped)
3100 V6 or 3800 V6 Engine Only
The Driver Information Center (DIC) gives you important safety and maintenance facts. When you turn the ignition
on, all of the DIC lights illuminate for a few seconds. After this, the DIC will begin working.

2-89 Functions
: If one of the doors is ajar, this light will
appear next to that door on the vehicle outline.
CHANGE OIL SOON: This light will appear when the
system indicates that it's time for an oil change. The
system predicts remaining oil life using inputs from
length of drives, coolant temperature, engine rpm and
vehicle speed. It alerts you to change the oil on a
schedule consistent with the vehicle's driving
conditions. After changing the oil, the system must be
reset. See ªHow to Reset the GM Oil Life System
º in
the Index.
LOW: This light will come on when the ignition is
on and the fluid in the washer fluid container is low.
AJAR: This light alerts you that the trunk is not
fully closed.LOW TRAC: This light will come on when the traction
control system is limiting wheel spin. See ªTraction
Control Systemº or ªLow Traction Lightº in the Index.
TRAC OFF: This light lets you know that the traction
control system has been disabled and will not limit
wheel spin. See ªEnhanced Traction System Warning
Lightº or ªLow Traction Lightº in the Index.
TRAC: If the vehicle has the traction control system,
you will have a disable switch on the far right side of the
DIC. The traction control system is automatically
activated when you turn the ignition on. This switch will
activate/deactivate the traction control system. If you
need to disable the system, such as when you are stuck
and are rocking the vehicle back and forth, push this
button. See ªStuck: In Sand, Mud, Ice or Snowº in
the Index.

2-90
Trip Computer (If Equipped)
3100 V6 and 3800 V6 Engines
When you start the engine, the trip computer will display a mode. A lighted oval will appear to the left of the mode
currently being used.

2-91
3800 V6 Supercharged Engine
When you start the engine, the trip computer will display a mode. A lighted oval will appear to the left of the mode
currently being used.

2-92 Control Buttons
The trip computer has three buttons that control
its functions.
ENG/MET: Press this button to change the display from
English to metric units or metric to English.
RESET: Press this button for two seconds to reset the
mode displayed.
MODE: Press this button to change the mode
being displayed.
Functions
PERFORMANCE SHIFT: This light comes on when
you press the performance shift button (if equipped)
located on the console shift lever to indicate that the
vehicle is in performance shifting mode.
See ªPerformance Shiftingº in the Index.
FUEL USED: Shows the total amount of fuel used
since you last reset this mode. The amount can be
displayed in gallons or liters.
AVG ECON: Shows the average fuel economy since
you last reset this mode.
OIL LIFE: Shows a percentage of the oil's remaining
useful life. The system predicts remaining oil life using
inputs from length of drives, coolant temperature,
engine rpm and vehicle speed. Each time you get an oil
change, be sure to reset this function so that it will give
you an accurate percentage. See ªHow to Reset the
GM Oil Life System
º in the Index.
