PONTIAC GRAND PRIX 2004 Owners Manual

This warning message will appear when the vehicle's
engine oil pressure is low. The low oil pressure warning
light will also appear on the instrument panel.
Stop the vehicle immediately, as engine damage can
result from driving a vehicle with low oil pressure.
Have the vehicle serviced as soon as possible when
this warning message is displayed.
This warning message will display only while the ignition
is in RUN. A chime will sound continuously when this
message is displayed. Press the set/reset button
to acknowledge this warning message and to clear it
from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.LOW WASHER FLUID
This symbol will appear
with the LOW WASHER
FLUID warning message.
This warning message appears when the windshield
washer ¯uid is low. Fill the windshield washer reservoir
as soon as possible. See
Engine Compartment
Overview on page 5-12for location of the windshield
washer reservoir. Also, seeWindshield Washer Fluid on
page 5-43for more information.
This warning message will display only while the ignition
is in RUN. A chime will sound continuously when this
message is displayed. Press the set/reset button
to acknowledge this warning message and to clear it
from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
3-77

PARKING BRAKE ON
This symbol appears with
the PARKING BRAKE ON
warning message.
This warning message appears to alert the driver when
the vehicle's parking brake is on and the ignition is
in RUN. See
Parking Brake on page 2-27for more
information.
The brake light will also appear on the instrument panel
cluster when this message appears on the DIC.
A chime will sound continuously while this message is
displayed. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
PARK LAMPS ON
This warning message will appear to alert the driver
when the parking lamps are on and the ignition is
in OFF. A chime will sound continuously while this
message is displayed. This warning message does not
re-display after the ignition is turned off. It cannot be
acknowledged.
READING LAMP ON
This warning message will appear to alert the driver
that the reading lamps are on and the ignition is in OFF.
A chime will sound continuously while this message is
displayed. This warning message does not re-display
after the ignition is turned off. It cannot be
acknowledged.
3-78

REDUCED ENGINE POWER
This symbol appears with
the REDUCED ENGINE
POWER warning message.
This warning message appears when the vehicle's
engine power is reduced. This happens when driving
conditions, such as climbing a steep hill, make the
transaxle overwork in a gear that may cause damage to
the vehicle's engine or transaxle. Reduced engine
power can affect the vehicle's ability to accelerate.
This warning message will display only when the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
RIGHT FRONT TURN LAMP OUT
This warning message will appear when the vehicle's
right front turn signal needs to be replaced. See
Front Turn Signal, Parking and Fog Lamps on page 5-62for bulb replacement procedures.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message. and to clear it from the screen.
This message will continue to display if it has not
been acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists when
the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
3-79

RIGHT REAR TURN LAMP OUT
This warning message will appear when the
vehicle's right rear turn signal needs to be replaced.
See
Taillamps, Turn Signal, and Stoplamps on
page 5-64for bulb replacement procedures.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
SERVICE ABS SYSTEM
This symbol appears
with the SERVICE ABS
SYSTEM warning
message.
If the vehicle has the Anti-Lock Brake System (ABS),
this warning message will appear when the vehicle's
brakes are not functioning properly. Have the brake
system serviced by your dealer as soon as possible.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
3-80

SERVICE BRAKE SYSTEM
This symbol appears with
the SERVICE BRAKE
SYSTEM warning
message.
This warning message will appear when the vehicle's
brakes are not funtioning properly. Have the brake
system serviced by your dealer as soon as possible.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
SERVICE BRAKE APPLY SENSOR
This message will display when the brake apply sensor
is not functioning properly. The vehicle still has
brakes when this warning message displays, but you
should have the vehicle serviced by your dealer as soon
as possible.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
3-81

SERVICE PARK LAMPS
This warning message will display if one of the vehicle's
parking lamps needs to be replaced. SeeFront Turn
Signal, Parking and Fog Lamps on page 5-62for
bulb replacement procedures.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
SERVICE TRACTION SYSTEM
This symbol will appear
with the SERVICE
TRACTION SYSTEM
warning message.
If the vehicle has the traction control system, this
warning message appears when the system is not
functioning properly. See
Traction Control System (TCS)
on page 4-10for more information. Have the traction
control system serviced by your dealer as soon as
possible.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
3-82

SERVICE STABILITY SYSTEM
This symbol will appear
with the SERVICE
STABILITY SYSTEM
warning message.
If the vehicle has the Stabilitrak
žPlus system, this
warning message will appear when it is not functioning
properly. See
StabilitrakžPlus System on page 4-13for more information. Have the StabilitrakžPlus system
serviced by your dealer as soon as possible.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
SERVICE THEFT SYSTEM
This warning message will appear if there is a problem
with the theft-deterrent system programmed in the
key. A fault has been detected in the system which
means that the system is disabled and it is not protecting
the vehicle. The vehicle usually restarts, however,
you may want to take the vehicle to your dealer before
turning off the engine. See
Keys on page 2-2for
information on the PASS-KeyžIII system.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message. and to clear it from the screen.
This message will continue to display if it has not
been acknowledged when the engine is turned off.
It will also re-display for three seconds if the message
has been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
3-83

SERVICE VARIABLE EFFORT
STEERING
This symbol appears with
the SERVICE VARIABLE
EFFORT STEERING
warning message.
If the vehicle has Anti-Lock Brakes (ABS), it has the
variable steering effort system. This warning message
will display if this system is not functioning properly.
See
Steering on page 4-14for more information.
Have your system serviced by your dealer as soon
as possible.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
SERVICE VEHICLE SOON
This symbol appears with
the SERVICE VEHICLE
SOON warning message.
This warning message displays when a non-emissions
related malfunction occurs. Have the vehicle serviced
by your dealer as soon as possible.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
3-84

STABILITY CONTROL ACTIVE
This symbol appears
with the STABILITY
CONTROL ACTIVE
warning message.
If the vehicle has the Stabilitrak
žPlus system, this
warning message appears when the system is engaged
and actively assisting the driver with directional
control of the vehicle. A warning light will also appear
on the instrument panel when this system is active.
Slippery road conditions may exist when this warning
message is displayed, so driving should be adjusted
accordingly.
This warning message will display only while the ignition
is in RUN. This message stays on until road conditions
change and Stabilitrak
žPlus is not active.
You cannot acknowledge this warning message and
clear it from the screen.
STABILITY CONTROL OFF
This symbol appears with
the STABILITY CONTROL
OFF warning message.
If the vehicle has the Stabilitrak
žPlus system,
this warning message appears when the system is not
engaged and is not actively assisting the driver with
directional control of the vehicle.
This warning message will display only while the ignition
is in RUN. This warning message will appear only if
the STABILITY CONTROL ACTIVE warning message
preceded it. It will appear when the road conditions have
changed, indicating that Stabilitrak
žPlus is no longer
needed. A warning light, indicating that this system is
not active will also appear on the instrument panel.
A chime will sound once and the message will stay on
for three seconds and then disappear.
3-85

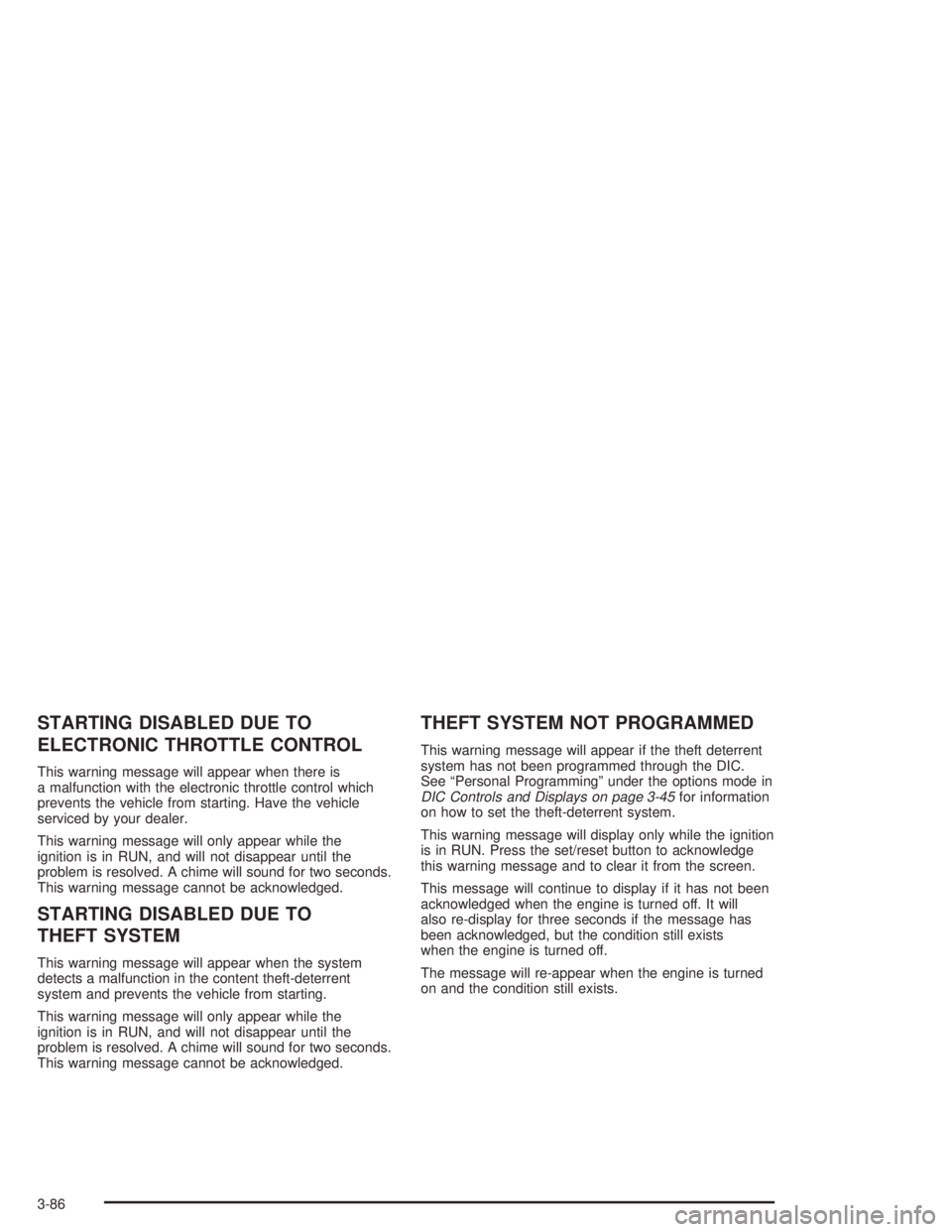

STARTING DISABLED DUE TO
ELECTRONIC THROTTLE CONTROL
This warning message will appear when there is
a malfunction with the electronic throttle control which
prevents the vehicle from starting. Have the vehicle
serviced by your dealer.
This warning message will only appear while the
ignition is in RUN, and will not disappear until the
problem is resolved. A chime will sound for two seconds.
This warning message cannot be acknowledged.
STARTING DISABLED DUE TO
THEFT SYSTEM
This warning message will appear when the system
detects a malfunction in the content theft-deterrent
system and prevents the vehicle from starting.
This warning message will only appear while the
ignition is in RUN, and will not disappear until the
problem is resolved. A chime will sound for two seconds.
This warning message cannot be acknowledged.
THEFT SYSTEM NOT PROGRAMMED
This warning message will appear if the theft deterrent
system has not been programmed through the DIC.
See ªPersonal Programmingº under the options mode in
DIC Controls and Displays on page 3-45for information
on how to set the theft-deterrent system.
This warning message will display only while the ignition
is in RUN. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message will continue to display if it has not been
acknowledged when the engine is turned off. It will
also re-display for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message will re-appear when the engine is turned
on and the condition still exists.
3-86
