PONTIAC GRAND PRIX 2005 Owners Manual

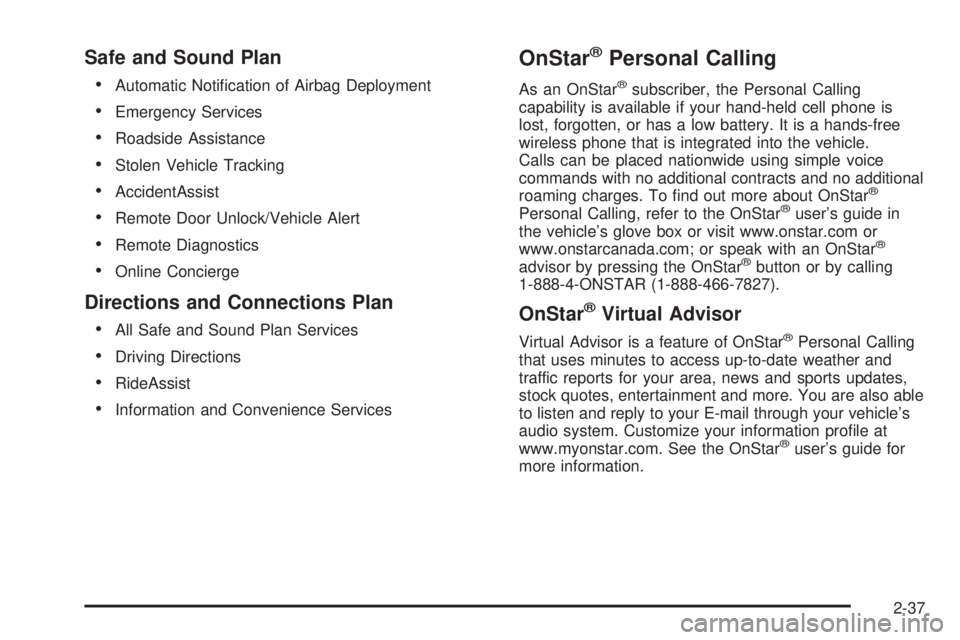

Safe and Sound Plan

Automatic Notication of Airbag Deployment
Emergency Services
Roadside Assistance
Stolen Vehicle Tracking
AccidentAssist
Remote Door Unlock/Vehicle Alert
Remote Diagnostics
Online Concierge
Directions and Connections Plan

All Safe and Sound Plan Services
Driving Directions
RideAssist
Information and Convenience Services
OnStar®Personal Calling
As an OnStar®subscriber, the Personal Calling
capability is available if your hand-held cell phone is
lost, forgotten, or has a low battery. It is a hands-free
wireless phone that is integrated into the vehicle.
Calls can be placed nationwide using simple voice
commands with no additional contracts and no additional
roaming charges. To nd out more about OnStar
®
Personal Calling, refer to the OnStar®user’s guide in
the vehicle’s glove box or visit www.onstar.com or
www.onstarcanada.com; or speak with an OnStar
®
advisor by pressing the OnStar®button or by calling
1-888-4-ONSTAR (1-888-466-7827).
OnStar®Virtual Advisor
Virtual Advisor is a feature of OnStar®Personal Calling
that uses minutes to access up-to-date weather and
traffic reports for your area, news and sports updates,
stock quotes, entertainment and more. You are also able
to listen and reply to your E-mail through your vehicle’s
audio system. Customize your information prole at
www.myonstar.com. See the OnStar
®user’s guide for
more information.
2-37

Storage Areas
Glove Box
Open the glove box by lifting up on the lever.
Close the glove box with a rm push.
Cupholder(s)
There are two cupholders in the front of the
center console.
Cupholder Installation
Your vehicle may also have a rear cupholder that you
can install using the following process:
Align the rear cupholder to the console and snap
into place.
2-38

Cupholder Removal
You can remove the cupholder by unsnapping the
rear cupholder from the console.
Overhead Console
The overhead console
has two reading lamps.
Press the sides of
each lens to turn the
reading lamps on or off.
If the vehicle does not have an overhead console, it will
have a dome light located in the front of the headliner.
Sunglasses Storage Compartment
Your vehicle may have a storage compartment located
to the rear on the overhead console. To open the
sunglasses storage compartment, press the release
latch forward and pull the compartment down to the
full open position.
2-39

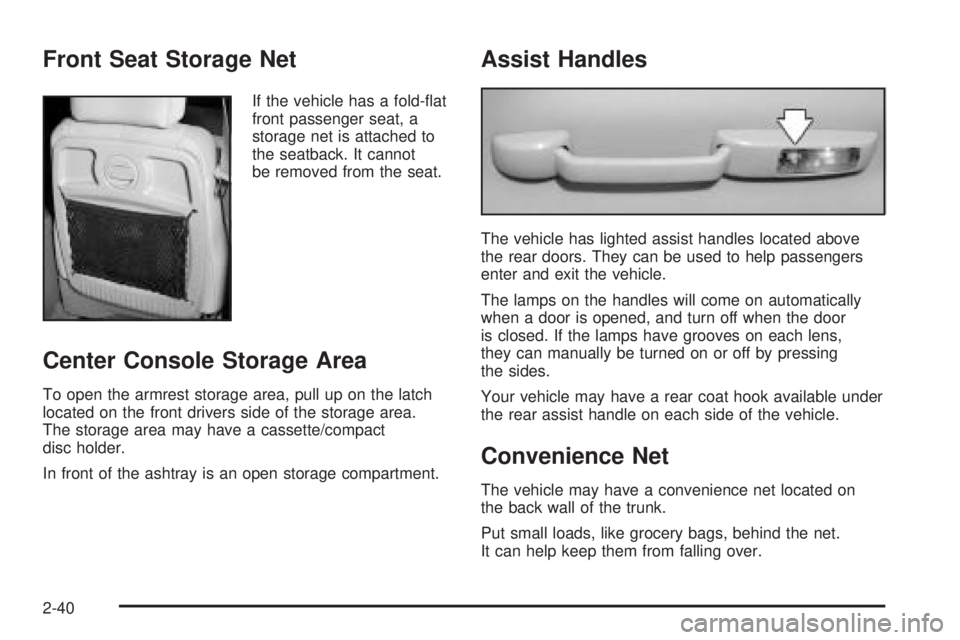

Front Seat Storage Net
If the vehicle has a fold-at
front passenger seat, a
storage net is attached to
the seatback. It cannot
be removed from the seat.
Center Console Storage Area
To open the armrest storage area, pull up on the latch
located on the front drivers side of the storage area.
The storage area may have a cassette/compact
disc holder.
In front of the ashtray is an open storage compartment.
Assist Handles
The vehicle has lighted assist handles located above
the rear doors. They can be used to help passengers
enter and exit the vehicle.
The lamps on the handles will come on automatically
when a door is opened, and turn off when the door
is closed. If the lamps have grooves on each lens,
they can manually be turned on or off by pressing
the sides.
Your vehicle may have a rear coat hook available under
the rear assist handle on each side of the vehicle.
Convenience Net
The vehicle may have a convenience net located on
the back wall of the trunk.
Put small loads, like grocery bags, behind the net.
It can help keep them from falling over.
2-40

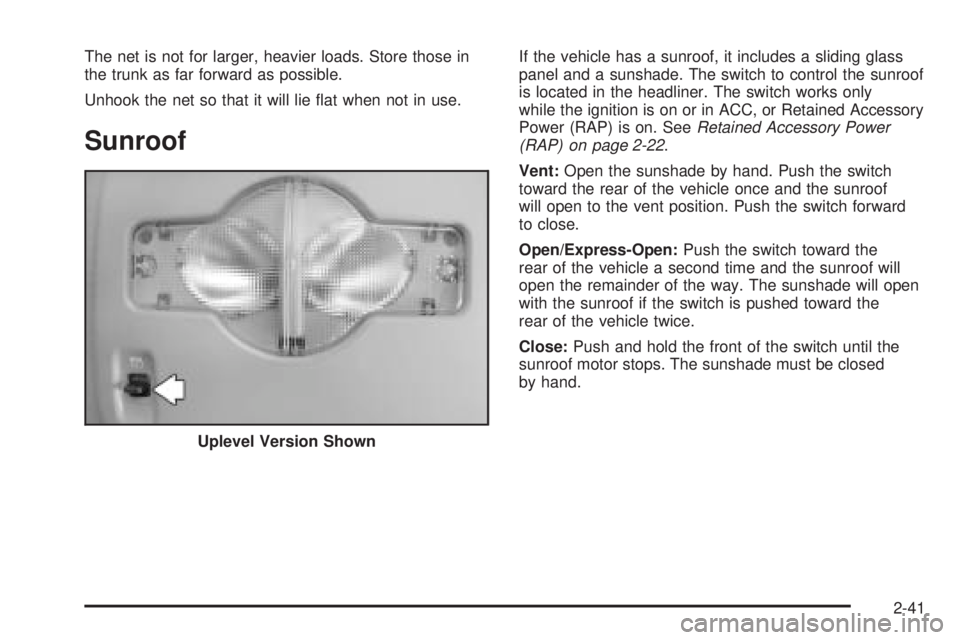

The net is not for larger, heavier loads. Store those in
the trunk as far forward as possible.
Unhook the net so that it will lie at when not in use.
Sunroof
If the vehicle has a sunroof, it includes a sliding glass
panel and a sunshade. The switch to control the sunroof
is located in the headliner. The switch works only
while the ignition is on or in ACC, or Retained Accessory
Power (RAP) is on. SeeRetained Accessory Power
(RAP) on page 2-22.
Vent:Open the sunshade by hand. Push the switch
toward the rear of the vehicle once and the sunroof
will open to the vent position. Push the switch forward
to close.
Open/Express-Open:Push the switch toward the
rear of the vehicle a second time and the sunroof will
open the remainder of the way. The sunshade will open
with the sunroof if the switch is pushed toward the
rear of the vehicle twice.
Close:Push and hold the front of the switch until the
sunroof motor stops. The sunshade must be closed
by hand.
Uplevel Version Shown
2-41

✍NOTES
2-42

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-5
Other Warning Devices...................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-6
Turn and Lane-Change Signals........................3-7
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wiper Lever...................................3-9
Cruise Control..............................................3-10
Exterior Lamps.............................................3-14
Headlamps on Reminder................................3-15
Daytime Running Lamps (DRL).......................3-15
Fog Lamps..................................................3-16
Exterior Lighting Battery Saver........................3-17
Interior Lamps..............................................3-17
Instrument Panel Brightness...........................3-17
Courtesy Lamps...........................................3-18
Entry Lighting...............................................3-18
Delayed Entry Lighting...................................3-18
Delayed Exit Lighting.....................................3-19
Front Reading Lamps....................................3-19
Overhead Console Reading Lamps.................3-19
Rear Assist Handle Reading Lamps................3-19Battery Run-Down Protection..........................3-20
Head-Up Display (HUD).................................3-20
Accessory Power Outlets...............................3-24
Ashtrays and Cigarette Lighter........................3-25
Climate Controls............................................3-26
Climate Control System.................................3-26
Dual Automatic Climate Control System...........3-29
Outlet Adjustment.........................................3-33
Passenger Compartment Air Filter...................3-33
Warning Lights, Gages, and Indicators............3-35
Instrument Panel Cluster................................3-36
Speedometer and Odometer...........................3-37
Tachometer.................................................3-37
Safety Belt Reminder Light.............................3-38
Airbag Readiness Light..................................3-38
Up-Shift Light...............................................3-39
Brake System Warning Light..........................3-40
Anti-Lock Brake System Warning Light.............3-41
Traction Control System (TCS) Warning Light......3-42
Enhanced Traction System Warning Light.........3-42
Engine Coolant Temperature Warning Light......3-43
Engine Coolant Temperature Gage..................3-43
Malfunction Indicator Lamp.............................3-44
Section 3 Instrument Panel
3-1

Oil Pressure Light.........................................3-47
Fog Lamp Light............................................3-47
Cruise Control Light......................................3-48
Highbeam On Light.......................................3-48
Fuel Gage...................................................3-48
Driver Information Center (DIC).......................3-49
DIC Controls and Displays
(Base Level DIC).......................................3-49
DIC Controls and Displays
(Uplevel DIC with Trip Computer)................3-57
DIC Warnings and Messages.........................3-69
Audio System(s).............................................3-92
Setting the Time...........................................3-93
Radio with CD (Base Level)...........................3-93Radio with CD (MP3)..................................3-104
Radio with Six-Disc CD................................3-118
Navigation/Radio System..............................3-132
Theft-Deterrent Feature................................3-132
Audio Steering Wheel Controls......................3-133
Radio Reception.........................................3-134
Care of Your CDs.......................................3-134
Care of Your CD Player...............................3-134
Backglass Antenna......................................3-134
XM™ Satellite Radio Antenna System............3-135
Chime Level Adjustment...............................3-135
Section 3 Instrument Panel
3-2

✍NOTES
3-3

Instrument Panel Overview
3-4
