PONTIAC GRAND PRIX 2007 Owners Manual

{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
at tire. If it is used for anything else, you
or others could be badly injured or killed
if the vehicle slips off the jack. Use the
jack provided with your vehicle only for
changing a at tire.
5. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off
the ground for the compact spare tire to attach
to the vehicle.
441

6. Remove all wheel nuts and take off the
at tire.
{CAUTION:
Rust or dirt on the wheel, or on the parts
to which it is fastened, can make the
wheel nuts become loose after time. The
wheel could come off and cause an
accident. When you change a wheel,
remove any rust or dirt from the places
where the wheel attaches to the vehicle. In
an emergency, you can use a cloth or a
paper towel to do this; but be sure to use
a scraper or wire brush later, if needed, to
get all the rust or dirt off.7. Remove any rust or
dirt from the wheel
bolts, mounting
surfaces and spare
wheel.
8. Install the compact spare tire.
{CAUTION:
Never use oil or grease on studs or nuts.
If you do, the nuts might come loose.
Your wheel could fall off, causing a
serious accident.
442

9. Reinstall the wheel
nuts with the
rounded end of the
nuts toward the
wheel. Tighten each
nut by hand until
the wheel is
held against
the hub.
10. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.
443

{CAUTION:
Incorrect wheel nuts or improperly
tightened wheel nuts can cause the wheel
to come loose and even come off. This
could lead to an accident. Be sure to use
the correct wheel nuts. If you have to
replace them, be sure to get new GM
original equipment wheel nuts. Stop
somewhere as soon as you can and have
the nuts tightened with a torque wrench to
the proper torque specication. See
Capacities and Specifications on page 466
for wheel nut torque specication.
Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage.
To avoid expensive brake repairs, evenly
tighten the wheel nuts in the proper sequence
and to the proper torque specication. See
Capacities and Specifications on page 466for
the wheel nut torque specication.11. Tighten the wheel
nuts rmly in a
crisscross sequence
as shown.
Notice:Wheel covers will not t on your
compact spare. If you try to put a wheel cover
on the compact spare, you could damage
the cover or the spare.
Do not try to put the wheel cover on the compact
spare tire. It will not t. Store the wheel cover
in the trunk until the at tire is repaired or replaced.
444

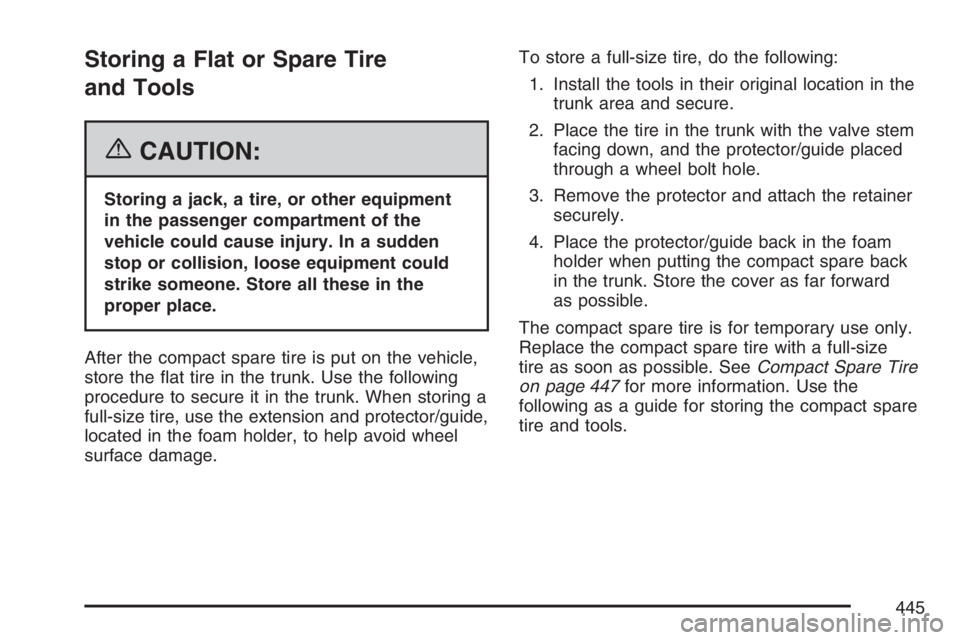

Storing a Flat or Spare Tire
and Tools
{CAUTION:
Storing a jack, a tire, or other equipment
in the passenger compartment of the
vehicle could cause injury. In a sudden
stop or collision, loose equipment could
strike someone. Store all these in the
proper place.
After the compact spare tire is put on the vehicle,
store the at tire in the trunk. Use the following
procedure to secure it in the trunk. When storing a
full-size tire, use the extension and protector/guide,
located in the foam holder, to help avoid wheel
surface damage.To store a full-size tire, do the following:
1. Install the tools in their original location in the
trunk area and secure.
2. Place the tire in the trunk with the valve stem
facing down, and the protector/guide placed
through a wheel bolt hole.
3. Remove the protector and attach the retainer
securely.
4. Place the protector/guide back in the foam
holder when putting the compact spare back
in the trunk. Store the cover as far forward
as possible.
The compact spare tire is for temporary use only.
Replace the compact spare tire with a full-size
tire as soon as possible. SeeCompact Spare Tire
on page 447for more information. Use the
following as a guide for storing the compact spare
tire and tools.
445

A. Retainer
B. Cover
C. Compact Spare Tire
D. Nut
E. Jack
F. Wheel Wrench
G. Extension and
Protective Guide
H. Foam Holder
I. Bolt ScrewA. Retainer
B. Spare Tire
C. Protector
D. Bolt Extension
E. Nut
F. Jack
G. Wheel Wrench
H. Foam Holder
I. Bolt Screw
Compact Spare TireFull-Sized Spare Tire
446

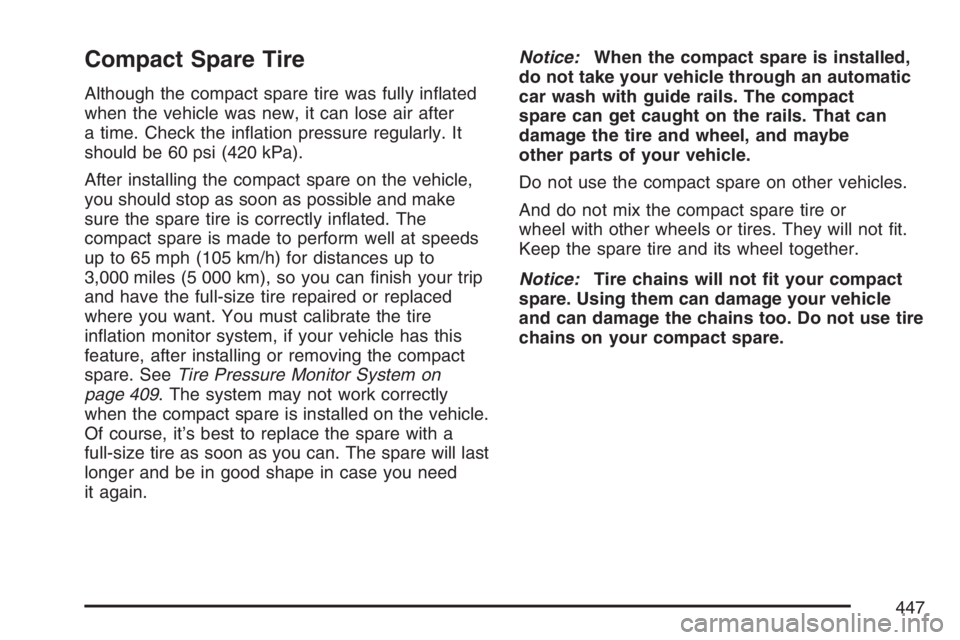

Compact Spare Tire
Although the compact spare tire was fully inated
when the vehicle was new, it can lose air after
a time. Check the ination pressure regularly. It
should be 60 psi (420 kPa).
After installing the compact spare on the vehicle,
you should stop as soon as possible and make
sure the spare tire is correctly inated. The
compact spare is made to perform well at speeds
up to 65 mph (105 km/h) for distances up to
3,000 miles (5 000 km), so you can nish your trip
and have the full-size tire repaired or replaced
where you want. You must calibrate the tire
ination monitor system, if your vehicle has this
feature, after installing or removing the compact
spare. SeeTire Pressure Monitor System on
page 409. The system may not work correctly
when the compact spare is installed on the vehicle.
Of course, it’s best to replace the spare with a
full-size tire as soon as you can. The spare will last
longer and be in good shape in case you need
it again.Notice:When the compact spare is installed,
do not take your vehicle through an automatic
car wash with guide rails. The compact
spare can get caught on the rails. That can
damage the tire and wheel, and maybe
other parts of your vehicle.
Do not use the compact spare on other vehicles.
And do not mix the compact spare tire or
wheel with other wheels or tires. They will not t.
Keep the spare tire and its wheel together.
Notice:Tire chains will not t your compact
spare. Using them can damage your vehicle
and can damage the chains too. Do not use tire
chains on your compact spare.
447

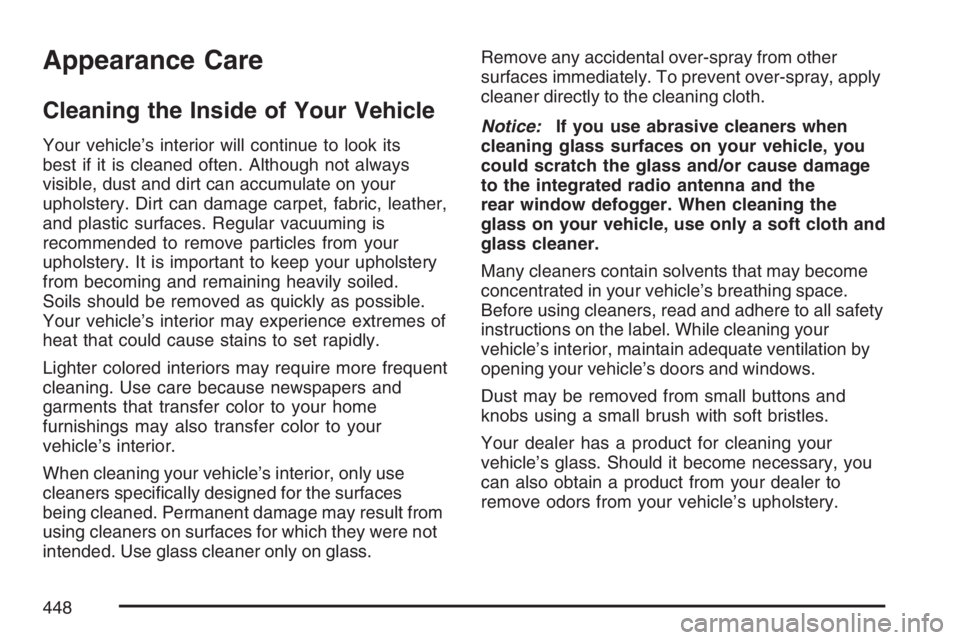

Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its
best if it is cleaned often. Although not always
visible, dust and dirt can accumulate on your
upholstery. Dirt can damage carpet, fabric, leather,
and plastic surfaces. Regular vacuuming is
recommended to remove particles from your
upholstery. It is important to keep your upholstery
from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible.
Your vehicle’s interior may experience extremes of
heat that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and
garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.
When cleaning your vehicle’s interior, only use
cleaners specically designed for the surfaces
being cleaned. Permanent damage may result from
using cleaners on surfaces for which they were not
intended. Use glass cleaner only on glass.Remove any accidental over-spray from other
surfaces immediately. To prevent over-spray, apply
cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass and/or cause damage
to the integrated radio antenna and the
rear window defogger. When cleaning the
glass on your vehicle, use only a soft cloth and
glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to all safety
instructions on the label. While cleaning your
vehicle’s interior, maintain adequate ventilation by
opening your vehicle’s doors and windows.
Dust may be removed from small buttons and
knobs using a small brush with soft bristles.
Your dealer has a product for cleaning your
vehicle’s glass. Should it become necessary, you
can also obtain a product from your dealer to
remove odors from your vehicle’s upholstery.
448

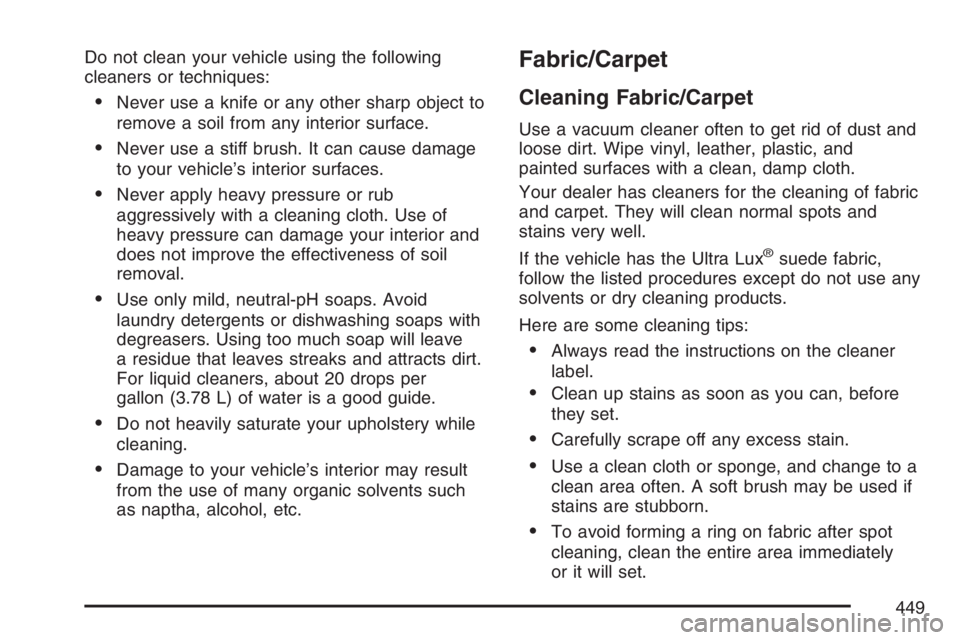

Do not clean your vehicle using the following
cleaners or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior and
does not improve the effectiveness of soil
removal.
Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing soaps with
degreasers. Using too much soap will leave
a residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per
gallon (3.78 L) of water is a good guide.
Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result
from the use of many organic solvents such
as naptha, alcohol, etc.
Fabric/Carpet
Cleaning Fabric/Carpet
Use a vacuum cleaner often to get rid of dust and
loose dirt. Wipe vinyl, leather, plastic, and
painted surfaces with a clean, damp cloth.
Your dealer has cleaners for the cleaning of fabric
and carpet. They will clean normal spots and
stains very well.
If the vehicle has the Ultra Lux
®suede fabric,
follow the listed procedures except do not use any
solvents or dry cleaning products.
Here are some cleaning tips:
Always read the instructions on the cleaner
label.
Clean up stains as soon as you can, before
they set.
Carefully scrape off any excess stain.
Use a clean cloth or sponge, and change to a
clean area often. A soft brush may be used if
stains are stubborn.
To avoid forming a ring on fabric after spot
cleaning, clean the entire area immediately
or it will set.
449

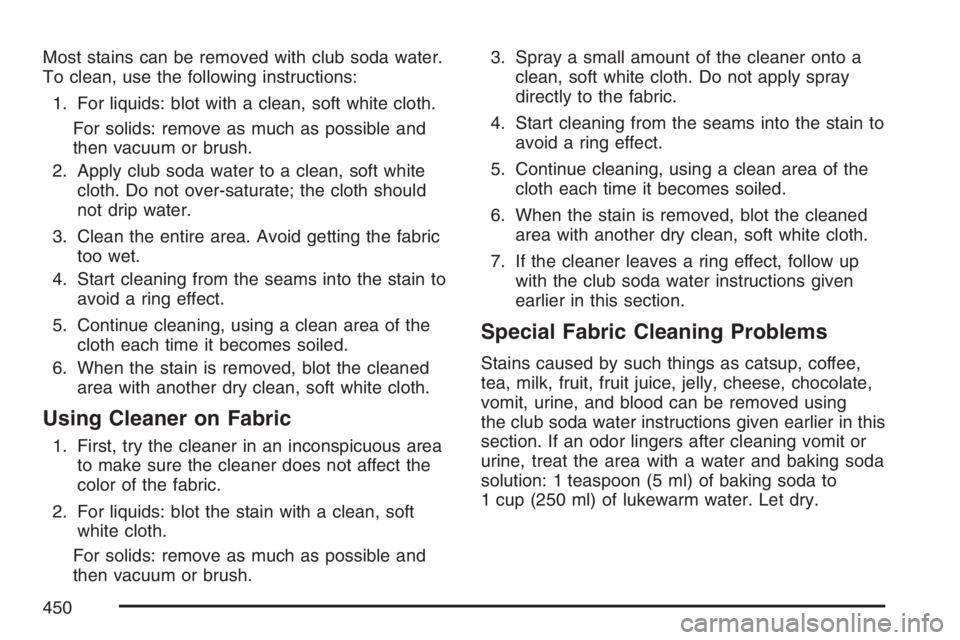

Most stains can be removed with club soda water.
To clean, use the following instructions:
1. For liquids: blot with a clean, soft white cloth.
For solids: remove as much as possible and
then vacuum or brush.
2. Apply club soda water to a clean, soft white
cloth. Do not over-saturate; the cloth should
not drip water.
3. Clean the entire area. Avoid getting the fabric
too wet.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the
cloth each time it becomes soiled.
6. When the stain is removed, blot the cleaned
area with another dry clean, soft white cloth.
Using Cleaner on Fabric
1. First, try the cleaner in an inconspicuous area
to make sure the cleaner does not affect the
color of the fabric.
2. For liquids: blot the stain with a clean, soft
white cloth.
For solids: remove as much as possible and
then vacuum or brush.3. Spray a small amount of the cleaner onto a
clean, soft white cloth. Do not apply spray
directly to the fabric.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the
cloth each time it becomes soiled.
6. When the stain is removed, blot the cleaned
area with another dry clean, soft white cloth.
7. If the cleaner leaves a ring effect, follow up
with the club soda water instructions given
earlier in this section.
Special Fabric Cleaning Problems
Stains caused by such things as catsup, coffee,
tea, milk, fruit, fruit juice, jelly, cheese, chocolate,
vomit, urine, and blood can be removed using
the club soda water instructions given earlier in this
section. If an odor lingers after cleaning vomit or
urine, treat the area with a water and baking soda
solution: 1 teaspoon (5 ml) of baking soda to
1 cup (250 ml) of lukewarm water. Let dry.
450
