PONTIAC GRAND PRIX 2007 Owners Manual

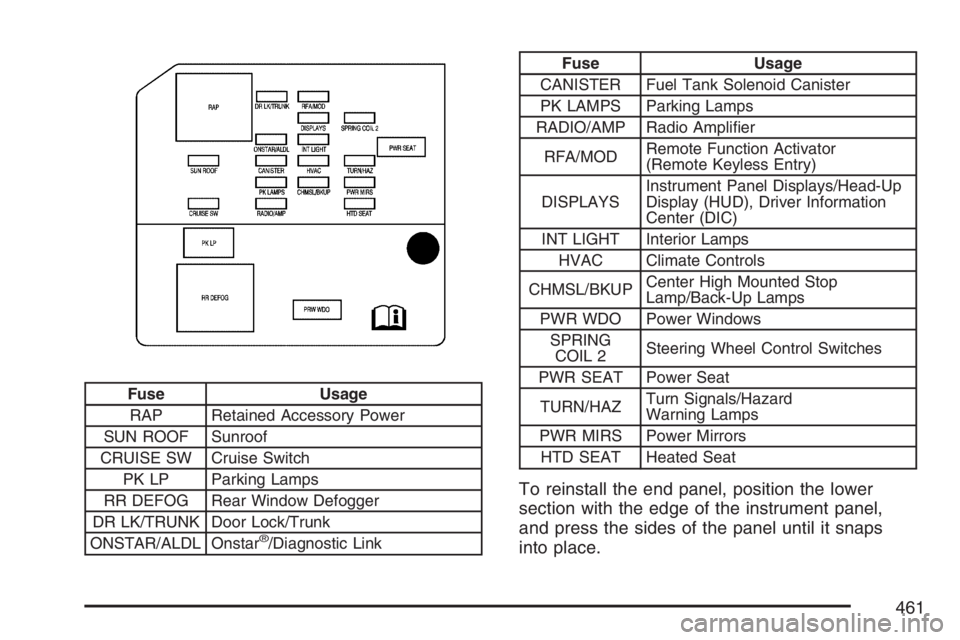

Fuse Usage
RAP Retained Accessory Power
SUN ROOF Sunroof
CRUISE SW Cruise Switch
PK LP Parking Lamps
RR DEFOG Rear Window Defogger
DR LK/TRUNK Door Lock/Trunk
ONSTAR/ALDL Onstar
®/Diagnostic Link
Fuse Usage
CANISTER Fuel Tank Solenoid Canister
PK LAMPS Parking Lamps
RADIO/AMP Radio Amplier
RFA/MODRemote Function Activator
(Remote Keyless Entry)
DISPLAYSInstrument Panel Displays/Head-Up
Display (HUD), Driver Information
Center (DIC)
INT LIGHT Interior Lamps
HVAC Climate Controls
CHMSL/BKUPCenter High Mounted Stop
Lamp/Back-Up Lamps
PWR WDO Power Windows
SPRING
COIL 2Steering Wheel Control Switches
PWR SEAT Power Seat
TURN/HAZTurn Signals/Hazard
Warning Lamps
PWR MIRS Power Mirrors
HTD SEAT Heated Seat
To reinstall the end panel, position the lower
section with the edge of the instrument panel,
and press the sides of the panel until it snaps
into place.
461

Underhood Fuse Block
The underhood fuse
block is located on the
passenger’s side of
the vehicle in the engine
compartment.
To remove the fuse block cover, press in on the
tab at the bottom of the cover and pull up.
Fuses Usage
1 Driver’s Side High-Beam Headlamp
2Passenger’s Side High-Beam
Headlamp
3 Driver’s Side Low-Beam Headlamp
4Passenger’s Side Low-Beam
Headlamp
3800 V6 Engine
462

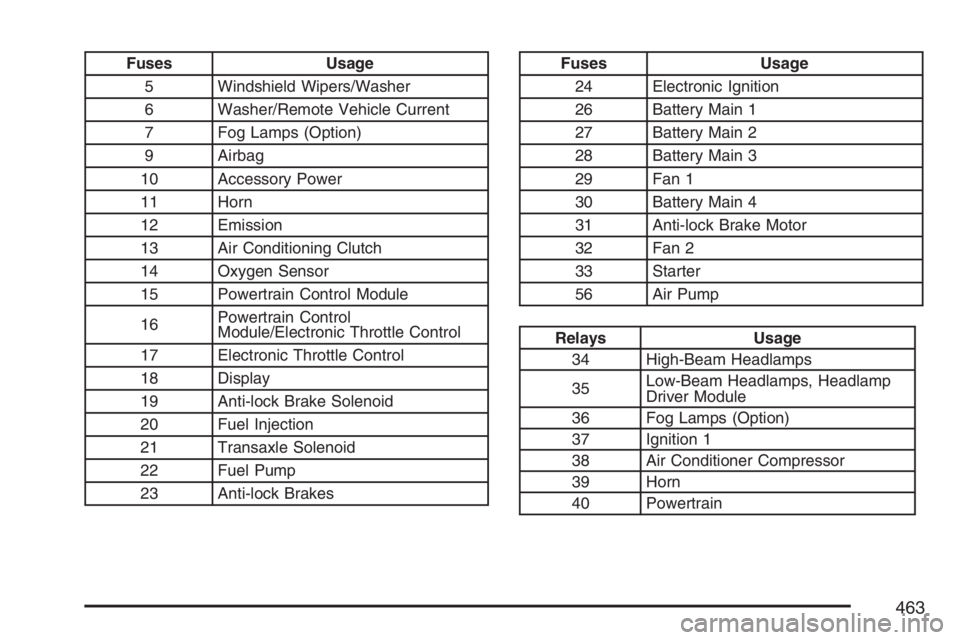

Fuses Usage
5 Windshield Wipers/Washer
6 Washer/Remote Vehicle Current
7 Fog Lamps (Option)
9 Airbag
10 Accessory Power
11 Horn
12 Emission
13 Air Conditioning Clutch
14 Oxygen Sensor
15 Powertrain Control Module
16Powertrain Control
Module/Electronic Throttle Control
17 Electronic Throttle Control
18 Display
19 Anti-lock Brake Solenoid
20 Fuel Injection
21 Transaxle Solenoid
22 Fuel Pump
23 Anti-lock BrakesFuses Usage
24 Electronic Ignition
26 Battery Main 1
27 Battery Main 2
28 Battery Main 3
29 Fan 1
30 Battery Main 4
31 Anti-lock Brake Motor
32 Fan 2
33 Starter
56 Air Pump
Relays Usage
34 High-Beam Headlamps
35Low-Beam Headlamps, Headlamp
Driver Module
36 Fog Lamps (Option)
37 Ignition 1
38 Air Conditioner Compressor
39 Horn
40 Powertrain
463

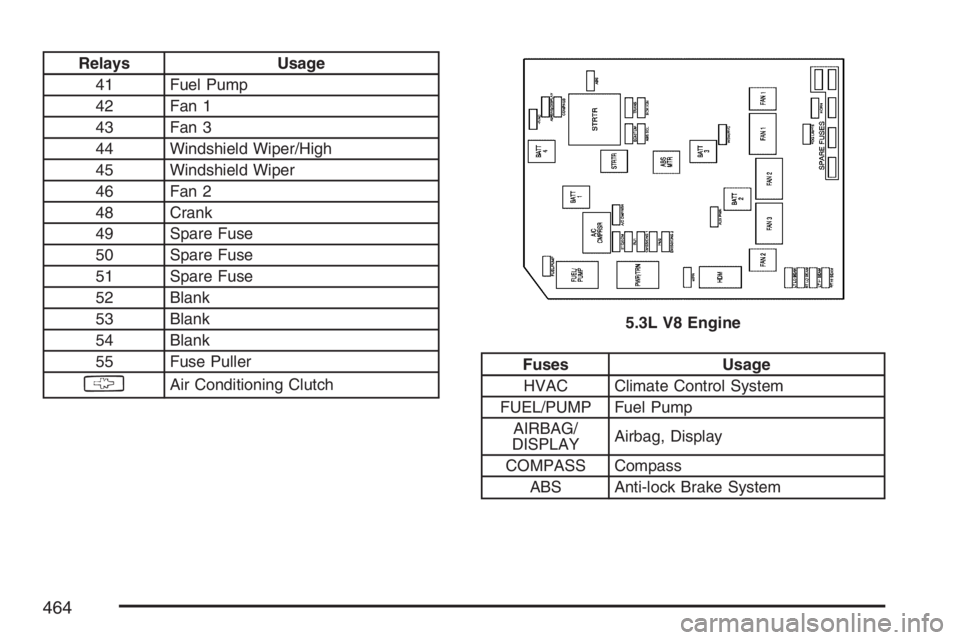

Relays Usage
41 Fuel Pump
42 Fan 1
43 Fan 3
44 Windshield Wiper/High
45 Windshield Wiper
46 Fan 2
48 Crank
49 Spare Fuse
50 Spare Fuse
51 Spare Fuse
52 Blank
53 Blank
54 Blank
55 Fuse Puller
§Air Conditioning Clutch
Fuses Usage
HVAC Climate Control System
FUEL/PUMP Fuel Pump
AIRBAG/
DISPLAYAirbag, Display
COMPASS Compass
ABS Anti-lock Brake System5.3L V8 Engine
464

Fuses Usage
ETC/ECMElectronic Throttle Control, Engine
Control Module
A/C CMPRSR Air Conditioning Compressor
INJ 1 Injectors 1
ECM/TCMEngine Control Module, Transaxle
Control Module
TRANS Transaxle
EMISSIONS 1 Emissions 1
ABS SOL Anti-lock Brake Solenoid
ECM IGN Engine Control Module, Ignition
INJ 2 Injectors 2
EMISSIONS 2 Emissions 2
WPR Windshield Wipers
AUX PWR Auxiliary Power
WSW/RVCWindshield Washer, Regulated
Voltage Control
LT LO BEAM Driver’s Side Low-Beam Headlamp
RT LO BEAMPassenger’s Side Low-Beam
Headlamp
FOG LAMPS Fog Lamps
LT HI BEAM Driver’s Side High-Beam Headlamp
HORN Horn
RT HI BEAMPassenger’s Side High-Beam
HeadlampFuses Usage
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
Relays Usage
BATT 4 Battery 4
FUEL/PUMP Fuel Pump
BATT 1 Battery 1
A/C CMPRSR Air Conditioning Compressor
STRTR Starter
PWR/TRN Powertrain
STRTR Starter
ABS MTR Anti-lock Brake System Motor
BATT 3 Battery 3
BATT 2 Battery 2
FAN 2 Cooling Fan 2
FAN 3 Cooling Fan 3
FAN 2 Cooling Fan 2
FAN 1 Cooling Fan 1
FAN 1 Cooling Fan 1
HDM Headlamp Driver Module
465

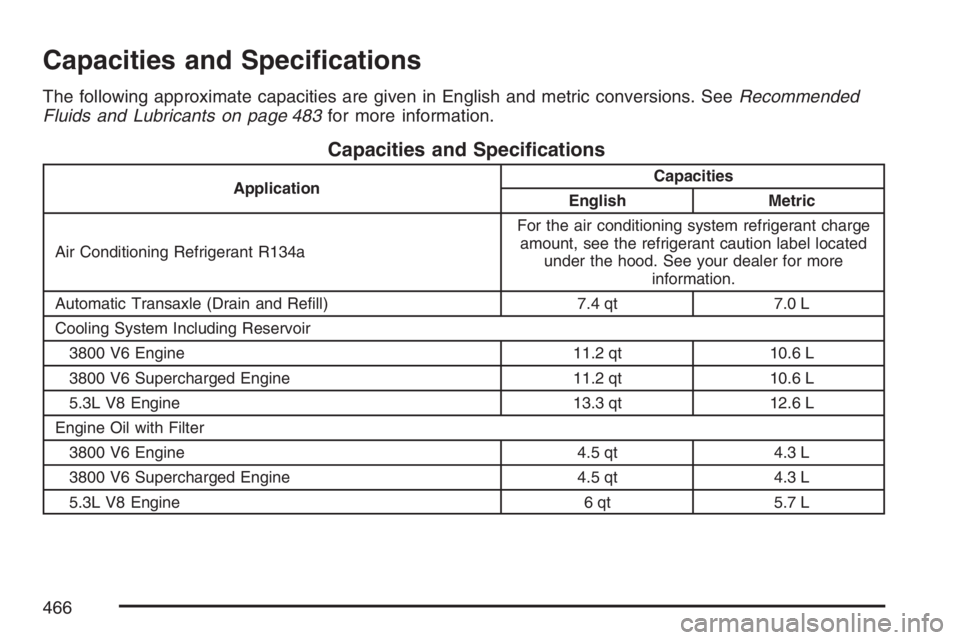

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended
Fluids and Lubricants on page 483for more information.
Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Automatic Transaxle (Drain and Rell) 7.4 qt 7.0 L
Cooling System Including Reservoir
3800 V6 Engine 11.2 qt 10.6 L
3800 V6 Supercharged Engine 11.2 qt 10.6 L
5.3L V8 Engine 13.3 qt 12.6 L
Engine Oil with Filter
3800 V6 Engine 4.5 qt 4.3 L
3800 V6 Supercharged Engine 4.5 qt 4.3 L
5.3L V8 Engine 6 qt 5.7 L
466

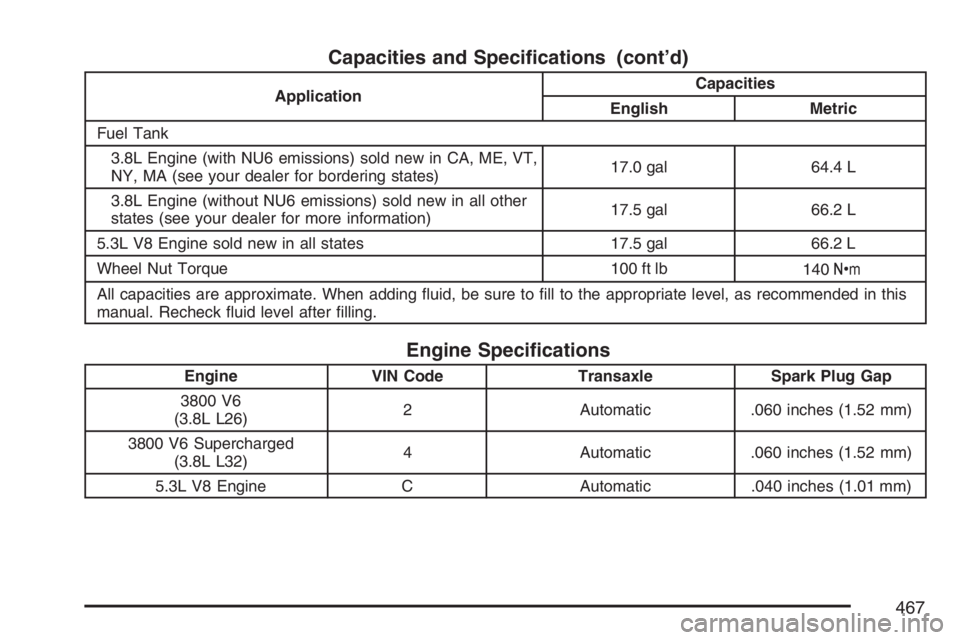

Capacities and Specications (cont’d)
ApplicationCapacities
English Metric
Fuel Tank
3.8L Engine (with NU6 emissions) sold new in CA, ME, VT,
NY, MA (see your dealer for bordering states)17.0 gal 64.4 L
3.8L Engine (without NU6 emissions) sold new in all other
states (see your dealer for more information)17.5 gal 66.2 L
5.3L V8 Engine sold new in all states 17.5 gal 66.2 L
Wheel Nut Torque 100 ft lb
140Y
All capacities are approximate. When adding uid, be sure to ll to the appropriate level, as recommended in this
manual. Recheck uid level after lling.
Engine Specications
Engine VIN Code Transaxle Spark Plug Gap
3800 V6
(3.8L L26)2 Automatic .060 inches (1.52 mm)
3800 V6 Supercharged
(3.8L L32)4 Automatic .060 inches (1.52 mm)
5.3L V8 Engine C Automatic .040 inches (1.01 mm)
467

✍NOTES
468

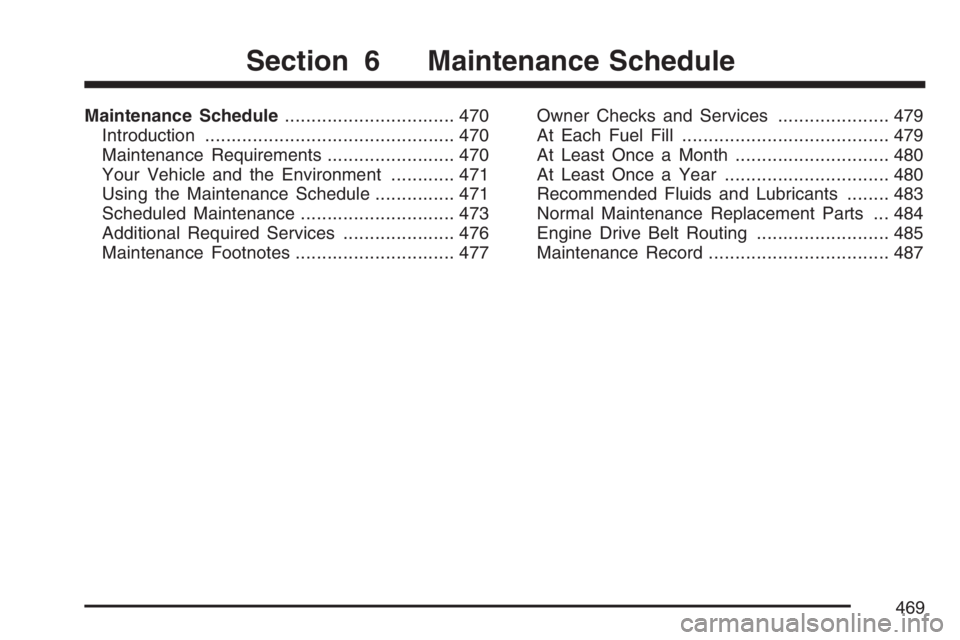

Maintenance Schedule................................ 470
Introduction............................................... 470
Maintenance Requirements........................ 470
Your Vehicle and the Environment............ 471
Using the Maintenance Schedule............... 471
Scheduled Maintenance............................. 473
Additional Required Services..................... 476
Maintenance Footnotes.............................. 477Owner Checks and Services..................... 479
At Each Fuel Fill....................................... 479
At Least Once a Month............................. 480
At Least Once a Year............................... 480
Recommended Fluids and Lubricants........ 483
Normal Maintenance Replacement Parts ... 484
Engine Drive Belt Routing......................... 485
Maintenance Record.................................. 487
Section 6 Maintenance Schedule
469

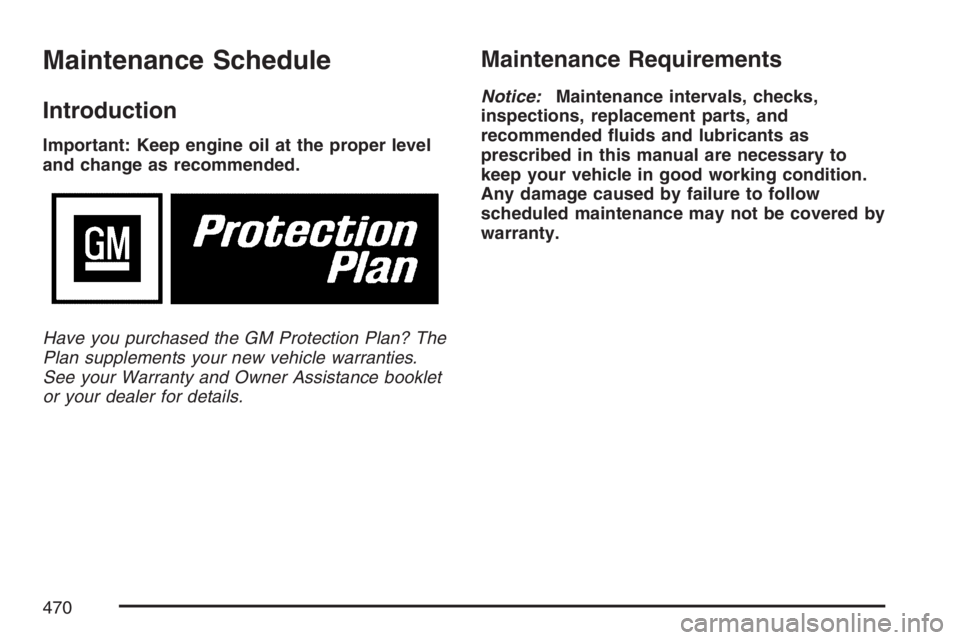

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance may not be covered by
warranty.
470
