length PONTIAC GRAND PRIX 2007 Owners Manual

Windshield Wiper Lever
Be sure to clear ice and snow from the wiper blades
before using them. If they are frozen to the
windshield, gently loosen or thaw them. Damaged
wiper blades may not clear the windshield well,
making it harder to see and drive safely. If the
blades do become damaged, install new blades or
blade inserts. For more information, seeWindshield
Wiper Blade Replacement on page 399.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it
cools down. Clear away snow or ice to prevent an
overload.
N(Windshield Wipers):The lever with this
symbol, located on the right side of the steering
column, operates the windshield wipers.
9(Off):Lower the lever to its original position to
turn the wipers off.
&(Delay):Push the lever up once to this
position to set a delay between wiping cycles. Turn
the delay adjustment band to set the length of
the delay.
x(Delay Adjustment):Turn the band, located
on the left of the windshield wiper lever, to set
the length of the delay between wiper cycles when
using the delay feature. There are ve delay
adjustment settings. Turn the band up to make the
delays shorter in between wiper cycles. Turn
the band down to make the delays longer between
wiper cycles. The windshield wiper lever must
be in delay for this feature to work.
138

Dual Automatic Climate Control
System
With this system you can control the heating,
cooling, and ventilation for your vehicle.
Automatic Operation
AUTO (Automatic):Turn both the fan and mode
knob to AUTO for automatic control of the inside
temperature, the air delivery mode and the fan
speed. You may notice a delay of two to
three minutes before the fan comes on when the
automatic operation is used in cold weather.For the automatic system to function, the
temperature must be set between 60°F (15°C) and
90°F (32°C).
1. Adjust the temperature to a comfortable
setting.
2. Press the PASS button to turn the passenger
climate control system on and off. When the
passenger system is off, the driver’s
temperature setting is also used for the
passenger and the passenger display is off.
In cold weather, the system will start at reduced
fan speeds to avoid blowing cold air into your
vehicle until warmer air is available. The system
will start out blowing air at the oor but may
change modes automatically as the vehicle
warms up to maintain the chosen temperature
setting. The length of time needed for the air to
warm up will depend on the outside
temperature and the length of time that has
elapsed since your vehicle was last driven.
3. Wait for the system to regulate. This may take
from 10 to 30 minutes. Then adjust the
temperature, if necessary.
162

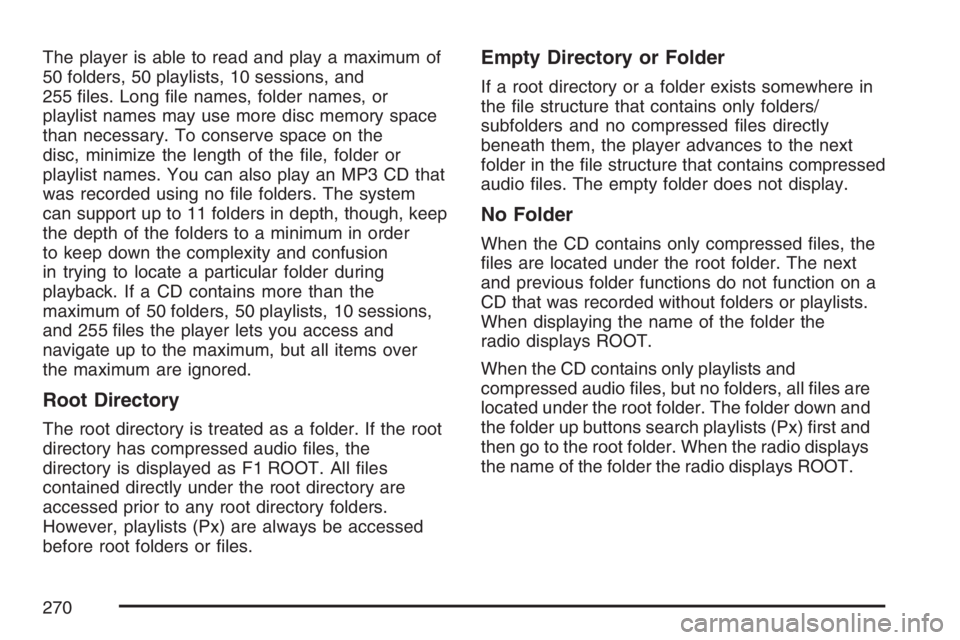

The player is able to read and play a maximum of
50 folders, 50 playlists, 10 sessions, and
255 les. Long le names, folder names, or
playlist names may use more disc memory space
than necessary. To conserve space on the
disc, minimize the length of the le, folder or
playlist names. You can also play an MP3 CD that
was recorded using no le folders. The system
can support up to 11 folders in depth, though, keep
the depth of the folders to a minimum in order
to keep down the complexity and confusion
in trying to locate a particular folder during
playback. If a CD contains more than the
maximum of 50 folders, 50 playlists, 10 sessions,
and 255 les the player lets you access and
navigate up to the maximum, but all items over
the maximum are ignored.
Root Directory
The root directory is treated as a folder. If the root
directory has compressed audio les, the
directory is displayed as F1 ROOT. All les
contained directly under the root directory are
accessed prior to any root directory folders.
However, playlists (Px) are always be accessed
before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere in
the le structure that contains only folders/
subfolders and no compressed les directly
beneath them, the player advances to the next
folder in the le structure that contains compressed
audio les. The empty folder does not display.
No Folder
When the CD contains only compressed les, the
les are located under the root folder. The next
and previous folder functions do not function on a
CD that was recorded without folders or playlists.
When displaying the name of the folder the
radio displays ROOT.
When the CD contains only playlists and
compressed audio les, but no folders, all les are
located under the root folder. The folder down and
the folder up buttons search playlists (Px) rst and
then go to the root folder. When the radio displays
the name of the folder the radio displays ROOT.
270

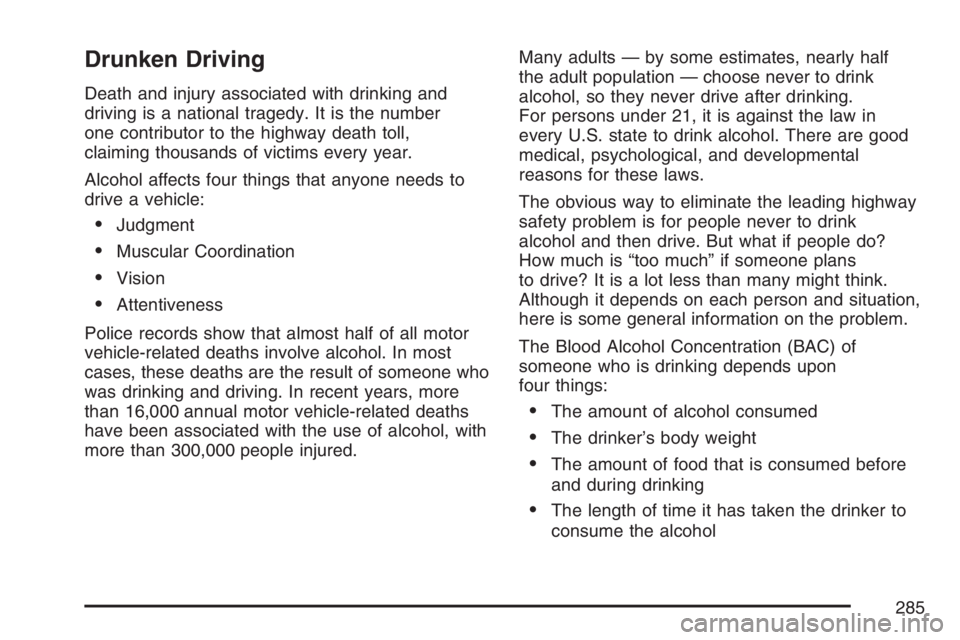

Drunken Driving
Death and injury associated with drinking and
driving is a national tragedy. It is the number
one contributor to the highway death toll,
claiming thousands of victims every year.
Alcohol affects four things that anyone needs to
drive a vehicle:
Judgment
Muscular Coordination
Vision
Attentiveness
Police records show that almost half of all motor
vehicle-related deaths involve alcohol. In most
cases, these deaths are the result of someone who
was drinking and driving. In recent years, more
than 16,000 annual motor vehicle-related deaths
have been associated with the use of alcohol, with
more than 300,000 people injured.Many adults — by some estimates, nearly half
the adult population — choose never to drink
alcohol, so they never drive after drinking.
For persons under 21, it is against the law in
every U.S. state to drink alcohol. There are good
medical, psychological, and developmental
reasons for these laws.
The obvious way to eliminate the leading highway
safety problem is for people never to drink
alcohol and then drive. But what if people do?
How much is “too much” if someone plans
to drive? It is a lot less than many might think.
Although it depends on each person and situation,
here is some general information on the problem.
The Blood Alcohol Concentration (BAC) of
someone who is drinking depends upon
four things:
The amount of alcohol consumed
The drinker’s body weight
The amount of food that is consumed before
and during drinking
The length of time it has taken the drinker to
consume the alcohol
285

Windshield Replacement
If your vehicle is equipped with the Head-Up
Display (HUD) system, keep in mind that your
windshield is part of the HUD system. If you ever
have to get your windshield replaced, be sure
to get one that is designed for HUD or your HUD
image may look blurred or out of focus.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. SeeScheduled Maintenance
on page 473for more information on wiper blade
inspection.Replacement blades come in different types and
are removed in different ways. For the proper type
and length, seeNormal Maintenance Replacement
Parts on page 484. Here is how to remove the
wiper blade:
1. Pull the windshield wiper arm connector away
from the windshield.
2. While holding the wiper arm, pull the clip up
from the blade connecting point, and pull the
blade assembly down toward the windshield
to remove it from the wiper arm.
3. Install the new wiper blade onto the wiper arm
and snap the clip into place.
399
