PONTIAC GRAND PRIX 2008 Owners Manual

SERVICE VARIABLE EFFORT
STEERING
This symbol comes on
with this message.
If the vehicle has the variable effort steering system,
this message displays if this system is not functioning
properly. SeeSteering on page 4-10for more
information. Have the system serviced by your
dealer/retailer as soon as possible.
This message displays only while the ignition is in
ON/RUN. A chime sounds for two seconds while this
message is displayed. Press the set/reset button
to acknowledge this message and to clear it from
the screen.
This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message
has been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
SERVICE VEHICLE SOON
This symbol comes on
with this message.
This message displays when a non-emissions related
malfunction occurs. Have the vehicle serviced by
your dealer/retailer as soon as possible.
This message displays only while the ignition is in
ON/RUN. A chime sounds for two seconds while this
message is displayed. Press the set/reset button
to acknowledge this message and to clear it from
the screen.
This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message
has been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
3-85

STABILITY CONTROL ACTIVE
This symbol comes on
with this message.
If the vehicle has the StabiliTrak
®Plus system, this
message displays when the system is engaged
and actively assisting the driver with directional control
of the vehicle. Slippery road conditions may exist
when this warning message is displayed, so driving
should be adjusted accordingly. STABILITY CONTROL
ACTIVE also appears in the Head-Up Display (HUD),
if your vehicle has this feature.
This message displays only while the ignition is in
ON/RUN. This message stays on until road conditions
change and StabiliTrak
®Plus is not active.
This message cannot be acknowledged and cleared
from the screen.
STABILITY CONTROL OFF
This symbol comes on
with this message.
If the vehicle has the StabiliTrak
®Plus system, this
message displays when the system turns off. This
message displays only while the ignition is in ON/RUN.
A chime sounds once and the message stays on for
three seconds and then disappears. A warning
light indicating that this system is deactivated also
appears on the instrument panel cluster. SeeTraction
Control System (TCS) Warning Light on page 3-47.
When the StabiliTrak
®Plus system is off, the system will
not be engaged and will not actively assist the driver
with directional control of the vehicle. SeeStabiliTrak
®
Plus System on page 4-8.
3-86

Any of the following conditions may cause the
StabiliTrak®Plus system to turn off:
The StabiliTrak®Plus system on the GXP
option is manually turned off. SeeStabiliTrak®
Plus System on page 4-8for more information.
The battery is low.
There is a StabiliTrak®Plus system failure.
See your dealer/retailer for service.
STARTING DISABLED DUE TO
ELECTRONIC THROTTLE CONTROL
This message displays when there is a malfunction
with the electronic throttle control which prevents
the vehicle from starting. Have the vehicle serviced
by your dealer/retailer.
This message only appears while the ignition is in
ON/RUN, and will not disappear until the problem
is resolved. A chime sounds for two seconds.
This message cannot be acknowledged.
STARTING DISABLED DUE TO
THEFT SYSTEM
This message displays when the system detects a
malfunction in the content theft-deterrent system and
prevents the vehicle from starting.This message only appears while the ignition is in
ON/RUN, and will not disappear until the problem
is resolved. A chime sounds for two seconds.
This message cannot be acknowledged.
TRACTION CONTROL ACTIVE
This symbol comes on
with this message.
If the vehicle has the traction system, this message
displays when the system is on. TRACTION CONTROL
ACTIVE also appears in the Head-Up Display (HUD),
if your vehicle has this feature.
This message only displays while the ignition is in
ON/RUN and will not disappear until driving conditions
change and the system is no longer active.
This message cannot be acknowledged or cleared
from the screen.
3-87

TRACTION CONTROL OFF
This symbol comes on
with this message.
If the vehicle has the traction system, this message
displays when the system turns off. TRACTION
CONTROL OFF also appears in the Head-Up Display
(HUD), if your vehicle has this feature. This message
only displays while the ignition is in ON/RUN and
disappears after three seconds. A chime sounds once
and the message stays on for three seconds and
then disappears. A warning light indicating that this
system is deactivated also appears on the instrument
panel cluster. SeeTraction Control System (TCS)
Warning Light on page 3-47.Any of the following conditions may cause the system
to turn off:The system is turned off by pressing the TC
(traction control) button located on the center
console. SeeTraction Control System (TCS) on
page 4-6orEnhanced Traction System (ETS)
on page 4-7for more information.
The battery is low.
There is a system failure. See your dealer/retailer
for service.
TURN SIGNAL ON
This message displays if the vehicle is driven for
more than 0.75 mile (1.21 km) while one of the turn
signals are on. It appears as a reminder to turn off
the turn signal.
This message only displays when the ignition is in
ON/RUN. A chime sounds for two seconds and
the message will not disappear until the turn signal
is manually turned off, or a turn is completed.
3-88

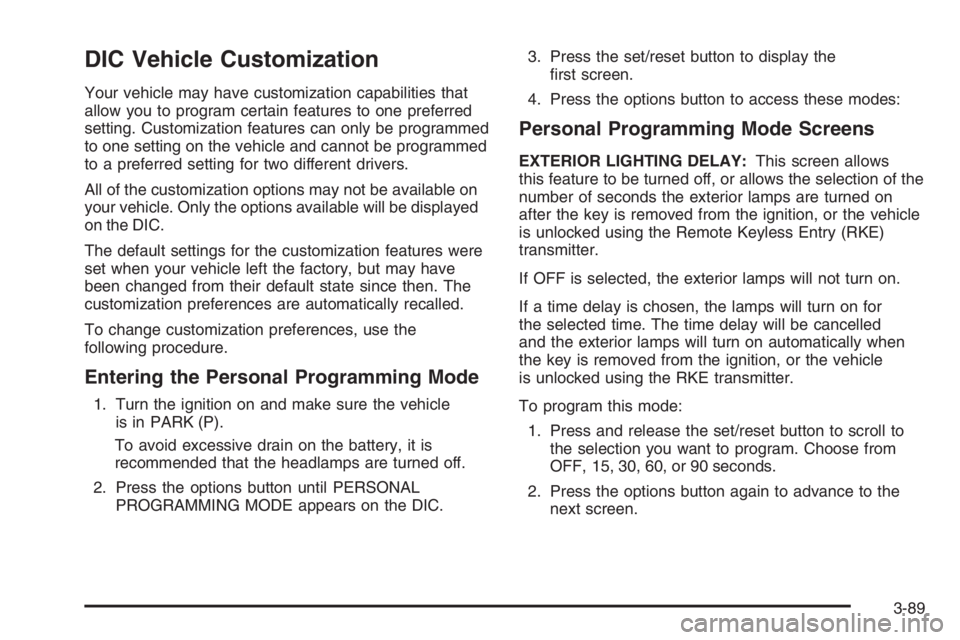

DIC Vehicle Customization
Your vehicle may have customization capabilities that
allow you to program certain features to one preferred
setting. Customization features can only be programmed
to one setting on the vehicle and cannot be programmed
to a preferred setting for two different drivers.
All of the customization options may not be available on
your vehicle. Only the options available will be displayed
on the DIC.
The default settings for the customization features were
set when your vehicle left the factory, but may have
been changed from their default state since then. The
customization preferences are automatically recalled.
To change customization preferences, use the
following procedure.
Entering the Personal Programming Mode
1. Turn the ignition on and make sure the vehicle
is in PARK (P).
To avoid excessive drain on the battery, it is
recommended that the headlamps are turned off.
2. Press the options button until PERSONAL
PROGRAMMING MODE appears on the DIC.3. Press the set/reset button to display the
rst screen.
4. Press the options button to access these modes:
Personal Programming Mode Screens
EXTERIOR LIGHTING DELAY:This screen allows
this feature to be turned off, or allows the selection of the
number of seconds the exterior lamps are turned on
after the key is removed from the ignition, or the vehicle
is unlocked using the Remote Keyless Entry (RKE)
transmitter.
If OFF is selected, the exterior lamps will not turn on.
If a time delay is chosen, the lamps will turn on for
the selected time. The time delay will be cancelled
and the exterior lamps will turn on automatically when
the key is removed from the ignition, or the vehicle
is unlocked using the RKE transmitter.
To program this mode:
1. Press and release the set/reset button to scroll to
the selection you want to program. Choose from
OFF, 15, 30, 60, or 90 seconds.
2. Press the options button again to advance to the
next screen.
3-89

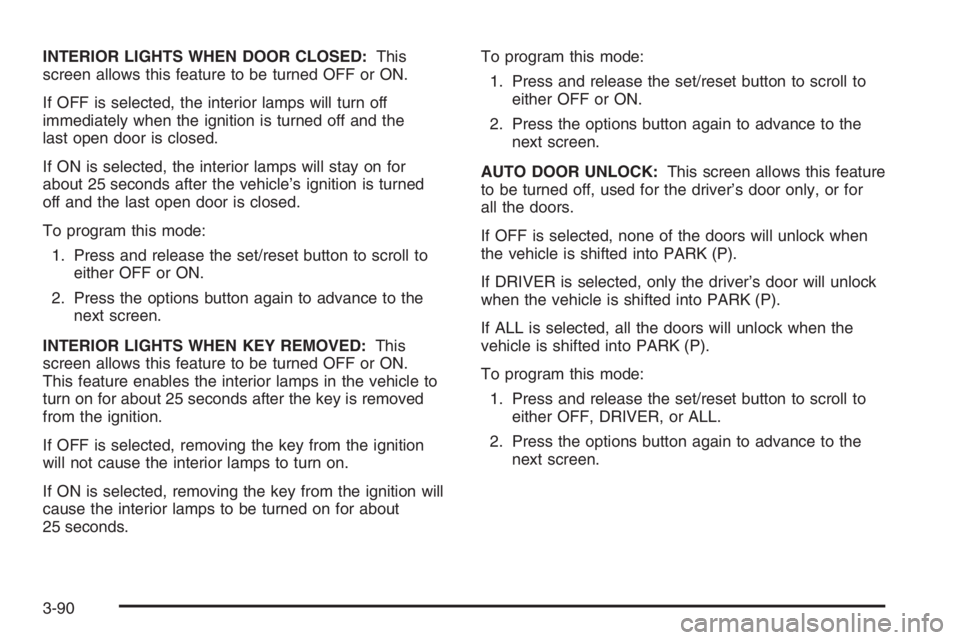

INTERIOR LIGHTS WHEN DOOR CLOSED:This
screen allows this feature to be turned OFF or ON.
If OFF is selected, the interior lamps will turn off
immediately when the ignition is turned off and the
last open door is closed.
If ON is selected, the interior lamps will stay on for
about 25 seconds after the vehicle’s ignition is turned
off and the last open door is closed.
To program this mode:
1. Press and release the set/reset button to scroll to
either OFF or ON.
2. Press the options button again to advance to the
next screen.
INTERIOR LIGHTS WHEN KEY REMOVED:This
screen allows this feature to be turned OFF or ON.
This feature enables the interior lamps in the vehicle to
turn on for about 25 seconds after the key is removed
from the ignition.
If OFF is selected, removing the key from the ignition
will not cause the interior lamps to turn on.
If ON is selected, removing the key from the ignition will
cause the interior lamps to be turned on for about
25 seconds.To program this mode:
1. Press and release the set/reset button to scroll to
either OFF or ON.
2. Press the options button again to advance to the
next screen.
AUTO DOOR UNLOCK:This screen allows this feature
to be turned off, used for the driver’s door only, or for
all the doors.
If OFF is selected, none of the doors will unlock when
the vehicle is shifted into PARK (P).
If DRIVER is selected, only the driver’s door will unlock
when the vehicle is shifted into PARK (P).
If ALL is selected, all the doors will unlock when the
vehicle is shifted into PARK (P).
To program this mode:
1. Press and release the set/reset button to scroll to
either OFF, DRIVER, or ALL.
2. Press the options button again to advance to the
next screen.
3-90

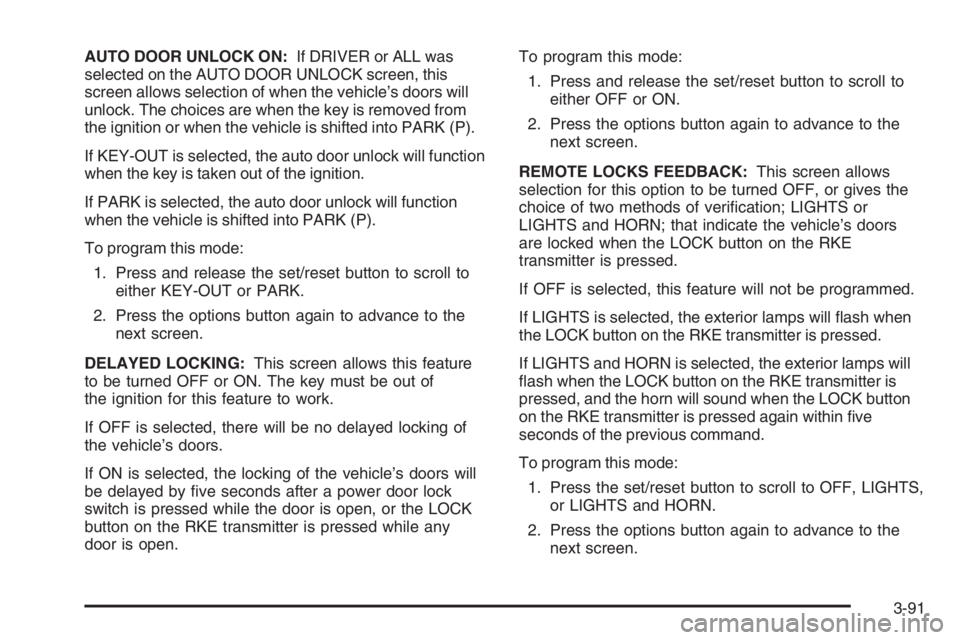

AUTO DOOR UNLOCK ON:If DRIVER or ALL was
selected on the AUTO DOOR UNLOCK screen, this
screen allows selection of when the vehicle’s doors will
unlock. The choices are when the key is removed from
the ignition or when the vehicle is shifted into PARK (P).
If KEY-OUT is selected, the auto door unlock will function
when the key is taken out of the ignition.
If PARK is selected, the auto door unlock will function
when the vehicle is shifted into PARK (P).
To program this mode:
1. Press and release the set/reset button to scroll to
either KEY-OUT or PARK.
2. Press the options button again to advance to the
next screen.
DELAYED LOCKING:This screen allows this feature
to be turned OFF or ON. The key must be out of
the ignition for this feature to work.
If OFF is selected, there will be no delayed locking of
the vehicle’s doors.
If ON is selected, the locking of the vehicle’s doors will
be delayed by ve seconds after a power door lock
switch is pressed while the door is open, or the LOCK
button on the RKE transmitter is pressed while any
door is open.To program this mode:
1. Press and release the set/reset button to scroll to
either OFF or ON.
2. Press the options button again to advance to the
next screen.
REMOTE LOCKS FEEDBACK:This screen allows
selection for this option to be turned OFF, or gives the
choice of two methods of verication; LIGHTS or
LIGHTS and HORN; that indicate the vehicle’s doors
are locked when the LOCK button on the RKE
transmitter is pressed.
If OFF is selected, this feature will not be programmed.
If LIGHTS is selected, the exterior lamps will ash when
the LOCK button on the RKE transmitter is pressed.
If LIGHTS and HORN is selected, the exterior lamps will
ash when the LOCK button on the RKE transmitter is
pressed, and the horn will sound when the LOCK button
on the RKE transmitter is pressed again within ve
seconds of the previous command.
To program this mode:
1. Press the set/reset button to scroll to OFF, LIGHTS,
or LIGHTS and HORN.
2. Press the options button again to advance to the
next screen.
3-91

If the vehicle does not have a content theft-deterrent
system, the next screens with PROGRAMMING
FINISHED and DISPLAY OFF will appear.
If the vehicle does have a content theft-deterrent
system, the next screen will appear.
THEFT DETERRENT:The vehicle may have a content
theft-deterrent system. Once it is turned on, the
system will activate if someone tries to enter the vehicle
without using the RKE transmitter or the correct key.
This screen allows this feature to be turned OFF or ON.
If OFF is selected, the content theft-deterrent system
will not function.
If ON is selected, the content theft-deterrent system
will be activated.
To program this mode:
1. Press the set/reset button to scroll to OFF or ON.
2. Press the options button again to advance to
the next screen.KEY CYLINDER DISARM:If the vehicle has a content
theft-deterrent system, and ON was selected on the
THEFT DETERRENT screen, this screen allows
this feature to be turned OFF or ON. This feature
determines whether the driver’s door key cylinder may
be used to disarm the content theft-deterrent system.
If OFF is selected, the vehicle’s content theft-deterrent
system can not be disarmed by unlocking the driver’s
door using the driver’s door key cylinder. Selecting OFF
prevents a thief from disarming the vehicle’s content
theft-deterrent system by attacking the driver’s door key
cylinder, and may make the vehicle more secure.
However, if OFF is selected, unlocking an armed vehicle
by using the driver’s door key cylinder and opening
the door will cause the content theft alarm to activate.
For this reason, it is recommended that the vehicle
be unlocked using the remote keyless entry system
when this feature is set to OFF.
If ON is selected, the vehicle’s content theft-deterrent
system can be disarmed by unlocking the driver’s
door using the driver’s door key cylinder.
To program this mode:
1. Press the set/reset button to scroll to OFF or ON.
2. Press the options button again to advance to
the next screen.
3-92

LOCK SWITCH ARM:If the vehicle has the content
theft-deterrent system and ON was selected on
the THEFT DETERRENT screen, this screen allows this
feature to be turned OFF or ON. This feature controls
whether the vehicle’s content theft system can be
activated using a door lock switch.
If OFF is selected, locking the vehicle using a door lock
switch will not cause the vehicle’s content theft
system to arm.
If ON is selected, the content theft-deterrent system
can be armed using the driver’s door lock switch
by pressing the driver’s door lock switch while the
driver’s door is open and the key is not in the ignition,
or by pressing the front passenger’s door lock switch
while the front passenger’s door is open and the key
is not in the ignition.
To program this mode:
1. Press the set/reset button to scroll to OFF or ON.
2. Press the options button again to advance to
the next screen.REMOTE START:If your vehicle has the remote start
feature, this screen allows this feature to be turned
OFF or ON. The remote start feature allows you to start
the engine from outside of the vehicle using the RKE
transmitter. SeeRemote Vehicle Start on page 2-7
for more information.
If OFF is selected, the remote start feature will be
disabled.
If ON is selected, the remote start feature will be
enabled.
To program this mode:
1. Press the set/reset button to scroll to OFF or ON.
2. Press the options button again to advance to
the next screen.
PROGRAMMING FINISHED will appear on the next
screen. This conrms that the personal options
programming is complete.
3-93

Audio System(s)
Determine which radio your vehicle has and then read the
pages following to familiarize yourself with its features.
{CAUTION:
This system provides you with far greater
access to audio stations and song listings.
Giving extended attention to entertainment
tasks while driving can cause a crash and
you or others can be injured or killed. Always
keep your eyes on the road and your mind
on the drive — avoid engaging in extended
searching while driving.
Keeping your mind on the drive is important for
safe driving. SeeDefensive Driving on page 4-2.
Here are some ways in which you can help avoid
distraction while driving.
While your vehicle is parked:
Familiarize yourself with all of its controls.
Familiarize yourself with its operation.
Set up your audio system by presetting your
favorite radio stations, setting the tone, and
adjusting the speakers. Then, when driving
conditions permit, you can tune to your favorite
radio stations using the presets and steering wheel
controls if the vehicle has them.
Notice:Before adding any sound equipment to
your vehicle, such as an audio system, CD player,
CB radio, mobile telephone, or two-way radio, make
sure that it can be added by checking with your
dealer/retailer. Also, check federal rules covering
mobile radio and telephone units. If sound
equipment can be added, it is very important to do
it properly. Added sound equipment may interfere
with the operation of your vehicle’s engine, radio,
or other systems, and even damage them. Your
vehicle’s systems may interfere with the operation
of sound equipment that has been added.
Notice:The chime signals related to safety belts,
parking brake, and other functions of your vehicle
operate through the radio/entertainment system.
If that equipment is replaced or additional equipment
is added to your vehicle, the chimes may not
work. Make sure that replacement or additional
equipment is compatible with your vehicle before
installing it. SeeAccessories and Modifications
on page 5-3.
3-94
