engine PONTIAC GTO 2006 Owners Manual

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and ®lter. See
Engine Oil on page 5-13. Reset oil life
system. SeeEngine Oil Life System on page 5-16.An Emission Control
Service.··
Visually check for any leaks or damage.
See footnote (i).··
Inspect engine air cleaner ®lter. If necessary, replace ®lter. See
Engine Air
Cleaner/Filter on page 5-18.··
Rotate tires and check in¯ation pressures and wear. See
Tire Inspection and
Rotation on page 5-61and ªTire Wear Inspectionº inAt Least Once a Month
on page 6-9.··
Inspect brake system.
See footnote (a).··
Check engine coolant and windshield washer ¯uid levels and add ¯uid as
needed.··
Perform any needed additional services. See ªAdditional Required Servicesº
in this section.··
Inspect suspension and steering components.
See footnote (b).·
Inspect engine cooling system.
See footnote (c).·
Inspect wiper blades.
See footnote (d).·
Inspect restraint system components.
See footnote (e).·
Lubricate body components.
See footnote (f).·
Check transmission ¯uid level and add ¯uid as needed. See
Recommended
Fluids and Lubricants on page 6-12for what to use.·
6-5
2006 - Pontiac GTO Owner Manual

Additional Required Services
The following services should be performed at the ®rst maintenance service (IorII) after the indicated miles
(kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage or
leaks.· ·····
Inspect exhaust system for loose or
damaged components.· ·····
Replace engine air cleaner ®lter. See
Engine Air Cleaner/Filter on page 5-18.· ·····
Change automatic transmission ¯uid and
®lter (severe service).
See footnote (g).· ·····
Change automatic transmission ¯uid and
®lter (normal service).···
Replace spark plugs. Inspect spark plug
wires.
An Emission Control Service.·
Engine cooling system service (or every
®ve years, whichever occurs ®rst).
An
Emission Control Service. See
footnote (h).·
Inspect engine accessory drive belt.
An
Emission Control Service. See
footnote (j).·
Change brake ¯uid.
See footnote (k).··
6-6
2006 - Pontiac GTO Owner Manual

(g)Change automatic transmission ¯uid and ®lter if the
vehicle is mainly driven under one or more of these
conditions:
þIn heavy city traffic where the outside temperature
regularly reaches 90ÉF (32ÉC) or higher.
þIn hilly or mountainous terrain.
þWhen doing frequent trailer towing.
þUses such as found in taxi, police, or delivery
service.
þUses such as high performance operation.
(h)Drain, ¯ush, and re®ll cooling system. This service
can be complex; you should have your dealer perform
this service. See Engine Coolant on page 5-23 for
what to use. Inspect hoses. Clean radiator, condenser,
pressure cap, and ®ller neck. Pressure test the
cooling system and pressure cap.
(i)A ¯uid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the ¯uid level checked. Add ¯uid if needed.
(j)Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.
(k)Drain, ¯ush, and re®ll brake hydraulic system (or
every two years, whichever occurs ®rst). This service
can be complex; you should have your dealer perform
this service. See Brakes on page 5-35
andRecommended Fluids and Lubricants on page 6-12.
Owner Checks and Services
These owner checks and services should be performed
at the intervals speci®ed to help ensure the safety,
dependability, and emission control performance of your
vehicle. Your GM Goodwrench
ždealer can assist you
with these checks and services.
Be sure any necessary repairs are completed at once.
Whenever any ¯uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Recommended Fluids and Lubricants on page 6-12.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel ®ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-13for further
details.
Notice:It is important to check your oil regularly
and keep it at the proper level. Failure to keep your
engine oil at the proper level can cause damage
to your engine not covered by your warranty.
6-8
2006 - Pontiac GTO Owner Manual

Engine Coolant Level Check
Check the engine coolant level and add DEX-COOLž
coolant mixture if necessary. SeeEngine Coolant
on page 5-23for further details.
Windshield Washer Fluid Level Check
Check the windshield washer ¯uid level in the windshield
washer ¯uid reservoir and add the proper ¯uid if
necessary.
At Least Once a Month
Tire In¯ation Check
Visually inspect your vehicle's tires and make sure they
are in¯ated to the correct pressures. Do not forget to
check the spare tire. See
Tires on page 5-51for further
details. Check to make sure the spare tire is stored
securely. See
Changing a Flat Tire on page 5-69.
Tire Wear Inspection
Tire rotation may be required for high mileage highway
drivers prior to the Engine Oil Life System service
noti®cation. Check the tires for wear and, if necessary,
rotate the tires. See
Tire Inspection and Rotation on
page 5-61.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See
Parking Brake on page 2-24.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in PARK (P) or NEUTRAL (N). If
the vehicle starts in any other position, contact your
GM Goodwrench
ždealer for service.
6-9
2006 - Pontiac GTO Owner Manual

Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. See
Parking Brake
on page 2-24.
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off, turn the ignition to ON, but do
not start the engine. Without applying the regular
brake, try to move the shift lever out of PARK (P)
with normal effort. If the shift lever moves out
of PARK (P), contact your GM Goodwrench
ždealer
for service.
Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK in each shift lever position.
·With an automatic transmission, the ignition should
turn to LOCK only when the shift lever is in
PARK (P). The key should come out only in LOCK.
·With a manual transmission, the key should
come out only in LOCK.
Contact your GM Goodwrench
ždealer if service is
required.
6-10
2006 - Pontiac GTO Owner Manual

Parking Brake and Automatic
Transmission Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
·To check the parking brake's holding ability: With
the engine running and transaxle in NEUTRAL (N),
slowly remove foot pressure from the regular
brake pedal. Do this until the vehicle is held by the
parking brake only.
·To check the PARK (P) mechanism's holding ability:
With the engine running, shift to PARK (P). Then
release the parking brake followed by the regular
brake.
Contact your GM Goodwrench
ždealer if service is
required.
Underbody Flushing Service
At least every spring, use plain water to ¯ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-11
2006 - Pontiac GTO Owner Manual

Recommended Fluids and
Lubricants
Fluids and lubricants identi®ed below by name, part
number, or speci®cation may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard may be identi®ed as
synthetic, and should also be
identi®ed with the American
Petroleum Institute Certi®ed for
Gasoline Engines starburst symbol.
However, not all synthetic API oils
with the starburst symbol will meet
this GM standard. You should look
for and use only an oil that meets
GM Standard GM4718M. GM
Goodwrench
žoil meets all the
requirements for your vehicle. For
the proper viscosity, see
Engine Oil
on page 5-13.
Usage Fluid/Lubricant
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
ž
Coolant. SeeEngine Coolant on
page 5-23.
Hydraulic Brake
SystemHydraulic Brake Fluid. Use only
GM Part No. U.S. 88958860, in
Canada 88901244, Super DOT-4
brake ¯uid.
Windshield
WasherGM Optikleen
žWasher Solvent.
Hydraulic
Clutch SystemHydraulic Clutch Fluid. Use only
GM Part No. U.S. 88958860, in
Canada 88901244, Super DOT-4
brake ¯uid.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemDEXRON
ž-III Automatic
Transmission Fluid. Look for
ªApproved for the H-Speci®cationº
on the label.
6-12
2006 - Pontiac GTO Owner Manual

Normal Maintenance Replacement Parts
Replacement parts identi®ed below by name, part number, or speci®cation can be obtained from your GM dealer.
Part GM Part NumbersACDelcožPart
Numbers
Engine Air Cleaner/Filter 92082656 Ð
Engine Oil Filter 88984215 PF46
Spark Plugs 12571164 41-985
Wiper Blades (Hook Type)
Driver's Side ± 22.0 inches (55.0 cm) 92076914 Ð
Passenger's Side ± 20.0 inches (50.0 cm) 92057198 Ð
6-14
2006 - Pontiac GTO Owner Manual

Courtesy Transportation is available only at participating
dealers and all program options, such as shuttle
service, may not be available at every dealer. Please
contact your dealer for speci®c information about
availability. All Courtesy Transportation arrangements
will be administered by appropriate dealer personnel.
Canadian Vehicles:For warranty repairs during
the Complete Vehicle Coverage period of the General
Motors of Canada New Vehicle Limited Warranty,
alternative transportation may be available under the
Courtesy Transportation Program. Please consult
your dealer for details.
General Motors reserves the right to unilaterally modify,
change or discontinue Courtesy Transportation at
any time and to resolve all questions of claim eligibility
pursuant to the terms and conditions described
herein at its sole discretion.
Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles, has a
number of sophisticated computer systems that monitor
and control several aspects of the vehicle's
performance.Your vehicle uses on-board vehicle computers to
monitor emission control components to optimize fuel
economy, to monitor conditions for airbag deployment
and, if so equipped, to provide anti-lock braking and
to help the driver control the vehicle in difficult driving
situations. Some information may be stored during
regular operations to facilitate repair of detected
malfunctions; other information is stored only in a crash
event by computer systems, such as those commonly
called event data recorders (EDR).
In a crash event, computer systems, such as the Airbag
Sensing and Diagnostic Module (SDM) in your vehicle
may record information about the condition of the vehicle
and how it was operated, such as data related to
engine speed, brake application, throttle position, vehicle
speed, safety belt usage, airbag readiness, airbag
performance, and the severity of a collision. This
information has been used to improve vehicle crash
performance and may be used to improve crash
performance of future vehicles and driving safety. Unlike
the data recorders on many airplanes, these on-board
systems do not record sounds, such as conversation of
vehicle occupants.
7-9
2006 - Pontiac GTO Owner Manual

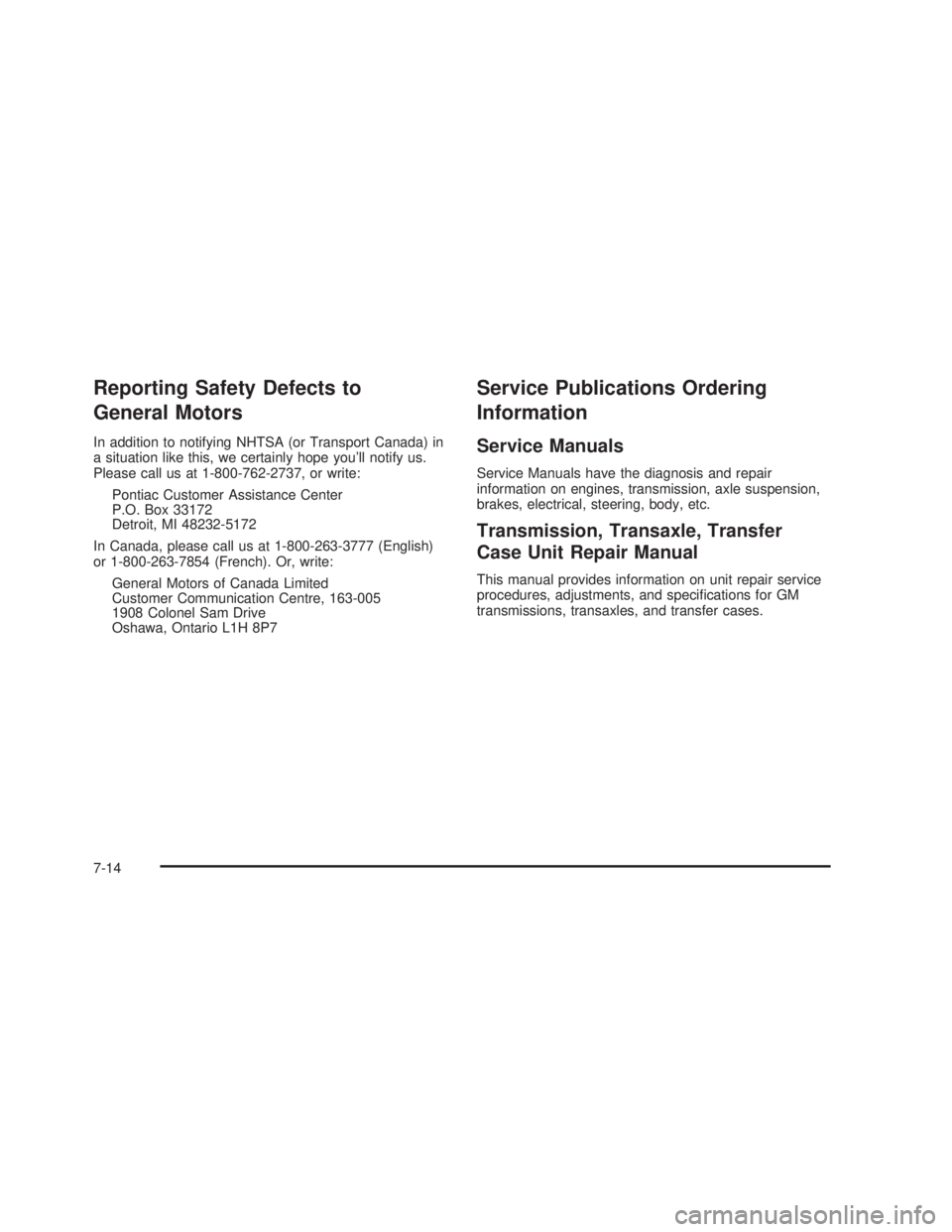

Reporting Safety Defects to
General Motors
In addition to notifying NHTSA (or Transport Canada) in
a situation like this, we certainly hope you'll notify us.
Please call us at 1-800-762-2737, or write:
Pontiac Customer Assistance Center
P.O. Box 33172
Detroit, MI 48232-5172
In Canada, please call us at 1-800-263-3777 (English)
or 1-800-263-7854 (French). Or, write:
General Motors of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle suspension,
brakes, electrical, steering, body, etc.
Transmission, Transaxle, Transfer
Case Unit Repair Manual
This manual provides information on unit repair service
procedures, adjustments, and speci®cations for GM
transmissions, transaxles, and transfer cases.
7-14
2006 - Pontiac GTO Owner Manual
