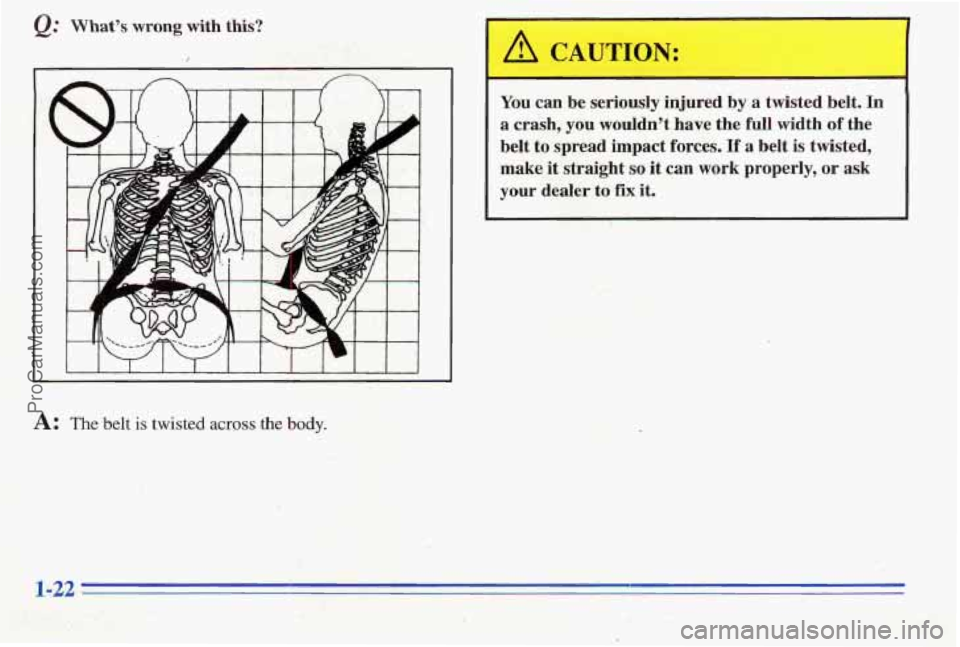

Q: What's wrong with this?
I I' .~
A: The belt is twisted across the body.
A CAUTION:
You can be seriously inpred by a twisted belt. In
a crash, you wouldn't have the full width of the
belt to spread impact forces..
If a belt is twisted,
make it straight
so it can work properly, or ask
your dealer to
fix it.
ProCarManuals.com

Q: What's wrong with this?
You can be seriously injured by a twisted belt. In
a crash, you wouldn't have the full width of the
belt
to spread impact forces. If a belt is twisted,
make it straight so it can work properly, or ask
your dealer to fix it.
A: The belt is twisted across the body.
ProCarManuals.com

Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the same way as the one it replaces.
If you need to replace any of your wheels,. wheel bolts
or wheel nuts, replace them only with new GM original
equipment
parts. This way, you will be sure to have
the right wheel, wheel bolts and wheel nuts for your
Pontiac model.
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and ,handling of your
vehicle, make your tires lose
air and make you
lose control. You could
have a collision in which
you or others could be injured. Always use
the correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance
to the body and chassis.
See "Changing a Flat Tire" in the Index\for
more information.
dangerous. You can't know how it's been used
or how many miles it's been driven.~It could fail
ProCarManuals.com

Vehicle Dimensions
Wheelbase . ,
Tread Width Front
....
Rear ............
Overall Length
Coupe
.............
. . 107.5” (2730 mm)
. 59.5” (1512 mm)
... 58.0” (1472 mm)
..... 194.8” (4947 mm)
Sedan ..................... 194.9” (4951 mm)
Overall Width ................ 7 1.9‘‘ (1 825 mm)
Overall Height
Coupe .................... 52.9” (1 341 mm)
Sedan ..................... 54.8” (1 39 1 mm)
I
Normal Maintenance Replacement Parts
.......
..a
. . PF47
. . PF51
! Engine Oil Filter
3.1L (Code M) .......
3.4L (Code X) ......
3.1L (Code M) ..................... CV892C
3.4L (Code
X) ...................... CV895C
All Engines
........ .... RC27
3.1L (Code
M) . . , ...... ACType41-940
Gap:
0.060” (1.52 mm)
3.4L (Code X) ................ AC Type 41-919
Gap: 0.045” (1.14
mm)
Length ........................ 20” (508 mm)
Type ................................... pin
PCV Valve
Radiator Cap
Spark Plugs
Windshield Wiper Blade Replacement
.......
Air Conditioning Refrigerants
Air Cleaner Filter
Battery If you’re not sure, ask your Pontiac dealer.
Not all air conditioning refrigerants are the same.
If the air conditioning system
in your vehicle needs
Engines
- * * * * * . * . * . . * * . * * refrigerant, be sure the proper refrigerant is used.
3.1L (Code M) ..................... 600 CCA
3.4L (Code X) ...................... 690 CCA
6-75
