Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if
you try to adjust a manual driver’s seat
while the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.Lift the lever located
under the front of the
seat to unlock it.
Slide the seat to where you want it and release
the lever. Try to move the seat with your body to
be sure the seat is locked in place.
Make sure nothing is in front of or under the seat
to prevent it from releasing or re-locking after
adjustment.
8

Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if
you try to adjust a manual driver’s seat
while the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
To adjust the seatback, turn the knob on the
outboard side of the seatback until the seatback
is in the desired position.
9

When the PASS-Key®III+ system senses that
someone is using the wrong key, it prevents
the vehicle from starting. Anyone using a
trial-and-error method to start the vehicle will be
discouraged because of the high number of
electrical key codes.
When trying to start the vehicle if the engine does
not start and the security light on the instrument
panel cluster comes on, the key may have a
damaged transponder. Turn the ignition off and
try again.
If the engine still does not start, and the key
appears to be not damaged, try another ignition
key. At this time, you may also want to check the
fuse, seeFuses and Circuit Breakers on
page 326. If the engine still does not start with the
other key, your vehicle needs service. If your
vehicle does start, the rst key may be faulty. See
your dealer who can service the PASS-Key
®III+
to have a new key made. In an emergency,
contact Roadside Assistance. SeeRoadside
Assistance Program on page 368.It may be possible for the PASS-Key
®III+ decoder
to “learn” the transponder value of a new or
replacement key. Up to 10 keys may be
programmed for the vehicle. The following
procedure is for programming additional keys only.
If your vehicle was rst sold in Canada, or if all
the currently programmed keys are lost or do not
operate, you must see your dealer or a locksmith
who can service PASS-Key
®III+ to have keys
made and programmed to the system.
See your dealer or a locksmith who can service
PASS-Key
®III+ to get a new key blank that is cut
exactly as the ignition key that operates the
system.
To program the new key do the following:
1. Verify that the new key has a
1stamped on it.
2. Insert the already programmed key in the
ignition and start the engine. If the engine
will not start, see your dealer for service.
3. After the engine has started, turn the key to
LOCK, and remove the key.
75

Turn and Lane-Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever will
return automatically.
An arrow on the
instrument panel cluster
will ash in the
direction of the turn or
lane change.
To signal a lane change, raise or lower the lever
until the arrow starts to ash. Hold it there until you
complete your lane change. The lever will return
by itself when you release it.As you signal a turn or a lane change, if the
arrows ash rapidly, a signal bulb may be burned
out and other drivers will not see your turn
signal. If a bulb is burned out, replace it to help
avoid an accident.
If the arrows do not go on at all when you signal a
turn, check the fuse. SeeFuses and Circuit
Breakers on page 326.
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high
beam, push the turn signal lever away from you.
When the high beams
are on, this light on the
instrument panel
cluster will also be on.
To change the headlamps from high beam to low
beam, pull the turn signal lever toward you.
112

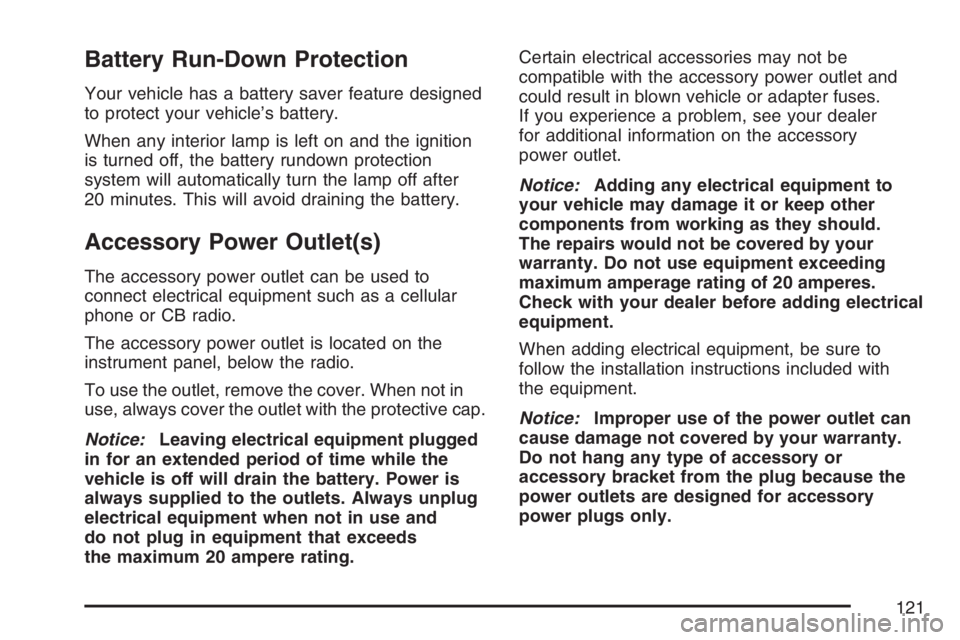

Battery Run-Down Protection
Your vehicle has a battery saver feature designed
to protect your vehicle’s battery.
When any interior lamp is left on and the ignition
is turned off, the battery rundown protection
system will automatically turn the lamp off after
20 minutes. This will avoid draining the battery.
Accessory Power Outlet(s)
The accessory power outlet can be used to
connect electrical equipment such as a cellular
phone or CB radio.
The accessory power outlet is located on the
instrument panel, below the radio.
To use the outlet, remove the cover. When not in
use, always cover the outlet with the protective cap.
Notice:Leaving electrical equipment plugged
in for an extended period of time while the
vehicle is off will drain the battery. Power is
always supplied to the outlets. Always unplug
electrical equipment when not in use and
do not plug in equipment that exceeds
the maximum 20 ampere rating.Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem, see your dealer
for additional information on the accessory
power outlet.
Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer before adding electrical
equipment.
When adding electrical equipment, be sure to
follow the installation instructions included with
the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
121

Ashtray(s) and Cigarette Lighter
Your vehicle may have an ashtray and cigarette
lighter. To use the lighter, located on the
instrument panel below the radio, push it in all the
way and let go. When it is ready, it will pop
back out by itself.
Notice:Holding a cigarette lighter in while it
is heating will not allow the lighter to back
away from the heating element when it is hot.
Damage from overheating may occur to the
lighter or heating element, or a fuse could be
blown. Do not hold a cigarette lighter in
while it is heating.
Notice:If you put papers, pins, or other
ammable items in the ashtray, hot cigarettes
or other smoking materials could ignite
them and possibly damage your vehicle. Never
put ammable items in the ashtray.
Climate Controls
Climate Control System
With this system you can control the heating and
ventilation of your vehicle. You may also be
able to control the cooling of your vehicle, if your
vehicle has air conditioning. The in-between
mode will be a combination of the two modes that
the control is selected between.
Climate Control System with Air Conditioning
shown, Climate Control System without Air
Conditioning similar
122

Oil Pressure Light
If you have a low engine
oil pressure problem,
this light will stay on after
you start your engine, or
come on when you are
driving.
This indicates that your engine is not receiving
enough oil.
The engine could be low on oil, or could have
some other oil problem. Have it xed immediately.
The oil light could also come on in three other
situations:
When the ignition is on but the engine is not
running, the light will come on as a test to
show you it is working, but the light will go out
when you turn the ignition to START. If it
does not come on with the ignition on,
you may have a problem with the fuse or bulb.
Have it xed right away.
If you are idling at a stop sign, the light may
blink on and then off.
If you make a hard stop, the light may come
on for a moment. This is normal.
{CAUTION:
Do not keep driving if the oil pressure is
low. If you do, your engine can become so
hot that it catches re. You or others
could be burned. Check your oil as soon
as possible and have your vehicle
serviced.
Notice:Lack of proper engine oil maintenance
may damage the engine. The repairs would
not be covered by your warranty. Always follow
the maintenance schedule in this manual for
changing engine oil.
142

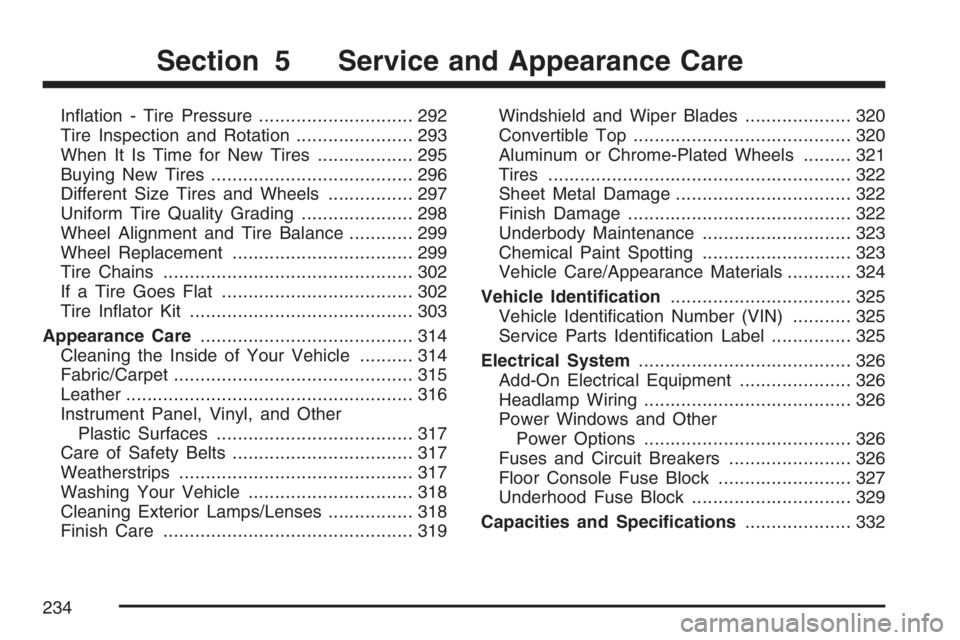

Ination - Tire Pressure............................. 292
Tire Inspection and Rotation...................... 293
When It Is Time for New Tires.................. 295
Buying New Tires...................................... 296
Different Size Tires and Wheels................ 297
Uniform Tire Quality Grading..................... 298
Wheel Alignment and Tire Balance............ 299
Wheel Replacement.................................. 299
Tire Chains............................................... 302
If a Tire Goes Flat.................................... 302
Tire Inator Kit.......................................... 303
Appearance Care........................................ 314
Cleaning the Inside of Your Vehicle.......... 314
Fabric/Carpet............................................. 315
Leather...................................................... 316
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 317
Care of Safety Belts.................................. 317
Weatherstrips............................................ 317
Washing Your Vehicle............................... 318
Cleaning Exterior Lamps/Lenses................ 318
Finish Care............................................... 319Windshield and Wiper Blades.................... 320
Convertible Top......................................... 320
Aluminum or Chrome-Plated Wheels......... 321
Tires......................................................... 322
Sheet Metal Damage................................. 322
Finish Damage.......................................... 322
Underbody Maintenance............................ 323
Chemical Paint Spotting............................ 323
Vehicle Care/Appearance Materials............ 324
Vehicle Identication.................................. 325
Vehicle Identication Number (VIN)........... 325
Service Parts Identication Label............... 325
Electrical System........................................ 326
Add-On Electrical Equipment..................... 326
Headlamp Wiring....................................... 326
Power Windows and Other
Power Options....................................... 326
Fuses and Circuit Breakers....................... 326
Floor Console Fuse Block......................... 327
Underhood Fuse Block.............................. 329
Capacities and Specications.................... 332
Section 5 Service and Appearance Care
234

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Engine exhaust, many parts and
systems (including some inside the vehicle), many
uids, and some component wear by-products
contain and/or emit these chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt
any vehicle maintenance task.
CAUTION: (Continued)
CAUTION: (Continued)

Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service
your vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 380.
Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle
on page 54.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeePart E: Maintenance
Record on page 357.
236

A. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 269.
B. Coolant Surge Tank and Pressure Cap. See
Cooling System on page 262.
C. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 270andHydraulic
Clutch on page 256.
D. Engine Oil Dipstick (Out of View). See
“Checking Engine Oil” underEngine Oil on
page 247.
E. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 254.F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 247.
G. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 268.
H. Remote Negative (−) Ground (Out of View).
SeeJump Starting on page 274.
I. Battery (Out of View). SeeBattery on page 273.
J. Remote Positive (+) Terminal. SeeJump
Starting on page 274.
K. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 329.
245
