PONTIAC TORRENT 2006 User Guide

Reclining Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always push and pull on the seatback to be
sure it is locked.
To adjust the seatback on the driver’s seat, lift the
lever on the rear outboard side of the seat and move
the seatback to the desired position. Then release
the lever to lock the seatback in place.Driver’s Seat with Manual Recline and
Manual Height Adjuster shown
1-5

To adjust the seatback on the front passenger’s seat,
lift the lever on the outboard side of the seat and
move the seatback to the desired position. Then release
the lever to lock the seatback in place. If your front
passenger’s seat is a at folding seat, you must fully
raise the lever to disengage the seatback.
Passenger Seat with Folding Seatback
Option shown
1-6

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will
be in front of you. In a crash, you could go
into it, receiving neck or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.Do not have a seatback reclined if your vehicle
is moving.
1-7

Head Restraints
Press the button on
the side of the head
restraint to lower it.
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position reduces
the chance of a neck injury in a crash.
1-8

Passenger Folding Seatback
The front passenger’s seatback may fold at.
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo
is not near an airbag. In a crash, an inating
airbag might force that object toward a person.
This could cause severe injury or even death.
Secure objects away from the area in which an
airbag would inate. For more information,
seeWhere Are the Airbags? on page 1-55and
Loading Your Vehicle on page 4-31.
{CAUTION:
Things you put on this seatback can strike
and injure people in a sudden stop or turn,
or in a crash. Remove or secure all items
before driving.To fold the seatback, do the following:
1. Lower the head restraint all the way.
2. Lift the bar under the front of the seat to unlock it.
Slide the seat as far back as it will go and release
the bar. Try to move the seat back and forth to
make sure it is locked into place.
3. Lift the recliner lever, located on the outboard side
of the seat, up fully and fold the seatback forward
until it disengages.
1-9

4. Continue to fold the seat forward until it locks in
the folded position.
5. Pull up on the seatback to be sure it is locked.
To raise the seatback, do the following:
1. Lift the recliner lever, located on the outboard side
of the seat, up fully and push up on the seatback.
2. Continue raising the seatback until the seatback
re-engages.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always push and pull on the seatback to be
sure it is locked.
3. Push and pull on the seatback to make sure it is
locked in place.
The recliner lever is also used to recline the seatback
while a passenger is seated. SeeReclining Seatbacks
on page 1-5.
Rear Seats
Split Folding Rear Seat
The rear split bench seatbacks have three available
positions — folded forward, upright, or partially reclined.
Both of the seatbacks can be moved to any of the
three positions independent of the other seatback
position. The rear bench seat can also be moved
forward and rearward.
1-10

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always push and pull on the seatback to be
sure it is locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.To fold the seatback down, do the following:
1. Ensure all three of the safety belts are unbuckled
and the front seatbacks are not reclined.
2. Lift the lever located on the top of the seatback to
release the seatback.
3. Fold the seatback forward to the desired position.
1-11

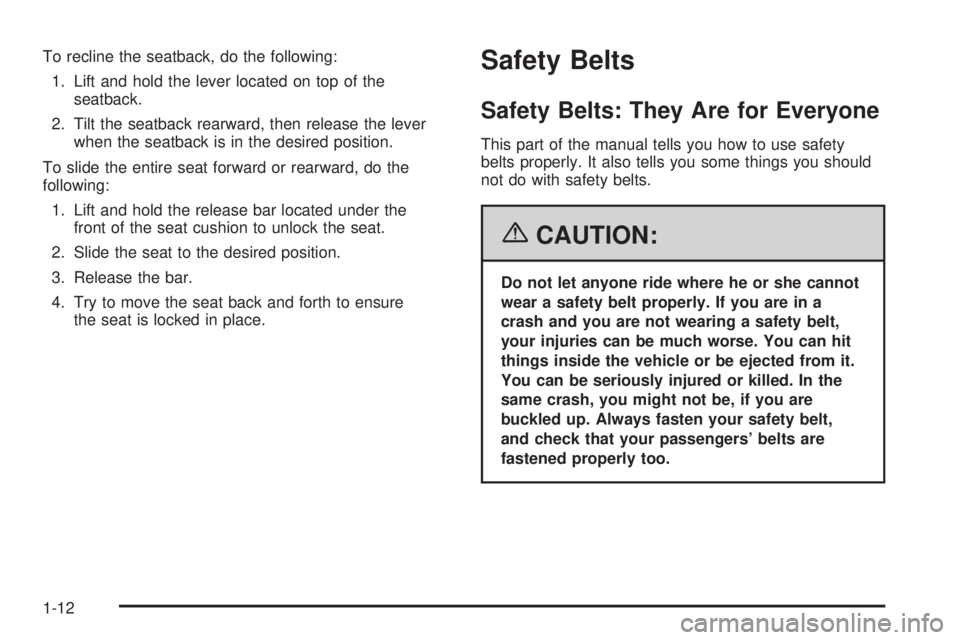

To recline the seatback, do the following:
1. Lift and hold the lever located on top of the
seatback.
2. Tilt the seatback rearward, then release the lever
when the seatback is in the desired position.
To slide the entire seat forward or rearward, do the
following:
1. Lift and hold the release bar located under the
front of the seat cushion to unlock the seat.
2. Slide the seat to the desired position.
3. Release the bar.
4. Try to move the seat back and forth to ensure
the seat is locked in place.Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
1-12

{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or killed.
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and
safety belts. Be sure everyone in your vehicle
is in a seat and using a safety belt properly.Your vehicle has a light
that comes on as a
reminder to buckle up
SeeSafety Belt Reminder
Light on page 3-26.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
You never know if you will be in a crash. If you do
have a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be
so serious that even buckled up, a person would not
survive. But most crashes are in between. In many
of them, people who buckle up can survive and
sometimes walk away. Without belts they could have
been badly hurt or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter...a lot!
1-13

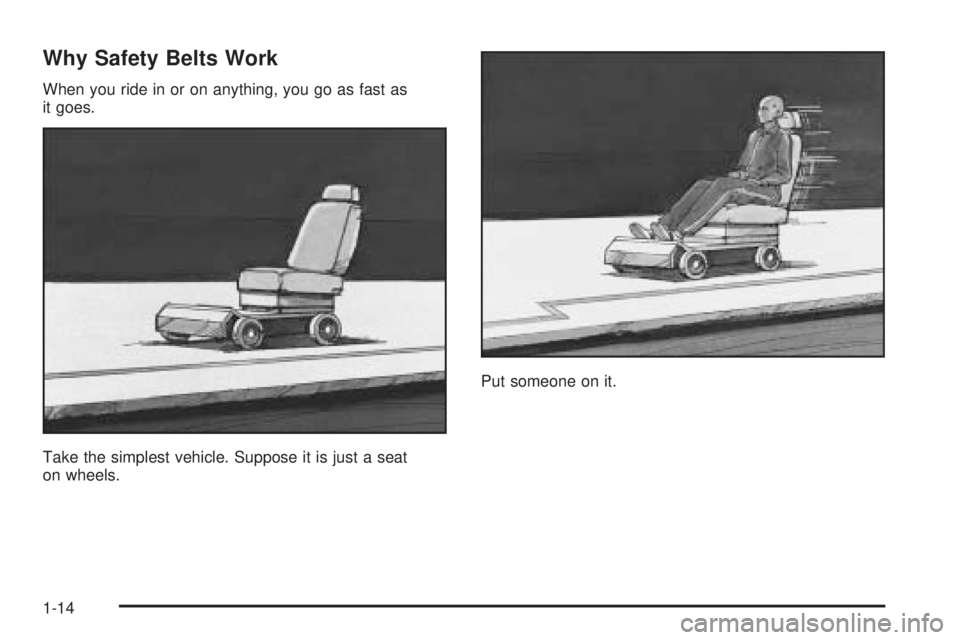

Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat
on wheels.Put someone on it.
