PONTIAC TORRENT 2006 Manual PDF

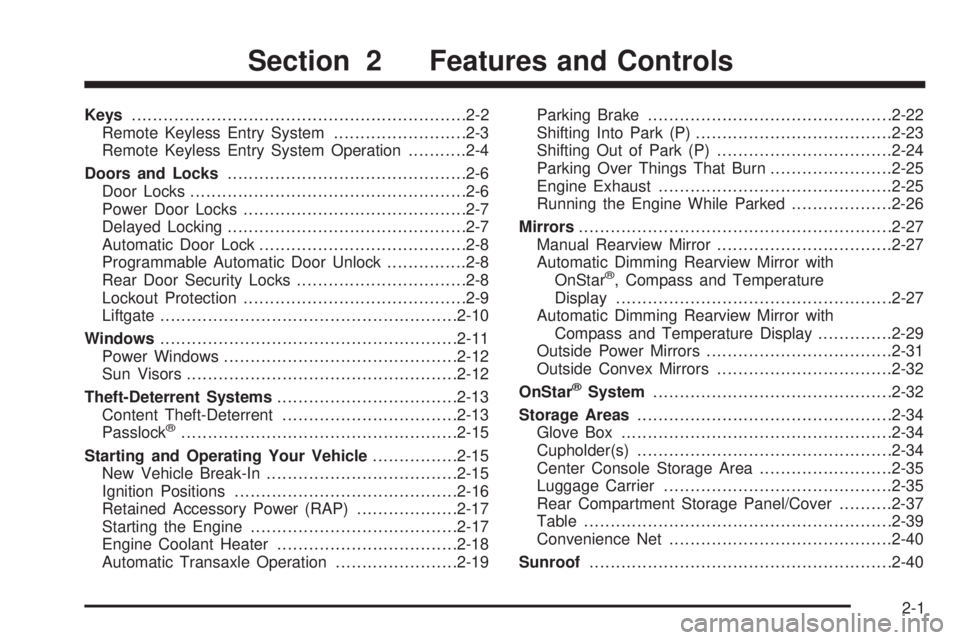

Keys...............................................................2-2
Remote Keyless Entry System.........................2-3
Remote Keyless Entry System Operation...........2-4
Doors and Locks.............................................2-6
Door Locks....................................................2-6
Power Door Locks..........................................2-7
Delayed Locking.............................................2-7
Automatic Door Lock.......................................2-8
Programmable Automatic Door Unlock...............2-8
Rear Door Security Locks................................2-8
Lockout Protection..........................................2-9
Liftgate........................................................2-10
Windows........................................................2-11
Power Windows............................................2-12
Sun Visors...................................................2-12
Theft-Deterrent Systems..................................2-13
Content Theft-Deterrent.................................2-13
Passlock
®....................................................2-15
Starting and Operating Your Vehicle................2-15
New Vehicle Break-In....................................2-15
Ignition Positions..........................................2-16
Retained Accessory Power (RAP)...................2-17
Starting the Engine.......................................2-17
Engine Coolant Heater..................................2-18
Automatic Transaxle Operation.......................2-19Parking Brake..............................................2-22
Shifting Into Park (P).....................................2-23
Shifting Out of Park (P).................................2-24
Parking Over Things That Burn.......................2-25
Engine Exhaust............................................2-25
Running the Engine While Parked...................2-26
Mirrors...........................................................2-27
Manual Rearview Mirror.................................2-27
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display....................................................2-27
Automatic Dimming Rearview Mirror with
Compass and Temperature Display..............2-29
Outside Power Mirrors...................................2-31
Outside Convex Mirrors.................................2-32
OnStar
®System.............................................2-32
Storage Areas................................................2-34
Glove Box...................................................2-34
Cupholder(s)................................................2-34
Center Console Storage Area.........................2-35
Luggage Carrier...........................................2-35
Rear Compartment Storage Panel/Cover..........2-37
Table..........................................................2-39
Convenience Net..........................................2-40
Sunroof.........................................................2-40
Section 2 Features and Controls
2-1

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. They
could operate the power windows or other
controls or even make the vehicle move.
The children or others could be badly injured
or even killed. Do not leave the keys in a
vehicle with children.
One key is used for the ignition and all of the locks.
Key code information can be obtained by your dealer.
These code numbers can be used to make new
keys. Additional keys that are needed can be made
at any retail service facility provided you have the key
code information. Store this information in a safe place,
but not in your vehicle.
2-2

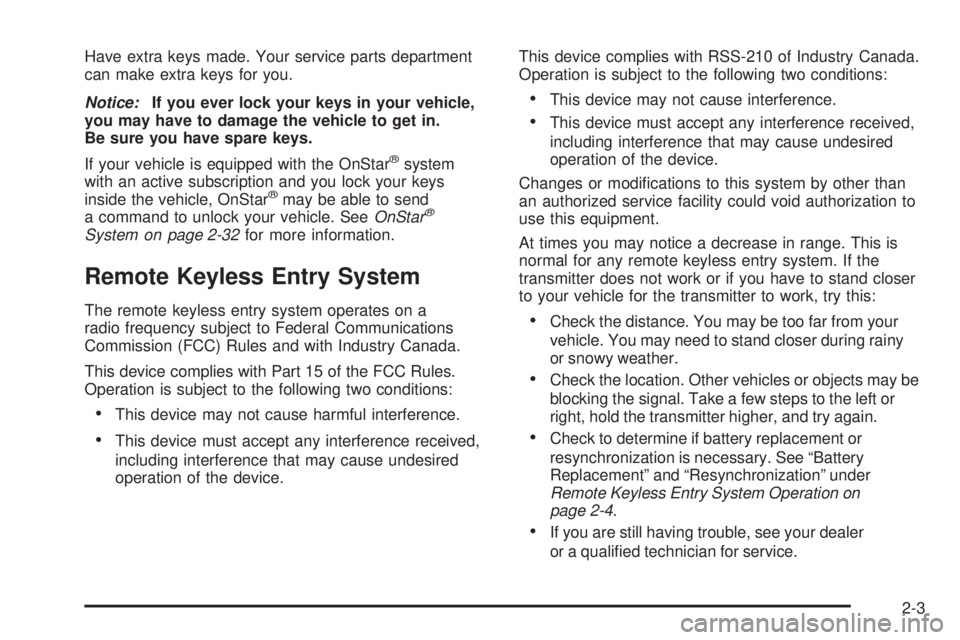

Have extra keys made. Your service parts department
can make extra keys for you.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If your vehicle is equipped with the OnStar
®system
with an active subscription and you lock your keys
inside the vehicle, OnStar
®may be able to send
a command to unlock your vehicle. SeeOnStar®
System on page 2-32for more information.
Remote Keyless Entry System
The remote keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received,
including interference that may cause undesired
operation of the device.This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
This device may not cause interference.
This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
Check to determine if battery replacement or
resynchronization is necessary. See “Battery
Replacement” and “Resynchronization” under
Remote Keyless Entry System Operation on
page 2-4.
If you are still having trouble, see your dealer
or a qualied technician for service.
2-3

Remote Keyless Entry System
Operation
With this feature, you can lock and unlock the doors
from about 26 feet (8 m) away using the remote keyless
entry transmitter supplied with your vehicle.
Q(Lock):Press this
button on the remote
keyless entry transmitter
one time to lock the doors.
The parking lamps will
ash once. This also arms
the content theft-deterrent
system.
Pressing the lock button two times within three seconds
will lock the doors. The parking lamps will ash twice
and the horn chirps.
K(Unlock): Press this button on the remote
keyless entry transmitter one time to unlock the
driver’s door. The parking lamps will ash three times
and the headlamps and interior lamps will come on.
The interior lights will stay on for 20 seconds or until
the key is turned in the ignition. Press the button again
within ve seconds to unlock the rest of the doors.
The unlock button also disarms the content
theft-deterrent system.
L(Panic Alarm):Press the button with the horn
symbol when the ignition is turned off. The horn
will sound and the parking lamps and dome lamp will
ash for up to two minutes. To stop the panic alarm,
press this button again.
The remote keyless entry transmitter is used to
arm/disarm the content theft-deterrent system. Your
vehicle’s theft-deterrent system can be programmed
to three different modes. SeeContent Theft-Deterrent
on page 2-13
If you accidentally set off the alarm when entering
or exiting the vehicle, you can shut it off by pressing
the lock or unlock button once or the panic alarm
button twice.
2-4

Matching Transmitter(s) to
Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded
the new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of
four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter will
not work at the normal range in any location. If you
have to get close to your vehicle before the transmitter
works, it is probably time to change the battery.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.1. Use a at thin object to pry open the transmitter.
2. Once the transmitter is separated, use a pencil
or similar object to remove the old battery.
Do not use a metal object.
3. Insert the new battery as the instructions under
the cover indicate.
4. Snap the transmitter back together tightly to be
sure no moisture can enter.
5. Check the operation of the transmitter.
If the transmitter does not work, try synchronizing your
transmitter with your receiver. See “Resynchronization”
for more information.
2-5

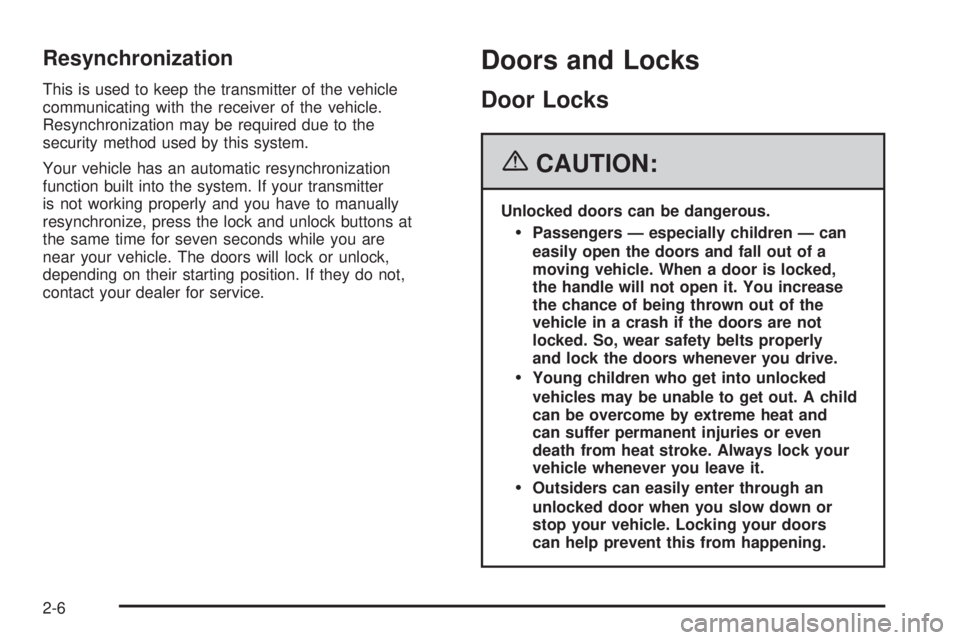

Resynchronization
This is used to keep the transmitter of the vehicle
communicating with the receiver of the vehicle.
Resynchronization may be required due to the
security method used by this system.
Your vehicle has an automatic resynchronization
function built into the system. If your transmitter
is not working properly and you have to manually
resynchronize, press the lock and unlock buttons at
the same time for seven seconds while you are
near your vehicle. The doors will lock or unlock,
depending on their starting position. If they do not,
contact your dealer for service.
Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle will not open it. You increase
the chance of being thrown out of the
vehicle in a crash if the doors are not
locked. So, wear safety belts properly
and lock the doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and
can suffer permanent injuries or even
death from heat stroke. Always lock your
vehicle whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors
can help prevent this from happening.
2-6

There are a couple of ways to manually lock or
unlock your vehicle.
From the outside, use the key in the driver’s door.
From the inside, use the lock control on the door.
Power Door Locks
The power door lock
switches are located
on the driver’s and front
passenger’s doors.
K(Unlock):To unlock the doors, press the
unlock symbol.
Q(Lock):Remove the ignition key and press
the lock symbol to lock all of the doors.
Delayed Locking
A chime will sound three times to indicate a door or
liftgate is open when you try to lock the doors with
the remote keyless entry transmitter or the power
door lock switch. The doors will not lock, and the
theft-deterrent system will not arm until all the doors
are closed and ve seconds have passed.
The delayed locking feature can be overridden by
pressing the lock button on the remote keyless entry
transmitter, or the door lock switch, a second time.
The doors will lock immediately and when all doors
are closed the theft-deterrent system will arm after
30 seconds.
To get the horn to chirp if a door was open during
the arming process, you must press the lock button
on your transmitter twice after the doors are closed.
2-7

Automatic Door Lock
With this feature, all the doors will automatically lock
when the shift lever is moved out of PARK (P) if
the ignition is in the run position and all doors are
closed. Otherwise, the doors will automatically lock
if the vehicle is going faster than 3 mph (5 km/h).
In the following two situations, all doors will lock
again when:
The brake pedal is applied, a door is opened
and then closed, and the brake pedal is released.
A door is opened and closed without the brake
pedal applied while the vehicle is moving faster
than 3 mph (5 km/h).
This feature cannot be disabled.
Programmable Automatic
Door Unlock
Your vehicle is programmed to automatically unlock all
doors when the shift lever is moved into PARK (P).
To turn this feature on or off, turn the ignition to the run
position and press the unlock part of the power door
lock switch for eight seconds. The horn will chirp once
when this feature is on and twice when it is off.
Rear Door Security Locks
Your vehicle has rear door security locks that prevent
passengers from opening the rear doors from the inside.
The rear door security
locks are located on
the inside edge of each
rear door. You must
open the rear doors to
access them.
2-8

To set the security locks, do the following:
1. Insert the key into the lock above the rear
door security lock label and turn it to the
horizontal position.
2. Close the door.
3. Repeat the steps for the other rear door.
To open a rear door while the security lock is on,
do the following:
1. Unlock the door using the remote keyless entry
transmitter, the front door power lock switch,
or by lifting the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert the key into the slot next to the rear
door security lock label and turn it to the
vertical position.
3. Repeat the steps for the other lock.Lockout Protection
If you press the power door lock switch when the key
is in the ignition and any door is open, all the doors
will lock and only the driver’s door will unlock. Be sure
to remove the key from the ignition when locking
your vehicle.
If the keyless entry transmitter is used to lock the
doors and the key is in the ignition, a chime will
sound three times. All passenger doors will lock,
but the driver’s door will remain unlocked.
2-9

Liftgate
{CAUTION:
It can be dangerous to drive with the liftgate or
liftglass open because carbon monoxide (CO)
gas can come into your vehicle. You cannot
see or smell CO. It can cause
unconsciousness and even death. If you must
drive with the liftgate open or if electrical
wiring or other cable connections must pass
through the seal between the body and the
liftgate or liftglass:
Make sure all other windows are shut.
Turn the fan on your climate control
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See “Climate Control
System” in the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-25.To unlock the liftgate, press the unlock button on the
remote keyless entry transmitter twice or use the power
door lock switch.
To lock the liftgate, press the lock button on the remote
keyless entry transmitter or use the power door lock
switch. The liftgate does not have a key lock cylinder.
To open the liftgate, pull up on the handle located in
the center of the liftgate.
When closing the liftgate, use the molded handles to
pull the liftgate down. Push the liftgate closed until
it latches.
2-10
