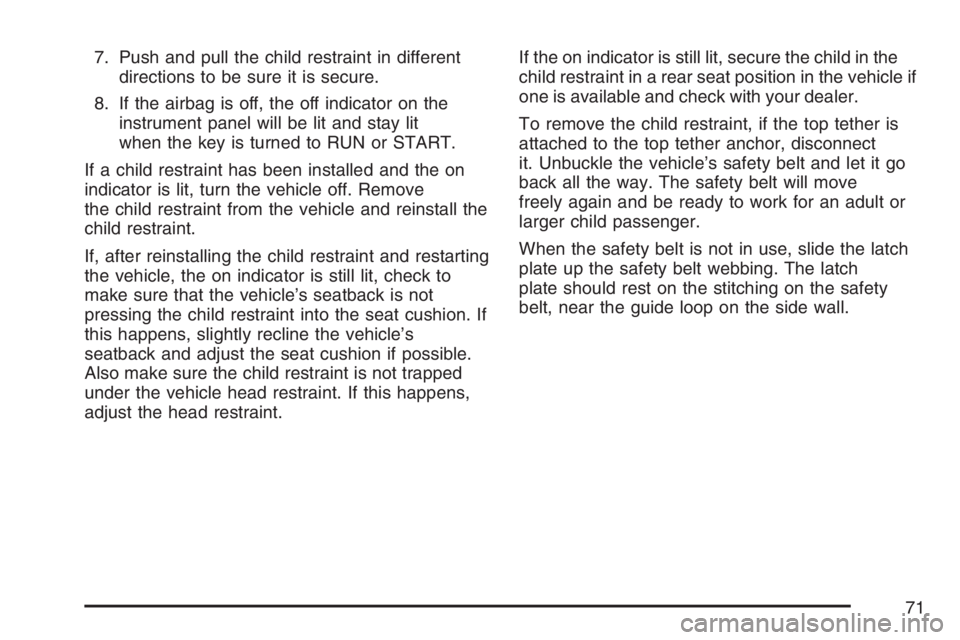

7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the airbag is off, the off indicator on the
instrument panel will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the vehicle if
one is available and check with your dealer.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it go
back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.
When the safety belt is not in use, slide the latch
plate up the safety belt webbing. The latch
plate should rest on the stitching on the safety
belt, near the guide loop on the side wall.
71

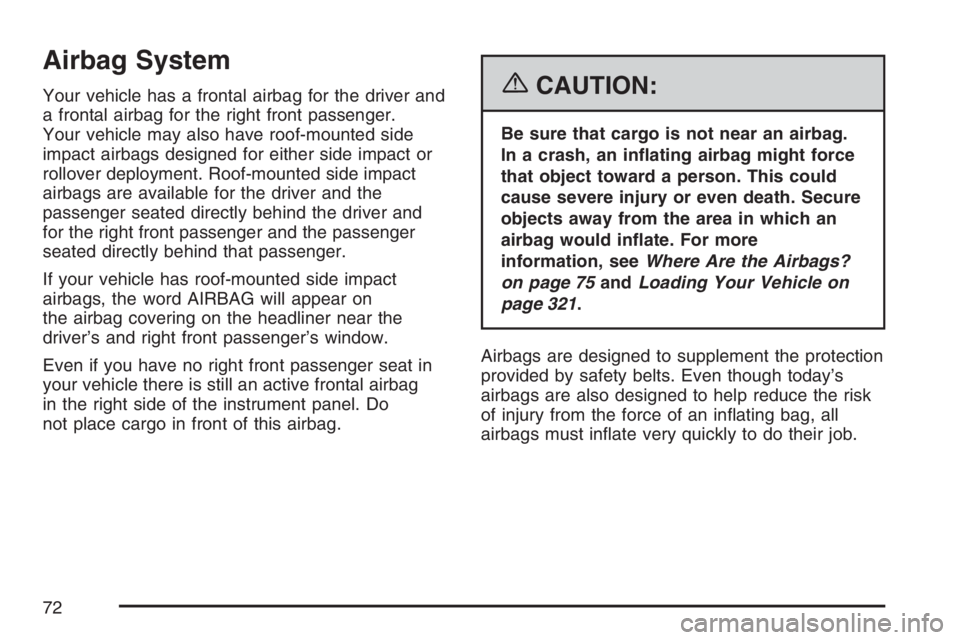

Airbag System
Your vehicle has a frontal airbag for the driver and
a frontal airbag for the right front passenger.
Your vehicle may also have roof-mounted side
impact airbags designed for either side impact or
rollover deployment. Roof-mounted side impact
airbags are available for the driver and the
passenger seated directly behind the driver and
for the right front passenger and the passenger
seated directly behind that passenger.
If your vehicle has roof-mounted side impact
airbags, the word AIRBAG will appear on
the airbag covering on the headliner near the
driver’s and right front passenger’s window.
Even if you have no right front passenger seat in
your vehicle there is still an active frontal airbag
in the right side of the instrument panel. Do
not place cargo in front of this airbag.{CAUTION:
Be sure that cargo is not near an airbag.
In a crash, an inating airbag might force
that object toward a person. This could
cause severe injury or even death. Secure
objects away from the area in which an
airbag would inate. For more
information, seeWhere Are the Airbags?
on page 75andLoading Your Vehicle on
page 321.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inating bag, all
airbags must inate very quickly to do their job.
72

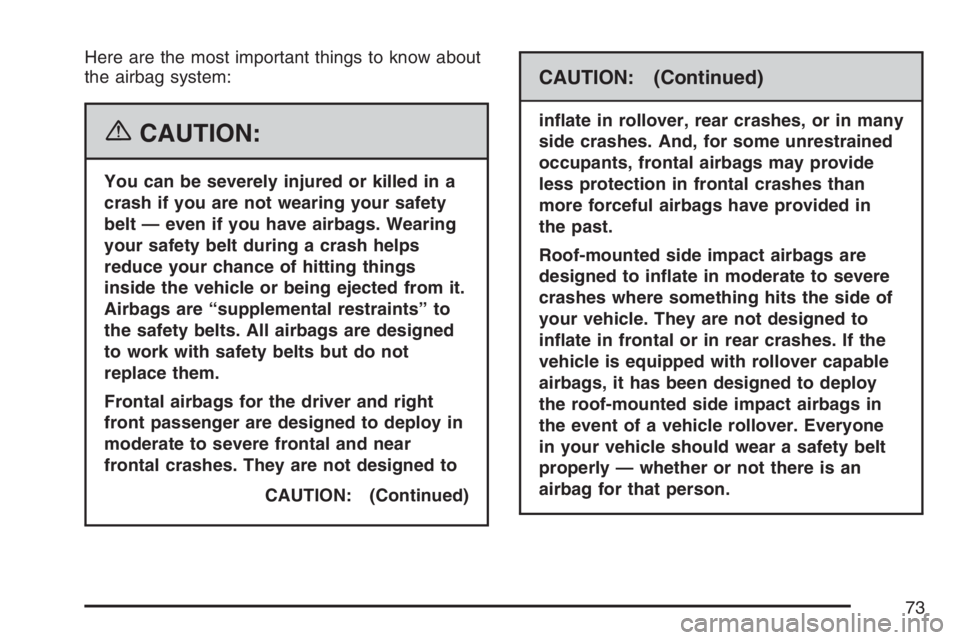

Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts but do not
replace them.
Frontal airbags for the driver and right
front passenger are designed to deploy in
moderate to severe frontal and near
frontal crashes. They are not designed to
CAUTION: (Continued)
CAUTION: (Continued)
inate in rollover, rear crashes, or in many
side crashes. And, for some unrestrained
occupants, frontal airbags may provide
less protection in frontal crashes than
more forceful airbags have provided in
the past.
Roof-mounted side impact airbags are
designed to inate in moderate to severe
crashes where something hits the side of
your vehicle. They are not designed to
inate in frontal or in rear crashes. If the
vehicle is equipped with rollover capable
airbags, it has been designed to deploy
the roof-mounted side impact airbags in
the event of a vehicle rollover. Everyone
in your vehicle should wear a safety belt
properly — whether or not there is an
airbag for that person.
73

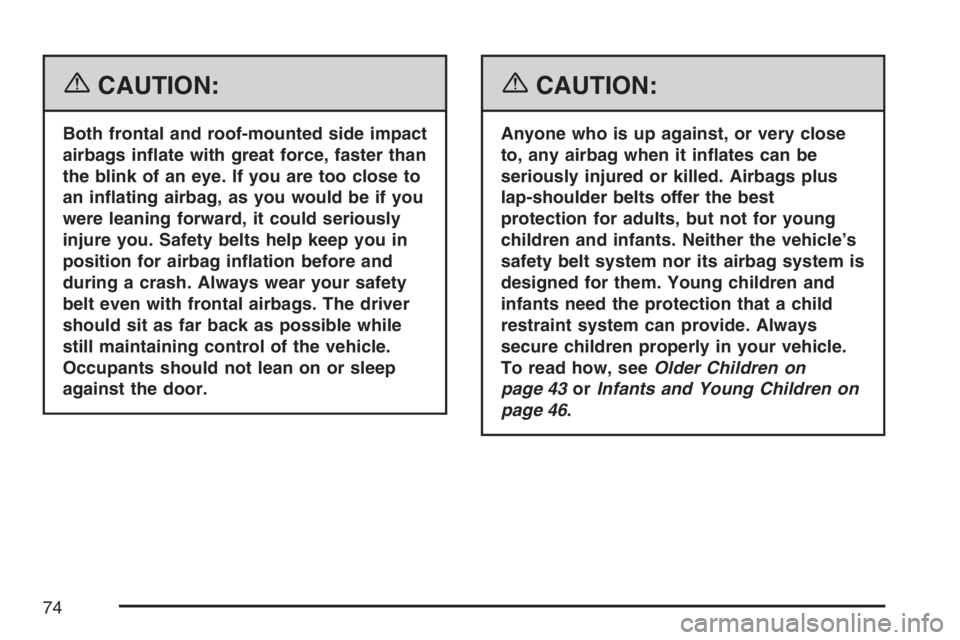

{CAUTION:
Both frontal and roof-mounted side impact
airbags inate with great force, faster than
the blink of an eye. If you are too close to
an inating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you in
position for airbag ination before and
during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while
still maintaining control of the vehicle.
Occupants should not lean on or sleep
against the door.
{CAUTION:
Anyone who is up against, or very close
to, any airbag when it inates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 43orInfants and Young Children on
page 46.
74

There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 176for more information.Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
75

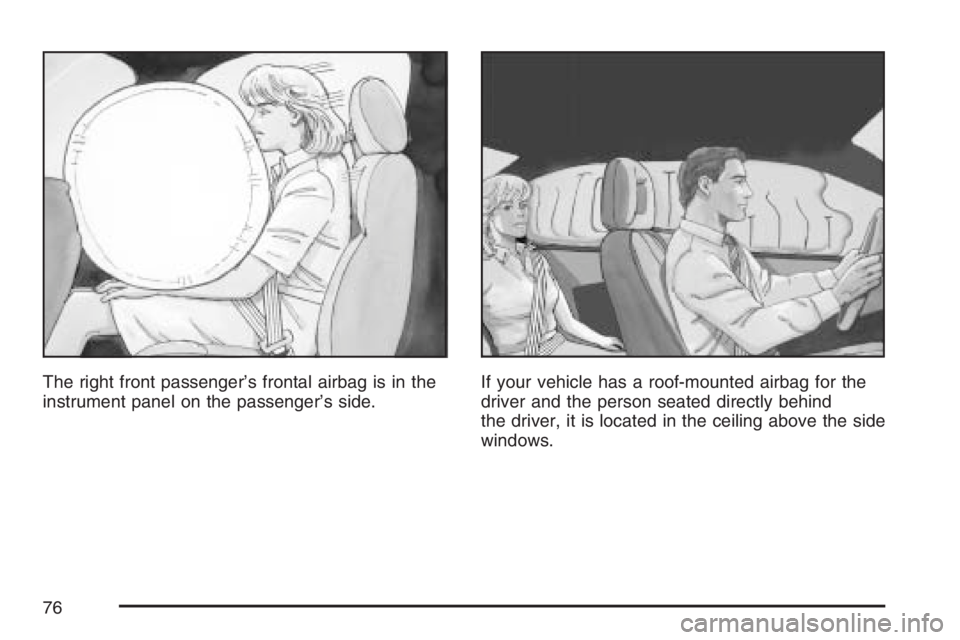

The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.If your vehicle has a roof-mounted airbag for the
driver and the person seated directly behind
the driver, it is located in the ceiling above the side
windows.
76

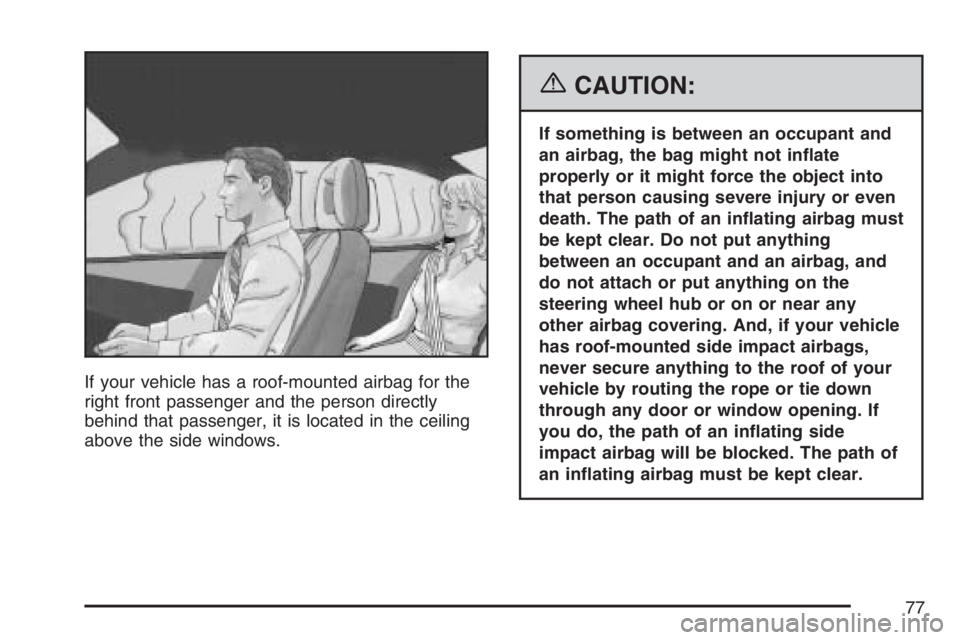

If your vehicle has a roof-mounted airbag for the
right front passenger and the person directly
behind that passenger, it is located in the ceiling
above the side windows.
{CAUTION:
If something is between an occupant and
an airbag, the bag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. And, if your vehicle
has roof-mounted side impact airbags,
never secure anything to the roof of your
vehicle by routing the rope or tie down
through any door or window opening. If
you do, the path of an inating side
impact airbag will be blocked. The path of
an inating airbag must be kept clear.
77

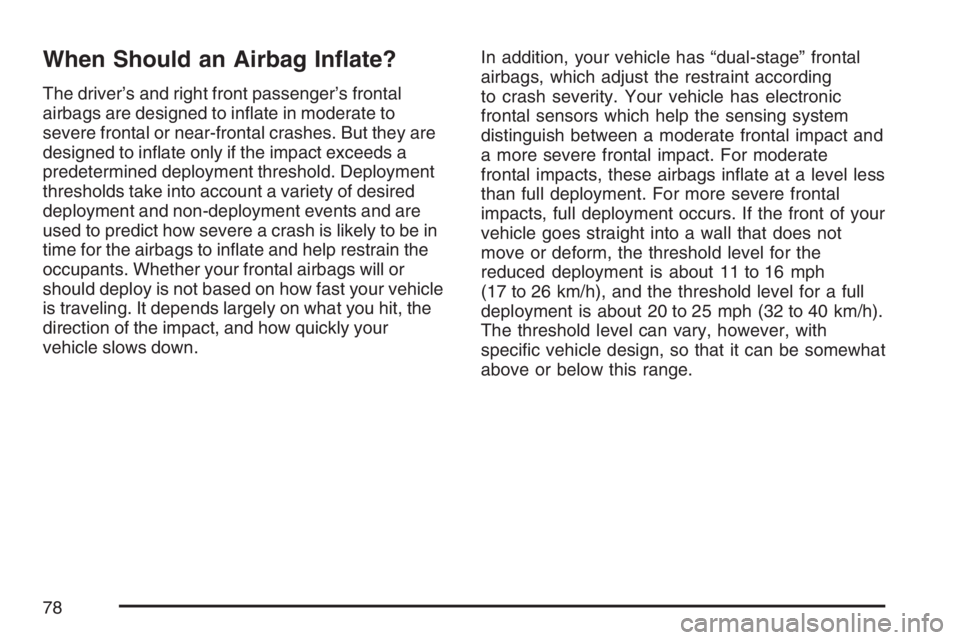

When Should an Airbag Inate?
The driver’s and right front passenger’s frontal
airbags are designed to inate in moderate to
severe frontal or near-frontal crashes. But they are
designed to inate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and are
used to predict how severe a crash is likely to be in
time for the airbags to inate and help restrain the
occupants. Whether your frontal airbags will or
should deploy is not based on how fast your vehicle
is traveling. It depends largely on what you hit, the
direction of the impact, and how quickly your
vehicle slows down.In addition, your vehicle has “dual-stage” frontal
airbags, which adjust the restraint according
to crash severity. Your vehicle has electronic
frontal sensors which help the sensing system
distinguish between a moderate frontal impact and
a more severe frontal impact. For moderate
frontal impacts, these airbags inate at a level less
than full deployment. For more severe frontal
impacts, full deployment occurs. If the front of your
vehicle goes straight into a wall that does not
move or deform, the threshold level for the
reduced deployment is about 11 to 16 mph
(17 to 26 km/h), and the threshold level for a full
deployment is about 20 to 25 mph (32 to 40 km/h).
The threshold level can vary, however, with
specic vehicle design, so that it can be somewhat
above or below this range.
78

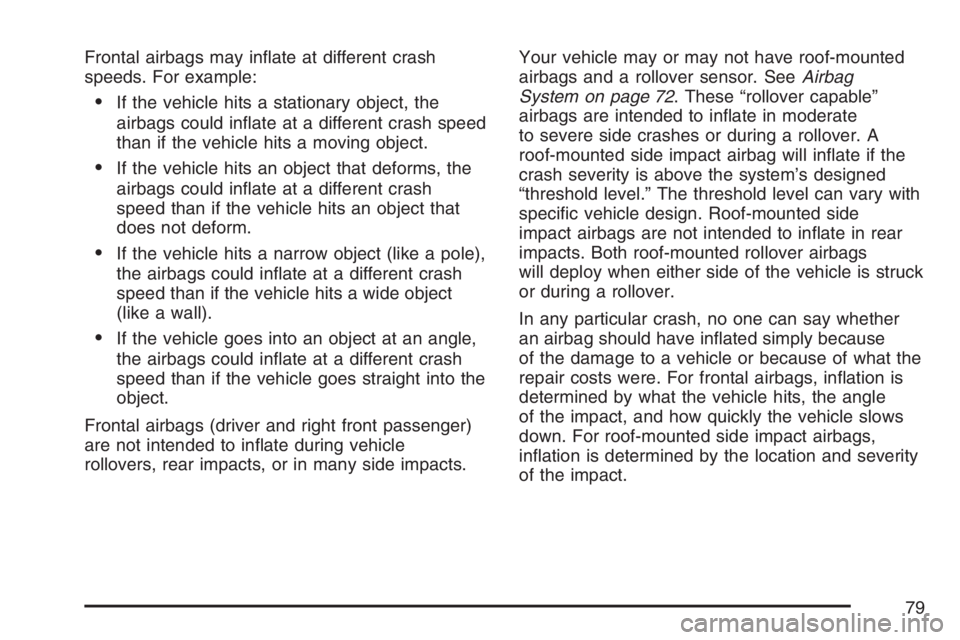

Frontal airbags may inate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could inate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could inate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole),
the airbags could inate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle,
the airbags could inate at a different crash
speed than if the vehicle goes straight into the
object.
Frontal airbags (driver and right front passenger)
are not intended to inate during vehicle
rollovers, rear impacts, or in many side impacts.Your vehicle may or may not have roof-mounted
airbags and a rollover sensor. SeeAirbag
System on page 72. These “rollover capable”
airbags are intended to inate in moderate
to severe side crashes or during a rollover. A
roof-mounted side impact airbag will inate if the
crash severity is above the system’s designed
“threshold level.” The threshold level can vary with
specic vehicle design. Roof-mounted side
impact airbags are not intended to inate in rear
impacts. Both roof-mounted rollover airbags
will deploy when either side of the vehicle is struck
or during a rollover.
In any particular crash, no one can say whether
an airbag should have inated simply because
of the damage to a vehicle or because of what the
repair costs were. For frontal airbags, ination is
determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle slows
down. For roof-mounted side impact airbags,
ination is determined by the location and severity
of the impact.
79

What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. Additionally, in the case of a “rollover
capable” roof-mounted side impact airbag, the
sensing system detects that the vehicle is about to
roll over. The sensing system triggers a release
of gas from the inator, which inates the airbag.
For the frontal airbags, the inator, airbag, and
related hardware are all part of the airbag modules
inside the steering wheel and in the instrument
panel in front of the right front passenger.
For vehicles with roof-mounted rollover airbags,
the airbag modules, the inator, and the airbags
are located in the ceiling of the vehicle, near
the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In
moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
Airbags supplement the protection provided
by safety belts. Airbags distribute the force of the
impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But
the frontal airbags would not help you in many
types of collisions, including rollovers, rear
impacts, and many side impacts, primarily because
an occupant’s motion is not toward the airbag.
Roof-mounted rollover airbags would not help you
in many types of collisions, including many
frontal or near frontal collisions, and rear impacts.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front
passenger’s frontal airbags, and only in moderate
to severe side collisions or rollovers for vehicles
with roof-mounted rollover airbags.
80
