PONTIAC TORRENT 2007 Owners Manual

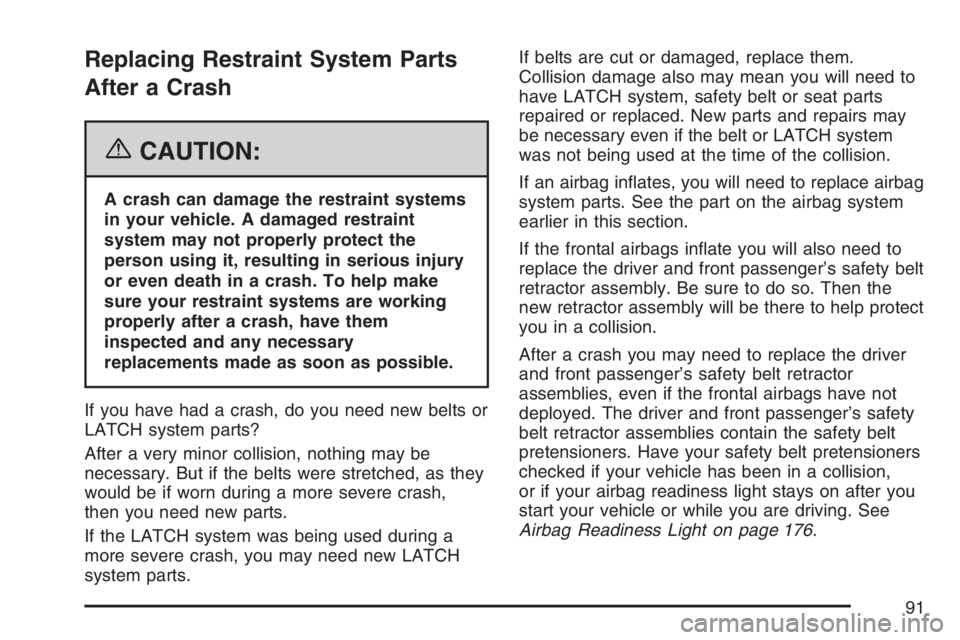

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them
inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If the frontal airbags inate you will also need to
replace the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the
new retractor assembly will be there to help protect
you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after you
start your vehicle or while you are driving. See
Airbag Readiness Light on page 176.
91

✍NOTES
92

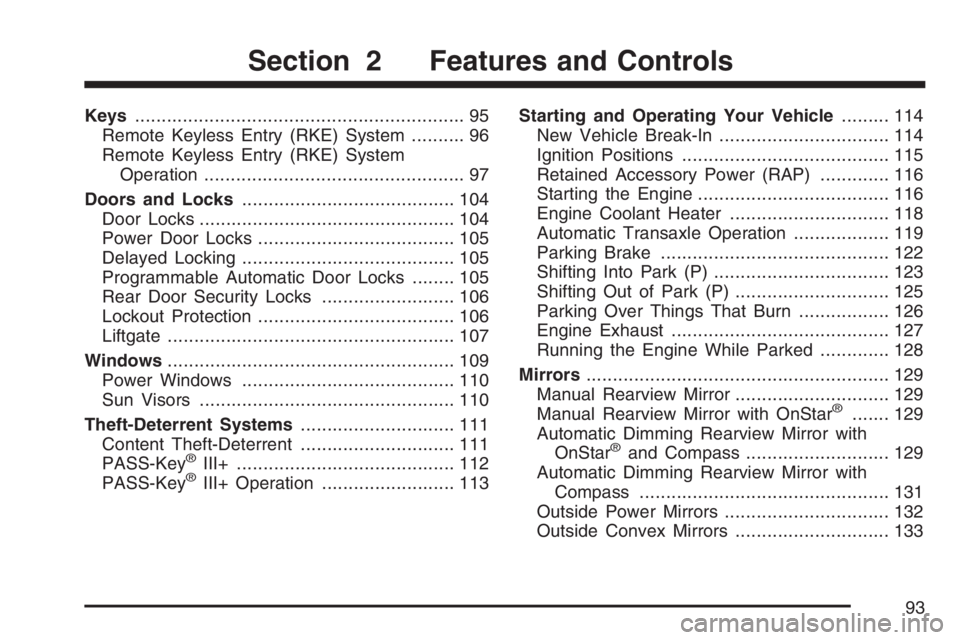

Keys.............................................................. 95
Remote Keyless Entry (RKE) System.......... 96
Remote Keyless Entry (RKE) System
Operation................................................. 97
Doors and Locks........................................ 104
Door Locks................................................ 104
Power Door Locks..................................... 105
Delayed Locking........................................ 105
Programmable Automatic Door Locks........ 105
Rear Door Security Locks......................... 106
Lockout Protection..................................... 106
Liftgate...................................................... 107
Windows...................................................... 109
Power Windows........................................ 110
Sun Visors................................................ 110
Theft-Deterrent Systems............................. 111
Content Theft-Deterrent............................. 111
PASS-Key
®III+......................................... 112
PASS-Key®III+ Operation......................... 113Starting and Operating Your Vehicle......... 114
New Vehicle Break-In................................ 114
Ignition Positions....................................... 115
Retained Accessory Power (RAP)............. 116
Starting the Engine.................................... 116
Engine Coolant Heater.............................. 118
Automatic Transaxle Operation.................. 119
Parking Brake........................................... 122
Shifting Into Park (P) ................................. 123
Shifting Out of Park (P)............................. 125
Parking Over Things That Burn................. 126
Engine Exhaust......................................... 127
Running the Engine While Parked............. 128
Mirrors......................................................... 129
Manual Rearview Mirror............................. 129
Manual Rearview Mirror with OnStar
®....... 129
Automatic Dimming Rearview Mirror with
OnStar
®and Compass........................... 129
Automatic Dimming Rearview Mirror with
Compass............................................... 131
Outside Power Mirrors............................... 132
Outside Convex Mirrors............................. 133
Section 2 Features and Controls
93

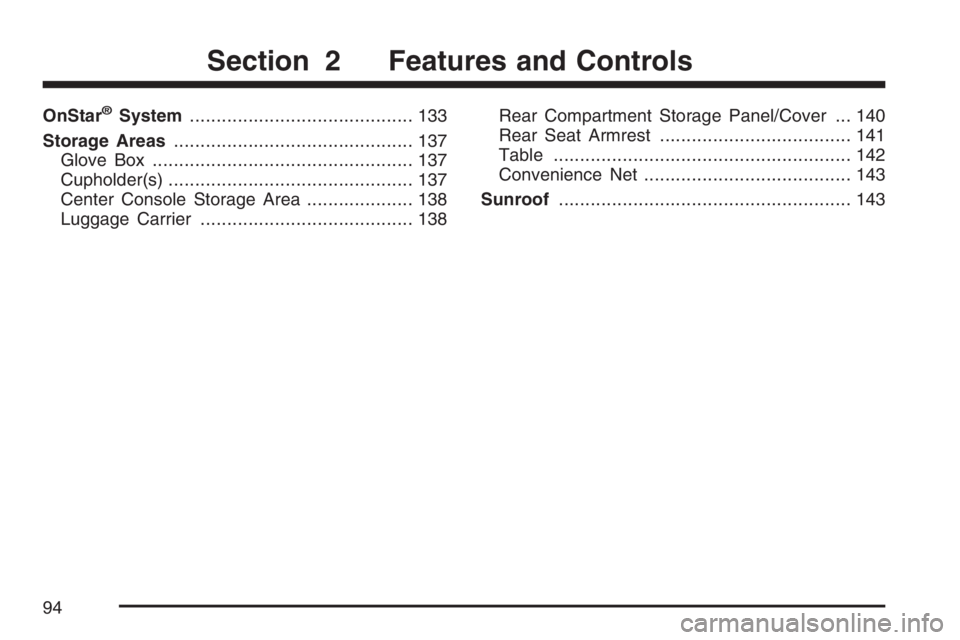

OnStar®System.......................................... 133
Storage Areas............................................. 137
Glove Box................................................. 137
Cupholder(s).............................................. 137
Center Console Storage Area.................... 138
Luggage Carrier........................................ 138Rear Compartment Storage Panel/Cover ... 140
Rear Seat Armrest.................................... 141
Table........................................................ 142
Convenience Net....................................... 143
Sunroof....................................................... 143
Section 2 Features and Controls
94

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons. They could operate the power
windows or other controls or even make
the vehicle move. The children or others
could be badly injured or even killed.
Do not leave the keys in a vehicle with
children.
95

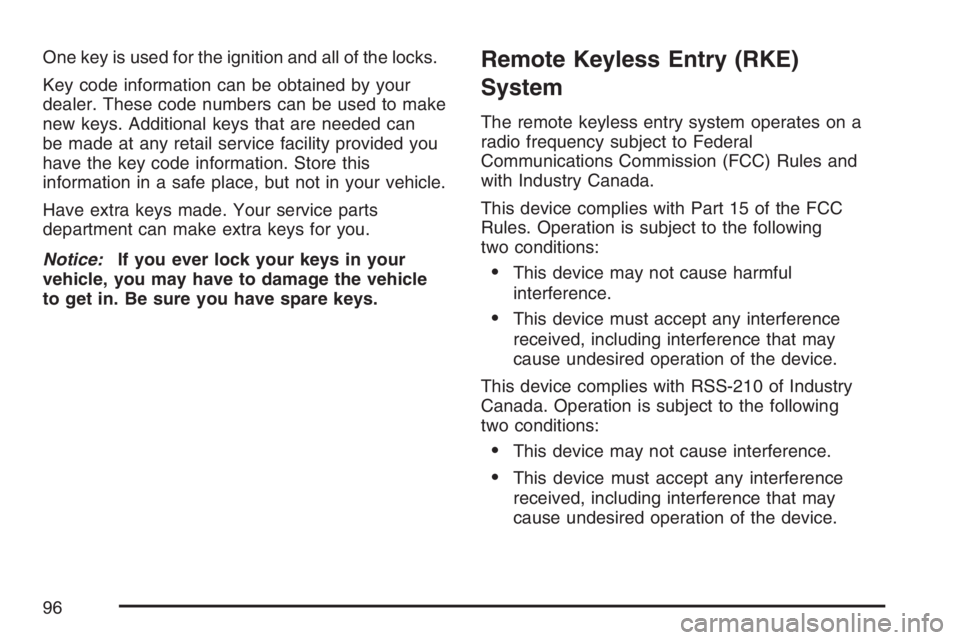

One key is used for the ignition and all of the locks.
Key code information can be obtained by your
dealer. These code numbers can be used to make
new keys. Additional keys that are needed can
be made at any retail service facility provided you
have the key code information. Store this
information in a safe place, but not in your vehicle.
Have extra keys made. Your service parts
department can make extra keys for you.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.Remote Keyless Entry (RKE)
System
The remote keyless entry system operates on a
radio frequency subject to Federal
Communications Commission (FCC) Rules and
with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
This device may not cause harmful
interference.
This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
This device may not cause interference.
This device must accept any interference
received, including interference that may
cause undesired operation of the device.
96

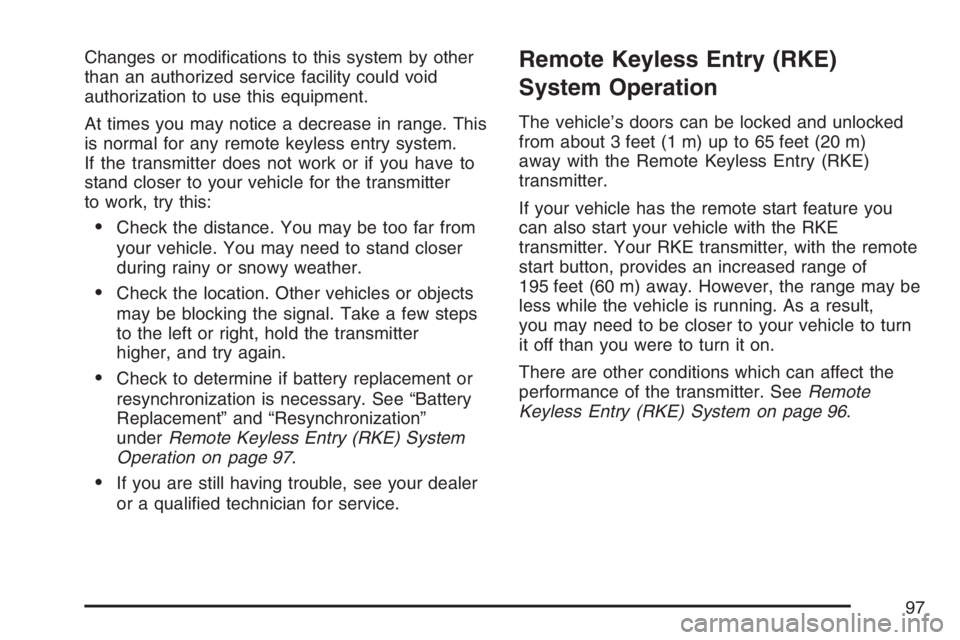

Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
At times you may notice a decrease in range. This
is normal for any remote keyless entry system.
If the transmitter does not work or if you have to
stand closer to your vehicle for the transmitter
to work, try this:
Check the distance. You may be too far from
your vehicle. You may need to stand closer
during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement or
resynchronization is necessary. See “Battery
Replacement” and “Resynchronization”
underRemote Keyless Entry (RKE) System
Operation on page 97.
If you are still having trouble, see your dealer
or a qualied technician for service.
Remote Keyless Entry (RKE)
System Operation
The vehicle’s doors can be locked and unlocked
from about 3 feet (1 m) up to 65 feet (20 m)
away with the Remote Keyless Entry (RKE)
transmitter.
If your vehicle has the remote start feature you
can also start your vehicle with the RKE
transmitter. Your RKE transmitter, with the remote
start button, provides an increased range of
195 feet (60 m) away. However, the range may be
less while the vehicle is running. As a result,
you may need to be closer to your vehicle to turn
it off than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter. SeeRemote
Keyless Entry (RKE) System on page 96.
97

The following functions may be available if your
vehicle has the RKE system:
/(Remote Vehicle Start):If your vehicle has
this feature, it may be started from outside
the vehicle using the RKE transmitter. See
“Remote Vehicle Start” following, for more detailed
information.
Q(Lock):Press the lock button to lock the doors
and liftgate. If enabled through the Driver
Information Center (DIC), the parking lamps will
ash once to indicate locking has occurred.
If enabled through the DIC, the horn will chirp when
the lock button is pressed again within ve seconds
of the previous press of the lock button. SeeDIC
Vehicle Personalization on page 210for additional
information. Pressing the lock button may arm the
content theft-deterrent system. SeeContent
Theft-Deterrent on page 111.
K(Unlock): Press the unlock button to unlock
the driver’s door. If the button is pressed
again within ve seconds, all remaining doors, and
the liftgate, will unlock. The interior lamps will
come on and stay on for 20 seconds or until the
ignition is turned on. If enabled through the
DIC, the parking lamps will ash once to indicate
unlocking has occurred. SeeDIC Vehicle
Personalization on page 210. Pressing the unlock
button on the RKE transmitter will disarm the
content theft-deterrent system. SeeContent
Theft-Deterrent on page 111.Remote Keyless Entry
with Remote StartRemote Keyless Entry
without Remote Start
98

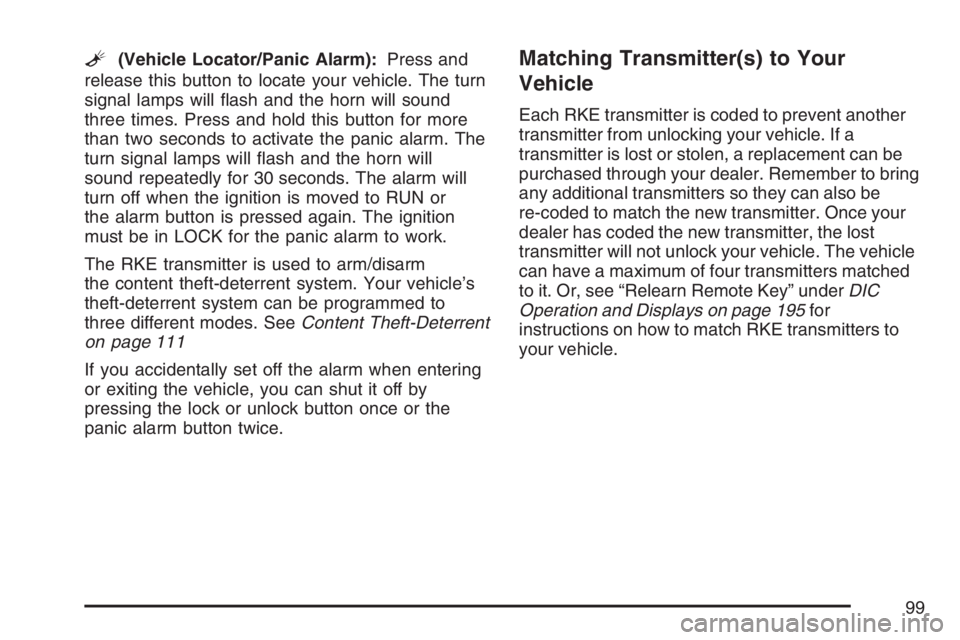

L(Vehicle Locator/Panic Alarm):Press and
release this button to locate your vehicle. The turn
signal lamps will ash and the horn will sound
three times. Press and hold this button for more
than two seconds to activate the panic alarm. The
turn signal lamps will ash and the horn will
sound repeatedly for 30 seconds. The alarm will
turn off when the ignition is moved to RUN or
the alarm button is pressed again. The ignition
must be in LOCK for the panic alarm to work.
The RKE transmitter is used to arm/disarm
the content theft-deterrent system. Your vehicle’s
theft-deterrent system can be programmed to
three different modes. SeeContent Theft-Deterrent
on page 111
If you accidentally set off the alarm when entering
or exiting the vehicle, you can shut it off by
pressing the lock or unlock button once or the
panic alarm button twice.Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring
any additional transmitters so they can also be
re-coded to match the new transmitter. Once your
dealer has coded the new transmitter, the lost
transmitter will not unlock your vehicle. The vehicle
can have a maximum of four transmitters matched
to it. Or, see “Relearn Remote Key” underDIC
Operation and Displays on page 195for
instructions on how to match RKE transmitters to
your vehicle.
99

Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about four years.
The battery is weak if the transmitter will not work
at the normal range in any location. If you have
to get close to your vehicle before the transmitter
works, it is probably time to change the battery.
Notice:When replacing the battery, use
care not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.
To replace the battery in the RKE transmitter, do
the following:
1. Use a at thin object to pry open the
transmitter.2. Once the transmitter is separated, use a
pencil or similar object to remove the old
battery. Do not use a metal object.
3. Slide the new battery into the transmitter with
the positive side of the battery facing down.
Use a type CR2032 battery, or equivalent type.
4. Snap the transmitter back together tightly to
be sure no moisture can enter.
5. Check the operation of the transmitter.
100
