Page 171 of 436

PONTIAC TORRENT 2009  Owners Manual DIC Compass
Your vehicle may have a compass in the Driver
Information Center (DIC).
Compass Zone
The zone is set to zone eight upon leaving the factory.
Your dealer/retailer will set the correct zone

Page 172 of 436

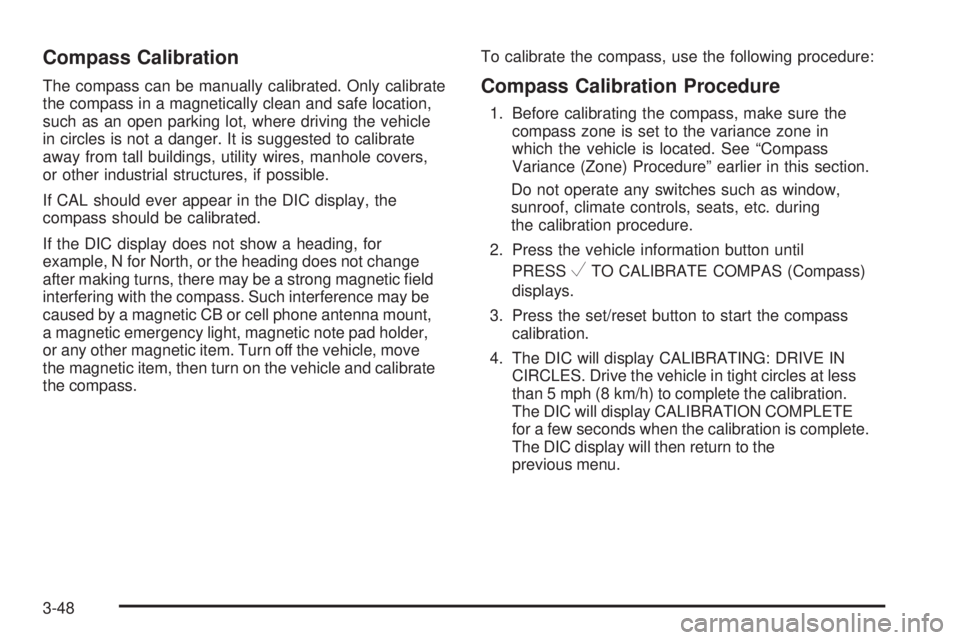

PONTIAC TORRENT 2009  Owners Manual Compass Calibration
The compass can be manually calibrated. Only calibrate
the compass in a magnetically clean and safe location,
such as an open parking lot, where driving the vehicle
in circles is n

Page 173 of 436

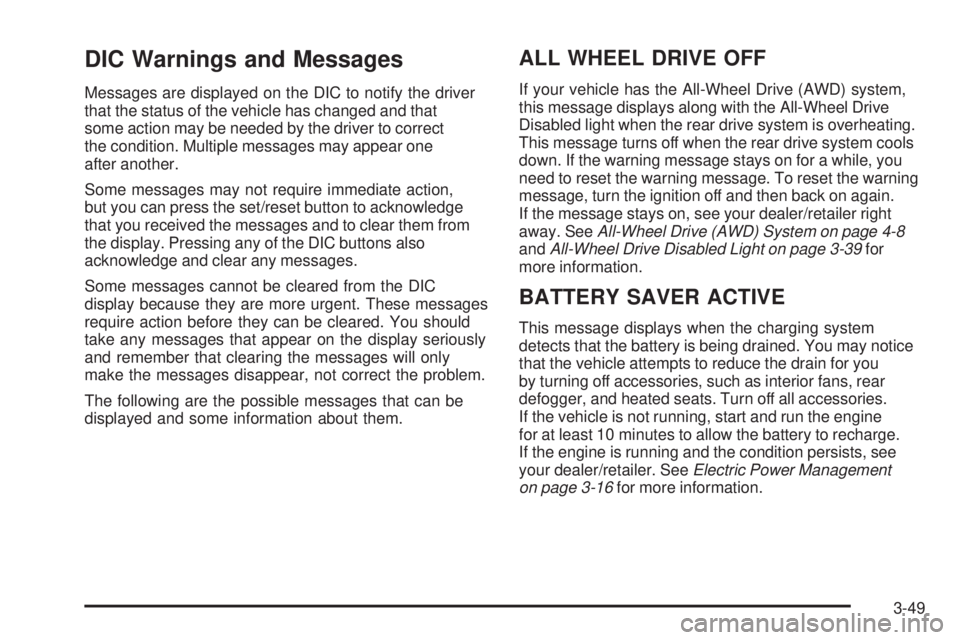

PONTIAC TORRENT 2009  Owners Manual DIC Warnings and Messages
Messages are displayed on the DIC to notify the driver
that the status of the vehicle has changed and that
some action may be needed by the driver to correct
the condition. M

Page 174 of 436

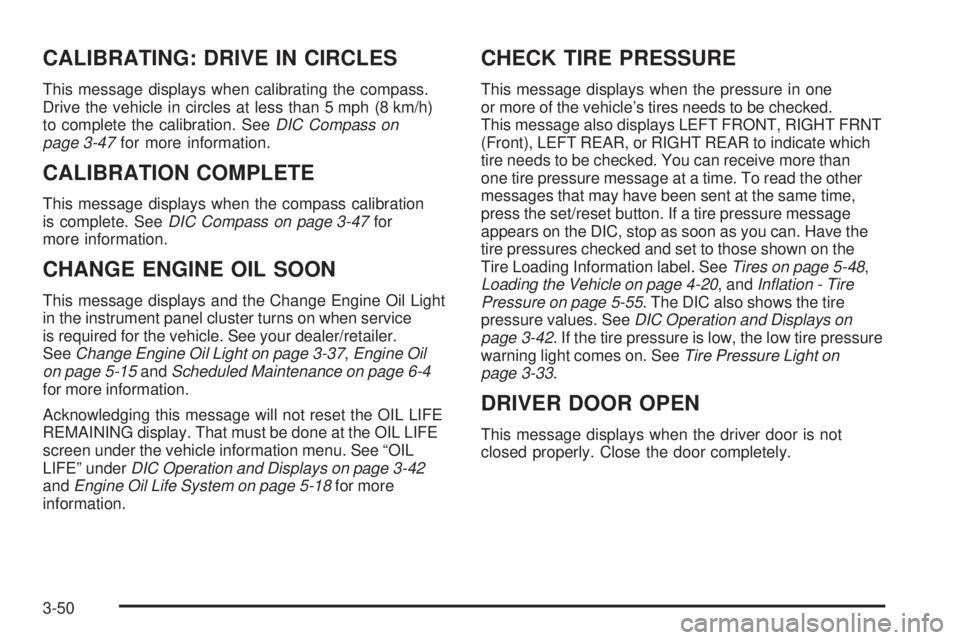

PONTIAC TORRENT 2009  Owners Manual CALIBRATING: DRIVE IN CIRCLES
This message displays when calibrating the compass.
Drive the vehicle in circles at less than 5 mph (8 km/h)
to complete the calibration. SeeDIC Compass on
page 3-47for m

Page 175 of 436

PONTIAC TORRENT 2009  Owners Manual ENGINE HOT A/C
(Air Conditioning) OFF
This message displays when the engine coolant
becomes hotter than the normal operating temperature.
To avoid added strain on a hot engine, the air
conditioning co

Page 176 of 436

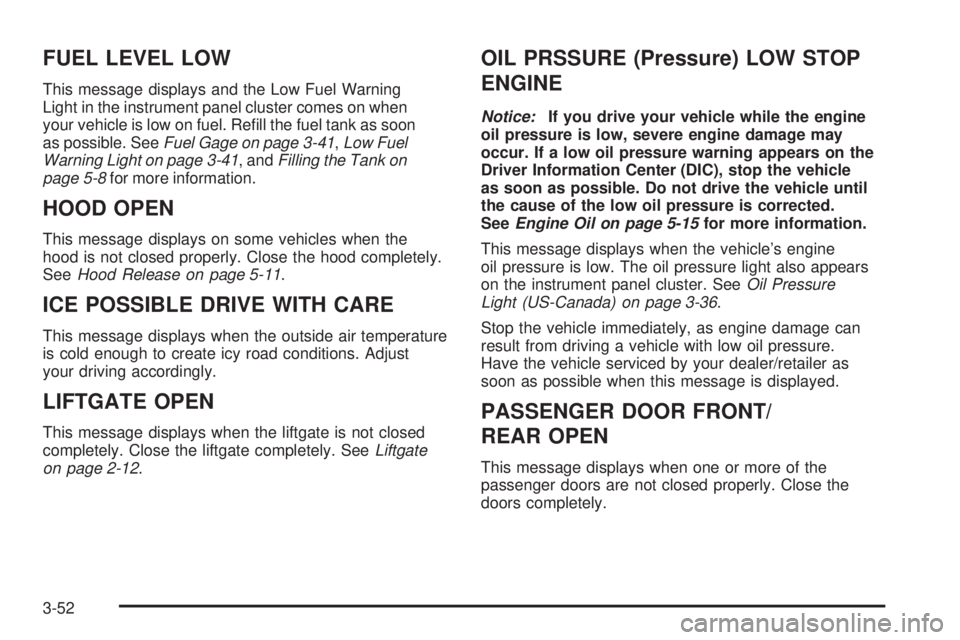

PONTIAC TORRENT 2009  Owners Manual FUEL LEVEL LOW
This message displays and the Low Fuel Warning
Light in the instrument panel cluster comes on when
your vehicle is low on fuel. Re�ll the fuel tank as soon
as possible. SeeFuel Gage on

Page 177 of 436

PONTIAC TORRENT 2009  Owners Manual REMOTE KEY LEARNING ACTIVE
This message displays while you are matching a
Remote Keyless Entry (RKE) transmitter to your vehicle.
See “LEARN REMOTE KEY” underDIC Operation
and Displays on page 3-4

Page 178 of 436

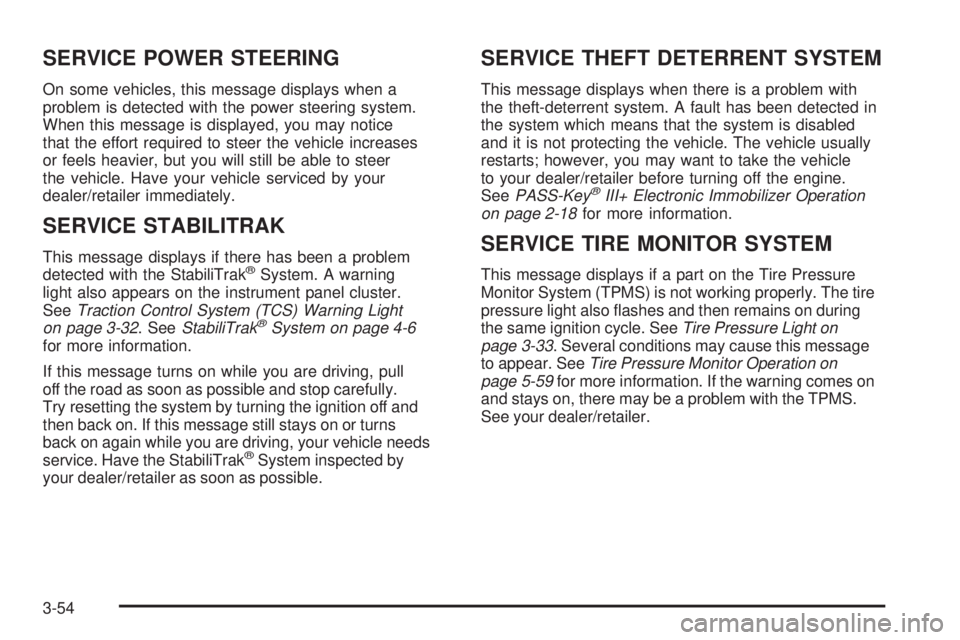

PONTIAC TORRENT 2009  Owners Manual SERVICE POWER STEERING
On some vehicles, this message displays when a
problem is detected with the power steering system.
When this message is displayed, you may notice
that the effort required to ste

Page 179 of 436

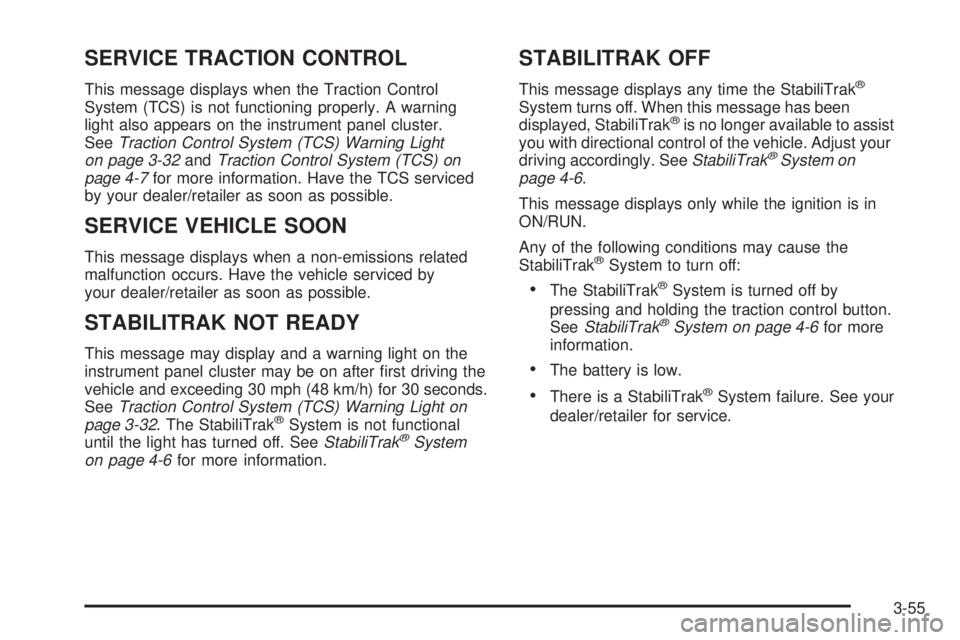

PONTIAC TORRENT 2009  Owners Manual SERVICE TRACTION CONTROL
This message displays when the Traction Control
System (TCS) is not functioning properly. A warning
light also appears on the instrument panel cluster.
SeeTraction Control Sys

Page 180 of 436

PONTIAC TORRENT 2009  Owners Manual STARTING DISABLD (Disabled)
SERVICE THRTTLE (Throttle)
This message displays if the starting of the engine is
disabled due to the electronic throttle control system.
Have your vehicle serviced by your
