engine coolant PONTIAC VIBE 2003 Owner's Manual

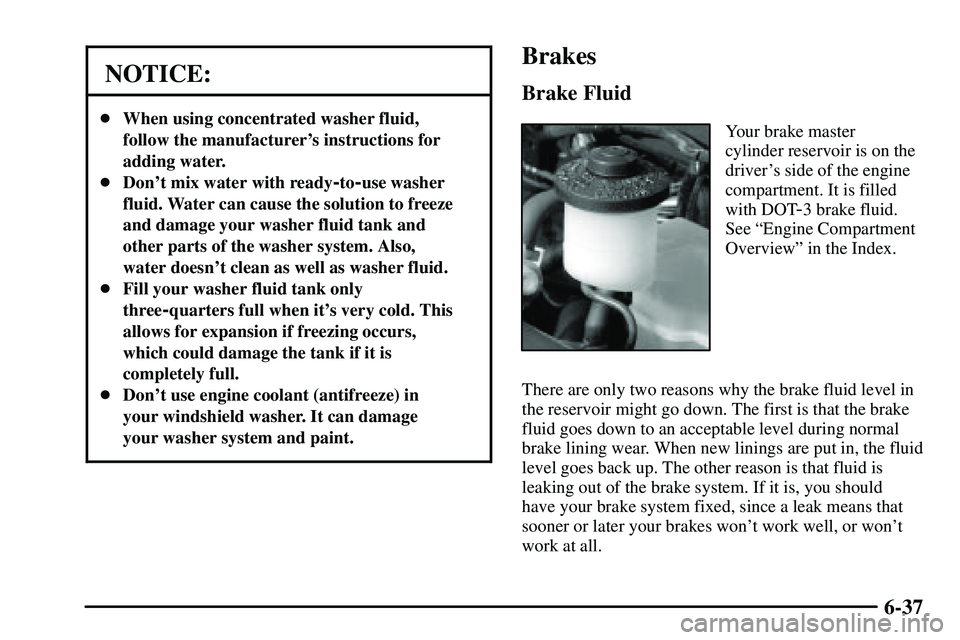

6-37
NOTICE:

When using concentrated washer fluid,
follow the manufacturer's instructions for
adding water.

Don't mix water with ready
-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn't clean as well as washer fluid.

Fill your washer fluid tank only
three
-quarters full when it's very cold. This
allows for expansion if freezing occurs,
which could damage the tank if it is
completely full.

Don't use engine coolant (antifreeze) in
your windshield washer. It can damage
your washer system and paint.
Brakes
Brake Fluid
Your brake master
cylinder reservoir is on the
driver's side of the engine
compartment. It is filled
with DOT
-3 brake fluid.
See ªEngine Compartment
Overviewº in the Index.
There are only two reasons why the brake fluid level in
the reservoir might go down. The first is that the brake
fluid goes down to an acceptable level during normal
brake lining wear. When new linings are put in, the fluid
level goes back up. The other reason is that fluid is
leaking out of the brake system. If it is, you should
have your brake system fixed, since a leak means that
sooner or later your brakes won't work well, or won't
work at all.

Short Trip/City Scheduled Maintenance
7-13
30,000 Miles (50 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Replace passenger compartment air filter.
Replace engine air cleaner filter (or every 24 months, whichever occurs first).
An Emission Control Service.
Inspect fuel tank, cap, cap gasket and lines for damage or leaks
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.
Check automatic transaxle fluid.
Change transfer case fluid when doing frequent trailer towing.
Change rear differential fluid when doing frequent trailer towing.ACTUAL
SERVICED BY:MILEAGE
DATE

Short Trip/City Scheduled Maintenance

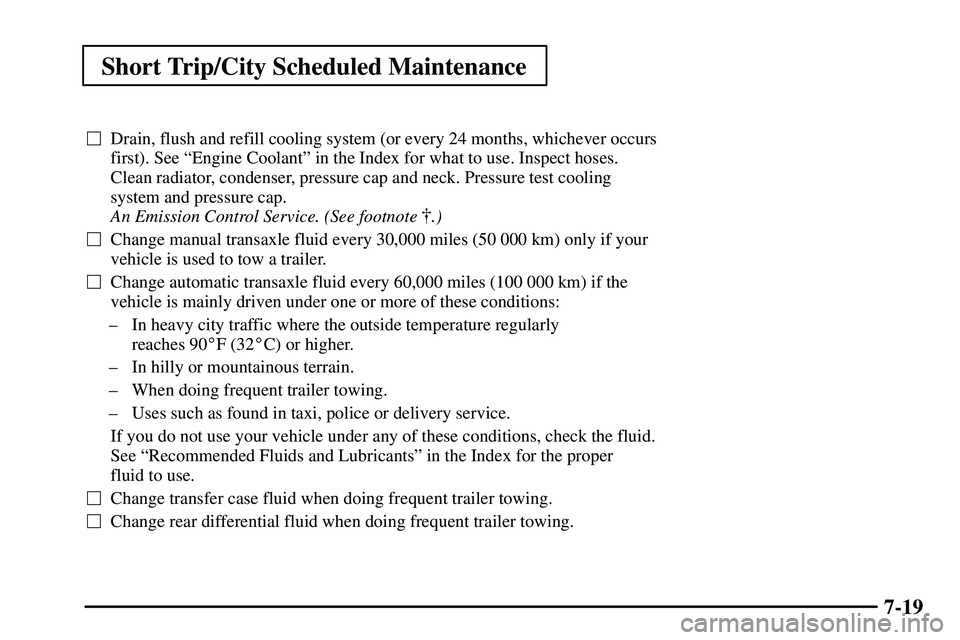

7-19
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.
Change automatic transaxle fluid every 60,000 miles (100 000 km) if the
vehicle is mainly driven under one or more of these conditions:
± In heavy city traffic where the outside temperature regularly
reaches 90F (32C) or higher.
± In hilly or mountainous terrain.
± When doing frequent trailer towing.
± Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, check the fluid.
See ªRecommended Fluids and Lubricantsº in the Index for the proper
fluid to use.
Change transfer case fluid when doing frequent trailer towing.
Change rear differential fluid when doing frequent trailer towing.

Short Trip/City Scheduled Maintenance
7-24
90,000 Miles (150 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Replace passenger compartment air filter.
Inspect engine accessory drive belts (or every 12 months since
last inspection).
An Emission Control Service.
Replace engine air cleaner filter (or every 24 months, whichever occurs first).
An Emission Control Service.
Inspect fuel tank, cap, cap gasket and lines for damage or leaks
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)ACTUAL
SERVICED BY:MILEAGE
DATE

Long Trip/Highway Scheduled Maintenance
7-29
30,000 Miles (50 000 km)

Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.

Lubricate chassis components (or every 12 months, whichever occurs first).
(See footnote #.)

Replace passenger compartment air filter.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)

Replace engine air cleaner filter.
An Emission Control Service.

Inspect fuel tank, cap, cap gasket and lines for damage or leaks
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.
Check automatic transaxle fluid.ACTUAL
SERVICED BY:MILEAGE
DATE

Long Trip/Highway Scheduled Maintenance
7-32
60,000 Miles (100 000 km) (Continued)

Replace engine air cleaner filter (or every 24 months, whichever occurs first).
An Emission Control Service.

Inspect fuel tank, cap, cap gasket and lines for damage
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)
Inspect for tappet noise and engine vibration. Adjust valve clearance to factory
specifications if necessary (or every 48 months, whichever occurs first).
An Emission Control Service.
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.

Long Trip/Highway Scheduled Maintenance
7-35
90,000 Miles (150 000 km)

Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.

Lubricate chassis components (or every 12 months, whichever occurs first).
(See footnote #.)

Replace passenger compartment air filter.

Replace engine air cleaner filter.
An Emission Control Service.

Inspect fuel tank, cap, cap gasket and lines for damage or leaks
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)
Inspect engine accessory drive belts (or 12 months since last inspection).
An Emission Control Service.
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.
Check automatic transaxle fluid.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.) ACTUAL
SERVICED BY:MILEAGE
DATE

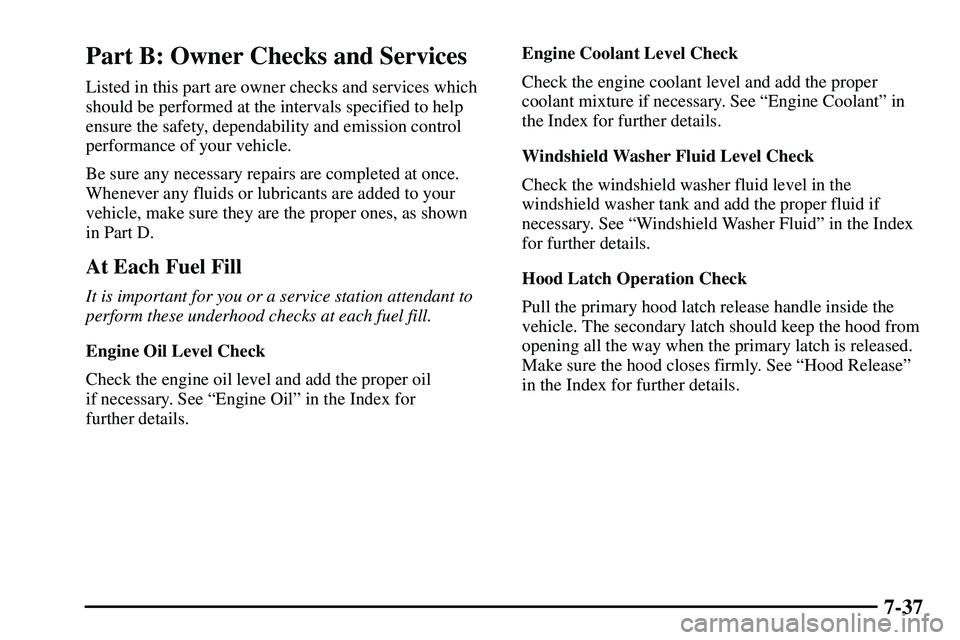

7-37
Part B: Owner Checks and Services
Listed in this part are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. See ªEngine Oilº in the Index for
further details.Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mixture if necessary. See ªEngine Coolantº in
the Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See ªWindshield Washer Fluidº in the Index
for further details.
Hood Latch Operation Check
Pull the primary hood latch release handle inside the
vehicle. The secondary latch should keep the hood from
opening all the way when the primary latch is released.
Make sure the hood closes firmly. See ªHood Releaseº
in the Index for further details.

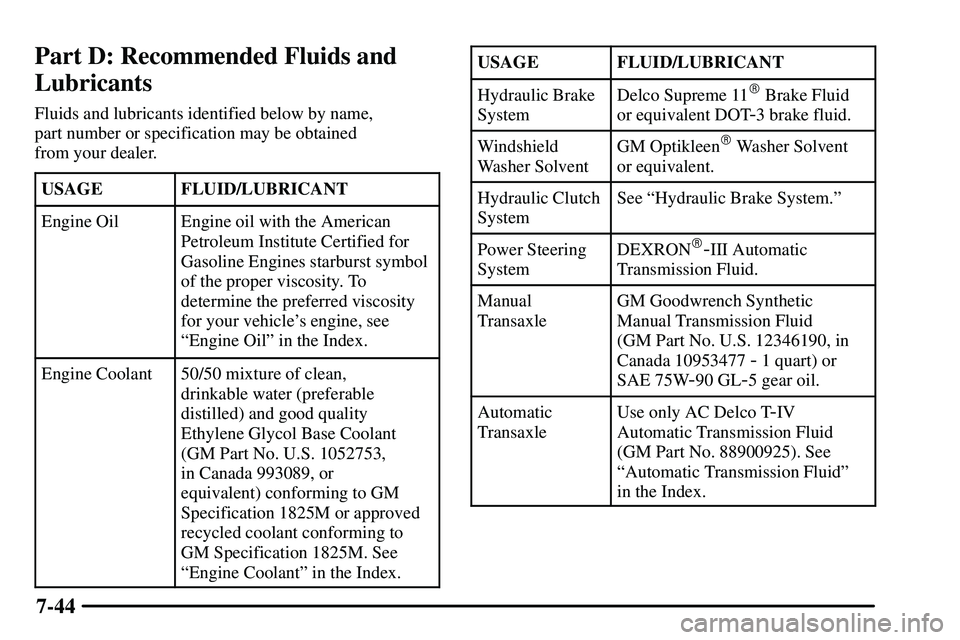

7-44
Part D: Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name,
part number or specification may be obtained
from your dealer.
USAGE
FLUID/LUBRICANT
Engine OilEngine oil with the American
Petroleum Institute Certified for
Gasoline Engines starburst symbol
of the proper viscosity. To
determine the preferred viscosity
for your vehicle's engine, see
ªEngine Oilº in the Index.
Engine Coolant50/50 mixture of clean,
drinkable water (preferable
distilled) and good quality
Ethylene Glycol Base Coolant
(GM Part No. U.S. 1052753,
in Canada 993089, or
equivalent) conforming to GM
Specification 1825M or approved
recycled coolant conforming to
GM Specification 1825M. See
ªEngine Coolantº in the Index.
USAGEFLUID/LUBRICANT
Hydraulic Brake
SystemDelco Supreme 11
Brake Fluid
or equivalent DOT
-3 brake fluid.
Windshield
Washer SolventGM Optikleen
Washer Solvent
or equivalent.
Hydraulic Clutch
SystemSee ªHydraulic Brake System.º
Power Steering
SystemDEXRON
-III Automatic
Transmission Fluid.
Manual
TransaxleGM Goodwrench Synthetic
Manual Transmission Fluid
(GM Part No. U.S. 12346190, in
Canada 10953477
- 1 quart) or
SAE 75W
-90 GL-5 gear oil.
Automatic
TransaxleUse only AC Delco T-IV
Automatic Transmission Fluid
(GM Part No. 88900925). See
ªAutomatic Transmission Fluidº
in the Index.
