PONTIAC VIBE 2003 Owners Manual

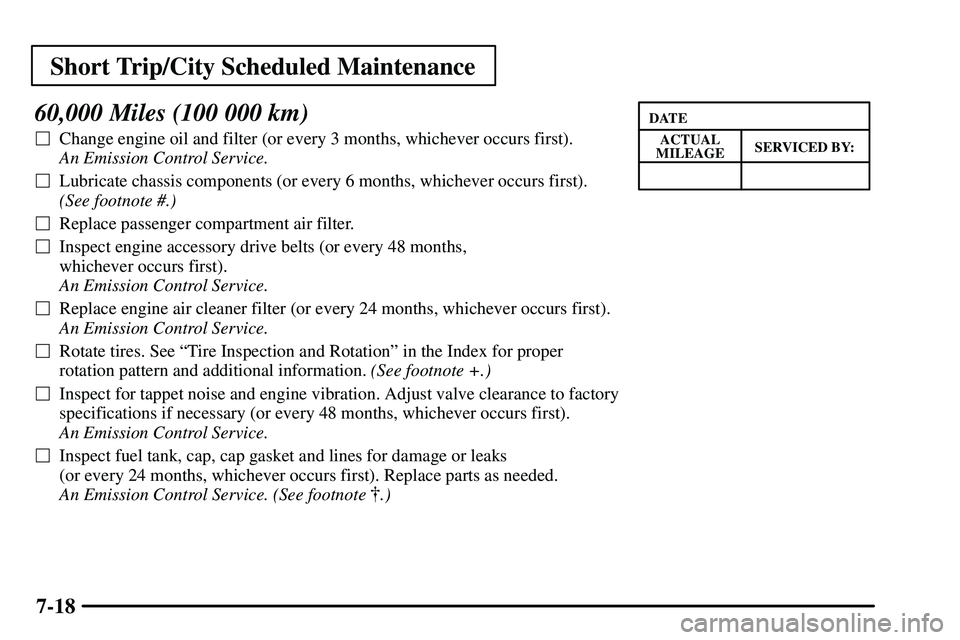

Short Trip/City Scheduled Maintenance
7-18
60,000 Miles (100 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Replace passenger compartment air filter.
Inspect engine accessory drive belts (or every 48 months,
whichever occurs first).
An Emission Control Service.
Replace engine air cleaner filter (or every 24 months, whichever occurs first).
An Emission Control Service.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Inspect for tappet noise and engine vibration. Adjust valve clearance to factory
specifications if necessary (or every 48 months, whichever occurs first).
An Emission Control Service.
Inspect fuel tank, cap, cap gasket and lines for damage or leaks
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)ACTUAL
SERVICED BY:MILEAGE
DATE

Short Trip/City Scheduled Maintenance
7-19
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.
Change automatic transaxle fluid every 60,000 miles (100 000 km) if the
vehicle is mainly driven under one or more of these conditions:
± In heavy city traffic where the outside temperature regularly
reaches 90F (32C) or higher.
± In hilly or mountainous terrain.
± When doing frequent trailer towing.
± Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, check the fluid.
See ªRecommended Fluids and Lubricantsº in the Index for the proper
fluid to use.
Change transfer case fluid when doing frequent trailer towing.
Change rear differential fluid when doing frequent trailer towing.

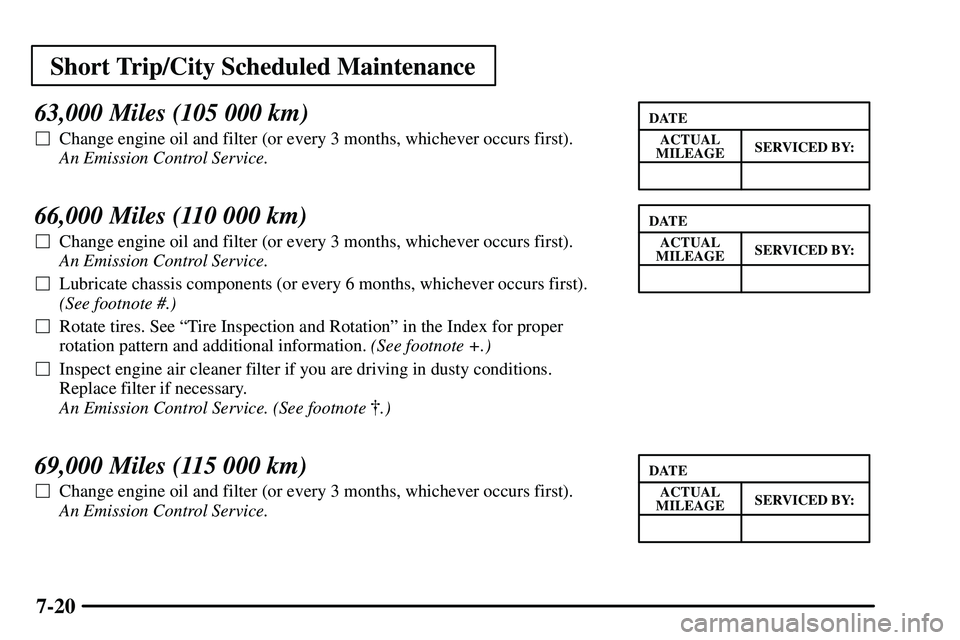

Short Trip/City Scheduled Maintenance
7-20
63,000 Miles (105 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
66,000 Miles (110 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Inspect engine air cleaner filter if you are driving in dusty conditions.
Replace filter if necessary.
An Emission Control Service. (See footnote
.)
69,000 Miles (115 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

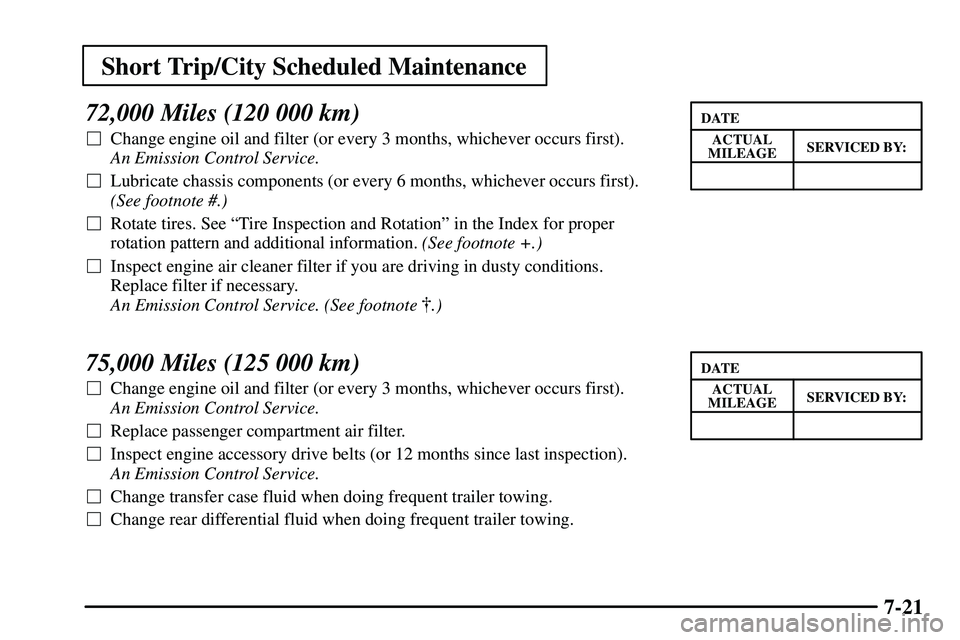

Short Trip/City Scheduled Maintenance
7-21
72,000 Miles (120 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Inspect engine air cleaner filter if you are driving in dusty conditions.
Replace filter if necessary.
An Emission Control Service. (See footnote
.)
75,000 Miles (125 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Replace passenger compartment air filter.
Inspect engine accessory drive belts (or 12 months since last inspection).
An Emission Control Service.
Change transfer case fluid when doing frequent trailer towing.
Change rear differential fluid when doing frequent trailer towing.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

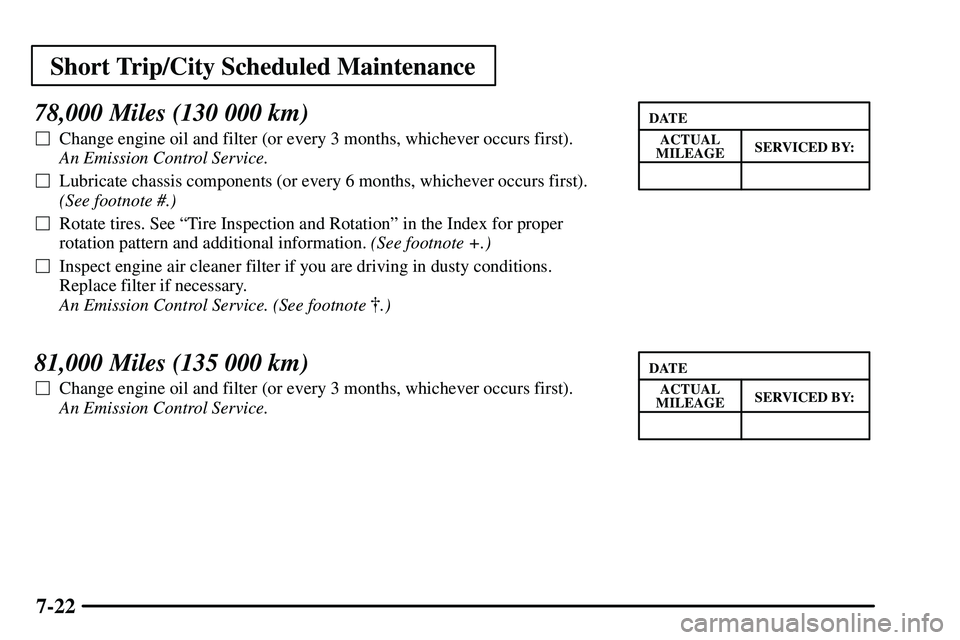

Short Trip/City Scheduled Maintenance
7-22
78,000 Miles (130 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Inspect engine air cleaner filter if you are driving in dusty conditions.
Replace filter if necessary.
An Emission Control Service. (See footnote
.)
81,000 Miles (135 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

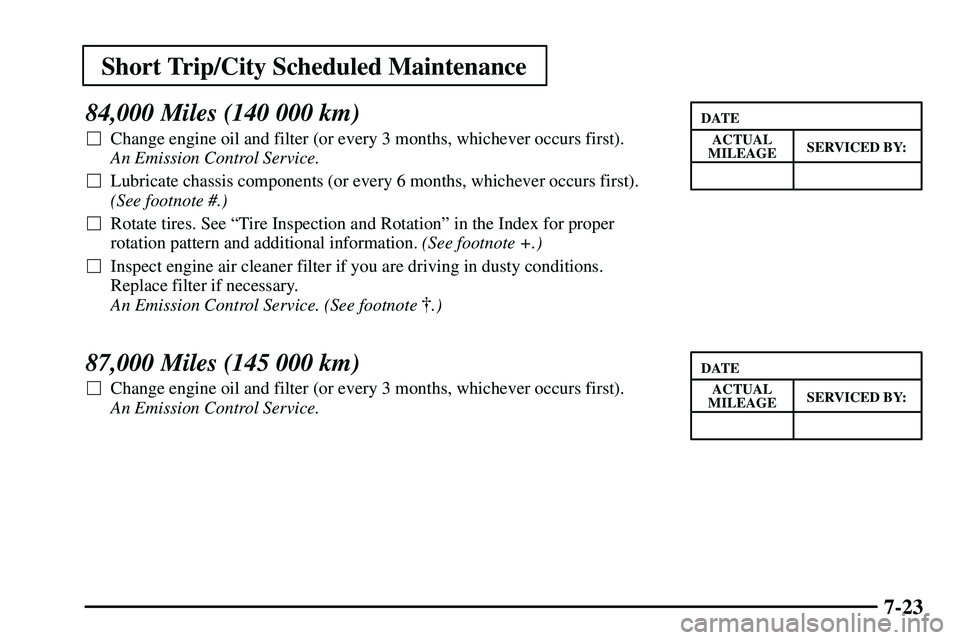

Short Trip/City Scheduled Maintenance
7-23
84,000 Miles (140 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Inspect engine air cleaner filter if you are driving in dusty conditions.
Replace filter if necessary.
An Emission Control Service. (See footnote
.)
87,000 Miles (145 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

Short Trip/City Scheduled Maintenance
7-24
90,000 Miles (150 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Replace passenger compartment air filter.
Inspect engine accessory drive belts (or every 12 months since
last inspection).
An Emission Control Service.
Replace engine air cleaner filter (or every 24 months, whichever occurs first).
An Emission Control Service.
Inspect fuel tank, cap, cap gasket and lines for damage or leaks
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)ACTUAL
SERVICED BY:MILEAGE
DATE

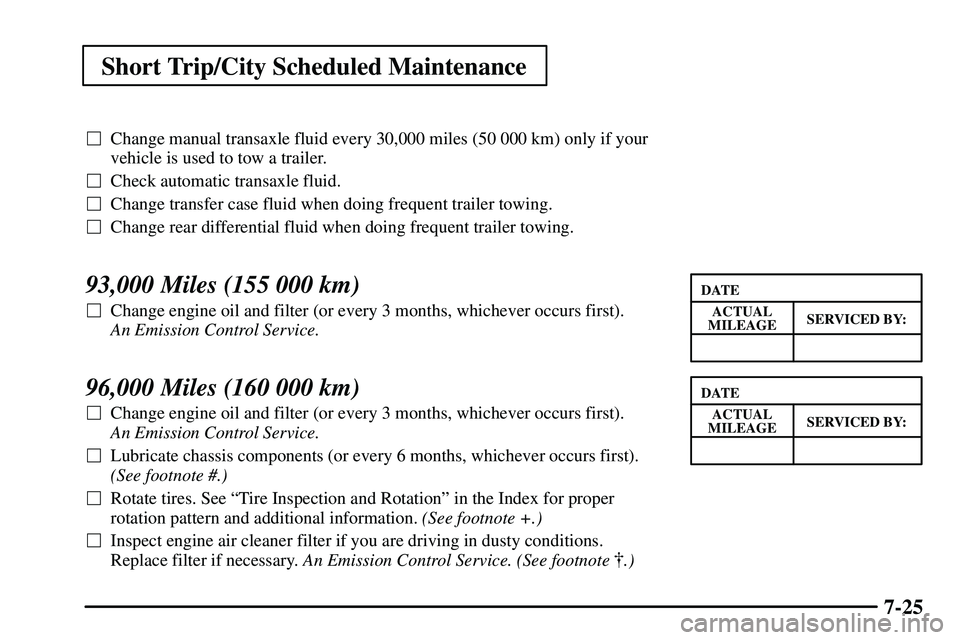

Short Trip/City Scheduled Maintenance
7-25
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.
Check automatic transaxle fluid.
Change transfer case fluid when doing frequent trailer towing.
Change rear differential fluid when doing frequent trailer towing.
93,000 Miles (155 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
96,000 Miles (160 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 6 months, whichever occurs first).
(See footnote #.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Inspect engine air cleaner filter if you are driving in dusty conditions.
Replace filter if necessary. An Emission Control Service. (See footnote
.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

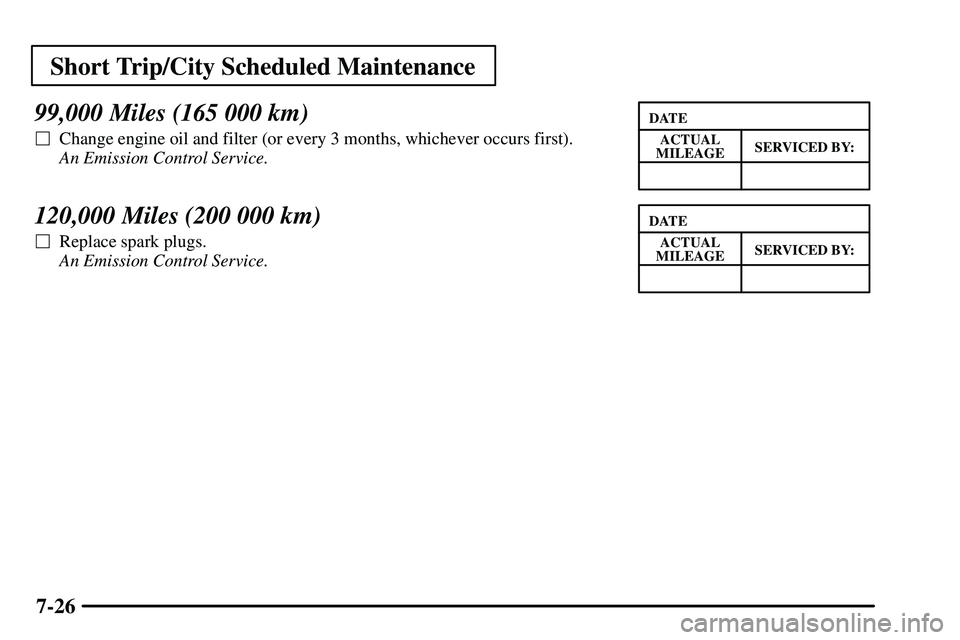

Short Trip/City Scheduled Maintenance
7-26
99,000 Miles (165 000 km)

Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
120,000 Miles (200 000 km)

Replace spark plugs.
An Emission Control Service.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

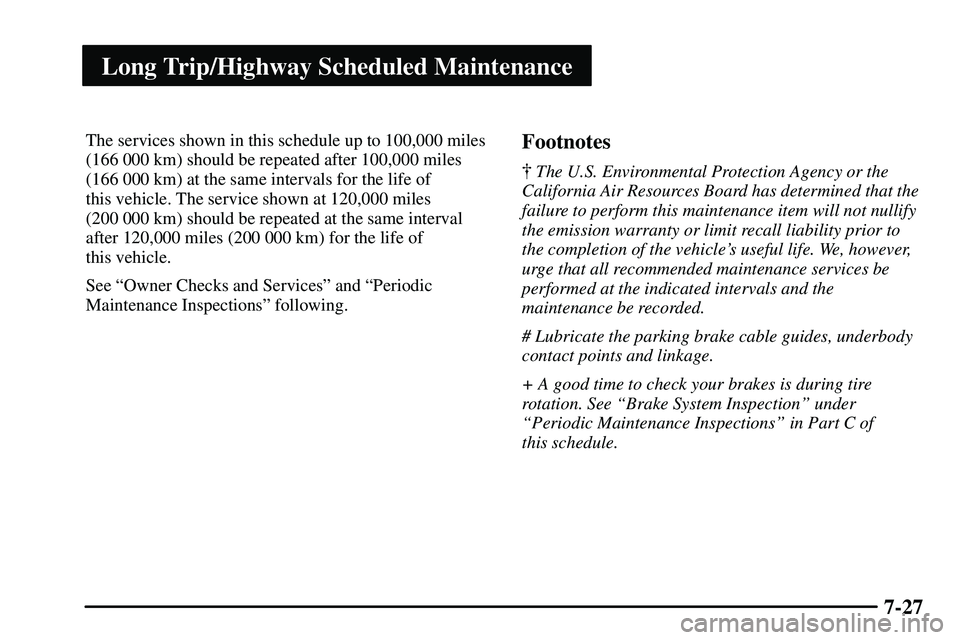

Long Trip/Highway Scheduled Maintenance
7-27
The services shown in this schedule up to 100,000 miles
(166 000 km) should be repeated after 100,000 miles
(166 000 km) at the same intervals for the life of
this vehicle. The service shown at 120,000 miles
(200 000 km) should be repeated at the same interval
after 120,000 miles (200 000 km) for the life of
this vehicle.
See ªOwner Checks and Servicesº and ªPeriodic
Maintenance Inspectionsº following.Footnotes

The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle's useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
# Lubricate the parking brake cable guides, underbody
contact points and linkage.
+ A good time to check your brakes is during tire
rotation. See ªBrake System Inspectionº under
ªPeriodic Maintenance Inspectionsº in Part C of
this schedule.
