PONTIAC VIBE 2005 Manual PDF

Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Programmable Automatic Door Locks................2-9

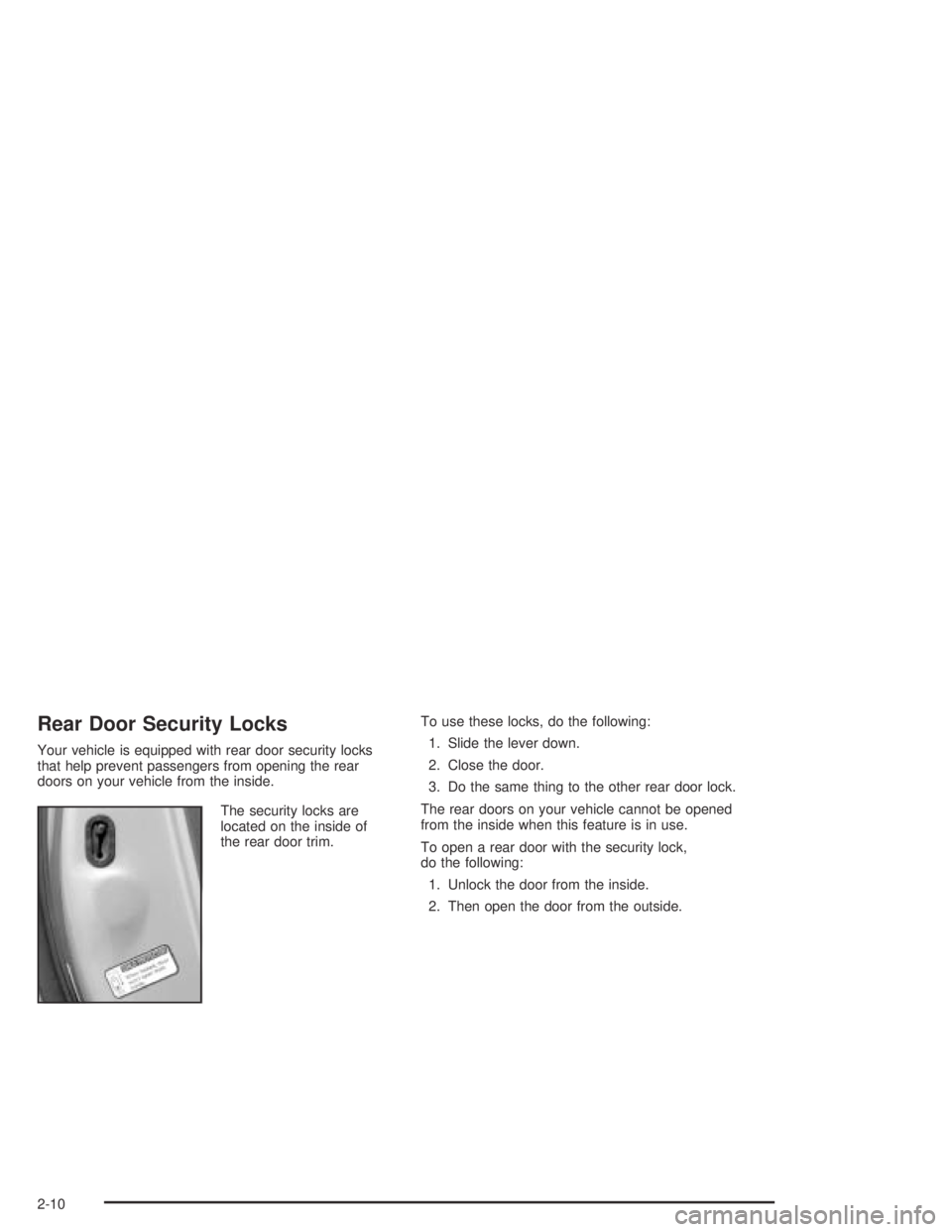

Rear Door Security Locks..............................2-10
Liftgate/Liftglass............................................2-11
Windows........................................................2-13
Manual Windows..........................................2-14
Power Windows............................................2-14
Sun Visors...................................................2-14
Theft-Deterrent Systems..................................2-15
Content Theft-Deterrent.................................2-15
Starting and Operating Your Vehicle................2-17
New Vehicle Break-In....................................2-17
Ignition Positions..........................................2-18
Starting Your Engine.....................................2-19
Engine Coolant Heater..................................2-21
Automatic Transaxle Operation.......................2-22
Overdrive Off...............................................2-24
Manual Transaxle Operation...........................2-25
Parking Brake..............................................2-28Shifting Into Park (P) (Automatic Transaxle)........2-28
Shifting Out of Park (P) (Automatic Transaxle).....2-30
Parking Your Vehicle (Manual Transaxle).........2-31
Parking Over Things That Burn.......................2-32
Engine Exhaust............................................2-32
Running Your Engine While You Are Parked.......2-33
Mirrors...........................................................2-34
Manual Rearview Mirror.................................2-34
Manual Rearview Mirror with OnStar
®..............2-34
Outside Remote Control Mirrors......................2-34
Outside Convex Mirror...................................2-35
OnStar
®System.............................................2-35
Storage Areas................................................2-37
Glove Box...................................................2-37
Cupholder(s)................................................2-37
Coinholder(s)................................................2-37
Instrument Panel Storage Area.......................2-37
Center Console Storage Area.........................2-37
Floor Mats...................................................2-38
Rear Storage Area........................................2-38
Rear Cargo Accessory Track System................2-39
Cargo Cover................................................2-39
Cargo Tie Downs..........................................2-40
Sunroof.........................................................2-40
Section 2 Features and Controls
2-1

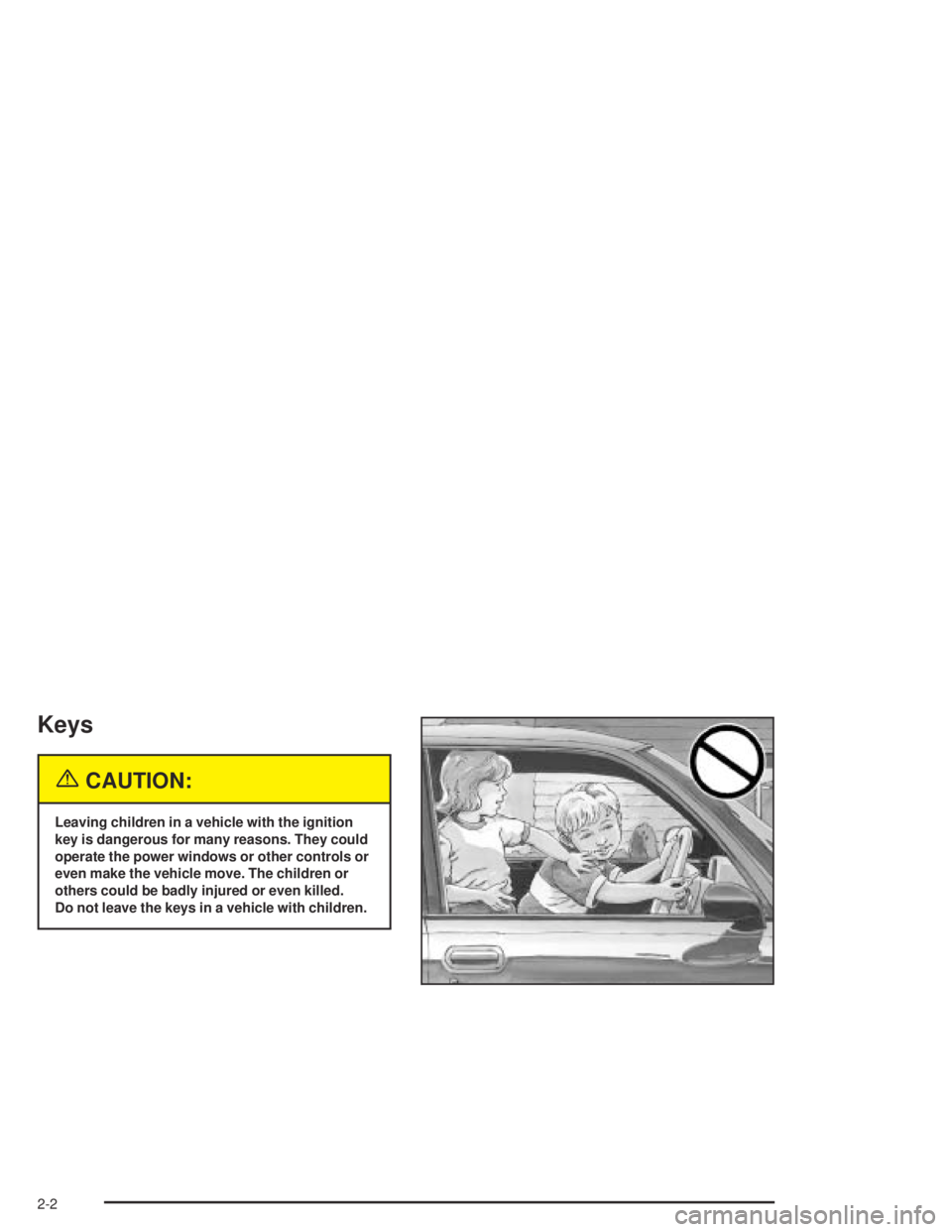

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. They could
operate the power windows or other controls or
even make the vehicle move. The children or
others could be badly injured or even killed.
Do not leave the keys in a vehicle with children.
2-2

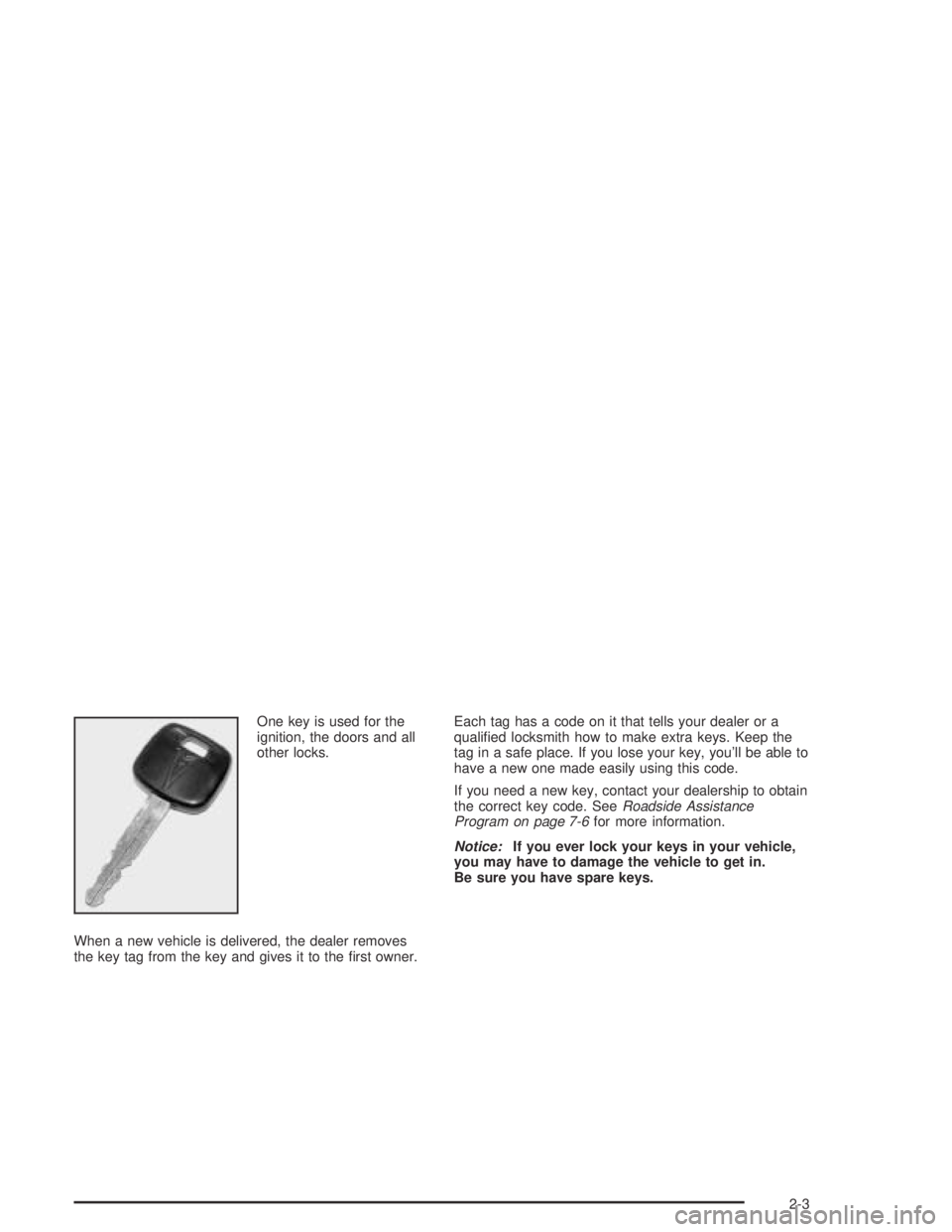

One key is used for the
ignition, the doors and all
other locks.
When a new vehicle is delivered, the dealer removes
the key tag from the key and gives it to the rst owner.Each tag has a code on it that tells your dealer or a
qualied locksmith how to make extra keys. Keep the
tag in a safe place. If you lose your key, you’ll be able to
have a new one made easily using this code.
If you need a new key, contact your dealership to obtain
the correct key code. SeeRoadside Assistance
Program on page 7-6for more information.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
2-3

Remote Keyless Entry System
If equipped, the keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement” under
Remote Keyless Entry System Operation on
page 2-5.
If you are still having trouble, see your dealer or a
qualied technician for service.
2-4

Remote Keyless Entry System
Operation
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle. The remote keyless entry transmitter
will look different if your vehicle was purchased in
Canada, however it will operate the same.
LOCK:Press this button to
lock all of the doors.The turn signal lights will ash once to conrm that the
doors have locked. The remote keyless entry system
will not operate while the doors are open, the key is in
the ignition or if the liftglass or hatch are not completely
closed and latched.
UNLOCK:Press this button once to unlock the driver’s
door. The turn signal lights will ash twice and the
interior lamps will come on to conrm that the door has
unlocked. If the UNLOCK button is pressed again
within three seconds, all remaining doors will unlock.
The interior lamps will stay on for 15 seconds or until the
ignition is turned on. If the UNLOCK button is pressed
and no door is opened, the doors will lock automatically
after 30 seconds.
HATCH:Press this button to open the rear liftglass.
If the ignition key is in the ON position, the liftglass
cannot be opened by the HATCH button on the
transmitter.
2-5

Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum
of four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.To replace the battery, do the following:
1. Insert a small coin or similar object to separate the
bottom half from the top half of the transmitter.
2. Remove the battery and replace it with the new
one. Make sure the positive side of the battery
faces upward. For battery replacement, use
a three-volt battery, type CR2032, or equivalent.
3. Snap the transmitter back together tightly to be sure
no moisture can enter.
2-6

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle will not open it. You increase
the chance of being thrown out of the
vehicle in a crash if the doors are not
locked. So, wear safety belts properly and
lock the doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
CAUTION: (Continued)
CAUTION: (Continued)

Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors
can help prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or the remote keyless
entry transmitter, if equipped. SeeRemote Keyless Entry
System Operation on page 2-5for more information.
If your vehicle has power door locks, open the driver’s
door by turning the key in the lock toward the rear
of the vehicle. Turning the key back toward the center,
then toward the rear again will unlock all of the
doors. Using the key in the passenger’s door will also
unlock all of the doors.
Lock a door by turning the key toward the front of the
vehicle. If you have power door locks, all the doors
will lock.
2-7

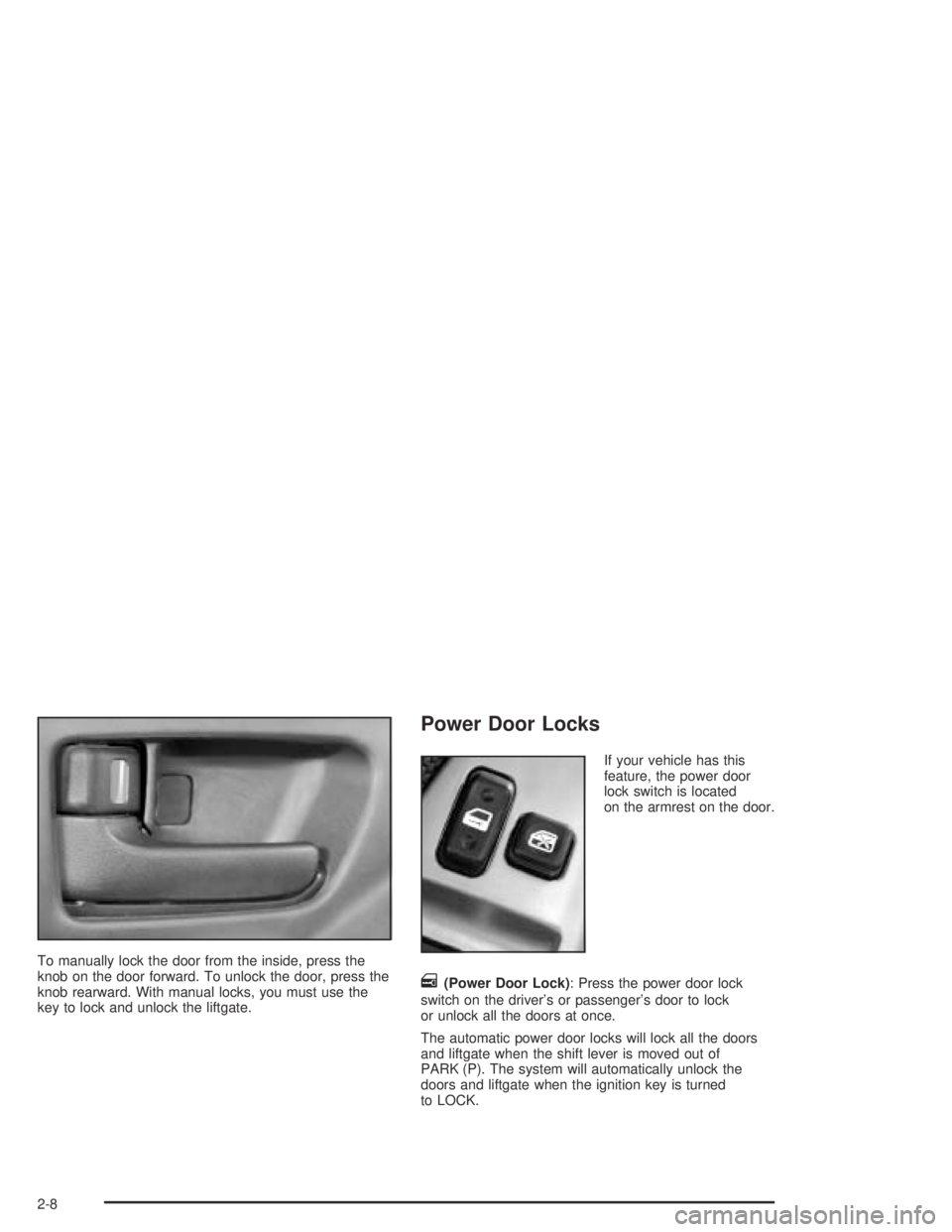

To manually lock the door from the inside, press the
knob on the door forward. To unlock the door, press the
knob rearward. With manual locks, you must use the
key to lock and unlock the liftgate.
Power Door Locks
If your vehicle has this
feature, the power door
lock switch is located
on the armrest on the door.
e(Power Door Lock): Press the power door lock
switch on the driver’s or passenger’s door to lock
or unlock all the doors at once.
The automatic power door locks will lock all the doors
and liftgate when the shift lever is moved out of
PARK (P). The system will automatically unlock the
doors and liftgate when the ignition key is turned
to LOCK.
2-8

Programmable Automatic
Door Locks
If you have an automatic transaxle, your vehicle is
equipped with an auto door lock/unlock feature which
enables you to program your power door locks.
Your vehicle left the factory programmed to Mode 4.
The following is a list of the available programming
options:
Mode 1:All doors and liftgate lock when the shift lever
is moved out of PARK (P) with the ignition on and all
doors and liftgate closed. There is no automatic
door unlocking.
Mode 2:No automatic door locking or unlocking.
Mode 3:All doors and liftgate lock when the shift lever
is moved out of PARK (P) with the ignition on and all
doors and liftgate closed. All doors and liftgate
unlock when the shift lever is moved to PARK (P) with
the ignition on.
Mode 4:All doors and liftgate lock when the shift lever
is moved out of PARK (P) with the ignition on and all
doors and liftgate closed. All doors and liftgate
unlock when the ignition switch is turned from ON to
ACC or to LOCK.To change the mode you are in, do the following:
1. Set the interior lamp control dial to the door position.
SeeInterior Lamps Control on page 3-16.
2. Move the shift lever into PARK (P) and close all
doors and liftgate.
3. Turn the ignition to ON.
4. Within ve seconds after the ignition is turned to
ON, press and hold the power door lock switch in
the lock position for about ve seconds.
5. The interior lamp will ash to indicate that the mode
has been changed. For example, if the lamp ashes
once, the function has been changed to Mode 1.
If the battery is disconnected or run down, the mode is
changed to the initial mode which is Mode 4.
2-9

Rear Door Security Locks
Your vehicle is equipped with rear door security locks
that help prevent passengers from opening the rear
doors on your vehicle from the inside.
The security locks are
located on the inside of
the rear door trim.To use these locks, do the following:
1. Slide the lever down.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors on your vehicle cannot be opened
from the inside when this feature is in use.
To open a rear door with the security lock,
do the following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
2-10
